DS(ON)
A
H
B
M
D
C
J
K
F
L
E
N
G
Millimeter
Millimeter
Min. Max. Min. Max.
A 5.80 6.20 H 0.35 0.49
B 4.80 5.00 J 0.375 REF.
C 3
.80 4.00 K 45°
D 0° 8° L 1.35 1.75
E 0.40 0.90 M 0.10 0.25
F 0.19 0.25 N 0.25 REF.
G 1.27 TYP.
S1
G1
S2
D1
D1
D2
D2 G2
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
DESCRIPTION
These miniature surface mount MOSFETs utilize a
high cell density trench process to provide low R
DS(on)
and to ensure minimal power loss and heat dissipation.
FEATURES
Low R
provides higher efficiency and
DS(on)
extends battery life.
Low thermal impedance copper leadframe
SOP-8 saves board space.
Fast Switch Speed.
High performance trench technology.
APPLICATION
DC-DC converters and power management in portable
and battery-powered products such as computers, printers,
PCMCIA cards, cellular and cordless telephones.
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
N-Ch: 10.0 A, 30 V, R
P-Ch: -8.5A, -30 V, R
SOP-8
REF.
DS(ON)
REF.
16 mΩ
ΩΩΩ
23 mΩΩΩΩ
PACKAGE INFORMATION
Package MPQ Leader Size
SOP-8 2.5K 13 inch
MAXIMUM RATINGS
Drain-Source Voltage VDS 30 -30 V
Gate-Source Voltage VGS 20 -25 V
Continuous Drain Current1
Pulsed Drain Current2 IDM 50 -50 A
Continuous Source Current (Diode Conduction) 1 IS 2.3 -2.1 A
Total Power Dissipation1
Operating Junction and Storage Temperature Range
(TA = 25°C unless otherwise specified)
Parameter Symbol
TA=25°C
TA=70°C 8.1 -6.8 A
TA=25°C
TA=70°C 1.3 1.3 W
PD
TJ, T
ID
STG
Ratings
N-Ch P-Ch
10 -8.5 A
2.1 2.1 W
-55~150 °C
Unit
Maximum Junction-Ambient 1
Notes：
1. Surface Mounted on 1” x 1” FR4 Board.
2. Pulse width limited by maximum junction temperature
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 1 of 7
t<=10sec
Steady State
62.5 °C / W
R
θJA
110 °C / W
Thermal Resistance Ratings
Page 2
DS(ON)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
Elektronische Bauelemente
P-Ch: -8.5A, -30 V, R
N-Ch: 10.0 A, 30 V, R
DS(ON)
16 mΩ
ΩΩΩ
23 mΩΩΩΩ
N-CHANNEL ELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise specified)
Parameter Symbol Min. Typ. Max. Unit
Static
Drain-Source Breakdown Voltage V
Gate Threshold Voltage V
Gate-Source Leakage Current I
Drain-Source Leakage Current I
On-State Drain Current1 I
Static Drain-Source On-Resistance1 R
Forward Transconductance1 g
(BR)DSS
GS(th)
GSS
DSS
D(ON)
DS(ON)
fs
Pulsed Source Current (Body Diode) 1 ISM - 5 - A
Total Gate Charge Qg - 12
Gate-Source Charge Qgs - 3.3 Gate-Drain (“Miller”) Change Qgd - 4.5 -
30 - - V VGS=0, ID=250µA
1 - - V VDS=VGS, ID=250µA
- - ±10 nA VGS= 20V, VDS=0
- - 1 µA VDS=24V, VGS=0
- - 20 A VDS=5V, VGS=10V
- - 16
- - 20 VGS=4.5V, ID=8.4A
- 40 - S VDS=15V, ID=10A
Dynamic
VGS=10V, ID=10A
mΩ
ID=10A
nC
VDS=15V
VGS=4.5V
Test Conditions
Turn-on Delay Time T
- 20 -
d(on)
Rise Time Tr - 9 Turn-off Delay Time T
Fall Time Tf -
Notes:
1. Pulse test: PW ≦ 300us duty cycle ≦ 2%.
2. Guaranteed by design, not subject to production testing.
- 70 -
d(off)
20
VDD=15V
VGS=10V
nS
ID=1A
R
=25Ω
GEN
-
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 2 of 7
Page 3
DS(ON)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
Elektronische Bauelemente
P-Ch: -8.5A, -30 V, R
N-Ch: 10.0 A, 30 V, R
DS(ON)
16 mΩ
ΩΩΩ
23 mΩΩΩΩ
P-CHANNEL ELECTRICAL CHARACTERISTICS
(TA=25°C unless otherwise specified)
Parameter Symbol Min. Typ. Max. Unit
Static
Drain-Source Breakdown Voltage V
Gate Threshold Voltage V
Gate-Source Leakage Current I
Drain-Source Leakage Current I
On-State Drain Current1 I
Static Drain-Source On-Resistance1 R
Forward Transconductance1 g
Pulsed Source Current (Body Diode) 1 ISM - 5 - A
Total Gate Charge Qg - 13
Gate-Source Charge Qgs - 5.8 Gate-Drain (“Miller”) Change Qgd - 12 -
(BR)DSS
GS(th)
GSS
DSS
D(ON)
DS(ON)
fs
-30 - - V VGS=0, ID=-250µA
-1 - - V VDS=VGS, ID=-250µA
- - ±10 nA VGS=-20V, VDS=0
- - -1 µA VDS=-24V, VGS=0
-50 - - A VDS=-5V, VGS=-10V
- - 23
- - 33 VGS=-4.5V, ID=-6.8A
- 31 - S VDS=-15V, ID=-9.5A
Dynamic
VGS=-10V, ID=-8.5A
mΩ
ID=-10A
nC
VDS=-15V
VGS=-4.5V
Test Conditions
Turn-on Delay Time T
Rise Time Tr - 16 Turn-off Delay Time T
Fall Time Tf -
Notes:
1. Pulse test: PW ≦ 300us duty cycle ≦ 2%.
2. Guaranteed by design, not subject to production testing.
- 15 -
d(on)
- 62 -
d(off)
46
VDD=-15V
VGS=-10V
nS
ID=-1A
R
=15Ω
GEN
-
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 3 of 7
Page 4
DS(ON)
Elektronische Bauelemente

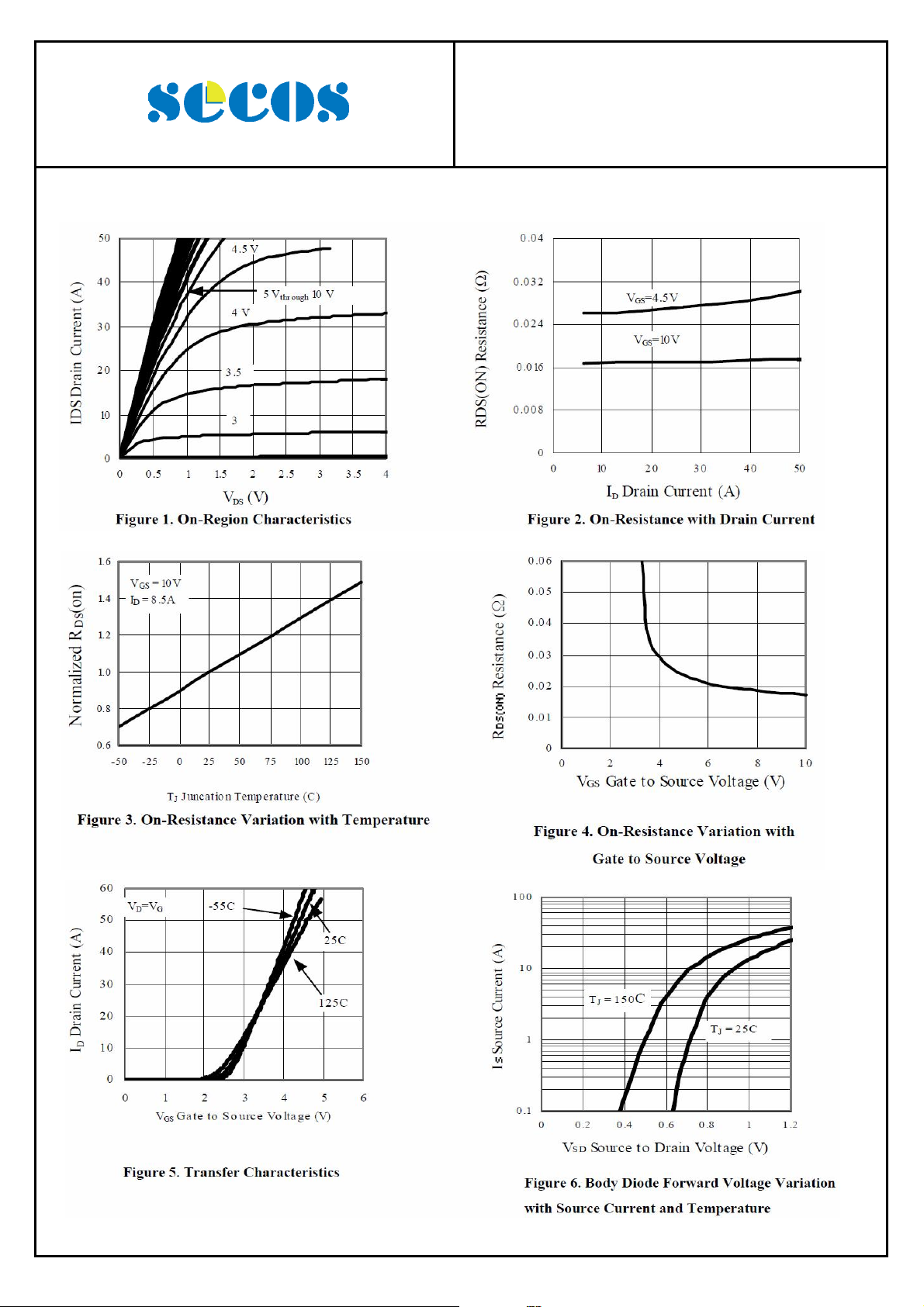

CHARACTERISTIC CURVE (N-Ch)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
N-Ch: 10.0 A, 30 V, R
P-Ch: -8.5A, -30 V, R
DS(ON)
16 mΩ
23 mΩΩΩΩ
ΩΩΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 4 of 7
Page 5
DS(ON)
Elektronische Bauelemente

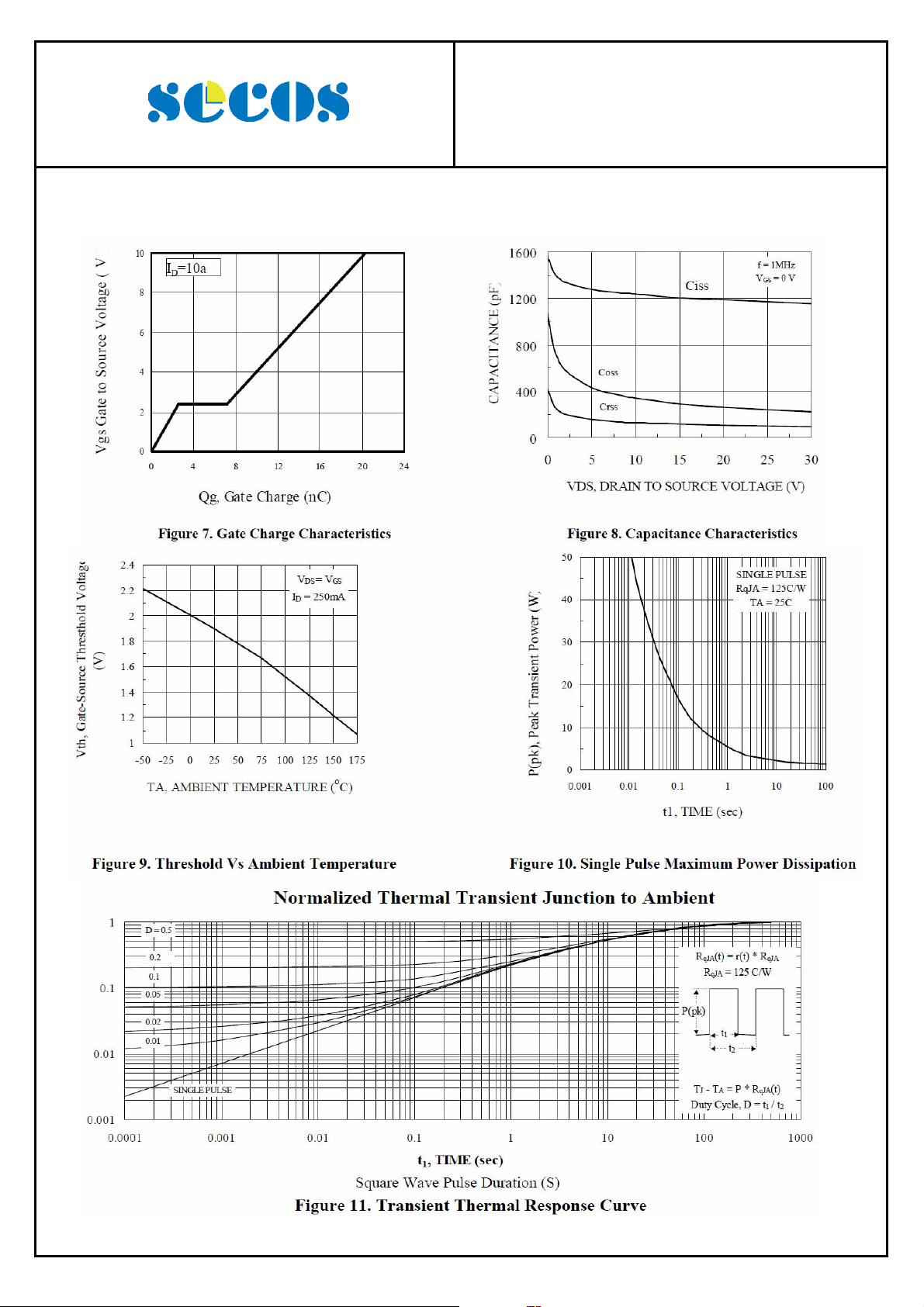

CHARACTERISTIC CURVE (N-Ch)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
N-Ch: 10.0 A, 30 V, R
P-Ch: -8.5A, -30 V, R
DS(ON)
16 mΩ
23 mΩΩΩΩ
ΩΩΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 5 of 7
Page 6
DS(ON)
Elektronische Bauelemente

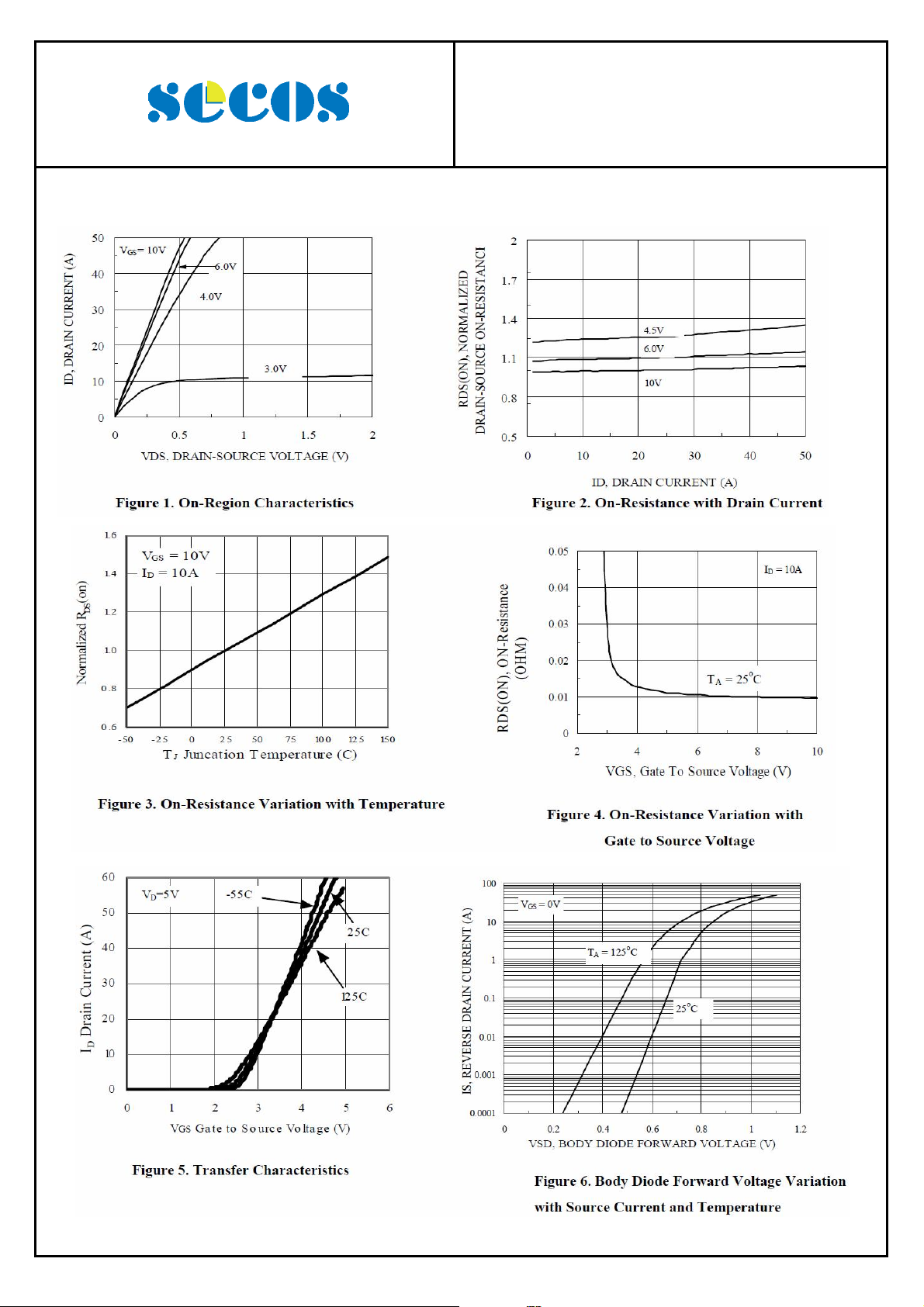

CHARACTERISTIC CURVE (P-Ch)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
N-Ch: 10.0 A, 30 V, R
P-Ch: -8.5A, -30 V, R
DS(ON)
16 mΩ
23 mΩΩΩΩ
ΩΩΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
26-Dec-2011 Rev. A Page 6 of 7
Page 7
DS(ON)
Elektronische Bauelemente

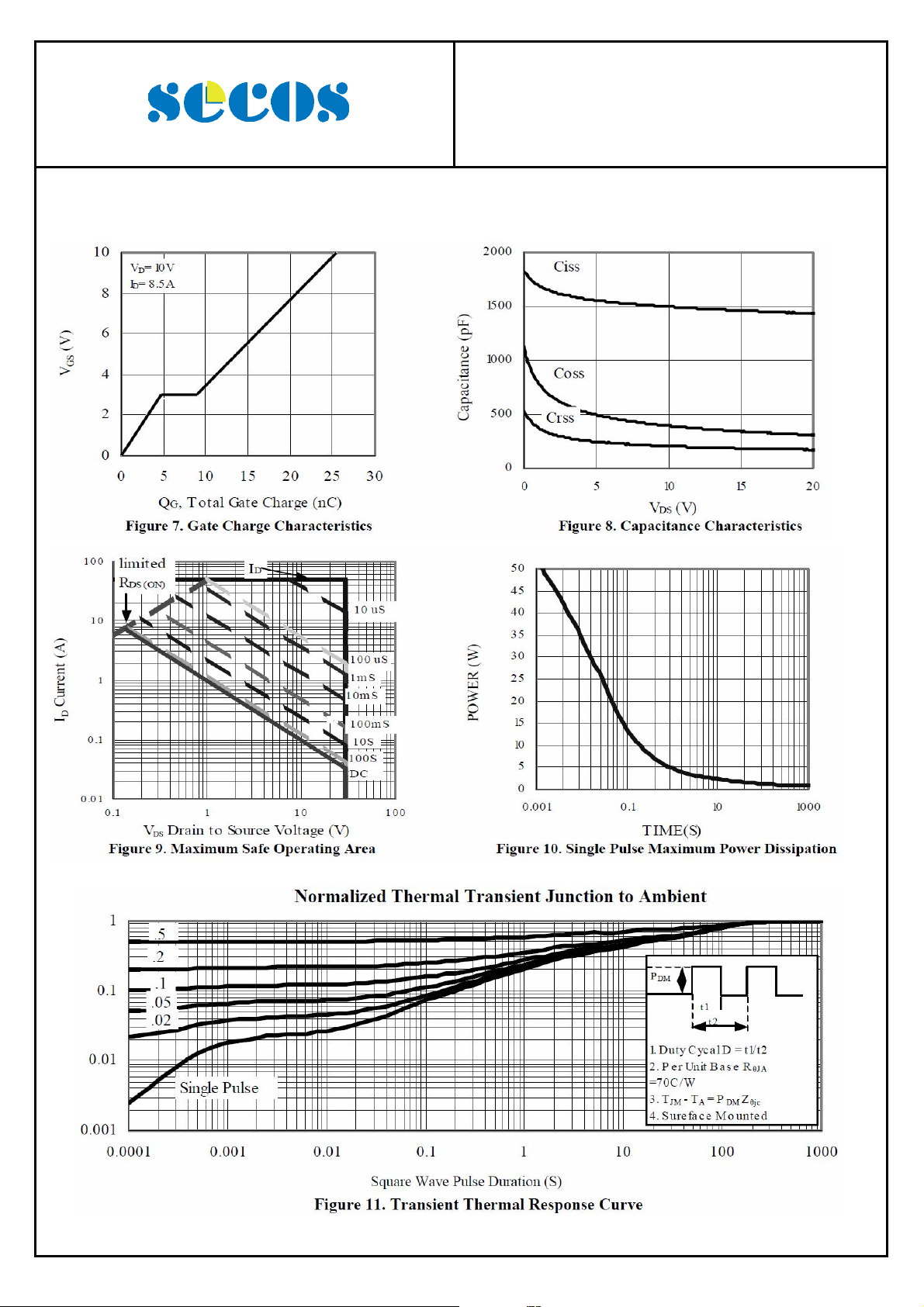

CHARACTERISTIC CURVE (P-Ch)
SSG4502CE
N & P-Ch Enhancement Mode Power MOSFET
N-Ch: 10.0 A, 30 V, R
P-Ch: -8.5A, -30 V, R
DS(ON)
16 mΩ
ΩΩΩ
23 mΩΩΩΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
