Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen and lead-free
DESCRIPTION
These miniature surface mount MOSFETs utilize a
high cell density trench process to provide low R
DS(on)
and to ensure minimal power loss and heat dissipation.
FEATURES
Low R
provides higher efficiency and
DS(on)
extends battery life.
Low thermal impedance copper leadframe
TO-220P saves board space.
Fast Switch Speed.
High performance trench technology.
APPLICATION
DC-DC converters and power management in portable
and battery-powered products such as computers, printers,
PCMCIA cards, cellular and cordless telephones.

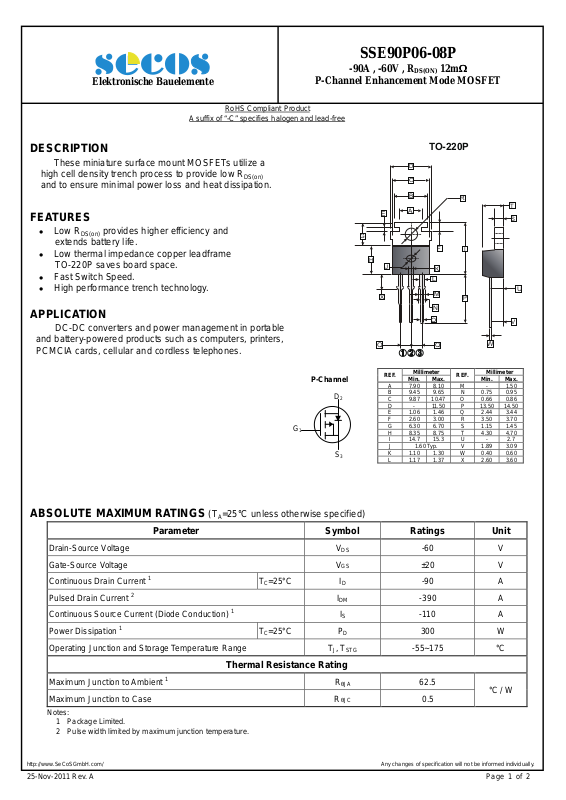

SSE90P06-08P
-90A , -60V , R
P-Channel Enhancement Mode MOSFET
P-Channel
D2
REF.
DS(ON)
12mΩΩΩΩ
REF.
G
1
S
3
ABSOLUTE MAXIMUM RATINGS
Parameter Symbol Ratings Unit
Drain-Source Voltage VDS -60 V
Gate-Source Voltage VGS ±20 V
Continuous Drain Current 1 TC=25°C ID -90 A
Pulsed Drain Current 2 IDM -390 A
Continuous Source Current (Diode Conduction) 1 IS -110 A
Power Dissipation 1 TC=25°C PD 300 W
Operating Junction and Storage Temperature Range TJ, T
Maximum Junction to Ambient 1 R
Maximum Junction to Case R
Notes:
1 Package Limited.
2 Pulse width limited by maximum junction temperature.
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
25-Nov-2011 Rev. A Page 1 of 2
(TA=25°C unless otherwise specified)
STG
Thermal Resistance Rating
θJA
0.5
θJC
-55~175 °C
62.5
°C / W
Page 2
SSE90P06-08P
-90A , -60V , R
Elektronische Bauelemente
P-Channel Enhancement Mode MOSFET
DS(ON)
12mΩΩΩΩ
ELECTRICAL CHARACTERISTICS
Parameter
(TA=25°C unless otherwise specified)
Symbol Min. Typ. Max.
Unit
Static
Gate-Threshold Voltage V
Gate-Body Leakage I
Zero Gate Voltage Drain Current I
On-State Drain Current 1 I
Drain-Source On-Resistance 1 R
Forward Transconductance 1 g
Diode Forward Voltage VSD - -1.1 - V IS= -2A, VGS=0
GS(th)
- - ±100
GSS
DSS
-120 - - A VDS= -5V, VGS= -10V
D(on)
DS(ON)
fs
-1 - - V VDS=VGS, ID= -250µA
nA VDS=0, VGS= -20V
- - -1
- - -25 VDS= -48V, VGS=0, TJ=55°C
- - 12
- - 14 VGS= -4.5V, ID= -2A
- 30 - S VDS= -15V, ID= -2A
µA
mΩ
Dynamic 2
Total Gate Charge Qg - 100 Gate-Source Charge Qgs - 30 Gate-Drain Charge Qgd - 40 Turn-on Delay Time T
Rise Time Tr - 20 Turn-off Delay Time T
Fall Time Tf - 100 -
Notes:
1 Pulse test：PW ≦ 300 µs duty cycle ≦ 2%.
2 Guaranteed by design, not subject to production testing.
- 20 -
d(on)
- 300 -
d(off)
nC
nS
Teat Conditions
VDS= -48V, VGS=0
VGS= -10V, ID= -2A
VDS= -15V,
VGS= -4.5V,
ID= -2A
VDD= -25V,
V
= -10V,
GEN
RL=25Ω,
ID= -34A
