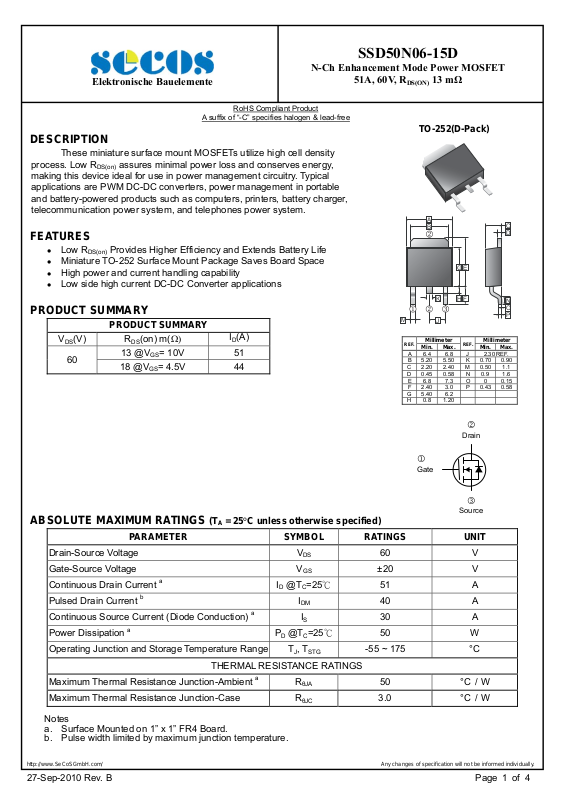

Page 1
r
Elektronische Bauelemente
RoHS Compliant Product
A suffix of “-C” specifies halogen & lead-free
N-Ch Enhancement Mode Power MOSFET
DESCRIPTION
These miniature surface mount MOSFETs utilize high cell density
process. Low R
assures minimal power loss and conserves energy,
DS(on)
making this device ideal for use in power management circuitry. Typical
applications are PWM DC-DC converters, power management in portable
and battery-powered products such as computers, printers, battery charger,
telecommunication power system, and telephones power system.
FEATURES
Low R
Miniature TO-252 Surface Mount Package Saves Board Space
High power and current handling capability
Low side high current DC-DC Converter applications
Provides Higher Efficiency and Extends Battery Life
DS(on)
PRODUCT SUMMARY
PRODUCT SUMMARY
(A)
I
V
(V) R
DS
60
(on) m(
DS
13 @V
= 10V 51
GS
18 @VGS= 4.5V 44
D
SSD50N06-15D
51A, 60V, R
M
13 mΩ
DS(ON)
TO-252(D-Pack)
A
B
J
Millimeter
REF.
Min. Max. Min. Max.
A 6.4 6.8 J 2.30 REF.
B 5.20 5.50 K 0.70 0.90
C 2.20 2.40 M 0.50 1.1
D 0.45 0.58 N 0.9 1.6
E 6.8 7.3 O 0 0.15
F 2.40 3.0 P 0.43 0.58
G 5.40 6.2
H 0.8 1.20
G E
FHK
REF.
Millimete
C
D
N
O
P
Gate
Drain
ABSOLUTE MAXIMUM RATINGS (T
PARAMETER SYMBOL RATINGS UNIT
Drain-Source Voltage VDS 60 V
Gate-Source Voltage VGS ±20 V
Continuous Drain Current
Pulsed Drain Current
Continuous Source Current (Diode Conduction) a I
Power Dissipation a P
Operating Junction and Storage Temperature Range TJ, T
Maximum Thermal Resistance Junction-Ambient a R
Maximum Thermal Resistance Junction-Case R
a
I
b
IDM 40 A
= 25°C unless otherwise specified)
A
@T
=25℃ 51 A
D
C
30 A
S
=25℃ 50 W
D @TC
-55 ~ 175 °C
STG
THERMAL RESISTANCE RATINGS
50 °C / W
θJA
3.0 °C / W
θJC
Source
Notes
a. Surface Mounted on 1” x 1” FR4 Board.
b. Pulse width limited by maximum junction temperature.
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Sep-2010 Rev. B Page 1 of 4
Page 2
Elektronische Bauelemente
ELECTRICAL CHARACTERISTICS (T
PARAMETER SYMBOL MIN. TYP. MAX. UNIT TEST CONDITIONS
= 25°C unless otherwise specified)
A
N-Ch Enhancement Mode Power MOSFET
Static
SSD50N06-15D
51A, 60V, R
DS(ON)
13 mΩ
Gate-Source Threshold Voltage V
Gate-Body Leakage I
GS(th)
- - ±100 nA VDS= 0V, VGS= 20V
GSS
1.0 - - V V
- - 1
Zero Gate Voltage Drain Current I
DSS
μA
- - 25
On-State Drain Current a I
34 - - A VDS= 5V, VGS= 10V
D(ON)
- - 13
Drain-Source On-Resistance a R
DS(ON)
mΩ
- - 18 VGS= 4.5V, ID= 44A
Forward Transconductance a g
Diode Forward Voltage V
fs
SD
- 22 - S VDS= 15V, ID= 51A
- 1.1 - V IS= 24A, VGS = 0V
Dynamic b
Total Gate Charge Qg - 12.5 -
Gate-Source Charge Qgs - 2.4 -
Gate-Drain Change Q
Input Capacitance C
Output Capacitance C
Reverse Transfer Capacitance C
- 2.6 -
gd
- 2730 -
iss
- 440 -
oss
- 180 -
rss
nC
pF
= VGS, ID = 250μA
DS
VDS= 48V, VGS= 0V
V
= 48V, VGS= 0V,
DS
TJ= 55°C
= 10V, ID= 51A
V
GS
I
= 51 A
D
VDS= 15 V
V
= 4.5 V
GS
f = 1MHz
V
= 15 V
DS
= 0 V
V
GS
Turn-on Delay Time T
Rise Time Tr - 8 -
Turn-off Delay Time T
- 11 -
d(on)
- 19 -
d(off)
nS
= 25 V
V
DD
ID= 30 A
= 25
R
L
V
= 10 V
GEN
Fall Time Tf - 6 -
Notes
a. Pulse test： PW ≦ 300 us duty cycle ≦ 2％.
b. Guaranteed by design, not subject to production testing.
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Sep-2010 Rev. B Page 2 of 4
Page 3
Elektronische Bauelemente
CHARACTERISTICS CURVE
SSD50N06-15D
N-Ch Enhancement Mode Power MOSFET
51A, 60V, R
DS(ON)
13 mΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Sep-2010 Rev. B Page 3 of 4

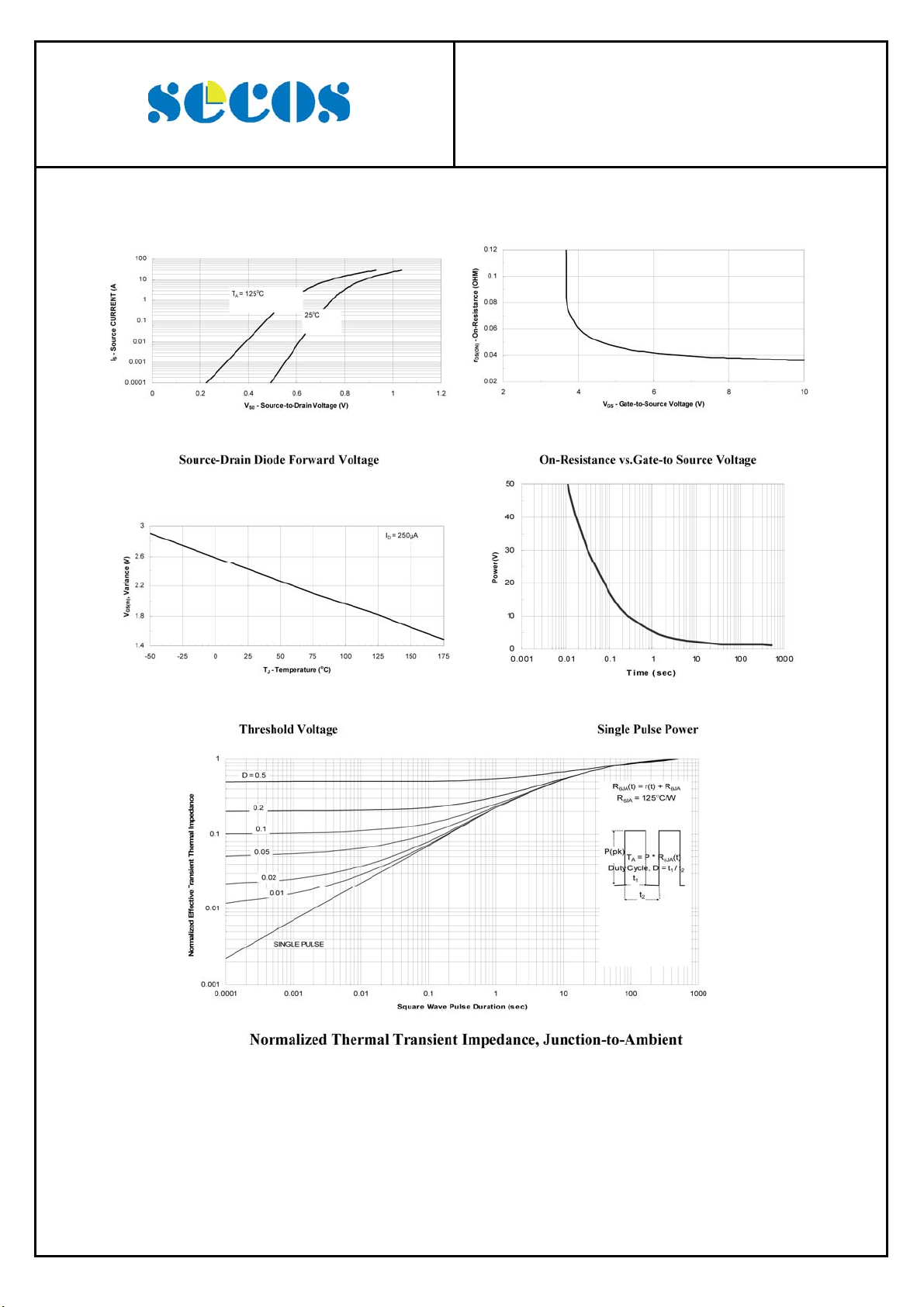

Page 4
Elektronische Bauelemente
CHARACTERISTICS CURVE
SSD50N06-15D
N-Ch Enhancement Mode Power MOSFET
51A, 60V, R
DS(ON)
13 mΩ
http://www.SeCoSGmbH.com/ Any changes of specification will not be informed individually.
27-Sep-2010 Rev. B Page 4 of 4
