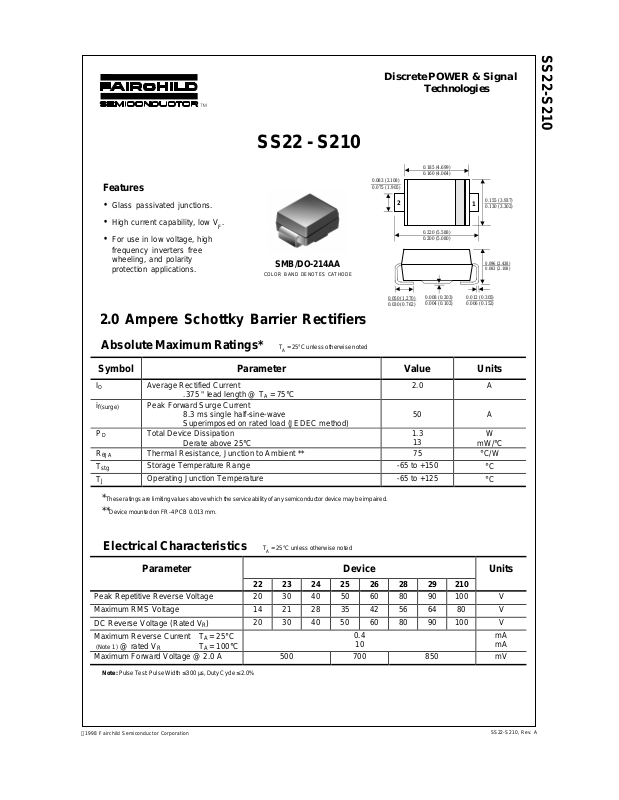

Page 1
Features
• Glass passivated junctions.
• High current capability, low V
• For use in low voltage, high
frequency inverters free
wheeling, and polarity
protection applications.
SS22-S210
Discrete POWER & Signal
Technologies
SS22 - S210
0.185 (4.699)
0.083 (2.108)
0.075 (1.905
.
F
SMB/DO-214AA
COLOR BAND DENOTES CATHODE
0.160 (4.064)
)
2
0.220 (5.588)
0.200 (5.080)
1
0.155 (3.937)
0.130 (3.302)
0.096 (2.438)
0.083 (2.108)
0.050 (1.270)
0.030 (0.762)
0.008 (0.203)
0.004 (0.102)
0.012 (0.305)
0.006 (0.152)
2.0 Ampere Schottky Barrier Rectifiers
Absolute Maximum Ratings* T
Symbol Parameter Value Units
I
O
i
f(surge)
P
D
R
θ
JA
T
stg
T
J
Average Rectified Current
.375 " lead length @ T
Peak Forward Surge Current
8.3 ms single half-sine-wave
Superimposed on rated load (JEDEC method)
Total Device Dissipation
Derate above 25°C
Thermal Resistance, Junction to Ambient ** 75
Storage Temperature Range -65 to +150
Operating Junction Temperature -65 to +125
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
**Device mounted on FR-4 PCB 0.013 mm.
Electrical Characteristics T
Parameter Device Units
22 23 24 25 26 28 29 210
Peak Repetitive Reverse Volt age 20 30 40 50 60 80 90 100 V
Maximum RMS Voltage 14 21 28 35 42 56 64 80 V
DC Reverse Voltage (Rated VR)
Maximum Reverse Current TA = 25°C
(Note 1)
@ rated V
R
TA = 100°C
Maximum Forward Voltage @ 2.0 A 500 700 850 mV
Note: Pulse Test: Pulse Width ≤ 300 µs, Duty Cycle ≤ 2.0%
20 30 40 50 60 80 90 100 V
= 25°C unless otherwise noted
A
= 75°C
A
= 25°C unless otherwise noted
A
0.4
10
2.0 A
50 A
1.3
13
mW/°C
°
C/W
W
°
C
°
C
mA
mA
1998 Fairchild Semiconductor Corporation
SS22-S210, Rev. A
Page 2
T ypical Characteristics
SS22-S210
Schottky Barrier Rectifiers
(continued)
Forward Current De ratin g Curve
2
1.5
SINGLE PHASE
1
HALF WAVE
60Hz
RESISTIVE OR
INDUCTIVE LOAD
0.5
P.C.B. MOUNTED
FORWAR D CU RRENT (A )
ON 8.0x 8.0mm
COPPER PAD AREAS
0
50 60 70 80 90 100 110 120 130 140 150
LEAD TEMPERATURE ( C)
º
Reverse Characteris tics
10
º
T = 100 C
SS22-24
1
0.1
0.01
REVERSE CURRENT (mA)
A
º
T = 75 C
A
T = 25 C
º
A
SS25-S210
Forward Characteristics
50
T = 25 C
º
A
f = 1.0 MHz
20
Vsig = 50mVp- p
10
SS22-24
5
1
SS28 - S210
SS25-26
FORWARD CUR RENT (A)
0.1
0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1
FORWARD VOLTAGE (V)
Junction Capacitance
500
SS22-24
200
100
50
CAPACITANCE (p F)
20
º
T = 25 C
A
f = 1.0 MHz
Vsig = 50mVp-p
SS25-S210
0.001
0 20406080100120140
NORM ALIZED REV ERSE VO LTAGE (%)
Non-Repetitive Surge Current
60
50
40
30
20
10
FORWARD SURGE CURRENT (A)
0
12 51020 50100
10
0.1 0.5 1 5 10 20 50 100
8.3ms Singl e Half Sine -W a ve
JEDEC Method
NUMBER OF CYC LES AT 60Hz
REVERSE VOLTAGE (V)
SS22-S210, Rev. A
