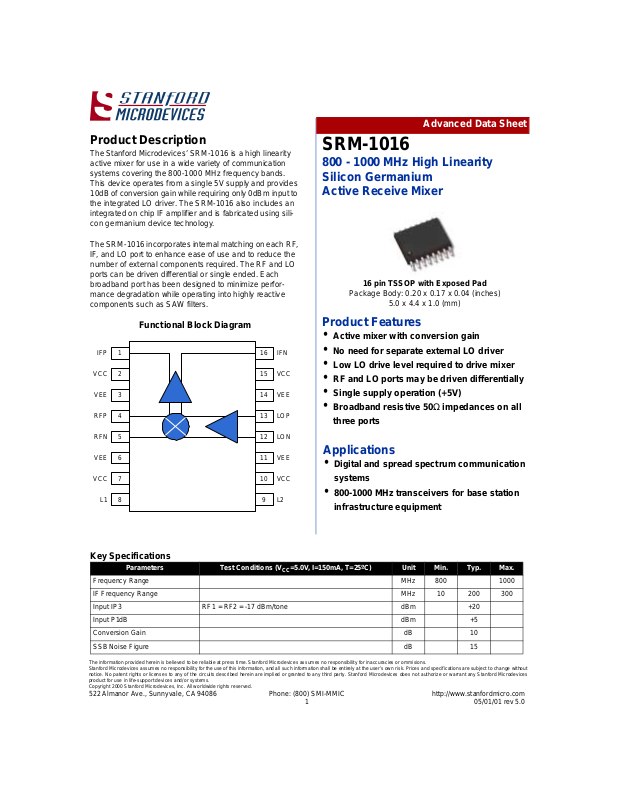

Datasheet SRM-1016 Datasheet (Stanford Microdevices)

Product Description

The Stanford Microdevices’ SRM-1016 is a high linearity
active mixer for use in a wide variety of communication
systems covering the 800-1000 MHz frequency bands.
This device operates from a single 5V supply and provides
10dB of conversion gain while requiring only 0dBm input to
the integrated LO driver. The SRM-1016 also includes an
integrated on chip IF amplifier and is fabricated using sili­con germanium device technology.

The SRM-1016 incorporates internal matching on each RF,
IF, and LO port to enhance ease of use and to reduce the
number of external components required. The RF and LO
ports can be driven differential or single ended. Each
broadband port has been designed to minimize perfor­mance degradation while operating into highly reactive
components such as SAW filters.

Advanced Data Sheet

SRM-1016

800 - 1000 MHz High Linearity
Silicon Germanium
Active Receive Mixer

16 pin TSSOP with Exposed Pad

Package Body: 0.20 x 0.17 x 0.04 (inches)

5.0 x 4.4 x 1.0 (mm)

Functional Block Diagram

Product Features

• Active mixer with conversion gain

1

16

IFNIFP

• No need for separate external LO driver

• Low LO drive level required to drive mixer

2

VCC

VEE

3

4

RFP

5

RFN

VEE

6

VCC

7

L1

8

Key Specifications

Parameters Tes t Conditions (VCC=5.0V, I=150mA, T=25ºC) Unit Min. Typ. Max.

Frequency Range MHz 800 1000
IF Frequency Range MHz 10 200 300
Input IP3 RF1 = RF2 = -17 dBm/tone dBm +20
Input P1dB dBm +5
Conversion Gain dB 10
SSB Noise Figure dB 15

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the c ircuits described herein are implied or granted to any third party. S tanford Mi crodevices does no t authorize or warrant any Stanford M icrodevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

VCC

15

VEE

14

13

LOP

12

LON

VEE

11

VCC

10

L2

9

• RF and LO ports may be driven differentially

• Single supply operation (+5V)

• Broadband resistive 50Ω impedances on all

three ports

Applications

• Digital and spread spectrum communication

systems

• 800-1000 MHz transceivers for base station

infrastructure equipment

1 05/01/01 rev 5.0

Advanced Data Sheet

6500+]5HFHLYH0L[HU

Absolute Maximum Ratings

Parameters Value Unit

Supply Voltage +6.0 V
LO Input +10 dBm
RF Input +15 dBm
Operating Temperature -40 to +85 ºC
Storage Temperature -65 to +150 ºC

Test Conditions

VCC +5.0V
TA +25ºC
RF Input -20 dBm @ 900 MHz
LO Input 0.7 dBm @ 700 MHz

Product Specifications – AC Performance

Parameters Additional Test Conditions Unit Min. Typ. Max.

Frequency Range MHz 800 1000
IF Frequency Range MHz 10 200 300
Input IP3 RF1 = RF2 = -17 dBm/tone dBm +20
Input P1dB dBm +5
Conversion Gain dB 10
SSB Noise figure dB 15
RF Return Loss dB 14
LO Return Loss dB 14
IF Return Loss dB 14
LO Drive dBm -3 0 +3

DC

Product Specifications – Isolation Performance

Parameters Additional Test Conditions Unit Min. Typ. Max.

Leakage (LO-RF) dBm -40
Leakage (LO-IF) dBm -26

Product Specifications – Miscellaneous

Parameters Additional Test Conditions Unit Min. Typ. Max.

Supply Voltage V +4.75 +5.0 +5.25
Supply Current mA 150
Thermal Resistance ºC/W TBD

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Stanford Microdevices does not authorize or warrant any Stanford Microdevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

2 05/01/0 1 rev 5.0

6500+]5HFHLYH0L[HU

T ypi cal D evic e Perfor ma nce

Advanced Data Sheet

Conversion Gain vs. RF Frequency

V

= 5.0V , LO = 0d Bm , RF

CC

12

11

10

Gain (dB)

9

8

880 890 900 910 920

RF Frequency (MHz)

= -20dBm, IF = 200MHz

IN

Return Loss at LO Input

VCC = 5.0V

0

5

10

15

Return Loss (dB)

20

Retu r n Lo ss v s . RF Frequen cy

VCC = 5.0V

0

5

10

15

Return Loss (dB)

20

25

880 890 900 910 920

RF Frequency (MHz)

Return Loss vs. IF Frequency

VCC = 5.0V

0

5

10

15

Return Loss (dB)

20

25

680 690 700 710 720

LO Frequency (MHz)

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Stanford Microdevices does not authorize or warrant any Stanford Microdevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

25

150 175 200 225 250

IF Frequency (MHz)

3 05/01/0 1 rev 5.0

Advanced Data Sheet

6500+]5HFHLYH0L[HU

Pin Out Description

Pin # Function Description Additional Comments

1 IFP IF output, positive terminal Nominal DC voltage is 1.6V. Output should be AC-coupled
2 VCC Positive supply (+5V)
3 VEE Ground

4 RFP RF input, positive terminal

5 RFN RF input, negative terminal
6 VEE Ground

7 VCC Positive supply (+5V)
8 L1 External inductor terminal Nominal DC voltage is 5V, provided through off chip inductors.

9 L2 External inductor terminal Nominal DC voltage is 5V, provided through off chip inductors.
10 VCC Positive supply (+5V)
11 VEE Ground

12 LON LO input, negative terminal

13 LOP LO input, positive terminal
14 VEE Ground

15 VCC Positive supply (+5V)
16 IFN IF output, negative terminal Nominal DC voltage is 1.6V. Output should be AC-coupled.

Nominal DC voltage is 2.1V. (Internally biased) Input should be AC­coupled.

Nominal DC voltage is 2.1V. (Internally biased) Input should be AC­coupled.

Nominal DC voltage is 2.4V. (Internally biased) Input should be AC­coupled.

Nominal DC voltage is 2.4V. (Internally biased) Input should be AC­coupled.

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Stanford Microdevices does not authorize or warrant any Stanford Microdevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

4 05/01/0 1 rev 5.0

Caution: ESD Sensitive

Appropriate precaution in handling, packaging
and testing devices must be observed.

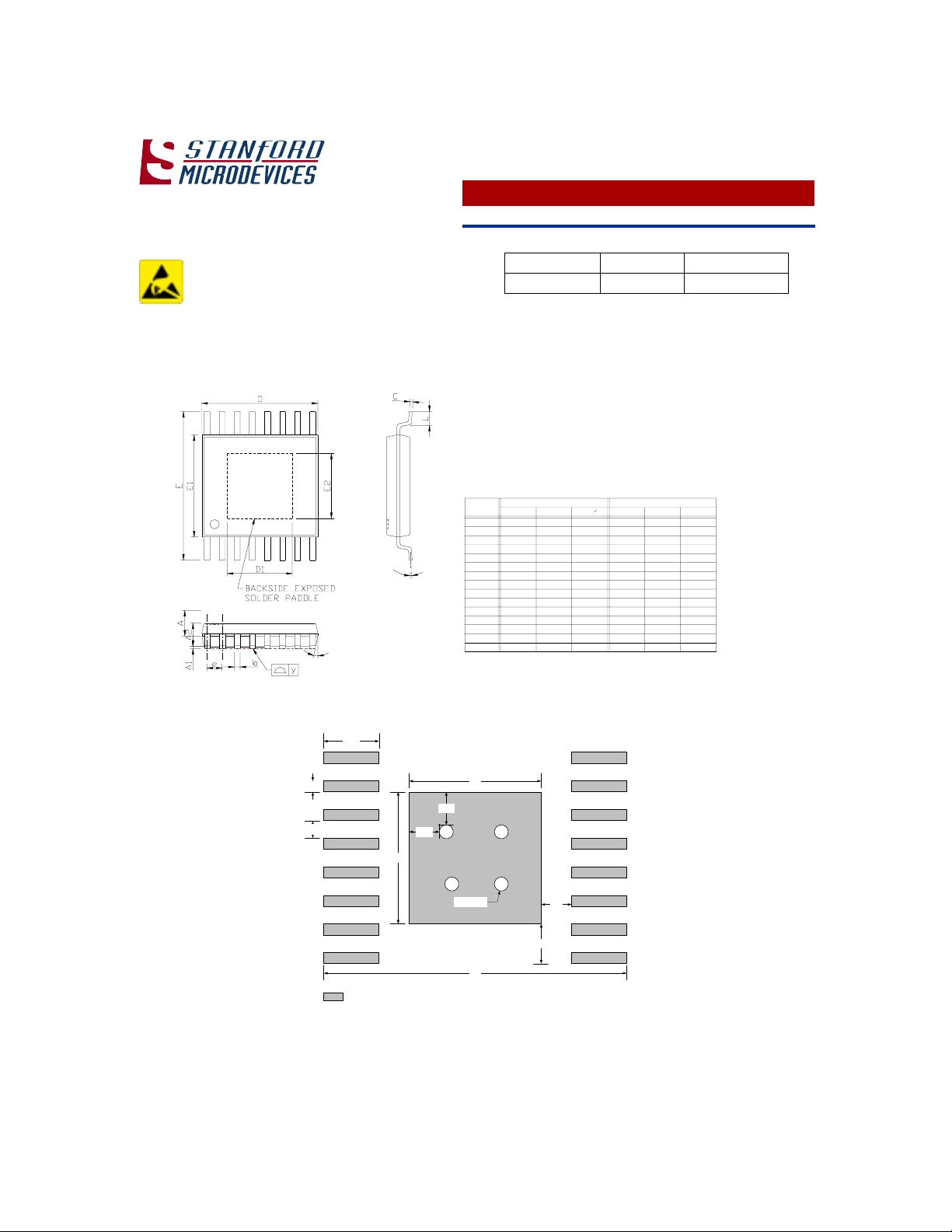

Package Dimensions (“16” Package)

Advanced Data Sheet

6500+]5HFHLYH0L[HU

Part Number Ordering Information

Part Number Reel Size Devices/Reel

SRM-1016 TBD TBD

Part Symbolization

The part will be symbolized with a “TBD” marking
designator on the top surface of the package.

NOTE

1. PACKAGE BODY SIZES EXCLUDE MOLD FLASH
PROTRUSIONS OR GATE BURRS

2. TOLERANCE ±0.1 mm UNLESS OTHERWISE SPECIFIED

3. COPLANARITY : 0.1 mm

4. CONTROLLING DIMENSION IS MILLIMETER. CONVERTED
INCH DIMENSIONS ARE NOT NECESSARILY EXACT.

5. FOLLOWED FROM JEDEC MO-153

0.25

0.4

12°(4X)

1.25

SYMBOLS

θ

DIMENSIONS IN MILLIMETERS

MIN

A −−−

0.00A1

A2

0.80

0.19

b

C

0.09

D

4.90

D1 2.80 0.110

−−− −−− −−− −−−

E

−−−

4.30

E1

E2 2.80 0.110

−−− −−− −−− −−−

e

−−−

L

y

−−−

θ 0°

Test PCB Pad Layout

3.0

0.74

0.74

3.0

φ0.33 via

NOM

−−− 0.10

1.00

−−−

−−−

5.00

6.40

4.40

0.65

−−−

0.7

0.9

MAX

1.15−−−

1.05

0.30

0.20

5.10

−−−

4.50

−−−

0.10−−−

8°

DIMENSIONS IN IN CHES

MIN

−−−

0.000

0.031

0.007

0.004

0.193

−−−

0.169

−−−

0.018

−−−

0°

NOM

MAX

−−− 0.045

0.004−−−

0.039

0.041

0.012

−−−

−−−

0.008

0.197

0.201

0.252

0.173

0.177

0.026

0.0300.0240.60 0.750.45

−−−

0.004

−−− 8°

−−−

−−−

6.9

- Indicates metalization - vias connect pad to underlying ground plane

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Stanford Microdevices does not authorize or warrant any Stanford Microdevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

all units ar e in mm

5 05/01/0 1 rev 5.0

Demo Test Board Schematic

CON+5V

1
2

Lfil

Advanced Data Sheet

6500+]5HFHLYH0L[HU

A7

A2

SRM-1016

VCC
VEE

RFP
RFN

VEE

VCC

L1

A10

IFNIFP

VCC

VEE
LOP

LON

VEE
VCC

C9

VCC

C1

C11

R3

R4

C12

L2

VCC C21

L2

A12

A8

VCC

C7

VCC

C3

C4

R1

R2

C5

C20

VCC

L1

C6 VCC VCC C10

Bill of Materials

Component

Designator

A10 1 SMDI SRM-1016 SiGe Receive Mixer

A7, A8, A12 3

CON 1 Digikey S1212-36-ND 2-pin header

A2 1:1 1 Mini-Circuits TC1-1 IF transformer
Lfil 1uH 1 Digikey PCD1008CT-ND Inductor, 1210 footprint, min. 200mA rating

C1, C3, C20, C21 27pF 4 Venkel C0603COG500-270JNE Capacitor, 0603 footprint

C6, C10 100pF 2 Venkel C0603COG500-101JNE Capacitor, 0603 footprint

C7, C9 120pF 2 Venkel C0603COG500-121JNE Capacitor, 0603 footprint
C4, C5 33pF 2 Venkel C0805COG500-330JNE Capacitor, 0603 footprint

C11, C12 39pF 2 Venkel C0805COG500-390JNE Capacitor, 0603 footprint

L1, L2 100nH 2 TOKO LL1608-FSR10J Inductor, 0603 footprint, high Q series

R1, R2, R3, R4 0 ohm 4 Venkel CR0603-16W-000T Resistor, 0603 footprint

The information provided herein is believed to be reliable at press time. Stanford Microdevices assumes no responsibility for inaccuracies or ommisions.
Stanford Microdevices assumes no responsibility for the use of this information, and all such information shall be entirely at the user’s own risk. Prices and specifications are subject to change without
notice. No patent rights or licenses to any of the circuits described herein are implied or granted to any third party. Stanford Microdevices does not authorize or warrant any Stanford Microdevices
product for use in life-support devices and/or systems.
Copyright 2000 Stanford Microdevices, Inc. All worldwide rights reserved.

522 Almanor Ave., Sunnyvale, CA 94086 Phone: (800) SMI-MMIC http://www.stanfordmicro.com

Value Qty Vendor Part Number Description

Johnson
Components

142-0701-851

SMA connector, end launch with tab, for 62 mil
thick board

6 05/01/0 1 rev 5.0

6500+]5HFHLYH0L[HU

Demo Te st Board

(Fully Assembled PCB)

A7

Advanced Data Sheet

1.85

C4

A8

Note: Dimensions in inches
Standard test board set up for IF = 200MHz

C5

R1

R2

C20

A2

A10

C9

C1

R3

C11

1016

SRM-

R4

C12

C21

L2

C10C6

Lfil

CON

2 1

A12

C7

C3

L1

1.85
