SPT7912
12-BIT, 30 MSPS, ECL, A/D CONVERTER
The SPT7912 A/D converter is industry's first 12-bit monolithic analog-to-digital converter capable of sample rates
greater than 30 MSPS. On board input buffer and track/hold
function assures excellent dynamic performance without the
need for external components. Drive requirement problems
are minimized with an input capacitance of only 5 pF.
Inputs and outputs are ECL to provide a higher level of noise
immunity in high speed system applications. An overrange
output signal is provided to indicate overflow conditions.
Output data format is straight binary. Power dissipation is
very low at only 1.4 watts with power supply voltages of +5.0
and -5.2 volts. The SPT7912 also provides a wide input
voltage range of ±2.0 volts.
The SPT7912 is available in a 32-lead ceramic sidebrazed
DIP package and in die form. A commercial temperature
range of 0 to +70 °C is currently offered.
GENERAL DESCRIPTION
V
IN
12
DIGITAL
OUTPUT
4
4-BIT FLASH
CONVERTER
INPUT
BUFFER
ANALOG GAIN
COMPRESSION
PROCESSOR
TRACK AND HOLD
AMPLIFIERS
ASYNCHRONOUS
SAR
ERROR
CORRECTION,
DECODING
AND
OUTPUT ECL
DRIVERS
8
Signal Processing Technologies, Inc.
4755 Forge Road, Colorado Springs, Colorado 80907, USA
Phone: (719) 528-2300 FAX: (719) 528-2370
FEATURES
• Monolithic
• 12-Bit 30 MSPS Converter
• 65 dB SNR @ 1 MHz Input
• On-Chip Track/Hold
• Bipolar ±2.0 V Analog Input
• Low Power (1.4 W Typical)
• 5 pF Input Capacitance
• ECL Outputs
APPLICATIONS
• Radar Receivers
• Professional Video
• Instrumentation
• Medical Imaging
• Electronic Warfare
• Digital Communications
• Digital Spectrum Analyzers
• Electro-Optics
BLOCK DIAGRAM
Page 2
SPT
2 3/10/97
SPT7912
ABSOLUTE MAXIMUM RATINGS (Beyond which damage may occur)1 25 °C
Note: 1. Operation at any Absolute Maximum Rating is not implied. See Electrical Specifications for proper nominal
applied conditions in typical applications.
Supply Voltages
VCC............................................................... -0.3 to +6 V
VEE............................................................... +0.3 to -6 V
Input Voltages
Analog Input............................................... VFB≤VIN≤V
FT
VFT, VFB. ................................................... +3.0 V, -3.0 V
Reference Ladder Current .....................................12 mA
Output
Digital Outputs .............................................. 0 to -30 mA
Temperature
Operating Temperature ................................. 0 to +70 °C
Junction Temperature .........................................+175 °C
Lead Temperature, (soldering 10 seconds)........ +300 °C
Storage Temperature................................-65 to +150 °C
ELECTRICAL SPECIFICATIONS
TA=T
MIN
to T
MAX
, VCC=+5.0 V, VEE=-5.2 V, DVCC=+5.0 V, VIN=±2.0 V, VSB=-2.0 V, VST=+2.0 V, f
clock=
30 MHz, 50% clock duty
cycle, unless otherwise specified.
TEST TEST SPT7912
PARAMETERS CONDITIONS LEVEL MIN TYP MAX UNITS
Resolution 12 Bits
DC Accuracy (+25 °C)
Integral Nonlinearity ± Full Scale V ±2.0 LSB
Differential Nonlinearity 250 kHz Sample Rate V ±0.8 LSB
No Missing Codes VI Guaranteed
Analog Input
Input Voltage Range VI ±2.0 V
Input Bias Current VI 30 60 µA
Input Resistance VIN=0 V VI 100 300 kΩ
Input Capacitance V 5 pF
Input Bandwidth 3 dB Small Signal V 120 MHz
+FS Error V ±5.0 LSB
-FS Error V ±5.0 LSB
Reference Input
Reference Ladder Resistance VI 500 800 Ω
Reference Ladder Tempco V 0.8 Ω/°C
Timing Characteristics
Maximum Conversion Rate VI 30 40 MHz
Overvoltage Recovery Time V 20 ns
Pipeline Delay (Latency) IV 1 Clock Cycle
Output Delay V 5 ns
Aperture Delay Time V 1 ns
Aperture Jitter Time V 5 ps-RMS
Dynamic Performance
Effective Number of Bits
fIN=500 kHz 10.0 Bits
fIN=1.0 MHz 9.8 Bits
fIN=3.58 MHz 9.5 Bits
Page 3
SPT
3 3/10/97
SPT7912
ELECTRICAL SPECIFICATIONS
TA=T
MIN
to T
MAX
, VCC=+5.0 V, VEE=-5.2 V, DVCC=+5.0 V, VIN=±2.0 V, VSB=-2.0 V, VST=+2.0 V, f
clock=
30 MHz, 50% clock duty
cycle, unless otherwise specified.
TEST TEST SPT7912
PARAMETERS CONDITIONS LEVEL MIN TYP MAX UNITS
Dynamic Performance
Signal-To-Noise Ratio
(without Harmonics)
f
IN
=500 kHz +25 °C I 63 66 dB
T
MIN
to T
MAX
IV 58 61 dB
f
IN
=1 MHz +25 °C I 63 65 dB
T
MIN
to T
MAX
IV 58 60 dB
f
IN
=3.58 MHz +25 °C I 62 64 dB
T
MIN
to T
MAX
IV 58 60 dB
Harmonic Distortion
1
fIN=500 kHz +25 °C I 63 65 dB
T
MIN
to T
MAX
IV 59 61 dB
f
IN
=1.0 MHz +25 °C I 62 64 dB
T
MIN
to T
MAX
IV 58 60 dB
f
IN
=3.58 MHz +25 °C I 59 61 dB
T
MIN
to T
MAX
IV 57 59 dB
Signal-to-Noise and Distortion
f
IN
=500 kHz +25 °C I 60 62 dB
T
MIN
to T
MAX
IV 55 58 dB
f
IN
=1.0 MHz +25 °C I 59 61 dB
T
MIN
to T
MAX
IV 55 57 dB
f
IN
=3.58 MHz +25 °C I 57 59 dB
T
MIN
to T
MAX
IV 54 56 dB
Spurious Free Dynamic Range
2
+25 °C V 74 dB
Differential Phase
3
+25 °C V 0.2 Degree
Differential Gain
3
+25 °C V 0.7 %
Digital Inputs
Logic 1 Voltage VI -1.1 V
Logic 0 Voltage VI -1.5 V
Maximum Input Current Low VI -500 ±200 +750 µA
Maximum Input Current High VI -500 ±300 +750 µA
Pulse Width Low (CLK) IV 15 ns
Pulse Width High (CLK) IV 15 300 ns
Digital Outputs
Logic 1 Voltage 50 Ω to -2 V VI -1.1 -0.8 V
Logic 0 Voltage 50 Ω to -2 V VI -1.8 -1.5 V
Power Supply Requirements
Voltages V
CC
IV +4.75 +5.25 V
-V
EE
IV -4.95 -5.45 V
Currents I
CC
VI 150 190 mA
-I
EE
VI 125 160 mA
Power Dissipation Outputs Open VI 1.4 1.8 W
Power Supply Rejection Ratio (5 V±0.25 V, -5.2 V ±0.25 V) V 1.0 LSB
Typical thermal impedances (unsoldered, in free air): 32L sidebrazed DIP. θja = 50 °C/W.
1
64 distortion BINS from 4096 pt FFT.
2
fIN = 1 MHz.
3
fIN = 3.58 and 4.35 MHz.
Page 4
SPT
4 3/10/97
SPT7912
Figure 1A: Timing Diagram
DESCRIPTION PARAMETERS MIN TYP MAX UNITS
CLK to Data Valid Prop Delay t
d
-5 ns
CLK High Pulse Width t
pwH
15 - 300 ns
CLK Low Pulse Width t
pwL
15 - - ns
Table I - Timing Parameters
CLK
OUTPUT
DATA
t
d
tt
pwH pwL
DATA VALID
N+1
A
A
A
A
N
N+1
N+2
DATA VALID
N
N-2 N-1
CLK
Figure 1B: Single Event Clock
DATA VALID
CLK
OUTPUT
DATA
t
d
CLK
TEST LEVEL CODES
All electrical characteristics are subject to the
following conditions:
All parameters having min/max specifications
are guaranteed. The Test Level column indicates the specific device testing actually performed during production and Quality Assurance inspection. Any blank section in the data
column indicates that the specification is not
tested at the specified condition.
TEST PROCEDURE
100% production tested at the specified temperature.
100% production tested at TA=25 °C, and sample
tested at the specified temperatures.
QA sample tested only at the specified temperatures.
Parameter is guaranteed (but not tested) by design
and characterization data.
Parameter is a typical value for information purposes
only.
100% production tested at TA = 25 °C. Parameter is
guaranteed over specified temperature range.
TEST LEVEL
I
II
III
IV
V
VI
Page 5
SPT
5 3/10/97
SPT7912
SPECIFICATION DEFINITIONS
APERTURE DELAY
Aperture delay represents the point in time, relative to the
rising edge of the CLOCK input, that the analog input is
sampled.
APERTURE JITTER
The variations in aperture delay for successive samples.
DIFFERENTIAL GAIN (DG)
A signal consisting of a sine wave superimposed on various
DC levels is applied to the input. Differential gain is the
maximum variation in the sampled sine wave amplitudes at
these DC levels.
DIFFERENTIAL PHASE (DP)
A signal consisting of a sine wave superimposed on various
DC levels that is applied to the input. Differential phase is the
maximum variation in the sampled sine wave phases at these
DC levels.
EFFECTIVE NUMBER OF BITS (ENOB)
SINAD = 6.02N + 1.76, where N is equal to the effective
number of bits.
N =
SINAD - 1.76
6.02
+/- FULL-SCALE ERROR (GAIN ERROR)
Difference between measured full scale response
[(+Fs) - (-Fs)] and the theoretical response (+4 V -2 LSBs)
where the +FS (full scale) input voltage is defined as the
output transition between 1-10 and 1-11 and the -FS input
voltage is defined as the output transition between 0-00 and
0-01.
INPUT BANDWIDTH
Small signal (50 mV) bandwidth (3 dB) of analog input stage.
DIFFERENTIAL NONLINEARITY (DNL)
Error in the width of each code from its theoretical value.
(Theoretical = VFS/2N)
INTEGRAL NONLINEARITY (INL)
Linearity error refers to the deviation of each individual code
(normalized) from a straight line drawn from -Fs through +Fs.
The deviation is measured from the edge of each particular
code to the true straight line.
OUTPUT DELAY
Time between the clock's triggering edge and output data
valid.
OVERVOLTAGE RECOVERY TIME
The time required for the ADC to recover to full accuracy after
an analog input signal 125% of full scale is reduced to 50%
of the full-scale value.
SIGNAL-TO-NOISE RATIO (SNR)
The ratio of the fundamental sinusoid power to the total noise
power. Harmonics are excluded.
SIGNAL-TO-NOISE AND DISTORTION (SINAD)
The ratio of the fundamental sinusoid power to the total noise
and distortion power.
TOTAL HARMONIC DISTORTION (THD)
The ratio of the total power of the first 64 harmonics to the
power of the measured sinusoidal signal.
SPURIOUS FREE DYNAMIC RANGE (SFDR)
The ratio of the fundamental sinusoidal amplitude to the
single largest harmonic or spurious signal.
Page 6
SPT
6 3/10/97
SPT7912

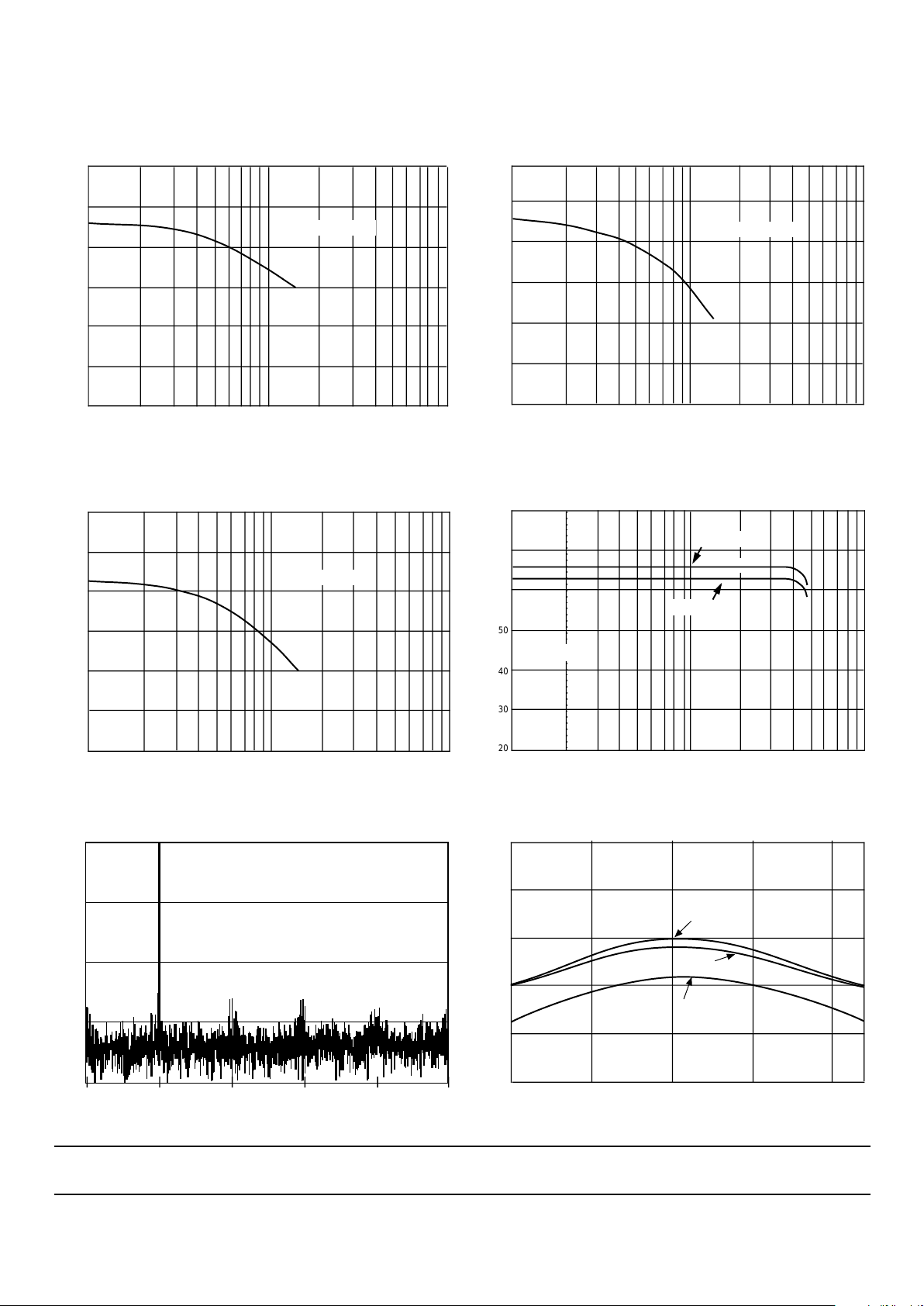

TYPICAL PERFORMANCE CHARACTERISTICS
SNR, THD, SINAD vs Temperature
Temperature (°C)
SNR, THD, SINAD (dB)
55
60
65
70
75
50
f
s = 30 MSPS
f
in = 1 M Hz
SINAD
THD
SNR
-25 0 +25 +50 +75
Spectral Response
-120 dB
-90 dB
-60 dB
-30 dB
0 dB
Amplitude (dB)
FREQUENCY (MHz)
012345
50
20
30
40
60
70
80
10
0
10
1
10
2
THD vs Input Frequency
Input Frequency (MHz)
Total Harmonic Distortion (dB)
fs = 30 MSPS
Input Frequency (MHz)
Signal-to-Noise Ratio (dB)
SNR vs Input Frequency
10
0
10
1
10
2
fs = 30 MSPS
30
40
50
60
70
20
80
20
30
40
50
60
70
80
10
0
10
1
10
2
SNR, THD, SINAD vs Sample Rate
Sample Rate (MSPS)
SNR, THD, SINAD (dB)
SNR, THD
SINAD
f
in = 1 MHz
Signal-to-Noise and Distortion (dB)
20
30
40
50
60
70
80
10
0
10
1
10
2
SINAD vs Input Frequency
Input Frequency (MHz)
fs =30 MSPS
Page 7
SPT
7 3/10/97
SPT7912

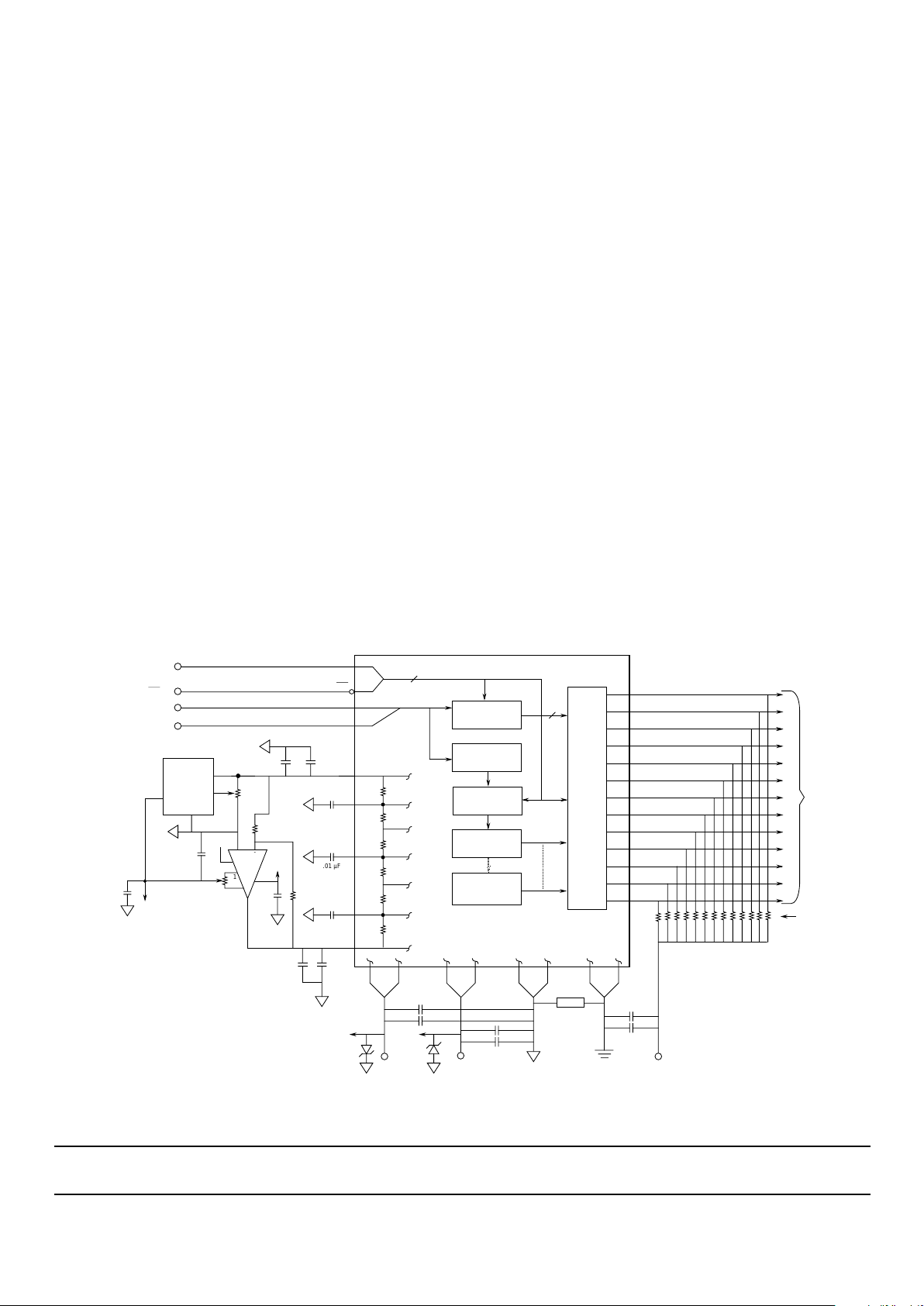

TYPICAL INTERFACE CIRCUIT
The SPT7912 requires few external components to achieve
the stated operation and performance. Figure 2 shows the
typical interface requirements when using the SPT7912 in
normal circuit operation. The following section provides a
description of the pin functions and outlines critical performance criteria to consider for achieving the optimal device
performance.
POWER SUPPLIES AND GROUNDING
The SPT7912 requires the use of two supply voltages, V
EE
and VCC. Both supplies should be treated as analog supply
sources. This means the VEE and VCC ground returns of the
device should both be connected to the analog ground plane.
All other -5.2 V requirements of the external digital logic circuit
should be connected to the digital ground plane. Each power
supply pin should be bypassed as closely as possible to the
device with .01 µF and 10 µF capacitors as shown in figure 2.
The two grounds available on the SPT7912 are AGND and
DGND. DGND is used only for ECL outputs and is to be
referenced to the output pulldown voltage. These grounds
are not tied together internal to the device. The use of ground
planes is recommended to achieve the best performance of
the SPT7912. The AGND and the DGND ground planes
should be separated from each other and only connected
together at the device through an inductance or ferrite bead.
Doing this will minimize the ground noise pickup.
VOLTAGE REFERENCE
The SPT7912 requires the use of two voltage references: V
FT
and VFB. VFT is the force for the top of the voltage reference
ladder (+2.5 V typ), VFB (-2.5 V typ) is the force for the bottom
of the voltage reference ladder. Both voltages are applied
across an internal reference ladder resistance of 800 ohms.
In addition, there are five reference ladder taps (VST,V
RT1,
V
RT2, VRT3,
and VSB). VST is the sense for the top of the
reference ladder (+2.0 V), V
RT2
is the midpoint of the ladder
(0.0 V typ) and VSB is the sense for the bottom of the
reference ladder (-2.0 V). V
RT1
and V
RT3
are quarter point
ladder taps (+1.0 and -1.0 V typical, respectively). The
voltages seen at VST and VSB are the true full scale input
voltages of the device when VFT and VFB are driven to the
recommended voltages (+2.5 V and -2.5 V typical respectively). V
ST
and VSB should be used to monitor the actual full
scale input voltage of the device. V
RT1, VRT2
and V
RT3
should not be driven to the expected ideal values as is
commonly done with standard flash converters. When not
being used, a decoupling capacitor of .01 uF connected to
AGND from each tap is recommended to minimize high
frequency noise injection.
The analog input range will scale proportionally with respect
to the reference voltage if a different input range is required.
Figure 2 - Typical Interface Circuit
D0 (LSB)
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
Digital Outputs
D11 (MSB)
D12 (OVERRANGE)
VIN2
VEE
8
VRM
.01 µF
10 µF
R
2R
2R
2R
2R
R
4
Coarse
A/D
13 x 50 Ω
DG
DG
AG
AG
VCC
VCC
VEE
-2 V-5.2 V +5 V
AGND
( 5 V RTN &
-5.2 V RTN )
DGND
( -2 V RTN )
VFT
VFB
SUCCESSIVE
INTERPOLATION
STAGE # N
SUCCESSIVE
INTERPOLATION
STAGE # i
T/H AMPLIFIER
BANK
ANALOG
PRESCALER
VIN1
10 µF
.01 µF
+
10 µF
.01 µF
10 µF
.01 µF
+
+
L
.01 µF
1
-
+
2
3
4
6
7
2
VIN
VOUT
Tri m
GND
R1
10 kΩ
R2
*
30 kΩ
R4
10 kΩ
R3
*
30 kΩ
IC1
IC2
(REF-03)
6
5
4
(OP-07)
-5.2 V
.01 µF
+2.5 V
-5.2 V +5 V
.01 µF
VST
.01 µF
VSB
*R2 and R3
matched to 0.1%
.01 µF
+
10 µH
+5 V
2
CLK
CLK
CLK-IN
CLK-IN
Decoding Network
Analog
Input
Analog
Input
+
10 µF
+5 V
.01 µF
+
10 µF
-2.5 V
D2D1
NOTE: D1=D2=1N5817 or equivalent. (Used to prevent damage caused by power sequencing.)
Page 8
SPT
8 3/10/97
SPT7912
CLOCK INPUT
The clock inputs (CLK,
CLK
) are designed to be driven
differentially with ECL levels. Differential clock driving is
highly recommended to minimize the effects of clock jitter.
The clock may be driven single ended since
CLK
is inter-
nally biased to -1.3 V.
CLK
may be left open, but a .01 µF
bypass capacitor to AGND is recommended. As with all high
speed circuits, proper terminations are required to avoid
signal reflections and possible ringing that can cause the
device to trigger at an unwanted time.
The clock input duty cycle should be 50% where possible, but
performance will not be degraded if kept within the range of
40-60%. However, in any case the clock pulse width (tpwH)
must be kept at 300 ns maximum to ensure proper operation
of the internal track and hold amplifier (see timing diagram).
The analog input signal is latched on the rising edge of the CLK.
DIGITAL OUTPUTS
The format of the output data (D0-D11) is straight binary.
(See table II.) These outputs are ECL 10K and 10KH
compatible with the output circuit shown in figure 3. The
outputs are latched on the rising edge of CLK with a propagation delay of 5 ns. There is a one clock cycle latency
between CLK and the valid output data (see timing diagram).
These digital outputs can drive 50 ohms to ECL levels when
pulled down to -2 V. Output loading pulled down to -5.2 V is
not recommended. The total specified power dissipation of
the device does not include the power used by these loads.
The additional power used by these loads can vary between
10 and 300 mW typically (including the overrange load)
depending on the output codes. If lower power levels are
desired, the output loads can be reduced, but careful consideration to the resistive and capacitive loads in relation to the
operating frequency must be considered.
The maximum scaling factor for device operation is ± 20% of
the recommended reference voltages of VFT and VFB. However, because the device is laser trimmed to optimize performance with VSB and VST equal to -2.0 V and +2.0 V respectively, the accuracy of the device will degrade if operated
beyond a ± 2% range.
The following errors are defined:
+FS error = top of ladder offset voltage = ∆(+FS -VST)
-FS error = bottom of ladder offset voltage = ∆(-FS -VSB)
Where the +FS (full scale) input voltage is defined as the input
approximately 1 LSB above the output transition of 1—10
and 1—11 and the -FS input voltage is defined as the input
approximately 1 LSB below the output transition of 0—00 and
0—01.
An example of a reference driver circuit recommended is
shown in figure 2. IC1 is REF-03, the +2.5 V reference with a
tolerance of 0.6% or ± 0.015 V. The potentiometer R1 is
10 kΩ and supports a minimum adjustable range of up to
150 mV. IC2 is recommended to be an OP-07 or equivalent
device. R2 and R3 must be matched to within 0.1% with good
TC tracking to maintain a 0.3 LSB matching between VFT and
VFB. If 0.1% matching is not met, then potentiometer R4 can
be used to adjust the VFB voltage to the desired level. R1 and
R4 should be adjusted such that VST and VSB are exactly
+2.0 V and -2.0 V respectively.
ANALOG INPUT
V
IN1
and V
IN2
are the analog inputs. Both inputs are tied to
the same point internally. Either one may be used as an
analog input sense and the other for an input force. The inputs
can also be tied together and driven from the same source.
The full scale input range will be 80% of the reference voltage
or ±2 volts with VFB=-2.5 V and VFT=+2.5 V.
The drive requirements for the analog inputs are minimal
when compared to conventional Flash converters due the
SPT7912’s extremely low input capacitance of only 5 pF and
very high input impedance of 300 kΩ. For example, for an
input signal of ± 2 V p-p with an input frequency of 10 MHz,
the peak output current required for the driving circuit is only
628 µA.
Table II - Output Data Information
ANALOG INPUT OVERRANGE OUTPUT CODE
D12 D11-DO
>+2.0 V + 1/2 LSB 1 1111 1111 1111
+2.0 V -1 LSB O 1111 1111 111Ø
0.0 V O ØØØØ ØØØØ ØØØØ
-2.0 V +1 LSB O OOOO OOOO OOOØ
<-2.0 V O OOOO OOOO OOOO
(Ø indicates the flickering bit between logic 0 and 1).
Page 9
SPT
9 3/10/97
SPT7912

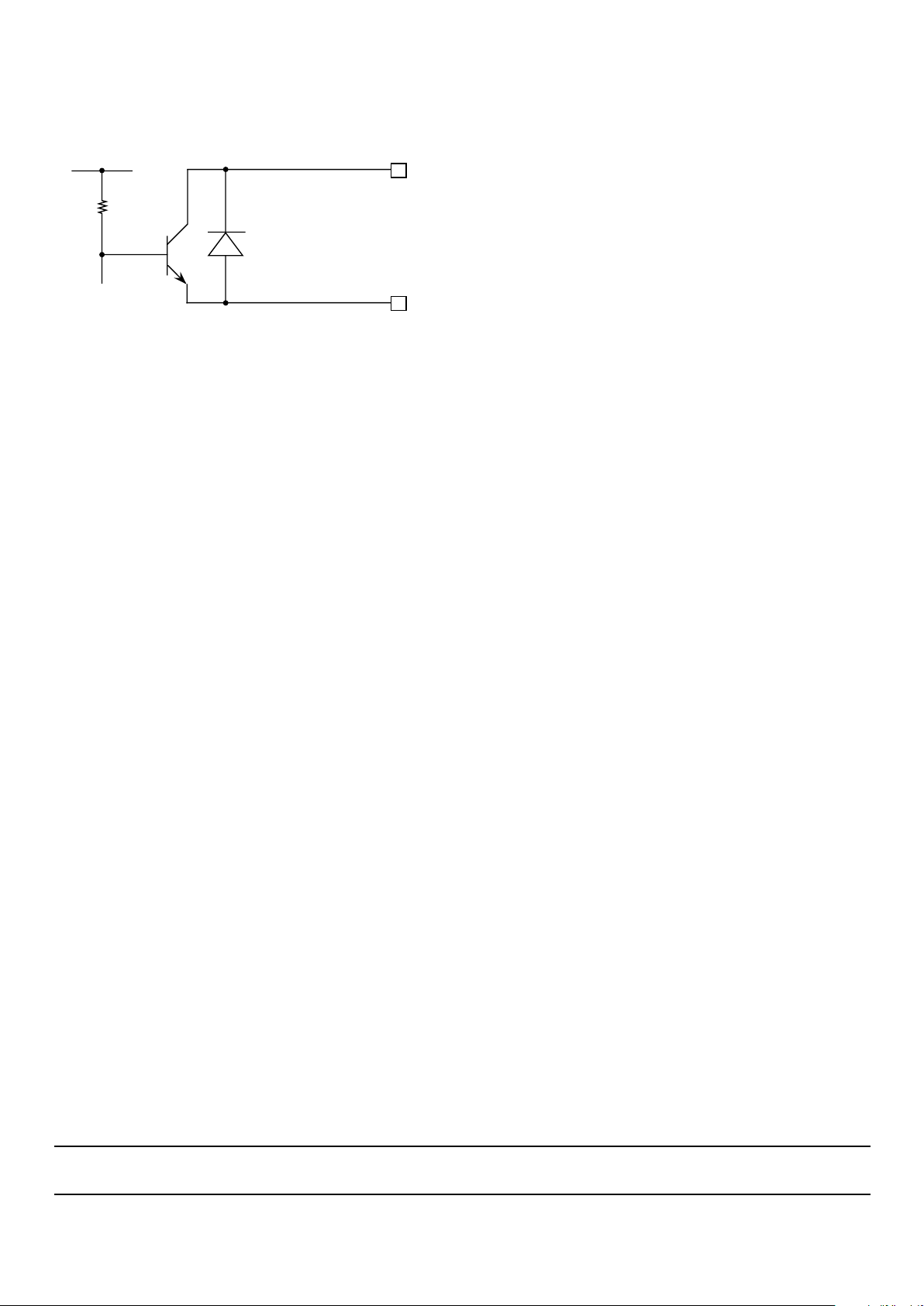

Figure 3 - Output Circuit
Data Out
AGND
DGND
OVERRANGE OUTPUT
The OVERRANGE OUTPUT (D12) is an indication that the
analog input signal has exceeded the full scale input voltage
by 1 LSB. When this condition occurs, the output will switch
to logic 1. All other data outputs are unaffected by this
operation. This feature makes it possible to include the
SPT7912 into higher resolution systems.
EVALUATION BOARD
The EB7912 Evaluation Board is available to aid designers in
demonstrating the full performance of the SPT7912. This
board includes a reference circuit, clock driver circuit, output
data latches and an on-board reconstruction of the digital
data. An application note (AN7912) describing the operation
of this board as well as information on the testing of the
SPT7912 is also available. Contact the factory for price and
availability.
Page 10
SPT
10 3/10/97
SPT7912

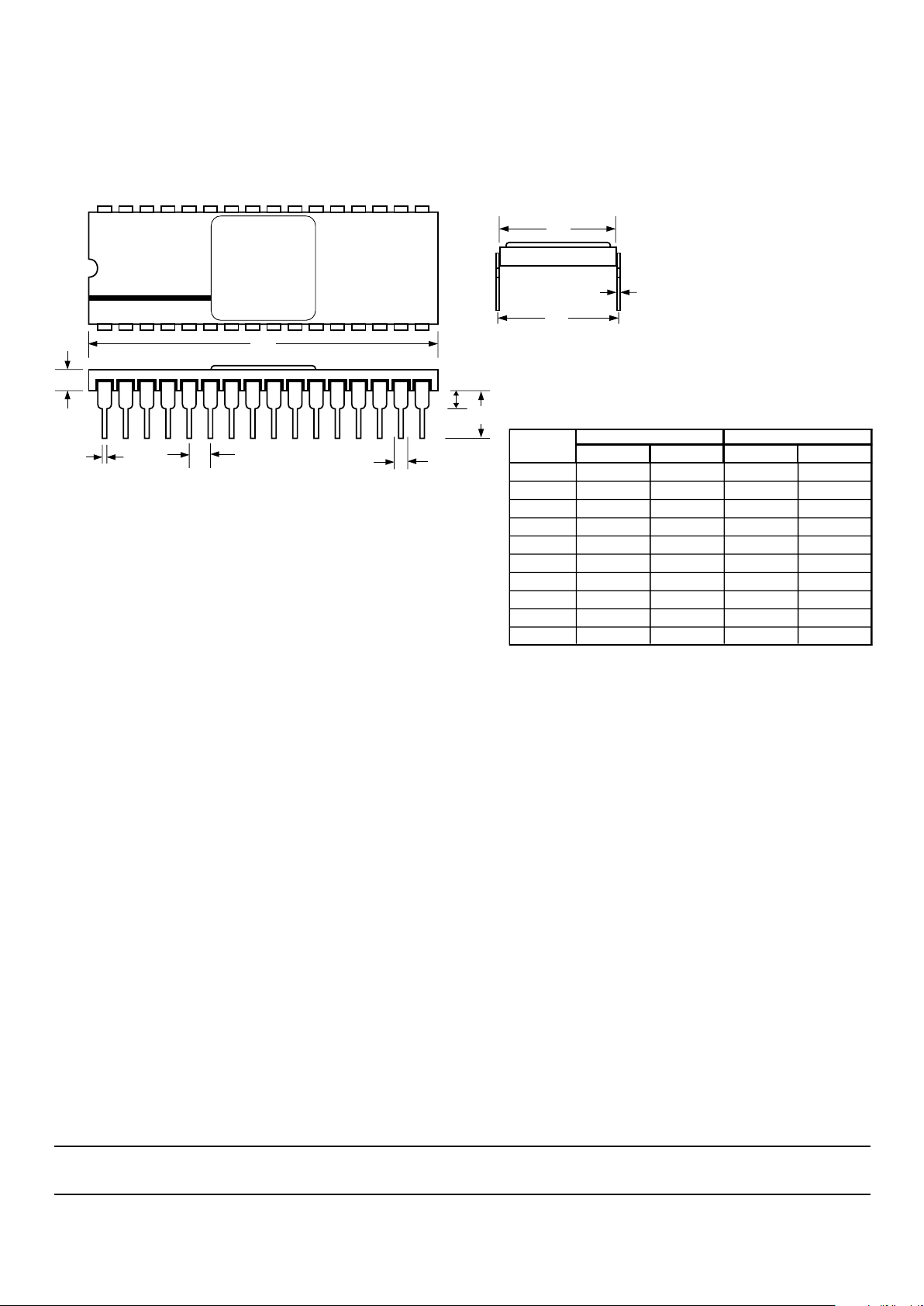

PACKAGE OUTLINE
32-Lead Sidebrazed
INCHES MILLIMETERS
SYMBOL MIN MAX MIN MAX
A 0.081 0.099 2.06 2.51
B 0.016 0.020 0.41 0.51
C 0.095 0.105 2.41 2.67
D .050 typ 1.27
E 0.040 1.02 5.72
F 0.175 0.225 4.45 41.15
G 1.580 1.620 40.13 15.37
H 0.585 0.605 14.86 0.30
I 0.009 0.012 0.23 15.75
J 0.600 0.620 15.24 15.75
A
B
C
D
E
F
G
1
32
I
H
J
Page 11
SPT
11 3/10/97
SPT7912

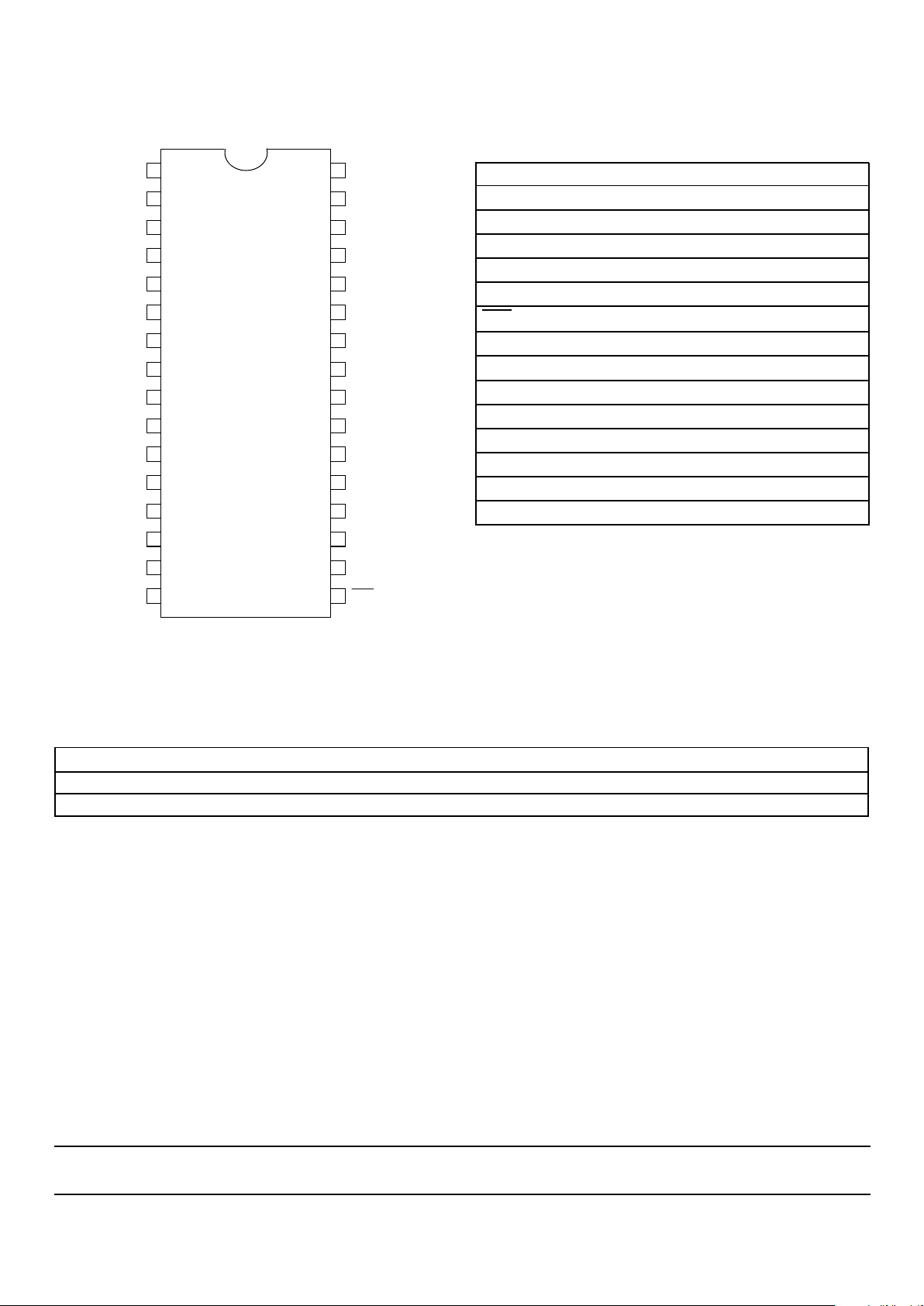

PIN ASSIGNMENTS
PIN FUNCTIONS
NAME FUNCTION
DGND Digital Ground
AGND Analog Ground
D0-D11 ECL Outputs (D0=LSB)
D12 ECL Output Overrange
CLK Clock
CLK
Inverted Clock
V
EE
-5.2 V Supply
V
CC
+5.0 V supply
V
RT1,VRT2,VRT3
Voltage Reference Taps
V
IN1
, V
IN2
Inputs (tied together at the die)
V
FT
Force for Top of Reference Ladder
V
ST
Sense for Top of Reference Ladder
V
FB
Force for Bottom of Reference Ladder
V
SB
Sense for Bottom of Reference Ladder
*Please see the die specification for guaranteed electrical performance.
AGND
DGND
D0
D1
D2
D3
D4
D5
D6
D7
D8
D9
D10
DGND
CLK
1
2
3
4
5
6
7
8
9
10
11
12
13
14
28
27
26
25
24
23
22
21
20
19
18
17
CLK
V
V
V
FT
CC
EE
V
V
V
V
IN1
IN2
AGND
V
EE
V
CC
RT1
RT2
V
ST
15
16
29
30
31
32
D11
D12
V
RT3
V
SB
V
FB
ORDERING INFORMATION
PART NUMBER TEMPERATURE RANGE PACKAGE
SPT7912SCJ 0 to +70 °C 32L Sidebrazed DIP
SPT7912SCU +25 °C Die*
DIP
Signal Processing Technologies, Inc. reserves the right to change products and specifications without notice. Permission is hereby expressly
granted to copy this literature for informational purposes only. Copying this material for any other use is strictly prohibited.
WARNING - LIFE SUPPORT APPLICATIONS POLICY - SPT products should not be used within Life Support Systems without the specific
written consent of SPT. A Life Support System is a product or system intended to support or sustain life which, if it fails, can be reasonably
expected to result in significant personal injury or death.
Signal Processing Technologies believes that ultrasonic cleaning of its products may damage the wire bonding, leading to device
failure. It is therefore not recommended, and exposure of a device to such a process will void the product warranty.
Loading...
