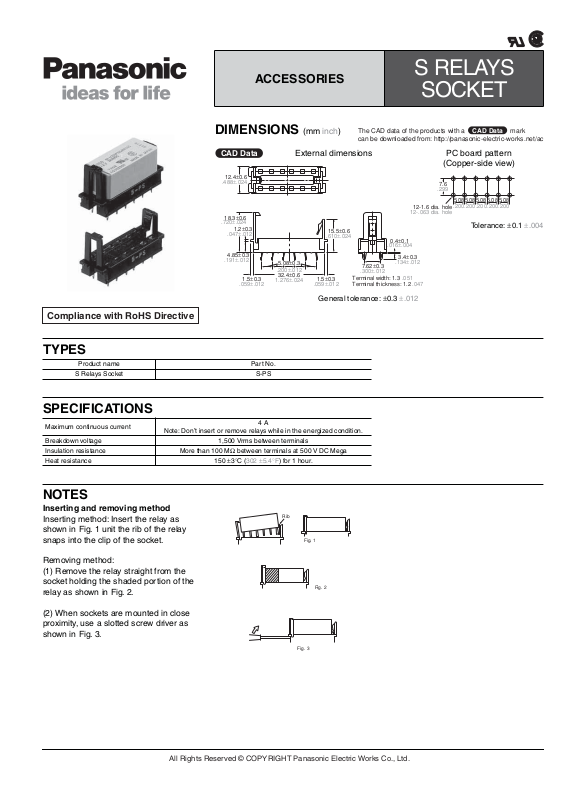

Datasheet S-PS Specification

S

Compliance with RoHS Directive

ACCESSORIES

DIMENSIONS (mm inch)

CAD Data

12.4±0.6

.488±.024

18.3±0.6

.720±.024

1.2±0.3

.047±.012

4.85±0.3

.191±.012

1.5±0.3 1.5±0.3

.059±.012 .059±.012

General tolerance: ±0.3 ±.012

External dimensions

5.08±0.3

.200±.012

32.4±0.6

1.276±.024

15.5±0.6

.610±.024

The CAD data of the products with a CAD Data mark
can be downloaded from: http://panasonic-electric-works.net/ac

12-.063 dia. hole

0.4±0.1

.016±.004

3.4±0.3

7.62±0.3

.300±.012

Terminal width: 1.3
Terminal thickness: 1.2

.134±.012

.051

S RELAYS

SOCKET

PC board pattern

(Copper-side view)

7.6

.299

5.08 5.0 85.0 8 5.08 5.08

12-1.6 dia. hole

.047

.200.200.200.200 .200

Tolerance: ±0.1 ±.004

TYPES

Product name Part No.

S Relays Socket S-PS

SPECIFICATIONS

Maximum continuous current

Breakdown voltage 1,500 Vrms between terminals

Insulation resistance More than 100 MΩ between terminals at 500 V DC Mega

Heat resistance 150 ±3°C (302 ±5.4°F) for 1 hour.

Note: Don’t insert or remove relays while in the energized condition.

4 A

NOTES

Inserting and removing method

Inserting method: Insert the relay as
shown in Fig. 1 unit the rib of the relay
snaps into the clip of the socket.

Removing method:
(1) Remove the relay straight from the
socket holding the shaded portion of the
relay as shown in Fig. 2.

(2) When sockets are mounted in close
proximity, use a slotted screw driver as
shown in Fig. 3.

Rib

Fig. 1

Fig. 2

Fig. 3
