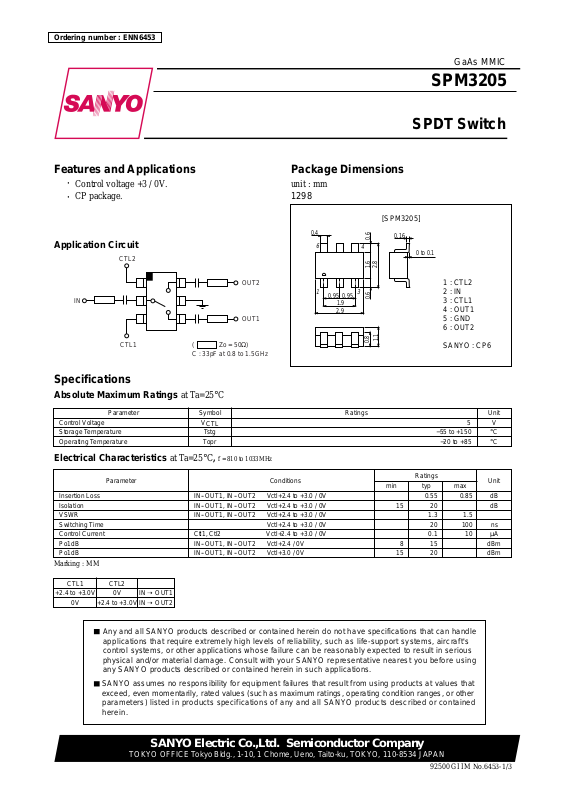

Page 1
Ordering number : ENN6453
SPM3205
GaAs MMIC
SPM3205
SPDT Switch
Features and Applications
•
Control voltage +3 / 0V.
• CP package.
Application Circuit
CTL2
IN
CTL1
OUT2
OUT1
( Zo = 50Ω)
C : 33pF at 0.8 to 1.5GHz
Package Dimensions
unit : mm
1298
[SPM3205]
0.4
6
0.95 0.95
1.9
2.9
4
31
0.6
1.6
0.6
0.8
0.16
2.8
1.1
0 to 0.1
1 : CTL2
2 : IN
3 : CTL1
4 : OUT1
5 : GND
6 : OUT2
SANYO : CP6
Specifications
Absolute Maximum Ratings at T a=25°C
Parameter Symbol Ratings Unit
Control Voltage V
Storage T emperature T stg −55 to +150 °C
Operating T emperature T opr −20 to +85 °C
CTL
5V
Electrical Characteristics at T a=25°C, f = 810 to 1033MHz
Parameter Conditions
Insertion Loss IN -- OUT1, IN -- OUT2 Vctl+2.4 to +3.0 / 0V 0.55 0.85 dB
Isolation IN -- OUT1, IN -- OUT2 Vctl+2.4 to +3.0 / 0V 15 20 dB
VSWR IN -- OUT1, IN -- OUT2 Vctl+2.4 to +3.0 / 0V 1.3 1.5
Switching Time Vctl+2.4 to +3.0 / 0V 20 100 ns
Control Current Ctl1, Ctl2 Vctl+2.4 to +3.0 / 0V 0.1 10 µA
Po1dB IN -- OUT1, IN -- OUT2 Vctl+2.4 / 0V 8 15 dBm
Po1dB IN -- OUT1, IN -- OUT2 Vctl+3.0 / 0V 15 20 dBm
Marking : MM
CTL1 CTL2
+2.4 to +3.0V 0V IN ➝ OUT1
0V +2.4 to +3.0V IN ➝ OUT2
min typ max
Any and all SANYO products described or contained herein do not have specifications that can handle
applications that require extremely high levels of reliability, such as life-support systems, aircraft's
control systems, or other applications whose failure can be reasonably expected to result in serious
physical and/or material damage. Consult with your SANYO representative nearest you before using
any SANYO products described or contained herein in such applications.
SANYO assumes no responsibility for equipment failures that result from using products at values that
exceed, even momentarily, rated values (such as maximum ratings, operating condition ranges, or other
parameters) listed in products specifications of any and all SANYO products described or contained
herein.
Ratings
Unit
SANYO Electric Co.,Ltd. Semiconductor Company
TOKYO OFFICE Tokyo Bldg., 1-10, 1 Chome, Ueno, Taito-ku, TOKYO, 110-8534 JAPAN
92500 GI IM
No.6453-1/3
Page 2
0
Insertion Loss -- Input Power
Vctl+3 / 0V, f=900MHz
SPM3205
0
Vctl+3 / 0V, f=900MHz
Isolation -- Input Power
--1
--2
--3
Insertion Loss (dB)
--4
--5
25
20
15
10
Output Power -- Input Power
Vctl+3 / 0V, f=900MHz
Output Power (dBm)
5
5101520250
Input Power (dBm)
--5
--10
--15
Isolation (dB)
--20
--25
IT01408 IT01409
0
Vctl+3 / 0V, Pin=+10dBm
--1
--2
--3
5101520250
Input Power (dBm)
Insertion Loss -- Frequency
Insertion Loss (dB)
--4
0
0
Vctl+3 / 0V, Pin=+10dBm
--5
--10
--15
Isolation (dB)
--20
--25
510152025300
Input Power (dBm)
Isolation -- Frequency
1.0 1.5 2.0 2.5 3.00.5
Frequency (GHz)
--5
IT01410 IT01411
IT01412
1.0 1.5 2.0 2.5 3.00.5
Frequency (GHz)
No.6453-2/3
Page 3
SPM3205
Specifications of any and all SANYO products described or contained herein stipulate the performance,
characteristics, and functions of the described products in the independent state, and are not guarantees
of the performance, characteristics, and functions of the described products as mounted in the customer's
products or equipment. To verify symptoms and states that cannot be evaluated in an independent device,
the customer should always evaluate and test devices mounted in the customer's products or equipment.
SANYO Electric Co., Ltd. strives to supply high-quality high-reliability products. However, any and all
semiconductor products fail with some probability. It is possible that these probabilistic failures could
give rise to accidents or events that could endanger human lives, that could give rise to smoke or fire,
or that could cause damage to other property. When designing equipment, adopt safety measures so
that these kinds of accidents or events cannot occur. Such measures include but are not limited to protective
circuits and error prevention circuits for safe design, redundant design, and structural design.
In the event that any or all SANYO products(including technical data,services) described or
contained herein are controlled under any of applicable local export control laws and regulations,
such products must not be exported without obtaining the export license from the authorities
concerned in accordance with the above law.
No part of this publication may be reproduced or transmitted in any form or by any means, electronic or
mechanical, including photocopying and recording, or any information storage or retrieval system,
or otherwise, without the prior written permission of SANYO Electric Co. , Ltd.
Any and all information described or contained herein are subject to change without notice due to
product/technology improvement, etc. When designing equipment, refer to the "Delivery Specification"
for the SANYO product that you intend to use.
Information (including circuit diagrams and circuit parameters) herein is for example only ; it is not
guaranteed for volume production. SANYO believes information herein is accurate and reliable, but
no guarantees are made or implied regarding its use or any infringements of intellectual property rights
or other rights of third parties.
This catalog provides information as of September, 2000. Specifications and information herein are subject
to change without notice.
PS
No.6453-3/3
