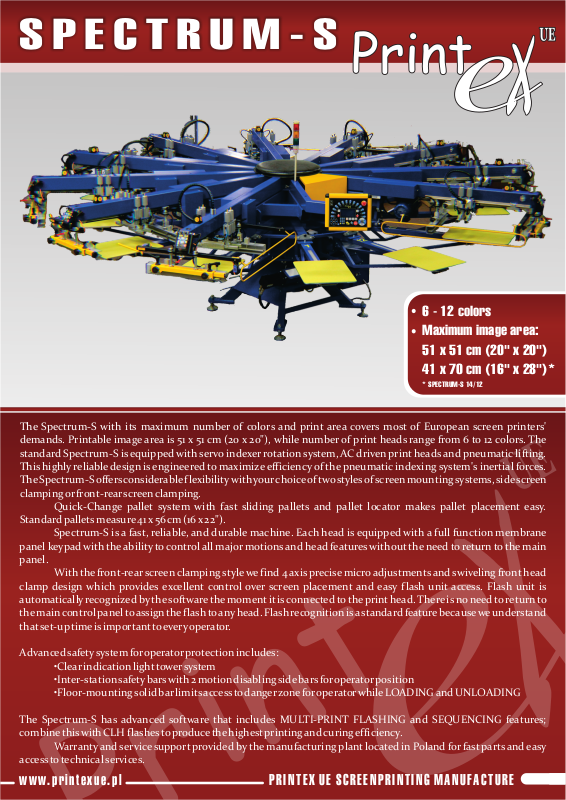

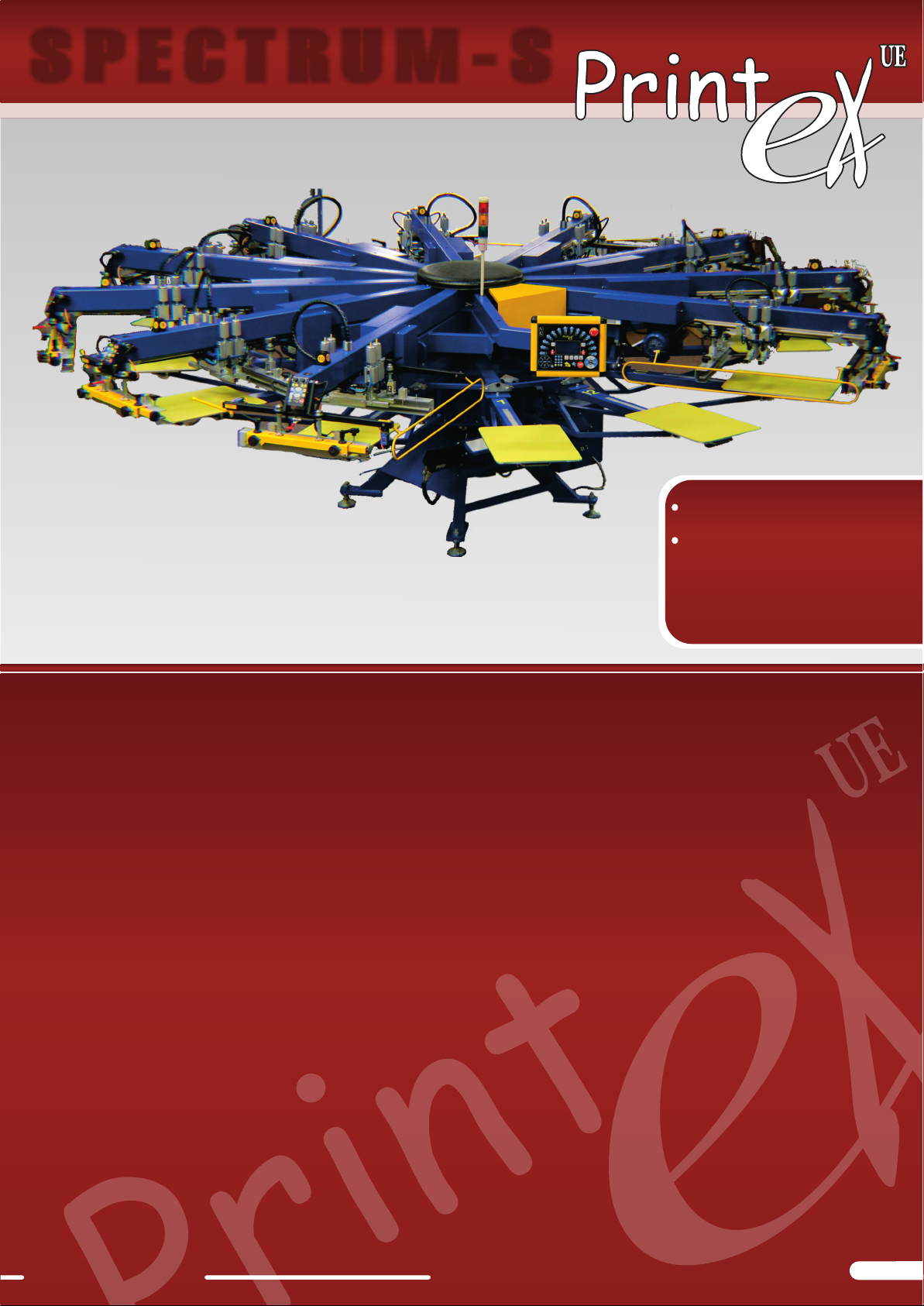

The Spectrum-S with its maximum number of colors and print area covers most of European screen printers'
demands. Printable image area is 51 x 51 cm (20 x 20"), while number of print heads range from 6 to 12 colors. The
standard Spectrum-S is equipped with servo indexer rotation system, AC driven print heads and pneumatic lifting.
This highly reliable design is engineered to maximize efficiency of the pneumatic indexing system's inertial forces.
The Spectrum-S offers considerable flexibility with your choice of two styles of screen mounting systems, side screen
clamping or front-rear screen clamping.
Quick-Change pallet system with fast sliding pallets and pallet locator makes pallet placement easy.
Standard pallets measure 41 x 56 cm (16 x 22").
Spectrum-S is a fast, reliable, and durable machine. Each head is equipped with a full function membrane
panel keypad with the ability to control all major motions and head features without the need to return to the main
panel.
With the front-rear screen clamping style we find 4 axis precise micro adjustments and swiveling front head
clamp design which provides excellent control over screen placement and easy flash unit access. Flash unit is
automatically recognized by the software the moment it is connected to the print head. There is no need to return to
the main control panel to assign the f lash to any head. Flash recognition is a standard feature because we understand
that set-up time is important to every operator.
Advanced safety system for operator protection includes:
•Clear indication light tower system
•Inter-station safety bars with 2 motion disabling side bars for operator position
•Floor-mounting solid bar limits access to danger zone for operator while LOADING and UNLOADING
The Spectrum-S has advanced software that includes MULTI-PRINT FLASHING and SEQUENCING features;
combine this with CLH flashes to produce the highest printing and curing efficiency.
Warranty and service support provided by the manufacturing plant located in Poland for fast parts and easy
access to technical services.
PR I N T EX U E S C RE E N P RIN T I N G M A N U FACT U R Eww w .pr i n t ex u e . pl
S P E C T R U M - S
6 - 12 colors
Maximum image area:
51 x 51 cm (20" x 20")
41 x 70 cm (16" x 28")*
* SPECTRUM-S 14/12
Page 2

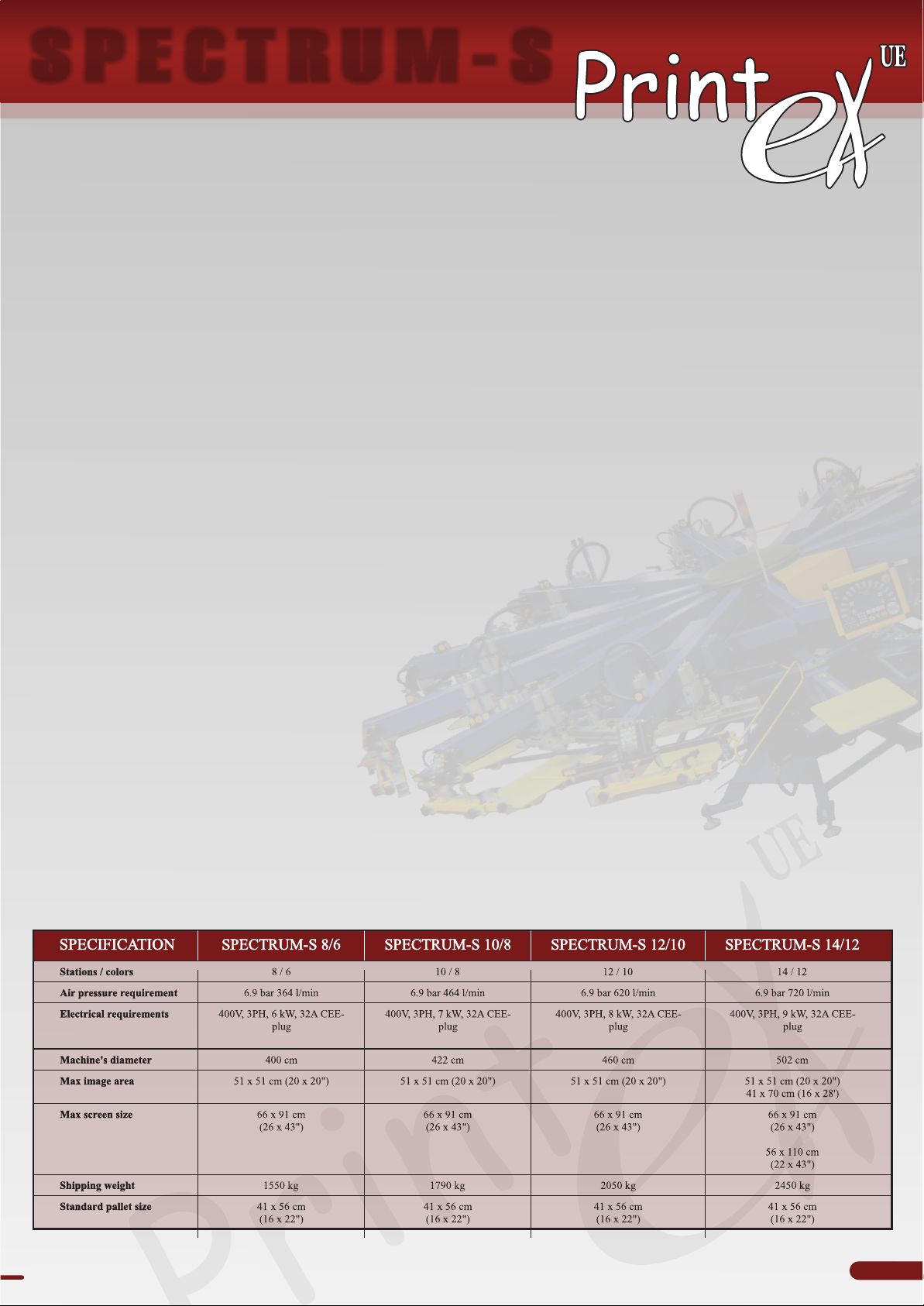

S P E C T R U M - S
Rotation
• Precise servo driven rotation
• Parameterized for different pallet weights ensuring smooth rotation
• Bi-directional rotation – Clockwise and Counter-Clockwise
• Servo driven indexing in combination with multi-print flashing saves a print position
Lifting
• Double or single (depending on machine size) lifting cylinder with central off-contact mechanism
Print head
• Membrane panel with full control of all head functions and machine motion movements
• AC driven print stroke with frequency converter for speed and torque control
• Longest serial equipped print stroke – full stroke length dependent on machine size
• Inner and outer print stroke adjustment with fault proof carriage system – eliminates possibility of head crash
• Constant print area rule - which allows the printer to pass along characteristics of print length to width and vice versa
Advanc ed programming functions
• Software is constantly upgraded according to printers suggestions (We gladly listen to your comments, as they help us create
a better screen printing tool and help us grow as a manufacturer!)
Screen Locks
• Pneumatic screen locks controlled directly from every print head
• Additional manual clamps for increased screen pressure
Registration
• Division tolerance is extremely accurate because we understand that proper registration is directly responsible for print
quality
• Upper division has an acceptable range of +/-0,01 mm
• Printing point on pallets has maximum deviation of +/- 0,025 mm.
• The numbers above ensure maximum accuracy for textile screen printing and also enables accuracy for other specialty
materials and surface printing
• Front micro-alignment with 3 axis
• Rear micro-alignment with 1 axis
• Fast print alignment with floor light pallet
Squeegee and flood bar
• Independent settings for squeegee and flood bar print adjustment
• Squeegee air pressure regulators with glass gauges for longevity
• Fast and simple squeegee and f lood bar angle adjustment
Warranty and service
• 2 year warranty
• Service agreement with special conditions
Additional Options
• Single touch fast squeegee and f lood bar locks
• Special upper wheel design to fit through 80 cm (30 " doors)
PR I N T EX U E s . c. , 1 7 -10 0 B i el s k P od l a s ki, u l . Re j o n owa 4 , t el . : + 48 8 5 7 3 0 1 6 8 0
STANDARD FEATURES
