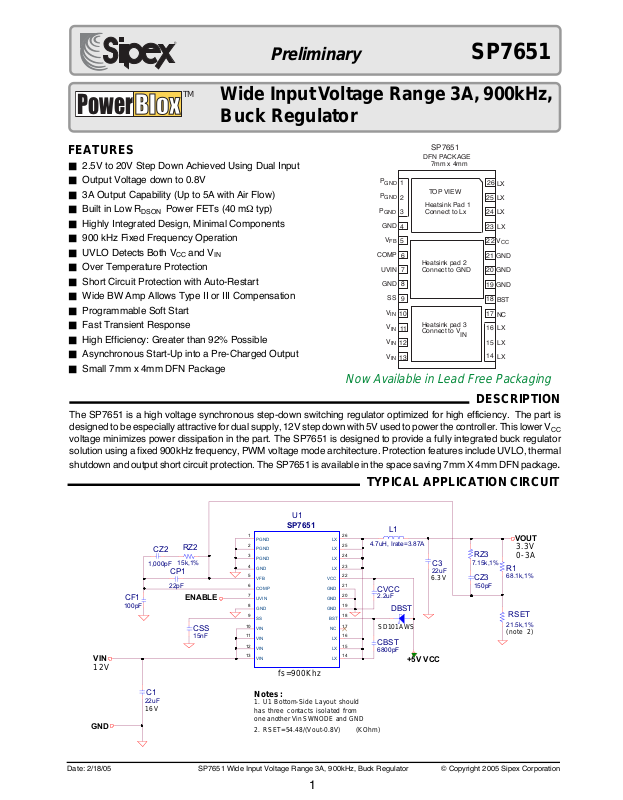

Wide Input Voltage Range 3A, 900kHz, Buck Regulator

FEATURES

■ 2.5V to 20V Step Down Achieved Using Dual Input

■ Output Voltage down to 0.8V

■ 3A Output Capability (Up to 5A with Air Flow)

■ Built in Low R

Power FETs (40 mΩ typ)

DSON

■ Highly Integrated Design, Minimal Components

■ 900 kHz Fixed Frequency Operation

■ UVLO Detects Both V

and V

■ Over Temperature Protection

■ Short Circuit Protection with Auto-Restart

■ Wide BW Amp Allows Type II or III Compensation

■ Programmable Soft Start

■ Fast Transient Response

■ High Efficiency: Greater than 92% Possible

■ Asynchronous Start-Up into a Pre-Charged Output

■ Small 7mm x 4mm DFN Package

Now Available in Lead Free Packaging

DESCRIPTION

The SP7651 is a high voltage synchronous step-down switching regulator optimized for high efficiency. The part is designed to be especially attractive for dual supply, 12V step down with 5V used to power the controller. This lower V voltage minimizes power dissipation in the part. The SP7651 is designed to provide a fully integrated buck regulator solution using a fixed 900kHz frequency, PWM voltage mode architecture. Protection features include UVLO, thermal

shutdown and output short circuit protection. The SP7651 is available in the space saving 7mm X 4mm DFN package.

TYPICAL APPLICATION CIRCUIT

PGND

GND

VFB

COMP

UVIN

GND

VIN

SP7651

VCC

GND

BST

fs=900Khz

Notes:

1. U1 Bottom-Side Layout should has three contacts isolated from one another Vin SWNODE and GND

2. RSET=54.48/(Vout-0.8V) (KOhm)

RZ2

CZ2

15k,1%

VIN

12V

GND

1,000pF

CP1

22pF

CF1

100pF

22uF

16V

ENABLE

CSS

15nF

4.7uH, Irate=3.87A

CVCC

2.2uF

DBST

SD101AWS

CBST

6800pF

+5V VCC

22uF

6.3V

RZ3

7.15k,1%

CZ3

150pF

68.1k,1%

RSET

21.5k,1%

(note 2)

VOUT

3.3V 0-3A

Page 2

These are stress ratings only and functional operation of the device at these ratings or any other above those indicated in the operation sections of the specifications below is not implied. Exposure to absolute maximum rating conditions for extended periods of time may affect reliability.

.................................................................................................. 7V

...........................................................................................................................................

...............................................................................................................................................

BST ............................................................................................... 35V

BST-SWN ......................................................................... -0.3V to 7V

SWN ................................................................................... -1V to 20V

22V

GH ......................................................................... -0.3V to BST+0.3V

GH-SWN ......................................................................................... 7V

All other pins .......................................................... -0.3V to V

Storage Temperature .................................................. -65°C to 150°C

Power Dissipation .................................................... Internally Limited

ESD Rating .......................................................................... 2kV HBM

Thermal Resistance ϑ

....................................................................................

ELECTRICAL SPECIFICATIONS

ABSOLUTE MAXIMUM RATINGS

Unless otherwise specified: -40°C < T LX = GND = 0V, UVIN = 3.0V, CV The ♦ denotes the specifications which apply over the full temperature range, unless otherwise specified.

RETEMARAP.NIM.PYT.XAMSTINUSNOITIDNOC

TNERRUCTNECSEIUQ

< 85°C, -40°C< Tj <125°C, 4.5V < V

AMB

= 1µF, C

= 0.1µF, CSS = 50nF, Typical measured at V

COMP

< 5.5V, 3V< Vin < 20V, BST=LX + 5V,

= 5V.

+0.3V

5°C/W

)gnihctiwsoN(tnerruCylppuS5.13 AmVBFV9.0=

)gnihctiws(tnerruCylppuS821Am

♦

)gnihctiwsoN(tnerruCylppuSTSB2.04.0AmV

)gnihctiws(tnerruCylppuSTSB46Am

♦

V9.0=

OLVU:NOITCETORP

dlohserhTtratSOLVU00.452.45.4V

siseretsyHOLVU001002003Vm

dlohserhTtratSNIVU3.25.256.2V

♦

siseretsyHNIVU002003004Vm

tnerruCtupnINIVU1AµV0.3=NIVU

ECNEREFERREIFILPMARORRE

ecnerefeRreifilpmArorrE297.0008.0808.0V

ecnerefeRreifilpmArorrE

erutarepmeTdnaeniLrevO

887.0008.0218.0V

♦

BFV;CC

erusaeM,.gifnoCniaGX2

Cº52=T,V5=

ecnatcudnocsnarTreifilpmArorrE6V/Am

niaGreifilpmArorrE06BddaoLoN

tnerruCkniSPMOC051AµV

tnerruCecruoSPMOC051AµV

tnerruCsaiBtupnI05002AnVBFV8.0=

V9.0=PMOC,V9.0=

V2.2=PMOC,V7.0=

eloPlanretnI4zHM

pmalCPMOC5.2VV

Cº52=AT,V7.0=

tneiciffeoC.pmeTpmalCPMOC2-Cº/Vm

Page 3

Unless otherwise specified: -40°C < T GND = 0V, UVIN = 3.0V, CV The ♦ denotes the specifications which apply over the full temperature range, unless otherwise specified.

= 1µF, C

RETEMARAP.NIM.PYT.XAMSTINUSNOITIDNOC

edutilpmApmaR29.01.182.1V

< 85°C, -40°C<Tj<125°C, 4.5V < V

AMB

= 0.1µF, CSS = 50nF, Typical measured at V

COMP

< 5.5V, 3V<Vin<20V, BST=LX + 5V, LX =

= 5V.

HTAPYALEDPOOL&PMAR,ROTARAPMOCMWP:POOLLORTNOC

ELECTRICAL SPECIFICATIONS

tesffOPMAR1.1V

tneiciffeoC.pmeTtesffOPMAR2-Cº/Vm

htdiWesluPmuminiMHG09081sn

♦

oitaRytuDelballortnoCmumixaM2979%

oitaRytuDmumixaM001%selcyc02rofdilaV

oitaRrotallicsOlanretnI018009099zHk

♦

TRATSTFOS:SREMIT

:tnerruCegrahCSS01Aµ

:tnerruCegrahcsiDSS1Am

♦

lamrehT&tiucriCtrohS:NOITCETORP

egatloVdlohserhTtiucriCtrohS2.052.03.0V

♦

tuoemiTpucciH002smVBFV5.0=

elcyCytuD%001ta

selcyCkcolCelbawollAforebmuN

selcyC02retfAesluPLGmuminiM5.0selcyCV

erutarepmeTnwodtuhSlamrehT541CºV

02selcyC

erutarepmeTyrevoceRlamrehT531Cº

PMOCPMAR,Cº52=

gnihctiwSstratsHGlitnu

oitaRytuDmumixaM

erofebtsujderusaeM

snigebgnislup

V2.0=SS,tneserPtluaF

VderusaeM

-)V8.0(

FER

V7.0=

siseretsyHlamrehT01Cº

EGATSREWOP:TUPTUO

RediShgiH

NOSD

RTEFsuonorhcnyS

NOSD

04 Ωm

I;V5=

A3=

TUO

Cº52=

BMA

I;V5=

A3=

TUO

Cº52=

BMA

tnerruCtuptuOmumixaM3A

Page 4

#niPemaNniPnoitpircseD

3-1P

12-91,8,4DNG

6PMOC

7NIVU

9SS

31-01V

62-32,61-41XLVdnanipsihtneewtebrotcudninatcennoC

22V

71CNtcennoCoN

DNG

PIN DESCRIPTION

reifitcersuonorhcnysehtrofnoitcennocdnuorG

erarevirdrewoprewoldnaCIehtfoyrtiucriclortnocehT.niPdnuorG

.tuoCfolanimret

VrevenehW.redividrotsiserlanretxenahguorht

.edom

Vrodnuorgrehtiednanipsihtotdetcennoc

.pooledom

ylppussaibV5lanretxeroftupnI

VneewtebredividrotsiseratcennoC.egatlovniVroftupniOLVU

egatlovgnitarepomuminimtesot

.snoitidnoctluafllagnirudtnerruc)nim(Am1aaiv

.DNGPdnanipsihtneewtebroticapac

TUO

)-(ehtotsecartdnuorgrehtomorfyletarapesnruteR.nipsihtotdecnerefer

tupnignitrevniehtsitI.nipnoitceteDtiucriCtrohSdnaegatloVkcabdeeF roftniopkcabdeefegatlovtuptuoehtsasevresdnareifilpmArorrEehtfo

detsujdaebnacdnadesnessiegatlovtuptuoehT.retrevnoCkcuBeht

ehtwolebV52.0spord puccihsretneCIehtdnadetcetedsitluaftiucrictrohsa,ecnereferevitisop

tupnignitrevniehtotdetcennocyllanretnisitI.reifilpmArorrEehtfotuptuO dnanesohcsinoitanibmocretliflamitponA.rotarapmocMWPehtfo egatlovehtezilibatsot

dna

ehttesotDNGdnaSSneewtebroticapaclanretxenatcennoC.tratStfoS

woldlehsinipSSehT.tnerrucecruosAµ01ehtnodesabetartratstfos

gnilpuocedaecalP.TEFSOMlennahc-NedishgihehtotnoitcennoctupnI

THEORY OF OPERATION

General Overview

The SP7651 is a fixed frequency, voltage mode, synchronous PWM regulator optimized for high efficiency. The part has been designed to be especially attractive for split plane applications utilizing 5V to power the controller and 2.5V to 28V for step down conversion.

The SP7651 contains two unique control features that are very powerful in distributed applications. First, asynchronous driver control is enabled during start up, to prohibit the low side NFET from pulling down the output until the high side NFET has attempted to turn on. Second, a 100% duty cycle timeout ensures that the

The heart of the SP7651 is a wide bandwidth transconductance amplifier designed to accommodate Type II and Type III compensation schemes. A precision 0.8V reference, present on

low side NFET is periodically enhanced during extended periods at 100% duty cycle. This guarantees the synchronized refreshing of the BST capacitor during very large duty ratios.

the positive terminal of the error amplifier permits the programming of the output voltage down to 0.8V via the VFB pin. The output of the error amplifier, COMP, which is compared to a

1.1V peak-to-peak ramp is responsible for trailing edge PWM control. This voltage ramp, and PWM control logic are governed by the internal oscillator that accurately sets the PWM fre-

The SP7651 also contains a number of valuable protection features. Programmable UVLO allows the user to set the exact V

value at which

the conversion voltage can safely begin down conversion, and an internal VCC UVLO ensures that the controller itself has enough voltage to properly operate. Other protection features in-

quency to 900kHz.

Page 5

THEORY OF OPERATION

clude thermal shutdown and short-circuit detection. In the event that either a thermal, shortcircuit, or UVLO fault is detected, the SP7651 is forced into an idle state where the output drivers are held off for a finite period before a re-start is attempted.

Soft Start

“Soft Start” is achieved when a power converter ramps up the output voltage while controlling the magnitude of the input supply source current. In a modern step down converter, ramping up the positive terminal of the error amplifier controls soft start. As a result, excess source current can be defined as the current required to charge the output capacitor.

VIN

= C

OUT

* (DV

OUT

/ DT

SOFT-START

)

The SP7651 provides the user with the option to program the soft start rate by tying a capacitor from the SS pin to GND. The selection of this capacitor is based on the 10uA pull up current present at the SS pin and the 0.8V reference voltage. Therefore, the excess source can be redefined as:

= C

VIN

Under Voltage Lock Out (UVLO)

OUT

* (DV

*10µA / (CSS * 0.8V)

OUT

The SP7651 contains two separate UVLO comparators to monitor the internal bias (VCC) and conversion (VIN) voltages independently. The VCC UVLO threshold is internally set to 4.25V, whereas the VIN UVLO threshold is programmable through the UVIN pin. When the UVIN pin is greater than 2.5V, the SP7651 is permitted to start up pending the removal of all other faults. Both the VCC and V

UVLO compara-

tors have been designed with hysteresis to prevent noise from resetting a fault.

Thermal and Short-Circuit Protection

Because the SP7651 is designed to drive large output current, there is a chance that the power converter will become too hot. Therefore, an internal thermal shutdown (145°C) has been included to prevent the IC from malfunctioning at extreme temperatures.

A short-circuit detection comparator has also been included in the SP7651 to protect against an accidental short at the output of the power converter. This comparator constantly monitors the positive and negative terminals of the error amplifier, and if the VFB pin falls more than 250mV (typical) below the positive reference, a short-circuit fault is set. Because the SS pin overrides the internal 0.8V reference during soft start, the SP7651 is capable of detecting shortcircuit faults throughout the duration of soft start as well as in regular operation.

Handling of Faults:

Upon the detection of power (UVLO), thermal, or short-circuit faults, the SP7651 is forced into an idle state where the SS and COMP pins are pulled low and the NFETS are held off. In the event of UVLO fault, the SP7651 remains in this idle state until the UVLO fault is removed. Upon the detection of a thermal or short-circuit fault, an internal 200ms timer is activated. In the event of a short-circuit fault, a re-start is attempted immediately after the 200ms timeout expires. Whereas, when a thermal fault is detected the 200ms delay continuously recycles and a re-start cannot be attempted until the thermal fault is removed and the timer expires.

Error Amplifier and Voltage Loop

Since the heart of the SP7651 voltage error loop is a high performance, wide bandwidth transconductance amplifier great care should be taken to select the optimal compensation network. Because of the amplifier’s current limited (+/-150µA) transconductance, there are many ways to compensate the voltage loop or to

Page 6

control the COMP pin externally. If a simple, single pole, single zero response is desired, then compensation can be as simple as an RC to ground. If a more complex compensation is required, then the amplifier has enough bandwidth (45° at 4 MHz) and enough gain (60dB) to run Type III compensation schemes with adequate gain and phase margins at cross over frequencies greater than 50kHz.

The common mode output of the error amplifier is 0.9V to 2.2V. Therefore, the PWM voltage ramp has been set between 1.1V and 2.2V to ensure proper 0% to 100% duty cycle capability. The voltage loop also includes two other very important features. One is asynchronous start up mode. Basically, the synchronous rectifier can not turn on unless the high side NFET has attempted to turn on or the SS pin has exceeded

1.7V. This feature prevents the controller from “dragging down” the output voltage during startup or in fault modes. The second feature is a 100% duty cycle timeout that ensures synchronized refreshing of the BST capacitor at very high duty ratios. In the event that the high side NFET is on for 20 continuous clock cycles, a reset is given to the PWM flip flop half way through the 21st cycle. This forces GL to rise for the cycle, in turn refreshing the BST capacitor.

Power MOSFETs

The SP7651 contains a pair of integrated low resistance N MOSFETs designed to drive up to 3A of output current. Maximum output current could be limited by thermal limitations of a particular application. The SP7651 incorporates a built-in over-temperature protection to prevent internal overheating.

THEORY OF OPERATION

BST

GH Voltage

SWN

V(V

CC)

GL Voltage

V(VIN)

SWN Voltage

-0V

-V(Diode) V

V(VIN)+V(VCC)

BST Voltage

V(VCC)

TIME

Setting Output Voltages

The SP7651 can be set to different output voltages. The relationship in the following formula is based on a voltage divider from the output to the feedback pin VFB, which is set to an internal reference voltage of 0.80V. Standard 1% metal film resistors of surface mount size 0603 are recommended.

Vout = 0.80V ( R1 / R2 + 1 ) => R2 = R1 / [ ( Vout / 0.80V ) – 1 ]

Where R1 = 68.1KΩ and for Vout = 0.80V setting, simply remove R2 from the board. Furthermore, one could select the value of R1 and R2 combination to meet the exact output voltage setting by restricting R1 resistance range such that 50KΩ < R1 < 100KΩ for overall system loop stability.

Page 7

APPLICATIONS INFORMATION

Inductor Selection

There are many factors to consider in selecting the inductor including core material, inductance vs. frequency, current handling capability, efficiency, size and EMI. In a typical SP7651 circuit, the inductor is chosen primarily by operating frequency, saturation current and DC resistance. Increasing the inductor value will decrease output voltage ripple, but degrade transient response. Low inductor values provide the smallest size, but cause large ripple currents, poor efficiency and more output capacitance to smooth out the larger ripple current. The inductor must be able to handle the peak current at the switching frequency without saturating, and the copper resistance in the winding should be kept as low as possible to minimize resistive power loss. A good compromise between size, loss and cost is to set the inductor ripple current to be within 20% to 40% of the maximum output current.

The switching frequency and the inductor operating point determine the inductor value as follows:

L−=

(max)

OUTINOUT

IKFV

(max)(max)

OUTrSIN

)(

VVV

where: Fs = switching frequency Kr = ratio of the ac inductor ripple current to the

maximum output current

The peak to peak inductor ripple current is:

)( −

VVV

(max)

OUTINOUT

LFV

SIN

Once the required inductor value is selected, the proper selection of core material is based on peak inductor current and efficiency requirements. The core must be large enough not to

saturate at the peak inductor current

II +=

(max)

OUTPEAK

and provide low core loss at the high switching frequency. Low cost powdered iron cores are inappropriate for 900kHz operation. Gapped ferrite inductors are widely available for consideration. Select devices that have operating data shown up to 1MHz. Ferrite materials, on the other hand, are more expensive and have an abrupt saturation characteristic with the inductance dropping sharply when the peak design current is exceeded. Nevertheless, they are preferred at high switching frequencies because they present very low core loss and the design only needs to prevent saturation. In general, ferrite or molyperm alloy materials will be used with the SP7651.

Optimizing Efficiency

The power dissipated in the inductor is equal to the sum of the core and copper losses. To minimize copper losses, the winding resistance needs to be minimized, but this usually comes at the expense of a larger inductor. Core losses have a more significant contribution at low output current where the copper losses are at a minimum, and can typically be neglected at higher output currents where the copper losses dominate. Core loss information is usually available from the magnetic vendor. Proper inductor selection can affect the resulting power supply efficiency by more than 15-20%!

The copper loss in the inductor can be calculated using the following equation:

RIP

)()(

WINDINGRMSLCuL

where I

L(RMS)

is the RMS inductor current that

can be calculated as follows:

L(RMS)

= I

OUT(max)

1 +

1 ( IPP

3 I

) 2

OUT(max)

Page 8

Output Capacitor Selection

APPLICATIONS INFORMATION

The required ESR (Equivalent Series Resistance) and capacitance drive the selection of the type and quantity of the output capacitors. The ESR must be small enough that both the resistive voltage deviation due to a step change in the load current and the output ripple voltage do not exceed the tolerance limits expected on the output voltage. During an output load transient, the output capacitor must supply all the additional current demanded by the load until the SP7651 adjusts the inductor current to the new value.

In order to maintain V

the capacitance must

OUT,

be large enough so that the output voltage is held up while the inductor current ramps up or down to the value corresponding to the new load current. Additionally, the ESR in the output capacitor causes a step in the output voltage equal to the current. Because of the fast transient response and inherent 100% and 0% duty cycle capability provided by the SP7651 when exposed to output load transient, the output capacitor is typically chosen for ESR, not for capacitance value.

The output capacitor’s ESR, combined with the inductor ripple current, is typically the main contributor to output voltage ripple. The maximum allowable ESR required to maintain a specified output voltage ripple can be calculated by:

≤ ∆V

ESR

PK-PK

OUT

where: ∆V

= Peak to Peak Output Voltage Ripple

OUT

= Peak to Peak Inductor Ripple Current

PK-PK

The total output ripple is a combination of the ESR and the output capacitance value and can be calculated as follows:

FS = Switching Frequency D = Duty Cycle

= Output Capacitance Value

OUT

Input Capacitor Selection

The input capacitor should be selected for ripple current rating, capacitance and voltage rating. The input capacitor must meet the ripple current requirement imposed by the switching current. In continuous conduction mode, the source current of the high-side MOSFET is approximately a square wave of duty cycle V

OUT/VIN

. Most of this current is supplied by the input bypass capacitors. The RMS value of input capacitor current is determined at the maximum output current and under the assumption that the peak

to peak inductor ripple current is low, it is given by:

CIN(rms)

= I

OUT(max)

√

D(1 - D)

The worse case occurs when the duty cycle D is 50% and gives an RMS current value equal to I

/2.

OUT

Select input capacitors with adequate ripple current rating to ensure reliable operation.

The power dissipated in the input capacitor is:

RIP =

)( CINESRrmsCINCIN

)(

This can become a significant part of power losses in a converter and hurt the overall energy transfer efficiency. The input voltage ripple primarily depends on the input capacitor ESR and capacitance. Ignoring the inductor ripple current, the input voltage ripple can be determined by:

∆

OUT

IPP (1 – D)

(

OUTFS

)

+ (IPPR

ESR

)

Page 9

APPLICATIONS INFORMATION

RIV

+=∆

)((max)

CINESRoutIN

)(

The capacitor type suitable for the output capacitors can also be used for the input capacitors.

However, exercise extra caution when tantalum capacitors are used. Tantalum capacitors are known

−

OUTINOUTMAXOUT

VCF

ININS

transient response, but often jeopardizes the system stability. Cross over frequency should be higher than the ESR zero but less than 1/5 of the switching frequency. The ESR zero is contributed by the ESR associated with the output capacitors and can be determined by:

High cross over frequency is desirable for fast

)(

VVVI

for catastrophic failure when exposed to surge current, and input capacitors are prone to such surge current when power supplies are connected “live” to low impedance power sources.

Loop Compensation Design

The open loop gain of the whole system can be divided into the gain of the error amplifier,

Z(ESR)

2π C

The next step is to calculate the complex conjugate poles contributed by the LC output filter,

OUT RESR

PWM modulator, buck converter output stage, and feedback resistor divider. In order to cross over at the selected frequency FCO, the gain of the error amplifier has to compensate for the

P(LC)

2π L C

OUT

attenuation caused by the rest of the loop at this frequency.

The goal of loop compensation is to manipulate loop frequency response such that its gain crossesover 0db at a slope of -20db/dec. The first step of compensation design is to pick the loop cross over frequency.

Type III Voltage Loop

Compensation

(s) Gain Block

AMP

REF

(Volts)

Notes: R

Condition: Cz2 >> Cp1 & R1 >> Rz3 Output Load Resistance >> R

SP7651 Voltage Mode Control Loop with Loop Dynamic

Definitions:

= Output Capacitor Equivalent Series Resistance

ESR

= Output Inductor DC Resistance

RAMP_PP

= SP7651 internal RAMP Amplitude Peak to Peak Voltage

Conditions:

2 >> Cp1 and R1 >> RZ 3

Output Load Resistance >> R

(SRz2Cz2+1)(SR1Cz3+1) (SR

SR1Cz2(SRz3Cz3+1)(SRz2Cp1+1)

= Output Capacitor Equivalent Series Resistance.

ESR

= Output Inductor DC Resistance.

= SP6132 Internal RAMP Amplitude Peak to Peak Voltage.

RAMP_PP

& R

ESR

FBK

(Volts)

and R

ESR

When the output capacitors are of a Ceramic Type, the SP7651 Evaluation Board requires a Type III compensation circuit to give a phase boost of 180° in order to counteract the effects of an under damped resonance of the output filter at the double pole frequency.

PWM Stage

Gain

PWM

Block

RAMP_PP

Voltage Feedback

Gain Block

FBK

)

REF

OUT

[S^2LC

Output Stage G

ESRCOUT

+S(R

OUT

Block

ESR+RDC

(s) Gain

+ 1)

) C

+1]

OUT

(Volts)

Page 10

Gain

(dB)

20 Log (RZ2/R1)

Condition: C22 >> CP1, R1 >> RZ3

1/6.28 (R1) (CZ3)

1/6.28(R22) (CZ2)

1/6.28 (R1) (CZ2)

1/6.28 (RZ2) (CP1)

APPLICATIONS INFORMATION

Error Amplifier Gain Bandwidth Product

Frequency

(Hz)

1/6.28 (RZ3) (CZ3)

Bode Plot of Type III Error Amplifier Compensation.

RZ3

OUT

CZ3

68.1k, 1%

SET

Type III Error Amplifier Compensation Circuit

SET

=54.48/ (V

OUT

-0.8)

(kΩ)

VFB

CZ2

0.8V

CP1

RZ2

COMP

CF1

Page 11

TYPICAL PERFORMANCE CHARACTERISITICS

SP7651 Effi. v.s Iout Plots @

95.0

90.0

85.0

80.0

Efficiency (%)

75.0

70.0

0.5 1.0 1.5 2.0 2.5 3.0

3.315

3.31

3.305

3.3

Output Voltage (V)

3.295 0 0.5 1.0 1.5 2.0 2.5 3.0

Vin=12V, and Vout=3.3V

Load Current (A)

SP7651 Vout v.s Iout Plots @

Vin=12V, and Vout=3.3V

Load Current (A)

SP7651 Effi. v.s Iout Plots @

93.5

93.0

92.5

92.0

91.5

Efficiency (%)

91.0

90.5

90.0

0.5 1.0 1.5 2.0 2.5 3.0

5.10

5.08

5.06

5.04

Output Voltage (V)

5.02

5.00

00.51.01.5 2.0 2.5 3.0

Vin=12V, and Vout=5.0V

Load Current (A)

SP7651 Vout v.s Iout Plots @

Vin=12V, and Vout=5.0V

Load Current (A)

Page 12

PACKAGE: 26 PIN DFN

(7 x 4 mm)

Top View

Side View

SYMBOL

26 Pin DFN

MIN NOM MAX

Bottom View

A 0.800 0.850 0.900 A1 0.000 - 0.050 A3 0.178 0.203 0.228

b 0.170 0.220 0.270

D 6.950 7.000 7.050 D2 2.000 2.050 2.100 D3 1.780 1.830 1.880

0.500 BSC

E 3.950 4.000 4.050

E2 2.730 2.780 2.830

K 0.340 0.390 0.440

J 0.200 0.250 0.300 L 0.350 0.400 0.450

Note: Dimensions in (mm)

Page 13

ORDERING INFORMATION

Part Number Temperature Package

SP7651ER/TR ......................................... -40°C to +85°C ................................. 26 Pin 7 X 4 DFN

SP7651ER-L/TR .....................................-40°C to +85°C ............. (Lead Free) 26 Pin 7 X 4 DFN

/TR = Tape and Reel

Pack quantity is 3000 DFN.

CLICK HERE TO ORDER SAMPLES

Corporation

ANALOG EXCELLENCE

Sipex Corporation Headquarters and

Sales Office

233 South Hillview Drive Milpitas, CA 95035 TEL: (408) 934-7500 FAX: (408) 935-7600

Sipex Corporation reserves the right to make changes to any products described herein. Sipex does not assume any liability arising out of the application or use of any product or circuit described herein; neither does it convey any license under its patent rights nor the rights of others.
