Datasheet SP723 Datasheet (Littelfuse)

TVS Diode Arrays (SPA

V+

IN

RoHS

GREEN

®

Diodes)

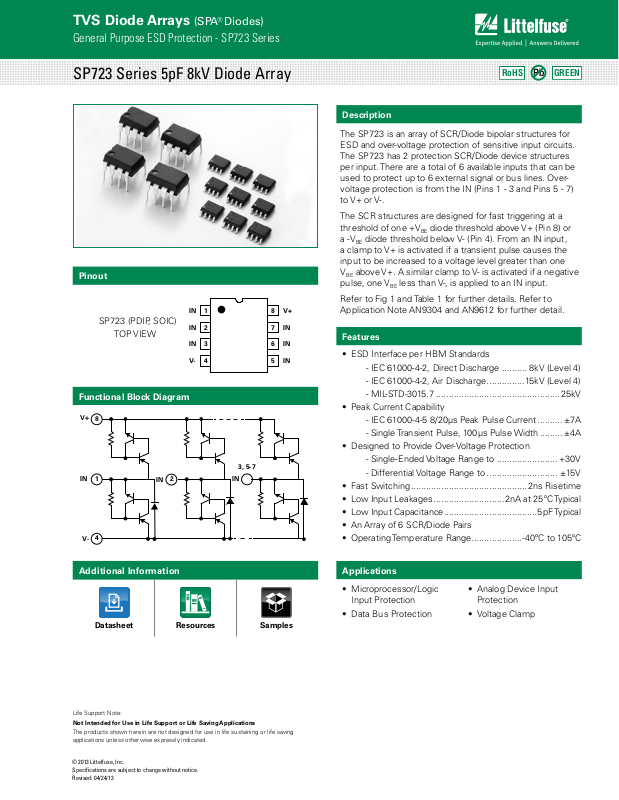

General Purpose ESD Protection - SP723 Series

SP723 Series 5pF 8kV Diode Array

Pinout

SP723 (PDIP, SOIC)

TOP VIEW

Functional Block Diagram

8

1

4

V-

2

IN

1

IN

2

IN

3

IN

4

V-

3, 5-7

IN

8

7

6

5

V+

IN

IN

IN

Pb

Description

The SP723 is an array of SCR/Diode bipolar structures for
ESD and over-voltage protection of sensitive input circuits.
The SP723 has 2 protection SCR/Diode device structures
per input. There are a total of 6 available inputs that can be
used to protect up to 6 external signal or bus lines. Over­voltage protection is from the IN (Pins 1 - 3 and Pins 5 - 7)
to V+ or V-.

The SCR structures are designed for fast triggering at a
threshold of one +V
a -V

diode threshold below V- (Pin 4). From an IN input,

BE

a clamp to V+ is activated if a transient pulse causes the
input to be increased to a voltage level greater than one
V

above V+. A similar clamp to V- is activated if a negative

BE

pulse, one V

less than V-, is applied to an IN input.

BE

Refer to Fig 1 and Table 1 for further details. Refer to
Application Note AN9304 and AN9612 for further detail.

Features

• ESD Interface per HBM Standards

- IEC 61000-4-2, Direct Discharge .......... 8kV (Level 4)

- IEC 61000-4-2, Air Discharge ...............15kV (Level 4)

- MIL-STD-3015.7 .................................................25kV

• Peak Current Capability

- IEC 61000-4-5 8/20µs Peak Pulse Current .......... ±7A

- Single Transient Pulse, 100µs Pulse Width ......... ±4A

• Designed to Provide Over-Voltage Protection

- Single-Ended Voltage Range to ........................ +30V

- Differential Voltage Range to ............................ ±15V

• Fast Switching ..............................................2ns Risetime

• Low Input Leakages ............................2nA at 25ºC Typical

• Low Input Capacitance .....................................5pF Typical

• An Array of 6 SCR/Diode Pairs

• Operating Temperature Range....................-40ºC to 105ºC

diode threshold above V+ (Pin 8) or

BE

Additional Information

Datasheet

Life Support Note:

Not Intended for Use in Life Support or Life Saving Applications

The products shown herein are not designed for use in life sustaining or life saving
applications unless otherwise expressly indicated.

© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/24/13

Resources

Samples

Applications

• Microprocessor/Logic
Input Protection

• Data Bus Protection

• Analog Device Input
Protection

• Voltage Clamp

TVS Diode Arrays (SPA

®

Diodes)

General Purpose ESD Protection - SP723 Series

Absolute Maximum Ratings

Parameter Rating Units

Continuous Supply Voltage, (V+) - (V-) +35 V
Forward Peak Current, IIN to VCC, IIN to

GND (Refer to Figure 5)
Peak Pulse Current, 8/20µs ±7 A

CAUTION: Stresses above those listed in “Absolute Maximum Ratings” may cause
permanent damage to the device. This is a stress only rating and operation of the device
at these or any other conditions above those indicated in the operational sections of this
specification is not implied.

Note:

ESD Ratings and Capability (Figure 1, Table 1)

Load Dump and Reverse Battery (Note 2)

Electrical Characteristics T

= -40oC to 105oC, V

A

±4, 100µs A

= 0.5VCC , Unless Otherwise Specified

IN

Thermal Information

Parameter Rating Units

Thermal Resistance (Typical, Note 1) θ

PDIP Package 160

SOIC Package 170

Storage Temperature Range -65 to 150
Maximum Junction Temperature (Plastic

Package)
Lead Temperature

(Soldering 20-40s) (SOIC Lead Tips Only)

is measured with the component mounted on an evaluation PC board in free air.

1. θ

JA

JA

150

260

o

C/W

o

C/W

o

C/W

o

C

o

C

o

C

Parameter Symbol Test Conditions Min Typ Max Units

Operating Voltage Range,
V

=[(V+)-(V-)]

SUPPLY

V

SUPPLY

- 2 to 30 - V

Forward Voltage Drop

IN to V- V

IN to V+ V

Input Leakage Current I

Quiescent Supply Current I

QUIESCENT

FWDL

FWDH

IN

IIN=2A(Peak Pulse) - 2 - V

- 2 - V

-20 5 20 nA

- 50 200 nA

Equivalent SCR ON Threshod Note 3 - 1. 1 - V

Equivalent SCR ON Resistance V

Input Capacitance C

Input Switching Speed t

Notes:

2. In automotive ans battery operated systems, the power supply lines should be externally protected for load dump and reverse battery. When the V+ and V- Pins are connected to the same
supply voltage source as the device or control line under protection, acurrent limiting resistor should be connectied in series between the external supply and the SP723 supply pins to
limit reverse battery current to within the rated maximum limits. Bypass capacitors of typically 0.01µF or larger from the V+ and V- Pins to ground are recommended.

3. Refer to the Figure 3 graph for determine peak current and dessipation under EOS conditions.

IN

ON

; Note 3 - 0.5 - Ω

FWD/IFWD

- 5 - PF

- 2 - ns

Typical Application of the SP723

(Application as an Input Clamp for Over-voltage, Greater than 1VBE
Above V+ or less than -1VBE below V-)

+V

CC

INPUT

DRIVERS

OR

SIGNAL

SOURCES

SP723

SP723 INPUT PROTECTION CIRCUIT (1 OF 6 SHO WN)

IN 5 - 7IN 1 - 3

+V

LINEAR OR

DIGITAL IC

INTERFACE

TO +V

V+

V-

CC

CC

Specifications are subject to change without notice.

© 2013 Littelfuse, Inc.

Revised: 04/24/13

TVS Diode Arrays (SPA

R

R

5

4

3

2

1

0

TA = 25ºC
SINGLE PULSE

V

FWD

I

FWD

EQUIV. SAT. ON

.

THRESHOLD ~ 1.1V

FORWARD SCR CURRENT (A)

FORWARD SCR VOLTAGE DROP (V)

0

1

2

3

®

Diodes)

General Purpose ESD Protection - SP723 Series

ESD Capability

ESD capability is dependent on the application and defined
test standard.The evaluation results for various test
standards and methods based on Figure 1 are shown in
Table 1.

The SP723 has a Level 4 HBM capability when tested as a
device to the IEC 61000-4-2 standard. Level 4 specifies a
required capability greater than 8kV for direct discharge and
greater than 15kV for air discharge.

For the “Modified” MIL-STD-3015.7 condition that is
defined as an “in-circuit” method of ESD testing, the V+
and V- pins have a return path to ground and the SP723
ESD capability is typically greater than 25kV from 100pF
through 1.5kΩ. By strict definition of MIL-STD-3015.7 using
“pin-to-pin” device testing, the ESD voltage capability is
greater than 10kV.

For the SP723 EIAJ IC121 Machine Model (MM) standard,
the ESD capability is typically greater than 2kV from 200pF
with no series resistance.

Figure 1: Electrostatic Discharge Test

H.V.

SUPPLY

V

D

1

CHARGE

SWITCH

IEC 1000-4-2: R150 to 100M

MIL-STD-3015.7: R11 to 10M

D

DISCHARGE

C

D

SWITCH

IN

DUT

Table 1: ESD Test Conditions

Standard Type/Mode R

IEC 1000-4-2
(Level 4)

MIL­STD-3015.7

HBM, Air Discharge 330 Ω 150pF 15kV

HBM, Direct Discharge 330 Ω 150pF 8kV

Modified HBM 1.5k Ω 100pF 25kV

Standard HBM 1.5k Ω 100pF 10kV

EIAJ IC121 Machine Model 0k Ω 200pF 2kV

EIAJ IC121 Machine Model 0kΩ 200pF 1kV

C

D

±V

D

D

200

TA = 25°C
SINGLE PULSE

160

120

80

40

FORWARD SCT CURRENT (mA)

0

600800 1000 1200

FORWARD SCR VO LTAGE DROP (mV)

© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/24/13

Figure 3: High Current SCR Forward Voltage Drop CurveFigure 2: Low Current SCR Forward Voltage Drop Curve

5

TA = 25ºC
SINGLE PULSE

4

3

2

EQUIV. SAT. ON

0

THRESHOLD ~ 1.1V

1

FORWARD SCR CURRENT (A)

0

.

1

FORWARD SCR VOLTAGE DROP (V)

V

FWD

2

I

FWD

3

TVS Diode Arrays (SPA

R
V
C1 ~ 100 µF

PEAK CURRENT (A)

General Purpose ESD Protection - SP723 Series

Peak Transient Current Capability of the SP723

®

Diodes)

The peak transient current capability rises sharply as the
width of the current pulse narrows. Destructive testing
was done to fully evaluate the SP723’s ability to withstand
a wide range of peak current pulses vs time. The circuit
used to generate current pulses is shown in Figure 4.

The test circuit of Figure 4 is shown with a positive pulse
input. For a negative pulse input, the (-) current pulse input
goes to an SP723 ‘IN’ input pin and the (+) current pulse
input goes to the SP723 V- pin. The V+ to V- supply of the
SP723 must be allowed to float. (i.e., It is not tied to the
ground reference of the current pulse generator.) Figure
5 shows the point of overstress as defined by increased
leakage in excess of the data sheet published limits.

The maximum peak input current capability is dependent
on the ambient temperature, improving as the temperature
is reduced. Peak current curves are shown for ambient
temperatures of 25ºC and 105ºC and a 15V power supply
condition. The safe operating range of the transient peak
current should be limited to no more than 75% of the
measured overstress level for any given pulse width as
shown in the curves of Figure 5.

Note that adjacent input pins of the SP723 may be
paralleled to improve current (and ESD) capability. The
sustained peak current capability is increased to nearly
twice that of a single pin.

Figure 4: Typical SP723 Peak Current Test Circuit

with a Variable Pulse Width Input

VARIABLE TIME DURATION

+

V

X

-

VOLTAG E

PROBE

~ 10 TYPICAL

1

ADJ. 10V/A TYPICAL

X

R

CURRENT PULSE GENERA TOR

1

CURRENT

SENSE

(+)

1

IN

IN

2

IN

3

V-

4

SP723

(-)

8

V+

7

IN

6

IN

5

IN

+

-

C1

Figure 5: SP723 Typical Single Peak Current Pulse

Capability

Showing the Measured Point of Overstress in Amperes vs pulse
width time in milliseconds

14

12

T

= 25°C

T

= 105°C

A

A

10

8

6

4

2

0

0.001 0.01 0.1 1

CAUTION: SAFE OPERATING CONDITIONS LIMIT

THE MAXIMUM PEAK CURRENT FOR A GIVEN
PULSE WIDTH TO BE NO GREATER THAN 75%
OF THE VALUES SHOWN ON EACH CURVE.

V+ TO V-SUPPLY = 15V

10

100 1000

PULSE WIDTH TIME (ms)

Specifications are subject to change without notice.

© 2013 Littelfuse, Inc.

Revised: 04/24/13

TVS Diode Arrays (SPA

t

R

R

o

C

e

T

®

Diodes)

General Purpose ESD Protection - SP723 Series

Soldering Parameters

Reflow Condition Pb – Free assembly

Pre Heat

- Temperature Min (T

- Temperature Max (T

) 150°C

s(min)

) 200°C

s(max)

- Time (min to max) (ts) 60 – 180 secs

Average ramp up rate (Liquidus) Temp
(T

) to peak

L

to TL - Ramp-up Rate 5°C/second max

T

S(max)

Reflow

- Temperature (TL) (Liquidus) 217°C

- Temperature (tL) 60 – 150 seconds

Peak Temperature (TP) 260

Time within 5°C of actual peak
Temperature (t

)

p

5°C/second max

+0/-5

°C

20 – 40 seconds

Ramp-down Rate 5°C/second max

Time 25°C to peak Temperature (T

) 8 minutes Max.

P

Do not exceed 260°C

Package Dimensions — Dual-In-Line Plastic Packages (PDIP)

N

INDEX

AREA

PLANE

SEATING

PLANE

Notes:

1. Controlling Dimensions: INCH. In case of conflict between English and Metric dimensions,
the inch dimensions control.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of Publication No. 95.

4. Dimensions A, A1 and L are measured with the package seated in JEDEC seating plane
gauge GS-3.

5. D, D1, and E1 dimensions do not include mold flash or protrusions. Mold flash or
protrusions shall not exceed 0.010 inch (0.25mm).

6. E and e

-C- .

and eC are measured at the lead tips with the leads uncon-strained. eC must be zero or

7. e

B

greater.

8. B1 maximum dimensions do not include dambar protrusions. Dambar protrusions shall not
exceed 0.010 inch (0.25mm).

9. N is the maximum number of terminal positions.

10. Corner leads (1, N, N/2 and N/2 + 1) for E8.3, E16.3, E18.3, E28.3, E42.6 will have a B1
dimension of 0.030 - 0.045 inch (0.76 - 1.14mm).

12 3 N/2

-A-

BASE

D1

B1

are measured with the leads unconstrained to be perpendicular to datum

A

D

B

0.010 (0.25) CAM BS

E1

-B-

E

A2

-C-

D1

e

A

L

A

1

e

C

C

L

e

A

C

e

B

t

T

P

Ramp-up

t

amp-up

PreheatPrehea

S

T

L

T

S(max)

Temperature

T

S(min)

25

time to peak temperature

P

t

L

Critical Zone

ritical Zon

L to TP

to

T

Ramp-down

amp-d

Time

Package PDIP

Pins 8

JEDEC MS-001

Millimeters Inches

Min Max Min Max

A - 5.33 - 0.210 4
A1 0.39 - 0.015 - 4
A2 2.93 4.95 0.115 0.195 -

B 0.356 0.558 0.014 0.022 -
B1 1.15 1.77 0.045 0.070 8, 10

C 0.204 0.355 0.008 0.014 -

D 9.01 10.16 0.355 0.400 5
D1 0.13 - 0.005 - 5

E 7.62 8.25 0.300 0.325 6
E1 6.1 7. 11 0.240 0.280 5

e 2.54 BSC 0.100 BSC -

e

A

e

B

7.62 BSC 0.300 BSC 6

- 10.92 - 0.430 7

L 2.93 3.81 0.115 0.150 4

N 8 8 9

Notes

© 2013 Littelfuse, Inc.
Specifications are subject to change without notice.
Revised: 04/24/13

TVS Diode Arrays (SPA

General Purpose ESD Protection - SP723 Series

Package Dimensions — Small Outline Plastic Packages (SOIC)

®

Diodes)

N

INDEX
AREA

123

-A-

E

-B-

SEATING PLANE

D

A

-C-

0.25(0.010)BM M

H

L

h x 45

o

μ

e

B

0.25(0.010)CAM BS

Notes:

1. Symbols are defined in the “MO Series Symbol List” in Section 2.2 of
Publication Number 95.

2. Dimensioning and tolerancing per ANSI Y14.5M-1982.

3. Dimension “D” does not include mold flash, protrusions or gate burrs. Mold
flash, protrusion and gate burrs shall not exceed 0.15mm (0.006 inch) per side.

4. Dimension “E” does not include interlead flash or protrusions. Inter-lead flash
and protrusions shall not exceed 0.25mm (0.010 inch) per side.

5. The chamfer on the body is optional. If it is not present, a visual index feature
must be located within the crosshatched area.

6. “L” is the length of terminal for soldering to a substrate.

7. “N” is the number of terminal positions.

8. Terminal numbers are shown for reference only.

9. The eadl width “B”, as measured 0.36mm (0.014 inch) or greater above the
seating plane, shall not exceed a maximum value of 0.61mm (0.024 inch).

10. Controlling dimension:MILLIMETER. Converted inch dimensions are not
necessarily exact.

A1

0.10(0.004)

M

C

Package SOIC

Pins 8

JEDEC MS-012

Millimeters Inches

Min Max Min Max

A 1.35 1.75 0.0532 0.0688 -

A1 0.10 0.25 0.0040 0.0098 -

B 0.33 0.51 0.013 0.020 9

C 0.19 0.25 0.0075 0.0098 -

D 4.80 5.00 0.1890 0.1968 3

E 3.80 4.00 0.1497 0.1574 4

e 1.27 BSC 0.050 BSC -

H 5.80 6.20 0.2284 0.2440 -

h 0.25 0.50 0.0099 0.0196 5

L 0.40 1.27 0.016 0.050 6

N 8 8 7

µ 0º 8º 0º 8º -

Notes

Part Numbering System

SP 723

TVS Diode Arrays

®

(SPA

Diodes)

** *

*

G=Green

Product Characteristics

Lead Plating Matte Tin

Lead Material Copper Alloy

Lead Coplanarity 0.004 inches (0.102mm)

Series

P=Lead Free
T= Tape and Reel

Package

AB = 8 Ld SOIC
AP = 8 Ld PDIP

Substitute Material Silicon

Body Material Molded Epoxy

Flammability UL 94 V-0

Ordering Information

Part Number Temp. Range (ºC) Package

SP723APP -40 to 105 8 Ld PDIP Lead-free SP723AP(P)

SP723ABG -40 to 105 8 Ld SOIC Green SP723A(B)G

SP723ABTG -40 to 105 8 Ld SOIC Tape and Reel Green SP723A(B)G

Notes:

1. SP723AP(P) means device marking either SP723AP or SP723APP.

2. SP723A(B)G means device marking either SP723AG or SP723ABG which are good for types SP723ABG and SP723ABTG.

Environmental

Informaton

Marking Min. Order

1

2000

2

1960

2

2500

Specifications are subject to change without notice.

© 2013 Littelfuse, Inc.

Revised: 04/24/13
