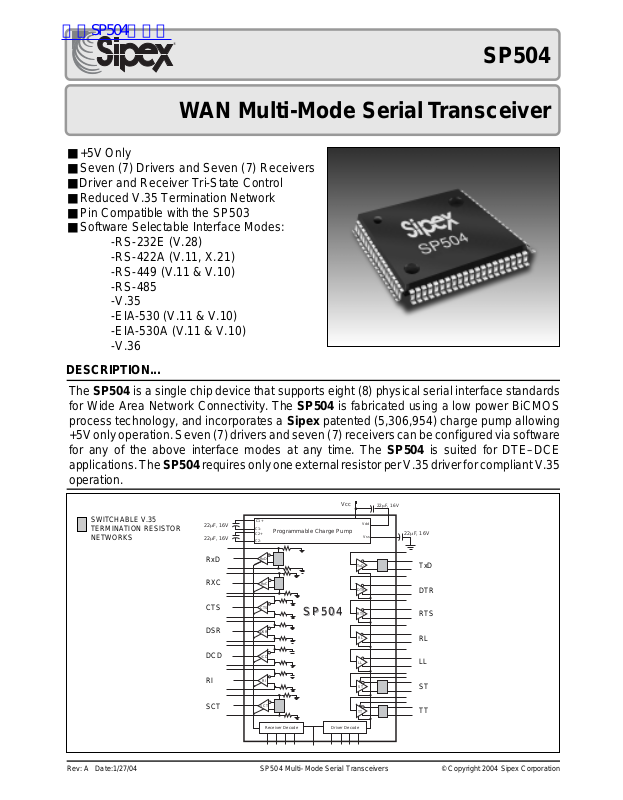

SP504
WAN Multi-Mode Serial Transceiver
■ +5V Only
■ Seven (7) Drivers and Seven (7) Receivers
■ Driver and Receiver Tri-State Control
■ Reduced V.35 Termination Network
■ Pin Compatible with the SP503
■ Software Selectable Interface Modes:
-RS-232E (V.28)
-RS-422A (V.11, X.21)
-RS-449 (V.11 & V.10)
-RS-485
-V.35
-EIA-530 (V.11 & V.10)
-EIA-530A (V.11 & V.10)
-V.36
DESCRIPTION...
The SP504 is a single chip device that supports eight (8) physical serial interface standards
for Wide Area Network Connectivity. The SP504 is fabricated using a low power BiCMOS
process technology, and incorporates a Sipex patented (5,306,954) charge pump allowing
+5V only operation. Seven (7) drivers and seven (7) receivers can be configured via software
for any of the above interface modes at any time. The SP504 is suited for DTE–DCE
applications. The SP504 requires only one external resistor per V.35 driver for compliant V.35
operation.
Vcc
22µF, 16V
SWITCHABLE V.35
TERMINATION RESISTOR
NETWORKS
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
22µF, 16V
22µF, 16V
RxD
RXC
CTS
DSR
DCD
RI
SCT
C1+
C1-
Programmable Charge Pump
C2+
C2-
RxD
RxC
CTS
DSR
DCD
RI
SCT
SP504
SP504
Vdd
Vss
TxD
DTR
RTS
RL
LL
ST
TT
Driver DecodeReceiver Decode
22µF, 16V
TxD
DTR
RTS
RL
LL
ST
TT
1
Page 2
SPECIFICATIONS
TA = +25°C and VCC = +5.0V unless otherwise noted.
MIN. TYP. MAX. UNITS CONDITIONS
LOGIC INPUTS
V
IL
V
IH
2.0 Volts
LOGIC OUTPUTS
V
OL
V
OH
2.4 Volts I
RS-485 DRIVER
TTL Input Levels
V
IL
V
IH
Outputs
2.0 Volts
HIGH Level Output +6.0 Volts
LOW Level Output –0.3 Volts
Differential Output ±1.5 ±5.0 Volts RL=54Ω, CL=50pF
Balance ±0.2 Volts |VT| - |VT|
Offset +2.5 Volts
Open Circuit Voltage ±6.0 Volts
Output Current 28.0 mA RL=54Ω
Short Circuit Current ±250 mA Terminated in –7V to +10V
Transition Time 20 40 ns Rise/fall time, 10%–90%
Max. Transmission Rate 10 Mbps RL=54Ω; Figure 3a
Propagation Delay TA @ 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Driver Skew 20 40 ns | t
50 80 100 ns Figures 3a and 5; RL=54Ω
50 80 100 ns CL=50pF
RS-485 RECEIVER
TTL Output Levels
V
OL
Input
V
OH
2.4 Volts
HIGH Threshold +0.2 +12 Volts (a)-(b)
LOW Threshold –7.0 –0.2 Volts (a)-(b)
Common Mode Range –7.0 +12.0 Volts
HIGH Input Current Refer to Rec. input graph
LOW Input Current Refer to Rec. input graph
Receiver Sensitivity ±0.2 Volts Over –7V to +12V common
Input Impedance 12 kΩ
Max. Transmission Rate 10 Mbps Figure 3a
Propagation Delay TA = 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Receiver Skew 30 ns | t
80 110 180 ns Figures 3a and 7; A is invert80 110 180 ns ing and B is non-inverting.
V.35 DRIVER
TTL Input Levels All outputs measured w/
V
IL
V
IH
2.0 Volts connected to the non-
Outputs in Figure 18.
Differential Output ±0.44 ±0.66 Volts RL=100Ω
Source Impedance 50 100 150 Ω
Short-Circuit Impedance 135 150 165 Ω V
Voltage Output Offset –0.6 +0.6
Transition Time 35 60 ns 48kbps data rate.; TA@ 25°C
Max. Transmission Rate 10 Mbps RL=100Ω
0.8 Volts
0.4 Volts I
= +3.2mA
OUT
= –1.0mA
OUT
0.8 Volts
– t
PHL
|; TA @ +25°C
PLH
0.4 Volts
mode range
– t
PHL
|; TA @ +25°C
PLH
0.8 Volts 150Ω termination resistor
inverting outputs as shown
= –2V to +2V; A = B
OUT
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
2
Page 3
SPECIFICATIONS (Continued)
TA = +25°C and VCC = +5.0V unless otherwise noted.
MIN. TYP. MAX. UNITS CONDITIONS
V.35 DRIVER
Propagation Delay TA @ 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Driver Skew 30 40 ns | t
V.35 RECEIVER
TTL Output Levels
V
OL
V
OH
Input
Differential Threshold ±80 mV
Input Impedance 90 100 110 Ω
Short-Circuit Impedance 135 150 165 Ω V
Max. Transmission Rate 10 Mbps
Propagation Delay TA @ 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Receiver Skew 30 ns | t
RS-422 DRIVER (V.11)
TTL Input Levels
V
IL
V
IH
Outputs
Open Circuit Voltage,V
Differential Output, V
T
Balance ±0.4 Volts |VT| – |VT|
Offset +3.0 Volts
Short Circuit Current ±150 mA V
Power Off Current ±100 µAVcc = 0V, V
Transition Time 20 40 ns Rise/fall time, 10%-90%
Max. Transmission Rate 10 Mbps RL=100Ω; Figure 3a
Propagation Delay TA @ 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Driver Skew 20 40 ns | t
RS-422 RECEIVER (V.11)
TTL Output Levels
V
OL
V
OH
Input
HIGH Threshold +0.2 +6.0 Volts (a)-(b)
LOW Threshold –6.0 –0.2 Volts (a)-(b)
Common Mode Range –7.0 +7.0 Volts
HIGH Input Current Refer to Rec. input graph
LOW Input Current Refer to Rec. input graph
Receiver Sensitivity ±0.3 Volts VCM = +7V to –7V
Input Impedance 4 kΩ VIN = +10V to –10V
Max. Transmission Rate 10 Mbps
Propagation Delay TA @ 25°C & VCC = +5V only
t
PHL
t
PLH
Differential Receiver Skew 30 ns | t
RS-232 DRIVER (V.28)
TTL Input Level
V
IL
V
IH
50 80 100 ns Figures 3b and 5
50 80 100 ns
– t
PHL
|; TA @ +25°C
PLH
0.4 Volts
2.4 Volts
= +2V to –2V
IN
100 130 200 ns Figure 3b and 7; A is invert100 130 200 ns ing and B is non-inverting.
– t
PHL
|; TA @ +25°C
PLH
0.8 Volts
2.0 Volts
O
±2.0 ±5.0 Volts RL=100Ω
0.5V
O
±6.0 Volts RL=3.9kΩ
0.67V
O
Volts TA @ +25°C
= 0V
out
out
50 80 100 ns Figure 3a and 5;
50 80 100 ns R
DIFF
PHL
=100Ω
– t
PLH
|; TA @ +25°C
0.4 Volts
2.4 Volts
80 110 180 ns Figure 3a and 7; A is invert80 110 180 ns ing and B is non-inverting.
– t
PHL
|; TA @ +25°C
PLH
0.8 Volts
2.0 Volts
= ±0.25V
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
3
Page 4
SPECIFICATIONS (Continued)
TA = +25°C and VCC = +5.0V unless otherwise noted.
MIN. TYP. MAX. UNITS CONDITIONS
RS-232 DRIVER (V.28)
Outputs
HIGH Level Output +5.0 +15 Volts RL=3kΩ, VIN=0.8V
LOW Level Output –15.0 –5.0 Volts RL=3kΩ, VIN=2.0V
Open Circuit Voltage –15 +15 Volts
Short Circuit Current ±100 mA V
Power Off Impedance 300 Ω Vcc = 0V, V
Slew Rate 30 V/µsRL=3kΩ, CL= 50pF
Transition Time 1.56 µsRL=3kΩ, CL=2500pF ;
Max. Transmission Rate 120 230.4 kbps RL=3kΩ, CL=2500pF
Propagation Delay TA @ 25°C & VCC = +5V only
t
t
PHL
PLH
0.5 1 4 µs Measured from 1.5V of V
0.5 1 4 µs to 50% of V
RS-232 RECEIVER (V.28)
TTL Output Levels
Input
V
OL
V
OH
2.4 Volts
0.4 Volts
HIGH Threshold 1.7 3.0 Volts
LOW Threshold 0.8 1.2 Volts
Receiver Open Circuit Bias +2.0 Volts
Input Impedance 3 5 7 kΩ VIN = +15V to –15V
Max. Transmission Rate 120 230.4 kbps
Propagation Delay TA @ 25°C & VCC = +5V only
t
t
PHL
PLH
0.05 0.25 1 µs Measured from 50% of V
0.05 0.25 1 µs to 1.5V of V
RS-423 DRIVER (V.10)
TTL Input Levels
V
V
Output
IL
IH
2.0 Volts
0.8 Volts
Open Circuit Voltage, VO±4.0 ±6.0 Volts RL=3.9kΩ
HIGH Level Output, V
LOW Level Output, V
Short Circuit Current ±150 mA V
+3.6 +6.0 Volts RL=450Ω; V
T
–6.0 –3.6 Volts RL=450Ω; V
T
0.9V
OC
Volts TA =+25˚C,, VCC = +5.0V
Power Off Current ±100 µAVCC = 0V, V
Transition Time 100 ns Rise/fall time, between ±3V
Max. Transmission Rate 120 kbps RL=450Ω
Propagation Delay TA @ 25°C & VCC = +5V only
t
t
PHL
PLH
0.05 0.5 2 µs Measured from 1.5V of V
0.05 0.5 2 µs to 50% of V
RS-423 RECEIVER (V.10)
TTL Output Levels
Input
V
OL
V
OH
2.4 Volts
0.4 Volts
HIGH Threshold +0.3 +7.0 Volts
LOW Threshold –7.0 –0.3 Volts
HIGH Input Current Refer to Rec. input graph
LOW Input Current Refer to Rec. input graph
Receiver Sensitivity ±0.3 Volts VCM = +7V to –7V
Input Impedance 4 kΩ VIN = +10V to –10V
Max. Transmission Rate 120 kbps
= 0V
OUT
= ±2.0V
out
VCC = +5.0V, TA @ +25°C
between ±3V, TA @ +25°C
=3kΩ
OUT; RL
.
OUT
≥ 0.9V
OUT
≥ 0.9V
OUT
= 0V, VCC = +5.0V
OUT
= ±0.25V
OUT
; RL=450Ω
OUT
IN
IN
OC
OC
IN
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
4
Page 5
SPECIFICATIONS (Continued)
TA = +25°C and VCC = +5.0V unless otherwise noted.
MIN. TYP. MAX. UNITS CONDITIONS
RS-423 RECEIVER (V.10)
Propagation Delay T
t
t
PHL
PLH
0.05 0.2 1 µs Measured from 50% of V
0.05 0.2 1 µs to 1.5V of V
@ 25°C & VCC = +5V only
A
OUT
POWER REQUIREMENTS
V
CC
ICC (no interface selected) 30 mA V
(RS-232 Mode) 140 mA fIN = 120kbps. Drivers loaded.
4.75 5.00 5.25 Volts
CC
=5.0V
(RS-422 Mode) 320 mA fIN = 2Mbps. Drivers loaded.
(RS-449 Mode) 320 mA fIN = 2Mbps. Drivers loaded.
(EIA-530 Mode) 320 mA fIN = 2Mbps. Drivers loaded.
(EIA-530A Mode) 320 mA fIN = 2Mbps. Drivers loaded.
(RS-485 Mode) 370 mA fIN = 2Mbps. Drivers loaded.
(V.35 Mode) 210 mA fIN = 2Mbps. Drivers loaded.
(V.36 Mode) 310 mA fIN = 2Mbps. Drivers loaded.
ENVIRONMENTAL AND MECHANICAL
Operating Temperature Range 0 +70 °C
Storage Temperature Range –65 +150 °C
Package 80–pin QFP
RECEIVER INPUT GRAPHS
IN
–3.25mA
RS-422 RECEIVER
–3V–10V
Maximum Input Current
versus Voltage
+3.25mA
+10V+3V
–0.6mA
RS-423 RECEIVER
+3.25mA
–3V–10V
+10V+3V
Maximum Input Current
versus Voltage
–3.25mA
RS-485 RECEIVER
+1.0mA
–3V–7V
+12V+6V
1 Unit Load
Maximum Input Current
versus Voltage
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
5
Page 6
ABSOLUTE MAXIMUM RATINGS
These are stress ratings only and functional operation
of the device at these ratings or any other above those
indicated in the operation sections of the specifications
below is not implied. Exposure to absolute maximum
rating conditions for extended periods of time may
affect reliability.
............................................................................+7V
V
CC
Input Voltages:
Output Voltages:
Storage Temperature..........................-65˚C to +150˚C
Power Dissipation.........................................2000mW
Logic...............................-0.3V to (V
Drivers............................-0.3V to (VCC+0.5V)
+0.5V)
CC
Receivers...........................................±15V
Logic................................-0.3V to (VCC+0.5V)
Drivers................................................±14V
Receivers........................-0.3V to (VCC+0.5V)
Package Derating:
øJA....................................................46 °C/W
ø
...................................................16 °C/W
JC
STORAGE CONSIDERATIONS
Due to the relatively large package size of the 80-pin
quad flat-pack, storage in a low humidity environment
is preferred. Large high density plastic packages are
moisture sensitive and should be stored in Dry Vapor
Barrier Bags. Prior to usage, the parts should remain
bagged and stored below 40°C and 60%RH. If the
parts are removed from the bag, they should be used
within 48 hours or stored in an environment at or below
20%RH. If the above conditions cannot be followed,
the parts should be baked for four hours at 125°C in
order remove moisture prior to soldering. Sipex ships
the 80-pin QFP in Dry Vapor Barrier Bags with a
humidity indicator card and desiccant pack. The humidity indicator should be below 30%RH.
OTHER AC CHARACTERISTICS
TA = +70°C to 0°C and VCC = +4.75V to +5.25V unless otherwise noted.
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
DRIVER DELAY TIME BETWEEN ACTIVE MODE AND TRI-STATE MODE
RS-232 MODE
t
; Tri-state to Output LOW 0.70 5.0 µsCL = 100pF, Fig. 4 ; S
PZL
t
; Tri-state to Output HIGH 0.40 2.0 µsCL = 100pF, Fig. 4 ; S
PZH
t
; Output LOW to Tri-state 0.20 2.0 µsCL = 100pF, Fig. 4 ; S
PLZ
t
; Output HIGH to Tri-state 0.40 2.0 µsCL = 100pF, Fig. 4 ; S
PHZ
RS-423 MODE
t
; Tri-state to Output LOW 0.15 2.0 µsCL = 100pF, Fig. 4 ; S
PZL
t
; Tri-state to Output HIGH 0.20 2.0 µsCL = 100pF, Fig. 4 ; S
PZH
t
; Output LOW to Tri-state 0.20 2.0 µsCL = 100pF, Fig. 4 ; S
PLZ
t
; Output HIGH to Tri-state 0.15 2.0 µsCL = 100pF, Fig. 4 ; S
PHZ
RS-422, RS-485 MODES
t
; Tri-state to Output LOW 2.80 10.0 µsCL = 100pF, Fig. 4 & 6; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 4 & 6; S
PZH
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 4 & 6; S
PLZ
t
; Output HIGH to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 4 & 6; S
PHZ
V.35 MODE
t
; Tri-state to Output LOW 2.60 10.0 µsCL = 100pF, Fig. 4 & 6; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 4 & 6; S
PZH
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
2
2
2
2
2
2
2
2
1
2
1
2
1
2
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
6
Page 7
OTHER AC CHARACTERISTICS (Continued)
TA = +70°C to 0°C and VCC = +4.75V to +5.25V unless otherwise noted.
PARAMETER MIN. TYP. MAX. UNITS CONDITIONS
V.35 MODE
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 4 & 6; S
PLZ
t
; Output HIGH to Tri-state 0.15 2.0 µsCL = 15pF, Fig. 4 & 6; S
PHZ
RECEIVER DELAY TIME BETWEEN ACTIVE MODE AND TRI-STATE MODE
RS-232 MODE
t
; Tri-state to Output LOW 0.12 2.0 µsCL = 100pF, Fig. 2 ; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PZH
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PLZ
t
; Output HIGH to Tri-state 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PHZ
RS-423 MODE
t
; Tri-state to Output LOW 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PZH
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PLZ
t
; Output HIGH to Tri-state 0.10 2.0 µsCL = 100pF, Fig. 2 ; S
PHZ
RS-422/RS-485 MODES
t
; Tri-state to Output LOW 0.10 2.0 µsCL = 100pF, Fig. 2 & 8 ; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 2 & 8 ; S
PZH
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 2 & 8 ; S
PLZ
t
; Output HIGH to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 2 & 8; S
PHZ
V.35 MODE
t
; Tri-state to Output LOW 0.10 2.0 µsCL = 100pF, Fig. 2 & 8; S
PZL
t
; Tri-state to Output HIGH 0.10 2.0 µsCL = 100pF, Fig. 2 & 8; S
PZH
t
; Output LOW to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 2 & 8; S
PLZ
t
; Output HIGH to Tri-state 0.10 2.0 µsCL = 15pF, Fig. 2 & 8; S
PHZ
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
closed
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
1
2
TRANSCEIVER TO TRANSCEIVER SKEW [ (t
phl
– t
)
– (t
– t
)
plh
Trcvr1
phl
plh
TrcvrX
]
RS-232 Driver 20 50 ns VCC = +5.0V, TA @ +25°C
RS-232 Receiver 20 ns
RS-422 Driver 20 50 ns VCC = +5.0V, TA @ +25°C
RS-422 Receiver 20 ns
RS-423 Driver 20 50 ns VCC = +5.0V, TA @ +25°C
RS-423 Receiver 20 ns
V.35 Driver 20 50 ns VCC = +5.0V, TA @ +25°C
V.35 Receiver 20 ns
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
7
Page 8
A
R
V
OD
V
OC
R
Receiver
Output
Test Point
RL
1KΩC
1KΩ
V
S
1
S
2
CC
B
Figure 1. Driver DC Test Load Circuit
C
DI
A
B
L1
R
L
C
L2
A
B
Figure 3a. Driver/Receiver Timing Test Circuit
Output
Under
Test
RO
C
L
15pF
Figure 2. Receiver Timing Test Load Circuit
A
DI
B
A
B
Figure 3b. Timing Test Ckt. (V.35 mode only for SP504)
V
500Ω
S
1
S
2
CC
RO
15pF
Figure 4. Driver Timing Test Load #2 Circuit
Note : Figures 3a and 3b shown above are used for evaluating maximum transmission rate. For 10Mbps transmission rate, an input signal of 5MHz is applied
to the driver input. In order for a valid transmission rate, the driver output must adhere to the output electrical specifications (VOH & VOL) and an
acceptable duty cycle for the protocol tested. The receiver outputs are checked for proper TTL/CMOS VOH & VOL levels and an acceptable output
duty cycle.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
8
Page 9
+3V
DRIVER INPUT
0V
A
DRIVER
OUTPUT
DIFFERENTIAL
OUTPUT
V
– V
A
Figure 5. Driver Propagation Delays
B
+
V
O
0V
–
V
O
B
f = 1MHz; tR < 10ns; tF < 10ns
1.5V 1.5V
t
PLH
1/2V
V
O
O
t
SKEW
t
F
t
PHL
1/2V
t
SKEW
t
R
O
+3V
TDEC
X
1.5V 1.5V
0V
5V
A, B
A, B
V
OL
V
OH
2.3V
2.3V
0V
Figure 6. Driver Enable and Disable Times
+
V
OD2
A – B
–
V
OD2
V
OH
RECEIVER OUT
V
OL
t
PHL
f = 1MHz; tR < 10ns; tF < 10ns
t
ZL
Output normally LOW
Output normally HIGH
t
ZH
f = 1MHz; tR ≤ 10ns; tF ≤ 10ns
0V 0V
1.5V 1.5V
INPUT
OUTPUT
t
PLH
0.5V
0.5V
t
LZ
t
HZ
Figure 7. Receiver Propagation Delays
Note : Figures 5 and 7 shown above are corrected from the original SP504 datahseet. Both figures were incorrect on the original datasheet where the
driver output from Figure 5 and the receiver output from Figure 7 are inverted signals.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
9
Page 10
+3V
RDEC
X
0V
5V
RECEIVER OUT
V
IL
V
IH
RECEIVER OUT
0V
Figure 8. Receiver Enable and Disable Times
DRIVER INPUT
1.5V 1.5V
f = 1MHz; tR < 10ns; tF < 10ns
t
ZL
1.5V
1.5V
Output normally LOW
Output normally HIGH
t
ZH
- 0V
DRIVER INPUT
- 0V
0.5V
0.5V
t
LZ
t
HZ
- 0V
- 0V
DRIVER OUTPUT
Figure 9. Typical RS-232 Driver Output Waveform
- 0V
DRIVER INPUT
- 0V
DRIVER OUTPUT
Figure 11. Typical RS-422/485 Driver Output Waveform Figure 12. Typical V.35 Driver Output Waveform
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
DRIVER OUTPUT
Figure 10. Typical RS-423 Driver Output Waveform
DRIVER INPUT
- 0V
DRIVER OUTPUT
- 0V
10
Page 11
PINOUT…
RxD 1
2
RDEC
0
3
RDEC
1
4
RDEC
2
5
RDEC
3
TTEN 6
SCTEN 7
N/C 8
TDEC
9
3
TDEC
10
2
11
TDEC
1
12
TDEC
0
DTR 13
TxD 14
TxC 15
RTS 16
RL 17
V35_STAT 18
DCD 19
RxC 20
80 CTS
RI 21
79 SCT
ST 22
78 DSR
77 SCT(b)
LL 24
STEN 23
76 SCT(a)
25
+
CC
V
75 GND
74 VCC73 VCC72 GND
71 RD(b)
70 RD(a)
SP504
30
31
27
26
28
–
–
+
1
2
1
2
DD
C
C
C
C
V
GND 29
69 DM(b)
68 DM(a)
33
32
SS
CC
V
V
67 CS(b)
GND 34
66 CS(a)
65 TT(b)
RR(a) 35
RR(b) 36
64 GND
63 TT(a)
RT(a) 37
RT(b) 38
62 VCC61 SD(a)
IC(a) 39
IC(b) 40
60 GND
59 SD(b)
58 TR(a)
57 GND
56 TR(b)
55 V
54 RS(a)
53 GND
52 RS(b)
51 LL(a)
50 GND
49 LL(b)
48 V
47 RL(a)
46 GND
45 RL(b)
44 ST(b)
43 GND
42 ST(a)
41 V
Pin 61 — SD(a) — Analog Out — Send data,
inverted; sourced from TxD.
Pin 63 — TT(a) — Analog Out — Terminal
Timing, inverted; sourced from TxC
Pin 65 — TT(b) — Analog Out — Terminal
Timing, non–inverted; sourced from TxC.
CC
Pin 70 — RD(a) — Receive Data, analog input;
inverted; source for RxD.
Pin 71 — RD(b) — Receive Data; analog input;
CC
non-inverted; source for RxD.
Pin 76 — SCT(a) — Serial Clock Transmit;
analog input, inverted; source for SCT.
CC
Pin 77 — SCT(b) — Serial Clock Transmit:
analog input, non–inverted; source for SCT
Pin 79 — SCT — Serial Clock Transmit; TTL
output; sources from SCT(a) and SCT(b) inputs.
PIN ASSIGNMENTS…
CLOCK AND DATA GROUP
Pin 1 — RxD — Receive Data; TTL output,
sourced from RD(a) and RD(b) inputs.
Pin 14 — TxD — TTL input ; transmit data
source for SD(a) and SD(b) outputs.
Pin 15 — TxC — Transmit Clock; TTL input for
TT driver outputs.
Pin 20 — RxC — Receive Clock; TTL output
sourced from RT(a) and RT(b) inputs.
Pin 22 — ST — Send Timing; TTL input; source
for ST(a) and ST(b) outputs.
Pin 37 — RT(a) — Receive Timing; analog
input, inverted; source for RxC.
Pin 38 — RT(b) — Receive Timing; analog
input, non-inverted; source for RxC.
Pin 42 — ST(a) — Send Timing; analog output,
inverted; sourced from ST.
Pin 44 — ST(b) — Send Timing; analog output,
non-inverted; sourced from ST.
Pin 59 — SD(b) — Analog Out — Send data,
non-inverted; sourced from TxD.
CONTROL LINE GROUP
Pin 13 — DTR — Data Terminal Ready; TTL
input; source for TR(a) and TR(b) outputs.
Pin 16 — RTS — Ready To Send; TTL input;
source for RS(a) and RS(b) outputs.
Pin 17 — RL — Remote Loopback; TTL input;
source for RL(a) and RL(b) outputs.
Pin 18 — V35_STAT — V.35 Status; TTL
output; outputs logic high when in V.35 mode.
Pin 19 — DCD— Data Carrier Detect; TTL
output; sourced from RR(a) and RR(b) inputs.
Pin 21 — RI — Ring Indicate; TTL output;
sourced from IC(a) and IC(b) inputs.
Pin 24 — LL — Local Loopback; TTL input;
source for LL(a) and LL(b) outputs.
Pin 35 — RR(a)— Receiver Ready; analog
input, inverted; source for DCD.
Pin 36 — RR(b)— Receiver Ready; analog
input, non-inverted; source for DCD.
Pin 39 — IC(a)— Incoming Call; analog input,
inverted; source for RI.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
11
Page 12
Pin 40 — IC(b)— Incoming Call; analog
input,non-inverted; source for RI.
Pin 45 — RL(b) — Remote Loopback; analog
output, non-inverted; sourced from RL.
Pin 47 — RL(a) — Remote Loopback; analog
output inverted; sourced from RL.
Pins 12–9 — TDEC0 – TDEC3 — Transmitter
decode register; configures transmitter modes;
TTL inputs.
Pin 23 — STEN — Enables ST driver; active
low; TTL input.
Pin 49— LL(b) — Local Loopback; analog
output, non-inverted; sourced from LL.
Pin 51 — LL(a) — Local Loopback; analog
output, inverted; sourced from LL.
Pin 52 — RS(b) — Ready To Send; analog
output, non-inverted; sourced from RTS.
Pin 54 — RS(a) — Ready To Send; analog
output, inverted; sourced from RTS.
Pin 56 — TR(b) — Terminal Ready; analog
output, non-inverted; sourced from DTR.
Pin 58 — TR(a) — Terminal Ready; analog
output, inverted; sourced from DTR.
Pin 66 — CS(a)— Clear To Send; analog input,
inverted; source for CTS.
Pin 67 — CS(b)— Clear To Send; analog input,
non-inverted; source for CTS.
Pin 68 — DM(a)— Data Mode; analog input,
inverted; source for DSR.
Pin 69 — DM(b)— Data Mode; analog input,
non-inverted; source for DSR
POWER SUPPLIES
Pins 25, 33, 41, 48, 55, 62, 73, 74 — V
input.
— +5V
CC
Pins 29, 34, 43, 46, 50, 53, 57, 60, 64, 72, 75 —
GND — Ground.
Pin 27 — V
Connects from VDD to VCC. Suggested capaci-
+10V Charge Pump Capacitor —
DD
tor size is 22µF, 16V.
Pin 32 — VSS –10V Charge Pump Capacitor —
Connects from ground to VSS. Suggested capacitor size is 22µF, 16V.
Pins 26 and 30 — C
Capacitor — Connects from C
+
1
gested capacitor size is 22µF, 16V.
Pins 28 and 31 — C
Capacitor — Connects from C
+
2
gested capacitor size is 22µF, 16V.
and C
and C
–
— Charge Pump
1
+
–
to C
to C
. Sug-
1
–
. Sug-
2
1
–
— Charge Pump
2
+
2
NOTE: NC pins should be left floating; internal
signals may be present.
Pin 78 — DSR— Data Set Ready; TTL output;
sourced from DM(a), DM(b) inputs.
Pin 80 — CTS— Clear To Send; TTL output;
sourced from CS(a) and CS(b) inputs.
CONTROL REGISTERS
Pins 2–5 — RDEC0 – RDEC3 — Receiver
decode register; configures receiver modes; TTL
inputs.
Pin 6 — TTEN — Enables TT driver, active
low; TTL input.
Pin 7 — SCTEN — Enables SCT receiver;
active high; TTL input.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
12
Page 13
FEATURES…
The SP504 is a highly integrated serial transceiver that allows software control of its interface modes. Similar to the SP503, the SP504
offers the same hardware interface modes for
RS-232 (V.28), RS-422A (V.11), RS-449, RS485, V.35, EIA-530 and includes V.36 and
EIA-530A. The interface mode selection is done
via an 8–bit switch; four (4) bits control the
drivers and four (4) bits control the receivers.
The SP504 is fabricated using low power
BiCMOS process technology, and incorporates
a Sipex patented (5,306,954) charge pump
allowing +5V only operation. Each device is
packaged in an 80–pin JEDEC Quad FlatPack
package.
The SP504 is ideally suited for wide area network connectivity based on the interface modes
offered and the driver and receiver configurations. The SP504 has seven (7) independent
drivers and seven (7) independent receivers. In
V.35 mode, the SP504 includes the necessary
components and termination resistors internal
within the device for compliant V.35 operation.
THEORY OF OPERATION
The SP504 is made up of five separate circuit
blocks — the charge pump, drivers, receivers,
decoder and switching array. Each of these
circuit blocks is described in more detail below.
Charge–Pump
The SP504's charge pump design is based on the
SP503 where Sipex's patented charge pump
design (5,306,954) uses a four–phase voltage
shifting technique to attain symmetrical ±10V
power supplies. In addition, the SP504 charge
pump incorporates a "programmable" feature
that produces an output of ±10V or ±5V for V
and VDD depending on the mode of operation.
The charge pump still requires external capacitors to store the charge. Figure 17a shows the
waveform found on the positive side of capacitor C2, and Figure 17b shows the negative side
of capcitor C2. There is a free–running oscillator that controls the four phases of the voltage
shifting. A description of each phase follows.
The SP504 charge pump is used for RS-232
where the output voltage swing is typically
±10V and also used for RS-423. However, RS-
423 requires the voltage swing on the driver
output be between ±4V to ±6V during an open
circuit (no load). The charge pump would need
to be regulated down from ±10V to ±5V. A
typical ±10V charge pump would require exter-
nal clamping such as 5V zener diodes on V
and VSS to ground. The ±5V output has symmetrical levels as in the ±10V output. The ±5V
is used in the following modes where RS-423
levels are used: RS-449, EIA-530, EIA-530A
and V.36.
Phase 1 (±10V)
— VSS charge storage — During this phase of
the clock cycle, the positive side of capacitors
C1 and C2 are initially charged to +5V. The C
is then switched to ground and the charge on C
is transferred to C
+5V, the voltage potential across capacitor C2 is
–
. Since C
2
+
2
now 10V.
Phase 1 (±5V)
— VSS & VDD charge storage and transfer —
With the C1 and C2 capacitors initially charged
to +5V, C
charge on C
capacitor. Simultaneously the C
+
is then switched to ground and the
l
–
is transferred to the VSS storage
1
ground and the 5V charge on C
to the VDD storage capacitor.
VCC = +5V
C
+
–
C
C
4
+
–
C
++
C
1
–5V
SS
Figure 13a. Charge Pump Phase 1 for ±10V.
VCC = +5V
++
C
1
–5V
C
2
C
2
Figure 13b. Charge Pump Phase 1 for ±5V.
+5V
––
–5V
+5V
––
is connected to
–
is switched to
2
+
is transferred
2
4
–
Storage Capacitor
V
DD
+
VSS Storage Capacitor
3
–
V
Storage Capacitor
DD
+
VSS Storage Capacitor
3
DD
+
l
–
1
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
13
Page 14
VCC = +5V
VCC = +5V
C
4
+
–
V
Storage Capacitor
++
C
1
C
–10V
2
––
DD
+
–
VSS Storage Capacitor
C
3
Figure 14a. Charge Pump Phase 2 for ±10V.
VCC = +5V
++
C
1
–5V
+5V
C
2
––
–5V
C
4
+
–
V
DD
+
–
VSS Storage Capacitor
C
3
Storage Capacitor
Figure 15. Charge Pump Phase 3.
Phase 2 (±10V)
— VSS transfer — Phase two of the clock connects the negative terminal of C2 to the V
storage capacitor and the positive terminal of C
SS
to ground, and transfers the generated –l0V or
the generated –5V to C3. Simultaneously, the
positive side of capacitor C 1 is switched to +5V
and the negative side is connected to ground.
Phase 2 (±5V)
— VSS & VDD charge storage — C
nected to VCC to recharge the C1 capacitor. C
is switched to ground and C
The 5V charge from Phase 1 is now transferred
–
is connected to C3.
2
+
is recon-
1
C
4
+
–
V
Storage Capacitor
++
C
1
C
2
––
–5V
DD
+
–
VSS Storage Capacitor
C
3
Figure 14b. Charge Pump Phase 2 for ±5V.
VCC = +5V
++
C
1
+10V
C
2
––
C
4
+
–
V
DD
+
–
VSS Storage Capacitor
C
3
Storage Capacitor
Figure 16. Charge Pump Phase 4.
to the VSS storage capacitor. VSS receives a
continuous charge from either C1 or C2. With
the C1 capacitor charged to 5V, the cycle begins
again.
2
Phase 3
— VDD charge storage — The third phase of the
clock is identical to the first phase — the charge
transferred in C1 produces –5V in the negative
terminal of C1, which is applied to the negative
side of capacitor C2. Since C
+
2
voltage potential across C2 is l0V. For the 5V
output, C
potential on C2 is only +5V.
+
is connected to ground so that the
2
+
is at +5V, the
2
+10V
C
2
+
(a)
+5V
C
2
GND
GND
GND
C
2
–
(b)
GND
C
2
–5V
–10V
Figure 17. Charge Pump Waveforms
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
14
+
–
Page 15
Since both V
ated from VCC in a no–load condition, VDD and
and VSS are separately gener-
DD
VSS will be symmetrical. Older charge pump
approaches that generate V– from V+ will show
a decrease in the magnitude of V– compared to
V+ due to the inherent inefficiencies in the
design.
The clock rate for the charge pump typically
operates at 15kHz. The external capacitors must
be a minimum of 22µF with a 16V breakdown
rating.
External Power Supplies
For applications that do not require +5V only,
external supplies can be applied at the V+ and
V– pins. The value of the external supply voltages must be no greater than ±l0.5V. The tolerance should be ±5% from ±10V. The current
drain for the supplies is used for RS-232 and
RS-423 drivers. For the RS-232 driver, the current requirement will be 3.5mA per driver. The
RS-423 driver worst case current drain will be
11mA per driver. Power sequencing is required
for the SP504. The supplies must be sequenced
accordingly: +10V, +5V and –10V. An external
circuit would be needed for proper power supply sequencing. Consult factory for application
circuitry.
Drivers
The SP504 has seven (7) enhanced independent
drivers. Control for the mode selection is done
via a four–bit control word. The drivers are prearranged such that for each mode of operation,
the relative position and functionality of the
drivers are set up to accommodate the selected
interface mode. As the mode of the drivers is
changed, the electrical characteristics will change
to support the requirements of clock, data, and
control line signal levels. Table 1 shows the
mode of each driver in the different interface
modes that can be selected.
There are four basic types of driver circuits —
RS-232, RS-423, RS-485 and V.35.
The RS-232 drivers output single–ended signals
with a minimum of ±5V (with 3kΩ and 2500pF
loading), and can operate up to 120kbps.
The RS-232 drivers are used in RS-232 mode
for all signals, and also in V.35 mode where they
are used as the control line signals such as DTR
and RTS.
The RS-423 drivers are also single–ended signals with a minimum voltage output of ±3.6V
(with 450Ω loading) and can operate up to
120kbps. Open circuit V
ments are ±4.0V to ±6.0V. The RS-423 drivers
and VOH measure-
OL
are used in RS-449, EIA-530, EIA-530A and
V.36 modes as Category II signals from each of
their corresponding specifications.
The third type of driver produces a differential
signal that can maintain RS-485, ±1.5V differential output levels with a worst case load of
54Ω. The signal levels and drive capability of
the RS-485 drivers allow the drivers to also
support RS-422 (V.11) requirements of ±2V
differential output levels with 100Ω loads. The
RS-422 drivers are used in RS-449, EIA-530,
EIA-530A and V.36 modes as Category I signals which are used for clock and data.
The fourth type of driver is the V.35 driver.
V.35 levels require ±0.55V driver output signals with a load of 100Ω. The SP504 drivers
simplify existing V.35 implementations that use
external termination schemes. The drivers were
specifically designed to comply with the requirements of V.35 as well as the driver output
impedance values of V.35. The drivers achieve
the 50Ω to 150Ω source impedance. However,
an external 150Ω resistor to ground must be
connected to the non-inverting outputs; SD(b),
ST(b), and TT(b), in order to comply with the
135Ω to 165Ω short-circuit impedance for V.35.
The V.35 driver itself is disabled and transparent when the decoder is in all other modes. All
of the differential drivers; RS-485, RS-422, and
V.35, can operate up to 10Mbps.
The driver inputs are both TTL or CMOS compatible. Since there are no pull-up or pull-down
resistors on the driver inputs, they should be tied
to a known logic state in order to define the
driver output.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
15
Page 16
Receivers
The SP504 has seven (7) independent receivers
which can be programmed for the different
interface modes. Control for the mode selection
is done via a 4–bit control word that is independent from the driver control word. The coding
for the drivers and receivers is identical. Therefore, if the modes for the drivers and receivers
are supposed to be identical in the application,
the control lines can be tied together.
Like the drivers, the receivers are pre-arranged
for the specific requirements of the interface. As
the operating mode of the receivers is changed,
the electrical characteristics will change to support the requirements of clock, data, and control
line receivers. Table 2 shows the mode of each
receiver in the different interface modes that can
be selected.
There are three basic types of receiver circuits
— RS-232, RS-423, and RS-485.
The RS-232 receiver is a single–ended input
with a threshold of 0.8V to 2.4V. The RS-232
receiver has an operating voltage range of ±15V
and can receive signals up to 120kbps. The
input sensitivity complies with EIA-RS-232 and
V.28 at +3V to -3V. The input impedance is
3kΩ to 7kΩ. RS-232 receivers are used in RS232 mode for all data, clock and control signals.
They are also used in V.35 mode for control line
signals such as CTS and DSR.
The RS-423 receivers are also single–ended but
have an input threshold as low as ±200mV. The
input impedance is guaranteed to be greater than
4kΩ, with an operating voltage range of ±7V.
The RS-423 receivers can operate up to 120kbps.
RS-423 receivers are used in RS-449, EIA-530,
EIA-530A and V.36 modes as Category II signals as indicated by their corresponding specifications.
The third type of receiver is a differential which
supports RS-485. The RS-485 receiver has an
input impedance of 15kΩ and a differential
threshold of ±200mV. Since the characteristics
of an RS-422 (V.11) receiver are actually
subsets of RS-485, the receivers for RS-422
requirements are covered by the RS-485 receivers.
RS-422 receivers are used in RS-449,
EIA-530, EIA-530A and V.36 as Category I
signals for receiving clock, data, and some control line signals. The differential receivers can
receive data up to 10Mbps.
The RS-485 receivers are also used for the V.35
mode. Unlike the older implementations of
differential or V.35 receivers, the SP504 con-
tains an internal resistor termination network
that ensures a V.35 input impedance of 100Ω
(±10Ω) and a short-circuit impedance of 150Ω
(±15Ω). The traditional V.35 implementations
required external termination resistors to acheive
the proper V.35 impedances. The internal network is connected via low on-resistance FET
switches when the decoder is changed to V.35
mode. The termination network is transparent
when all other modes are selected. The V.35
receivers can operate up to 10Mbps.
All receivers include a fail-safe feature that
outputs a logic HIGH when the receiver inputs
are open. For single-ended RS-232 receivers,
there are internal 5kΩ pull-down resistors on the
inputs which produces a logic HIGH ("1") at the
receiver outputs. The single-ended RS-423 receivers produce a logic LOW ("0") on the output
when the inputs are open. This is due to a pullup device connected to the input. The differential receivers have the same internal pull-up
device on the non-inverting input which produces a logic HIGH ("1") at the receiver output.
The three differential receivers when configured in V.35 mode (RxD, RxC & SCT) do not
have fail-safe because the internal termination
resistor network is connected.
Decoder
The SP504 has the ability to change the interface mode of the drivers or receivers via an 8–bit
switch. The decoder for the drivers and receivers is not latched; it is merely a combinational
logic switch.
The control word can be externally latched
either HIGH or LOW to write the appropriate
code into the SP504. The codes shown in Tables
1 and 2 are the only specified, valid modes for
the SP504. Undefined codes may represent other
interface modes not specified (consult the fac-
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
16
Page 17
tory for more information). The drivers are
controlled with the data bits labeled TDEC3–
. All of the drivers can be put into tri-
TDEC
0
state mode by writing 0000 to the driver decode
switch. The three drivers TxD, ST and TxC,
have a 150Ω pull-down resistor to ground connected at the (b) output. This resistor is part of
the V.35 driver circuitry and should be connected when in V.35 mode. Tri-state is possible
for all drivers in RS-232 mode. The receivers
are controlled with data bits RDEC
the code 0000 written to the receivers will place
–RDEC0;
3
the outputs into tri-state mode. The 0000 decoder word will override the enable control line
for the one receiver (SCT).
Using the V.35_STAT Pin
The SP504 includes a V.35 status pin where the
V35_STAT pin (pin 18) is a logic HIGH ("1")
when the decoder is set to V.35 mode. The pin
is a logic LOW ("0") when in all other modes
including tri-state (decoder set at "0000"). Pin
18 allows the user to easily add FET switches or
solid state relays to connect the external 150Ω
resistor for V.35 operation. V35_STAT can be
connected to the gate of the FET switches or the
control of the relays so that the 150Ω resistors
are connected to the non-inverting output of the
three V.35 drivers. The output current of the
V35_STAT pin is that of a typical TTL load of
–3.2mA. The electrical specifications are similar to the SP504 receiver outputs. This feature
would reduce additional logic required by older
traditional methods.
NET1/NET2 Testing and Compliancy
Many system designers are required to certify
their system for use in the European public
network. Electrical testing is performed in adherence to the NET (Norme Européenne de
Télécommunication) which specifies the ITU
Series V specifications. The SP504 adheres to
all the required physical layer testing for NET1
and NET2. Consult factory for details.
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
17
Page 18
SP504 Driver Mode Selection
Pin Label Mode: RS232 V.35 RS422 RS485 RS449 EIA530 EIA-530A
TDEC –TDEC
30
SD(a) tri-state
SD(b)
TR(a) tri-state
TR(b) tri-state tri-state tri-state
RS(a) tri-state
RS(b) tri-state tri-state tri-state
RL(a) tri-state
RL(b) tri-state
LL(a) tri-state
LL(b) tri-state
ST(a) tri-state
ST(b)
TT(a) tri-state
TT(b)
Table 1. Driver Mode Selection
0000 0010 1110 0100
tri-state
tri-state
tri-state
V.28
tri-state
V.28
V.28
V.28
tri-state
V.28
tri-state
V.28
tri-state
V.28
tri-state
V.35–
V.35+
V.28
V.28
V.28
tri-state
V.28
tri-state
V.35–
V.35+
V.35–
V.35+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
0101
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
RS485– V.10
RS485+
RS485–
RS485+
RS485–
RS485+ V.11+
RS485–
RS485+
1100 1101 1111
V.11–
V.11+
V.11–
V.11+ tri-state
V.11–
V.11+
tri-state
V.10
tri-state
V.11–
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.10
tri-state
V.10
tri-state
V.11–
V.11+
V.11–
V.11+
tri-state
SP504 Receiver Mode Selection
Pin Label
RDEC
–RDEC
3
RD(a)
RD(b)
RT(a)
RT(b)
CS(a)
CS(b)
DM(a)
DM(b)
RR(a)
RR(b)
IC(a)
IC(b)
SCT(a)
SCT(b)
Table 2. Receiver Mode Selection
Mode: RS232 V.35 RS422 RS485 RS449 EIA530 EIA-530A
0000 0010 1110 0100 0101 1100 1101 1111
0
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.35–
V.35+
V.35–
V.35+
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.28
>12kΩ to GND
V.35–
V.35+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
RS485–
RS485+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.10
>12kΩ to GND >12kΩ to GND
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.10
V.11–
V.11+
>12kΩ to GND
>12kΩ to GND
V.11–
V.11+
V.10
V.11–
V.11+
V.11–
V.11+
V.10
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.11–
V.11+
V.10
V.11–
V.11+
V.10
V.11–
V.11+
V.36
0110
V.11–
V.11+
V.10
tri-state
V.10
tri-state
V.10
tri-state
V.10
tri-state
V.11–
V.11+
V.11–
V.11+
V.36
0110
V.11–
V.11+
V.11–
V.11+
V.10
>12kΩ to GND
V.10
>12kΩ to GND
V.10
>12kΩ to GND
V.10
>12kΩ to GND
V.11–
V.11+
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
18
Page 19
+5V
A — Receiver Tri-State circuitry & V.35
termination resistor circuitry for
RxD, RxC & SCT.
B — Driver Tri-State circuitry & V.35
termination circuitry for TxD,
TxC & ST.
RS-422 Mode
Input Word
0
1
0
0
0
External
Latch
1
0
0
10µF
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
DM (b) 69
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
IC(b) 40
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
1N5819
25 26
V
CCVDD
5
4
3
RDEC
2
9
10
11
TDEC
12
22µF
27
Charge Pump
A
X
X
22µF
C1+
C1-
2830
C2+
22µF
31
C2-
V
SS
32
B
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
56 TR(b)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
45 RL(b)
24 LL
51 LL(a)
49 LL(b)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
SP504
(SEE PAGE 12 FOR GROUND PINS)
22µF
150Ω
①
150Ω
①
150Ω
①
①
☛ For V.35 Termination, needs to be connected
for proper V.35 operation. A low onresistance (≤1Ω) FET or switch can be used
to connect and disconnect the resistor from
the non-inverting output.
Figure 18. Typical Operation Circuit
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
19
Page 20
MODE: RS-232
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
0 0 1 0 0 0 1 0
0
RD(a) 70
RxD 1
RT(a) 37
RxC 20
CS(a) 66
CTS 80
DM(a) 68
DSR 78
RR(a) 35
DCD 19
IC(a) 39
RI 21
SCT(a) 76
SCT 79
SCTEN 7
14 TxD
61 SD(a)
13 DTR
58 TR(a)
16 RTS
54 RS(a)
17 RL
47 RL(a)
24 LL
51 LL(a)
22 ST
42 ST(a)
23 STEN
15 TxC
63 TT(a)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 19. Mode Diagram — RS-232
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
20
Page 21
MODE: V.35
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
1 1 1 0 1 1 1 0
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
DM(a) 68
DSR 78
RR(a) 35
DCD 19
IC(a) 39
RI 21
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
16 RTS
54 RS(a)
17 RL
47 RL(a)
24 LL
51 LL(a)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 20. Mode Diagram — V.35
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
21
Page 22
MODE: RS-422
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
0 1 0 0 0 1 0 0
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
DM (b) 69
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
IC(b) 40
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
56 TR(b)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
45 RL(b)
24 LL
51 LL(a)
49 LL(b)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 21. Mode Diagram — RS-422
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
22
Page 23
MODE: RS-449
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
1 1 0 0 1 1 0 0
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
DM (b) 69
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
56 TR(b)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
24 LL
51 LL(a)
22 ST
42 ST(a)
44 ST(b)
23 STEN
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 22. Mode Diagram — RS-449
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
23
Page 24
MODE: RS-485
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
0 1 0 1 0 1 0 1
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
DM (b) 69
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
IC(b) 40
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
56 TR(b)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
45 RL(b)
24 LL
51 LL(a)
49 LL(b)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 23. Mode Diagram — RS-485
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
24
Page 25
MODE: EIA-530
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
1 1 0 1 1 1 0 1
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
DM (b) 69
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
56 TR(b)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
24 LL
51 LL(a)
22 ST
42 ST(a)
44 ST(b)
23 STEN
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 Disabled
Figure 24. Mode Diagram — EIA-530
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
25
Page 26
MODE: EIA-530A
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
1 1 1 1 1 1 1 1
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
CS(b) 67
DM(a) 68
DSR 78
RR(a) 35
DCD 19
RR(b) 36
IC(a) 39
RI 21
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
16 RTS
54 RS(a)
52 RS(b)
17 RL
47 RL(a)
45 RL(b)
24 LL
51 LL(a)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 •Enabled
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 •Disabled
0 Enabled 0 Enabled 0 Disabled
Figure 25. Mode Diagram — EIA-530A
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
26
Page 27
MODE: V.36
DRIVER RECEIVER
TDEC
TDEC2 TDEC1 TDEC0 RDEC3 RDEC2 RDEC1 RDEC
3
0 1 1 0 0 1 1 0
0
RD(a) 70
RxD 1
RD(b) 71
RT(a) 37
RxC 20
RT(b) 38
CS(a) 66
CTS 80
DM(a) 68
DSR 78
RR(a) 35
DCD 19
IC(a) 39
RI 21
SCT(a) 76
SCT 79
SCTEN 7
SCT(b) 77
14 TxD
61 SD(a)
59 SD(b)
13 DTR
58 TR(a)
16 RTS
54 RS(a)
17 RL
47 RL(a)
24 LL
51 LL(a)
22 ST
42 ST(a)
44 ST(b)
23 STEN
15 TxC
63 TT(a)
65 TT(b)
6 TTEN
RECEIVERS DRIVERS
STEN ST TTEN TT SCTEN SCT
STEN ST TTEN TT SCTEN SCT
1 Disabled 1 Disabled 1 •Enabled
1 Disabled 1 Disabled 1 Enabled
0 Enabled 0 Enabled 0 •Disabled
0 Enabled 0 Enabled 0 Disabled
Figure 26. Mode Diagram — V.36
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
27
Page 28
ADDITIONAL TRANSCEIVERS
WITH THE SP504
Serial ports usually can have two data signals
(SD, RD), three clock signals (TT, ST, RT), and
at least eight control signals (CS, RS, etc.). EIARS-449 contains twenty six signal types for a
DB-37 connector. A DB-37 serial port design
may require thirteen drivers and fourteen re-
1
ceivers
. Although many applications do not
use all these signals, some applications may
need to support extra functions such as diagnostics. The SP504 supports enough transceivers
for the primary channels of data, clock and
control signals. Configuring LL, RL and TM
would require two additional drivers and one
receiver if designing for a DTE (one driver and
two receivers for a DCE).
A programmable transceiver such as the SP332
is a convenient solution in a design that requires
extra single ended or differential drivers/receivers. As shown in Figure 28, the SP332 can be
configured to four different variations.
The SP332 in Figure 29 is configured for two
single-ended drivers and one diffferential receiver. For a DTE design, the two drivers are
used for LL and RL signals and the receiver is
used for the TM signal. This configuration was
selected because the two RS-232 drivers can be
used for RS-423 by connecting a zener clamping diode to ground on the two driver outputs.
The diodes will limit the voltage swing on the
outputs so that the VOC = ±4V to ±6V adheres to
the RS-423 specification. The differential receiver can be easily configured to RS-423 by
grounding the non-inverting input. The receiver
will adhere to the RS-423 specifications.
CIRCUIT CIRCUIT NAME CIRCUIT CIRCUIT
MNEMONIC DIRECTION TYPE
SG SIGNAL GROUND -------------SC SEND COMMON TO DCE
RC RECEIVE COMMON FROM DCE
IS TERMINAL IN SERVICE TO DCE
IC INCOMING CALL FROM DCE
TR TERMINAL READY TO DCE
DM DATA MODE FROM DCE
SD SEND DATA TO DCE
RD RECEIVE DATA FROM DCE
TT TERMINAL TIMING TO DCE
ST SEND TIMING FROM DCE
RT RECEIVE TIMING FROM DCE
RS REQUEST TO SEND TO DCE
CS CLEAR TO SEND FROM DCE
RR RECEIVER READY FROM DCE
SQ SIGNAL QUALITY FROM DCE
NS NEW SIGNAL TO DCE
SF SELECT FREQUENCY TO DCE
SR SIGNAL RATE SELECTOR TO DCE
SI SIGNAL RATE INDICATOR FROM DCE
SSD SECONDARY SEND DATA TO DCE
SRD SECONDARY RD FROM DCE
SRS SECONDARY RS TO DCE
SCS SECONDARY CS FROM DCE
SRR SECONDARY RR FROM DCE
LL LOCAL LOOPBACK TO DCE
RL REMOTE LOOPBACK TO DCE
TM TEST MODE FROM DCE
SS SELECT STANDBY TO DCE
SB STANDBY INDICATOR FROM DCE
1
RS-449 Interchange Circuits Table
COMMON
CONTROL
DATA
TIMING
CONTROL
DATA
CONTROL
CONTROL
CONTROL
SECONDARY
PRIMARY CHANNEL
CHANNEL
SEL A 0 0 1 1
SEL B 0 1 0 1
LOOPBACK 1 1 1 1
SHUTDOWN 0 0 0 0
TX1TI1 626
T1
TI2727
RX21620
RX31721
RX4
22
TX2
T2
TX3TI3428
T3
TX4TI41
T4
RI1RX1 1519
R1
RI2
R2
RI3
R3
RI4
R4
3
18
TI126
TI2 TX2
27
28
TI3
RX11519
RX2 RI2 1620
21 RX3
Figure 28. Mode selection for the SP332
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
TX1 6
T1
T2
T3
R1
R2
R3
RI1
RI4
26
TI1
7
4TX3
3TX4
17RI3
18
T1
TI3428
T3
TI41
T4
RX1
19
R1
RX3
21
R3
RX41822
R4
TX3
TX4
RI3
RI4
6TX1
26
TI1
28
TI3
19
RX1
21 RX3
T1
T3
R1
R3
7TX2
3
15RI1
16RI2
17
6TX1
7TX2
4TX3
3TX4
15RI1
16RI2
17RI3
18RI4
28
Page 29
"1100" for RS-449 mode
+5V
10µF
Drivers
Receivers
TDEC3—TDEC0 (pins 9-12)
RDEC3—RDEC0 (pins 5-2)
1N5819
22µF
25 27 26 30 28 31
VCCV
TxD
14
DTR
13
RTS
16
TxC
15
ST
22
RL
17
LL
24
RxD
1
RxC
20
CTS
80
DSR
78
DCD
19
RI
21
SCT
79
DD
C1+ C2+
22µF22µF
SP504CF
C1-
32
V
SS
C2-
61
59
58
56
54
52
63
65
42
44
47
45
51
49
70
71
37
38
66
67
68
69
35
36
39
40
76
77
see pinout diagram for various ground pins
22µF
DB-37 Connector
4
22
12
30
7
25
17
35
16
34
6
24
8
26
9
27
11
29
13
31
15
5
23
Note: The SP332 will require clamping diodes on the driver outputs to limit the voltage to ±6V and comply with the RS-423
driver output specification of VOC = ±4V to
±6V and V
≥ ±3.6V with a 450Ω load.
OUT
+5V
9
0.1µF
0.1µF
0
1
C1+
12
C1-
11
C2+
13
C2-
26
27
28
19
20
21
24
SEL A
2
SEL B
SP332
T1
T2
T3
R1
R2
R3
LOOPBACK
5
10
V
V
+
CC
V
-
0.1µF
14
0.1µF
6
7
3
4
15
16
18
17
23
8
10µF
LL
10
RL
TM
14
18
1
Figure 29. Adding extra differential and single-ended transceivers using the SP332
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
29
Page 30
PACKAGE: 80 Pin MQFP
D
D1
D2
0.30" RAD. TYP.
PIN 1
C
L
A2
b
DIMENSIONS
Minimum/Maximum
(mm)
SYMBOL
A
A1
A2
b
D
D1
D2
E
E1
E2
e
N
C
L
e
80–PIN MQFP
JEDEC MS-22
(BEC) Variation
MIN NOM MAX
0.00 0.25
1.80 2.00 2.20
0.22 0.40
17.20 BSC
14.00 BSC
12.35 REF
17.20 BSC
14.00 BSC
12.35 REF
0.65 BSC
80
2.45
A1
E2
E1
AA
E
Seating
Plane
c
0.20" RAD. TYP.
5°-16°
0° MIN.
0°–7°
5°-16°
L
L1
COMMON DIMENTIONS
SYMBL MIN NOM MAX
c 0.11 23.00
L 0.73 0.88 1.03
L1 1.60 BASIC
80 PIN MQFP (MS-022 BC)
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
30
Page 31
Model Temperature Range Package Types
SP504MCF........................................................................ 0°C to +70°C ...................................................... 80–pin JEDEC (BE-2 Outline) MQFP
REVISION HISTORY
DATE REVISION DESCRIPTION
1/27/04 A Implemented tracking revision.
ORDERING INFORMATION
Corporation
ANALOG EXCELLENCE
Sipex Corporation
Headquarters and
Sales Office
233 South Hillview Drive
Milpitas, CA 95035
TEL: (408) 934-7500
FAX: (408) 935-7600
Sales Office
22 Linnell Circle
Billerica, MA 01821
TEL: (978) 667-8700
FAX: (978) 670-9001
Rev: A Date:1/27/04 SP504 Multi–Mode Serial Transceivers © Copyright 2004 Sipex Corporation
31
Loading...
