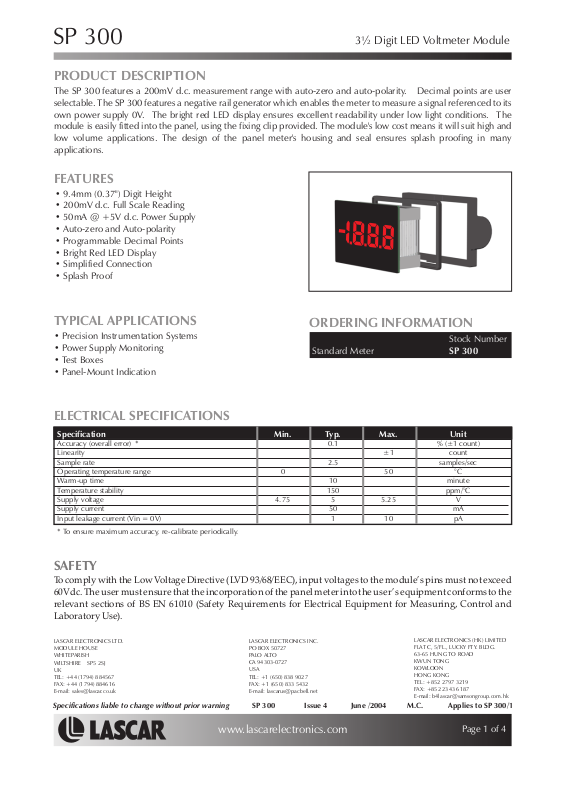

SP 300 3½ Digit LED Voltmeter Module
PRODUCT DESCRIPTION
The SP 300 features a 200mV d.c. measurement range with auto-zero and auto-polarity. Decimal points are user
selectable. The SP 300 features a negative rail generator which enables the meter to measure a signal referenced to its
own power supply 0V. The bright red LED display ensures excellent readability under low light conditions. The
module is easily fitted into the panel, using the fixing clip provided. The module's low cost means it will suit high and
low volume applications. The design of the panel meter's housing and seal ensures splash proofing in many
applications.
FEATURES
•
9.4mm (0.37") Digit Height
• 200mV d.c. Full Scale Reading
• 50mA @ +5V d.c. Power Supply
•
Auto-zero and Auto-polarity
•
Programmable Decimal Points
• Bright Red
• Simplified Connection
• Splash Proof
LED Display
TYPICAL APPLICATIONS
• Precision Instrumentation Systems
• Power Supply Monitoring
ORDERING INFORMATION
Stock Number
Standard Meter SP 300
• Test Boxes
• Panel-Mount Indication
ELECTRICAL SPECIFICATIONS
Specification Min. Typ. Max. Unit
Accuracy (overall error) * 0.1 % (±1 count)
Linearity ±1 count
Sample rate 2.5 samples/sec
Operating temperature range 0 50 °C
Warm-up time 10 minute
Temperature stability 150 ppm/°C
Supply voltage 4.75 5 5.25 V
Supply current
Input leakage current (Vin = 0V) 1 10 pA
* To ensure maximum accuracy, re-calibrate periodically.
50 mA
SAFETY
To comply with the Low Voltage Directive(LVD 93/68/EEC), input voltages to the module’s pins must not exceed
60Vdc. The usermustensurethat the incorporation of thepanel meter into theuser ’s equipmentconforms tothe
relevant sections of BS EN 61010 (Safety Requirements for Electrical Equipment for Measuring, Control and
Laboratory Use).
LASCAR ELECTRONICS LTD.
MODULE HOUSE
WHITEPARISH
WILTSHIRE SP5 2SJ
UK
TEL: +44 (1794) 884567
FAX: +44 (1794) 884616
E-mail: [email protected]
Specifications liable to change without prior warning SP 300 Issue 4 June /2004 M.C. Applies to SP 300/1
LASCAR ELECTRONICS INC.
PO BOX 50727
PALO ALTO
CA 94303-0727
USA
TEL: +1 (650) 838 9027
FAX: +1 (650) 833 5432
E-mail: [email protected]
www.lascarelectronics.com
LASCAR ELECTRONICS (HK) LIMITED
FLAT C, 5/FL., LUCKY FTY. BLDG.
63-65 HUNG TO ROAD
KWUN TONG
KOWLOON
HONG KONG
TEL: +852 2797 3219
FAX: +852 2343 6187
E-mail: [email protected]
Page2of4Page 2 of 4
Page1of4
Page 2
SP 300 3½ Digit LED Voltmeter Module
DIMENSIONS
All dimensions in mm (inches)
22.4 (0.88)
35.1 (1.38)
PANEL FITTING
Module Seal
34 (1.34)
21.3 (0.84)
Panel thickness: 1.0 - 3.0
Panel
(0.04 - 0.12)
20.5 (0.81)
27.9 (1.10)
2.54 (0.1)
33.0 (1.30)
Fixing Clip
ab c
a. 0.75 (0.03)
b. 10.00 (0.39)
c. 6.00 (0.24)
1
FUNCTIONAL BLOCK DIAGRAM
2
3 4
PIN CONFIGURATION
(rear view)
V+
Vref
COM
IH
CAL
+
_
A/D
8
1
CAL
18
LCOM
V+
RB
RA
LA
0V
COM
DP1
IL
DP2
IH
DP3
IL
DP3210V
Specifications liable to change without prior warning SP 300 Issue 4 June /2004 M.C. Applies to SP 300/1
Page2of4Page 2 of 4
www.lascarelectronics.com
Page2of4
Page 3
SP 300 3½ Digit LED Voltmeter Module

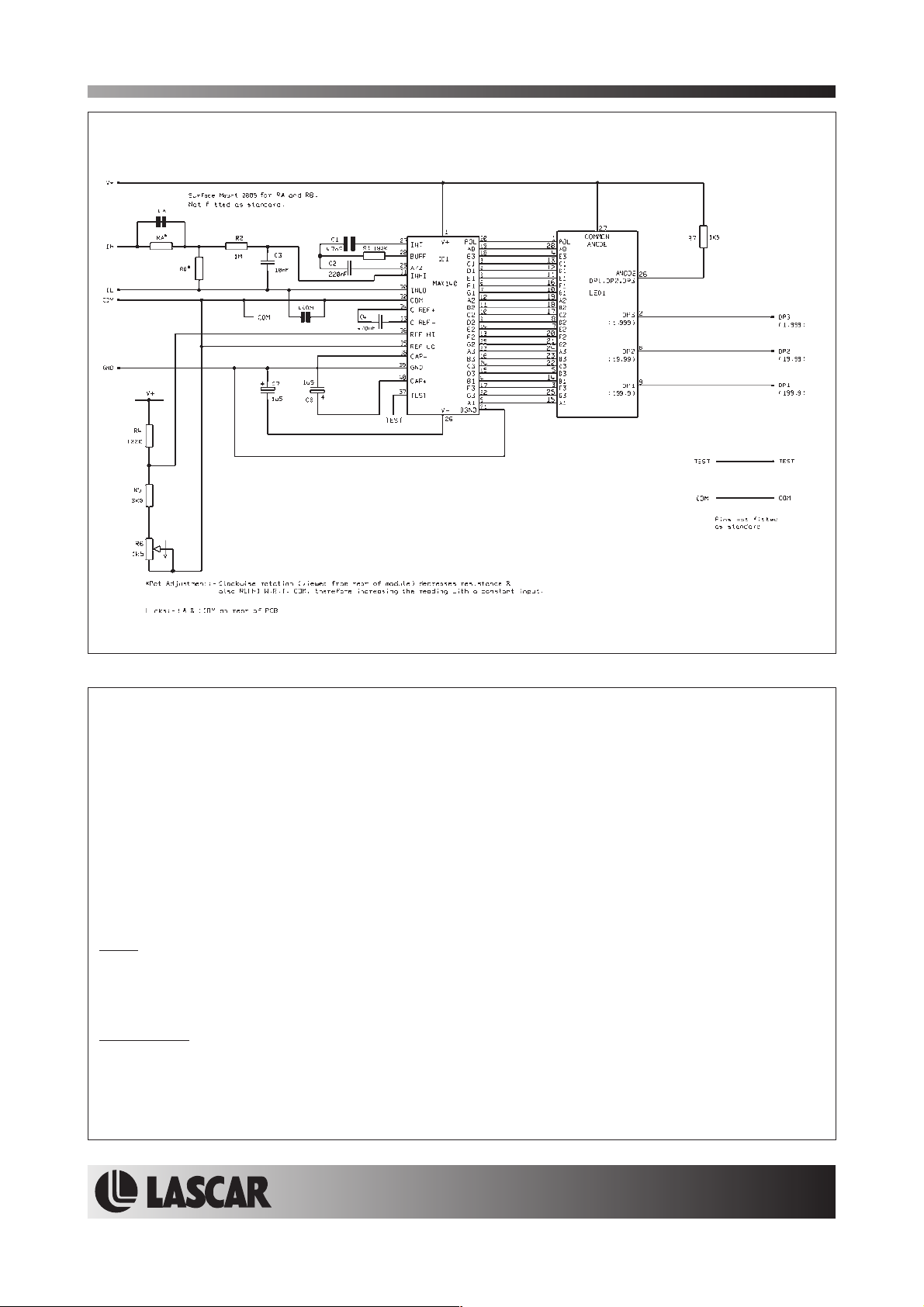

CIRCUIT DIAGRAM
1
4
5
3
2
8
7
6
9
16
PIN FUNCTIONS
1. V+ Positive power supply to the meter.
2. 0V 0V power supply connection to the meter.
3. COM Ground for analogue section of A/D converter.
It is actively held at 3.05V (nom) below V+andmust notbe allowed to sink excessive current
m
(>100 A)by,forinstance, connecting to a higher voltage.
4. IH Positivemeasuring input.
5. IL Negative measuring input.
6. DP1 Connect to 0V to display DP1 (199.9).
7. DP2 Connect to 0V to display DP2 (19.99).
8. DP3 Connect to 0V to display DP3 (1.999).
Note:
A negative supply is generated internally andmirrors the positive supply. For example: if V+ is +5V, then
the internally generated V- is -5V. When measuring with the input referenced to the same supply rail as
that of the panel meter, thenthelimitations on theinputrange are (V- + 1.5V) to (V+ - 1.5V).
Solder Links:
LCOM Normally Open. Connects IL to COM.
Specifications liable to change without prior warning SP 300 Issue 4 June /2004 M.C. Applies to SP 300/1
www.lascarelectronics.com
Page3of4
Page 4
SP 300 3½ Digit LED Voltmeter Module

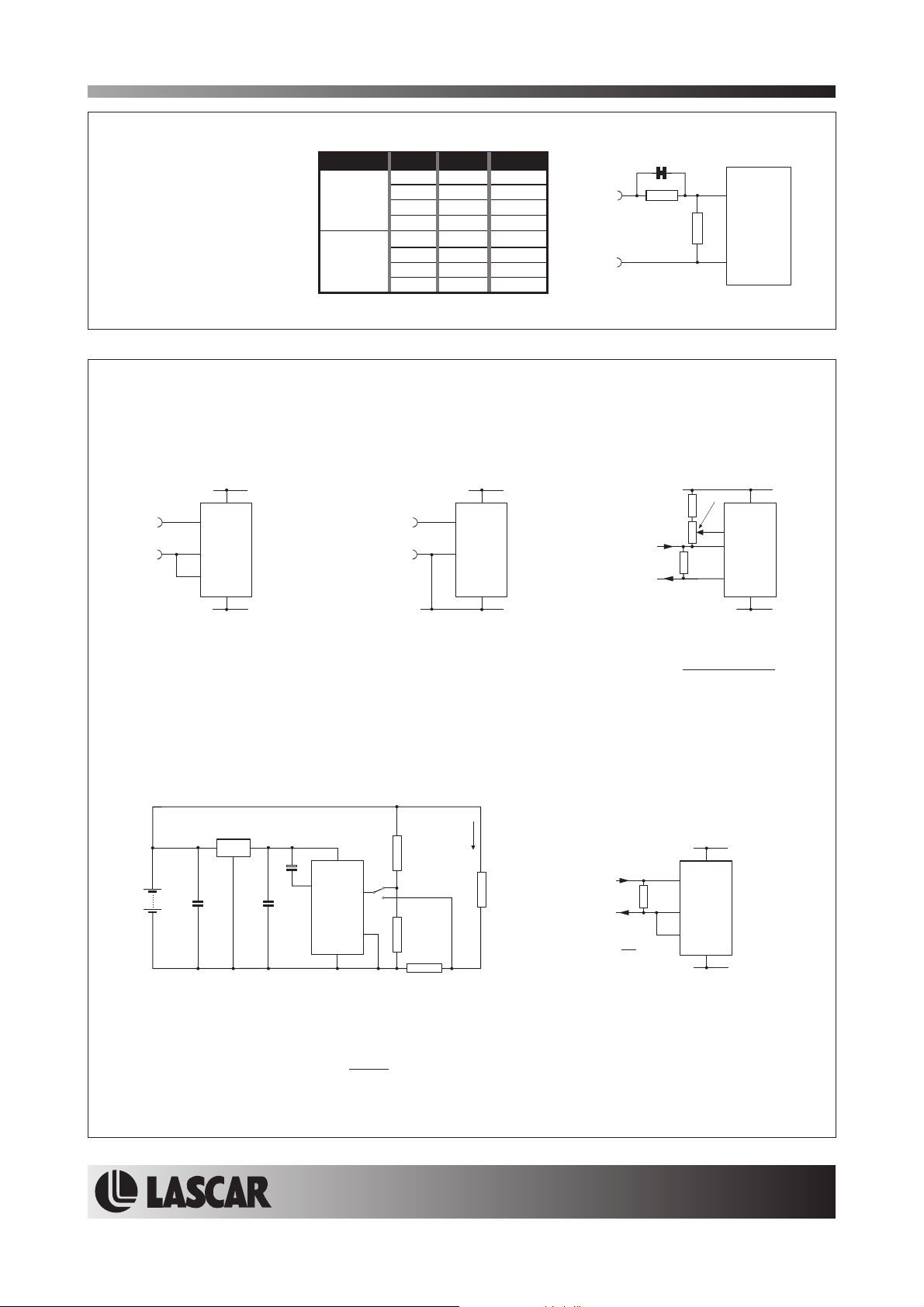

SCALING
Two resistors Ra and Rb
may be used to alter the
full scale reading (FSR) of
the meter - see table. The
meter will have to be recalibrated by adjusting the
calibration potentiometer
on the rearof the module.
Voltage
Current
* Ensure that Ra is rated for high voltage use.
** Ensure solder link LA is cut.
FSR Ra Rb
2V 910k** 100k
20V 1M** 10k
200V 1M** 1k
2000V* 1M** 100R
200 A 0R 1k
m
2mA 0R 100R
20mA 0R 10R
200mA 0R 1R
Vin or inI
APPLICATIONS
Do not connect more than one meter to the same power supply if the meters cannot use the same signal
ground. Taking any inputbeyond the power supplyrails will damage themeter.
LA
Rb
4
IH
5
IL
SP 300
+
Ra
-
V+
1
V+
4
+
±200mV
-
5
3
IH
IL
COM
0V
2
0V
Measuring an input voltage referenced
to a floating supply, i.e. the input
voltage and the meter's power supply
are isolated from each other.
7805
V
supply
220nF 470nF
+5V
10uF
3
COM
V+
0V
1
IH
IL
2
Measuring supply voltage and current to a load.
S selectsbetween voltage andcurrent measurement.
1
V+
1
V+
4
+
±200mV
-
IH
5
IL
0V
2
0V
Measuring a single ended input
voltage referenced to supply, i.e. the
input voltage and the meter's power
supply share the same 0V rail.
I
Ra=1M
V
4
S
1
A
5
Rb=1k
Rs
Shunt
Load
R
L
Set Zero
4-20mA
current loop
220k
5k
I+
R
I-
5
3
4
IL
COM
IH
V+
0V
Measuring a 4-20mA loop current.
R= Reading at 20mA
160
The meter's power supply must be
isolated from the 4-20mA current
loop.
V+
1
V+
4
5
3
IH
IL
COM
0V
2
0V
R = 0.2
R
I
FSR
Measuring current.
The meter's supply is isolated
from the current being measured.
V+
1
2
0V
Ra and Rbshown scaled for200V
FSR
Rs = 200mV
I
FSR
(e.g. 0.1 / 400mW for 2Afull scale)W
Display DP1, DP2or DP3, byconnecting to 0V,as required.
