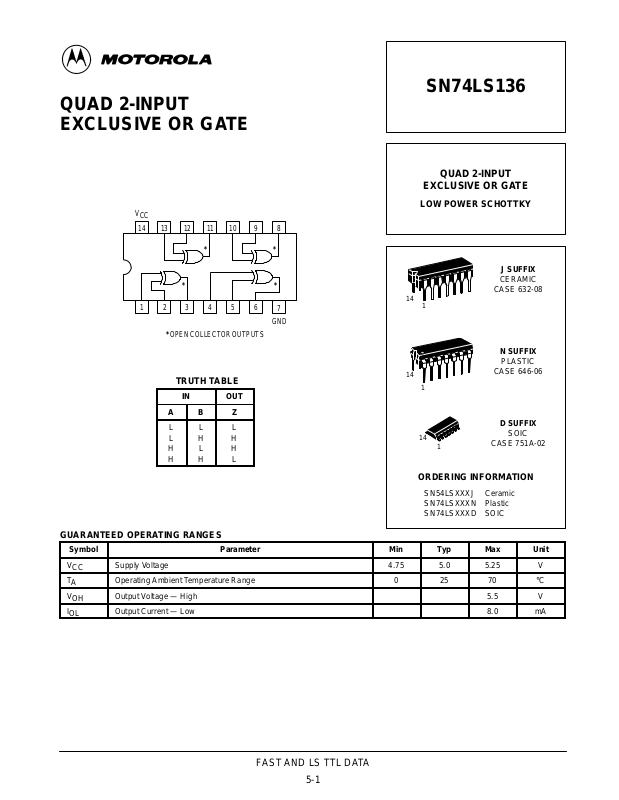

Page 1
QUAD 2-INPUT
EXCLUSIVE OR GATE
SN74LS136
QUAD 2-INPUT
EXCLUSIVE OR GA TE
V
CC
14 13 12 11 10 9
*
123456
*OPEN COLLECTOR OUTPUTS
8
*
**
7
GND
TRUTH TABLE
IN OUT
A B Z
L L L
L H H
H L H
H H L
LOW POWER SCHOTTKY
CERAMIC
14
1
14
1
14
1
CASE 632-08
N SUFFIX
CASE 646-06
D SUFFIX
CASE 751A-02
ORDERING INFORMATION
SN54LSXXXJ Ceramic
SN74LSXXXN Plastic
SN74LSXXXD SOIC
J SUFFIX
PLASTIC
SOIC
GUARANTEED OPERATING RANGES
Symbol Parameter Min Typ Max Unit
V
T
V
I
CC
A
OH
OL
Supply Voltage 4.75 5.0 5.25 V
Operating Ambient Temperature Range 0 25 70 °C
Output Voltage — High 5.5 V
Output Current — Low 8.0 mA
FAST AND LS TTL DAT A
5-1
Page 2
SN74LS136
VOLOutput LOW Volt
V
V
V
IIHI
HIGH C
t
CC
DC CHARACTERISTICS OVER OPERATING TEMPERATURE RANGE (unless otherwise specified)
Limits
Symbol Parameter
V
V
V
I
OH
I
IL
I
CC
IH
IL
IK
Input HIGH Voltage 2.0 V
Input LOW Voltage 0.8 V
Input Clamp Diode Voltage –0.65 –1.5 V VCC = MIN, IIN = –18 mA
Output HIGH Current 100 µA VCC = MIN, VOH = MAX
age
nput
Input LOW Current –0.8 mA VCC = MAX, VIN = 0.4 V
Power Supply Current 10 mA VCC = MAX
urren
Min Typ Max
0.25 0.4 V IOL = 4.0 mA
0.35 0.5 V IOL = 8.0 mA
0.2 mA VCC = MAX, VIN = 7.0 V
Unit Test Conditions
40 µA VCC = MAX, VIN = 2.7 V
Guaranteed Input HIGH Voltage for
All Inputs
Guaranteed Input LOW Voltage for
All Inputs
VCC = VCC MIN,
=
or
IN
IL
per Truth Table
IH
AC CHARACTERISTICS (T
Symbol Parameter
t
PLH
t
PHL
t
PLH
t
PHL
Propagation Delay,
Other Input LOW
Propagation Delay,
Other Input HIGH
= 25°C)
A
Limits
Min Typ Max
18
18
18
18
30
30
30
30
Unit Test Conditions
ns
ns
VCC = 5.0 V
CL = 15 pF, RL = 2.0 kΩ
FAST AND LS TTL DATA
5-2
