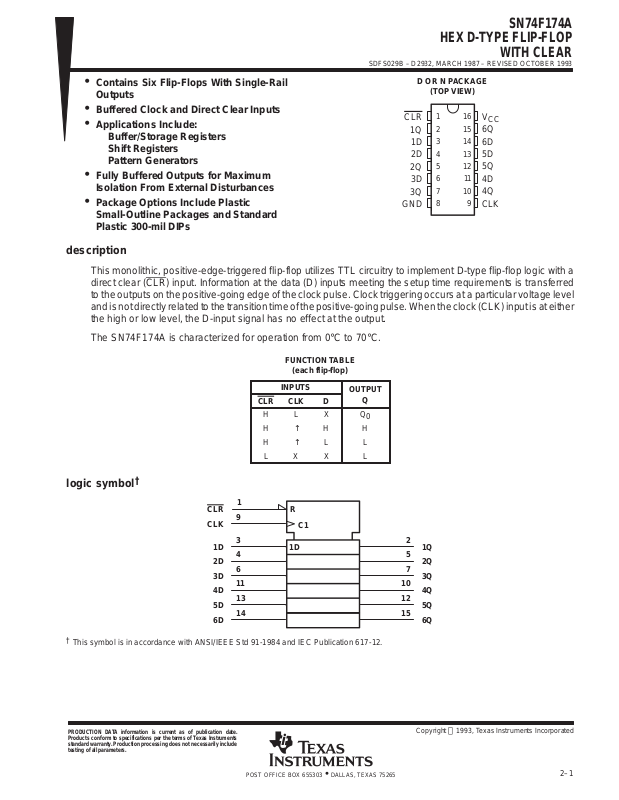

Datasheet SN74F174A Datasheet (TEXAS INSTRUMENTS)

SN74F174A

HEX D-TYPE FLIP-FLOP

WITH CLEAR

SDFS029B – D2932, MARCH 1987 – REVISED OCTOBER 1993

• Contains Six Flip-Flops With Single-Rail

Outputs

• Buffered Clock and Direct Clear Inputs

• Applications Include:

Buffer/Storage Registers
Shift Registers
Pattern Generators

• Fully Buffered Outputs for Maximum

Isolation From External Disturbances

• Package Options Include Plastic

D OR N PACKAGE

(TOP VIEW)

1Q
1D
2D
2Q
3D
3Q

1
2
3
4
5
6
7
8

CLR

GND

16
15
14
13
12
11
10

V

CC

6Q
6D
5D
5Q
4D
4Q

9

CLK

Small-Outline Packages and Standard
Plastic 300-mil DIPs

description

This monolithic, positive-edge-triggered flip-flop utilizes TTL circuitry to implement D-type flip-flop logic with a
direct clear (CLR
to the outputs on the positive-going edge of the clock pulse. Clock triggering occurs at a particular voltage level
and is not directly related to the transition time of the positive-going pulse. When the clock (CLK) input is at either
the high or low level, the D-input signal has no effect at the output.

The SN74F174A is characterized for operation from 0°C to 70°C.

) input. Information at the data (D) inputs meeting the setup time requirements is transferred

FUNCTION TABLE

(each flip-flop)

INPUTS

CLR CLK D

H L X Q
H ↑ HH
H↑LL

LXXL

OUTPUT

Q

0

logic symbol

†

This symbol is in accordance with ANSI/IEEE Std 91-1984 and IEC Publication 617-12.

PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.

†

CLR
CLK

1D
2D
3D
4D
5D
6D

1

9

3
4
6
11
13
14

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

R

C1

1D

2

1Q

5

2Q

7

3Q

10

4Q

12

5Q

15

6Q

Copyright  1993, Texas Instruments Incorporated

2–1

SN74F174A
HEX D-TYPE FLIP-FLOP
WITH CLEAR

SDFS029B – D2932, MARCH 1987 – REVISED OCTOBER 1993

logic diagram (positive logic)

1D

6D

9

1

3

14

1D

C1

R

Four Identical Channels

Not Shown

1D

C1

R

15

2

1Q

6Q

CLK

CLR

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

Supply voltage range, V
Input voltage range, V

CC

(see Note 1) –1.2 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I

Input current range –30 mA to 5 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Voltage applied to any output in the high state –0.5 V to V

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Current into any output in the low state 40 mA. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating free-air temperature range 0°C to 70°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range –65°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only and
functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not
implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTE 1: The input-voltage ratings may be exceeded provided the input-current ratings are observed.

–0.5 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

CC

recommended operating conditions

V
V
V
I

IK

I

OH

I

OL

T

2–2

CC
IH
IL

A

Supply voltage 4.5 5 5.5 V
High-level input voltage 2 V
Low-level input voltage 0.8 V
Input clamp current –18 mA
High-level output current –1 mA
Low-level output current 20 mA
Operating free-air temperature 0 70 °C

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

MIN NOM MAX UNIT

SN74F174A

V

V

t

Set

CLK↑

ns

CLK

Any Q

ns

HEX D-TYPE FLIP-FLOP

WITH CLEAR

SDFS029B – D2932, MARCH 1987 – REVISED OCTOBER 1993

electrical characteristics over recommended operating free-air temperature range (unless
otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP†MAX UNIT

V

IK

OH

V

OL

I

I

I

IH

I

IL

‡

I

OS

I

CCH

I

CCH

grounded.

3. I

CCL

grounded.

CCL

is measured with all outputs open, all data inputs and enable input at 4.5 V , and the clock input at 4.5 V after being momentarily

is measured with all outputs open, all data inputs and enable input at 0 V , and the clock input at 4.5 V after being momentarily

†

All typical values are at VCC = 5 V, TA = 25°C.

‡

Not more than one output should be shorted at a time, and the duration of the short circuit should not exceed one second.

NOTES: 2. I

VCC = 4.5 V, II = – 18 mA – 1.2 V
VCC = 4.5 V, IOH = – 1 mA 2.5 3.4
VCC = 4.75 V, IOH = – 1 mA 2.7
VCC = 4.5 V, IOL = 20 mA 0.3 0.5 V
VCC = 5.5 V, VI = 7 V 0.1 mA
VCC = 5.5 V, VI = 2.7 V 20 µA
VCC = 5.5 V, VI = 0.5 V – 0.6 mA
VCC = 5.5 V, VO = 0 –60 – 150 mA
VCC = 5.5 V, See Note 2 30 45 mA
VCC = 5.5 V, See Note 3 39 55 mA

timing requirements

VCC = 5 V,

TA = 25°C

MIN MAX MIN MAX

f

clock

t

w

su

t

h

§

For conditions shown as MIN or MAX, use the appropriate value specified under recommended operating conditions.

¶

Inactive-state setup time is also referred to as recovery time.

Clock frequency 0 100 0 80 MHz

CLK high 4 4

Pulse duration CLK low 6 6 ns

CLR low 5 5

up time before

Hold time after CLK↑ Data high or low 0.5 1 ns

Data high or low 4.5 4.5
CLR high¶ 5 5

VCC = 4.5 V to 5.5 V,
TA = MIN to MAX

switching characteristics (see Note 4)

PARAMETER

f

max

t

PLH

t

PHL

t

PHL

NOTE 4: Load circuits and waveforms are shown in Section 1.

FROM

(INPUT)

CLR Any Q 4.2 6.3 14 4.2 15 ns

TO

(OUTPUT)

VCC = 5 V,
CL = 50 pF,
RL = 500 Ω,
TA = 25°C

MIN TYP MAX MIN MAX

100 140 80 MHz

2.7 4.5 8 2.7 9

3.4 4.2 10 3.3 11

VCC = 4.5 V to 5.5 V,
CL = 50 pF,
RL = 500Ω,
TA = MIN to MAX

§

UNIT

UNIT

§

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

2–3

SN74F174A
HEX D-TYPE FLIP-FLOP
WITH CLEAR

SDFS029B – D2932, MARCH 1987 – REVISED OCTOBER 1993

2–4

POST OFFICE BOX 655303 • DALLAS, TEXAS 75265

IMPORTANT NOTICE

Texas Instruments Incorporated and its subsidiaries (TI) reserve the right to make corrections, modifications, enhancements,
improvements, and other changes to its products and services at any time and to discontinue any product or service without notice.
Customers should obtain the latest relevant information before placing orders and should verify that such information is current and
complete. All products are sold subject to TI’s terms and conditions of sale supplied at the time of order acknowledgment.

TI warrants performance of its hardware products to the specifications applicable at the time of sale in accordance with TI’s
standard warranty. Testing and other quality control techniques are used to the extent TI deems necessary to support this
warranty. Except where mandated by government requirements, testing of all parameters of each product is not necessarily
performed.

TI assumes no liability for applications assistance or customer product design. Customers are responsible for their products and
applications using TI components. To minimize the risks associated with customer products and applications, customers should
provide adequate design and operating safeguards.

TI does not warrant or represent that any license, either express or implied, is granted under any TI patent right, copyright, mask
work right, or other TI intellectual property right relating to any combination, machine, or process in which TI products or services
are used. Information published by TI regarding third-party products or services does not constitute a license from TI to use such
products or services or a warranty or endorsement thereof. Use of such information may require a license from a third party under
the patents or other intellectual property of the third party, or a license from TI under the patents or other intellectual property of TI.

Reproduction of information in TI data books or data sheets is permissible only if reproduction is without alteration and is
accompanied by all associated warranties, conditions, limitations, and notices. Reproduction of this information with alteration is an
unfair and deceptive business practice. TI is not responsible or liable for such altered documentation.

Resale of TI products or services with statements different from or beyond the parameters stated by TI for that product or service
voids all express and any implied warranties for the associated TI product or service and is an unfair and deceptive business
practice. TI is not responsible or liable for any such statements.

TI products are not authorized for use in safety-critical applications (such as life support) where a failure of the TI product would
reasonably be expected to cause severe personal injury or death, unless officers of the parties have executed an agreement
specifically governing such use. Buyers represent that they have all necessary expertise in the safety and regulatory ramifications
of their applications, and acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related
requirements concerning their products and any use of TI products in such safety-critical applications, notwithstanding any
applications-related information or support that may be provided by TI. Further, Buyers must fully indemnify TI and its
representatives against any damages arising out of the use of TI products in such safety-critical applications.

TI products are neither designed nor intended for use in military/aerospace applications or environments unless the TI products are
specifically designated by TI as military-grade or "enhanced plastic." Only products designated by TI as military-grade meet military
specifications. Buyers acknowledge and agree that any such use of TI products which TI has not designated as military-grade is
solely at the Buyer's risk, and that they are solely responsible for compliance with all legal and regulatory requirements in
connection with such use.

TI products are neither designed nor intended for use in automotive applications or environments unless the specific TI products
are designated by TI as compliant with ISO/TS 16949 requirements. Buyers acknowledge and agree that, if they use any
non-designated products in automotive applications, TI will not be responsible for any failure to meet such requirements.

Following are URLs where you can obtain information on other Texas Instruments products and application solutions:

Products Applications

Amplifiers amplifier.ti.com Audio www.ti.com/audio
Data Converters dataconverter.ti.com Automotive www.ti.com/automotive
DSP dsp.ti.com Broadband www.ti.com/broadband
Interface interface.ti.com Digital Control www.ti.com/digitalcontrol
Logic logic.ti.com Military www.ti.com/military
Power Mgmt power.ti.com Optical Networking www.ti.com/opticalnetwork
Microcontrollers microcontroller.ti.com Security www.ti.com/security
Low Power www.ti.com/lpw Telephony www.ti.com/telephony

Wireless

Video & Imaging www.ti.com/video
Wireless www.ti.com/wireless

Mailing Address: Texas Instruments, Post Office Box 655303, Dallas, Texas 75265

Copyright © 2007, Texas Instruments Incorporated

PACKAGE OPTION ADDENDUM

www.ti.com

4-Jun-2007

PACKAGING INFORMATION

Orderable Device Status

(1)

Package

Type

Package
Drawing

Pins Package

Qty

Eco Plan

SN74F174AD ACTIVE SOIC D 16 40 Green (RoHS &

no Sb/Br)

SN74F174ADE4 ACTIVE SOIC D 16 40 Green (RoHS &

no Sb/Br)

SN74F174ADG4 ACTIVE SOIC D 16 40 Green (RoHS &

no Sb/Br)

SN74F174ADR ACTIVE SOIC D 16 2500 Green (RoHS &

no Sb/Br)

SN74F174ADRE4 ACTIVE SOIC D 16 2500 Green (RoHS &

no Sb/Br)

SN74F174ADRG4 ACTIVE SOIC D 16 2500 Green (RoHS &

no Sb/Br)

SN74F174AN ACTIVE PDIP N 16 25 Pb-Free

SN74F174ANE4 ACTIVE PDIP N 16 25 Pb-Free

SN74F174ANSR ACTIVE SO NS 16 2000 Green (RoHS &

no Sb/Br)

SN74F174ANSRE4 ACTIVE SO NS 16 2000 Green (RoHS &

no Sb/Br)

SN74F174ANSRG4 ACTIVE SO NS 16 2000 Green (RoHS &

no Sb/Br)

(1)

The marketing status values are defined as follows:

ACTIVE: Product device recommended for new designs.
LIFEBUY: TI has announced that the device will be discontinued, and a lifetime-buy period is in effect.
NRND: Not recommended for new designs. Device is in production to support existing customers, but TI does not recommend using this part in

a new design.

PREVIEW: Device has been announced but is not in production. Samples may or may not be available.
OBSOLETE: TI has discontinued the production of the device.

(RoHS)

(RoHS)

(2)

Lead/Ball Finish MSL Peak Temp

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU N/ A for Pkg Type

CU NIPDAU N/ A for Pkg Type

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

CU NIPDAU Level-1-260C-UNLIM

(3)

(2)

Eco Plan - The planned eco-friendly classification: Pb-Free (RoHS), Pb-Free (RoHS Exempt), or Green (RoHS & no Sb/Br) - please check

http://www.ti.com/productcontent for the latest availability information and additional product content details.

TBD: The Pb-Free/Green conversion plan has not been defined.
Pb-Free (RoHS): TI's terms "Lead-Free" or "Pb-Free" mean semiconductor products that are compatible with the current RoHS requirements

for all 6 substances, including the requirement that lead not exceed 0.1% by weight in homogeneous materials. Where designed to be soldered
at high temperatures, TI Pb-Free products are suitable for use in specified lead-free processes.
Pb-Free (RoHS Exempt): This component has a RoHS exemption for either 1) lead-based flip-chip solder bumps used between the die and
package, or 2) lead-based die adhesive used between the die and leadframe. The component is otherwise considered Pb-Free (RoHS
compatible) as defined above.
Green (RoHS & no Sb/Br): TI defines "Green" to mean Pb-Free (RoHS compatible), and free of Bromine (Br) and Antimony (Sb) based flame
retardants (Br or Sb do not exceed 0.1% by weight in homogeneous material)

(3)

MSL, Peak Temp. -- The Moisture Sensitivity Level rating according to the JEDEC industry standard classifications, and peak solder

temperature.

Important Information and Disclaimer:The information provided on this page represents TI's knowledge and belief as of the date that it is
provided. TI bases its knowledge and belief on information provided by third parties, and makes no representation or warranty as to the
accuracy of such information. Efforts are underway to better integrate information from third parties. TI has taken and continues to take
reasonable steps to provide representative and accurate information but may not have conducted destructive testing or chemical analysis on
incoming materials and chemicals. TI and TI suppliers consider certain information to be proprietary, and thus CAS numbers and other limited
information may not be available for release.

In no event shall TI's liability arising out of such information exceed the total purchase price of the TI part(s) at issue in this document sold by TI

Addendum-Page 1

PACKAGE OPTION ADDENDUM

www.ti.com

to Customer on an annual basis.

4-Jun-2007

Addendum-Page 2

PACKAGE MATERIALS INFORMATION

www.ti.com

TAPE AND REEL INFORMATION

19-Mar-2008

*All dimensions are nominal

Device Package

SN74F174ADR SOIC D 16 2500 330.0 16.4 6.5 10.3 2.1 8.0 16.0 Q1

SN74F174ANSR SO NS 16 2000 330.0 16.4 8.2 10.5 2.5 12.0 16.0 Q1

Type

Package
Drawing

Pins SPQ Reel

Diameter

(mm)

Reel

Width

W1 (mm)

A0 (mm) B0 (mm) K0 (mm) P1

(mm)W(mm)

Pin1

Quadrant

Pack Materials-Page 1

PACKAGE MATERIALS INFORMATION

www.ti.com

19-Mar-2008

*All dimensions are nominal

Device Package Type Package Drawing Pins SPQ Length (mm) Width (mm) Height (mm)

SN74F174ADR SOIC D 16 2500 333.2 345.9 28.6

SN74F174ANSR SO NS 16 2000 346.0 346.0 33.0

Pack Materials-Page 2
