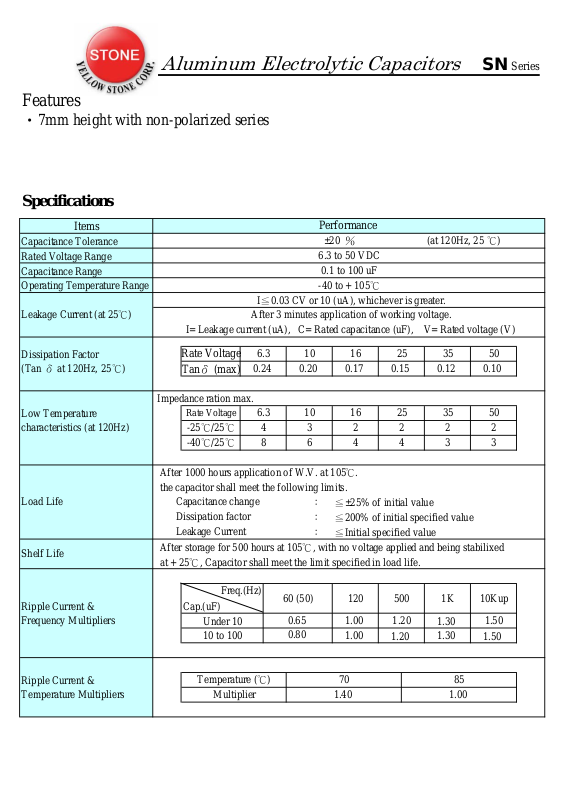

Page 1
Aluminum Electrolytic Capacitors
e
)
Features
‧7mm height with non-polarized series
Specifications
SN Series
Items
Capacitance Tolerance
Rated Voltage Range
Capacitance Range
Operating Temperature Range
Leakage Current (at 25℃)
Dissipation Factor
(Tan δ at 120Hz, 25℃)
Low Temperature
characteristics (at 120Hz)
Load Life
Shelf Life
Performance
±20 ％ (at 120Hz, 25 ℃)
6.3 to 50 VDC
0.1 to 100 uF
-40 to + 105℃
I≦0.03 CV or 10 (uA), whichever is greater.
After 3 minutes application of working voltage.
I= Leakage current (uA), C= Rated capacitance (uF), V= Rated voltage (V)
Rate Voltag
Tanδ (max
Impedance ration max.
Rate Voltage
-25℃/25℃
-40℃/25℃
After 1000 hours application of W.V. at 105℃.
the capacitor shall meet the following limits.
Capacitance change
Dissipation factor
Leakage Current
After storage for 500 hours at 105℃, with no voltage applied and being stabilixed
at + 25℃, Capacitor shall meet the limit specified in load life.
6.3
0.24
6.3
4
86
10
10
3
16
0.17
16
2
4
：
≦±25% of initial value
：
≦200% of initial specified value
：
≦Initial specified value
25
0.15
25 35 50
222
4
35
0.12
33
0.100.20
50
Ripple Current &
Frequency Multipliers
Ripple Current &
Temperature Multipliers
Freq.(Hz)
Cap.(uF)
Under 10
10 to 100
Temperature (℃)
Multiplier 1.40 1.00
60 (50)
0.65
0.80
120 500
1.00
1.00
70
1.20
1.20
1K 10Kup
1.30
1.30
85
1.50
1.50
Page 2
Aluminum Electrolytic Capacitors
F
D 4 5 6.3
F 1.5
d
Dimension : ψD x L (mm)
SN Series
2.0 2.5
0.45
DIMENSION & PERMISSIBLE RIPPLE CURRENT Ripple Current : mA/rms at 120Hz,85℃
VDC
6.3V 10V 16V 25V 35V 50V
u
0.1
0.22
0.33
0.47
1
2.2
3.3
4.7
10
22
33
47
ψDxL mA ψDxL mA ψDxL mA ψDxL mA ψDxL mA ψDxL mA
4x7
4x7
5x7 35 6.3x7
5x7 40 6.3x7 42
30
5x7 38 6.3x7 42
20
40
4x7
4x7
4x7
4x7
4x7 10
4x7
4x7
5x7
6.3x7
14
22
45
5x7 15
256.3x7
6.3x7
1
1.5
2
24x7
7
12
18
100
6.3x7 50
