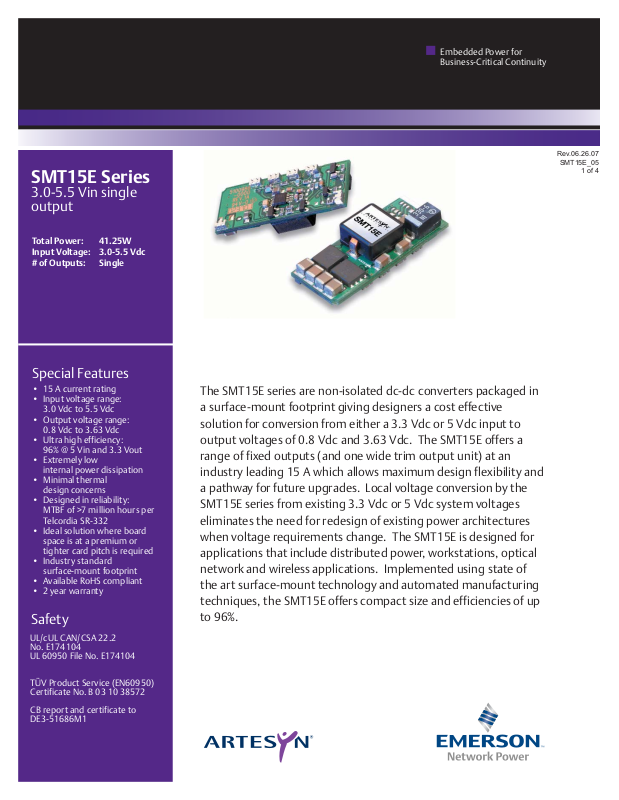

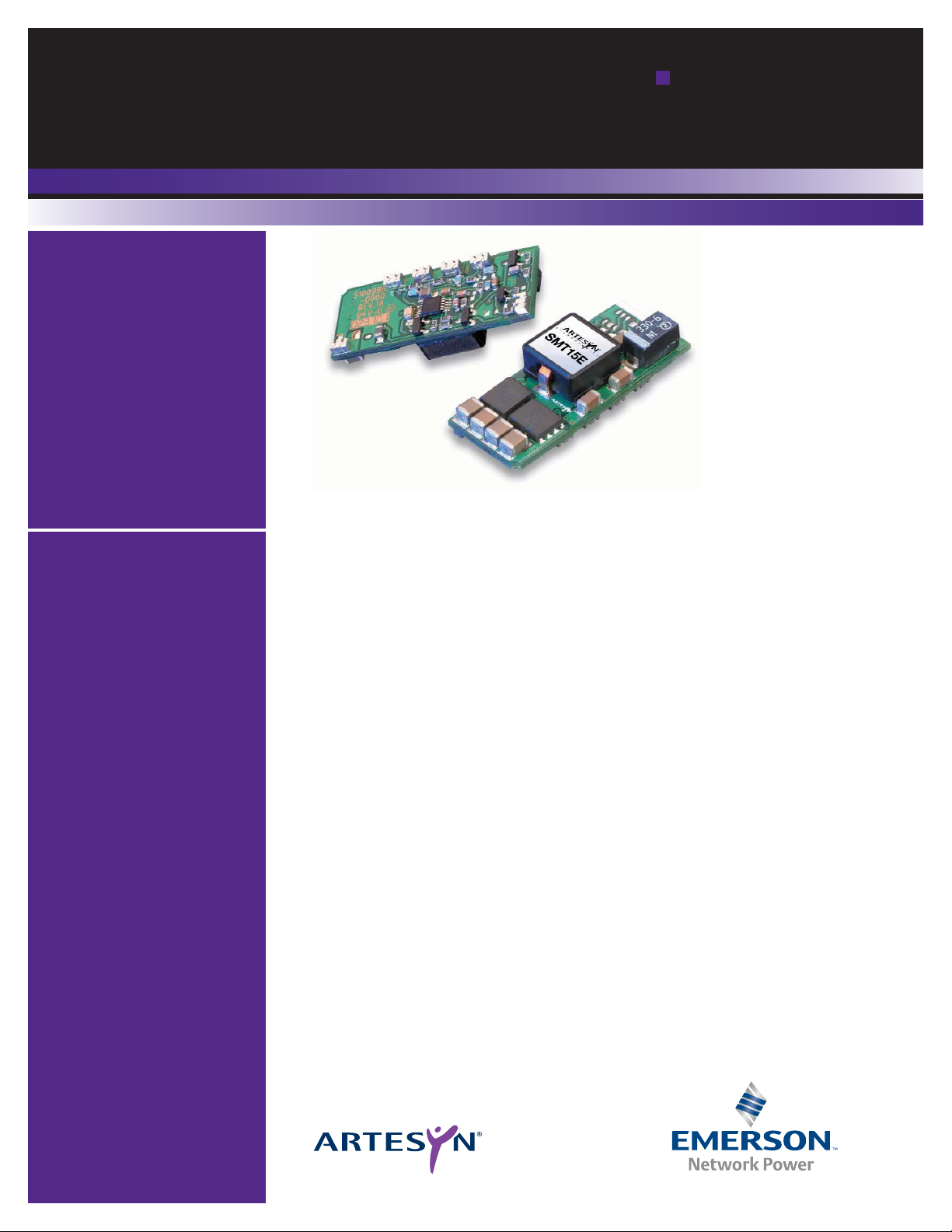

The SMT15E series are non-isolated dc-dc converters packaged in
a surface-mount footprint giving designers a cost effective
solution for conversion from either a 3.3 Vdc or 5 Vdc input to
output voltages of 0.8 Vdc and 3.63 Vdc. The SMT15E offers a
range of fixed outputs (and one wide trim output unit) at an
industry leading 15 A which allows maximum design flexibility and
a pathway for future upgrades. Local voltage conversion by the
SMT15E series from existing 3.3 Vdc or 5 Vdc system voltages
eliminates the need for redesign of existing power architectures
when voltage requirements change. The SMT15E is designed for
applications that include distributed power, workstations, optical
network and wireless applications. Implemented using state of
the art surface-mount technology and automated manufacturing
techniques, the SMT15E offers compact size and efficiencies of up
to 96%.
Embedded Power for
Business-Critical Continuity
SMT15E Series
3.0-5.5 Vin single
output
Special Features
• 15 A current rating
• Input voltage range:
3.0 Vdc to 5.5 Vdc
• Output voltage range:
0.8 Vdc to 3.63 Vdc
• Ultra high efficiency:
96% @ 5 Vin and 3.3 Vout
• Extremely low
internal power dissipation
• Minimal thermal
design concerns
• Designed in reliability:
MTBF of >7 million hours per
Telcordia SR-332
• Ideal solution where board
space is at a premium or
tighter card pitch is required
• Industry standard
surface-mount footprint
• Available RoHS compliant
• 2 year warranty
Total Power: 41.25W
Input Voltage: 3.0-5.5 Vdc
# of Outputs: Single
Safety
UL/cUL CAN/CSA 22.2
No. E174104
UL 60950 File No. E174104
TÜV Product Service (EN60950)
Certificate No. B 03 10 38572
CB report and certificate to
DE3-51686M1
Rev.06.26.07
SMT15E_05
1 of 4
Page 2
Rev.06.26.07
SMT15E_05
2 of 4
Embedded Power for
Business-Critical Continuity
All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
Specifications
OUTPUT SPECIFICATIONS
Voltage adjustability Fixed output versions ±10%
(See Note 1) Wide trim version 0.8-3.63 Vdc
Setpoint accuracy ±0.4%
Line regulation ±0.2%
Load regulation ±1.0%
Minimum load 0 A
Overshoot/undershoot None
Ripple and noise 60 mV pk-pk
(0 to 20 MHz BW) 25 mV rms max.
Temperature co-efficient ±0.01%/°C
Transient response 60 mV max. deviation
50 μs recovery to
within ±1.0%
Remote sense 10% Vo compensation
INPUT SPECIFICATIONS
Input voltage range 3.0-5.5 Vdc
Input current No load 70 mA typ.
Input current (max.) 11.8 A max. @ Io max.
and Vout = 3.63 V
Input current ripple 110 mA rms
Remote ON/OFF (See Note 2)
Start-up time 20 ms
EMC CHARACTERISTICS
Electrostatic discharge EN61000-4-2, IEC801-2
Conducted immunity EN61000-4-6
Radiated immunity EN61000-4-3
GENERAL SPECIFICATIONS
Efficiency See table
Insulation voltage Non-isolated
Switching frequency Fixed 300 kHz typ.
Approvals and EN60950
standards UL/cUL60950
Material flammability UL94V-0
Dimensions (LxWxH) 33.02 x 13.46 x 8.21 mm
1.3 x 0.53 x 0.323 inches
Weight 6.3 g (0.22 oz)
Coplanarity 100 μm
MTBF Telcordia SR-332 7,042,000 hours
MIL-HDBK-217F 680,000 hours
ENVIRONMENTAL SPECIFICATIONS
Thermal performance Operating ambient, -40 °C to +100 °C
(See Note 3) temperature
Non-operating -40 °C to +125 °C
PROTECTION
Short-circuit Continuous
Thermal Automatic recovery
Page 3
Rev.06.26.07
SMT15E_05
3 of 4
Embedded Power for
Business-Critical Continuity
All specifications are typical at nominal input, full load at 25°C unless otherwise stated.
Specifications
Notes
1 When Vin ≥ 4.5 V, then Vout can be adjusted from 0.8 Vdc to 3.6 Vdc. When Vin < 4.5 V, then
Vout can be adjusted from 0.8 Vdc to 2.75 Vdc.
2 The SMT15E features a ‘Negative Logic’ Remote ON/OFF operation. If
not using the Remote ON/OFF pin, leave the pin open (the converter will be on). The Remote
ON/OFF pin is referenced to ground.
The following conditions apply for the SMT15E:
ConfigurationConverter Operation
Remote pin open circuit Unit is ON
Remote pin pulled low Unit is ON
Remote pin pulled high [Von/off >1.2 V] Unit is OFF
A ‘Positive Logic’ Remote ON/OFF version is also possible with this converter. To order please place
the suffix ‘-R’ at the end of the model number, e.g. SMT15E-05S3V3-RJ.
3 Full derating curves available in both the Longform Datasheet and Application Note 136.
4 When the unit is trimmed down to 0.8 V, the efficiency is 82.5%
5 TSE RoHS 5/6 (non Pb-free) compliant versions may be available on special request, please
contact your local sales representative for details.
6 NOTICE: Some models do not support all options. Please contact your local Artesyn representative
or use the on-line model number search tool at
http://www.artesyn.com/powergroup/products.htm to find a suitable alternative.
OUTPUT
INPUT OUTPUT
OUTPUT OUTPUT
EFFICIENCY
REGULATION
MODEL
POWER
VOLTAGE VOLTAGE
CURRENT CURRENT
(TYP.)
LINE LOAD
NUMBER
(5,6)
(MAX.) (MIN.) (MAX.)
41.25 W 3.0-5.5 Vdc 2.5 Vdc 0 A 15 A 93.5% ±0.2% ±1.0% SMT15E-05S2V5J
54.45 W 4.5-5.5 Vdc 3.3 Vdc 0 A 15 A 95% ±0.2% ±1.0% SMT15E-05S3V3J
54.45 W 3.0-5.5 Vdc 0.8-3.63 Vdc 0 A 15 A 95%
(4)
±0.2% ±1.0% SMT15E-05W3V3J
SMT15E-05W3V3-TJ
Part Number System with Options
Product Family
SMT = Surface Mount
Rated Output Current
15 = 15 Amps
Type of Output
S = Single
W = Wide
Output Voltage
0.8 Vdc to 3.63 Vdc
Performance
E = Enhanced Performace
Input Voltage
05 = 3.0 Vdc to 5.5 Vdc
The ultra-wide output voltage trim range offers major advantages to users who
select the SMT15E-05W3V3J. It is no longer necessary to purchase a variety of
modules in order to cover different output voltages. The output voltage can be
trimmed in a range of 0.8 Vdc to 3.63 Vdc. When the SMT15E-05W3V3J converter
leaves the factory the output has been adjusted to the default voltage of 3.3 V.
• When Vin ≥ 4.5 V, then Vout can be adjusted from 0.8 Vdc to 3.6 Vdc
• When Vin < 4.5 V, then Vout can be adjusted from 0.8 Vdc to 2.75 Vdc
Output Voltage Adjustment of the SMT15E-05W3V3J Series
Packaging Options
(5 )
No ‘-T’ Suffix = Pb-free RoHS 6/6 compliant
parts in trays e.g SMT15E-05W3V3J
-TJ = Pb-free RoHS 6/6 compliant part in Tape
and Reel e.g SMT15E-05W3V3-TJ
Page 4
Embedded Power for
Business-Critical Continuity
Rev.06.26.07
SMT15E_05
4 of 4
Emerson Network Power and the Emerson
Network Power logo are trademarks and
service marks of Emerson Electric Co.
©2007 Emerson Electric Co.
Emerson Network Power.
The global leader in enabling
business-critical continuity.
EmersonNetworkPower. com
AC Power
Connectivity
DC Power
Embedded Power
Inbound Power
Integrated Cabinet Solutions
Outside Plant
Precision Cooling
Site Monitoring and Services
Americas
5810 Van Allen Way
Carlsbad, CA 92008
USA
Telephone: +1 760 930 4600
Facsimile: +1 760 930 0698
Europe (UK)
Waterfront Business Park
Merry Hill, Dudley
West Midlands, DY5 1LX
United Kingdom
Telephone: +44 (0) 1384 842 211
Facsimile: +44 (0) 1384 843 355
Asia (HK)
16th - 17th Floors, Lu Plaza
2 Wing Yip Street, Kwun Tong
Kowloon, Hong Kong
Telephone: +852 2176 3333
Facsimile: +852 2176 3888
For global contact, visit:
www.powerconversion.com
While every precaution has been taken to ensure
accuracy and completeness in this literature, Emerson
Network Power assumes no responsibility, and disclaims
all liability for damages resulting from use of this
information or for any errors or omissions.

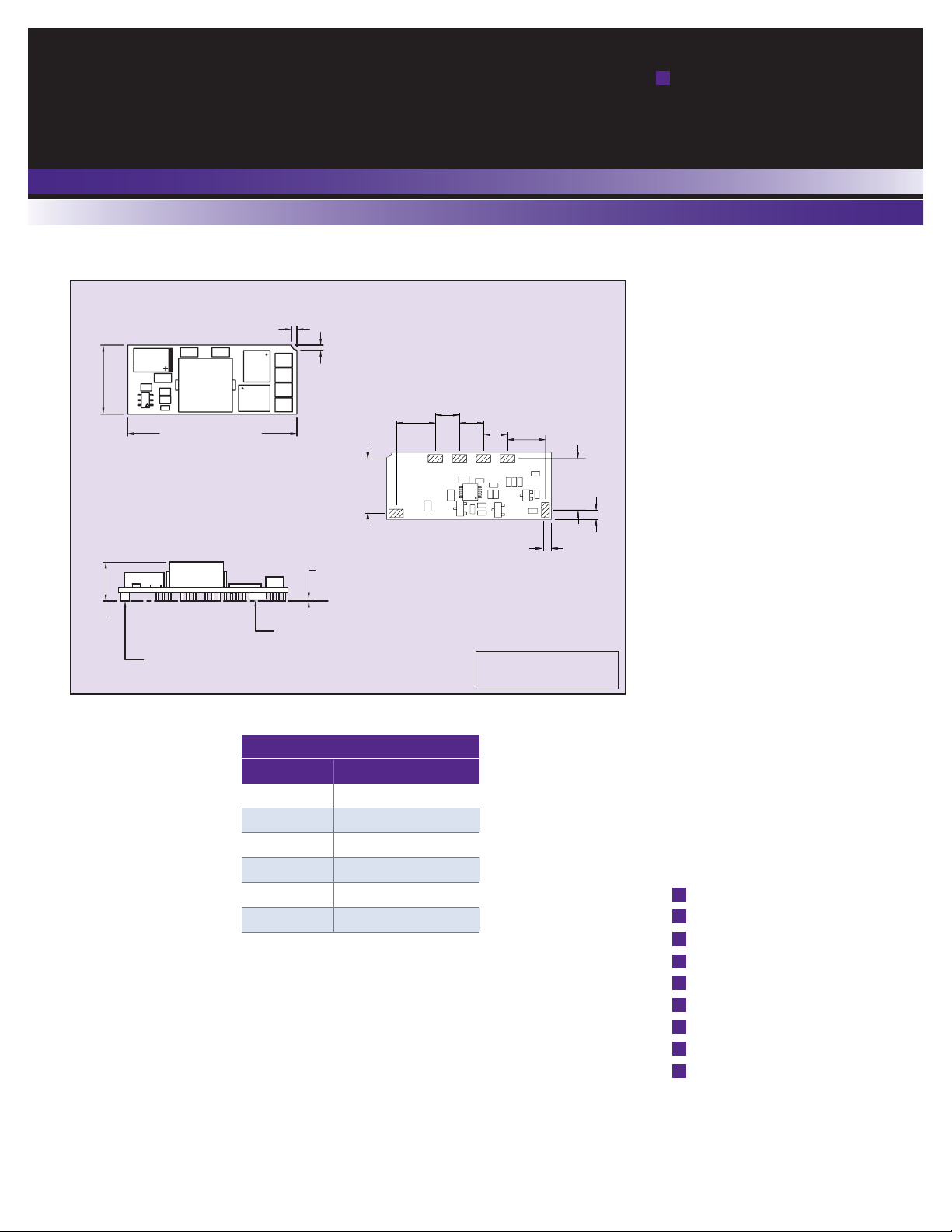

PIN CONNECTIONS
PIN NUMBER FUNCTION
1 Remote ON/OFF
2 Remote Sense +
3Trim
4 +Vout
5 Ground
6+Vin
TOP VIEW
0.530 ±0.010
(13.46 ± 0.25)
1.300±0.010 (33.02 ±0.25)
SIDE VIEW
0.323 (8.21)
Installed Ht.
Connector (6PL)
Width :0.112 ± 0.003 (2.84 ± 0.08)
Length: 0.062 ± 0.002 (1.57 ± 0.04)
0.039 (1.00)
0.039 (1.00)
0.430 (10.92)
0.007 (0.18)
Min Clearance
Seating Plane
Max. component
BOTTOM VIEW
0.190
0.310
(7.87)
6
0.190
(4.83)
(4.83)
0.190
(4.83)
432
5
0.048 (1.22)
All dimensions in inches (mm)
All tolerance ±0.010in (±0.25mm)
unless otherwise stated
0.297
(7.54)
0.405 (10.29)
1
0.075 (1.91)
