Datasheet SMJ320F240HFPM40 Datasheet (Texas Instruments)

Page 1

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Processed to MIL–PRF–38535 (QML)

High-Performance Static CMOS T echnology

Includes the T320C2xLP Core CPU – Object Compatible With the TMS320C2xx

Family

– Source Code Compatible With

SMJ320C25 – Upwardly Compatible With SMJ320C50 – 50-ns Instruction Cycle Time

Memory – 544 Words × 16 Bits of On-Chip

Data/Program Dual-Access RAM – 16K Words × 16 Bits of On-Chip Program

Flash EEPROM – 224K Words × 16 Bits of Total Memory

Address Reach (64K Data, 64K Program

and 64K I/O, and 32K Global Memory

Space)

Event-Manager Module – 12 Compare/Pulse-Width Modulation

(PWM) Channels – Three 16-Bit General-Purpose Timers

With Six Modes, Including Continuous

Upand Up/Down Counting – Three 16-Bit Full-Compare Units With

Deadband – Three 16-Bit Simple-Compare Units – Four Capture Units (Two With

Quadrature Encoder-Pulse Interface

Capability)

Dual 10-Bit Analog-to-Digital Conversion Module

28 Individually Programmable, Multiplexed I/O Pins

Phase-Locked-Loop (PLL)-Based Clock Module

Watchdog Timer Module (With Real-Time Interrupt)

Serial Communications Interface (SCI) Module

Serial Peripheral Interface (SPI) Module

Six External Interrupts (Power Drive Protect, Reset, NMI, and Three Maskable Interrupts)

Four Power-Down Modes for Low-Power Operation

Scan-Based Emulation

Development Tools Available: – Texas Instruments (TI) ANSI

C Compiler, Assembler/Linker, and C-Source Debugger

– Scan-Based Self-Emulation (XDS510) – Third-Party Digital Motor Control and

Fuzzy-Logic Development Support

–55°C to 125°C Operating Temperature Range, QML Processing

132-Pin Ceramic Quad Flat Package (HFP Suffix)

description

The SMJ320F240 is the first member of a new family of digital signal processor (DSP) controllers based on the TMS320C2xx generation of 16-bit fixed-point DSPs. This new family is optimized for digital motor/motion control applications and contains 16K words of flash memory on chip. The DSP controller combines the enhanced TMS320 architectural design of the ’C2xLP core CPU for low-cost, high-performance processing capabilities and several advanced peripherals optimized for motor/motion control applications. These peripherals include the event manager module, which provides general-purpose timers and compare registers to generate up to 12 PWM outputs, and a dual 10-bit analog-to-digital converter (ADC), which can perform two simultaneous conversions within 6.1 µs.

On products compliant to MIL-PRF-38535, all parameters are tested unless otherwise noted. On all other products, production processing does not necessarily include testing of all parameters.

TI and XDS510 are trademarks of Texas Instruments Incorporated.

PRODUCTION DATA information is current as of publication date. Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.

Page 2

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table of Contents

Description 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pinout 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Terminal Functions Table 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Functional Block Diagram 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Device Memory Map 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Device Reset and Interrupts 16. . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock Generation 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Low-Power Modes 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Functional Block Diagram of the CPU 30. . . . . . . . . . . . . . . . . . .

DSP Core CPU 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Internal Memory 35. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Peripherals 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Scan-based Emulation 49. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SMJ320F240 Instruction Set 49. . . . . . . . . . . . . . . . . . . . . . . . . . .

Absolute Maximum Ratings 57. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Recommended Operating Conditions 57. . . . . . . . . . . . . . . . . . .

Electrical Characteristics 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Signal Transition Levels 59. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Clock Options 62. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Memory and Peripheral Interface Timing 66. . . . . . . . . . . . . . . . .

I/O Timing V ariation: SPICE Simulation Results 70. . . . . . . . . . .

READY Timings 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

RS and PORESET Timings 72. . . . . . . . . . . . . . . . . . . . . . . . . . . .

XF, BIO, and MP/MC Timings 73. . . . . . . . . . . . . . . . . . . . . . . . . .

Timing Event Manager Interface 75. . . . . . . . . . . . . . . . . . . . . . . .

PWM/CMP Timings 75. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Capture and QEP Timings 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Interrupt Timings 76. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

General-Purpose Input/Output Timings 77. . . . . . . . . . . . . . . . . .

Serial Communications Interface (SCI) I/O Timings 78. . . . . . . .

Timing Characteristics for SCI 78. . . . . . . . . . . . . . . . . . . . . . . . . .

SPI Master Mode Timing Parameters 79. . . . . . . . . . . . . . . . . . . .

SPI Slave Mode Timing Parameters 83. . . . . . . . . . . . . . . . . . . . .

10-Bit Dual Analog-to-Digital Converter (ADC) 87. . . . . . . . . . . .

ADC Input Pin Circuit 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

ADC Timing Requirements 88. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flash EEPROM 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Programming Operation 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Erase Operation 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Flash-write Operation 90. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Mechanical Data 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

description (continued)

Table 1. Characteristics of the ’F240 DSP Controller

ON-CHIP MEMORY (WORDS)

DEVICE

RAM

FLASH

EEPROM

POWER SUPPLY

CYCLE

TIME

PACKAGE

TYPE

DATA DATA/ PROG PROG

(V)

(ns)

PIN COUNT

SMJ320F240 288 256 16K 5 50 HFP 132–P

The functional block diagram provides a high-level description of each component in the ’F240 DSP controller. The SMJ320F240 device is composed of three main functional units: a ’C2xx DSP core, internal memory , and peripherals. In addition to these three functional units, there are several system-level features of the ’F240 that are distributed. These system features include the memory map, device reset, interrupts, digital input/output (I/O), clock generation, and low-power operation.

Page 3

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

pinout

W/R

D7 D8

D10

D11 D12 D13 D14 D15 V

TCK

TDI

TRST

TMS TDO

READY

MP/MC

EMU0

EMU1/OFF

NMI

PORESET

RESERVED

SCIRXD/IO SCITXD/IO

SPISIMO/IO

SPISOMI/IO

SPICLK/IO

CCP

/WDDIS

D3D6D2

STRBBRR/W

A5 A4 A3 V

A2 A1 A0 TMRCLK/IOPB7 TMRDIR/IOPB6 T3PWM/T3CMP/IOPB5 T2PWM/T2CMP/IOPB4 T1PWM/T1CMP/IOPB3 V

PWM9/CMP9/IOPB2 PWM8/CMP8/IOPB1 PWM7/CMP7/IOPB0 PWM6/CMP6 PWM5/CMP5 PWM4/CMP4 PWM3/CMP3 PWM2/CMP2 PWM1/CMP1 DV

ADCIN8/IOPA3 ADCIN9/IOPA2 ADCIN10 ADCIN11 V

SSA

REFLO

REFHI

CCA

ISDSA15

A14

A13

A12

A11

A10

A8A7A6

XTAL1/CLKIN

XTAL2

OSCBYP

XINT3/IO

XINT2/IO

XINT1

SPISTE/IO

CAP1/QEP1/IOPC4

CAP3/IOPC6

CAP4/IOPC7

CAP2/QEP2/IOPC5

BIO/IOPC3

XF/IOPC2

CLKOUT/IOPC1

ADCSOC/IOPC0

ADCIN5

ADCIN7

ADCIN15

ADCIN6

ADCIN4

ADCIN3

ADCIN1/IOPA1

ADCIN0/IOPA0

ADCIN14

ADCIN12

ADCIN13

ADCIN2

VSSV

PDPINT

132

131

130

129

128

127

126

125

124

123

122

121

120

119

118

117

116 115 114 113 112

111 110 109 108 107 106 105 104 103 102 101 100

99 98 97 96 95 94 93 92 91 90 89 88 87 86 85 84

5251 83828180797877767574737271706968676665646362616059585756555453

1716151413121110 9 8 7 6 5 4 3 2

Page 4

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

EXTERNAL INTERFACE DATA/ADDRESS SIGNALS

A0 (LSB) A1 A2 A3 A4 A5 A6 A7 A8 A9 A10 A11 A12 A13 A14 A15 (MSB)

110 111 112 114 115 116 117 118

119 122 123 124 125 126 127 128

O/Z

Parallel address bus A0 [least significant bit (LSB)] through A15 [most significant bit (MSB)]. A15–A0 are multiplexed to address external data/program memory or I/O. A15–A0 are placed in the high-impedance state when EMU1/OFF

is active low and hold their previous states in power-down

modes.

D0 (LSB) D1 D2 D3 D4 D5 D6 D7 D8 D9 D10 D11 D12 D13 D14 D15 (MSB)

11 12 15 16 17 18 19 22 23 24 25 26 27 28

I/O/Z

Parallel data bus D0 (LSB) through D15 (MSB). D15–D0 are multiplexed to transfer data between the SMJ320F240 and external data/program memory and I/O space (devices). D15–D0 are placed in the high-impedance state when not outputting, when in power-down mode, when reset (RS

) is asserted, or

when EMU1/OFF

is active low.

EXTERNAL INTERFACE CONTROL SIGNALS

DS PS IS

129 131 130

O/Z

Data, program, and I/O space select signals. DS, PS, and IS are always high unless low-level asserted for communication to a particular external space. They are placed in the high-impedance state during reset, power down, and when EMU1/OFF

is active low.

READY 36 I

Data ready. READY indicates that an external device is prepared for the bus transaction to be completed. If the device is not ready (READY is low), the processor waits one cycle and checks READY again.

R/W 4 O/Z

Read/write signal. R/W indicates transfer direction during communication to an external device. It is normally in read mode (high), unless low level is asserted for performing a write operation. It is placed in the high-impedance state during reset, power down, and when EMU1/OFF

is active low.

STRB 6 O/Z

Strobe. STRB is always high unless asserted low to indicate an external bus cycle. It is placed in the high-impedance state during reset, power down, and when EMU1/OFF

is active low.

WE 1 O/Z

Write enable. The falling edge of WE indicates that the device is driving the external data bus (D15–D0). Data can be latched by an external device on the rising edge of WE

. WE is active on all external program,

data, and I/O writes. WE

goes in the high-impedance state following reset and when EMU1/OFF is active

low.

W/R 132 O/Z

Write/read. W/R is an inverted form of R/W and can connect directly to the output enable of external devices. W/R

is placed in the high-impedance state following reset and when EMU1/OFF is active low.

†

I = input, O = output, Z = high impedance

Page 5

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

EXTERNAL INTERFACE CONTROL SIGNALS (CONTINUED)

BR 5 O/Z

Bus request. BR is asserted during access of external global data memory space. BR can be used to extend the data memory address space by up to 32K words. BR

goes in the high-impedance

state during reset, power down, and when EMU1/OFF

is active low.

CCP

/WDDIS 50 I

Flash-programming voltage supply. If V

CCP

= 5 V, then WRITE/ERASE can be made to the

ENTIRE on-chip flash memory block—that is, for programming the flash. If V

CCP

= 0 V, then WRITE/ERASE of the flash memory is not allowed, thereby protecting the entire memory block from being overwritten. WDDIS also functions as a hardware watchdog disable. The watchdog timer is disabled when V

CCP

/WDDIS = 5 V and bit 6 in WDCR is set to 1.

ADC INPUTS (UNSHARED)

ADCIN2 74 I ADCIN3 75 I ADCIN4 76 I

ADCIN5 77 I

Analog inputs to the first ADC

ADCIN6 78 I ADCIN7 79 I ADCIN10 89 I ADCIN11 88 I ADCIN12 83 I

ADCIN13 82 I

Analog inputs to the second ADC

ADCIN14 81 I ADCIN15 80 I

BIT I/O AND SHARED FUNCTIONS PINS

ADCIN0/IOPA0 72 I/O

Bidirectional digital I/O. Analog input to the first ADC. ADCIN0/IOPA0 is configured as a digital input by all device resets.

ADCIN1/IOPA1 73 I/O

Bidirectional digital I/O. Analog input to the first ADC. ADCIN1/IOPA1 is configured as a digital input by all device resets.

ADCIN9/IOPA2 90 I/O

Bidirectional digital I/O. Analog input to the second ADC. ADCIN9/IOPA2 is configured as a digital input by all device resets.

ADCIN8/IOPA3 91 I/O

Bidirectional digital I/O. Analog input to the second ADC. ADCIN8/IOPA3 is configured as a digital input by all device resets.

PWM7/CMP7/IOPB0 100 I/O/Z

Bidirectional digital I/O. Simple compare/PWM 1 output. The state of PWM7/CMP7/IOPB0 is determined by the simple compare/PWM and the simple action control register (SACTR). It goes to the high-impedance state when unmasked PDPINT

goes active low.

PWM7/CMP7/IOPB0 is configured as a digital input by all device resets.

PWM8/CMP8/IOPB1 101 I/O/Z

Bidirectional digital I/O. Simple compare/PWM 2 output. The state of PWM8/CMP8/IOPB1 is determined by the simple compare/PWM and the SACTR. It goes to the high-impedance state when unmasked PDPINT

goes active low. PWM8/CMP8/IOPB1 is configured as a digital input by all

device resets.

PWM9/CMP9/IOPB2 102 I/O/Z

Bidirectional digital I/O. Simple compare/PWM 3 output. The state of PWM9/CMP9/IOPB2 is determined by the simple compare/PWM and SACTR. It goes to the high-impedance state when unmasked PDPINT

goes active low. PWM9/CMP9/IOPB2 is configured as a digital input by all de-

vice resets.

†

I = input, O = output, Z = high impedance

Page 6

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

BIT I/O AND SHARED FUNCTIONS PINS (CONTINUED)

T1PWM/T1CMP/ IOPB3

105 I/O/Z

Bidirectional digital I/O. Timer 1 compare output. T1PWM/T1CMP/IOPB3 goes to the high-impedance state when unmasked PDPINT

goes active low. This pin is configured as a

digital input by all device resets.

T2PWM/T2CMP/ IOPB4

106 I/O/Z

Bidirectional digital I/O. Timer 2 compare output. T2PWM/T2CMP/IOPB4 goes to the highimpedance state when unmasked PDPINT

goes active low. This pin is configured as a digital

input by all device resets.

T3PWM/T3CMP/ IOPB5

107 I/O/Z

Bidirectional digital I/O. Timer 3 compare output. T3PWM/T3CMP/IOPB5 goes to the high-impedance state when unmasked PDPINT

goes active low. This pin is configured as a

digital input by all device resets.

TMRDIR/IOPB6 108 I/O

Bidirectional digital I/O. Direction signal for the timers. Up-counting direction if TMRDIR/IOPB6 is low, down-counting direction if this pin is high. This pin is configured as a digital input by all device resets.

TMRCLK/IOPB7 109 I/O

Bidirectional digital I/O. External clock input for general-purpose timers. This pin is configured as a digital input by all device resets.

ADCSOC/IOPC0 63 I/O

Bidirectional digital I/O. External start of conversion input for ADC. This pin is configured as a digital input by all device resets.

CAP1/QEP1/IOPC4 67 I/O

Bidirectional digital I/O. Capture 1 or QEP 1 input. This pin is configured as a digital input by all device resets.

CAP2/QEP2/IOPC5 68 I/O

Bidirectional digital I/O. Capture 2 or QEP 2 input. This pin is configured as a digital input by all device resets.

CAP3/IOPC6 69 I/O

Bidirectional digital I/O. Capture 3 input. This pin is configured as a digital input by all device resets.

CAP4/IOPC7 70 I/O

Bidirectional digital I/O. Capture 4 input. This pin is configured as a digital input by all device resets.

XF/IOPC2 65 I/O

Bidirectional digital I/O. External flag output (latched software-programmable signal). XF is used for signaling other processors in multiprocessing configurations or as a general-purpose output pin. This pin is configured as an external flag output by all device resets.

BIO/IOPC3 66 I/O

Bidirectional digital I/O. Branch control input. BIO is polled by the BIOZ instruction. If BIO is low, the CPU executes a branch. If BIO

is not used, it should be pulled high. This pin is configured

as a branch-control input by all device resets.

CLKOUT/IOPC1 64 I/O

Bidirectional digital I/O. Clock output. Clock output is selected by the CLKSRC bits in the SYSCR register. This pin is configured as a DSP clock output by a power-on reset.

SERIAL COMMUNICATIONS INTERFACE (SCI) AND BIT I/O PINS

SCITXD/IO 44 I/O

SCI asynchronous serial port transmit data, or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

SCIRXD/IO 43 I/O

SCI asynchronous serial port receive data, or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

†

I = input, O = output, Z = high impedance

Page 7

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

SERIAL PERIPHERAL INTERFACE (SPI) AND BIT I/O PINS

SPISIMO/IO 45 I/O

SPI slave in, master out , or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

SPISOMI/IO 48 I/O

SPI slave out, master in, or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

SPICLK/IO 49 I/O

SPI clock, or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

SPISTE/IO 51 I/O

SPI slave transmit enable (optional), or general-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

COMPARE SIGNALS

PWM1/CMP1 PWM2/CMP2 PWM3/CMP3 PWM4/CMP4 PWM5/CMP5 PWM6/CMP6

94 95 96 97 98 99

O/Z

Compare units compare or PWM outputs. The state of these pins is determined by the compare/PWM and the full action control register (ACTR). CMP1–CMP6 go to the high-impedance state when unmasked PDPINT

goes active low, and when reset (RS) is asserted.

INTERRUPT AND MISCELLANEOUS SIGNALS

RS 35 I/O

Reset input. RS causes the SMJ320F240 to terminate execution and sets PC = 0. When RS is brought to a high level, execution begins at location zero of program memory . RS

affects (or sets

to zero) various registers and status bits. In addition, RS

is a bidirectional (open-drain output) pin.

If RS

is left undriven, then a 20-Ω pull-up resistor should be used.

MP/MC 37 I

MP/MC (microprocessor/microcomputer) select. If MP/MC is low, internal program memory is selected. If it is high, external program memory is selected.

NMI 40 I

Nonmaskable interrupt. When NMI is activated, the device is interrupted regardless of the state of the INTM bit of the status register. NMI has programmable polarity.

PORESET 41 I

Power-on reset. PORESET causes the SMJ320F240 to terminate execution and sets PC = 0. When PORESET

is brought to a high level, execution begins at location zero of program memory.

PORESET

affects (or sets to zero) the same registers and status bits as RS. In addition,

PORESET

initializes the PLL control registers.

XINT1 53 I External user interrupt no. 1 XINT2/IO 54 I/O

External user interrupt no. 2. General-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

XINT3/IO 55 I/O

External user interrupt no. 3. General-purpose bidirectional I/O. This pin is configured as a digital input by all device resets.

PDPINT 52 I

Maskable power-drive protection interrupt. If PDPINT is unmasked and it goes active low, the timer compare outputs immediately go to the high-impedance state.

CLOCK SIGNALS

XTAL2 57 O

PLL oscillator output. XT AL2 is tied to one side of a reference crystal when the device is in PLL mode (CLKMD[1:0] = 1x, CKCR0.7 –6). This pin can be left unconnected in oscillator bypass mode (OSCBYP

≤ VIL). This pin goes in the high-impedance state when EMU1/OFF is active low.

XTAL1/CLKIN 58 I/Z

PLL oscillator input. XTAL1/CLKIN is tied to one side of a reference crystal in PLL mode (CLKMD[1:0] = 1x, CKCR0.7–6), or is connected to an external clock source in oscillator bypass mode (OSCBYP

≤ VIL).

OSCBYP 56 I Bypass oscillator if low

†

I = input, O = output, Z = high impedance

Page 8

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

SUPPLY SIGNALS

8 I Digital core logic ground reference

3 14 20 29 46 59

61 71 92

104

113

120

Digital logic ground reference

SSA

87 I Analog ground reference

2 13 21 47

(See Note 1)

62 93

103 121

Digital I/O logic suppl

y v

oltage

(See Note 1)

Digital core logic suppl

y v

oltage

CCA

84 I Analog supply voltage

REFHI

85 I ADC analog voltage reference high

REFLO

86 I ADC analog voltage reference low

TEST SIGNALS

TCK 30 I

IEEE standard test clock. TCK is normally a free-running clock signal with a 50% duty cycle. The changes on test-access port (TAP) input signals (TMS and TDI) are clocked into the TAP controller, instruction register, or selected test data register of the ’C2xx core on the rising edge of TCK. Changes at the TAP output signal (TDO) occur on the falling edge of TCK.

TDI 31 I

IEEE standard test data input (TDI). TDI is clocked into the selected register (instruction or data) on a rising edge of TCK.

TDO 34 O/Z

IEEE standard test data output (TDO). The contents of the selected register (instruction or data) are shifted out of TDO on the falling edge of TCK. TDO is in the high-impedance state when OFF

is active

low.

TMS 33 I

IEEE standard test mode select. This serial control input is clocked into the TAP controller on the rising edge of TCK.

†

I = input, O = output, Z = high impedance

NOTE 1: VDD refers to supply voltage types CVDD (digital core supply voltage), DVDD (digital I/O supply voltage), and V

DDP

(programming voltage

supply). All voltages are measured with respect to VSS.

Page 9

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Terminal Functions (Continued)

TERMINAL

NAME NO.

TYPE

†

DESCRIPTION

TEST SIGNALS (CONTINUED)

TRST 32 I

IEEE standard test reset. TRST, when active low, gives the scan system control of the operations of the device. If this signal is not connected or driven low, the device operates in its functional mode, and the test reset signals are ignored.

EMU0 38 I/O/Z

Emulator pin 0. When TRST is driven low, EMU0 must be high for activation of the OFF condition. When TRST

is driven high, EMU0 is used as an interrupt to or from the emulator system and is defined

as input/output through the scan.

EMU1/OFF 39 I/O/Z

Emulator pin 1/disable all outputs. When TRST is driven high, EMU1/OFF is used as an interrupt to or from the emulator system and is defined as input/output through JTAG scan. When TRST

is driven

low, this pin is configured as OFF

. When EMU1/OFF is active low, it puts all output drivers in the

high-impedance state. OFF

is used exclusively for testing and emulation purposes (not for

multiprocessing applications); therefore, for OFF

condition, the following conditions apply: TRST =

low, EMU0 = high, EMU1/OFF

= low.

RESERVED 42 I Reserved for test. This pin has an internal pulldown and must be left unconnected for the ’F240.

†

I = input, O = output, Z = high impedance

Page 10

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

functional block diagram

216

PDPINT

Quadrature

Encoder

Pulse (QEP)

Capture/

Units

Compare

Timers

Purpose

General-

Manager

Event

Software

Wait-State

Generation

External

Memory

Interface

Emulation

Test/

Peripheral Bus

Timer

Watchdog

Interface

Communications

Serial-

Interface

Peripheral

Serial-

Converter

to-Digital

Analog-

Dual 10-Bit

Data Bus

Reset

Digital Input/Output

Interrupts

Module

System-Interface

Module

Clock

Program Bus

B1/B2

DARAM

DARAMFlash

EEPROM

Initialization

Interrupts

Control

Memory

Controller

Program

CPU

’C2xx

Shifter

Product

PREG

TREG

Multiplier

Shifter

Output

Accumulator

ALU

Shifter

Input

Registers

Mapped

Memory-

Registers

Auxiliary

Registers

Control

Status/

ARAU

Instruction

Page 11

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

device memory map

The SMJ320F240 implements three separate address spaces for program memory, data memory, and I /O. Each space accommodates a total of 64K 16-bit words. Within the 64K words of data space, the 256 to 32K words at the top of the address range can be defined to be external global memory in increments of powers of two, as specified by the contents of the global memory allocation register (GREG). Access to global memory is arbitrated using the global memory bus request (BR) signal.

On the ’F240, the first 96 (0–5Fh) data memory locations are either allocated for memory-mapped registers or are reserved. This memory-mapped register space contains various control and status registers including those for the CPU.

All the on-chip peripherals of the ’F240 device are mapped into data memory space. Access to these registers is made by the CPU instructions addressing their data-memory locations. Figure 1 shows the memory map.

Page 12

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

device memory map (continued)

0000

Interrupts

(External)

003F 0040

External

FDFF

0000

Interrupts (On-Chip)

003F 0040

0000

005F 0060

01FF

FE00

FFFF

02FF 0300

FEFF

FF00

0200

03FF 0400

07FF

Reserved

7000

Peripheral Memory-

Mapped Registers

(System, WD,

ADC, SPI, SCI,

Interrupts, I/O) 73FF 7400

743F 7440

77FF

0000

External

FF0E

FEFF FF00

Reserved

4000

External

3FFF

FDFF FE00

FFFF

FEFF FF00

Reserved

I/O

Hex

†

Flash memory includes

address range 0000h–003Fh

Hex

Data

Hex

007F 0080

Reserved

Hex

8000

External

FFFF

7800

7FFF

FF0F

On-Chip DARAM B0

(CNF = 1)

External (CNF = 0)

On-Chip

Flash EEPROM

†

(8 x 2K Segments)

MP/MC

= 1

Microprocessor

Mode

MP/MC = 0

Microcomputer

Mode

Program

Wait-state Generator

Control Register

Memory-Mapped

Registers and

Reserved

On-Chip

DARAM B2

On-Chip DARAM B0

(CNF = 0)

Reserved (CNF = 1)

On-Chip

DARAM B1

0800

6FFF

Illegal

Peripheral

Memory-Mapped

Registers

(Event Manager)

On-Chip DARAM B0

(CNF = 1)

External (CNF = 0)

Reserved

Illegal

Flash Control

Mode Register

Reserved

FF10

FFFF

FFFE

Figure 1. SMJ320F240 Memory Map

Page 13

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

peripheral memory map

The SMJ320F240 system and peripheral control register frame contains all the data, status, and control bits to operate the system and peripheral modules on the device (excluding the event manager).

Global-Memory Allocation

0000 0003 0004

0005

0000

Memory-Mapped Registers

and Reserved

005F 0060

On-Chip DARAM B2

02FF 0300

01FF 0200

03FF

On-Chip

DARAM B1

0400

Reserved

73FF

Peripheral Frame 1

7400

77FF 7800

External

FFFF

7000–700F

Reserved

0007

Emulation Registers

and Reserved

Peripheral Frame 2

Reserved

On-Chip DARAM

B0 (CNF = 0)

Reserved (CNF = 1)

Interrupt-Mask Register

Illegal

System Configuration and

Control Registers

Watchdog Timer and

PLL Control Registers

Illegal

Digital-I/O Control Registers

Illegal

Reserved

Interrupt Mask, Vector and

Flag Registers

0006

005F

007F 0080

07FF

7000

743F 7440

7010–701F

7020–702F

7030–703F 7040–704F

7050–705F 7060–706F 7070–707F 7080–708F

7090–709F

7400–740C

7411–741C

7420–7426 7427–742B

742C–7434

7435–743F

Interrupt Flag Register

SPI SCI

Illegal

External-Interrupt Registers

ADC

General-Purpose

Timer Registers

Capture & QEP Registers

Compare, PWM, and Deadband Registers

Reserved

7FFF

8000

Illegal

0800

6FFF

Illegal

Hex

70A0–73FF

Reserved

741D–741F

740D–7410

Figure 2. Peripheral Memory Map

Page 14

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

digital I/O and shared pin functions

The ’F240 has a total of 28 pins shared between primary functions and I/Os. These pins are divided into two groups:

Group1 — Primary functions shared with I/Os belonging to dedicated I/O ports, Port A, Port B, and Port C.

Group2 — Primary functions belonging to peripheral modules which also have a built-in I/O feature as a secondary function (for example, SCI, SPI, external interrupts, and PLL clock modules).

group1 shared I/O pins

The control structure for Group1 type shared I/O pins is shown in Figure 3. The only exception to this configuration is the CLKOUT/IOPC1 pin. In Figure 3, each pin has three bits that define its operation:

Mux control bit — this bit selects between the primary function (1) and I/O function (0) of the pin.

I/O direction bit — if the I/O function is selected for the pin (mux control bit is set to 0), this bit determines whether the pin is an input (0) or an output (1).

I/O data bit — if the I/O function is selected for the pin (mux control bit is set to 0) and the direction selected is an input, data is read from this bit; if the direction selected is an output, data is written to this bit.

The mux control bit, I/O direction bit, and I/O data bit are in the I/O control registers.

Primary

Function

(Read/Write)

IOP Data Bit

In Out

0 = Input 1 = Output

MUX Control Bit

0 = I/O Function

1 = Primary Function

IOP DIR Bit

Primary

Function

or I/O Pin

When the MUX control bit = 1, the primary function is selected in all cases except for the following pins:

1. XF/IOPC2 (0 = Primary Function)

2. BIO

/IOPC3 (0 = Primary Function)

Note:

Figure 3. Shared Pin Configuration

A summary of Group1 pin configurations and associated bits is shown in Table 2.

Page 15

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

group1 shared I/O pins (continued)

Table 2. Group1 Shared Pin Configurations

MUX CONTROL

PIN FUNCTION SELECTED I/O PORT DATA AND DIRECTION

†

PIN #

(name.bit #)

(CRx.n = 1) (CRx.n = 0) REGISTER DATA BIT # DIR BIT #

72 OCRA.0 ADCIN0 IOPA0 PADATDIR 0 8 73 OCRA.1 ADCIN1 IOPA1 PADATDIR 1 9 90 OCRA.2 ADCIN9 IOPA2 PADATDIR 2 10

91 OCRA.3 ADCIN8 IOPA3 PADATDIR 3 11 100 OCRA.8 PWM7/CMP7 IOPB0 PBDATDIR 0 8 101 OCRA.9 PWM8/CMP8 IOPB1 PBDATDIR 1 9 102 OCRA.10 PWM9/CMP9 IOPB2 PBDATDIR 2 10 105 OCRA.11 T1PWM/T1CMP IOPB3 PBDATDIR 3 11 106 OCRA.12 T2PWM/T2CMP IOPB4 PBDATDIR 4 12 107 OCRA.13 T3PWM/T3CMP IOPB5 PBDATDIR 5 13 108 OCRA.14 TMRDIR IOPB6 PBDATDIR 6 14 109 OCRA.15 TMRCLK IOPB7 PBDATDIR 7 15

63 OCRB.0 ADCSOC IOPC0 PCDATDIR 0 8

64 SYSCR.7–6

0 0 IOPC1 PCDATDIR 1 9 0 1 WDCLK — — — 1 0 SYSCLK — — —

1 1 CPUCLK — — — 65 OCRB.2 IOPC2 XF PCDATDIR 2 10 66 OCRB.3 IOPC3 BIO PCDATDIR 3 11 67 OCRB.4 CAP1/QEP1 IOPC4 PCDATDIR 4 12 68 OCRB.5 CAP2/QEP2 IOPC5 PCDATDIR 5 13 69 OCRB.6 CAP3 IOPC6 PCDATDIR 6 14 70 OCRB.7 CAP4 IOPC7 PCDATDIR 7 15

†

Valid only if the I/O function is selected on the pin.

Page 16

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

group2 shared I/O pins

Group2 shared pins belong to peripherals that have built-in general-purpose I/O capability. Control and configuration for these pins are achieved by setting the appropriate bits within the control and configuration registers of the peripherals. Table 3 lists the Group2 shared pins.

Table 3. Group2 Shared Pin Configurations

PIN # PRIMARY FUNCTION REGISTER ADDRESS PERIPHERAL MODULE

43 SCIRXD SCIPC2 705Eh SCI 44 SCITXD SCIPC2 705Eh SCI 45 SPISIMO SPIPC2 704Eh SPI 48 SPISOMI SPIPC2 704Eh SPI 49 SPICLK SPIPC1 704Dh SPI 51 SPISTE SPIPC1 704Dh SPI 54 XINT2 XINT2CR 7078h External Interrupts 55 XINT3 XINT3CR 707Ah External Interrupts

digital I/O control registers

Table 4 lists the registers available to the digital I/O module. As with other ’F240 peripherals, the registers are memory-mapped to the data space.

Table 4. Addresses of Digital I/O Control Registers

ADDRESS REGISTER NAME

7090h OCRA I/O mux control register A 7092h OCRB I/O mux control register B

7098h P ADATDIR I/O port A data and direction register 709Ah PBDATDIR I/O port B data and direction register 709Ch PCDATDIR I/O port C data and direction register

device reset and interrupts

The SMJ320F240 software-programmable interrupt structure supports flexible on-chip and external interrupt configurations to meet real-time interrupt-driven application requirements. The ’F240 recognizes three types of interrupt sources:

Reset (hardware- or software-initiated) is unarbitrated by the CPU and takes immediate priority over any other executing functions. All maskable interrupts are disabled until the reset service routine enables them.

Hardware-generated interrupts are requested by external pins or by on-chip peripherals. There are two types:

–

External interrupts

are generated by one of five external pins corresponding to the interrupts XINT1, XINT2, XINT3, PDPINT , and NMI. The first four can be masked both by dedicated enable bits and by t he CPU’ s interrup t mask regi ster (IMR ), which c an mask ea ch maskab le interr upt line at t he DSP cor e. NMI, which is not maskable, takes priority over peripheral interrupts and software-generated interrupts. It can be locked out only by an already executing NMI or a reset.

–

Peripheral interrupts

are initiated internally by these on-chip peripheral modules: the event manager, SPI, SCI, watchdog/real-time interrupt (WD/RTI), and ADC. They can be masked both by enable bits for each event in each peripheral and by the CPU’s IMR, which can mask each maskable interrupt line at the DSP core.

Page 17

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

device reset and interrupts (continued)

Software-generated interrupts for the ’F240 device include: –

The INTR instruction.

This instruction allows initialization of any ’F240 interrupt with software. Its operand indicates to which interrupt vector location the CPU branches. This instruction globally disables maskable interrupts (sets the INTM bit to 1).

–

The NMI instruction.

This instruction forces a branch to interrupt vector location 24h, the same location used for the nonmaskable hardware interrupt NMI. NMI can be initiated by driving the NMI pin low or by executing an NMI instruction. This instruction globally disables maskable interrupts.

–

The TRAP instruction.

This instruction forces the CPU to branch to interrupt vector location 22h. The

TRAP instruction does

not

disable maskable interrupts (INTM is not set to 1); therefore, when the CPU branches to the interrupt service routine, that routine can be interrupted by the maskable hardware interrupts.

–

An emulator trap.

This interrupt can be generated with either an INTR instruction or a TRAP instruction.

reset

The reset operation ensures an orderly startup sequence for the device. There are five possible causes of a reset, as shown in Figure 4. Three of these causes are internally generated; the other two causes, the RS and PORESET pins, are controlled externally.

Signal

Reset

To Reset Out

To Device

Watchdog Timer Reset

Software-Generated Reset

Illegal Address Reset

Reset (RS

) Pin Active

Power-On Reset (PORESET

) Pin

Active

Figure 4. Reset Signals

The five possible reset signals are generated as follows:

Watchdog timer reset. A watchdog-timer-generated reset occurs if the watchdog timer overflows or an improper value is written to either the watchdog key register or the watchdog control register. (Note that when the device is powered on, the watchdog timer is automatically active.)

Software-generated reset. This is implemented with the system control register (SYSCR). Clearing the RESET0 bit (bit 14) or setting the RESET1 bit (bit 15) causes a system reset.

Illegal address reset. The system and peripheral module control register frame address map contains unimplemented address locations in the ranges labeled illegal. Any access to an address located in the Illegal ranges generate an illegal-address reset.

Reset pin active. To generate an external reset pulse on the RS pin, a low-level pulse duration of as little as a few nanoseconds is usually effective; however , pulses of one SYSCLK cycle are necessary to ensure that the device recognizes the reset signal.

Power-on reset pin active. To generate a power-on reset pulse on the PORESET pin, a low-level pulse of one SYSCLK cycle is necessary to ensure that the device recognizes the reset signal.

Once a reset source is activated, the external RS

pin is driven (active) low for a minimum of eight SYSCLK cycles. This allows the SMJ320F240 device to reset external system components. Additionally , if a brown-out condition (VCC < VCCmin for several microseconds causing PORESET to go low) occurs or the RS pin is held low, then the reset logic holds the device in a reset state for as long as these actions are active.

Page 18

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

reset (continued)

The occurrence of a reset condition causes the SMJ320F240 to terminate program execution and affects various registers and status bits. During a reset, RAM contents remain unchanged, and all control bits that are affected by a reset are initialized to their reset state. In the case of a power-on reset, the PLL control registers are initialized to zero. The program needs to recognize power-on resets and configure the PLL for correct operation.

After a reset, the program can check the power-on reset flag (PORST flag, SYSSR.15), the illegal address flag (ILLADR flag, SYSSR.12), the software reset flag (SWRST flag, SYSSR.10), and the watchdog reset flag (WDRST flag, SYSSR.9) to determine the source of the reset. A reset does not clear these flags.

and PORESET must be held low until the clock signal is valid and VCC is within the operating range. In

addition, PORESET must be driven low when VCC drops below the minimum operating voltage.

hardware-generated interrupts

All the hardware interrupt lines of the DSP core are given a priority rank from 1 to 10 (1 being highest). When more than one of these hardware interrupts is pending acknowledgment, the interrupt of highest rank gets acknowledged first. The others are acknowledged in order after that. Of those ten lines, six are for maskable interrupt lines (INT1–INT6) and one is for the nonmaskable interrupt (NMI) line. INT1–INT6 and NMI have the priorities shown in Table 5.

Table 5. Interrupt Priorities at the Level of the DSP Core

INTERRUPT

PRIORITY AT THE

DSP CORE

RESET 1

TI RESERVED

†

NMI 3 INT1 4 INT2 5 INT3 6 INT4 7 INT5 8 INT6 9

TI RESERVED

†

TI Reserved means that the address space is reserved for Texas Instruments.

The inputs to these lines are controlled by the system module and the event manager as summarized in T able 6 and shown in Figure 5.

Table 6. Interrupt Lines Controlled by the System Module and Event Manager

PERIPHERAL INTERRUPT LINES

System Module

INT1 INT5 INT6

NMI

Event Manager

INT2 INT3 INT4

Page 19

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

DSP Core

INTC INTB INTA

Address

Lines 5–1

INT6 INT5 INT4 INT3 INT2 INT1 NMI

Address

Lines 5–1

System Module Event Manager

IACK

INT6 INT5 INT4 INT3 INT2 INT1 NMIIACK

NC NC NC

Figure 5. DSP Interrupt Structure

At the level of the system module and the event manager, each of the maskable interrupt lines (INT1–INT6) is connected to multiple maskable interrupt sources. Sources connected to interrupt line INT1 are called Level 1 interrupts; sources connected to interrupt line INT2 are called Level 2 interrupts; and so on. For each interrupt line, the multiple sources also have a set priority ranking. The source with the highest priority has its interrupt request responded to by the DSP core first.

Figure 6 shows the sources and priority ranking for the interrupts controlled by the system module. For each interrupt chain, the interrupt source of highest priority is at the top. Priority decreases from the top of the chain to the bottom. Figure 7 shows the interrupt sources and priority ranking for the event manager interrupts.

Page 20

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

IACK1IRQ1IACK5IRQ5IACK6IRQ6

NMIINT1INT6

System-Module

External Interrupt

NMI

To DSP INT6 To DSP INT1 To DSP NMI

NC = No connection IACK = interrupt acknowledge IRQ = interrupt request

Legend:

System-Module

External Interrupt

XINT1

(high priority)

System-Module

External Interrupt

XINT2

(high priority)

System-Module

External Interrupt

XINT3

(high priority)

SPI

Interrupt

(high priority)

SCI Receiver Interrupt

(low priority)

SPI Interrupt

(low priority)

System-Module

External Interrupt

XINT1

(low priority)

System-Module

External Interrupt

XINT2

(low priority)

System-Module

External Interrupt

XINT3

(low priority)

Dual ADC

Interrupt

IACK_NMIIRQ_NMIIACK2IRQ2IACK3IRQ3IACK4IRQ4

NCNCNCNCNCNC

INT5

To DSP INT5

INT2INT3INT4

NCNCNC

Watchdog

Timer

Interrupt

SCI

Transmitter

Interrupt

(low priority)

SCI Receiver Interrupt

(high priority)

SCI

Transmitter

Interrupt

(high priority)

System Module

Figure 6. System-Module Interrupt Structure

Page 21

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

IACKAIRQAIACKBIRQBIACKCIRQC

INTAINTBINTC

Power-Drive

Protection

Interrupt

Compare1

Interrupt

Compare 2

Interrupt

Compare 3

Interrupt

Simple-

Compare 1

Interrupt

Simple-

Compare 2

Interrupt

Simple-

Compare 3

Interrupt

Timer 1

Period

Interrupt

Timer 1

Compare

Interrupt

Timer 1

Underflow

Interrupt

Timer 1

Overflow

Interrupt

Timer 2

Period

Interrupt

Timer 2

Compare

Interrupt

Timer 2

Underflow

Interrupt

Timer 2

Overflow

Interrupt

Timer 3

Period

Interrupt

Timer 3

Compare

Interrupt

Timer 3

Underflow

Interrupt

Timer 3

Overflow

Interrupt

Capture 1

Interrupt

Capture 2

Interrupt

Capture 3

Interrupt

Capture 4

Interrupt

To DSP INT4 To DSP INT3 To DSP INT2

IACK = Interrupt acknowledge IRQ = Interrupt request

Legend:

Event Manager

Figure 7. Event-Manager Interrupt Structure

Page 22

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

Each of the interrupt sources has its own control register with a flag bit and an enable bit. When an interrupt request is received, the flag bit in the corresponding control register is set. If the enable bit is also set, a signal is sent to arbitration logic, which can simultaneously receive similar signals from one or more of the other control registers. The arbitration logic compares the priority level of competing interrupt requests, and it passes the interrupt of highest priority to the CPU. The corresponding flag is set in the interrupt flag register (IFR), indicating that the interrupt is pending. The CPU then must decide whether to acknowledge the request. Maskable hardware interrupts are acknowledged only after certain conditions are met:

Priority is highest. When more than one hardware interrupt is requested at the same time, the ’F240 services them according to the set priority ranking.

INTM bit is 0. The interrupt mode (INTM) bit, bit 9 of status register ST0, enables or disables all maskable interrupts:

– When INTM = 0, all unmasked interrupts are enabled. – When INTM = 1, all unmasked interrupts are disabled. INTM is set to 1 automatically when the CPU acknowledges an interrupt (except when initiated by the TRAP

instruction) and at reset. It can be set and cleared by software.

IMR mask bit is 1. Each of the maskable interrupt lines has a mask bit in the interrupt mask register (IMR). To unmask an interrupt line, set its IMR bit to 1.

When the CPU acknowledges a maskable hardware interrupt, it jams the instruction bus with the INTR instruction. This instruction forces the PC to the appropriate address from which the CPU fetches the software vector. This vector leads to an interrupt service routine.

Usually, the interrupt service routine reads the peripheral-vector-address offset from the peripheral-vectoraddress register (see Table 7) to branch to code that is meant for the specific interrupt source that initiated the interrupt request. The ’F240 includes a phantom-interrupt vector offset (0000h), which is a system interrupt integrity feature that allows a controlled exit from an improper interrupt sequence. If the CPU acknowledges a request from a peripheral when, in fact, no peripheral has requested an interrupt, the phantom-interrupt vector is read from the interrupt-vector register.

Table 7 summarizes the interrupt sources, overall priority, vector address/offset, source, and function of each interrupt available on the SMJ320F240.

Page 23

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

Table 7. ’F240 Interrupt Locations and Priorities

INTERRUPT

NAME

OVERALL

PRIORITY

DSP-CORE

INTERRUPT,

AND

ADDRESS

PERIPHERAL

VECTOR

ADDRESS

PERIPHERAL

VECTOR

ADDRESS

OFFSET

MASKABLE?

’F240

SOURCE

PERIPHERAL

MODULE

FUNCTION

INTERRUPT

Highest

0000h

N/A N Core, SD

External, system reset (RESET)

RESERVED 2

INT7

0026h

N/A N/A N DSP Core Emulator trap

NMI 3

NMI

0024h

N/A 0002h N Core, SD External user interrupt

XINT1 XINT2 XINT3

4 5 6

0001h 0011h

001Fh

Y SD

High-priority external user interrupts

SPIINT 7

INT1

0005h Y SPI High-priority SPI interrupt

RXINT 8

0002h

SYSIVR

(701Eh)

0006h Y SCI

SCI receiver interrupt (high priority)

TXINT 9

(System)

0007h Y SCI

SCI transmitter interrupt

(high priority) WDTINT 10 0010h Y WDT Watchdog timer interrupt PDPINT 11 0020h Y External Power-drive protection Int. CMP1INT 12 0021h Y EV.CMP1 Full Compare 1 interrupt CMP2INT 13 0022h Y EV.CMP2 Full Compare 2 interrupt CMP3INT 14 0023h Y EV.CMP3 Full Compare 3 interrupt

SCMP1INT 15

INT2

0024h Y EV.CMP4

Simple compare 1

interrupt SCMP2INT 16

0004h

(Event

EVIVRA

(7432h)

0025h Y EV.CMP5

Simple compare 2

interrupt SCMP3INT 17

Manager Group A)

0026h Y EV.CMP6

Simple compare 3

interrupt TPINT1 18 0027h Y EV.GPT1 Timer1-period interrupt TCINT1 19 0028h Y EV.GPT1 Timer1-compare interrupt TUFINT1 20 0029h Y EV.GPT1 Timer1-underflow interrupt TOFINT1 21 002Ah Y EV.GPT1 Timer1-overflow interrupt TPINT2 22 002Bh Y EV.GPT2 Timer2-period interrupt TCINT2 23

002Ch Y EV.GPT2 Timer2-compare interrupt

TUFINT2 24

INT3

002Dh Y EV.GPT2 Timer2-underflow interrupt

TOFINT2 25

0006h

EVIVRB

002Eh Y EV.GPT2 Timer2-overflow interrupt

TPINT3 26

(Event

(7433h)

002Fh Y EV.GPT3 Timer3-period interrupt

TCINT3 27

anager

0030h Y EV.GPT3 Timer3-compare interrupt

TUFINT3 28

Grou B)

0031h Y EV.GPT3 Timer3-underflow interrupt TOFINT3 29 0032h Y EV.GPT3 Timer3-overflow interrupt CAPINT1 30 INT4 0033h Y EV.CAP1 Capture 1 interrupt CAPINT2 31 0008h

EVIVRC

0034h Y EV.CAP2 Capture 2 interrupt CAPINT3 32

(Event

(7434h)

0035h Y EV.CAP3 Capture 3 interrupt CAPINT4 33

anager

Group C)

0036h Y EV.CAP4 Capture 4 interrupt

Page 24

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

hardware-generated interrupts (continued)

Table 7. ’F240 Interrupt Locations and Priorities (Continued)

INTERRUPT

NAME

OVERALL PRIORITY

DSP-CORE

INTERRUPT,

AND

ADDRESS

PERIPHERAL

VECTOR

ADDRESS

PERIPHERAL

VECTOR

ADDRESS

OFFSET

MASKABLE?

’F240

SOURCE

PERIPHERAL

MODULE

FUNCTION

INTERRUPT

SPIINT 34 INT5

0005h Y SPI Low-priority SPI interrupt

RXINT 35

000Ah

SYSIVR

(701Eh)

0006h Y SCI

SCI receiver interrupt (low priority)

TXINT 36

(System)

0007h Y SCI

SCI transmitter interrupt

(low priority) ADCINT 37 INT6 SYSIVR 0004h Y ADC Analog-to-digital interrupt XINT1

000Ch

0001h

External Low-priority external

XINT2

XINT3

(System)

(701Eh)

0011h

001Fh

pins

user interrupts RESERVED 41 000Eh N/A Y DSP Core Used for analysis

TRAP N/A 0022h N/A N/A TRAP instruction vector

external interrupts

The ’F240 has five external interrupts. These interrupts include:

XINT1. Type A interrupt. The XINT1 control register (at 7070h) provides control and status for this interrupt. XINT1 can be used as a high-priority (Level 1) or low-priority (Level 6) maskable interrupt or as a general-purpose input pin. XINT1 can also be programmed to trigger an interrupt on either the rising or the falling edge.

NMI. T ype A inter rupt. The NMI control register (at 7072h) provides control and status for this interrupt. NMI is a nonmaskable external interrupt or a general-purpose input pin. NMI can also be programmed to trigger an interrupt on either the rising or the falling edge.

XINT2. Type C interrupt. The XINT2 control register (at 7078h) provides control and status for this interrupt. XINT2 can be used as a high-priority (Level 1) or low-priority (Level 6) maskable interrupt or a general-purpose I/O pin. XINT2 can also be programmed to trigger an interrupt on either the rising or the falling edge.

XINT3. Type C interrupt. The XINT3 control register (at 707Ah) provides control and status for this interrupt. XINT3 can be used as a high-priority (Level 1) or low-priority (Level 6) maskable interrupt or as a general-purpose I/O pin. XINT3 can also be programmed to trigger an interrupt on either the rising or the falling edge.

PDPINT. This interrupt is provided for safe operation of the power converter and motor drive. This maskable interrupt can put the timers and PWM output pins in the high-impedance state and inform the CPU in case of motor drive abnormalities such as overvoltage, overcurrent, and excessive temperature rise. PDP IN T is a Lev el 2 interrupt.

Page 25

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

external interrupts (continued)

Table 8 is a summary of the external interrupt capability of the ’F240.

Table 8. External Interrupt Types and Functions

EXTERNAL

INTERRUPT

CONTROL

NAME

CONTROL REGISTER

ADDRESS

INTERRUPT

TYPE

CAN DO

NMI?

DIGITAL

I/O PIN

MASKABLE?

XINT1 XINT1CR 7070h A No Input only

Yes

(Level 1 or 6)

NMI NMICR 7072h A Yes Input only No

XINT2 XINT2CR 7078h C No I/O

Yes

(Level 1 or 6)

XINT3 XINT3CR 707Ah C No I/O

Yes

(Level 1 or 6)

PDPINT EVIMRA 742Ch N/A N/A N/A

Yes

(Level 2)

clock generation

The SMJ320F240 has an on-chip, PLL-based clock module. This module provides all the necessary clocking signals for the device, as well as control for low-power mode entry . The only external component necessary for this module is an external fundamental crystal, or oscillator.

The PLL-based clock module provides two basic modes of operation: oscillator mode and clock-in mode.

oscillator mode This mode allows the use of a 4-, 6-, or 8-MHz external reference crystal to provide the time base to the device. The internal oscillator circuitry is initialized by software to select the desired CPUCLK frequency, which can be the input clock frequency , the input clock frequency divided by 2 (default), or a clock frequency determined by the PLL.

Clock-in mode This mode allows the internal crystal oscillator circuitry to be bypassed. The device clocks are generated from an external clock source input on the XTAL1/CLKIN pin. The device can be configured by software to operate on the input clock frequency, the input clock frequency divided by 2, or a clock frequency determined by the PLL.

The ’F240 runs on two clock frequencies: the CPU clock (CPUCLK) frequency , and the system clock (SYSCLK) frequency . The CPU, memories, external memory interface, and event manager run at the CPUCLK frequency . All other peripherals run at the SYSCLK frequency . The CPUCLK runs at 2x or 4x the frequency of the SYSCLK; for example, for 2x, CPUCLK = 20 MHz and SYSCLK = 10 MHz. There is also a clock for the watchdog timer, WDCLK. This clock has a nominal frequency of 16384 Hz (214 Hz) when XTAL1/CLKIN is a power of two or a sum of two powers of two; for example, 4194304 Hz (222 Hz), 6291456 (222 + 221 Hz), or 8388608 Hz (223 Hz).

The clock module includes three external pins:

1. XTAL1/CLKIN clock source/crystal input

2. XTAL2 output to crystal

3. OSCBYP oscillator bypass For the external pins, if OSCBYP ≥ VIH, then the oscillator is enabled and if OSCBYP ≤ VIL, then the oscillator

is bypassed and the device is in clock-in mode. In clock-in mode, an external TTL clock must be applied to the XTAL1/CLKIN pin. The XTAL2 pin can be left unconnected.

Page 26

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

clock generation (continued)

CPUCLK

Synchronizing

Clock Switch

VCO

ACLK WDCLK

SYSCLK

Clock Mode Bits

(CKCR0.7–6)

Div 2

MUXMUX

Div 2

XTAL

OSC

PLL

1-MHz Clock Prescaler

SYSCLK Prescaler Div 2 or 4

Prescale Bit (CKCR0.0)

Phase

Detector

Feedback

Divider

Div 1, 2, 3, 4, 5,

or 9

Watchdog Clock Prescaler

Clock Frequency and PLL Multiply Bits (CKCR1.7–4)

XTAL2

XTAL1/CLKIN

OSCBYP

PLL divide-by-2 bit

(CKCR1.3)

PLL multiply ratio

(CKCR1.2–0)

Figure 8. PLL Clock Module Block Diagram

low-power modes

The SMJ320F240 has four low-power modes (idle 1, idle 2, PLL power down, and oscillator power down). The low-power modes reduce the operating power by reducing or stopping the activity of various modules (by stopping their clocks). The two PLLPM bits of the clock module control register, CKCR0, select which of the low-power modes the device enters when executing an IDLE instruction. Reset or an unmasked interrupt from any source causes the device to exit from idle 1 low-power mode. A real-time interrupt from the watchdog timer module causes the device to exit from all low-power modes except oscillator power down. This is a wake-up interrupt. When enabled, reset or any of the four external interrupts (NMI, XINT1, XINT2, or XINT3) causes the device to exit from any of the low-power modes (idle 1, idle 2, PLL power down, and oscillator power down). The external interrupts are all wake-up interrupts. The maskable external interrupts (XINT1, XINT2, and XINT3) must be enabled individually and globally to bring the device out of a low-power mode properly . It is, therefore, important to ensure that the desired low-power-mode exit path is enabled before entering a low-power mode. Figure 9 shows the wake-up sequence from a power down. Table 9 summarizes the low-power modes.

Page 27

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

low-power modes (continued)

Watchdog Timer

and

Real-Time Interrupt

Module

NMI

XINT1

XINT2

XINT3

External-Interrupt Logic

Reset Logic

Reset

Signal

Wake-up Signal

to CPU

Wake-up

Signal

System Module

Figure 9. Waking Up the Device From Power Down

Table 9. Low-Power Modes

LOW-

POWER

MODE

PLLPM(x)

BITS IN

CKCR0[2:3]

CPUCLK

STATUS

SYSCLK

STATUS

WDCLK

STATUS

PLL

STATUS

OSC

STATUS

EXIT

CONDITION

TYPICAL

POWER

Run XX On On On On On — 80 mA

Idle 1 00 Off On On On On

Any interrupt

or reset

50 mA

Idle 2 01 Off Off On On On

Wake-up

interrupt or

reset

7 mA

PLL Power

Down

10 Off Off On Off On

Wake-up

interrupt or

reset

1 mA

OSC Power

Down

11 Off Off Off Off Off

Wake-up

interrupt or

reset

400 mA

Page 28

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

low-power modes (continued)

Table 10. Legend for the ’F240 Internal Hardware Functional Block Diagram

SYMBOL NAME DESCRIPTION

ACC Accumulator

32-bit register that stores the results and provides input for subsequent CALU operations. Also includes shift and rotate capabilities

ARAU

Auxiliary Register Arithmetic Unit

An unsigned, 16-bit arithmetic unit used to calculate indirect addresses using the auxiliary registers as inputs and outputs

AUX REGS

Auxiliary Registers 0–7

These 16-bit registers are used as pointers to anywhere within the data space address range. They are operated upon by the ARAU and are selected by the auxiliary register pointer (ARP). AR0 can also be used as an index value for AR updates of more than one and as a compare value to AR.

Bus Request Signal

BR is asserted during access of the external global data memory space. READY is asserted to the device when the global data memory is available for the bus transaction. BR

can be used to extend the data memory

address space by up to 32K words.

C Carry

Register carry output from CALU. C is fed back into the CALU for extended arithmetic operation. The C bit resides in status register 1 (ST1), and can be tested in conditional instructions. C is also used in accumulator shifts and rotates.

CALU

Central Arithmetic Logic Unit

32-bit-wide main arithmetic logic unit for the SMJ320C2xx core. The CALU executes 32-bit operations in a single machine cycle. CALU operates on data coming from ISCALE or PSCALE with data from ACC, and provides status results to PCTRL.

DARAM Dual Access RAM

If the on-chip RAM configuration control bit (CNF) is set to 0, the reconfigurable data dual-access RAM (DARAM) block B0 is mapped to data space; otherwise, B0 is mapped to program space. Blocks B1 and B2 are mapped to data memory space only, at addresses 0300–03FF and 0060–007F, respectively. Blocks 0 and 1 contain 256 words, while Block 2 contains 32 words.

Data Memory Page Pointer

The 9-bit DP register is concatenated with the seven LSBs of an instruction word to form a direct memory address of 16 bits. DP can be modified by the LST and LDP instructions.

GREG

Global Memory Allocation Register

GREG specifies the size of the global data memory space.

IMR

Interrupt Mask Register

IMR individually masks or enables the seven interrupts.

IFR

Interrupt Flag Register

The 7-bit IFR indicates that the SMJ320C2xx has latched an interrupt from one of the seven maskable interrupts.

INT# Interrupt Traps A total of 32 interrupts by way of hardware and/or software are available. ISCALE

Input Data-Scaling Shifter

16 to 32-bit barrel left-shifter. ISCALE shifts incoming 16-bit data 0 to16 positions left, relative to the 32-bit output within the fetch cycle; therefore, no cycle overhead is required for input scaling operations.

MPY Multiplier

16 × 16-bit multiplier to a 32-bit product. MPY executes multiplication in a single cycle. MPY operates either signed or unsigned 2s-complement arithmetic multiply.

MSTACK Micro Stack

MSTACK provides temporary storage for the address of the next instruction to be fetched when program address-generation logic is used to generate sequential addresses in data space.

MUX Multiplexer Multiplexes buses to a common input NPAR

Next Program Address Register

NPAR holds the program address to be driven out on the PAB on the next cycle.

OSCALE

Output Data-Scaling Shifter

16 to 32-bit barrel left-shifter. OSCALE shifts the 32-bit accumulator output 0 to 7 bits left for quantization management and outputs either the 16-bit high- or low-half of the shifted 32-bit data to the Data-Write Data Bus (DWEB).

PAR

Program Address Register

PAR holds the address currently being driven on P AB for as many cycles as it takes to complete all memory operations scheduled for the current bus cycle.

PC Program Counter

PC increments the value from NPAR to provide sequential addresses for instruction-fetching and sequential data-transfer operations.

PCTRL

Program Controller

PCTRL decodes instruction, manages the pipeline, stores status, and decodes conditional operations.

Page 29

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

low-power modes (continued)

Table 10. Legend for the ’F240 Internal Hardware Functional Block Diagram (Continued)

SYMBOL NAME DESCRIPTION

PREG Product Register 32-bit register holds results of 16 × 16 multiply.

PSCALE

Product-Scaling Shifter

0-, 1- or 4-bit left shift, or 6-bit right shift of multiplier product. The left-shift options are used to manage the additional sign bits resulting from the 2s-complement multiply. The right-shift option is used to scale down the number to manage overflow of product accumulation in the CALU. PSCALE resides in the path from the 32-bit product shifter and from either the CALU or the Data-Write Data Bus (DWEB), and requires no cycle overhead.

STACK Stack

STACK is a block of memory used for storing return addresses for subroutines and interrupt-service routines, or for storing data. The ’C20x stack is 16-bit wide and eight-level deep.

TREG

Temporary Register

16-bit register holds one of the operands for the multiply operations. TREG holds the dynamic shift count for the LACT, ADDT, and SUBT instructions. TREG holds the dynamic bit position for the BITT instruction.

Page 30

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

functional block diagram of the SMJ320F240 DSP CPU

Data Bus

OSCALE (0–7)

D15–D0

A15–A0

1616

ACCL(16)ACCH(16)C

CALU(32)

3232

MUX

ISCALE (0–16)

MUX

PREG(32)

Multiplier

TREG0(16)

MUX

B1 (256 × 16)

B2 (32 × 16)

DARAM

B0 (256 × 16)

DARAM

7 LSB from IR

MUX

DP(9)

MUX

1616

ARAU(16)

ARB(3)

ARP(3)

Program Bus

AR7(16)

AR6(16)

AR5(16)

AR3(16)

AR2(16)

AR1(16)

AR0(16)

Stack 8 × 16

MUX

NMI

W/R

CLKIN/X2

CLKOUT1

XINT[1–3]

MP/MC

READY

STRB

R/W

Control

Data Bus

Program Bus

Data Bus

AR4(16)

MUXMUX

Data/Prog

PSCALE (–6, 0,1,4)

Data

FLASH EEPROM

MUX

NPAR

PAR MSTACK

Program Control

(PCTRL)

Memory Map

IFR (16)

GREG (16)

Program Bus

NOTES: A. Symbol descriptions appear in Table 10.

B. For clarity the data and program buses are shown as single buses although they include address and data bits.

Page 31

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

’F240 DSP core CPU

The SMJ320F240 devices use an advanced Harvard-type architecture that maximizes processing power by maintaining two separate memory bus structures — program and data — for full-speed execution. This multiple bus structure allows data and instructions to be read simultaneously. Instructions support data transfers between program memory and data memory . This architecture permits coefficients that are stored in program memory to be read in RAM, thereby eliminating the need for a separate coefficient that are ROM. This, coupled with a four-deep pipeline, allows the ’F240 devices to execute most instructions in a single cycle.

status and control registers

Two status registers, ST0 and ST1, contain the status of various conditions and modes. These registers can be stored into data memory and loaded from data memory, thereby allowing the status of the machine to be saved and restored for subroutines.

The load status register (LST) instruction is used to write to ST0 and ST1. The store status register (SST) instruction is used to read from ST0 and ST1 — except for the INTM bit, which is not affected by the LST instruction. The individual bits of these registers can be set or cleared when using the SETC and CLRC instructions. Figure 10 shows the organization of status registers ST0 and ST1, indicating all status bits contained in each. Several bits in the status registers are reserved and are read as logic 1s. T able 11 lists status register field definitions.

15 131211109876543210

ST0 ARP

OV OVM 1 INTM DP

15 13121110987654321 0

ST1 ARB

CNF TC SXM C 1 1 1 1 XF 1 1 PM

Figure 10. Status and Control Register Organization

Table 11. Status Register Field Definitions

FIELD FUNCTION

ARB

Auxiliary register pointer buffer . When the ARP is loaded into ST0, the old ARP value is copied to the ARB except during an LST instruction. When the ARB is loaded by way of an LST #1 instruction, the same value is also copied to the ARP.

ARP

Auxiliary register (AR) pointer. ARP selects the AR to be used in indirect addressing. When the ARP is loaded, the old ARP value is copied to the ARB register. ARP can be modified by memory-reference instructions when using indirect addressing, and by the LARP, MAR, and LST instructions. The ARP is also loaded with the same value as ARB when an LST #1 instruction is executed.

Carry bit. C is set to 1 if the result of an addition generates a carry, or reset to 0 if the result of a subtraction generates a borrow. Otherwise, C is reset after an addition or set after a subtraction, except if the instruction is ADD or SUB with a 16-bit shift. In these cases, the ADD can only set and the SUB only reset the carry bit, but cannot affect it otherwise. The single bit shift and rotate instructions also affect C, as well as the SETC, CLRC, and LST #1 instructions. Branch instructions have been provided to branch on the status of C. C is set to 1 on a reset.0

CNF

On-chip RAM configuration control bit. If CNF is set to 0, the reconfigurable data dual-access RAM blocks are mapped to data space; otherwise, they are mapped to program space. The CNF can be modified by the SETC CNF, CLRC CNF, and LST #1 instructions. RS

sets the CNF to 0.

Data memory page pointer. The 9-bit DP register is concatenated with the seven LSBs of an instruction word to form a direct memory address of 16 bits. DP can be modified by the LST and LDP instructions.

INTM

Interrupt mode bit. When INTM is set to 0, all unmasked interrupts are enabled. When set to 1, all maskable interrupts are disabled. INTM is set and reset by the SETC INTM and CLRC INTM instructions. RS

and IACK also set INTM. INTM has no effect on the

unmaskable RS

and NMI interrupts. Note that INTM is unaffected by the LST instruction. This bit is set to 1 by reset. It is also set

to 1 when a maskable interrupt trap is taken.

Page 32

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 11. Status Register Field Definitions (Continued)

FIELD FUNCTION

Overflow flag bit. As a latched overflow signal, OV is set to 1 when overflow occurs in the arithmetic logic unit (ALU). Once an overflow occurs, the OV remains set until a reset, BCND/D on OV/NOV, or LST instructions clear OV.

OVM

Overflow mode bit. When OVM is set to 0, overflowed results overflow normally in the accumulator. When set to 1, the accumulator is set to either its most positive or negative value upon encountering an overflow. The SETC and CLRC instructions set and reset this bit, respectively. LST can also be used to modify the OVM.

Product shift mode. If these two bits are 00, the multiplier’s 32-bit product is loaded into the ALU with no shift. If PM = 01, the PREG output is left-shifted one place and loaded into the ALU, with the LSB zero-filled. If PM = 10, PREG output is left-shifted by four bits and loaded into the ALU, with the LSBs zero-filled. PM = 11 produces a right shift of six bits, sign-extended. Note that the PREG contents remain unchanged. The shift takes place when transferring the contents of the PREG to the ALU. PM is loaded by the SPM and LST #1 instructions. PM is cleared by RS

SXM

Sign-extension mode bit. SXM = 1 produces sign extension on data as it is passed into the accumulator through the scaling shifter. SXM = 0 suppresses sign extension. SXM does not affect the definitions of certain instructions; for example, the ADDS instruction suppresses sign extension regardless of SXM. SXM is set by the SETC SXM and reset by the CLRC SXM instructions, and can be loaded by the LST #1. SXM is set to 1 by reset.

T est/control flag bit. TC is affected by the BIT , BITT, CMPR, LST #1, and NORM instructions. TC is set to a 1 if a bit tested by BIT or BITT is a 1, if a compare condition tested by CMPR exists between AR (ARP) and AR0, if the exclusive-OR function of the two MSBs of the accumulator is true when tested by a NORM instruction. The conditional branch, call, and return instructions can execute based on the condition of TC.

XF pin status bit. XF indicates the state of the XF pin, a general-purpose output pin. XF is set by the SETC XF and reset by the CLRC XF instructions. XF is set to 1 by reset.

central processing unit

The SMJ320F240 central processing unit (CPU) contains a 16-bit scaling shifter, a 16 x 16-bit parallel multiplier , a 32-bit central arithmetic logic unit (CALU), a 32-bit accumulator, and additional shifters at the outputs of both the accumulator and the multiplier. This section describes the CPU components and their functions. The functional block diagram shows the components of the CPU.

input scaling shifter

The SMJ320F240 provides a scaling shifter with a 16-bit input connected to the data bus and a 32-bit output connected to the CALU. This shifter operates as part of the path of data coming from program or data space to the CALU and requires no cycle overhead. It is used to align the 16-bit data coming from memory to the 32-bit CALU. This is necessary for scaling arithmetic as well as aligning masks for logical operations.

The scaling shifter produces a left shift of 0 to 16 on the input data. The LSBs of the output are filled with zeros; the MSBs can either be filled with zeros or sign-extended, depending upon the value of the SXM bit (sign-extension mode) of status register ST1. The shift count is specified by a constant embedded in the instruction word or by a value in TREG. The shift count in the instruction allows for specific scaling or alignment operations specific to that point in the code. The TREG base shift allows the scaling factor to be adaptable to the system’s performance.

multiplier

The SMJ320F240 devices use a 16 x 16-bit hardware multiplier that is capable of computing a signed or an unsigned 32-bit product in a single machine cycle. All multiply instructions, except the MPYU (multiply unsigned) instruction, perform a signed multiply operation. That is, two numbers being multiplied are treated as 2s-complement numbers, and the result is a 32-bit 2s-complement number. Two registers are associated with the multiplier:

16-bit temporary register (TREG) that holds one of the operands for the multiplier

32-bit product register (PREG) that holds the product

status and control registers (continued)

Page 33

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

multiplier (continued)

Four product shift modes (PM) are available at the PREG output (PSCALE). These shift modes are useful for performing multiply/accumulate operations, performing fractional arithmetic, or justifying fractional products. The PM field of status register ST1 specifies the PM shift mode, as shown in Table 12.

Table 12. PSCALE Product Shift Modes

PM SHIFT DESCRIPTION

00 No shift Product feed to CALU or data bus with no shift 01 Left 1 Removes the extra sign bit generated in a 2s-complement multiply to produce a Q31 product

10 Left 4

Removes the extra 4 sign bits generated in a 16x13 2s-complement multiply to a produce a Q31 product when using the multiply by a 13-bit constant

11 Right 6 Scales the product to allow up to 128 product accumulation without the possibility of accumulator overflow

The product can be shifted one bit to compensate for the extra sign bit gained in multiplying two 16-bit 2s-complement numbers (MPY instruction). A four-bit shift is used in conjunction with the MPY instruction with a short immediate value (13 bits or less) to eliminate the four extra sign bits gained in multiplying a 16-bit number by a 13-bit number. Finally, the output of PREG can be right-shifted 6 bits to enable the execution of up to 128 consecutive multiply/accumulates without the possibility of overflow.

The L T (load TREG) instruction normally loads TREG to provide one operand (from the data bus), and the MPY (multiply) instruction provides the second operand (also from the data bus). A multiplication also can be performed with a 13-bit immediate operand when using the MPY instruction. Then a product is obtained every two cycles. When the code is executing multiple multiplies and product sums, the CPU supports the pipelining of the TREG load operations with CALU operations using the previous product. The pipeline operations that run in parallel with loading the TREG include: load ACC with PREG (L TP); add PREG to ACC (L TA); add PREG to ACC and shift TREG input data (DMOV) to next address in data memory (L TD); and subtract PREG from ACC (L TS).

Two multiply/accumulate instructions (MAC and MACD) fully utilize the computational bandwidth of the multiplier, allowing both operands to be processed simultaneously. The data for these operations can be transferred to the multiplier each cycle by way of the program and data buses. This facilitates single-cycle multiply/accumulates when used with the repeat (RPT) instruction. In these instructions, the coefficient addresses are generated by program address generation (PAGEN) logic, while the data addresses are generated by data address generation (DAGEN) logic. This allows the repeated instruction to access the values from the coefficient table sequentially and step through the data in any of the indirect addressing modes.

The MACD instruction, when repeated, supports filter constructs (weighted running averages) so that as the sum-of-products is executed, the sample data is shifted in memory to make room for the next sample and to throw away the oldest sample.

The MPYU instruction performs an unsigned multiplication, which greatly facilitates extended-precision arithmetic operations. The unsigned contents of TREG are multiplied by the unsigned contents of the addressed data memory location, with the result placed in PREG. This process allows the operands of greater than 16 bits to be broken down into 16-bit words and processed separately to generate products of greater than 32 bits. The SQRA (square/add) and SQRS (square/subtract) instructions pass the same value to both inputs of the multiplier for squaring a data memory value.

After the multiplication of two 16-bit numbers, the 32-bit product is loaded into the 32-bit product register (PREG). The product from PREG can be transferred to the CALU or to data memory by way of the SPH (store product high) and SPL (store product low). Note: the transfer of PREG to either the CALU or data bus passes through the PSCALE shifter , and therefore is affected by the product shift mode defined by PM. This is important when saving PREG in an interrupt-service-routine context save as the PSCALE shift effects cannot be modeled

Page 34

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

multiplier (continued)

in the restore operation. PREG can be cleared by executing the MPY #0 instruction. The product register can be restored by loading the saved low half into TREG and executing a MPY #1 instruction. The high half, then, is loaded using the LPH instruction.

central arithmetic logic unit

The SMJ320F240 central arithmetic logic unit (CALU) implements a wide range of arithmetic and logical functions, the majority of which execute in a single clock cycle. This ALU is referred to as central to differentiate it from a second ALU used for indirect-address generation called the auxiliary register arithmetic unit (ARAU). Once an operation is performed in the CALU, the result is transferred to the accumulator (ACC) where additional operations, such as shifting, can occur. Data that is input to the CALU can be scaled by ISCALE when coming from one of the data buses (DRDB or PRDB) or scaled by PSCALE when coming from the multiplier.

The CALU is a general-purpose arithmetic/logic unit that operates on 16-bit words taken from data memory or derived from immediate instructions. In addition to the usual arithmetic instructions, the CALU can perform Boolean operations, facilitating the bit manipulation ability required for a high-speed controller. One input to the CALU is always provided from the accumulator, and the other input can be provided from the product register (PREG) of the multiplier or the output of the scaling shifter (that has been read from data memory or from the ACC). After the CALU has performed the arithmetic or logical operation, the result is stored in the accumulator.

The SMJ320F240 devices support floating-point operations for applications requiring a large dynamic range. The NORM (normalization) instruction is used to normalize fixed-point numbers contained in the accumulator by performing left shifts. The four bits of the TREG define a variable shift through the scaling shifter for the LACT/ADDT/SUBT (load/add to /subtract from accumulator with shift specified by TREG) instructions. These instructions are useful in floating-point arithmetic where a number needs to be denormalized — that is floating-point to fixed-point conversion. They are also useful in execution of an automatic gain control (AGC) going into a filter. The BITT (bit test) instruction provides testing of a single bit of a word in data memory based on the value contained in the four LSBs of TREG.

The CALU overflow saturation mode can be enabled/disabled by setting/resetting the OVM bit of ST0. When the CALU is in the overflow saturation mode and an overflow occurs, the overflow flag is set and the accumulator is loaded with either the most positive or the most negative value representable in the accumulator, depending on the direction of the overflow. The value of the accumulator at saturation is 07FFFFFFFh (positive) or 080000000h (negative). If the OVM (overflow mode) status register bit is reset and an overflow occurs, the overflowed results are loaded into the accumulator with modification. (Logical operations cannot result in overflow.)

The CALU can execute a variety of branch instructions that depend on the status of the CALU and the accumulator. These instructions can be executed conditionally based on any meaningful combination of these status bits. For overflow management, these conditions include the OV (branch on overflow) and EQ (branch on accumulator equal to zero). In addition, the BACC (branch to address in accumulator) instruction provides the ability to branch to an address specified by the accumulator (computed goto). Bit test instructions (BIT and BITT), which do not affect the accumulator, allow the testing of a specified bit of a word in data memory.

The CALU also has an associated carry bit that is set or reset depending on various operations within the device. The carry bit allows more efficient computation of extended-precision products and additions or subtractions. It also is useful in overflow management. The carry bit is affected by most arithmetic instructions as well as the single-bit shift and rotate instructions. It is not affected by loading the accumulator , logical operations, or other such non-arithmetic or control instructions.

The ADDC (add to accumulator with carry) and SUBB (subtract from accumulator with borrow) instructions use the previous value of carry in their addition/subtraction operation.

Page 35

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

central arithmetic logic unit (continued)

The one exception to the operation of the carry bit is in the use of ADD with a shift count of 16 (add to high accumulator) and SUB with a shift count of 16 (subtract from high accumulator) instructions. This case of the ADD instruction can set the carry bit only if a carry is generated, and this case of the SUB instruction can reset the carry bit only if a borrow is generated; otherwise, neither instruction affects it.

Two conditional operands, C and NC, are provided for branching, calling, returning, and conditionally executing, based upon the status of the carry bit. The SETC, CLRC, and LST #1 instructions also can be used to load the carry bit. The carry bit is set to one on a hardware reset.

accumulator

The 32-bit accumulator is the registered output of the CALU. It can be split into two 16-bit segments for storage in data memory. Shifters at the output of the accumulator provide a left shift of 0 to 7 places. This shift is performed while the data is being transferred to the data bus for storage. The contents of the accumulator remain unchanged. When the post-scaling shifter is used on the high word of the accumulator (bits 16–31), the MSBs are lost and the LSBs are filled with bits shifted in from the low word (bits 0–15). When the post-scaling shifter is used on the low word, the LSBs are zero-filled.

The SFL and SFR (in-place one-bit shift to the left/right) instructions and the ROL and ROR (rotate to the left/right) instructions implement shifting or rotating of the contents of the accumulator through the carry bit. The SXM bit affects the definition of the SFR (shift accumulator right) instruction. When SXM = 1, SFR performs an arithmetic right shift, maintaining the sign of the accumulator data. When SXM = 0, SFR performs a logical shift, shifting out the LSBs and shifting in a zero for the MSB. The SFL (shift accumulator left) instruction is not affected by the SXM bit and behaves the same in both cases, shifting out the MSB and shifting in a zero. Repeat (RPT) instructions can be used with the shift and rotate instructions for multiple-bit shifts.

auxiliary registers and auxiliary-register arithmetic unit (ARAU)

The ’F240 provides a register file containing eight auxiliary registers (AR0–AR7). The auxiliary registers are used for indirect addressing of the data memory or for temporary data storage. Indirect auxiliary-register addressing allows placement of the data memory address of an instruction operand into one of the auxiliary registers. These registers are referenced with a 3-bit auxiliary register pointer (ARP) that is loaded with a value from 0 through 7, designating AR0 through AR7, respectively . The auxiliary registers and the ARP can be loaded from data memory , the ACC, the product register, or by an immediate operand defined in the instruction. The contents of these registers also can be stored in data memory or used as inputs to the CALU.

The auxiliary register file (AR0–AR7) is connected to the ARAU. The ARAU can autoindex the current auxiliary register while the data memory location is being addressed. Indexing either by ±1 or by the contents of the AR0 register can be performed. As a result, accessing tables of information does not require the CALU for address manipulation; therefore, the CALU is free for other operations in parallel.

internal memory

The SMJ320F240 devices are configured with the following memory modules:

Dual-access random-access memory (DARAM)

Flash EEPROM

dual-access RAM (DARAM)

There are 544 words × 16 bits of DARAM on the ’F240 device. The ’F240 DARAM allows writes to and reads from the RAM in the same cycle. The DARAM is configured in three blocks: block 0 (B0), block 1 (B1), and block 2 (B2). Block 1 contains 256 words and block 2 contains 32 words, and both blocks are located only in data memory space. Block 0 contains 256 words, and can be configured to reside in either data or program memory space.

Page 36

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

dual-access RAM (DARAM) (continued)

The SETC CNF (configure B0 as data memory) and CLRC CNF (configure B0 as program memory) instructions allow dynamic configuration of the memory maps through software. When using block 0 as program memory , instructions can be downloaded from external program memory into on-chip RAM and then executed. When using on-chip RAM, or high-speed external memory , the ’F240 runs at full speed with no wait states. The ability of the DARAM to allow two accesses to be performed in one cycle coupled with the parallel nature of the ’F240

architecture enables the device to perform three concurrent memory accesses in any given machine cycle. Externally, the READY line can be used to interface the ’F240 to slower, less expensive external memory. Downloading programs from slow off-chip memory to on-chip RAM can speed processing while cutting system costs.

flash EEPROM

Flash EEPROM provides an attractive alternative to masked program ROM. Like ROM, flash is a nonvolatile memory type; however, it has the advantage of “in-target” reprogrammability. The SMJ320F240 incorporates one 16K  16-bit flash EEPROM module in program space. This type of memory expands the capabilities of the SMJ320F240 in the areas of prototyping, early field-testing, and single-chip applications.

Unlike most discrete flash memory, the ’F240 flash does not require a dedicated state machine, because the algorithms for programming and erasing the flash are executed by the DSP core. This enables several advantages, including: reduced chip size and sophisticated, adaptive algorithms. For production programming, the IEEE Standard 1149.1 (JTAG) scan port provides easy access to the on-chip RAM for downloading the algorithms and flash code. Other key features of the flash include zero-wait-state access rate and single 5-V power supply.

An erased bit in the SMJ320F240 flash is read as a logic 1, and a programmed bit is read as a logic 0. The flash requires a block-erase of the entire 16K module; however, any combination of bits can be programmed. The following four algorithms are required for flash operations: clear, erase, flash-write, and program. For an explanation of these algorithms and a complete description of the flash EEPROM, see the

TMS320F20x/F24x

DSPs Embedded Flash Memory T echnical Reference

(literature number SPRU282), which is available during

the 2nd quarter of 1998.

flash serial loader

The on-chip flash is shipped with a serial bootloader code programmed at the following addresses: 0x0000–0x00FFh. All other flash addresses are in an erased state. The serial bootloader can be used to program the on-chip Flash memory with user’s code. During the Flash programming sequence, the on-chip data RAM is used to load and execute the clear, erase, and program algorithms. See the TMS320F240 Serial Bootloader application report (currently located at ftp://ftp.ti.com/pub/tms320bbs/c24xfiles/f240boot.pdf to understand on-chip flash programming using the serial bootloader code. Look for further C2000 information using the DSP link at www.ti.com.

flash control mode register

The flash control mode register is located at I/O address FF0Fh. This register offers two options: register access mode and array access mode. Register access mode gives access to the four control registers in the memory space decoded for the flash module. These registers are used to control erasing, programming, and testing of the flash array. Register access mode is enabled by activating an OUT command with dummy data.

The OUT xxxx, FF0Fh instruction makes the flash registers accessible for reads and/or writes. After executing OUT xxxx, FF0Fh, the flash control registers are accessed in the memory space decoded for the flash module and the flash array cannot be accessed. The four registers are repeated every four address locations within the flash module’s decoded range.

After completing all the necessary reads and/or writes to the control registers, an IN xxxx, FF0Fh instruction (with dummy data) is executed to place the flash array back in array access mode. After executing the IN xxxx, FF0Fh instruction, the flash array is accessed in the decoded space and the flash registers are

Page 37

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

flash control mode register (continued)

not available. Switching between the register access mode and the array access mode is done by issuing the IN and OUT instructions. The memory content in these instructions (denoted by xxxx) is not relevant. See the

TMS320F20x/F24x DSPs Embedded Flash Memory Technical Reference

(literature number SPRU282) for a

detailed description of the flash programming algorithms.

peripherals

The integrated peripherals of the SMJ320F240 are described in the following subsections:

External memory interface

Event manager (EV)

Dual analog-to-digital converter (ADC)

Serial peripheral interface (SPI)

Serial communications interface (SCI)

Watchdog timer (WD)

external memory interface

The SMJ320F240 can address up to 64K words × 16 bits of memory or registers in each of the program, data, and I/O spaces. On-chip memory , when enabled, removes some of this off-chip range. In data space, the high 32K words can be mapped dynamically as either local or global using the GREG register. A data-memory access mapped as global asserts BR low (with timing similar to the address bus).

The CPU of the SMJ320F240 schedules a program fetch, data read, and data write on the same machine cycle. This is because, from on-chip memory, the CPU can execute all three of these operations in the same cycle. However, the external interface multiplexes the internal buses to one address and one data bus. The external interface sequences these operations to complete the data write first, then the data read, and finally the program read.

The ’F240 supports a wide range of system interfacing requirements. Program, data, and I/O address spaces provide interface to memory and I/O, maximizing system throughput. The full 16-bit address and data bus, along with the PS, DS, and IS space-select signals allow addressing of 64K 16-bit words in program and I/O space. Due to the on-chip peripherals, external data space is addressable to 32K 16-bit words.

I/O design is simplified by having I/O treated the same way as memory. I/O devices are mapped into the I/O address space using the processor’s external address and data buses in the same manner as memory-mapped devices.

The ’F240 external parallel interface provides control signals to facilitate interfacing to the device. The R/W output signal is provided to indicate whether the current cycle is a read or a write. The STRB output signal provides a timing reference for all external cycles.

Interface to memory and I/O devices of varying speeds is accomplished by using the READY input. When transactions are made with slower devices, the ’F240 processor waits until the other device completes its function and signals the processor by way of the READY input. Once a ready indication is provided from the external device, execution continues. On the ’F240 device, the READY input must be driven (active high) to complete reads or writes to internal data I/O-memory-mapped registers and all external addresses.

The bus request (BR) signal is used in conjunction with the other ’F240 interface signals to arbitrate external global-memory accesses. Global memory is external data-memory space in which the BR signal is asserted at the beginning of the access. When an external global-memory device receives the bus request, it responds by asserting the ready signal after the global-memory access is arbitrated and the global access is completed.

Page 38

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

external memory interface (continued)

The SMJ320F240 supports zero-wait-state reads on the external interface. However, to avoid bus conflicts, writes take two cycles. This allows the ’F240 to buffer the transition of the data bus from input to output (or output to input) by a half cycle. In most systems, SMJ320F240 ratio of reads to writes is significantly large to minimize the overhead of the extra cycle on writes.

Wait states can be generated when accessing slower external resources. The wait states operate on machine-cycle boundaries and are initiated either by using the ready signal or using the software wait-state generator. Ready can be used to generate any number of wait states.

event-manager (EV) module

The event-manager module includes general-purpose (GP) timers, full compare units, capture units, and quadrature-encoder pulse (QEP) circuits. Figure 11 shows the functions of the event manager.

general-purpose (GP) timers

There are three GP timers on the SMJ320F240. The GP timer x (for x = 1, 2, 3) includes:

A 16-bit timer up-, up/down-counter, TxCNT for reads or writes

A 16-bit timer-compare register (double-buffered with shadow register), TxCMPR for reads or writes

A 16-bit timer-period register (double-buffered with shadow register), TxPR for reads or writes

A 16-bit timer-control register,TxCON for reads or writes

Selectable internal or external input clocks

A programmable prescalar for internal or external clock inputs

Control and interrupt logic for four maskable interrupts: underflow, overflow, timer compare, and period interrupts

A timer-compare output pin with configurable active-low and active-high states, as well as forced-low and forced-high states.

A selectable direction (TMRDIR) input pin (to count up or down when directional up-/down-count mode is selected)

The GP timers can be operated independently or synchronized with each other. A 32-bit GP timer also can be configured using GP timer 2 and 3. The compare register associated with each GP timer can be used for compare function and PWM-waveform generation. There are two single and three continuous modes of operation for each GP timer in up- or up / down-counting operations. Internal or external input clocks with programmable prescaler is used for each GP timer. The state of each GP timer/compare output is configurable by the general-purpose timer-control register (GPTCON). GP timers also provide the time base for the other event-manager submodules: GP timer 1 for all the compares and PWM circuits, GP timer 1 or 2 for the simple compares to generate additional compare or PWMs, GP timer 2 or 3 for the capture units and the quadrature-pulse counting operations.

Double buffering of the period and compare registers allows programmable change of the timer (PWM) period and the compare/PWM pulse width as needed.

Page 39

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

general-purpose (GP) timers (continued)

DSP core

Data bus

ADDR bus

EV Control Registers

and Control Logic

GP timer 1 compare

Full Compare Units

GP Timer 2 Compare

GP Timer 2

MUX

Simple Compare

Units

GP Timer 3 Compare

MUX

Capture Units

GP Timer 1

GP Timer 3

INT2, 3, 4

TMRCLK TMRDIR

ADC Start

T1PWM/T1CMP

SVPWM

State

Machine

Dead Band Units

Output

Logic

PWM1/CMP1

PWM6/CMP6

Output

Logic

T2PWM/T2CMP

Output

Logic

PWM8/CMP8

PWM7/CMP7

PWM9/CMP9

Output

Logic

T3PWM/T3CMP

QEP

Circuit

To Control Logic

ClockDir

CAP1/QEP1 CAP2/QEP2

CAP3, 4

Internal clock

RESET

Output

logic

Figure 11. Event-Manager Block Diagram

Page 40

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

full compare units

There are three full compare units on SMJ320F240. These compare units use GP timer1 as the timebase and generate six outputs for compare and PWM-waveform generation using programmable deadband circuit. The state of each of the six outputs is configured independently. The compare registers of the compare units are double-buffered, allowing programmable change of the compare/PWM pulse widths as needed.

programmable-deadband generator

The deadband generator circuit includes three 8-bit counters and an 8-bit compare register. Desired deadband value (from 0 to 102 ms) can be programmed into the compare register for the outputs of the three compare units. The deadband generation can be enabled/disabled for each compare unit output individually. The deadband-generator circuit produces two outputs (with or without deadband zone) for each compare unit output signal. The output states of the deadband generator are configurable and changeable as needed by way of the double-buffered ACTR register.

simple compares

SMJ320F240 is equipped with three simple compares that can be used to generate three additional independent compare or high-precision PWM waveforms. GP timer1 or 2 can be selected as the timebase for the three simple compares. The states of the outputs of the three simple compares are configurable as low-active, high-active, forced-low, or forced-high independently. Simple compare registers are double-buffered, allowing programmable change of the compare/PWM pulse widths as needed. The state of the simple-compare outputs is configurable and changeable as needed by way of the double-buffered SACTR register.

compare/PWM waveform generation

Up to 12 compare and/or PWM waveforms (outputs) can be generated simultaneously by SMJ320F240: three independent pairs (six outputs) by the three full compare units with

programmable deadbands

, three independent compares or PWMs (three outputs) by the simple compares, and three independent compare and PWMs (three outputs) by the GP-timer compares.

compare/PWMs characteristics

Characteristics of the compare/PWMs are as follow:

16-bit, 50-ns resolutions

Programmable deadband for the PWM output pairs, from 0 to 102 ms

Minimum deadband width of 50 ns

Change of the PWM carrier frequency for PWM frequency wobbling as needed

Change of the PWM pulse widths within and after each PWM period as needed

External maskable power and drive-protection interrupts

Pulse-pattern-generator circuit, for programmable generation of asymmetric, symmetric, and four-space vector PWM waveforms

Minimized CPU overhead using auto-reload of the compare and period registers

capture unit

The capture unit provides a logging function for different events or transitions. The values of the GP timer 2 counter and/or GP timer 3 counter are captured and stored in the two-level first-in first-out (FIFO) stacks when selected transitions are detected on capture input pins, CAPx for x = 1, 2, 3, or 4. The capture unit of the SMJ320F240 consists of four capture circuits.

Page 41

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

capture unit (continued)

The capture unit includes the following features: – One 16-bit capture-control register, CAPCON, for reads or writes – One 16-bit capture-FIFO status register, CAPFIFO, with eight MSBs for read-only operations, and eight

LSBs for write-only operations

– Optional selection of GP timer 2 and/or GP timer 3 through two 16-bit multiplexers (MUXs). One MUX

selects a GP timer for capture circuits 3 and 4, and the other MUX selects a GP timer for capture circuits 1 and 2.

– Four 16 bit x 2 FIFO stack registers, one two-level FIFO stack register per capture circuit. The top

register of each stack is a read-only register, FIFOx, where x = 1, 2, 3, or 4. – Four possible Schmitt-triggered capture-input pins (CAPx, x = 1 to 4) with one input pin per capture unit – The input pins CAP1 and CAP2 also can be used as inputs to the QEP circuit. – User-specified edge-detection mode at the input pins – Four maskable interrupts/flags, CAPINTx, where x = 1, 2, 3, or 4

quadrature-encoder pulse (QEP) circuit

Two capture inputs (CAP1 and CAP2) can be used to interface the on-chip QEP circuit with a quadrature encoder pulse. Full synchronization of these inputs is performed on-chip. Direction or leading-quadrature pulse sequence is detected, and GP timer 2 or 3 is incremented or decremented by the rising and falling edges of the two input signals (four times the frequency of either input pulse).

analog-to-digital converter (ADC) module

A simplified functional block diagram of the ADC module is shown in Figure 12. The ADC module consists of two 10-bit ADCs with two built-in sample-and-hold (S/H) circuits. A total of 16 analog input channels is available on the SMJ320F240. Eight analog inputs are provided for each ADC unit by way of an 8-to-1 analog multiplexer. Minimum total conversion time for each ADC unit is 6.1 ms. Total accuracy for each converter is ±1.5 LSB. Reference voltage for the ADC module needs to be supplied externally through the two reference pins, V

REFHI

and V

REFLO.

The digital result is expressed as:

Digital result+1023

Input Voltage

REFHI

REFLO

Functions of the ADC module include:

Two input channels (one for each ADC unit) that can be sampled and converted simultaneously

Each ADC unit can perform single or continuous S/H and conversion operations.

Two 2-level-deep FIFO result registers for ADC units 1 and 2

ADC module (both A/D converters) can start operation by software instruction, external signal transition on a device pin, or by event-manager events on each of the GP timer/compare output and the capture 4 pins.

The ADC control register is double-buffered (with shadow register) and can be written to at any time. A new conversion of ADC can start immediately or when the previous conversion process is completed according to the control register bits.

At the end of each conversion, an interrupt flag is set and an interrupt is generated if it is unmasked/enabled.

Page 42

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

analog-to-digital converter (ADC) module (continued)

Control Register

(1)

Control Register

(2)

Control Register

Sample-

and-

Hold (S/H)

Circuit

8/1

MUX

ADC 2 ADC 3 ADC 4 ADC 5 ADC 6 ADC 7

Control Logic

Single/Continues/Event Operations

CCA

REF

SSA

REFHIVREFLO

Supply Voltage

Interrupts Sleep Mode

ADC 15

ADC 14

ADC 13

ADC 12

ADC 11

ADC 10

External (I/O) Start Pin

Internal (EV Module) Start Signal

10-Bit

A/D

Converter

A/D

10-Bit

Program Clock

Prescaler

Internal Bus

Sample-

and-

Hold (S/H)

Circuit

8/1

MUX

ADC0/IO ADC1/IO

ADC8/IO ADC9/IO

Figure 12. Analog-to-Digital Converter Module

Page 43

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

serial peripheral interface (SPI) module

The SMJ320F240 devices include the four-pin serial peripheral interface (SPI) module. The SPI is a high-speed synchronous serial-I/O port that allows a serial bit stream of programmed length (one to eight bits) to be shifted into and out of the device at a programmable bit-transfer rate. Normally, the SPI is used for communications between the DSP controller and external peripherals or another processor. T ypical applications include external I/O or peripheral expansion through devices such as shift registers, display drivers, and ADCs. Multidevice communications are supported by the master/slave operation of the SPI.

The SPI module features include the following:

Four external pins: – SPISOMI: SPI slave-output/master-input pin, or general-purpose bidirectional I/O pin – SPISIMO: SPI slave-input/master-output pin, or general-purpose bidirectional I/O pin – SPISTE: SPI slave-transmit-enable pin, or general-purpose bidirectional I/O pin – SPICLK: SPI serial-clock pin, or general-purpose bidirectional I/O pin

Two operational modes: master and slave

Baud rate: 125 different programmable rates / 2.5 Mbps at 10-MHz SYSCLK

Data word format: one to eight data bits

Four clocking schemes controlled by clock polarity and clock-phase bits include: – Falling edge without phase delay: SPICLK active high. SPI transmits data on the falling edge of the

SPICLK signal and receives data on the rising edge of the SPICLK signal. – Falling edge with phase delay: SPICLK active high. SPI transmits data one half-cycle ahead of the

falling edge of the SPICLK signal and receives data on the falling edge of the SPICLK signal. – Rising edge without phase delay: SPICLK inactive low. SPI transmits data on the rising edge of the

SPICLK signal and receives data on the falling edge of the SPICLK signal. – Rising edge with phase delay: SPICLK inactive low. SPI transmits data one half-cycle ahead of the

falling edge of the SPICLK signal and receives data on the rising edge of the SPICLK signal.

Simultaneous receive and transmit operations (transmit function can be disabled in software)

Transmitter and receiver operations are accomplished through either interrupt-driven or polled algorithms.

Ten SPI module control registers: Located in control register frame beginning at address 7040h.

NOTE: All registers in this module are 8-bit registers that are connected to the 16-bit peripheral bus. When a register is accessed, the register

data is in the lower byte (7–0), and the upper byte (15–8) is read as zeros. Writing to the upper byte has no effect.

Figure 13 is a block diagram of the SPI in slave mode.

Page 44

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

serial peripheral Interface (SPI) module (continued)

SPIPC1.3–0

CLOCK

POLARITY

TALK

SYSCLK

456

012

SPI BIT RATE

State Control

SPIBUF

Buffer Register

CLOCK PHASE

1230

RECEIVER

OVERRUN

SPICTL.4

OVERRUN

INT ENA

SPICCR.2–0

SPIBRR.6–0

SPICCR.6 SPICTL.3

SPIBUF.7–0

SPIDAT.7–0

SPICTL.1

MASTER/SLAVE

†

SPI INT FLAG

SPICTL.0

SPI INT

ENA

SPIPC2.7–4

SPIPC2.3–0

SPISTS.7

SPIDAT

Data Register

SPISTS.6

SPIPC1.5

SPICTL.2

SPI CHAR

External

Connections

SPISIMO

SPISOMI

SPIPC1.7–4

SPISTE

SPICLK

SW2

SW3

To CPU

SPISTE

FUNCTION

‡

SW1

SPIPRI.6

SPI Priority

Level 1 INT

Level 6 INT

†

The diagram is shown in the slave mode.

‡

The SPISTE pin is shown as being disabled, meaning that data cannot be transmitted in this mode. Note that SW1, SW2, and SW3 are closed in this configuration.

Figure 13. Four-Pin Serial Peripheral Interface Module Block Diagram

†

Page 45

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

serial communications interface (SCI) module

The SMJ320F240 devices include a serial communications interface (SCI) module. The SCI module supports digital communications between the CPU and other asynchronous peripherals that use the standard non-return-to-zero (NRZ) format. The SCI receiver and transmitter are double-buffered, and each has its own separate enable and interrupt bits. Both can be operated independently or simultaneously in the full-duplex mode. To ensure data integrity, the SCI checks received data for break detection, parity, overrun, and framing errors. The bit rate (baud) is programmable to over 65000 different speeds through a 16-bit baud-select register . Features of the SCI module include:

Two external pins – SCITXD: SCI transmit-output pin or general-purpose bidirectional I/O pin – SCIRXD: SCI receive-input pin or general-purpose bidirectional I/O pin

Baud rate programmable to 64K different rates – Up to 625 Kbps at 10-MHz SYSCLK

Data word format – One start bit – Data word length programmable from one to eight bits – Optional even/odd/no parity bit – One or two stop bits

Four error-detection flags: parity, overrun, framing, and break detection

Two wake-up multiprocessor modes: idle-line and address bit

Half- or full-duplex operation

Double-buffered receive and transmit functions

Transmitter and receiver operations can be accomplished through interrupt-driven or polled algorithms with status flags.

– Transmitter: TXRDY flag (transmitter-buffer register is ready to receive another character) and

TX EMPTY flag (transmitter-shift register is empty) – Receiver: RXRDY flag (receiver-buffer register is ready to receive another character), BRKDT flag

(break condition occurred), and RX ERROR (monitoring four interrupt conditions)

Separate enable bits for transmitter and receiver interrupts (except BRKDT)

NRZ (non return-to-zero) format

Eleven SCI module control registers located in the control register frame beginning at address 7050h

NOTE: All registers in this module are 8-bit registers that are interfaced to the 16-bit peripheral bus. When a register is accessed, the register

data is in the lower byte (7–0), and the upper byte (15–8) is read as zeros. Writing to the upper byte has no effect.

Figure 14 shows the SCI module block diagram.

Page 46

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

serial communications interface (SCI) module (continued)

SYSCLK

WUT

Frame Format and Mode

EVEN/ODD ENABLE

PARITY

SCI RX Interrupt

BRKDT

SCICTL1.1

RXRDY

SCIRXST.6

SCICTL1.3

External

Connections

SCICTL2.1

RX/BK INT ENA

SCIRXD

SCIRXST.1

TXENA

SCI TX Interrupt

TX EMPTY

TXRDY

SCICTL2.0

TX INT ENA

SCIPC2.7–4

SCITXD

RXENA

SCIPC2.3–0

SCIRXD

CLOCK ENA

SCICTL1.4

RXWAKE

SCICTL1.0

SCICTL1.6

RX ERR INT ENA

TXWAKE

SCITXD

TXINT

SCICCR.6 SCICCR.5

SCITXBUF.7–0

SCIHBAUD. 15–8

Baud Rate

(MSbyte)

SCILBAUD. 7–0

SCIRXBUF.7–0

Receiver-Data

Buffer

SCIRXST.7

PEFE OE

RX ERROR

SCIRXST.4–2

Transmitter-Data

Buffer Register

SCICTL2.6

SCICTL2.7

Baud Rate

RXSHF

TXSHF Register

SCIRXST.5

RXINT

SCIPRI.5

SCIPRI.6

SCI PRIORITY LEVEL

Level 2 Int. Level 1 Int.

1 0

SCI TX

PRIORITY

SCI RX

PRIORITY

Figure 14. Serial Communications Interface (SCI) Module Block Diagram

Page 47

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

watchdog (WD) and real-time interrupt (RTI) module

The SMJ320F240 device includes a watchdog (WD) timer and a real-time interrupt (RTI) module. The WD function of this module monitors software and hardware operation by generating a system reset if it is not periodically serviced by software by having the correct key written. The RTI function provides interrupts at programmable intervals. See Figure 15 for a block diagram of the WD / RTI module. The WD/RTI module features include the following:

WD Timer – Seven different WD overflow rates ranging from 15.63 ms to 1 s – A WD-reset key (WDKEY) register that clears the WD counter when a correct value is written, and

generates a system reset if an incorrect value is written to the register – A WD flag (WD FLAG) that indicates whether the WD timer initiated a system reset – WD check bits that initiate a system reset if an incorrect value is written to the WD control register

(WDCR)

Automatic activation of the WD timer, once system reset is released – Three WD control registers located in control register frame beginning at address 7020h.

Real-time interrupt (RTI): – Interrupt generation at a programmable frequency of 1 to 4096 interrupts per second – Interrupt or polled operation – Two RTI control registers located in control register frame beginning at address 7020h.

All registers in this module are 8-bit registers that are connected to the 16-bit peripheral bus. When a register is accessed, the register data is in the lower byte (7–0), and the upper byte (15–8) is read as zeros. Writing to the upper byte has no effect.

Figure 15 shows the WD/RTI block diagram.

Page 48

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

watchdog (WD) and real-time interrupt (RTI) module (continued)

55 + AA

Detector

CLR

System Reset Request

WDCNTR.7–0

INT Request (Level 1 Only)

/16384 /2048

/512

/256

111

110

101

100

011

010

000

001

CLR

8-Bit

Real-Time

Counter

7-Bit

Free-

Running

Counter

/128 /64

/32 /16 /8 /4

111

110

101

100

011

010

001

000

Any

Write

16-kHz

WDCLK

System

Reset

System Reset

CLR

One-Cycle

Delay

Watchdog Reset Key

8-Bit Watchdog

Counter

CLR

RTICNTR.7–0

CLR

INT Acknowledge

Bad WDCR Key

Good Key

Bad Key

WDPS

WDCR.2–0

210

WDKEY.7–0

WDCHK2–0 WDCR.5–3

†

WDCR.7

WD FLAG

Reset Flag

RTIPS

RTICR.2–0

210

RTICR.7

RTI FLAG

Clear RTI Flag

RTICR.7

RTI FLAG

Read RTI Flag

RTICR.7

RTI FLAG

Clear RTI Flag

RTICR.6

RTI ENA

PS/257

WDDIS

WDCR.6

101

(Constant

Value)

3 3

†

Writing to bits WDCR.5–3 with anything but the correct pattern (101) generates a system reset.

Figure 15. WD/RTI Module Block Diagram

Page 49

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

scan-based emulation

SMJ320F240 devices use scan-based emulation for code- and hardware-development support. Serial scan interface is provided by the test-access port. Scan-based emulation allows the emulator to control the processor in the system without the use of intrusive cables to the full pinout of the device.

SMJ320F240 instruction set

The ’F240 microprocessor implements a comprehensive instruction set that supports both numeric-intensive signal-processing operations and general-purpose applications, such as multiprocessing and high-speed control. Source code for the ’C1x and ’C2x DSPs is upwardly compatible with the ’x2xx devices.

For maximum throughput, the next instruction is prefetched while the current one is being executed. Because the same data lines are used to communicate to external data, program, or I/O space, the number of cycles an instruction requires to execute varies, depending upon whether the next data operand fetch is from internal or external memory. Highest throughput is achieved by maintaining data memory on chip and using either internal or fast external program memory.

addressing modes

The SMJ320F240 instruction set provides four basic memory-addressing modes: direct, indirect, immediate, and register.

In direct addressing, the instruction word contains the lower 7 bits of the data memory address. This field is concatenated with the 9 bits of the data memory page pointer (DP) to form the 16-bit data memory address. Therefore, in the direct-addressing mode, data memory is paged effectively with a total of 512 pages, each page containing 128 words.

Indirect addressing accesses data memory through the auxiliary registers. In this addressing mode, the address of the instruction operand is contained in the currently selected auxiliary register. Eight auxiliary registers (AR0–AR7) provide flexible and powerful indirect addressing. T o select a specific auxiliary register, the auxiliary register pointer (ARP) is loaded with a value from 0 to 7 for AR0 through AR7, respectively.

There are seven types of indirect addressing: autoincrement or autodecrement, postindexing by adding or subtracting the contents of AR0, single-indirect addressing with no increment or decrement, and bit-reversed addressing [used in fast fourier transforms (FFTs)] with increment or decrement. All operations are performed on the current auxiliary register in the same cycle as the original instruction, following which the current auxiliary register and ARP can be modified.

In immediate addressing, the actual operand data is provided in a portion of the instruction word or words. There are two types of immediate addressing: long and short. In short-immediate addressing, the data is contained in a portion of the bits in a single-word instruction. In long-immediate addressing, the data is contained in the second word of a two-word instruction. The immediate-addressing mode is useful for data that does not need to be stored or used more than once during the course of program execution (for example, initialization values or constants).

The register-addressing mode uses operands in CPU registers either explicitly , such as with a direct reference to a specific register, or implicitly, with instructions that intrinsically reference certain registers. In either case, operand reference is simplified because 16-bit values can be used without specifying a full 16-bit operand address or immediate value.

repeat feature

The repeat function can be used with instructions (as defined in T able 14) such as multiply/accumulates (MAC and MACD), block moves (BLDD and BLPD), I/O transfers (IN/OUT ), and table read/writes (TBLR/TBLW). These instructions, although normally multicycle, are pipelined when the repeat feature is used, and they effectively become single-cycle instructions. For example, the table-read instruction can take three or more cycles to execute, but when the instruction is repeated, a table location can be read every cycle.

Page 50

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

repeat feature (continued)

The repeat counter (RPTC) is loaded with the addressed data-memory location if direct or indirect addressing is used, and with an 8-bit immediate value if short-immediate addressing is used. The RPTC register is loaded by the RPT instruction. This results in a maximum of N + 1 executions of a given instruction. RPTC is cleared by reset. Once a repeat instruction (RPT) is decoded, all interrupts, including NMI (but excluding reset), are masked until the completion of the repeat loop.

instruction set summary

This section summarizes the operation codes (opcodes) of the instruction set for the ’F240 digital signal processors. This instruction set is a superset of the ’C1x and ’C2x instruction sets. The instructions are arranged according to function and are alphabetized by mnemonic within each category. The symbols in Table 13 are used in the instruction set summary table (Table 14). The TI ’C2xx assembler accepts ’C2x instructions.

The number of words that an instruction occupies in program memory is specified in column 3 of Table 14. Several instructions specify two values separated by a slash mark (/) for the number of words. In these cases, different forms of the instruction occupy a different number of words. For example, the ADD instruction occupies one word when the operand is a short-immediate value or two words if the operand is a long-immediate value.

The number of cycles that an instruction requires to execute is also in column 3 of T able 14. All instructions are assumed to be executed from internal program memory (RAM) and internal data dual-access memory. The cycle timings are for single-instruction execution, not for repeat mode.

Page 51

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

Table 13. SMJ320F240 Opcode Symbols

SYMBOL DESCRIPTION

A Address ACC Accumulator ACCB Accumulator buffer ARx Auxiliary register value (0–7) BITx 4-bit field that specifies which bit to test for the BIT instruction BMAR Block-move address register DBMR Dynamic bit-manipulation register I Addressing-mode bit II...II Immediate operand value INTM Interrupt-mode flag bit INTR# Interrupt vector number K Constant PREG Product register PROG Program memory RPTC Repeat counter SHF, SHFT 3/4-bit shift value TC Test-control bit

T P

Two bits used by the conditional execution instructions to represent the conditions TC, NTC, and BIO.

T P Meaning

0 0 BIO

low 0 1 TC=1 1 0 TC=0 1 1 None of the above conditions

TREGn Temporary register n (n = 0, 1, or 2)

Z L V C

4-bit field representing the following conditions:

Z: ACC = 0 L: ACC < 0 V: Overflow C: Carry

A conditional instruction contains two of these 4-bit fields. The 4-LSB field of the instruction is a 4-bit mask field. A 1 in the corresponding mask bit indicates that the condition is being tested. The second 4-bit field (bits 4–7) indicates the state of the conditions designated by the mask bits as being tested. For example, to test for ACC ≥ 0, the Z and L fields are set while the V and C fields are not set. The next 4-bit field contains the state of the conditions to test. The Z field is set to indicate testing of the condition ACC = 0, and the L field is reset to indicate testing of the condition ACC ≥ 0. The conditions possible with these 8 bits are shown in the BCND and CC instructions. T o determine if the conditions are met, the 4-LSB bit mask is ANDed with the conditions. If any bits are set, the conditions are met.

Page 52

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

T able 14. SMJ320F240 Instruction Set Summary

’F240

WORDS/

OPCODE

MNEMONIC

DESCRIPTION

CYCLES

MSB LSB

ABS Absolute value of accumulator 1/1 101 1 1110 0000 0000

Add to accumulator with shift 1/1 0010 SHFT IADD RESS Add to high accumulator 1/1 01 10 0001 IADD RESS

ADD

Add to accumulator short immediate 1/1 1011 1000 KKKK KKKK

Add to accumulator long immediate with shift 2/2 101 1 1111 1001 SHFT ADDC Add to accumulator with carry 1/1 01 10 0000 IADD RESS ADDS Add to low accumulator with sign extension suppressed 1/1 01 10 0010 IADD RESS ADDT Add to accumulator with shift specified by T register 1/1 01 10 0011 IADD RESS ADRK Add to auxiliary register short immediate 1/1 0111 1000 KKKK KKKK

AND with accumulator 1/1 01 10 1110 IADD RESS

1011 1111 1011 SHFT

AND

AND immediate with accumulator with shift

2/2

16-Bit Constant

1011 1110 1000 0001

AND immediate with accumulator with shift of 16

2/2

16-Bit Constant

APAC Add P register to accumulator 1/1 1011 1110 0000 0100

0111 1001 IADD RESS

Branch unconditionally

2/4

Branch Address

BACC Branch to address specified by accumulator 1/4 101 1 1110 0010 0000

0111 101 1 IADD RESS

BANZ

Branch on auxiliary register not zero

2/4/2

Branch Address

1110 0001 0000 0000

Branch if TC bit ≠ 0

2/4/2

Branch Address

1110 0010 0000 0000

Branch if TC bit

2/4/2

Branch Address

1110 0011 0001 0001

Branch on carry

2/4/2

Branch Address

1110 0011 1000 1100

Branch if accumulator ≥ 0

2/4/2

Branch Address

1110 0011 0000 0100

Branch if accumulator > 0

2/4/2

Branch Address

BCND

1110 0000 0000 0000

Branch on I/O status low

2/4/3

Branch Address

1110 0011 1100 1100

Branch if accumulator ≤ 0

2/4/2

Branch Address

1110 0011 0100 0100

Branch if accumulator

2/4/2

Branch Address

1110 0011 0000 0001

Branch on no carr

2/4/2

Branch Address

1110 0011 0000 0010

Branch if no overflo

2/4/2

Branch Address

Page 53

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

Table 14. SMJ320F240 Instruction Set Summary (Continued)

’F240

WORDS/

OPCODE

MNEMONIC

DESCRIPTION

CYCLES

MSB LSB

1110 0011 0000 1000

Branch if accumulator ≠ 0

2/4/2

Branch Address

1110 0011 0010 0010

BCND

Branch on overflo

2/4/2

Branch Address

1110 0011 1000 1000

Branch if accumulator

2/4/2

Branch Address BIT Test bit 1/1 0100 BITx IADD RESS BITT Test bit specified by TREG 1/1 0110 1111 IADD RESS

1010 1000 IADD RESS

Block move from data memory to data memory source immediate

2/3

Branch Address

BLDD

†

1010 1001 IADD RESS

Block move from data memory to data memory destination immediate

2/3

Branch Address

1010 0101 IADD RESS

BLPD

Block move from program memory to data memor

2/3

Branch Address CALA Call subroutine indirect 1/4 1011 1110 0011 0000

0111 1010 IADD RESS

CALL

Call subroutine

2/4

Routine Address

1110 10TP ZLVC ZLVC

Conditional call subroutine

2/4/2

Routine Address Configure block as data memory 1/1 1011 1110 0100 0100 Enable interrupt 1/1 101 1 1110 0100 0000 Reset carry bit 1/1 1011 1110 0100 1110

CLRC

Reset overflow mode 1/1 1011 1110 0100 0010 Reset sign-extension mode 1/1 1011 1110 0100 0110 Reset test/control flag 1/1 1011 1110 0100 1010 Reset external flag 1/1 1011 1110 0100 1100

CMPL Complement accumulator 1/1 101 1 1110 0000 0001 CMPR Compare auxiliary register with auxiliary register AR0 1/1 1011 1111 0100 01CM DMOV Data move in data memory 1/1 0111 0111 IADD RESS IDLE Idle until interrupt 1/1 1011 1110 0010 0010

1010 1111 IADD RESS

Input data from port

2/2

16BIT I/O PORT ADRS

INTR

Software-interrupt 1/4 1011 1110 011K KKKK Load accumulator with shift 1/1 0001 SHFT IADD RESS

1011 1111 1000 SHFT

LACC

Load accumulator long immediate with shift

2/2

16-Bit Constant

Zero low accumulator and load high accumulator 1/1 0110 1010 IADD RESS

†

In ’F240 devices, the BLDD instruction does not work with memory-mapped registers IMR, IFR, and GREG.

Page 54

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

Table 14. SMJ320F240 Instruction Set Summary (Continued)

’F240

WORDS/

OPCODE

MNEMONIC

DESCRIPTION

CYCLES

MSB LSB

Load accumulator immediate short 1/1 101 1 1001 KKKK KKKK Zero accumulator 1/1 101 1 1001 0000 0000

LACL

Zero low accumulator and load high accumulator 1/1 01 10 1010 IADD RESS Zero low accumulator and load low accumulator with no sign extension 1/1 0110 1001 IADD RESS

LACT Load accumulator with shift specified by T register 1/1 01 10 1011 IADD RESS

Load auxiliary register 1/2 0000 0ARx IADD RESS Load auxiliary register short immediate 1/2 101 1 0ARx KKKK KKKK

LAR

1011 1111 0000 1ARx

Load auxiliary register long immediate

2/2

16-Bit Constant

Load data-memory page pointer 1/2 0000 1101 IADD RESS

LDP

Load data-memory page pointer immediate 1/2 101 1 110P AGEP OINT

LPH Load high-P register 1/1 0111 0101 IADD RESS

Load status register ST0 1/2 0000 1110 IADD RESS

LST

Load status register ST1 1/2 0000 1111 IADD RESS LT Load TREG 1/1 0111 0011 IADD RESS LTA Load TREG and accumulate previous product 1/1 011 1 0000 IADD RESS LTD Load TREG, accumulate previous product, and move data 1/1 0111 0010 IADD RESS LTP Load TREG and store P register in accumulator 1/1 0111 0001 IADD RESS LTS Load TREG and subtract previous product 1/1 01 11 0100 IADD RESS

1010 0010 IADD RESS

MAC

Multiply and accumulate

2/3

16-Bit Constant

1010 0011 IADD RESS

MACD

Multiply and accumulate with data move

2/3

16-Bit Constant

Load auxiliary register pointer 1/1 1000 1011 1000 1ARx

MAR

Modify auxiliary register 1/1 1000 1011 IADD RESS

Multiply (with TREG, store product in P register) 1/1 0101 0100 IADD RESS

MPY

Multiply immediate 1/1 110C KKKK KKKK KKKK MPYA Multiply and accumulate previous product 1/1 0101 0000 IADD RESS MPYS Multiply and subtract previous product 1/1 0101 0001 IADD RESS MPYU Multiply unsigned 1/1 0101 0101 IADD RESS NEG Negate accumulator 1/1 1011 1110 0000 0010

NMI

Nonmaskable interrupt 1/4 101 1 1110 0101 0010 NOP No operation 1/1 1000 1011 0000 0000 NORM Normalize contents of accumulator 1/1 1010 0000 IADD RESS

OR with accumulator 1/1 01 10 1101 IADD RESS

1011 1111 1100 SHFT

OR immediate with accumulator with shift

2/2

16-Bit Constant

1011 1110 1000 0010

OR immediate with accumulator with shift of 16

2/2

16-Bit Constant

OUT Output data to port 2/3

0000

16BIT

1100

I/O

IADD

PORT

RESS ADRS

PAC Load accumulator with P register 1/1 1011 1110 0000 0011

Page 55

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

Table 14. SMJ320F240 Instruction Set Summary (Continued)

’F240

WORDS/

OPCODE

MNEMONIC

DESCRIPTION

CYCLES

MSB LSB

POP Pop top of stack to low accumulator 1/1 1011 1110 0011 0010 POPD Pop top of stack to data memory 1/1 1000 1010 IADD RESS PSHD Push data-memory value onto stack 1/1 0111 0110 IADD RESS PUSH Push low accumulator onto stack 1/1 1011 1110 0011 1100 RET Return from subroutine 1/4 1110 1111 0000 0000

RETC

Conditional return from subroutine 1/4/2 1110 11TP ZLVC ZL VC ROL Rotate accumulator left 1/1 1011 1110 0000 1100 ROR Rotate accumulator right 1/1 101 1 1110 0000 1101

Repeat instruction as specified by data-memory value 1/1 0000 1011 IADD RESS

RPT

Repeat instruction as specified by immediate value 1/1 1011 1011 KKKK KKKK SACH Store high accumulator with shift 1/1 1001 1SHF IADD RESS SACL Store low accumulator with shift 1/1 1001 0SHF IADD RESS SAR Store auxiliary register 1/1 1000 0ARx IADD RESS SBRK Subtract from auxiliary register short immediate 1/1 0111 1100 KKKK KKKK

Set carry bit 1/1 1011 1110 0100 1111

Configure block as program memory 1/1 1011 1110 0100 0101

Disable interrupt 1/1 101 1 1110 0100 0001 SETC

Set overflow mode 1/1 1011 1110 0100 0011

Set test/control flag 1/1 1011 1110 0100 1011

Set external flag XF 1/1 1011 1110 0100 1101

Set sign-extension mode 1/1 1011 1110 0100 0111 SFL Shift accumulator left 1/1 101 1 1110 0000 1001 SFR Shift accumulator right 1/1 1011 1110 0000 1010 SPAC Subtract P register from accumulator 1/1 1011 1110 0000 0101 SPH Store high-P register 1/1 1000 1101 IADD RESS SPL Store low-P register 1/1 1000 1 100 IADD RESS SPM Set P register output shift mode 1/1 1011 1111 IADD RESS SQRA Square and accumulate 1/1 0101 0010 IADD RESS SQRS Square and subtract previous product from accumulator 1/1 0101 0011 IADD RESS

Store status register ST0 1/1 1000 1110 IADD RESS

SST

Store status register ST1 1/1 1000 1111 IADD RESS

1010 1110 IADD RESS

SPLK

Store long immediate to data memor

2/2

16-Bit Constant

1011 1111 1010 SHFT

Subtract from accumulator long immediate with shift

2/2

16-Bit Constant

SUB

Subtract from accumulator with shift 1/1 0011 SHFT IADD RESS

Subtract from high accumulator 1/1 01 10 0101 IADD RESS

Subtract from accumulator short immediate 1/1 1011 1010 KKKK KKKK

Page 56

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

instruction set summary (continued)

Table 14. SMJ320F240 Instruction Set Summary (Continued)

’F240

WORDS/

OPCODE

MNEMONIC

DESCRIPTION

CYCLES

MSB LSB

SUBB Subtract from accumulator with borrow 1/1 0110 0100 IADD RESS SUBC Conditional subtract 1/1 0000 1010 IADD RESS SUBS Subtract from low accumulator with sign extension suppressed 1/1 0110 0110 IADD RESS SUBT Subtract from accumulator with shift specified by TREG 1/1 01 10 0111 IADD RESS TBLR T able read 1/3 1010 0110 IADD RESS TBLW Table write 1/3 1010 01 11 IADD RESS TRAP Software interrupt 1/4 1011 1110 0101 0001

Exclusive-OR with accumulator 1/1 0110 1 100 IADD RESS

1011 1111 1101 SHFT

XOR

Exclusive-OR immediate with accumulator with shift

2/2

16-Bit Constant

1011 1110 1000 0011

Exclusive-OR immediate with accumulator with shift of 16

2/2

16-Bit Constant

ZALR Zero low accumulator and load high accumulator with rounding 1/1 0110 1000 IADD RESS

Page 57

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

absolute maximum ratings over operating free-air temperature range (unless otherwise noted)

†

Supply voltage range, VDD (see Note 1) –0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Input voltage range –0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output voltage range –0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Operating free-air temperature range, T

–55°C to125°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Storage temperature range, T

stg

–55°C to 150°C. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Resolution 10-bit (1024 values). . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Monotonic Assured. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Output conversion mode 000h to 3FFh (000h for VI ≤ V

SSA

; 3FFh for VI ≥ V

CCA

). . . . . . . . . . . . . . . . . . . . . . .

Analog supply reference source, V

REFHI

and V

REFLO

–0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Analog input voltage range, V

–0.3 V to 7 V. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

†

Stresses beyond those listed under “absolute maximum ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated under “recommended operating conditions” is not implied. Exposure to absolute-maximum-rated conditions for extended periods may affect device reliability.

NOTES: 1 VDD refers to supply voltage types CVDD (digital core supply voltage), DVDD

(digital I/O supply voltage), and V

DDP

(programming

voltage supply). All voltages are measured with respect to VSS.

2. Measured with respect to CVSS.

recommended operating conditions

MIN NOM MAX UNIT

DVDDDigital supply voltage 4.5 5 5.5 V V

Supply voltage return 0 V

XTAL1/CLKIN 3 VDD + 0.3

High-level input voltage

PORESET

, NMI, RS, and TRST 2.2 VDD + 0.3

All other inputs 2 VDD + 0.3

XTAL1/CLKIN –0.3 0.7

VILLow-level input voltage

All other inputs –0.3 0.8

RS –19

High-level output current

See complete listing of pin names

‡

–16

mA All other outputs –23 RS 8

Low-level output current

See complete listing of pin names

‡

7.5

mA All other outputs 14.5

Operating free-air temperature –55 125 °C

Flash programming operating temperature –40 85 °C

Thermal resistance, junction-to-ambient 55.71 °C/W

Thermal resistance, junction-to-case 2.57 °C/W

‡

IOPA[0:3], SCIRXD/IO, SCITXD/IO, XINT2/IO, XINT3/IO, ADCSOC/IOPC0, TMRDIR/IOPB6, TMRCLK/IOPB7 EMU0, EMU1/OFF

Page 58

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

output current variation with output voltage: SPICE simulation results (4.5 V, 150° C)

Table 15. Typical Output Source Current vs. Output Voltage High

2.4 V

3.0 V

3.5 V

4.0 V

RS –19 mA –16 mA –12 mA –6 mA See complete listing of pin names

†

–16 mA –13.5 mA –9.5 mA –5.0 mA

All other inputs –23 mA –18.5 mA –13 mA –6.5 mA

†

IOPA[0:3], SCIRXD/IO, SCITXD/IO, XINT2/IO, XINT3/IO, ADCSOC/IOPC0, TMRDIR/IOPB6, TMRCLK/IOPB7 EMU0, EMU1/OFF

Table 16. Typical Output Sink Current vs. Output Voltage Low

0.6 V

0.4 V

0.2 V

RS 8 mA 6 mA 3 mA See complete listing of pin names

†

7.5 mA 5 mA 2.5 mA

All other inputs 14.5 mA 10 mA 5.0 mA

†

IOPA[0:3], SCIRXD/IO, SCITXD/IO, XINT2/IO, XINT3/IO, ADCSOC/IOPC0, TMRDIR/IOPB6, TMRCLK/IOPB7 EMU0, EMU1/OFF

electrical characteristics over recommended ranges of supply voltage and operating free-air temperature (unless otherwise noted)

PARAMETER TEST CONDITIONS MIN TYP MAX UNIT

High-level output voltage

IOH = MAX 2.4 V

Low-level output voltage IOL = MAX 0.6 V

TRST with internal pulldown –10 500

Input current

EMU0, EMU1/OFF

, TMS, TCK,

and TDI, with internal pullup

= V

or V

–500 10

µA

All other input pins

ISS DD

–10 10

Output current, high-impedance state (off-state)

VO = VDD or 0 V –5 5 µA

Supply current, operating mode t

c(CO)

= 50 ns 80

Supply current, Idle 1 low-power mode t

c(CO)

= 50 ns 50

Supply current, Idle 2 low-power mode t

c(CO)

= 50 ns 7

Supply current, PLL power-down mode t

c(CO)

= 50 ns 1

Supply current, OSC power-down mode t

c(CO)

= 50 ns 400 µA

Input capacitance 15 pF

Output capacitance 15 pF

DDP

Flash programming supply current t

c(CO)

= 50 ns 10 mA

Page 59

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

Tester Pin

Electronics

LOAD

Output Under Test

50 Ω

Where: I

= 2 mA (all outputs)

= 300 µA (all outputs)

LOAD

= 1.5 V

= 110-pF typical load-circuit capacitance

Figure 16. Test Load Circuit

signal transition levels

TTL-output levels are driven to a minimum logic-high level of 2.4 V and to a maximum logic-low level of 0.7 V .

Figure 17 shows the TTL-level outputs.

0.7 V

20%

2.4 V 80%

Figure 17. TTL-Level Outputs

TTL-compatible output transition times are specified as follows:

For a

high-to-low transition

, the level at which the output is said to be no longer high is below 80% of the total voltage range and lower, and the level at which the output is said to be low is 20% of the total voltage range and lower.

For a

low-to-high transition

, the level at which the output is said to be no longer low is 20% of the total voltage range and higher, and the level at which the output is said to be high is 80% of the total voltage range and higher.

Page 60

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

Figure 18 shows the TTL-level inputs.

0.7 V

10%

2.0 V 90%

Figure 18. TTL-Level Inputs

TTL-compatible input transition times are specified as follows:

For a

high-to-low transition

on an input signal, the level at which the input is said to be no longer high is 90% of the total voltage range and lower, and the level at which the input is said to be low is 10% of the total voltage range and lower.

For a

low-to-high transition

on an input signal, the level at which the input is said to be no longer low is 10% of the total voltage range and higher, and the level at which the input is said to be high is 90% of the total voltage range and higher.

Page 61

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

timing parameter symbology

Timing parameter symbols used are created in accordance with JEDEC Standard 100-A. To shorten the symbols, some of the pin names and other related terminology have been abbreviated as follows:

A A[15:0] MS Memory strobe pins IS, DS, or PS Cl XTAL1/CLKIN R READY CO CLKOUT/IOPC1 RD Read cycle or W/R D D[15:0] RS RS or PORESET INT NMI, XINT1, XINT2/IO, and XINT3/IO W Write cycle or WE

Lowercase subscripts and their meanings: Letters and symbols and their meanings: a access time H High c cycle time (period) L Low d delay time V V alid f fall time X Unknown, changing, or don’t care level h hold time Z High impedance r rise time su setup time t transition time v valid time w pulse duration (width)

general notes on timing parameters

All output signals from the SMJ320F240 devices (including CLKOUT) are derived from an internal clock such that all output transitions for a given half-cycle occur with a minimum of skewing relative to each other.

The signal combinations shown in the following timing diagrams may not necessarily represent actual cycles. For actual cycle examples, see the appropriate cycle description section of this data sheet.

External

Clock Signal

(toggling 0–5 V)

C2 (see Note A)

(see Note A)

Crystal

XTAL2XTAL1/CLKIN XTAL1/CLKIN XTAL2

See Note B

NOTES: A. For the values of C1 and C2, see the crystal manufacturer’s specification.

B. Use this configuration in conjunction with OSCBYP

pin pulled low.

C. Texas Instruments encourages customers to submit samples of the device to the resonator/crystal vendor for full characterization.

Figure 19. Recommended Crystal/Clock Connection

Page 62

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

CLOCK OPTIONS

clock options

PARAMETER CLKMD[1:0]

Clock-in mode, divide-by-2 00 Clock-in mode, divide-by-1 01 PLL enabled, divide-by-2 before PLL lock 10 PLL enabled, divide-by-1 before PLL lock 11

input clock frequency over operating free-air temperature range (PLL circuit disabled)

PARAMETER MIN MAX UNIT

Divide-by-2 mode

†

Divide-by-1 mode

†

This device utilizes a fully static design and, therefore, can operate with input clock cycle time [t

c(CI)

] approaching infinity. The device is

characterized at frequencies approaching 0 Hz.

switching characteristics over recommended operating conditions [H = 0.5 t

c(CO)

]

(see Note 3 and Figure 20)

PARAMETER CLOCK MODE MIN TYP MAX UNIT

CLKIN divide by 2 2t

c(Cl)

†

c(CPU)

Cycle ti

me,

CPUCLK

CLKIN divide by 1 t

c(Cl)

CPUCLK divide by 2 2t

c(CPU)

†

c(SYS)

Cycle ti

me,

SYSCLK

CPUCLK divide by 4

‡

c(CPU)

CLKIN divide by 2 2t

c(Cl)

†

c(CO)

Cycle ti

me,

CLKOUT

CLKIN divide by 1 t

c(Cl)

†

d(CIH-CO)

Delay time, XTAL1/CLKIN high to CLKOUT high/low 3 18 32 ns

f(CO)

Fall time, CLKOUT 5 ns

r(CO)

Rise time, CLKOUT 5 ns

w(COL)

Pulse duration, CLKOUT low H–10 H–6 H–1 ns

w(COH)

Pulse duration, CLKOUT high H+0 H+4 H+8 ns

†

This device utilizes a fully static design and, therefore, can operate with input clock cycle time [t

c(CI)

] approaching infinity. The device is

characterized at frequencies approaching 0 Hz.

‡

SYSCLK is initialized to divide-by-4 mode by any device reset.

NOTE 3: Timings assume CLKOUT is set to output CPUCLK. CLKOUT is initialized to CPUCLK by power-on reset.

timing requirements (see Figure 20)

CLOCK-IN MODE MIN MAX UNIT

Divide by 2 25 †

c(Cl)

Cycle ti

me,

XTAL1/CLKIN

Divide by 1 50 †

f(Cl)

Fall time, XTAL1/CLKIN 5 ns

r(Cl)

Rise time, XTAL1/CLKIN 5 ns

w(CIL)

Pulse duration, XTAL1/CLKIN low as a percentage of t

c(Cl)

45 55 %

w(CIH)

Pulse duration, XTAL1/CLKIN high as a percentage of t

c(Cl)

45 55 %

†

This device utilizes a fully static design and, therefore, can operate with input clock cycle time [t

c(CI)

] approaching infinity. The device is

characterized at frequencies approaching 0 Hz.

Page 63

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

CLOCK OPTIONS (CONTINUED)

r(CO)

f(CO)

w(COH)

CLKOUT/IOPC1

XTAL1/CLKIN

w(COL)

d(CIH–CO)

f(CI)

r(CI)

w(CIL)

w(CIH)

c(CO)

c(CI)

Figure 20. External Divide-by-Two Clock Timings

external reference crystal with PLL-circuit-enabled clock option

The internal oscillator is enabled by connecting OSCBYP to V

and connecting a crystal across XT AL1/CLKIN and XT AL2 pins as shown in Figure 19. The crystal should be in either fundamental or overtone operation and parallel resonant, with an effective series resistance of 30 W and a power dissipation of 1 mW; it should be specified at a load capacitance of 20 pF. Note that overtone crystals require an additional tuned-LC circuit.

input characteristics with the PLL circuit enabled

PARAMETER

EXTERNAL REFERENCE

CRYSTAL

MIN TYP MAX UNIT

4 MHz 4

Input clock frequency

6 MHz

MHz

8 MHz 8

C1, C2 Load capacitance 10 pF

switching characteristics over recommended operating conditions, H = 0.5 t

c(CO)

(see Figure 21)

PARAMETER CLOCK MODE MIN TYP MAX UNIT

before PLL lock, CLKIN divide by 2

c(Cl)

†

c(CPU)

Cycle time, CPUCLK

before PLL lock, CLKIN divide by 1

c(Cl)

after PLL lock 50 CPUCLK divide by 2 2t

c(CPU)

†

c(SYS)

Cycle ti

me,

SYSCLK

CPUCLK divide by 4

‡

c(CPU)

c(CO)

Cycle time, CLKOUT

50 † ns

f(CO)

Fall time, CLKOUT 5 ns

r(CO)

Rise time, CLKOUT 5 ns

w(COL)

Pulse duration, CLKOUT low H–10 H–6 H–1 ns

w(COH)

Pulse duration, CLKOUT high H+0 H+4 H+8 ns

Transition time, PLL synchronized after PLL en-

before PLL lock, CLKIN divide by 2

2000t

c(Cl)

abled

before PLL lock, CLKIN divide by 1

1000t

c(Cl)

†

This device utilizes a fully static design and, therefore, can operate with input clock cycle time [t

c(CI)

] approaching infinity. The device is

characterized at frequencies approaching 0 Hz.

‡

SYSCLK is initialized to divide-by-4 mode by any device reset.

Page 64

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

timing requirements (see Note 3 and Figure 21)

EXTERNAL REFERENCE

CRYSTAL

MIN MAX UNIT

4 MHz 250 †

c(Cl)

Cycle time, XTAL1/CLKIN

6 MHz 167

()

8 MHz 125

f(Cl)

Fall time, XTAL1/CLKIN 5 ns

r(Cl)

Rise time, XTAL1/CLKIN 5 ns

w(CIL)

Pulse duration, XTAL1/CLKIN low as a percentage of t

c(CI)

40 60 %

w(CIH)

Pulse duration, XTAL1/CLKIN high as a percentage of t

c(CI)

40 60 %

†

This device utilizes a fully static design and, therefore, can operate with input clock cycle time [t

c(CI)

] approaching infinity. The device is

characterized at frequencies approaching 0 Hz.

NOTE 3: Timings assume CLKOUT is set to output CPUCLK. CLKOUT is initialized to CPUCLK by power-on reset.

XTAL1/CLKIN

c(CI)

w(CIL)

w(CIH)

w(COL)

w(COH)

c(CO)

f(Cl)

r(Cl)

r(CO)

f(CO)

CLKOUT

Figure 21. CLKIN-to-CLKOUT Timings for PLL Oscillator Mode, Multiply-by-5 Option With 4-MHz Crystal

Page 65

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

low-power mode timings

switching characteristics over recommended operating conditions

)

(see Figure 22, Figure 23,

Figure 24, and Figure 25)

PARAMETER LOW-POWER MODES MIN TYP MAX UNIT

Delay time, CLKOUT switching to

Idle 1 and Idle 2 15 X t

c(CO)

d(WAKE-A)

y, g

program execution resume (see Note 3)

PLL or OSC power down

15 X t

c(CI)

d(IDLE-COH)

Delay time, Idle instruction executed to CLKOUT high (see Note 3)

Idle 2, PLL power down, OSC power down

500 ns

d(WAKE-LOCK)

Delay time, CLKOUT switching to PLL synchronized (see Note 3)

PLL or OSC power down 100 µs

d(WAKE-OSC)

Delay time, wakeup interrupt asserted to oscillator running

OSC power down 10 ms

d(IDLE-OSC)

Delay time, Idle instruction executed to oscillator power off

OSC power down 60 µs

NOTE 3: Timings assume CLKOUT is set to output CPUCLK. CLKOUT is initialized to CPUCLK by power-on reset.

WAKE INT

CLKOUT/IOPC1

A0–A15

d(WAKE–A)

Figure 22. IDLE1 Entry and Exit Timings

d(WAKE–A)

d(IDLE–COH)

WAKE INT

CLKOUT/IOPC1

A0–A15

Figure 23. IDLE2 Entry and Exit Timings

Page 66

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

low-power mode timings (continued)

WAKE INT

CLKOUT/IOPC1

A0–A15

d(IDLE–COH)

d(WAKE–LOCK)

d(WAKE–A)

Figure 24. PLL Power-Down Entry and Exit Timings

d(WAKE–A)

d(WAKE–LOCK)

d(WAKE–OSC)

d(IDLE–COH)

d(IDLE–OSC)

WAKE INT

CLKOUT/IOPC1

A0–A15

Figure 25. OSC Power-Down Entry and Exit Timings

memory and parallel I/O interface

read

timings

switching characteristics over recommended operating conditions for a memory read (see Figure 26)

PARAMETER MIN MAX UNIT

d(CO-A)RD

Delay time, CLKOUT/IOPC1 low to address valid

17 ns

d(CO-SL)RD

Delay time, CLKOUT/IOPC1 low to STRB low

10 ns

d(CO-SH)RD

Delay time, CLKOUT/IOPC1 low to STRB high

6 ns

d(CO-ACTL)RD

Delay time, CLKOUT/IOPC1 low to PS, DS, IS, and BR low

10 ns

d(CO-ACTH)RD

Delay time, CLKOUT/IOPC1 low to PS, DS, IS, and BR high

10 ns

timing requirements for a memory read, H = 0.5t

c(CO)

†

(see Figure 26)

MIN MAX UNIT

0 wait state 2H – 32

a(A)

ccess time, from address va

lid t

o read data

1 wait state

4H – 32

su(D-COL)RD

Setup time, data read before CLKOUT/IOPC1 low 15 ns

h(COL-D)RD

Hold time, data read after CLKOUT/IOPC1 low 2 ns

†

All timings with respect to CLKOUT/IOPC1 assume CLKSRC[1:0] bits are set to select CPUCLK for output.

Page 67

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

memory and parallel I/O interface

read

timings (continued)

PS, DS, IS,

or BR

d(CO–A)RD

a(A)

su(D-COL)RD

h(COL-D)RD

CLKOUT/IOPC1

A0–A15

W/R

D0–D15

READY

STRB

d(CO–ACTL)RD

d(CO–SL)RD

d(CO–SH)RD

d(CO–ACTH)RD

Figure 26. Memory Interface

Read

Timings

Page 68

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

memory and parallel I/O interface

write

timings

switching characteristics over recommended operating conditions for a memory write H = 0.5t

c(CO)

†

(see Figure 27)

PARAMETER MIN MAX UNIT

d(CO-A)W

Delay time, CLKOUT/IOPC1 high to address valid

17 ns

d(CO-D)

Delay time, CLKOUT/IOPC1 low to data bus driven

15 ns

d(D-WH)

Delay time, address valid after WE high

H – 8 ns

w(WH)

Pulse duration, WE high

2H – 11 ns

w(WL)

Pulse duration, WE low 2H – 11

d(CO-WL)

Delay time, CLKOUT/IOPC1 low to WE low

9 ns

d(CO-WH)

Delay time, CLKOUT/IOPC1 low to WE high

9 ns

d(WH-D)

Delay time, write data valid before WE high

2H – 8 ns

d(D-WHZ)

Delay time, WE high to data bus Hi-Z

0 5 ns

d(CO-SL)W

Delay time, CLKOUT/IOPC1 low to STRB low

10 ns

d(CO-SH)W

Delay time, CLKOUT/IOPC1 low to STRB high

6 ns

d(CO-ACTL)W

Delay time, CLKOUT/IOPC1 high to PS, DS, IS, and BR low

10 ns

d(CO-ACTH)W

Delay time, CLKOUT/IOPC1 high to PS, DS, IS, and BR high

10 ns

d(CO-RWL)

Delay time, CLKOUT/IOPC1 high to R/W low

10 ns

d(CO-RWH)

Delay time, CLKOUT/IOPC1 high to R/W high

10 ns

†

All timings with respect to CLKOUT/IOPC1 assume CLKSRC[1:0] bits are set to select CPUCLK for output.

Page 69

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

memory and parallel I/O interface

write

timings (continued)

PS, DS, IS,

or BR

CLKOUT/IOPC1

A0–A15

R/W

D0–D15

READY

STRB

d(CO–A)W

d(CO–ACTH)W

h(WH-A)

d(CO–WH)

hz(WH-D)

d(CO–D)

d(CO–SL)W

w(WH)

su(D-WH)

d(CO–ACTL)W

d(CO–WL)

d(CO–SH)W

d(CO–RWL)

d(CO–RWH)

W/R

Figure 27. Memory Interface

Write

Timings

Page 70

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

I/O timing variation with load capacitance: SPICE simulation results

2.2 V

0.8 V

Condition: Temperature

Capacitance Voltage

: – 40 to 150° C : 5–125pF : 5.0 V

Figure 28. Rise and Fall Time Diagram

Table 17. Timing Variation With Load Capacitance, VDD = 5 V, VOH = 2.2 V, VOL = 0.8 V

– 40°C 27°C 150°C

RISE FALL RISE FALL RISE FALL

5 pF 2.5 ns 3.6 ns 3.1 ns 4.5 ns 4.3 ns 6.2 ns 25 pF 3.1 ns 4.6 ns 4.0 ns 5.7 ns 5.6 ns 7.8 ns 50 pF 3.9 ns 5.9 ns 5.0 ns 7.3 ns 7.2 ns 9.9 ns 75 pF 4.7 ns 7.3 ns 6.1 ns 8.9 ns 8.8 ns 11.7 ns

100 pF 5.4 ns 8.9 ns 7.2 ns 10.6 ns 10.5 ns 13.8 ns 125 pF 6.2 ns 10.4 ns 8.3 ns 12.2 ns 12.1 ns 15.8 ns

Page 71

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

READY timings

timing requirements

†

(see Figure 29)

MIN MAX UNIT

su(R-CO)

Setup time, READY low before CLKOUT/IOPC1 high

‡

h(CO-R)

Hold time, READY low after CLKOUT/IOPC1 high

0 ns

v(R)ARD

Valid time, READY after address valid on read

3H – 31

3H – 33

v(R)AW

Valid time, READY after address valid on write

4H – 31

4H – 33

†

The READY timings are based on one software wait state. At full speed operation, the ’F240 does not allow for single READY-based wait states.

‡

MIN value for ’C240 only

MAX values for ’C240 only

PS, DS, or IS

CLKOUT/IOPC1

A0–A15

W/R

D0–D15

READY

STRB

v(R)AW

h(CO–R)

su(R–CO)

v(R)ARD

Figure 29. READY Timings

Page 72

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

RS and PORESET timings

switching characteristics over recommended operating conditions for a reset, H = 0.5t

c(CO)

(see Figure 30 and Figure 31)

PARAMETER MIN MAX UNIT

w(RSL1)

Pulse duration, RS low

†

c(SYS)

d(RS)

Delay time, RS low to program address at reset vector

4H ns

d(EX)

Delay time, RS high to reset vector executed

32H ns

†

The parameter t

w(RSL1)

refers to the time RS is an output.

timing requirements for reset (see Figure 30 and Figure 31)

MIN MAX UNIT

w(RSL)

Pulse duration, RS or PORESET low

‡

5 ns

‡

The parameter t

w(RSL)

refers to the time RS is an input.

XTAL1/CLKIN

‡

PORESET

†

PORESET

is required to be driven low during power up to ensure all clock/PLL registers are reset to a known state.

‡

is a bidirectional (open-drain output) pin and can be optionally pulled low through an open-drain or open-collector drive circuit, or through

a 2.7-kΩ resistor in series with a totem pole drive circuit. If RS

is left undriven, then a 20-kΩ pullup resistor should be used.

Figure 30. Reset Timings

Page 73

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

RS and PORESET timings (continued)

0000h 0001h

w(RSL1)

d(RS)

d(EX)

w(RSL)

A0–A15

†

PORESET

†

RS is driven low by any device reset, which includes asserting PORESET , RS, access to an illegal address, execution of a software reset, or a watchdog timer reset.

Figure 31. Power-On Reset Timings

XF, BIO, and MP/MC timings

switching characteristics over recommended operating conditions (see Figure 32)

PARAMETER MIN MAX UNIT

d(XF)

Delay time, CLKOUT high to XF high/low

11 ns

timing requirements, H = 0.5t

c(CO)

(see Figure 32)

MIN MAX UNIT

w(BIOL)

Pulse duration, BIO low

2H + 16 ns

w(MPMCV)

Pulse duration, MP/MC valid

†

2H + 24 ns

†

This is the minimum time the MP/MC

pin needs to be stable in order to be recognized by internal logic; however, for proper operation, the user

must maintain a valid level for the duration of the entire memory access (or accesses) on- or off-chip.

Page 74

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

XF, BIO, and MP/MC timings (continued)

d(XF)

BIO

CLKOUT/IOPC1

w(BIOL)

MP/MC

w(MPMCV)

†

This is the minimum time the MP/MC

pin needs to be stable in order to be recognized by internal logic; however, for proper

operation, the user must maintain a valid level for the duration of the entire memory access (or accesses) on- or off-chip.

Valid

Figure 32. XF, BIO, and MP/MC Timings

Page 75

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PWM/CMP timings

PWM refers to PWM1/CMP1, PWM2/CMP2, PWM3/CMP3, PWM4/CMP4, PWM5/CMP5, PWM6/CMP6, T1PWM/T1CMP, T2PWM/T2CMP, T3PWM/T3CMP, PWM7/CMP7, PWM8/CMP8, and PWM9/CMP9.

switching characteristics over recommended operating conditions for PWM timing (see Figure 33)

PARAMETER MIN MAX UNIT

d(PWM)CO

Delay time, CLKOUT high to PWM output switching

12 ns

timing requirements, [H = 0.5t

c(CO)

] (see Figure 34 and Figure 35)

MIN MAX UNIT

w(TMRDIR)

Pulse duration, TMRDIR low/high

4H + 12

4H + 14

†

w(TMRCLKL)

Pulse duration, TMRCLK low as a percentage of TMRCLK cycle time

40 60 %

w(TMRCLKH)

Pulse duration, TMRCLK high as a percentage of TMRCLK cycle time

40 60 %

c(TMRCLK)

Cycle time, TMRCLK

4  t

c(CPU)

†

MIN value for ’C240 only

d(PWM)CO

PWM

CLKOUT/IOPC1

Figure 33. PWM and Compare Output Timings

w(TMRCLKL)

TMRCLK

c(TMRCLK)

w(TMRCLKH)

Figure 34. External Timer Clock Input Timings

w(TMRDIR)

TMRDIR

Figure 35. External Timer Direction Input Timings

Page 76

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

capture and QEP timings

CAP refers to CAP1/QEP1/IOPC4, CAP2/QEP2/IOPC5, CAP3/IOPC6, and CAP4/IOPC7.

timing requirements, [H = 0.5t

c(CO)

] (see Figure 36)

MIN MAX UNIT

w(CAP)

Pulse duration, CAP input low/high

4H + 12

4H + 15

†

MIN value for ’C240 only

CAP

w(CAP)

Figure 36. Capture and QEP Input Timings

interrupt timings

PWM refers to PWM1/CMP1, PWM2/CMP2, PWM3/CMP3, PWM4/CMP4, PWM5/CMP5, PWM6/CMP6, T1PWM/T1CMP, T2PWM/T2CMP, T3PWM/T3CMP, PWM7/CMP7, PWM8/CMP8, and PWM9/CMP9.

INT refers to NMI, XINT1, XINT2/IO, and XINT3/IO. PDP refers to PDPINT.

switching characteristics over recommended operating conditions for interrupts (see Figure 38)

PARAMETER MIN MAX UNIT

d(PWM)PDP

Delay time, PDPINT low to PWM to high-impedance state

0 15 ns

timing requirements, [H = 0.5t

c(CO)

] (see Figure 37 and Figure 38)

MIN MAX UNIT

w(INT)

Pulse duration, INT input low/high

c(SYS)

+ 12 ns

w(PDP)

Pulse duration, PDPINT input low

2H + 18 ns

d(INT)

Delay time, INT low/high to interrupt-vector fetch

c(SYS)

+ 4t

c(CPU)

w(INT)

INT

Figure 37. External Interrupt Timings

Page 77

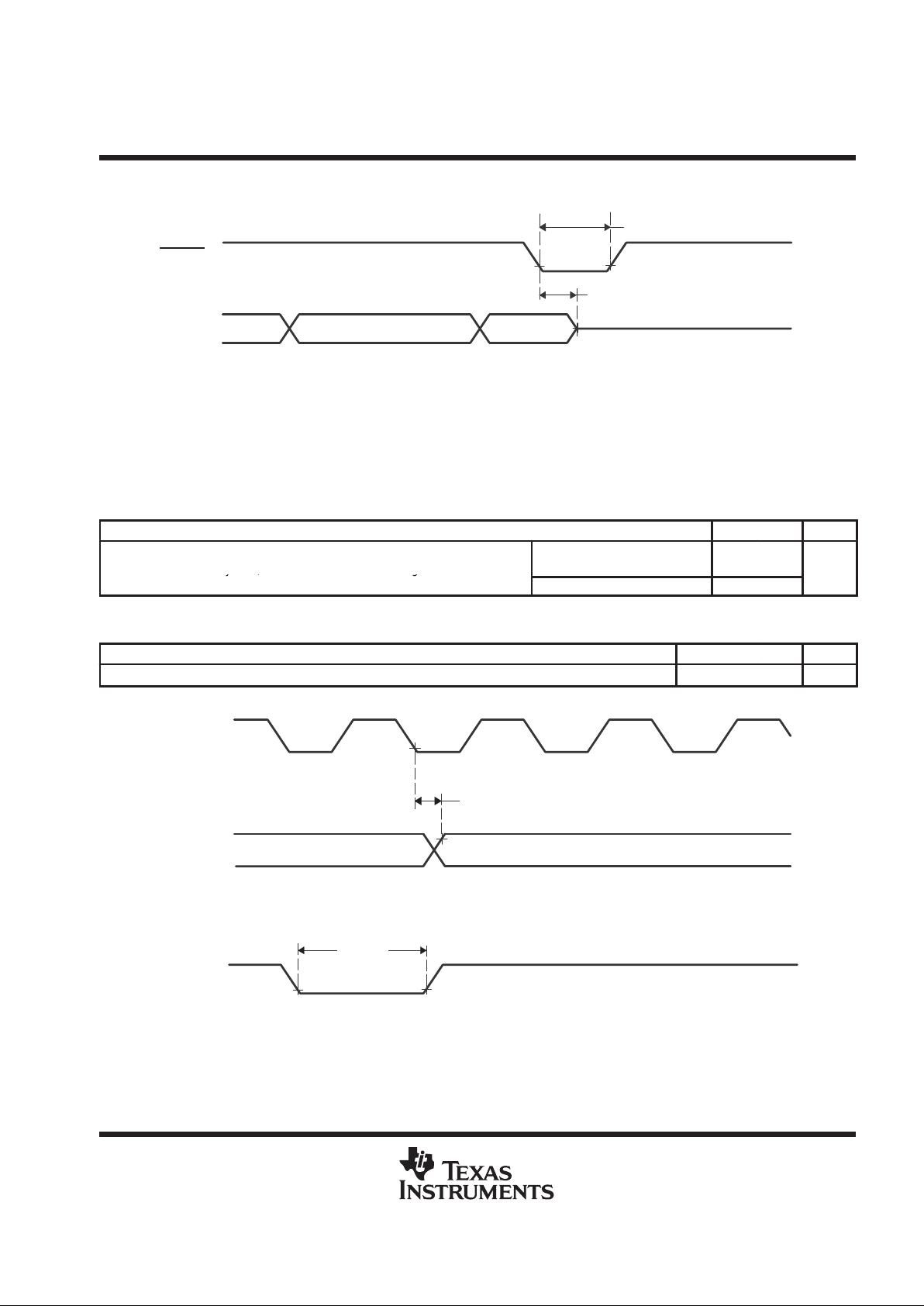

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

interrupt timings (continued)

PWM

PDPINT

w(PDP)

d(PWM)PDP

Figure 38. Power-Drive Protection Interrupt Timings

general-purpose input/output timings

GPO refers to the digital output function of shared pins IOPA0–3, IOPB0–7, IOPC0–7, XINT2/IO, XINT3/IO. GPI refers to the digital input function of shared pins IOPA0–3, IOPB0–7, IOPC0–7, XINT2/IO, XINT3/IO.

switching characteristics over recommended operating conditions for a GPI/O (see Figure 39)

PARAMETER MIN MAX UNIT

Delay time, CLKOUT low to GPO low/high

XINT2/IO, XINT3/IO, IOPB6, IOPB7, and IOPC0

d(GPO)CO

y, g

All other GPOs 25

timing requirements (see Figure 40)

MIN MAX UNIT

w(GPI)

Pulse duration, GPI high/low

c(SYS)

+ 12 ns

d(GPO)CO

GPO

CLKOUT/IOPC1

Figure 39. General-Purpose Output Timings

GPI

w(GPI)

Figure 40. General-Purpose Input Timings

Page 78

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

serial communications interface (SCI) I/O timings

timing characteristics for SCI (see Note 4 and Figure 41)

PARAMETER

(BRR + 1)

IS EVEN AND BRR = 0

(BRR + 1)

IS ODD AND BRR ≠ 0

UNIT

MIN MAX MIN MAX

c(SCC)

Cycle time, SCICLK 16t

65536t

24t

65535t

v(TXD)

Valid time, SCITXD data t

c(SCC)

–70 t

c(SCC)

+70 t

c(SCC)

–70 t

c(SCC)

+70 ns

v(RXD)

Valid time, SCIRXD data 16t

24t

NOTE 4: tc = system clock cycle time = 1/SYSCLK = t

c(SYS)

v(TXD)

v(RXD)

Data Valid

SCITXD

SCIRXD

Figure 41. SCI Timings

Page 79

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

SPI master mode timing parameters

SPI master mode timing information is listed in the following table.

SPI master mode external timing parameters (clock phase = 0)† (see Figure 42)

WHEN (SPIBRR + 1) IS EVEN OR

SPIBRR = 0 OR 2

WHEN (SPIBRR + 1)

IS ODD AND SPIBRR > 3

UNIT

MIN MAX MIN MAX

c(SPC)M

Cycle time, SPICLK 4t

‡

128t

‡

127t

‡

w(SPCH)M

Pulse duration, SPICLK high (clock polarity = 0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

–0.5tc–70 0.5t

c(SPC)M

– 0.5t

w(SPCL)M

Pulse duration, SPICLK low (clock polarity = 1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

–0.5tc–70 0.5t

c(SPC)M

–0.5t

w(SPCL)M

Pulse duration, SPICLK low (clock polarity = 0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

+0.5tc–70 0.5t

c(SPC)M

+ 0.5t

w(SPCH)M

Pulse duration, SPICLK high (clock polarity = 1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

+0.5tc–70 0.5t

c(SPC)M

+ 0.5t

d(SPCH-SIMO)M

Delay time, SPICLK high (clock polarity =

0) to SPISIMO valid

– 10 10 – 10 10

d(SPCL-SIMO)M

Delay time, SPICLK low (clock polarity =

1) to SPISIMO valid

– 10 10 – 10 10

h(SPCL-SIMO)M

Hold time, SPISIMO data valid after SPICLK low (clock polarity =0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

+0.5tc–70

h(SPCH-SIMO)M

Hold time, SPISIMO data valid after SPICLK high (clock polarity =1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

+0.5tc–70

su(SOMI-SPCL)M

Setup time, SPISOMI before SPICLK low (clock polarity = 0)

0 0

su(SOMI-SPCH)M

Setup time, SPISOMI before SPICLK high (clock polarity = 1)

0 0

h(SPCL-SOMI)M

Hold time, SPISOMI data valid after SPICLK low (clock polarity = 0)

0.25t

c(SPC)M

–70 0.5t

c(SPC)M

–0.5tc–70

h(SPCH-SOMI)M

Hold time, SPISOMI data valid after SPICLK high (clock polarity = 1)

0.25t

c(SPC)M

–70 0.5t

c(SPC)M

–0.5tc–70

†

The MASTER/SLA VE bit (SPICTL.2) is set and the CLOCK PHASE bit (SPICTL.3) is cleared.

‡

tc = system clock cycle time = 1/SYSCLK = t

c(SYS)

The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPICCR.6).

Page 80

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

d(SPCH-SIMO)M

d(SPCL-SIMO)M

SPISOMI

SPISIMO

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

Master In Data

Must Be Valid

Master Out Data Is Valid

w(SPCL)M

c(SPC)M

SPISTE

†

The SPISTE signal must be active before the SPI communication stream starts; the SPISTE signal must remain active until the SPI communication stream is complete.

w(SPCH)M

v(SPCH-SIMO)M

v(SPCL-SIMO)M

su(SOMI-SPCL)M

su(SOMI-SPCH)M

v(SPCL-SOMI)M

v(SPCH-SOMI)M

Figure 42. SPI Master Mode External Timings (Clock Phase = 0)

Page 81

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

SPI master mode external timing (clock phase = 1)† (see Figure 43)

WHEN (SPIBRR + 1) IS EVEN OR

SPIBRR = 0 OR 2

WHEN (SPIBRR + 1)

IS ODD AND SPIBRR > 3

UNIT

MIN MAX MIN MAX

c(SPC)M

Cycle time, SPICLK 4t

‡

128t

‡

127t

‡

w(SPCH)M

Pulse duration, SPICLK high (clock polarity = 0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

–0.5tc–70 0.5t

c(SPC)M

–0.5t

w(SPCL)M

Pulse duration, SPICLK low (clock polarity = 1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

–0.5tc–70 0.5t

c(SPC)M

–0.5t

w(SPCL)M

Pulse duration, SPICLK low (clock polarity = 0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

+0.5tc–70 0.5t

c(SPC)M

+ 0.5t

w(SPCH)M

Pulse duration, SPICLK high (clock polarity = 1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

0.5t

c(SPC)M

+0.5tc–70 0.5t

c(SPC)M

+ 0.5t

su(SIMO-SPCH)M

Setup time, SPISIMO data valid before SPICLK high (clock polarity = 0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

–70

su(SIMO-SPCL)M

Setup time, SPISIMO data valid before SPICLK low (clock polarity = 1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

–70

h(SPCH-SIMO)M

Hold time, SPISIMO data valid after SPICLK high (clock polarity =0)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

–70

h(SPCL-SIMO)M

Hold time, SPISIMO data valid after SPICLK low (clock polarity =1)

0.5t

c(SPC)M

–70 0.5t

c(SPC)M

–70

su(SOMI-SPCH)M

Setup time, SPISOMI before SPICLK high (clock polarity = 0)

0 0

su(SOMI-SPCL)M

Setup time, SPISOMI before SPICLK low (clock polarity = 1)

0 0

h(SPCH-SOMI)M

Hold time, SPISOMI data valid after SPICLK high (clock polarity = 0)

0.25t

c(SPC)M

–70 0.5t

c(SPC)M

–70

h(SPCL-SOMI)M

Hold time, SPISOMI data valid after SPICLK low (clock polarity = 1)

0.25t

c(SPC)M

–70 0.5t

c(SPC)M

–70

†

The MASTER/SLA VE bit (SPICTL.2) is set and the CLOCK PHASE bit (SPICTL.3) is set.

‡

tc = system clock cycle time = 1/SYSCLK = t

c(SYS)

The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPICCR.6).

Page 82

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

Data Valid

v(SPCH-SOMI)M

v(SPCL-SOMI)M

SPISOMI

SPISIMO

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

Master In Data

Must Be Valid

Master Out Data Is Valid

c(SPC)M

w(SPCH)M

w(SPCL)M

SPISTE

†

The SPISTE signal must be active before the SPI communication stream starts; the SPISTE signal must remain active until the SPI communication stream is complete.

su(SIMO-SPCH)M

su(SIMO-SPCL)M

v(SPCH-SIMO)M

v(SPCL-SIMO)M

su(SOMI-SPCH)M

su(SOMI-SPCL)M

w(SPCH)M

w(SPCL)M

Figure 43. SPI Master Mode External Timings (Clock Phase = 1)

Page 83

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

SPI slave mode timing parameters

Slave mode timing information is listed in the following tables.

SPI slave mode external timing requirements (clock phase = 0)† (see Figure 44)

MIN MAX UNIT

c(SPC)S

Cycle time, SPICLK 8t

‡

w(SPCH)S

Pulse duration, SPICLK high (clock polarity = 0) 0.5t

c(SPC)S

–70 0.5t

c(SPC)S

w(SPCL)S

Pulse duration, SPICLK low (clock polarity = 1) 0.5t

c(SPC)S

–70 0.5t

c(SPC)S

w(SPCL)S

Pulse duration, SPICLK low (clock polarity = 0) 0.5t

c(SPC)S

–70 0.5t

c(SPC)S

w(SPCH)S

Pulse duration, SPICLK high (clock polarity = 1) 0.5t

c(SPC)S

–70 0.5t

c(SPC)S

d(SPCH-SOMI)S

Delay time, SPICLK high (clock polarity = 0) to SPISOMI valid 0.375t

c(SPC)S

–70

d(SPCL-SOMI)S

Delay time, SPICLK low (clock polarity = 1) to SPISOMI valid 0.375t

c(SPC)S

–70

v(SPCL-SOMI)S

Valid time, SPISOMI data valid after SPICLK low (clock polarity =0) 0.75t

c(SPC)S

v(SPCH-SOMI)S

Valid time, SPISOMI data valid after SPICLK high (clock polarity =1) 0.75t

c(SPC)S

su(SIMO-SPCL)S

Setup time, SPISIMO before SPICLK low (clock polarity = 0) 0

su(SIMO-SPCH)S

Setup time, SPISIMO before SPICLK high (clock polarity = 1) 0

v(SPCL-SIMO)S

Valid time, SPISIMO data valid after SPICLK low (clock polarity = 0) 0.5t

c(SPC)S

v(SPCH-SIMO)S

Valid time, SPISIMO data valid after SPICLK high (clock polarity = 1) 0.5t

c(SPC)S

†

The MASTER/SLA VE bit (SPICTL.2) is cleared and the CLOCK PHASE bit (SPICTL.3) is cleared.

‡

tc = system clock cycle time = 1/SYSCLK = t

c(SYS)

The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPICCR.6).

Page 84

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

d(SPCH-SOMI)S

d(SPCL-SOMI)S

SPISIMO

SPISOMI

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

SPISIMO Data

Must Be Valid

SPISOMI Data Is Valid

w(SPCH)S

w(SPCL)S

c(SPC)S

SPISTE

†

The SPISTE signal must be active before the SPI communication stream starts; the SPISTE signal must remain active until the SPI communication stream is complete.

v(SPCL-SOMI)S

v(SPCH-SOMI)S

su(SIMO-SPCL)S

su(SIMO-SPCH)S

v(SPCL-SIMO)S

v(SPCH-SIMO)S

w(SPCH)S

w(SPCL)S

Figure 44. SPI Slave Mode External Timing (Clock Phase = 0)

Page 85

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

SPI slave mode external timing requirements (clock phase = 1)† (see Figure 45)

MIN MAX UNIT

c(SPC)S

Cycle time, SPICLK 8t

‡

w(SPCH)S

Pulse duration, SPICLK high (clock polarity = 0) 0.5t

c(SPC)S–70

0.5t

c(SPC)S

w(SPCL)S

Pulse duration, SPICLK low (clock polarity = 1) 0.5t

c(SPC)S–70

0.5t

c(SPC)S

w(SPCL)S

Pulse duration, SPICLK low (clock polarity = 0) 0.5t

c(SPC)S–70

0.5t

c(SPC)S

w(SPCH)S

Pulse duration, SPICLK high (clock polarity = 1) 0.5t

c(SPC)S–70

0.5t

c(SPC)S

su(SOMI-SPCH)S

Setup time, SPISOMI before SPICLK high (clock polarity = 0) 0.125t

c(SPC)S

su(SOMI-SPCL)S

Setup time, SPISOMI before SPICLK low (clock polarity = 1) 0.125t

c(SPC)S

v(SPCH-SOMI)S

Valid time, SPISOMI data valid after SPICLK high (clock polarity =0) 0.75t

c(SPC)S

v(SPCL-SOMI)S

Valid time, SPISOMI data valid after SPICLK low (clock polarity =1) 0.75t

c(SPC)S

su(SIMO-SPCH)S

Setup time, SPISIMO before SPICLK high (clock polarity = 0) 0

su(SIMO-SPCL)S

Setup time, SPISIMO before SPICLK low (clock polarity = 1) 0

v(SPCH-SIMO)S

Valid time, SPISIMO data valid after SPICLK high (clock polarity = 0) 0.5t

c(SPC)S

v(SPCL-SIMO)S

Valid time, SPISIMO data valid after SPICLK low (clock polarity = 1) 0.5t

c(SPC)S

†

The MASTER/SLA VE bit (SPICTL.2) is cleared and the CLOCK PHASE bit (SPICTL.3) is set.

‡

tc = system clock cycle time = 1/SYSCLK = t

c(SYS)

The active edge of the SPICLK signal referenced is controlled by the CLOCK POLARITY bit (SPICCR.6).

Page 86

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

PARAMETER MEASUREMENT INFORMATION

Data Valid

SPISIMO

SPISOMI

SPICLK

(clock polarity = 1)

SPICLK

(clock polarity = 0)

SPISIMO Data Must Be Valid

SPISOMI Data Is Valid

c(SPC)S

w(SPCH)S

w(SPCL)S

SPISTE

†

The SPISTE signal must be active before the SPI communication stream starts; the SPISTE signal must remain active until the SPI communication stream is complete.

su(SOMI-SPCH)S

su(SOMI-SPCL)S

v(SPCH-SOMI)S

v(SPCL-SOMI)S

su(SIMO-SPCH)S

su(SIMO-SPCL)S

v(SPCH-SIMO)S

v(SPCL-SIMO)S

w(SPCH)S

w(SPCL)S

Figure 45. SPI Slave Mode External Timing (Clock Phase = 1)

Page 87

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

10-bit dual analog-to-digital converter (ADC)

The 10-bit dual ADC has a separate power bus for its analog circuitry . These pins are referred to as V

CCA

and

SSA

. The purpose is to enhance ADC performance by preventing digital-switching noise of the logic circuitry that can be present on VSS and VCC from coupling into the ADC analog stage. All ADC specifications are given with respect to V

SSA

unless otherwise noted.

recommended operating conditions

MIN NOM MAX UNIT

CCA

Analog supply voltage 4.5 5 5.5 V

SSA

Analog ground 0 V

REFHI

Analog supply reference source

†

REFLO

CCA

REFLO

Analog ground reference source

†

SSA

REFHI

Analog input voltage, ADCIN0–ADCIN15 V

SSA

CCA

†

REFHI

and V

REFLO

must be stable, within ±1/2 LSB of the required resolution, during the entire conversion time.

electrical characteristics (see Note 5)

PARAMETER DESCRIPTION MIN MAX UNIT

Converting 5

CCA

= 5.5

Non-converting 2

CCA

Analog su ly current

CCA

= V

REFHI

= 5.5 V

PLL or OSC power down

ref

Input charge current, V

REFHI

or V

REFLO

CCA

= V

CCD

= V

REFHI

= 5.5 V, V

REFLO

= 0 V 5 mA

Typical capacitive load on

Non-sampling 6

CaiAnalog input capacitance

analog input pin

Sampling 8

Analog input source impedance

Analog input source impedance for conversions to remain within specifications.

9 kΩ

DNL

Differential nonlinearity error

Difference between the actual step width and the ideal value

– 1 1.5 LSB

INL

Integral nonlinearity error

Maximum deviation from the best straight line through the ADC transfer characteristics, excluding the quantization error

1.5 LSB

d(PU)

Delay time, power-up to ADC valid Time to stabilize analog stage after power-up 10

NOTE 5: Absolute resolution = 4.89 mV . At V

REFHI

= 5 V and V

REFLO

= 0 V , this is one LSB. As V

REFHI

decreases, V

REFLO

increases, or both,

the LSB sizes decrease. Therefore, the absolute accuracy and differential/integral linearity errors in terms of LSBs increase.

The ADC module allows complete freedom in the design of the sources for the analog inputs. The period of the sample time is independent of the source impedance. The sample-and-hold period occurs in the first half-period of the ADC clock after the ADCIMST ART bit or the ADCSOC bit of the ADC control register 1 (ADCTRL1, bits 13 and 0, respectively) is set to 1. The conversion then occurs during the next six ADC clock cycles. The digital result registers are updated on the next ADC clock cycle once the conversion is completed.

ADC input pin circuit

One of the most common A/D application errors is inappropriate source impedance. In practice, minimum source impedance should be used to limit the error as well as minimize the required sampling time; however, the source impedance must be smaller than Z

. A typical ADC input pin circuit is shown in Figure 46.

Page 88

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

ADC input pin circuit (continued)

equiv

(to ADCINx input)

R1 = 9 k

Ω typical

Figure 46. Typical ADC Input Pin Circuit

ADC timing requirements (see Figure 47)

MIN MAX UNIT

c(AD)

Cycle time, ADC prescaled clock 1

w(SHC)

Pulse duration, total sample/hold and conversion time (see Note 6) 6.1

w(SH)

Pulse duration, sample and hold time t

c(AD)

su(SH)

Setup time, analog input stable before sample/hold start 0 ns

h(SH)

Hold time, analog input stable after sample/hold complete 0 ns

w(C)

Pulse duration, total conversion time 4.5t

c(AD)

d(SOC-SH)

Delay time, start of conversion† to beginning of sample and hold 3t

c(SYS)

d(EOC-FIFO)

Delay time, end of conversion to data loaded into result FIFO 3t

c(SYS)

†

Start of conversion is signaled by the ADCIMSTAR T bit or the ADCSOC bit set in software, the external start signal active (ADCSOC), or internal EVSOC signal active.

NOTE 6: The total sample/hold and conversion time is determined by the summation of t

d(SOC-SH)

, t

w(SH

), t

w(C)

, and t

d(EOC-FIFO)

Page 89

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

ADC timing requirements (continued)

w(C)

d(EOC–FIFO)

6789

h(SH)

w(SH)

su(SH)

c(AD)

ADC Clock

Analog Input

Bit Converted

d(SOC–SH)

Convert

Internal Start

Start of Convert

XFR to FIFO

Sample/Hold

w(SHC)

Figure 47. Analog-to-Digital Timing

Page 90

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

flash EEPROM

switching characteristics over recommended operating conditions (see page 57)

’320F240

PARAMETER

MIN TYP MAX

UNIT

Program-erase endurance 10K Cycles Program pulses per word

†

1 10 150 Pulses

Erase pulses per array

†

1 20 1000 Pulses

Flash-write pulses per array

†

1 20 6000 Pulses

†

These parameters are used in the flash programming algorithms. For a detailed description of the algorithms, see the

TMS320F20x/F24x DSPs

Embedded Flash Memory Technical Reference

(literature number SPRU282).

timing requirements

’320F240

MIN MAX

UNIT

d(BUSY)

Delay time, after mode deselect to stabilization

†

10 µs

d(RD-VERIFY)

Delay time, verify read mode select to stabilization

†

10 µs

†

These parameters are used in the flash programming algorithms. For a detailed description of the algorithms, see the

TMS320F20x/F24x DSPs

Embedded Flash Memory Technical Reference

(literature number SPRU282).

programming operation (maximum programming temperature 85°C for flash memory)

’320F240

PARAMETER

MIN NOM MAX

UNIT

w(PGM)

Pulse duration, programming algorithm

†

95 100 105 µs

d(PGM-MODE)

Delay time, program mode select to stabilization

†

10 µs

†

These parameters are used in the flash programming algorithms. For a detailed description of the algorithms, see the

TMS320F20x/F24x DSPs

Embedded Flash Memory Technical Reference

(literature number SPRU282).

erase operation

’320F240

PARAMETER

MIN NOM MAX

UNIT

w(ERASE)

Pulse duration, erase algorithm

†

6.65 7 7.35 ms

d(ERASE-MODE)

Delay time, erase mode select to stabilization

†

10 µs

†

These parameters are used in the flash programming algorithms. For a detailed description of the algorithms, see the

TMS320F20x/F24x DSPs

Embedded Flash Memory Technical Reference

(literature number SPRU282).

flash-write operation

’320F240

PARAMETER

MIN NOM MAX

UNIT

w(FLW)

Pulse duration, flash-write algorithm

†‡

13.3 14 14.7 ms

d(FLW-MODE)

Delay time, flash-write mode select to stabilization

†‡

10 µs

†

These parameters are used in the flash programming algorithms. For a detailed description of the algorithms, see the

TMS320F20x/F24x DSPs

Embedded Flash Memory Technical Reference

(literature number SPRU282).

‡

Refer to the recommended operating conditions section for the flash programming operating temperature range when programming flash.

Page 91

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18 is a collection of all the programmable registers of the SMJ320F240 (provided for a quick reference).

Table 18. Register File Compilation

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

DATA MEMORY SPACE

CPU STATUS REGISTERS

ARP OV OVM 1 INTM DP(8)

DP(7) DP(6) DP(5) DP(4) DP(3) DP(2) DP(1) DP(0)

ST0

ARB CNF TC SXM C 1

1 1 1 XF 1 1 PM

ST1

GLOBAL MEMORY AND CPU INTERRUPT REGISTERS

— — — — — — — —

00004h

— — INT6 MASK INT5 MASK INT4 MASK INT3 MASK INT2 MASK INT1 MASK

IMR

— — — — — — — —

00005h

Global Data Memory Configuration Bits (7–0)

GREG

— — — — — — — —

00006h

— — INT6 FLAG INT5 FLAG INT4 FLAG INT3 FLAG INT2 FLAG INT1 FLAG

IFR

SYSTEM CONFIGURATION REGISTERS

RESET1 RESET0 — — — — — —

07018h

CLKSRC1 CLKSRC0 — — — — — —

SYSCR

07019h Reserved

PORST — — ILLADR — SWRST WDRST —

0701Ah

— — HPO — VCCAOR — — VECRD

SYSSR

0701Bh

0701Dh

Reserved

0 0 0 0 0 0 0 0

0701Eh

D7 D6 D5 D4 D3 D2 D1 D0

SYSIVR

0701Fh Reserved

WD/RTI CONTROL REGISTERS

07020h Reserved 07021h D7 D6 D5 D4 D3 D2 D1 D0 RTICNTR 07022h Reserved 07023h D7 D6 D5 D4 D3 D2 D1 D0 WDCNTR 07024h Reserved 07025h D7 D6 D5 D4 D3 D2 D1 D0 WDKEY 07026h Reserved 07027h RTI FLAG RTI ENA — — — RTIPS2 RTIPS1 RTIPS0 RTICR 07028h Reserved 07029h WD FLAG WDDIS WDCHK2 WDCHK1 WDCHK0 WDPS2 WDPS1 WDPS0 WDCR

PLL CLOCK CONTROL REGISTERS

0702Ah Reserved 0702Bh CLKMD(1) CLKMD(0) PLLOCK(1) PLLOCK(0) PLLPM(1) PLLPM(0) ACLKENA PLLPS CKCR0 0702Ch Reserved

Page 92

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

PLL CLOCK CONTROL REGISTERS (CONTINUED)

0702Dh CKINF(3) CKINF(2) CKINF(1) CKINF(0) PLLDIV(2) PLLFB(2) PLLFB(1) PLLFB(0) CKCR1

0702Eh

07031h

Reserved

A-to-D MODULE CONTROL REGISTERS

07032h

SUSPEND-

SOFT

SUSPEND-

FREE

ADCIM-

STAR T

ADC1EN ADC2EN

ADCCON-

RUN

ADCINTEN ADCINTFLAG

ADCTRL1

ADCEOC ADC2CHSEL ADC1CHSEL ADCSOC

07033h Reserved

— —

—

— —

ADCEVSOC

ADCEXTSOC —

07034h

ADCFIFO1 — ADCFIFO2 ADCPSCALE

ADCTRL2

07035h Reserved

D9 D8 D7 D6 D5 D4 D3 D2

07036h

D1 D0 0 0 0 0 0 0

ADCFIFO1

07037h Reserved

D9 D8 D7 D6 D5 D4 D3 D2

07038h

D1 D0 0 0 0 0 0 0

ADCFIFO2

07039h

0703Fh

Reserved

SERIAL PERIPHERAL INTERFACE (SPI) CONFIGURA TION CONTROL REGISTERS

07040h

SPI SW RESET

CLOCK

POLARITY

— — —

SPI

CHAR2

SPI

CHAR1

SPI

CHAR0

SPICCR

07041h — — —

OVERRUN

INT ENA

CLOCK PHASE

MASTER/

SLAVE

TALK

SPI INT

ENA

SPICTL

07042h

RECEIVER OVERRUN

SPI INT

FLAG

— — — — — — SPISTS 07043h Reserved 07044h —

SPI BIT RATE 6

SPI BIT

RATE 5

SPI BIT RATE 4

SPI BIT RATE 3

SPI BIT RATE 2

SPI BIT RATE 1

SPI BIT RATE 0

SPIBRR

07045h Reserved 07046h ERCVD7 ERCVD6 ERCVD5 ERCVD4 ERCVD3 ERCVD2 ERCVD1 ERCVD0 SPIEMU 07047h RCVD7 RCVD6 RCVD5 RCVD4 RCVD3 RCVD2 RCVD1 RCVD0 SPIBUF 07048h Reserved 07049h SDAT7 SDAT6 SDAT5 SDAT4 SDAT3 SDAT2 SDAT1 SDAT0 SPIDAT

0704Ah

0704Ch

Reserved

0704Dh

SPISTE

DATA IN

SPISTE

DATA OUT

SPISTE

FUNCTION

SPISTE

DATA DIR

SPICLK

DATA IN

SPICLK

DATA OUT

SPICLK

FUNCTION

SPICLK

DATA DIR

SPIPC1

0704Eh

SPISIMO

DATA IN

SPISIMO

DATA OUT

SPISIMO

FUNCTION

SPISIMO

DATA DIR

SPISOMI

DATA IN

SPISOMI

DATA OUT

SPISOMI

FUNCTION

SPISOMI

DATA DIR

SPIPC2

0704Fh —

SPI

PRIORITY

SPI

ESPEN

— — — — — SPIPRI

Page 93

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

SERIAL COMMUNICATIONS INTERFACE (SCI) CONFIGURATION CONTROL REGISTERS

07050h

STOP

BITS

EVEN/ODD

PARITY

ENABLE

SCI ENA

ADDR/IDLE

MODE

SCI

CHAR2

SCI

CHAR1

SCI

CHAR0

SCICCR

07051h —

RX ERR INT ENA

SW RESET CLOCK ENA TXWAKE SLEEP TXENA RXENA SCICTL1

07052h

BAUD15

(MSB)

BAUD14 BAUD13 BAUD12 BAUD11 BAUD10 BAUD9 BAUD8 SCIHBAUD

07053h BAUD7 BAUD6 BAUD5 BAUD4 BAUD3 BAUD2 BAUD1

BAUD0

(LSB)

SCILBAUD

07054h TXRDY TX EMPTY — — — —

RX/BK

INT ENA

SCICTL2

07055h RX ERROR RXRDY BRKDT FE OE PE RXWAKE — SCIRXST 07056h ERXDT7 ERXDT6 ERXDT5 ERXDT4 ERXDT3 ERXDT2 ERXDT1 ERXDT0 SCIRXEMU 07057h RXDT7 RXDT6 RXDT5 RXDT4 RXDT3 RXDT2 RXDT1 RXDT0 SCIRXBUF 07058h Reserved 07059h TXDT7 TXDT6 TXDT5 TXDT4 TXDT3 TXDT2 TXDT1 TXDT0 SCITXBUF 0705Ah

0705Dh

Reserved

0705Eh

SCITXD

DATA IN

SCITXD

DATA OUT

SCITXD

FUNCTION

SCITXD

DATA DIR

SCIRXD DATA IN

SCIRXD

DATA OUT

SCIRXD

FUNCTION

SCIRXD

DATA DIR

SCIPC2

0705Fh —

SCITX

PRIORITY

SCIRX

PRIORITY

SCI

ESPEN

— — — — SCIPRI

07060h

0706Fh

Reserved

EXTERNAL INTERRUPT CONTROL REGISTERS

XINT1 FLAG

— — — — — — —

07070h

—

XINT1

PIN DATA

0 — —

XINT1

POLARITY

XINT1

PRIORITY

XINT1

ENA

XINT1CR

07071h Reserved

NMI

FLAG

— — — — — — —

07072h

—

NMI

PIN DATA

1 — —

NMI

POLARITY

— —

NMICR

07073h

07077h

Reserved

XINT2 FLAG

— — — — — — —

07078h

—

XINT2

PIN DATA

—

XINT2

DATA DIR

XINT2

DATA OUT

XINT2

POLARITY

XINT2

PRIORITY

XINT2

ENA

XINT2CR

07079h Reserved

Page 94

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

EXTERNAL INTERRUPT CONTROL REGISTERS (CONTINUED)

XINT3

FLAG

— — — — — — —

0707Ah

—

XINT3

PIN DATA

—

XINT3

DATA DIR

XINT3

DATA OUT

XINT3

POLARITY

XINT3

PRIORITY

XINT3

ENA

XINT3CR

0707Bh

0708Fh

Reserved

DIGITAL I/O CONTROL REGISTERS

CRA.15 CRA.14 CRA.13 CRA.12 CRA.1 1 CRA.10 CRA.9 CRA.8

07090h

— — — — CRA.3 CRA.2 CRA.1 CRA.0

OCRA

07091h Reserved

— — — — — — — —

07092h

CRB.7 CRB.6 CRB.5 CRB.4 CRB.3 CRB.2 CRB.1 CRB.0

OCRB

07093h

07097h

Reserved

— — — — A3DIR A2DIR A1DIR A0DIR

07098h

— — — — IOPA3 IOPA2 IOPA1 IOPA0

PADATDIR

07099h Reserved

B7DIR B6DIR B5DIR B4DIR B3DIR B2DIR B1DIR B0DIR

0709Ah

IOPB7 IOPB6 IOPB5 IOPB4 IOPB3 IOPB2 IOPB1 IOPB0

PBDATDIR

0709Bh Reserved

C7DIR C6DIR C5DIR C4DIR C3DIR C2DIR C1DIR C0DIR

0709Ch

IOPC7 IOPC6 IOPC5 IOPC4 IOPC3 IOPC2 IOPC1 IOPC0

PCDATDIR

0709Dh

073FFh

Reserved

GENERAL-PURPOSE (GP) TIMER CONFIGURATION CONTROL REGISTERS

T3STAT T2STAT T1STA T T3TOADC T2TOADC T1TOADC(1)

07400h

T1TOADC(0) TCOMPOE T3PIN T2PIN T1PIN

GPTCON

D15 D14 D13 D12 D11 D10 D9 D8

07401h

D7 D6 D5 D4 D3 D2 D1 D0

T1CNT

D15 D14 D13 D12 D11 D10 D9 D8

07402h

D7 D6 D5 D4 D3 D2 D1 D0

T1CMPR

D15 D14 D13 D12 D11 D10 D9 D8

07403h

D7 D6 D5 D4 D3 D2 D1 D0

T1PR

FREE SOFT TMODE2 TMODE1 TMODE0 TPS2 TPS1 TPS0

07404h

TSWT1 TENABLE TCLKS1 TCLKS0 TCLD1 TCLD0 TECMPR SEL T1PR

T1CON

D15 D14 D13 D12 D11 D10 D9 D8

07405h

D7 D6 D5 D4 D3 D2 D1 D0

T2CNT

D15 D14 D13 D12 D11 D10 D9 D8

07406h

D7 D6 D5 D4 D3 D2 D1 D0

T2CMPR

Page 95

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

GENERAL-PURPOSE (GP) TIMER CONFIGURATION CONTROL REGISTERS (CONTINUED)

D15 D14 D13 D12 D11 D10 D9 D8

07407h

D7 D6 D5 D4 D3 D2 D1 D0

T2PR

FREE SOFT TMODE2 TMODE1 TMODE0 TPS2 TPS1 TPS0

07408h

TSWT1 TENABLE TCLKS1 TCLKS0 TCLD1 TCLD0 TECMPR SELT1PR

T2CON

D15 D14 D13 D12 D11 D10 D9 D8

07409h

D7 D6 D5 D4 D3 D2 D1 D0

T3CNT

D15 D14 D13 D12 D11 D10 D9 D8

0740Ah

D7 D6 D5 D4 D3 D2 D1 D0

T3CMPR

D15 D14 D13 D12 D11 D10 D9 D8

0740Bh

D7 D6 D5 D4 D3 D2 D1 D0

T3PR

FREE SOFT TMODE2 TMODE1 TMODE0 TPS2 TPS1 TPS0

0740Ch

TSWT1 TENABLE TCLKS1 TCLKS0 TCLD1 TCLD0 TECMPR SELT1PR

T3CON

0740Dh

07410h

Reserved

FULL AND SIMPLE COMPARE UNIT REGISTERS

CENABLE CLD1 CLD0 SVENABLE ACTRLD1 ACTRLD0 FCOMPOE SCOMPOE

07411h

SELTMR SCLD1 SCLD0 SACTRLD1 SACTRLD0 SELCMP3 SELCMP2 SELCMP1

COMCON

07412h Reserved

SVRDIR D2 D1 D0 CMP6ACT1 CMP6ACT0 CMP5ACT1 CMP5ACT0

07413h

CMP4ACT1 CMP4ACT0 CMP3ACT1 CMP3ACT0 CMP2ACT1 CMP2ACT0 CMP1ACT1 CMP1ACT0

ACTR

— — — — — — — —

07414h

—

SCMP3-

ACT1

SCMP3-

ACT0

SCMP2-

ACT1

SCMP2-

ACT0

SCMP1-

ACT1

SCMP1-

ACT0

SACTR

DBT7 DBT6 DBT5 DBT4 DBT3 DBT2 DBT1 DBT0

07415h

EDBT3 EDBT2 EDBT1 DBTPS1 DBTPS0 — — —

DBTCON

07416h Reserved

D15 D14 D13 D12 D11 D10 D9 D8

07417h

D7 D6 D5 D4 D3 D2 D1 D0

CMPR1

D15 D14 D13 D12 D11 D10 D9 D8

07418h

D7 D6 D5 D4 D3 D2 D1 D0

CMPR2

D15 D14 D13 D12 D11 D10 D9 D8

07419h

D7 D6 D5 D4 D3 D2 D1 D0

CMPR3

D15 D14 D13 D12 D11 D10 D9 D8

0741Ah

D7 D6 D5 D4 D3 D2 D1 D0

SCMPR1

D15 D14 D13 D12 D11 D10 D9 D8

0741Bh

D7 D6 D5 D4 D3 D2 D1 D0

SCMPR2

D15 D14 D13 D12 D11 D10 D9 D8

0741Ch

D7 D6 D5 D4 D3 D2 D1 D0

SCMPR3

0741Dh

0741Fh

Reserved

Page 96

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

CAPTURE UNIT REGISTERS

CAPRES CAPQEPN CAP3EN CAP4EN CAP34TSEL CAP12TSEL CAP4TOADC

07420h

CAP1EDGE CAP2EDGE CAP3EDGE CAP4EDGE

CAPCON

07421h Reserved

CAP4FIFO CAP3FIFO CAP2FIFO CAP1FIFO

07422h

CAPFIFO15 CAPFIFO14 CAPFIFO13 CAPFIFO12 CAPFIFO11 CAPFIFO10 CAPFIFO9 CAPFIFO8

CAPFIFO

D15 D14 D13 D12 D11 D10 D9 D8

07423h

D7 D6 D5 D4 D3 D2 D1 D0

CAP1FIFO

D15 D14 D13 D12 D11 D10 D9 D8

07424h

D7 D6 D5 D4 D3 D2 D1 D0

CAP2FIFO

D15 D14 D13 D12 D11 D10 D9 D8

07425h

D7 D6 D5 D4 D3 D2 D1 D0

CAP3FIFO

D15 D14 D13 D12 D11 D10 D9 D8

07426h

D7 D6 D5 D4 D3 D2 D1 D0

CAP4FIFO

07427h

0742Bh

Reserved

EVENT MANAGER (EV) INTERRUPT CONTROL REGISTERS

— — — — —

T1OFINT

ENA

T1UFINT

ENA

T1CINT

ENA

0742Ch

T1PINT

ENA

SCMP3INT

ENA

SCMP2INT

ENA

SCMP1INT

ENA

CMP3INT

ENA

CMP2INT

ENA

CMP1INT

ENA

PDPINT

ENA

EVIMRA

— — — — — — — —

0742Dh

T3OFINT

ENA

T3UFINT

ENA

T3CINT

ENA

T3PINT

ENA

T2OFINT

ENA

T2UFINT

ENA

T2CINT

ENA

T2PINT

ENA

EVIMRB

— — — — — — — —

0742Eh

—

— — —

CAP4INT

ENA

CAP3INT

ENA

CAP2INT

ENA

CAP1INT

ENA

EVIMRC

— — — — —

T1OFINT

FLAG

T1UFINT

FLAG

T1CINT

FLAG

0742Fh

T1PINT

FLAG

SCMP3INT

FLAG

SCMP2INT

FLAG

SCMP1INT

FLAG

CMP3INT

FLAG

CMP2INT

FLAG

CMP1INT

FLAG

PDPINT

FLAG

EVIFRA

— — — — — — — —

07430h

T3OFINT

FLAG

T3UFINT

FLAG

T3CINT

FLAG

T3PINT

FLAG

T2OFINT

FLAG

T2UFINT

FLAG

T2CINT

FLAG

T2PINT

FLAG

EVIFRB

— — — — — — — —

07431h

—

— — —

CAP4INT

FLAG

CAP3INT

FLAG

CAP2INT

FLAG

CAP1INT

FLAG

EVIFRC

0 0 0 0 0 0 0 0

07432h

0 0 D5 D4 D3 D2 D1 D0

EVIVRA

0 0 0 0 0 0 0 0

07433h

0 0 D5 D4 D3 D2 D1 D0

EVIVRB

0 0 0 0 0 0 0 0

07434h

0 0 D5 D4 D3 D2 D1 D0

EVIVRC

07435h

0743Fh

Reserved

Page 97

SMJ320F240

DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

Table 18. Register File Compilation (Continued)

ADDR

BIT 15

BIT 14 BIT 13 BIT 12 BIT 11 BIT 10 BIT 9 BIT 8 REG

BIT 7 BIT 6 BIT 5 BIT 4 BIT 3 BIT 2 BIT 1 BIT 0

I/O MEMORY SPACE

FLASH CONTROL MODE REGISTER

†

— — — — — — — —

0FF0Fh

— — — — — — — —

FCMR

WAIT-STATE GENERATOR CONTROL REGISTER

— — — — — — — —

0FFFFh

— — — — AVIS ISWS DSWS PSWS

WSGR

†

See the flash control mode register section.

Page 98

SMJ320F240 DSP CONTROLLER

SGUS029 – APRIL 1999

POST OFFICE BOX 1443 • HOUSTON, TEXAS 77251–1443

MECHANICAL DATA

HFP (S-GQFP-F132) CERAMIC QUAD FLATPACK

0.800 (20,32) TYP

0.110 (2,79)

0.150 (3,81)

0.965 (24,51)

0.935 (23,75)

1.460 (37,08)

117

116

1.540 (39,12)

4073432/A 11/96

0.008 (0,20)

0.004 (0,10)

0.014 (0,36)

0.008 (0,20)

0.025 (0,635)

NOTES: A. All linear dimensions are in inches (millimeters).

B. This drawing is subject to change without notice.

C. This package can be hermetically sealed with a ceramic lid using glass frit.

Page 99

IMPORTANT NOTICE

T exas Instruments and its subsidiaries (TI) reserve the right to make changes to their products or to discontinue any product or service without notice, and advise customers to obtain the latest version of relevant information to verify, before placing orders, that information being relied on is current and complete. All products are sold subject to the terms and conditions of sale supplied at the time of order acknowledgement, including those pertaining to warranty, patent infringement, and limitation of liability.

TI warrants performance of its semiconductor products to the specifications applicable at the time of sale in accordance with TI’s standard warranty. Testing and other quality control techniques are utilized to the extent TI deems necessary to support this warranty. Specific testing of all parameters of each device is not necessarily performed, except those mandated by government requirements.

CERT AIN APPLICATIONS USING SEMICONDUCTOR PRODUCTS MAY INVOLVE POTENTIAL RISKS OF DEATH, PERSONAL INJURY, OR SEVERE PROPERTY OR ENVIRONMENTAL DAMAGE (“CRITICAL APPLICATIONS”). TI SEMICONDUCTOR PRODUCTS ARE NOT DESIGNED, AUTHORIZED, OR WARRANTED TO BE SUITABLE FOR USE IN LIFE-SUPPORT DEVICES OR SYSTEMS OR OTHER CRITICAL APPLICATIONS. INCLUSION OF TI PRODUCTS IN SUCH APPLICA TIONS IS UNDERSTOOD T O BE FULLY AT THE CUSTOMER’S RISK.

In order to minimize risks associated with the customer’s applications, adequate design and operating safeguards must be provided by the customer to minimize inherent or procedural hazards.

TI assumes no liability for applications assistance or customer product design. TI does not warrant or represent that any license, either express or implied, is granted under any patent right, copyright, mask work right, or other intellectual property right of TI covering or relating to any combination, machine, or process in which such semiconductor products or services might be or are used. TI’s publication of information regarding any third party’s products or services does not constitute TI’s approval, warranty or endorsement thereof.

Datasheet SMJ320F240HFPM40 Datasheet (Texas Instruments)

Specifications and Main Features

Frequently Asked Questions

User Manual
