Introduction

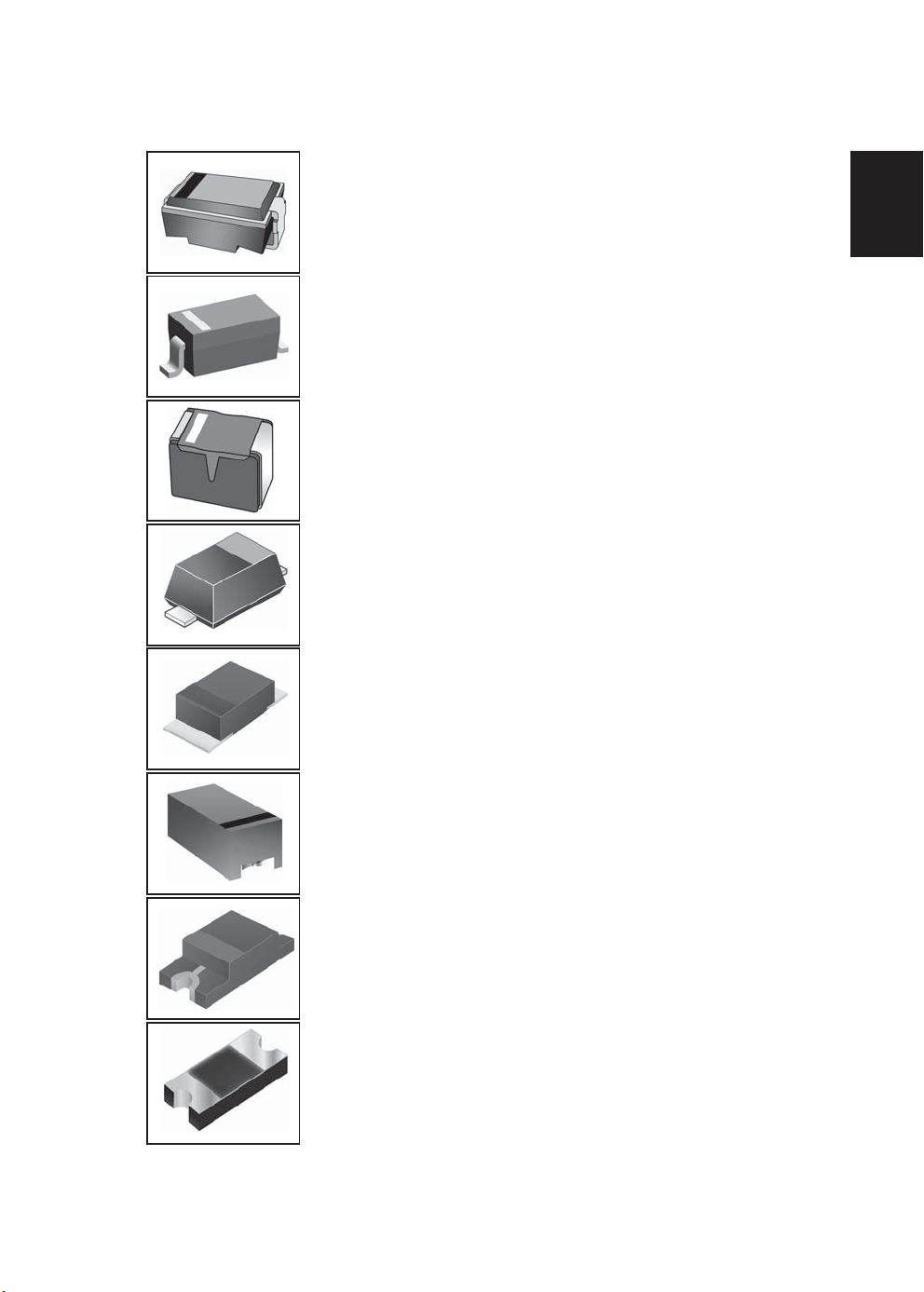

SMD-codes for semiconductor components in 2-pins cases

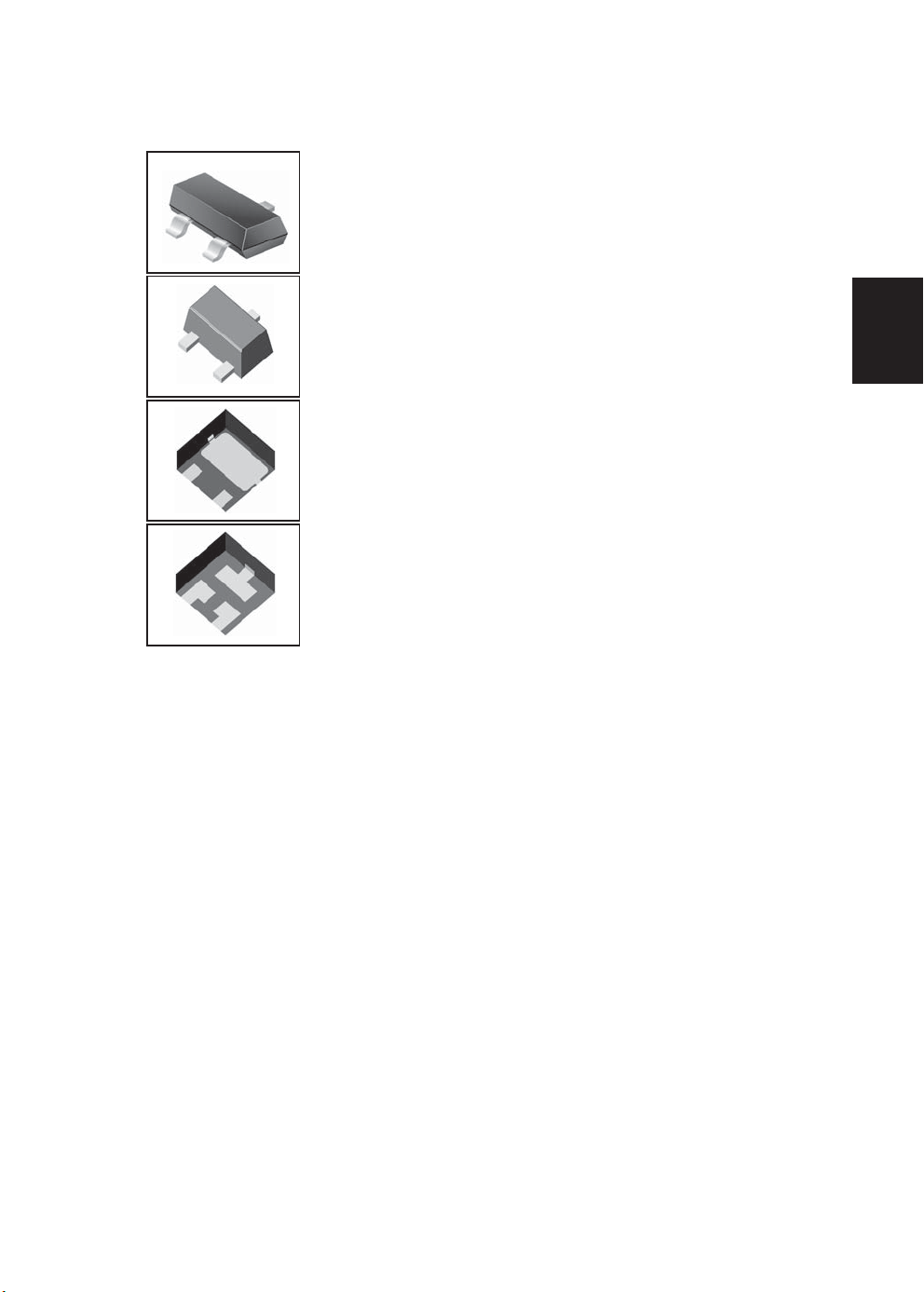

SMD-codes for semiconductor components in 3-pins cases

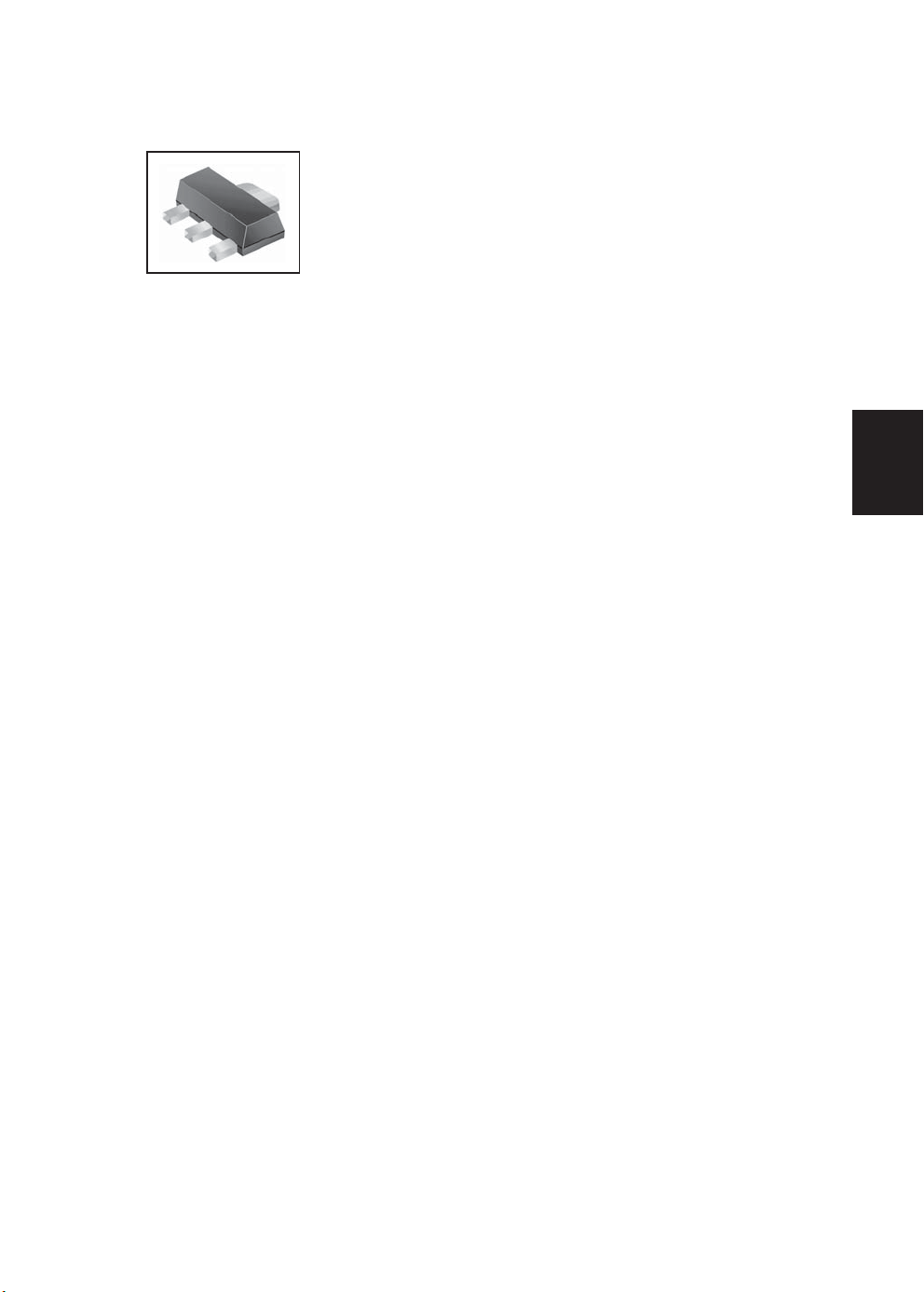

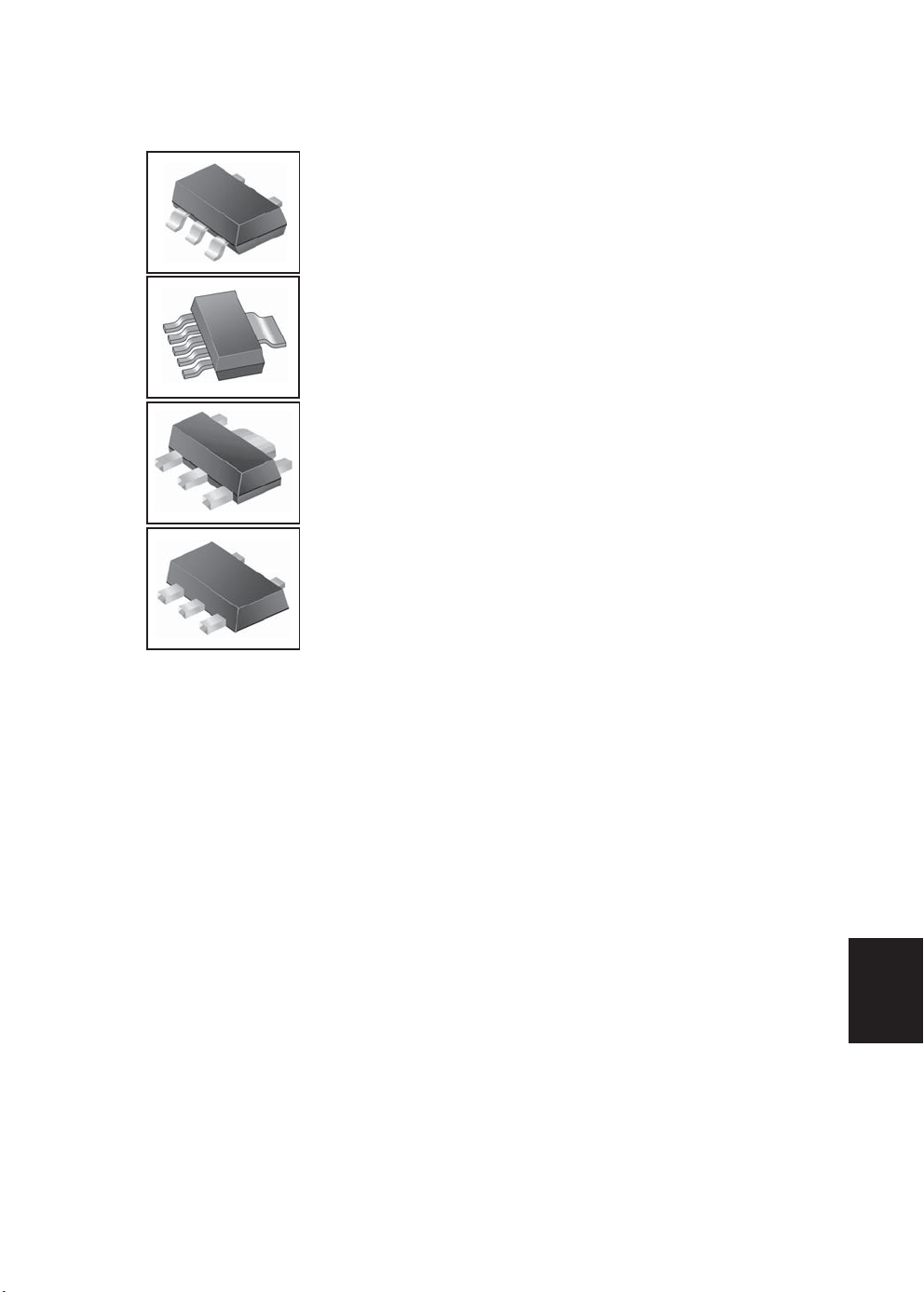

SMD-codes for semiconductor components in SOT-89 cases

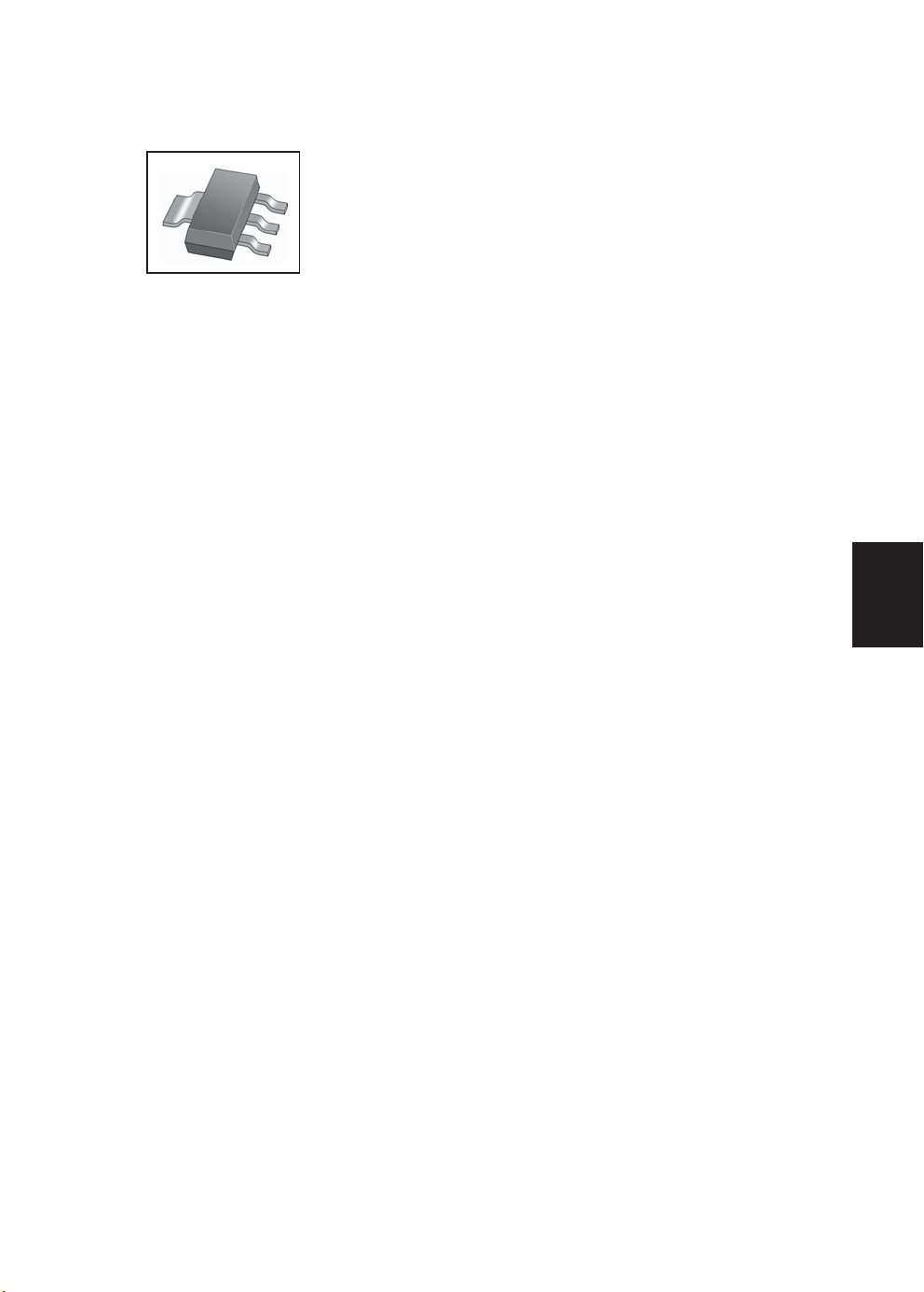

SMD-codes for semiconductor components in SOT-223 cases

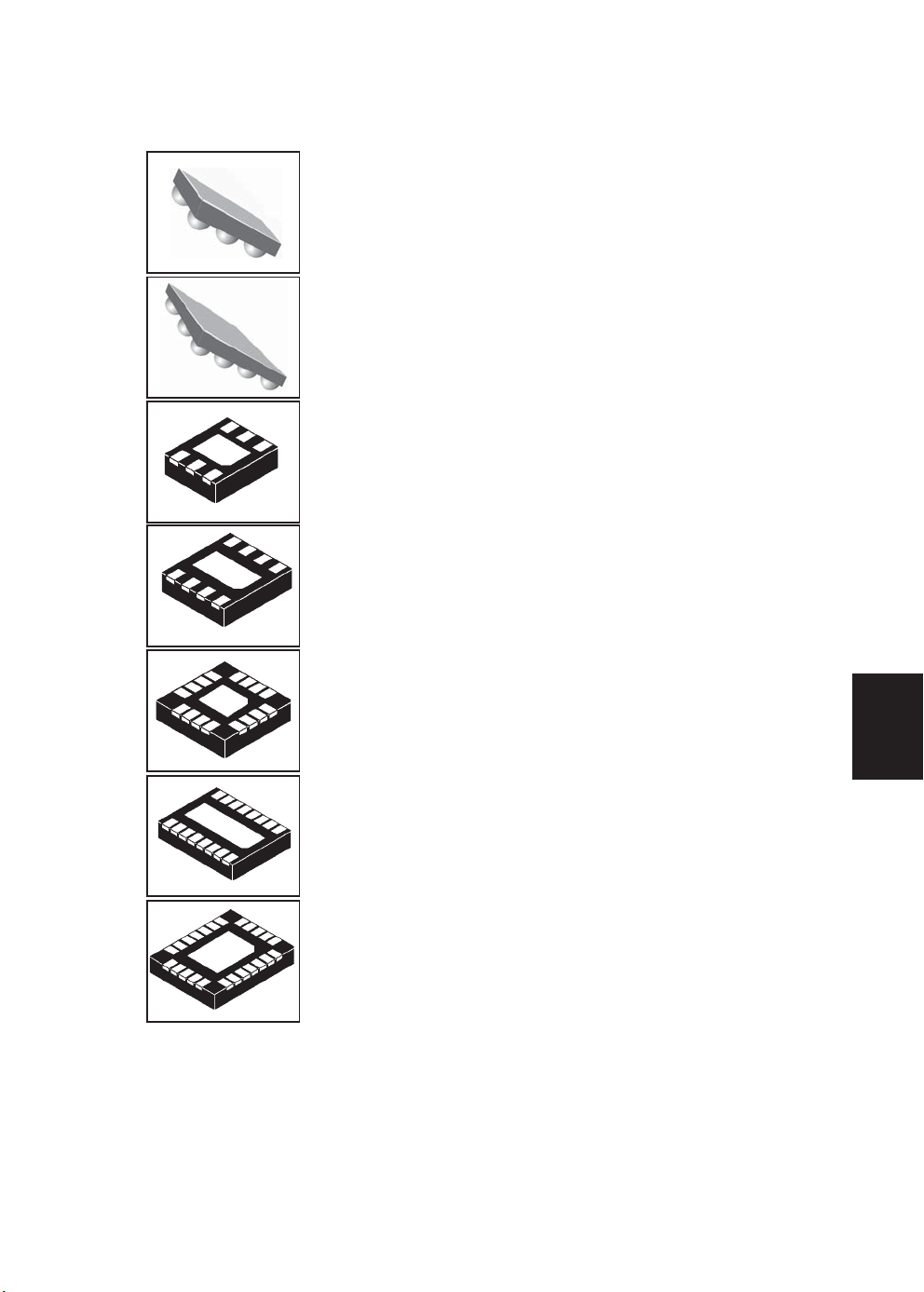

SMD-codes for semiconductor components in BGA and LPP cases

SMD-codes for semiconductor components in 4-pins cases

SMD-codes for semiconductor components in 5-pins cases

vv

ee

v

e

vv

ee

king codesking codes

king codes

king codesking codes

BGA...LPP2 - pins 3 - pins SOT - 89 SOT - 223 4 - pins 5 - pins 6... - pins

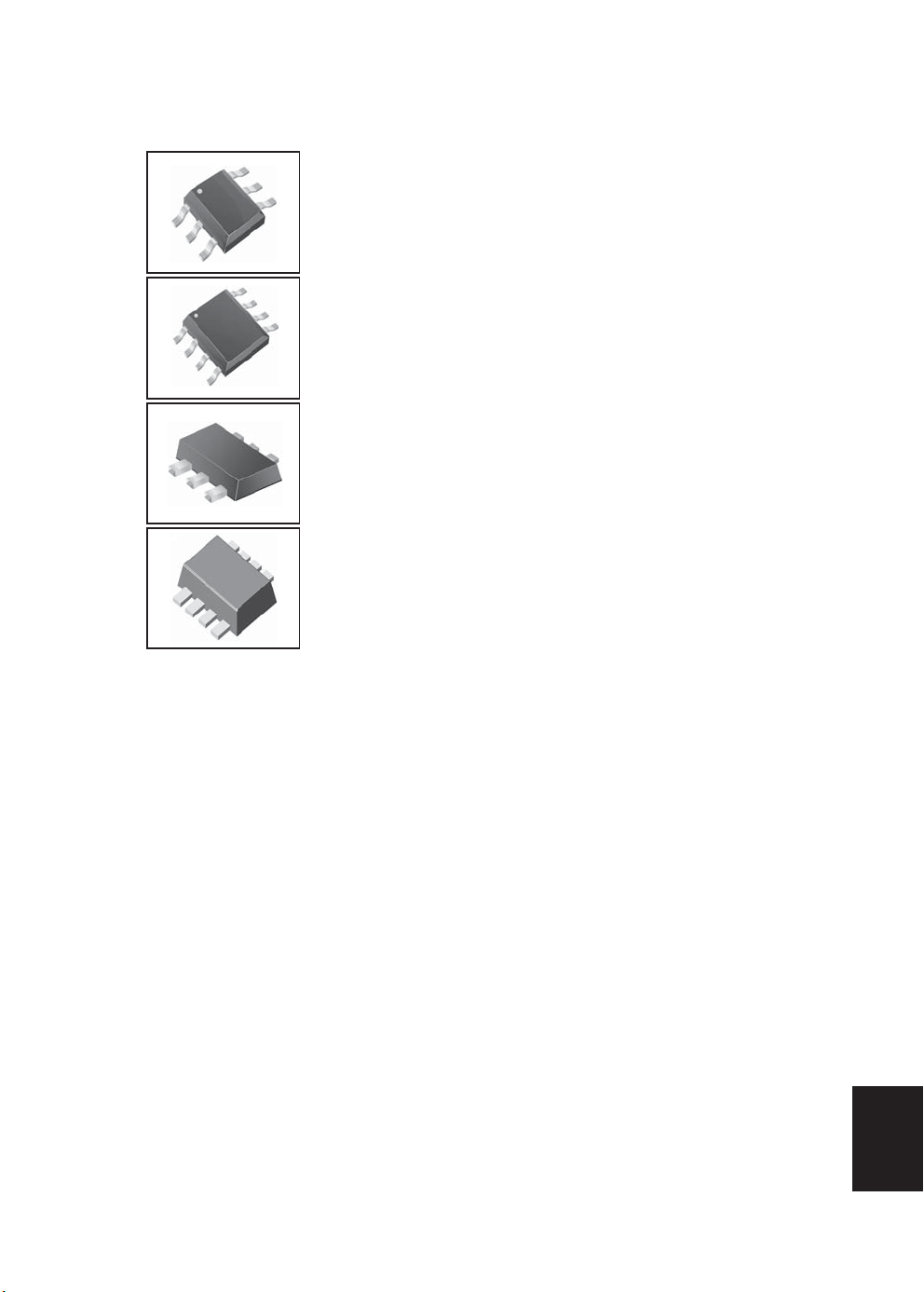

SMD-codes for semiconductor components in 6 and more pins cases

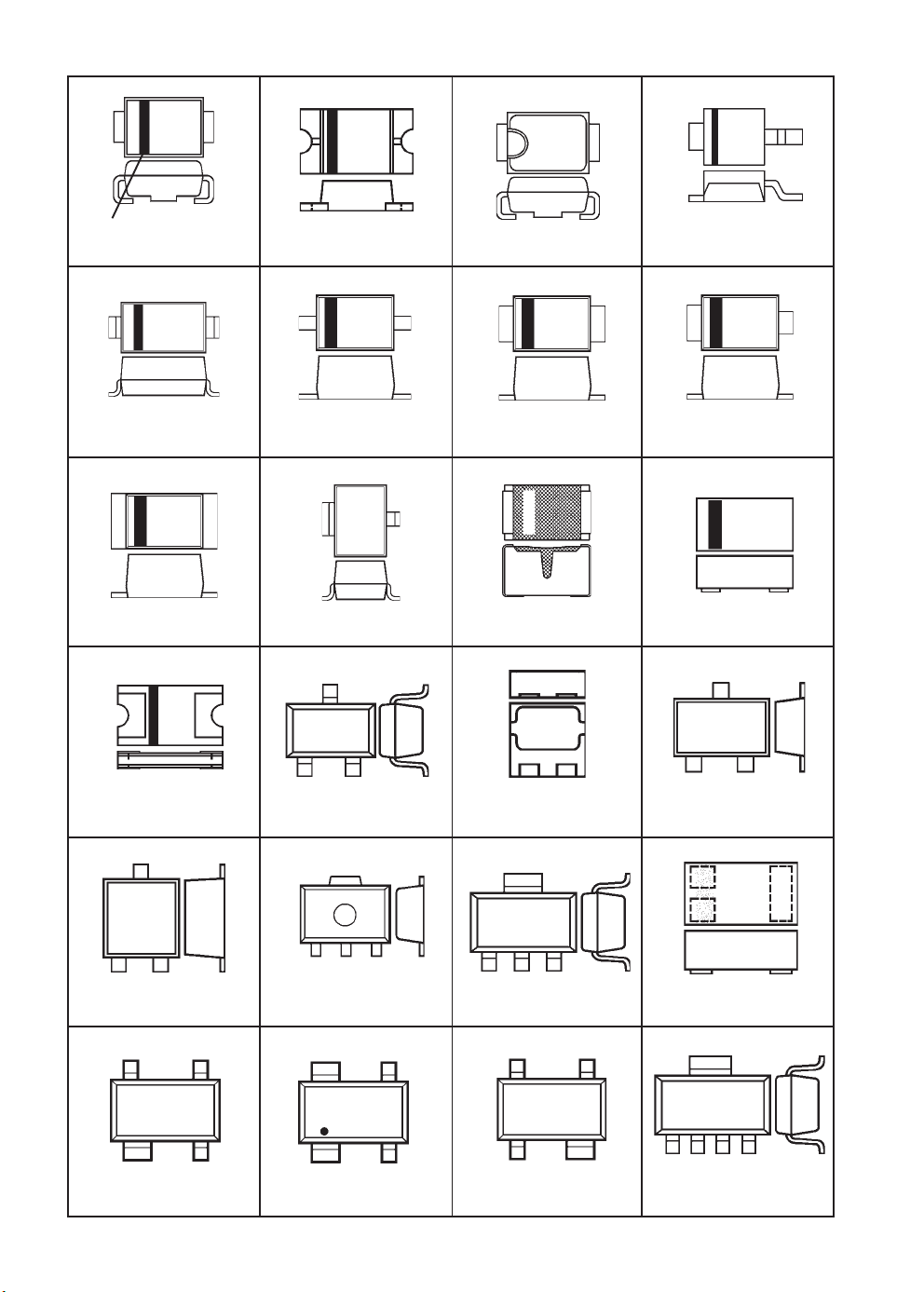

Conventional cases drawings. Cases pin assignments. Pinouts

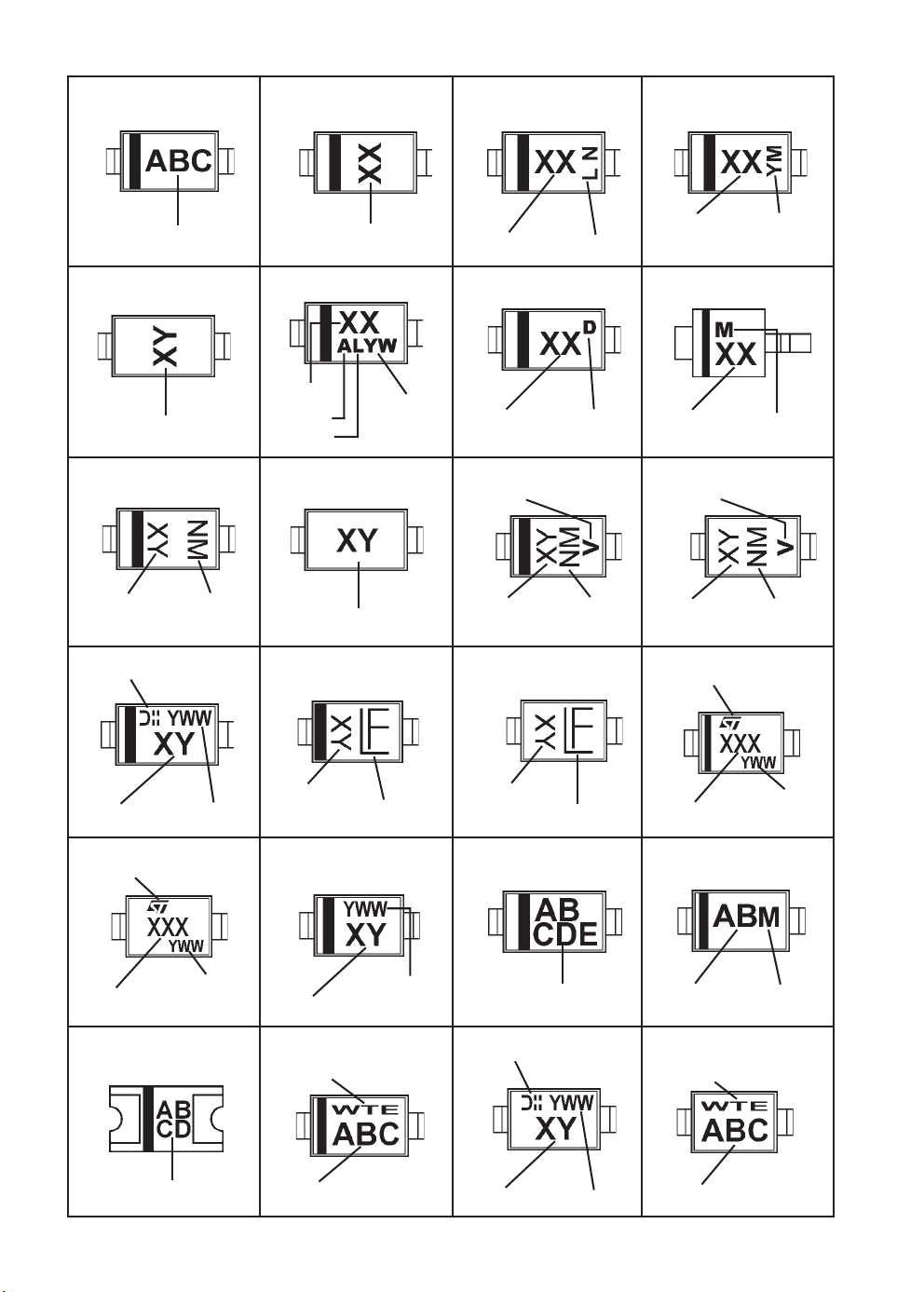

SMD-codes marking style

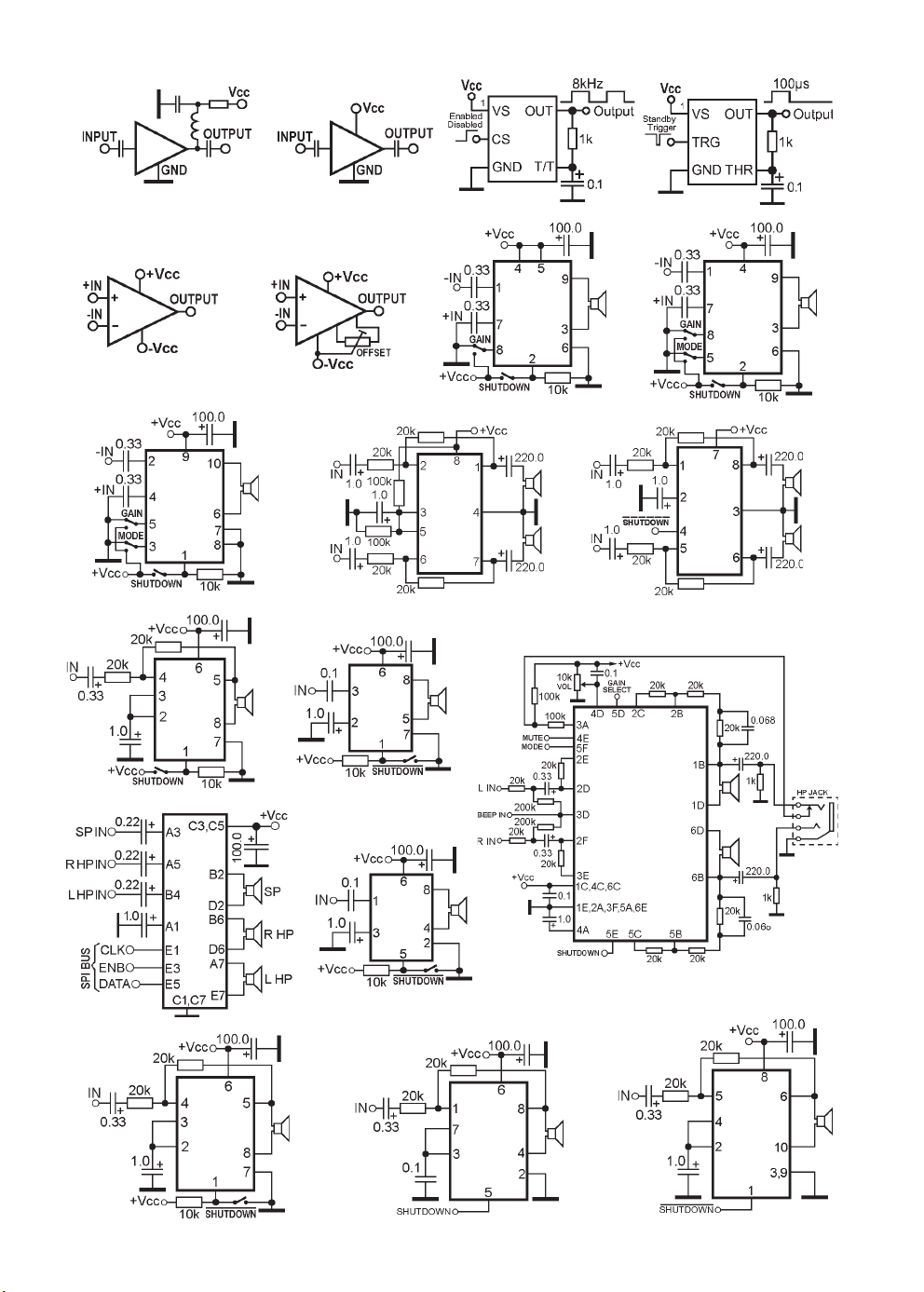

Sample schematics diagrams

Logos, contact and web-adresses of the manufacturers

Chisinau, 2008 edition

Introduction

p

Surface mount devices (SMDs) are used in a growing number of commercial and industrial products. SMDs
have improved performance over through-hole components due to their smaller size, shorter internal leads, and
smaller board layouts. These factors reduce the circuit’s parasitic inductance and capacitance. SMDs can also be
more cost effective than traditional through-hole components due to the smaller board size, fewer board layers,
and fewer holes. Today more than 50% of active semiconductor components are surface-mounted.

At the same time, SMD devices are, by their very nature, too small to carry conventional semiconductor type
numbers. Therefore, a somewhat arbitrary coding system has grown up, where the device package carries a simple
one, two or more character or graphic ID code. Thus it is necessary to take into account that the colour and (or)
placing of alphanumeric or graphic symbols are also important.

Identifying the manufacturers type number of an SMD device from the package code can be a difficult task.
Unfortunately, each device code is not necessarily unique.

It is possible for various manufacturers to place different devices in the same case with the same SMD-code.
For example, with a 6H SMD-code in a SOT-23 case might be either a npn-transistor BC818 (CDIL) or a capacitance­diode FMMV2104 (Zetex) or a n-channel JFET transistor MMBF5486 (Motorla) or a pnp-digital transistor MUN2131
(Motorola) or a pnp-digital transistor UN2117 (Matsushita) or a CMOS-integrated circuit- voltage detector with reset
output R3131N36EA (Ricoh). Even the same manufacturer may use the same code for different devices.

To identify a particular SMD device, is necessary to identify the manufacturer, package style and note the ID
code printed on the device.

The identification of the manufacturer is possible only if on the case are printed the manufacturer’s logos, but it
not always happens. Besides, sometimes it is possible to determine the manufacturer with indirect tags. Many recent
Motorola devices have a small superscript letter after the device code, such as SAC (this smaller letter is merely a
month of manufacture code). Siemens and Infineon devices usually have a lower case 's' (ATs, LOs). Philips
devices usually have a lower case 'p' (AHp, Z1p, pB0) or '-' (D-Q, Z-S) for the devices made in Hong Kong and 't'
(ZtS, tT9, Y7t) for the devices made in Malaysia. In section 5 are submitted the logos of the SMD devices manufac­turers.

The package style is another problem for the identification of SMD devices. The different manufacturers can
designate identical cases according to the various standards (or according to the internal firm system). Besides the
various cases can have an identical kind (form) and differ only by sizes, but this distinction of sizes so it is not
enough, that can be is measured only by special measuring devices. The conformity of the cases name of different
manufacturers is submitted in the bottom table:

Table 1

JEDEC EIAJ Central Rohm Sanyo Hitachi Motorola KEC Panasonic

TO-236 SC-59 SOT-346 SM T3 MPAK2 SC-59 S-Mini Mini3
TO-236AB SOT-23 SST3 CP SOT-23
TO-243AA SC-62 SOT- 89A MPT3 UPAK PW-Mini
TO-243AB SC-62 SOT-89 B
TO252-3 SC-63 CPT3
TO-253 SOT-143 SMT 4 SOT-143
TO-253 SC-61B SOT-143R

SC-76 SOD-323 UMD2 USC

SC-70 SOT-323 U MT3 MCP CMPAK SOT -323 U SM
SC-74 SMT6 SM6
SC-74A SOT-753 SMT5 SMV Mini5
SC-75A SOT-416 EMT3 SMPAK SC-9 0 SSM
SC-79 SOT-523 EM D2 SSFP S-Flat SMini3
SC-82 UMT4
SC-88 SO T-363 UMT6 US6
SC-88A SOT-353 UMT5 SC70-5 USV
SC-89 SO T-490

DO-214AC SOD-106 PMDS
DO-214AC SOD-124

SC-73 SO T-223

SC-81 SSMini3

Maxim Toshiba

s

Phili

Siemens

SOD-123 SOD-123

SOT-343
SOT-343R CMPAK4

SOT23-5 SC59-5

In the following tables sections the SMD semiconductor components - irrelevant as to whether it is dealing with
transistors, diodes, integrated circuits etc. are plased in separate tables according to numbers of terminals and (or)
type of cases and are listed in strict alpha-numeric order by SMD-codes.

Column 1 (“SMD-Code”)

...(blue) Color of SMD code
...+ blue Color of cathode band

Column 2 (“Type”)

The type designations correspond to those of the re­spective manufacturer documentations.

Column 3 (“Device”)

Short definition of the semiconductor component.
Used abbreviations:
C-Diode Capacitance diode (varactor, varicap)
CMOS-IC CMOS integrated circuit
CMOS-Logic CMOS logic integrated circuit
Comp-IC Volatge comparator integrated circuit
CPE Circuit protector element
Digi-IC Digital integrated circuit
GaAs-Diode Gallium-Arsenide diode
GaAs-N-FET Gallium-Arsenide n-channel FET

transistor
H-IC Hall effect integrated circuit
Lin/Dig-IC Linear/digital combination integrated

circuit
Lin-IC Linear integrated circuit
MOS-...* With integrated gate protection diode
MOS-FET-d Metal oxide FET, depletion type
MOS-FET-e Metal oxide FET, enhancement type
n-FET n-channel field-effect transistor
n/p-FET n and p-channel field-effect transistors
p-FET p-channel field-effect transistor
Op-IC Operational amplifier integrated circuit
SA-Diode Surge absorbtion diode
Si-Diode Silicon diode
Si-npn Silicon npn transistor
Si-npn-Darl Silicon npn Darlington transistor
Si-npn-Digi Silicon npn “digital” transistor
SiGe-npn Silicon/Geramanium npn transistor
Si-pnp Silicon pnp transistor
Si-pnp-Darl Silicon pnp Darlington transistor
Si-pnp-Digi Silicon pnp “digital” transistor
Si-Stab Silicon stabistor
Therm-S Thermal sensor Integrated Circuit
Thy-SPD Thyristor-surge protector device
TTL-Logic Transistor-Transistor Logic integrated

circuit
TVS Transient voltage supressor
VR-IC Voltage regulator integrated circuit
Vref-IC Voltage reference integrated circuit
Z-Diode Zenner diode
Z-Diode/TVS Zenner diode - transient voltage

supressor

Column 4 (“Short description”)

Short data or description of function of each type.
Used abbreviations:
Adj. Adjust, adjustable
AF Audio Frequency
AGC Automatic Gain Control
ALC Automatic Level Control
AM Amplitude Modulation (AM range)
Amp Amplifier
Ant Antenna
Att Attenuator
Aval Avalanshe
BTL Bridge Tied Loads
Buff Buffer
CATV Broad band cable amplifier
Cell Cellular
Contr Controlled
Conv Converter
Cordl Cordless
Det Detector
Diff Differential
Dr, Drv Driver

Ext. External
FM Frequency Modulation (FM range)
GaAs Gallium arsenide
GP General Purpose Applications
HF High Frequency
Hi-sp High-speed
HV High Voltage
Instrum. Instrumental
Latch-Pr. Latch-Protection
LDO Low drop voltage
LED Light-emitting diode
LLS Logic Level Shifter
LN Low Noise
LogL Logic Level (Uth > 0,8...2V)
Lo-sat Low collector-emitter saturation voltage
Mix Mixer
MR Manual Reset
ODO Open Drain Output
OVP Over Voltage protection
Osc Oscillator
Out Output
PA Power Amplifier
Pow Power
PPO Push-Pull Output
PWM Pulse-width modulation
Rect Rectifier
Reg Regulated
Res. Resistor
Reset-Pr. Reset-Protection
RF Radio Frequency applications
St-Down Step-Down
Supress. Supressor
Sw. Switching
T-MOS Trench-FET MOSFET
Tun Tuner
U-Speed Ultra-speed
UHF RF applications (>250 MHz)
Var Variable
VCO Voltage controlled oscillator
VDet Volatge Detector
VHF RF applications (100...250MHz)
Vid Video output stages
V-MOS
VR Voltage Regulator
WB Wide Band

Column 5 (“Case”)

Manufacturers cases designation.

Column 6 (“Pin.”)

Related drawing number (figure) and pin assignment
(section 2). All drawings are situated also in the section

2.

Column 7 (“Sch.”)

Sample schematic connection for some ICs. All drawings
are situated in the section 4.

Column 8 (“St.”)

“Style” (upercase placement presentation) of the SMD­code drawing. All drawings are situated in the section 3.

Column 9 (“Mnf.”)

The names of the manufacturers are abbreviated to save
space. The complete name, logos, contact and web­adresses of each manufacurer is listed alphabetically on
section 5.

SMD
code

Type Function Short description Case Pin. Mnf.St.

2 - pins

2-pins SMD semiconductor components

SMD-codes for 2-pins cases semiconductor components

5

SMD

g

)

code

<Z TCMM3Z75VB Z-diode 75V±2%, Izt=5mA, Zzt=240Ω, 200mW SOD-323F 6d 1a Tac
=Z TCMM3Z56VB Z-diode 56V±2%, Izt=5mA, Zzt=188Ω, 200mW SOD-323F 6d 1a Tac
>Z TCMM3Z68VB Z-diode 68V±2%, Izt=5mA, Zzt=226Ω, 200mW SOD-323F 6d 1a Tac
0 HVC300 A C-diode VHF-Tun ing, 32V, 2.6 ..39.5pF(25 V..2V/1MHz) UFP 6d 1b Hi t
0 HVE300A C-diode VHF-Tunin
0 HVU300 A C-diode VHF-Tun ing, 32V, 2,6 ..39,5pF(25 ..2V, 1MHz) SOD-3 23 5d 1a Ren
0 2 GDZ2V0B-V Z-diode 2.02..2.2V, Izt=5mA, Zzt=100Ω, 200mW SOD-323 5d 1k Vs
00 MM3Z2V4 Z-diode 2.2..2.6V, 5mA, Zzt=100Ω, 200mW SOD-3 23 5d 1a Ons, Sec

2 - pins

00 MM5Z2V4 Z-diode 2.2..2.6V, 5mA, Zzt=100Ω, 100mW SOD-5 23 6d 1a Ons, Wtr
00 ZD02V4 Z-diode 2.2..2.6V, 5mA, Zzt=100Ω, 200m W SOD-322 5d 1a Ctc
01 MM3Z2V7(T1) Z-diode 2.5..2.9V, 5mA, Zzt=100Ω, 200mW SO D-323 5d 1a Sec
01 MM5Z2V7(T1) Z-diode 2.5..2.9V, 5mA, Zzt=100Ω, 100mW SO D-523 6d 1a Wtr
01 ZD02V7 Z-diode 2.5..2.9V, 5mA, Zzt=100Ω, 200m W SOD-322 5d 1a Ctc
01C100PH BZG01-C1 00 Z-diod e 100V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C10PH BZG01-C10 Z-diode 10V±5%, 1,5W DO-214AC 1d 1a Phi
01C110PH BZG01-C1 10 Z-diod e 110V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C11PH BZG01-C11 Z-diode 11V±5%, 1,5W DO-214AC 1d 1a Phi
01C120PH BZG01-C1 20 Z-diod e 120V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C12PH BZG01-C12 Z-diode 12V±5%, 1,5W DO-214AC 1d 1a Phi
01C130PH BZG01-C1 30 Z-diod e 130V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C13PH BZG01-C13 Z-diode 13V±5%, 1,5W DO-214AC 1d 1a Phi
01C150PH BZG01-C1 50 Z-diod e 150V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C15PH BZG01-C15 Z-diode 15V±5%, 1,5W DO-214AC 1d 1a Phi
01C160PH BZG01-C1 60 Z-diod e 160V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C16PH BZG01-C16 Z-diode 16V±5%, 1,5W DO-214AC 1d 1a Phi
01C180PH BZG01-C1 80 Z-diod e 180V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C18PH BZG01-C18 Z-diode 18V±5%, 1,5W DO-214AC 1d 1a Phi
01C200PH BZG01-C2 00 Z-diod e 200V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C20PH BZG01-C20 Z-diode 20V±5%, 1,5W DO-214AC 1d 1a Phi
01C220PH BZG01-C2 20 Z-diod e 220V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C22PH BZG01-C22 Z-diode 22V±5%, 1,5W DO-214AC 1d 1a Phi
01C240PH BZG01-C2 40 Z-diod e 270V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C24PH BZG01-C24 Z-diode 24V±5%, 1,5W DO-214AC 1d 1a Phi
01C270PH BZG01-C2 70 Z-diod e 270V± 5%, 1,5W DO-214 AC 1 d 1a Phi
01C27PH BZG01-C27 Z-diode 27V±5%, 1,5W DO-214AC 1d 1a Phi
01C30PH BZG01-C30 Z-diode 30V±5%, 1,5W DO-214AC 1d 1a Phi
01C33PH BZG01-C33 Z-diode 33V±5%, 1,5W DO-214AC 1d 1a Phi
01C36PH BZG01-C36 Z-diode 36V±5%, 1,5W DO-214AC 1d 1a Phi
01C39PH BZG01-C39 Z-diode 39V±5%, 1,5W DO-214AC 1d 1a Phi
01C43PH BZG01-C43 Z-diode 43V±5%, 1,5W DO-214AC 1d 1a Phi
01C47PH BZG01-C47 Z-diode 47V±5%, 1,5W DO-214AC 1d 1a Phi
01C51PH BZG01-C51 Z-diode 51V±5%, 1,5W DO-214AC 1d 1a Phi
01C56PH BZG01-C56 Z-diode 56V±5%, 1,5W DO-214AC 1d 1a Phi
01C62PH BZG01-C62 Z-diode 62V±5%, 1,5W DO-214AC 1d 1a Phi
01C68PH BZG01-C68 Z-diode 68V±5%, 1,5W DO-214AC 1d 1a Phi
01C75PH BZG01-C75 Z-diode 75V±5%, 1,5W DO-214AC 1d 1a Phi
01C82PH BZG01-C82 Z-diode 82V±5%, 1,5W DO-214AC 1d 1a Phi
01C91PH BZG01-C91 Z-diode 91V±5%, 1,5W DO-214AC 1d 1a Phi
02 MM3Z3V0 Z-diode 2.8..3.2V, 5mA, Zzt=95Ω, 200mW SOD-323 5d 1a,1d Ons,Sec
02 MM5Z3V0 Z-diode 2.8..3.2V, 5mA, Zzt=100Ω, 100mW SOD-5 23 6d 1a,1u Ons,Wtr
02 ZD03V0 Z-diode 2.8..3.2V, 5mA, Zzt=100Ω, 200m W SOD-322 5d 1a Ctc
03C10 BZG03-C10 Z-diode 10V±5%, Izt=50mA, Zzt=2Ω, 1,25W DO-214AC 1d 1a Sil
03C100 BZG03-C100 Z-diode 100V±5%, Izt=5mA, Zzt=60Ω, 1,25W DO-214 AC 1 d 1a Sil
03C100PH BZG03-C100 Z-diode 100V±5%, Izt=5mA, Zzt=60Ω , 1,25W DO -214AC 1d 1a Phi
03C10PH BZG03-C10 Z-diode 10V±5%, Izt=50mA, Zzt=2Ω, 1,25W DO-214AC 1d 1a Phi
03C11 BZG03-C11 Z-diode 11V±5%, Izt=50mA, Zzt=4Ω, 1,25W DO-214AC 1d 1a Sil
03C110 BZG03-C110 Z-diode 110V±5%, Izt=5mA, Zzt=80Ω, 1,25W DO-214 AC 1 d 1a Sil
03C110PH BZG03-C110 Z-diode 110V±5%, Izt=5mA, Zzt=80Ω , 1,25W DO -214AC 1d 1a Phi
03C11PH BZG03-C11 Z-diode 11V±5%, Izt=50mA, Zzt=4Ω, 1,25W DO-214AC 1d 1a Phi
03C12 BZG03-C12 Z-diode 12V±5%, Izt=50mA, Zzt=4Ω, 1,25W DO-214AC 1d 1a Sil
03C120 BZG03-C120 Z-diode 120V±5%, Izt=5mA, Zzt=80Ω, 1,25W DO-214 AC 1 d 1a Sil
03C120PH BZG03-C120 Z-diode 120V±5%, Izt=5mA, Zzt=80Ω , 1,25W DO -214AC 1d 1a Phi
03C12PH BZG03-C12 Z-diode 12V±5%, Izt=50mA, Zzt=4Ω, 1,25W DO-214AC 1d 1a Phi
03C13 BZG03-C13 Z-diode 13V±5%, Izt=50mA, Zzt=5Ω, 1,25W DO-214AC 1d 1a Sil
03C130 BZG03-C130 Z-diode 130V±5%, Izt=5mA, Zzt=110Ω, 1,25W DO-214AC 1d 1a Sil
03C130PH BZG03-C130 Z-diode 130V±5%, Izt=5mA, Zzt=110Ω , 1,25W DO-214AC 1d 1a Phi
03C13PH BZG03-C13 Z-diode 13V±5%, Izt=50mA, Zzt=5Ω, 1,25W DO-214AC 1d 1a Phi
03C15 BZG03-C15 Z-diode 15V±5%, Izt=50mA, Zzt=5Ω, 1,25W DO-214AC 1d 1a Sil
03C150 BZG03-C150 Z-diode 150V±5%, Izt=5mA, Zzt=130Ω, 1,25W DO-214AC 1d 1a Sil
03C150PH BZG03-C150 Z-diode 150V±5%, Izt=5mA, Zzt=130Ω , 1,25W DO-214AC 1d 1a Phi
03C15PH BZG03-C15 Z-diode 15V±5%, Izt=50mA, Zzt=5Ω, 1,25W DO-214AC 1d 1a Phi
03C16 BZG03-C16 Z-diode 16V±5%, Izt=25mA, Zzt=6Ω, 1,25W DO-214AC 1d 1a Sil
03C160 BZG03-C160 Z-diode 160V±5%, Izt=5mA, Zzt=150Ω, 1,25W DO-214AC 1d 1a Sil
03C160PH BZG03-C160 Z-diode 160V±5%, Izt=5mA, Zzt=150Ω , 1,25W DO-214AC 1d 1a Phi
03C16PH BZG03-C16 Z-diode 16V±5%, Izt=25mA, Zzt=6Ω, 1,25W DO-214AC 1d 1a Phi

Type Function Short description Case Pin. Mnf.St.

, 39,5 ..47,4pF(2V

SOD-123 5d 1a Hit

6

SMD

Type Function

code

Short description

Case Pin. Mnf.

St.

Sch.

3-pins SMD semiconductor components

SMD-codes for 3-pins cases semiconductor components

3 - pins

181

SMD

Type Function

code

+P2 BFR92A Si-npn UHF-A-Band, 20V, 25mA, 300mW, B>40, >5GHz SOT-23 16ta 3a - Sil
+P5 BFR92AR Si-npn UHF-A-Band, 20V, 25mA, 300mW, B>40, >5GHz SOT-23 16te 3a - Sil
+R2 BFR93A Si-npn UHF-A-Band, 15V, 30mA, 300mW, B>40, >5GHz SOT-23 16ta 3a - Sil
+R5 BFR93AR Si-npn UHF-A-Band, 15V, 30mA, 300mW, B>40, >5GHz SOT-23 16te 3a - Sil
01 PDTA143EE Si-pnp-Digi Sw, 50V, 100mA, 150mW, R1/R2=4.7k/4.7k SC-75 16ta 3a - Phi
01 PDTA143EK Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=4.7k/4.7k SC-59 16ta 3a - Phi
011 SO2369R Si-npn Sw, 40V, 200mA, 330mW, B=40..120 SOT-23R 16te 3a - Ste
01A APR3001-15A CMOS-IC Voltage detect or, 1.5V, -Reset Push-pull output SOT -23 16vdb 3b VD7 Anp
01B APR3001-17A CMOS-IC Voltage detect or, 1.75V, -Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
01C APR3001-23A CMOS-IC Voltage detect or, 2.32V, -Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
01D APR3001-26A CMOS-IC Voltage detect or, 2.63V, -Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
01E APR3001-29A CMOS-IC Voltage detector, 2.93V, -Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
01F APR3001-30A CMOS-IC Voltage detector, 3. 08V, -Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
01G APR3001-39A CMOS-IC Voltage detector, 3.9V, -Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
01H APR3001-43A CMOS-IC Voltage detect or, 4.38V, -Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
01J APR3001-46A CMOS-IC Voltage detector, 4.63V, -Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02 BSX39 Si-npn Sw, Driver, 45V, 0,2A, <12/18ns SOT-23 16te 3a - Mot

3 - pins

02 PDTC143EE Si-npn-Digi Sw, 50V, 100mA, 150mW, R1/R2=4.7k/4.7k SC-75 16ta 3a - Phi
02 PDTC143EK Si-npn-Digi Sw, 50V, 100mA, 150mW, R1/R2=4.7k/4.7k SC-59 16ta 3a - Phi
02A APR3002-15A CMOS-IC Voltage detect or, 1.5V, Reset Push-pull output SOT-23 16vdb 3b V D7 Anp
02C APR3002-23A CMOS-IC Voltage detect or, 2.32V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02D APR3002-26A CMOS-IC Voltage detect or, 2.63V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02E APR3002-29A CMOS-IC Voltage detector, 2.93V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02F APR3002-30A CMOS-IC Voltage detector, 3. 08V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02G APR3002-39A CMOS-IC Voltage detector, 3.9V, Reset Push-pull output S OT-23 16vdb 3b VD7 Anp
02H APR3002-43A CMOS-IC Voltage detect or, 4.38V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
02J APR3002-46A CMOS-IC Voltage detector, 4.63V, Reset Push-pull output SOT-23 16vdb 3b VD7 Anp
03 DTC143TE Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=4k7 SOT-416 16ta 3a - Rhm
03 DTC143TKA Si-npn-Digi Sw, 50V, 100mA, 200mW, 250MHz, R1=4k7 SOT-346 16ta 3a - Rhm
03 DTC143TM Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=4k7 VMT3 18ta 3a - Rhm
03 DTC143TUA Si-npn-Digi Sw, 50V, 100mA, 200mW, 250MHz, R1=4.7k UMT3 16ta 3a - Rhm
03 MSCT03 TVS 3.3V, 300W (8/20µs) SOT-23 16dh 3a - Msp
03 PDTA114EE Si-pnp-Digi Sw, 50V, 100mA, 150mW, R1/R2=10k/10k SC-75 16ta 3a - Phi
03 PDTA114EEF Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=10k/10k SOT-490 18ta 3a - Phi
03 PDTA114EK Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=10k/10k SC-59 16ta 3a - Phi

-03 PDTA114EU Si-pnp-Digi Sw, 50V, 100mA, 200mW, R1/R2=10k/10k SOT-323 16ta 3a - PhH
03A APR3003-15A CMOS-IC Voltage detect or, 1.5V, -Reset Open drain output SOT-23 16vdb 3b VD6 A np
03B APR3003-17A CMOS-IC Voltage detect or, 1.75V, -Reset Open drain output SOT-23 16vdb 3b VD6 A np
03C APR3003-23A CMOS-IC Voltage detect or, 2.32V, -Reset Open drain output SOT-23 16vdb 3b VD6 A np
03C MSCT03C TVS 3.3V, 300W (8/20µs), Bidirectional SOT-23 16dp 3a - Msp
03D APR3003-26A CMOS-IC Voltage detect or, 2.63V, -Reset Open drain output SOT-23 16vdb 3b VD6 A np
03E APR3003-29A CMOS-IC Voltage detector, 2.93V, -Reset Open drain output SOT-23 16vdb 3b VD6 Anp
03F APR3003-30A CMOS-IC Voltage detector, 3. 08V, -Reset Open drain output SOT-23 16vdb 3b VD6 Anp
03G APR3003-39A CMOS-IC Voltage detector, 3.9V, -Reset Open drain output SOT-23 16vdb 3b VD6 Anp
03H APR3003-43A CMOS-IC Voltage detect or, 4.38V, -Reset Open drain output SOT-23 16vdb 3b VD6 A np
03J APR3003-46A CMOS-IC Voltage detector, 4.63V, -Reset Open drain output SOT-23 16vdb 3b VD6 Anp
04 PDTC114EK Si-npn-Digi Sw, 50V, 100mA, 250mW, R1/R2=10k/10k SC-59 16ta 3a - Phi

-04 PMSS3904 Si-npn GP, 60V, 100mA, 200mW, B=100..300, >180MHz SC-70 16ta 3a - PhH
05 DTC124TE Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=22k SOT-416 16ta 3a - Rhm
05 DTC124TKA Si-npn-Digi Sw, 50V, 100mA, 200mW, 250MHz, R1=22k SOT-346 16ta 3a - Rhm
05 DTC124TM Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=22k VMT3 18ta 3a - Rhm
05 DTC124TUA Si-npn-Digi Sw, 50V, 100mA, 200mW, B=111..600, >200MHz, R1=22k UMT3 16ta 3a - Rhm
05 MSCT05 TVS 5V, 300W (8/20µs) SOT-23 16dh 3a - Msp
05 PDTA124EE Si-pnp-Digi Sw, 50V, 100mA, 150mW, R1/R2=22k/22k SC-75 16ta 3a - Phi
05 PDTA124EK Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=22k/22k SC-59 16ta 3a - Phi
05C MSCT05C TVS 5V, 300W (8/20µs), Bidirectional SOT-23 16dp 3a - Msp
06 PDTC124EE Si-npn-Digi Sw, 50V, 100mA, 150mW, R1/R2=22k/22k SC-75 16ta 3a - Phi
06 PDTC124EK Si-npn-Digi Sw, 50V, 100mA, 250mW, R1/R2=22k/22k SC-59 16ta 3a - Phi

-06 PMSS3906 Si-pnp GP, 60V, 100mA, 200mW, B=100..300, >150MHz SC-70 16ta 3a - PhH
07 PDTA144EE Si-pnp-Digi Sw, 50V, 100mA, 150mW, R1/R2=47k/47k SC-75 16ta 3a - Phi
07 PDTA144EEF Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=47k/47k SOT-490 18ta 3a - Phi
07 PDTA144EK Si-pnp-Digi Sw, 50V, 100mA, 250mW, R1/R2=47k/47k SC-59 16ta 3a - Phi
08 MSCT08 TVS 8V, 300W (8/20µs) SOT-23 16dh 3a - Msp
08 PDTC144EE Si-npn-Digi Sw, 50V, 100mA, 150mW, R1/R2=47k/47k SC-75 16ta 3a - Phi
08 PDTC144EEF Si-npn-Digi Sw, 50V, 100mA, 250mW, R1/R2=47k/47k SOT-490 18ta 3a - Phi
08 PDTC144EK Si-npn-Digi Sw, 50V, 100mA, 250mW, R1/R2=47k/47k SC-59 16ta 3a - Phi
081 SO2369AR Si-npn Sw, 40V, 200mA, 330mW, B=40..120 SOT-23R 16te 3a - Ste
08C MSCT08C TVS 8V, 300W (8/20µs), Bidirectional SOT-23 16dp 3a - Msp
09 DTC115TE Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=100k SOT-416 16ta 3a - Rhm
09 DTC115TKA Si-npn-Digi Sw, 50V, 100mA, 200mW, 250MHz, R1=100k SOT-346 16ta 3a - Rhm
09 DTC115TM Si-npn-Digi Sw, 50V, 100mA, 150mW, 250MHz, R1=100k VMT3 18ta 3a - Rhm
09 DTC115TUA Si-npn-Digi Sw, 50V, 100mA, 200mW, 250MHz, R1=100k UMT3 16ta 3a - Rhm
09 PDTC114EE Si-npn-Digi Sw, 50V, 100mA, 150mW, R1/R2=10k/10k SC-75 16ta 3a - Phi
09 PDTC114EEF Si-npn-Digi Sw, 50V, 100mA, 250mW, R1/R2=10k/10k SOT-490 18ta 3a - Phi

-09 PDTC114EU Si-npn-Digi Sw, 50V, 100mA, 200mW, R1/R2=10k/10k SOT-323 16ta 3a - PhH

Short description

Case

Pin.

182

Mnf.St. Sch.

SMD
code

Type Function

SMD-codes for semiconductor components in SOT-89 cases

Short description

Case Pin. Mnf.St. Sch.

SMD semiconductor components in SOT-89 cases

SOT - 89

353

SMD
code

01 Gali-1 Lin-IC RF amplifier, DC..8GHz, 11dB (50Ω) SOT-89 20aa 4b A1 Mc
01A APR3001-15D CMOS-IC Vol tage detector, 1.5V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01B APR3001-17D CMOS-IC Vol tage detector, 1.75V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01C APR3001-23D CMOS-IC Vol tage detector, 2.32V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01D APR3001-26D CMOS-IC Vol tage detector, 2.63V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01E APR3001-29D CMOS-IC Vol tage detector, 2.93V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01F APR3001-30D CMOS-IC Voltage detector, 3.08V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01G APR3001-39D CMOS-IC Voltage detector, 3.9V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01H APR3001-43D CMOS-IC Vol tage detector, 4.38V, -Reset Push-pull output SOT-89 20vda 4b VD7 Anp
01J APR30 01-46D CMOS-IC Volta ge detector, 4.63V, -Reset Push-pull out put SOT-89 20vda 4b VD7 Anp
02 Gali-2 Lin-IC RF amplifier, DC..8GHz, 15,1dB (50Ω) SOT-89 20aa 4b A1 Mc
02A APR3002-15D CMOS-IC Vol tage detector, 1.5V, Reset Push-pull output SOT-89 20vda 4b VD7 Anp
02B APR3002-17D CMOS-IC Vol tage detector, 1.75V, Reset Push-pull output SO T-89 20vda 4b VD7 Anp
02C APR3002-23D CMOS-IC Vol tage detector, 2.32V, Reset Push-pull output SO T-89 20vda 4b VD7 Anp
02D APR3002-26D CMOS-IC Vol tage detector, 2.63V, Reset Push-pull output SO T-89 20vda 4b VD7 Anp
02E APR3002-29D CMOS-IC Vol tage detector, 2.93V, Reset Push-pull output SOT-89 20vda 4b VD7 Anp
02F APR3002-30D CMOS-IC Voltage detector, 3.08V, Reset Push-pull output SOT-89 20vda 4b VD7 Anp
02G APR3002-39D CMOS-IC Voltage detector, 3.9V, Reset Push-pull output SOT-89 20vda 4b VD7 Anp
02H APR3002-43D CMOS-IC Vol tage detector, 4.38V, Reset Push-pull output SO T-89 20vda 4b VD7 Anp
02J APR30 02-46D CMOS-IC Volta ge detector, 4.63V, Reset Push-pull output SOT -89 20vda 4b VD7 Anp
03 Gali-3 Lin-IC RF amplifier, DC..3GHz, 15,8dB (50Ω) SOT-89 20aa 4b A1 Mc
03A APR3003-15D CMOS-IC Vol tage detector, 1.5V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03B APR3003-17D CMOS-IC Vol tage detector, 1.75V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03C APR3003-23D CMOS-IC Vol tage detector, 2.32V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03D APR3003-26D CMOS-IC Vol tage detector, 2.63V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03E APR3003-29D CMOS-IC Vol tage detector, 2.93V, -Reset Open drain out put SOT-89 20vda 4b VD6 Anp

SOT - 89

03F APR3003-30D CMOS-IC Voltage detector, 3.08V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03G APR3003-39D CMOS-IC Voltage detector, 3.9V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03H APR3003-43D CMOS-IC Vol tage detector, 4.38V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
03J APR30 03-46D CMOS-IC Volta ge detector, 4.63V, -Reset Open drain output SOT-89 20vda 4b VD6 Anp
04 Gali-4 Lin-IC RF amplifier, DC..4GHz, 13,1dB (50Ω) SOT-89 20aa 4b A1 Mc
047 FCX10 47A Si-npn Hi-beta, Lo-sat , 35V, 4A, 150MHz SOT-89 20tb 4b - Zx
04F Gali-4F Lin-IC RF amplifier, DC..4GHz, 13,2dB (50Ω) SOT-89 20aa 4b A1 Mc
05 Gali-5 Lin-IC RF amplifier, DC..4GHz, 15,1dB (50Ω) SOT-89 20aa 4b A1 Mc
051 FCX10 51A Si-npn Hi-beta, Lo-sat , 150V, 3A, 155MHz SO T-89 20tb 4b - Zx
05F Gali-5F Lin-IC RF amplifier, DC..4GHz, 15,1dB (50Ω) SOT-89 20aa 4b A1 Mc
06 Gali-6 Lin-IC RF amplifier, DC..4GHz, 12,3dB (50Ω) SOT-89 20aa 4b A1 Mc
06F Gali-6F Lin-IC RF amplifier, DC..4GHz, 12,3dB (50Ω) SOT-89 20aa 4b A1 Mc
0B RH5RL20AA VR-IC 2V±2,5%, 150mA SOT-89 20vl 4c VR1 Ric
0C MC78LC30HT1 VR-IC Low Iq, 3V±2,5%, 80mA SOT-89 20vl VR1 O ns
0C RH5RL30AA VR-IC 3V±2,5%, 150mA SOT-89 20vl 4c VR1 Ric
0D RH5RL40AA VR-IC 4V±2,5%, 150mA SOT-89 20vl 4c VR1 Ric
0E RH5RL50AA VR-IC 5V±2,5%, 150mA SOT-89 20vl 4c VR1 Ric
0F RH5RL60AA VR-IC 6V±2,5%, 150mA SOT-89 20vl 4c VR1 Ric
0J RH5RE20AA VR-IC Ultra-LDO, 2V±2,5%, 300mA SOT-89 20vl 4c VR1 Ric
0K RH5RE30AA VR-IC Ultra-LDO, 3V±2,5%, 300mA SOT-89 20vl 4c VR1 Ric
0L RH5RE40AA VR-IC Ultra-LDO, 4V±2,5%, 300mA SOT-89 20vl 4c VR1 Ric
0M RH5RE50AA VR-IC Ultra-LDO, 5V±2,5%, 300mA SOT-89 20vl 4c VR1 Ric
0N RH5RE60AA VR-IC Ultra-LDO, 6V±2,5%, 300mA SOT-89 20vl 4c VR1 Ric
1019 EC10 19B Lin-IC RF amplifier, DC..4GHz, 20dB (50Ω) SOT-89 20aa 4b A1 Wjc
1019G EC1019B-G Lin-IC RF amplifier, DC..4GHz, 20dB (50Ω) SOT-89 20aa 4b A1 Wjc
10Y BZ V49-C10 Z-diode 10V±5 %, Izt=5mA, 1W SOT-89 20dm 4b - Phi
11A APR3011-15D CMOS-IC Vol tage detector, 1.5V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11B APR3011-17D CMOS-IC Vol tage detector, 1.75V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11C APR3011-23D CMOS-IC Vol tage detector, 2.32V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11D APR3011-26D CMOS-IC Vol tage detector, 2.63V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11E APR3011-29D CMOS-IC Vol tage detector, 2.93V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11F APR3011-30D CMOS-IC Voltage detector, 3.08V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11G APR3011-39D CMOS-IC Voltage detector, 3.9V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11H APR3011-43D CMOS-IC Vol tage detector, 4.38V, -Reset Push-pull output SOT-89 20vde 4b VD7 Anp
11J APR30 11-46D CMOS-IC Volta ge detector, 4.63V, -Reset Push-pull out put SOT-89 20vde 4b VD7 Anp
11Y BZ V49-C11 Z-diode 11V±5 %, Izt=5mA, 1W SOT-89 20dm 4b - Phi
12A APR3012-15D CMOS-IC Vol tage detector, 1.5V, Reset Push-pull output SOT-89 20vde 4b VD7 Anp
12B APR3012-17D CMOS-IC Vol tage detector, 1.75V, Reset Push-pull output SO T-89 20vde 4b VD7 Anp
12C APR3012-23D CMOS-IC Vol tage detector, 2.32V, Reset Push-pull output SO T-89 20vde 4b VD7 Anp
12D APR3012-26D CMOS-IC Vol tage detector, 2.63V, Reset Push-pull output SO T-89 20vde 4b VD7 Anp
12E APR3012-29D CMOS-IC Vol tage detector, 2.93V, Reset Push-pull output SOT-89 20vde 4b VD7 Anp
12F APR3012-30D CMOS-IC Voltage detector, 3.08V, Reset Push-pull output SOT-89 20vde 4b VD7 Anp
12G APR3012-39D CMOS-IC Voltage detector, 3.9V, Reset Push-pull output SOT-89 20vde 4b VD7 Anp
12H APR3012-43D CMOS-IC Vol tage detector, 4.38V, Reset Push-pull output SO T-89 20vde 4b VD7 Anp
12J APR30 12-46D CMOS-IC Volta ge detector, 4.63V, Reset Push-pull output SOT -89 20vde 4b VD7 Anp
12Y BZ V49-C12 Z-diode 12V±5 %, Izt=5mA, 1W SOT-89 20dm 4b - Phi
13A APR3013-15D CMOS-IC Vol tage detector, 1.5V, -Reset Open drain output SOT-89 20vde 4b VD6 Anp
13B APR3013-17D CMOS-IC Vol tage detector, 1.75V, -Reset Open drain output SOT-89 20vde 4b VD6 Anp
13C APR3013-23D CMOS-IC Vol tage detector, 2.32V, -Reset Open drain output SOT-89 20vde 4b VD6 Anp

Type Function

Short description

Case Pin. Mnf.St.Sch.

354

SMD
code

Type Function

Short description

Case Pin. Mnf.St. Sch.

SMD semiconductor components in SOT-223 cases

SMD-codes for semiconductor components in SOT-223

cases

SOT - 223

393

SMD
code

117-2 NCP1117ST20 VR-IC LDO, 2V±1%, 800mA SOT-223 21wb VR1 Ons
117-5 NCP1117ST50 VR-IC LDO, 5V±1%, 800mA SOT-223 21wb VR1 Ons
117-A NCP1117STA VR-IC LDO, Adjustable, 800mA SOT-223 21wc VR20 Ons
17-12 NCP1117ST12 VR-IC LDO, 12V±1%, 800mA SOT-223 21wb VR1 Ons
17-15 NCP1117ST15 VR-IC LDO, 1,5V±1%, 800mA SOT-223 21wb VR1 O ns
17-18 NCP1117ST18 VR-IC LDO, 1,8V±1%, 800mA SOT-223 21wb VR1 O ns
17-25 NCP1117ST25 VR-IC LDO, 2,5V±1%, 800mA SOT-223 21wb VR1 O ns
17-33 NCP1117ST33 VR-IC LDO, 3,3V±1%, 800mA SOT-223 21wb VR1 O ns
1N10 MMFT1N10E n-MOS-e V-MOS, 100V, 1A, <0,25Ω(0,5A) SOT-223 21fi - Mot
24K XC6202P182FR VR-IC LDO, 1.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24L XC6202P192FR VR-IC LDO, 1.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24M XC6202P202FR VR-IC LDO, 2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24N XC6202P212FR VR-IC LDO, 2.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24P XC6202P222FR VR-IC LDO, 2.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24R XC6202P232FR VR-IC LDO, 2.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24S XC6202P242FR VR-IC LDO, 2.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24T XC6202P252FR VR-IC LDO, 2.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24U XC6202P262FR VR-IC LDO, 2.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24V XC6202P272FR VR-IC LDO, 2.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24X XC6202P282FR VR-IC LDO, 2.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24Y XC6202P292FR VR-IC LDO, 2.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
24Z XC6202P302FR VR-IC LDO, 3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
250 XC6202P312FR VR-IC LDO, 3.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
251 XC6202P322FR VR-IC LDO, 3.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
252 XC6202P332FR VR-IC LDO, 3.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
253 XC6202P342FR VR-IC LDO, 3.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
254 XC6202P352FR VR-IC LDO, 3.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
255 XC6202P362FR VR-IC LDO, 3.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
256 XC6202P372FR VR-IC LDO, 3.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
257 XC6202P382FR VR-IC LDO, 3.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
258 XC6202P392FR VR-IC LDO, 3.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
259 XC6202P402FR VR-IC LDO, 4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25A XC6202P412FR VR-IC LDO, 4.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25B XC6202P422FR VR-IC LDO, 4.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25C XC6202P432FR VR-IC LDO, 4.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor

SOT - 223

25D XC6202P442FR VR-IC LDO, 4.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25E XC6202P452FR VR-IC LDO, 4.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25F XC6202P462FR VR-IC LDO, 4.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25H XC6202P472FR VR-IC LDO, 4.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25K XC6202P482FR VR-IC LDO, 4.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25L XC6202P492FR VR-IC LDO, 4.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25M XC6202P502FR VR-IC LDO, 5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25N XC6202P512FR VR-IC LDO, 5.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25P XC6202P522FR VR-IC LDO, 5.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25R XC6202P532FR VR-IC LDO, 5.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25S XC6202P542FR VR-IC LDO, 5.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25T XC6202P552FR VR-IC LDO, 5.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25U XC6202P562FR VR-IC LDO, 5.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25V XC6202P572FR VR-IC LDO, 5.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25X XC6202P582FR VR-IC LDO, 5.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25Y XC6202P592FR VR-IC LDO, 5.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
25Z XC6202P602FR VR-IC LDO, 6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
260 XC6202P612FR VR-IC LDO, 6.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
261 XC6202P622FR VR-IC LDO, 6.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
262 XC6202P632FR VR-IC LDO, 6.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
263 XC6202P642FR VR-IC LDO, 6.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
264 XC6202P652FR VR-IC LDO, 6.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
265 XC6202P662FR VR-IC LDO, 6.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
266 XC6202P672FR VR-IC LDO, 6.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
267 XC6202P682FR VR-IC LDO, 6.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
268 XC6202P692FR VR-IC LDO, 6.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
269 XC6202P702FR VR-IC LDO, 7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26A XC6202P712FR VR-IC LDO, 7.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26B XC6202P722FR VR-IC LDO, 7.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26C XC6202P732FR VR-IC LDO, 7.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26D XC6202P742FR VR-IC LDO, 7.4V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26E XC6202P752FR VR-IC LDO, 7.5V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26F XC6202P762FR VR-IC LDO, 7.6V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26H XC6202P772FR VR-IC LDO, 7.7V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26K XC6202P782FR VR-IC LDO, 7.8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26L XC6202P792FR VR-IC LDO, 7.9V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26M XC6202P802FR VR-IC LDO, 8V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26N XC6202P812FR VR-IC LDO, 8.1V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26P XC6202P822FR VR-IC LDO, 8.2V±2%, 150mA SOT-223 21ch 5c VR1 Tor
26R XC6202P832FR VR-IC LDO, 8.3V±2%, 150mA SOT-223 21ch 5c VR1 Tor

Type Function

Short description

Case Pin. Mnf.St. Sch.

394

SMD
code

Type Function

Short description

Case Pin. Mnf.St. Sch.

SMD semiconductor components in BGA and LPP cases

SMD-codes for semiconductor components in BGA and

LPP cases

BGA...LPP

399

SMD
code

_ _ _HV_ SN74AUP1G07YEPR CMOS-Log Noninverting buffer (Open drain output) BGA-5 Log8 9a Ti
_ _ _HV_ SN74AUP1G07YZPR CMOS-Log Noninverting buffer (Open drain output) BGA-5 Log8 9a Ti
_ _ _HW_ SN74AUP1G79YEPR CMOS-Log Single D-type flip-flop BGA-5 Log20 9a - Ti
_ _ _HW_ SN74AUP1G79YZPR CMOS-Log Singl e D-type flip-flop BGA-5 Log20 9 a - Ti
_ _ _HX_ SN74AUP1G80YEPR CMOS-Log Single D-type flip-flop BGA-5 Log21 9 a - T i
_ _ _HX_ SN74AUP1G80YZPR CMOS-Log Single D-type flip-flop BGA-5 Log21 9a - Ti
_ _ _U7_ SN74AUC1G17YEAR CMOS-Log Schmitt-trigger BGA-5 Log11 9a - Ti
_ _ _U7_ SN74AUC1G17YEPR CMOS-Log Schmitt-trigger BGA-5 Log11 9a - Ti
_ _ _U7_ SN74AUC1G17YZAR CMOS-Log Schmitt-trigger BGA-5 Log11 9a - Ti
_ _ _U7_ SN74AUC1G17YZPR CMOS-Log Schmitt-trigger BGA-5 Log11 9a - Ti
_ _ _UA_ SN74AUC1G00YEAR CMOS-Log 2-input NAND gate BGA-5 Log1 9a - T i
_ _ _UA_ SN74AUC1G00YEPR CMOS-Log 2-input NAND gate BGA-5 Log1 9a - T i
_ _ _UA_ SN74A UC1G00YZAR CMOS-Log 2-input NAND gate BGA-5 Log 1 9a - Ti
_ _ _UA_ SN74A UC1G00YZPR CMOS-Log 2-input NAND gate BGA-5 Log 1 9a - Ti
_ _ _UF_ SN74AUC1G14YEAR CMOS-Log Inverting Schmitt-trigger BGA-5 Log7 9a - Ti
_ _ _UF_ SN74AUC1G14YEPR CMOS-Log Inverting Schmitt-trigger BGA-5 Log7 9a - Ti
_ _ _UF_ SN74AUC1G14YZAR CMOS-Log Inverting Schmitt-trigger BGA-5 Log7 9a - Ti
_ _ _UF_ SN74AUC1G14YZPR CMOS-Log Inverting Schmitt-trigger BGA-5 Log7 9a - Ti
_ _ _UG_ SN74AUC1G32YEAR CMOS-Log 2-input OR g ate BGA-5 Log4 9a - Ti
_ _ _UG_ SN74AUC1G32YEPR CMOS-Log 2-input OR g ate BGA-5 Log4 9a - Ti
_ _ _UG_ SN74AUC1G32YZAR CMOS-Log 2-input O R gate BGA-5 Log4 9 a - Ti
_ _ _UG_ SN74AUC1G32YZPR CMOS-Log 2-input O R gate BGA-5 Log4 9 a - Ti
_ _ _UK_ SN74A UC1G240YEPR CMOS-Log Noninverting 3-State B uffer BGA-5 Log 13 9a - Ti
_ _ _UK_ SN74A UC1G240YZPR CMOS-Log Noninverting 3-State Buffer BGA-5 Log13 9a - Ti
_ _ _UM_ SN7 4AUC1G125YEAR CMOS-Log Noninverting 3-State B uffer BG A-5 Log14 9a - Ti
_ _ _UM_ SN7 4AUC1G125YEPR CMOS-Log Noninverting 3-State B uffer BG A-5 Log14 9a - Ti
_ _ _UM_ SN7 4AUC1G125YZAR CMOS-Log Noninverting 3-Stat e Buffer BGA-5 Log14 9a - Ti
_ _ _UM_ SN7 4AUC1G125YZPR CMOS-Log Noninverting 3-Stat e Buffer BGA-5 Log14 9a - Ti
_ _ _UN_ SN74A UC1G126YEPR CMOS-Log Noninverting 3-State B uffer BG A-5 Log13 9a - Ti
_ _ _UN_ SN74A UC1G126YZPR CMOS-Log Noninverting 3-State Buffer BGA-5 Log13 9a - Ti
0113 XC6201132DR VR-IC 1.3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0114 XC6201142DR VR-IC 1.4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0115 XC6201152DR VR-IC 1.5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0116 XC6201162DR VR-IC 1.6V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0117 XC6201172DR VR-IC 1.7V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0118 XC6201182DR VR-IC 1.8V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0119 XC6201192DR VR-IC 1.9V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0120 XC6201202DR VR-IC 2V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0121 XC6201212DR VR-IC 2.1V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0122 XC6201222DR VR-IC 2.2V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0123 XC6201232DR VR-IC 2.3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0124 XC6201242DR VR-IC 2.4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0125 XC6201252DR VR-IC 2.5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0126 XC6201262DR VR-IC 2.6V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0127 XC6201272DR VR-IC 2.7V±2%, 250mA USP-6B 37hs 9b VR1 Tor

BGA...LPP

0128 XC6201282DR VR-IC 2.8V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0129 XC6201292DR VR-IC 2.9V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0130 XC6201302DR VR-IC 3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0131 XC6201312DR VR-IC 3.1V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0132 XC6201322DR VR-IC 3.2V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0133 XC6201332DR VR-IC 3.3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0134 XC6201342DR VR-IC 3.4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0135 XC6201352DR VR-IC 3.5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0136 XC6201362DR VR-IC 3.6V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0137 XC6201372DR VR-IC 3.7V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0138 XC6201382DR VR-IC 3.8V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0139 XC6201392DR VR-IC 3.9V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0140 XC6201402DR VR-IC 4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0141 XC6201412DR VR-IC 4.1V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0142 XC6201422DR VR-IC 4.2V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0143 XC6201432DR VR-IC 4.3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0144 XC6201442DR VR-IC 4.4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0145 XC6201452DR VR-IC 4.5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0146 XC6201462DR VR-IC 4.6V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0147 XC6201472DR VR-IC 4.7V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0148 XC6201482DR VR-IC 4.8V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0149 XC6201492DR VR-IC 4.9V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0150 XC6201502DR VR-IC 5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0151 XC6201512DR VR-IC 5.1V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0152 XC6201522DR VR-IC 5.2V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0153 XC6201532DR VR-IC 5.3V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0154 XC6201542DR VR-IC 5.4V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0155 XC6201552DR VR-IC 5.5V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0156 XC6201562DR VR-IC 5.6V±2%, 250mA USP-6B 37hs 9b VR1 Tor
0157 XC6201572DR VR-IC 5.7V±2%, 250mA USP-6B 37hs 9b VR1 Tor

Type Function

Short description

Case Pin. Mnf.St. Sch.

400

SMD
code

Type Function

Short description

Case Pin. Mnf.St. Sch.

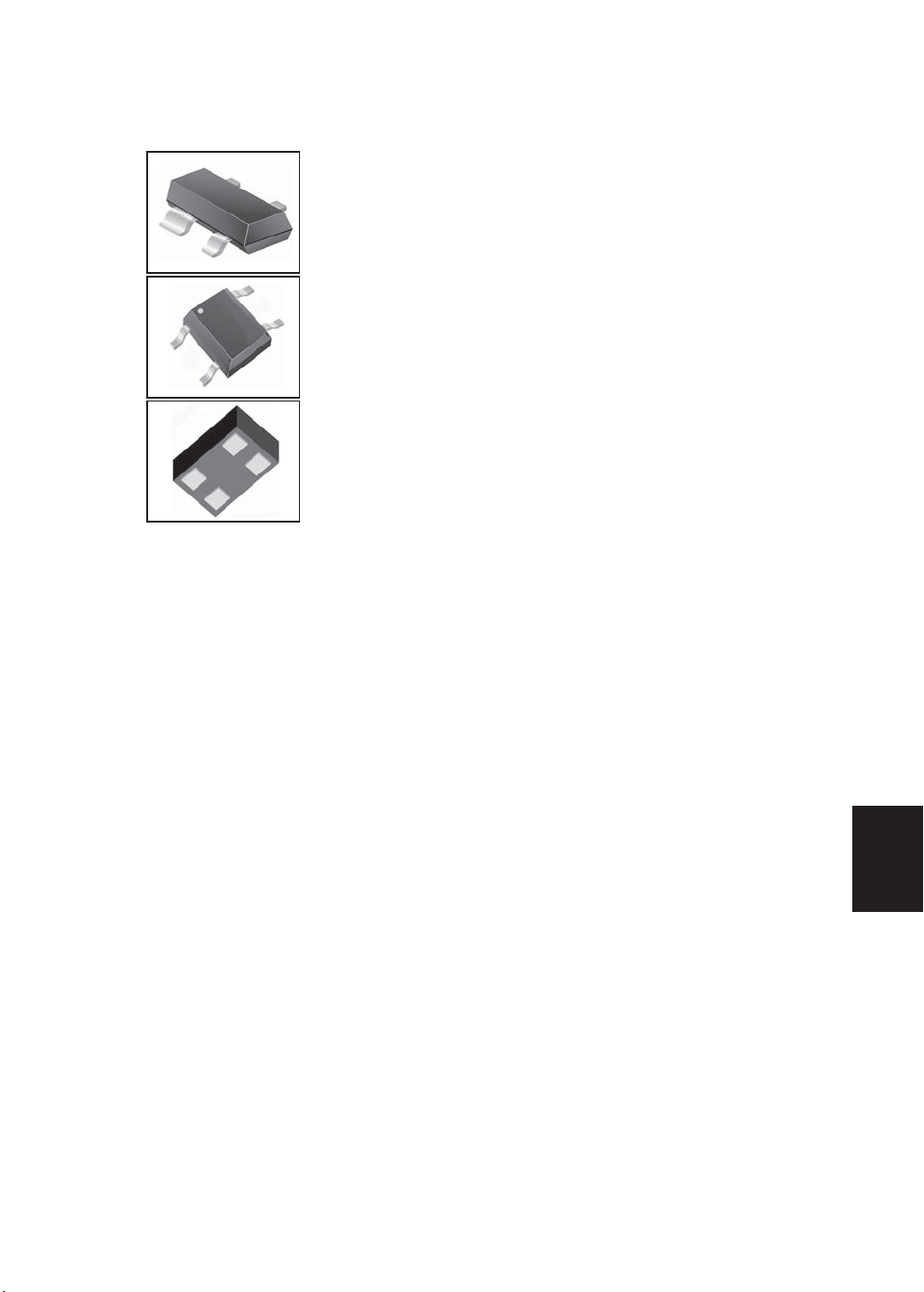

4-pins SMD semiconductor components

SMD-codes for 4-pins cases semiconductor components

579

4 - pins

SMD
code

4 - pins

Type Function

01 MRF9011 Si -npn UHF, 25V, 30mA, 300mW, B=30..200, 3, 8GHz SOT-143 24tc - Mot
02 MRF5711 Si -npn UHF, 20V, 80mA, 580mW, B=50..300, 8G Hz SOT-143 24tc - Mot
03 VAM-3 Lin-IC RF amplifier, DC..2GHz, 7,5dB (50Ω) SOT-143 24ad A1 Mc
04 MRF4427 Si -npn UHF, 40V, 400mA, 220mW, B=10..200, 1. 6GHz SOT-143 24tc - Mot
04 MRF5211 Si -pnp UHF, 20V, 70mA, 333mW, B=25..125, 4, 2GHz SOT-143 24tc - Mot
05 MRF9331 Si -npn UHF, 15V, 2mA, 50mW, B=30..200, 5G Hz SOT-143 24tc - Mot
05F TS DF1205R Si-npn UHF-VHF, LN, 9V, 12mA, 40mW, B=50..250, 12GHz SOT-143R 26tu 3a - Vs
06 VAM-6 Lin-IC RF amplifier, DC..2GHz, 8dB (50Ω) SOT-143 24ad A1 Mc
07 VAM-7 Lin-IC RF amplifier, DC..2GHz, 7,8dB (50Ω) SOT-143 24ad A1 Mc
08 HBFP-0450 Si-npn UHF, LN, 15V, 100mA, 450mW, B=50. .150, 1,8GHz SOT-343 24t1 - Ag i
0A BU4317F CMOS-IC Voltage Detector 1,7V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0A R3132Q10EA CMOS-IC Volt age Detector 1V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0A RQ5RW50BA VR-IC LDO, CE, 5V±2%, 150mA SOT-143R 26vp 5a VR4 Ric
0B BU4318F CMOS-IC Voltage Detector 1,8V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0B R3132Q11EA CMOS-IC Voltage Detector 1,1V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0B RQ5RW51BA VR-IC LDO, CE, 5,1V±2%, 150 mA SOT-143R 26vp 5a VR4 Ric
0C BU4319F CMOS-IC Voltage Detector 1,9V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0C R3132Q12EA CMOS-IC Voltage Detector 1,2V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0C RQ5RW52BA VR-IC LDO, CE, 5,2V±2%, 150 mA SOT-143R 26vp 5a VR4 Ric
0D BU4320F CMOS-IC Voltage Detector 2V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0D R3132Q13EA CMOS-IC Voltage Detector 1,3V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0D RQ5RW53BA VR-IC LDO, CE, 5,3V±2%, 150 mA SOT-143R 26vp 5a VR4 Ric
0E BU4321F CMOS-IC Voltage Detector 2,1V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0E R3132Q14EA CMOS-IC Voltage Detector 1,4V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0E RQ5RW54BA VR-IC LDO, CE , 5,4V±2%, 150mA SOT-143R 26vp 5a VR4 Ric
0F BU4322F CMOS-IC Voltage Detector 2,2V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0F R3132Q15EA CMOS-IC Voltage Detector 1,5V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0F RQ5RW55BA VR-IC LDO, CE, 5,5V±2%, 150mA SOT-143R 26vp 5a VR4 Ric
0G BU4323F CMOS-IC Voltage Detector 2,3V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0G R3132Q16EA CMOS-IC Voltage Detector 1,6V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0G RQ5RW56BA VR-IC LDO, CE, 5,6V±2%, 150mA SOT-143R 26vp 5a VR4 Ric
0H BU4324F CMOS-IC Voltage Detector 2,4V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0H R3132Q17EA CMOS-IC Voltage Detector 1,7V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0H RQ5RW57BA VR-IC LDO, CE, 5,7V±2%, 150 mA SOT-143R 26vp 5a VR4 Ric
0J BU4325F CMOS-IC Voltage Detect or 2,5V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0J R3132Q18EA CMOS-IC Voltage Detector 1,8V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0J RQ5RW58BA VR-IC LDO, CE, 5, 8V±2%, 150mA SOT-143R 26vp 5a VR4 Ric
0K BU4326F CMOS-IC Voltage Detector 2,6V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0K R3132Q19EA CMOS-IC Voltage Detector 1,9V, MR, -Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0K RQ5RW59BA VR-IC LDO, CE, 5,9V±2%, 150 mA SOT-143R 26vp 5a VR4 Ric
0L BU4327F CMOS-IC Voltage Detector 2,7V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0L R3133Q10EA CMOS-IC Voltage Detector 1V, MR, Reset Push-pull out put SOT-143 24vdh 5a VD5 Ric
0M BU4328F CMOS-IC Voltage Detector 2,8V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0M R3133Q11EA CMOS-IC Volt age Detector 1,1V, MR, Reset Push-pull output SOT-143 24vdh 5a V D5 Ric
0N BU4329F CMOS-IC Voltage Detector 2,9V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0N R3133Q12EA CMOS-IC Volt age Detector 1,2V, MR, Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0P BU4330F CMOS-IC Voltage Detector 3V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0P R3133Q13EA CMOS-IC Voltage Detector 1,3V, MR, Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0Q BU4331F CMOS-IC Voltage Detector 3,1V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0Q R3133Q14EA CMOS-IC Voltage Detector 1,4V, MR , Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0R BU4332F CMOS-IC Voltage Detector 3,2V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0R R3133Q15EA CMOS-IC Volt age Detector 1,5V, MR, Reset Push-pull output SOT-143 24vdh 5a V D5 R ic
0S BU4333F CMOS-IC Voltage Detector 3,3V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0S R3133Q16EA CMOS-IC Voltage Detector 1,6V, MR, Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0T BU4334F CMOS-IC Voltage Detector 3,4V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0T R3133Q17EA CMOS-IC Voltage Detect or 1,7V, MR, Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0U BU4335F CMOS-IC Voltage Detector 3,5V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0U R3133Q18EA CMOS-IC Volt age Detector 1,8V, MR, Reset Push-pull output SOT-143 24vdh 5a V D5 R ic
0V BU4336F CMOS-IC Voltage Detector 3,6V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0V R3133Q19EA CMOS-IC Voltage Detector 1,9V, MR, Reset Push-pull output SOT-143 24vdh 5a VD5 Ric
0W BU4337F CMOS-IC Voltage Detector 3,7V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0X BU4338F CMOS-IC Voltage Detector 3,8V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0Y BU4339F CMOS-IC Voltage Detector 3,9V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
0Z BU4340F CMOS-IC Voltage Detector 4V, Reset Push-pull output SOP-4 26vdf VD3 Rhm
11 MRF9511A Si-npn UHF, 20V, 100mA, 322mW, B=75. .150, 8GHz SO T-143 24tc - Mot
12 XC6213B122NR VR-IC LDO, CE, 1.2V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
13 XC6213B132NR VR-IC LDO, CE, 1.3V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
14 XC6213B142NR VR-IC LDO, CE, 1.4V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
15 MRF0211 Si -npn UHF, 30V, 70mA, 580mW, B=50..300, 5, 5GHz SOT-143 24tc - Mot
15 XC6213B152NR VR-IC LDO, CE, 1.5V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
16 XC6213B162NR VR-IC LDO, CE, 1.6V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
17 BAS125-07 Si-diode Dual, Schottky, 25V, 100mA, Vf<0.9V(35mA), Cd<1,1pF SOT-143 24ce - Inf
17 XC6213B172NR VR-IC LDO, CE, 1.7V±2%, 150mA SSOT-24 26vn 5c VR4 Tor
17 XC6217C082NR VR-IC LDO, -CE, 0.8V±2%, 200mA SSOT-24 26vn 5a VR4 Tor
18 BFP181T Si-npn UHF, 20V, 20mA, 175mW, B=50..200, 8GHz S OT-143 24tc Tfk

Short description

Case Pin. Mnf.St. Sch.

580

SMD
code

Type Function

SMD-codes for semiconductor components in 5-pins cases

Short description

Case Pin. Mnf.St.Sch.

SMD semiconductor components in 5-pins cases

619

5 - pins

SMD

A

A

code

00 R1223N252A VR-IC PWM/VFM St-Dwn DC/DC Conv-Ctrl, CE, 2,5V, 300KHz, L-Pr. SOT-23-5 28vn 6g - Ric
00 RN5RF50BA VR-IC LRip, CE, 5V±2%, 1A* SOT-23-5 28vw 6g VR6 Ric
00 RN5RZ50BA VR-IC Low Noise, LDO, CE, 5V±2%, 100mA SOT-23-5 28vrt 6g VR4 Ric
000 XC6101A131MR CMOS-IC VDet 3.1V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
001 XC6101A132MR CMOS-IC VDet 3.2V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
002 XC6101A133MR CMOS-IC VDet 3.3V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
003 XC6101A134MR CMOS-IC VDet 3.4V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
004 XC6101A135MR CMOS-IC VDet 3.5V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
005 XC6101A136MR CMOS-IC VDet 3.6V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
006 XC6101A137MR CMOS-IC VDet 3.7V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
007 XC6101A138MR CMOS-IC VDet 3.8V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
008 R1160N081A VR-IC LDO, -CE, 0,8V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
008 XC6101A139MR CMOS-IC VDet 3.9V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
009 R1160N091A VR-IC LDO, -CE, 0,9V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
009 XC6101A140MR CMOS-IC VDet 4.0V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g T or
00A XC6101A141MR CMOS-IC VDet 4.1V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00B XC6101A142MR CMOS-IC VDet 4.2V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00C XC6101A143MR CMOS-IC VDet 4.3V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00D XC6101A144MR CMOS-IC VDet 4.4V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00E XC6101A145MR CMOS-IC VDet 4.5V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00F XC6101A116MR CMOS-IC VDet 1.6V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00F XC6101A146MR CMOS-IC VDet 4.6V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00H XC6101A117MR CMOS-IC VDet 1.7V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00H XC6101A147MR CMOS-IC VDet 4.7V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00K XC6101A118MR CMOS-IC VDet 1.8V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00K XC6101A148MR CMOS-IC VDet 4.8V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00L XC6101A119MR CMOS-IC VDet 1.9V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00L XC6101A149MR CMOS-IC VDet 4.9V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00M XC6101A120MR CMOS-IC VDet 2.0V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00M XC6101A150MR CMOS-IC VDet 5.0V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00N XC6101A121MR CMOS-IC VDet 2.1V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00P XC6101A122MR CMOS-IC VDet 2.2V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00R XC6101A123MR CMOS-IC VDet 2.3V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00S XC6101A124MR CMOS-IC VDet 2.4V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00T XC6101A125MR CMOS-IC VDet 2.5V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00U XC6101A126MR CMOS-IC VDet 2.6V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00V XC6101A127MR CMOS-IC VDet 2.7V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00X XC6101A128MR CMOS-IC VDet 2.8V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00Y XC6101A129MR CMOS-IC VDet 2.9V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
00Z XC6101A130MR CMOS-IC VDet 3.0V, 5%, Hst, -MR, -Reset PPO, Wt=6.25ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
01 R1223N152C VR-IC PWM St-Dwn DC/DC Cnv-Ctr, CE, 1,5V, 300KHz, Latch-Pr. SOT-23-5 28vn 6g - Ric
01 RN5RF51BA VR-IC LRip, CE, 5,1V±2%, 1A* SOT-23-5 28vw 6g VR6 Ric
01 RN5RZ51BA VR-IC Low Noise, LDO, CE, 5,1V±2%, 100mA SOT-23-5 28vrt 6g VR4 Ric
010 R1160N101A VR-IC LDO, -CE, 1V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
010 XC6101A231MR CMOS-IC VDet 3.1V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
011 R1160N111A VR-IC LDO, -CE, 1,1V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
011 XC6101A232MR CMOS-IC VDet 3.2V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
012 R1160N121A VR-IC LDO, -CE, 1,2V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
012 XC6101A233MR CMOS-IC VDet 3.3V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
013 R1160N131A VR-IC LDO, -CE, 1,3V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
013 XC6101A234MR CMOS-IC VDet 3.4V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
014 R1160N141A VR-IC LDO, -CE, 1,4V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
014 XC6101A235MR CMOS-IC VDet 3.5V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
015 R1116N151B VR-IC LDO, LN, CE, 1.5V±1.5%, 150mA SOT-23-5 28vx 6g VR4 Ric
015 R1160N151A VR-IC LDO, -CE, 1,5V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
015 XC6101A236MR CMOS-IC VDet 3.6V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
016 R1116N161B VR-IC LDO, LN, CE, 1.6V±1.5%, 150mA SOT-23-5 28vx 6g VR4 Ric
016 R1160N161A VR-IC LDO, -CE, 1,6V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
016 XC6101A237MR CMOS-IC VDet 3.7V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
017 R1116N171B VR-IC LDO, LN, CE, 1.7V±1.5%, 150mA SOT-23-5 28vx 6g VR4 Ric
017 R1160N171A VR-IC LDO, -CE, 1,7V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric

5 - pins

017 XC6101A238MR CMOS-IC VDet 3.8V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
018 R1116N181B VR-IC LDO, LN, CE, 1.8V±1.5%, 150mA SOT-23-5 28vx 6g VR4 Ric
018 R1160N181A VR-IC LDO, -CE, 1,8V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
018 XC6101A239MR CMOS-IC VDet 3.9V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
019 R1116N191B VR-IC LDO, LN, CE, 1.9V±1.5%, 150mA SOT-23-5 28vx 6g VR4 Ric
019 R1160N191A VR-IC LDO, -CE, 1,9V±2%, 200mA SOT-23-5 28vrw 6g VR4 Ric
019 XC6101A240MR CMOS-IC VDet 4.0V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
01
01
01B APR3001-17B CMOS-IC Vo ltage detector, 1.75V, -Reset Push-pull output SOT-23-5 28vdm 3b VD7 Anp
01B XC6101A242MR CMOS-IC VDet 4.2V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor
01C APR3001-23B CMOS-IC Vo ltage detector, 2.32V, -Reset Push-pull output SOT-23-5 28vdm 3b VD7 Anp
01C R1182N121B VR-IC LDO, CE, 1.2V±2%, 150mA SOT-23-5 28vrt 6g VR4 Ric
01C XC6101A243MR CMOS-IC VDet 4.3V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor

Type Function

APR3001-15B CMOS-IC Voltage detector, 1.5V, -Reset Push-pull output SOT -23-5 28vdm 3b VD7 Anp
XC6101A241MR CMOS-IC VDet 4.1V, 5%, Hst, -MR, -Reset PPO, Wt=50ms, Rt=3.13ms SOT-23-5 28xd 6g Tor

Short description

Case Pin. Mnf.St. Sch.

620

SMD
code

Type Function

Short description

Case Pin. Mnf.St.Sch.

SMD semiconductor components in 6- and more pins

cases

SMD-codes for semiconductor components in 6- and more

pins cases

971

6... - pins

SMD

A

code

005 FAN7005MU Lin-IC 2xAF PA, 2,7..5,5V, 2x300mW(5V/8Ω), shutdown MINISO-8 33 PA16 F
005 FAN7005MX Lin -IC 2xAF PA, 2,7..5,5V, 2x3 00mW(5V/8Ω), shutdown SO- 8 33 PA15 F
024 FAN7024MU(MUX) Lin-IC AF PA, BTL, 2,3..5,5V, 675mW(5V/8Ω), shutdown MINISO-8 33 PA11 F
05 R1163D151E VR-IC LDO, CE, 1.5V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
05/05 SMS05 TVS Quad, 5V, 24A, 350W(1ms) SOT-23-6L 33dx 7b - Smt
06 R1163D161E VR-IC LDO, CE, 1.6V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
06H MUN5131DW Si-pnp-Digi Dual, Sw, 2x50 V, 100mA, 400mW, R1/R2=2k2/2k2 SOT-363 33tg - Mot
07 R1163D171E VR-IC LDO, CE, 1.7V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
08 R1163D181E VR-IC LDO, CE, 1.8V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
09 R1163D191E VR-IC LDO, CE, 1.9V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
0A MUN5111DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=10/10k SOT-363 33tg - Mot
0A R1161D281A5 VR-IC LDO, -CE, 2.85V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0A R5326N001B VR-IC LDO, Dual out, sep. CE, Vo1=2V, Vo2=2V, 150mA SOT-23-6 33rg 7f Ric
0B MUN5112DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=22/22k SOT-363 33tg - Mot
0B R1161D101A VR-IC LDO, -CE, 1V±2%, 350mA SON-6 35vrc 7g V R10 Ric
0B R5326N002B VR-IC LDO, Dual out, sep. CE, Vo1=2.8V, Vo2=2.8V, 150mA SOT-23-6 33rg 7f Ric
0C MUN5113DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=47k/47k S OT-363 33tg - Mot
0C R1161D201A VR-IC LDO, -CE, 2V±2%, 350mA SON-6 35vrc 7g V R10 Ric
0C R5326N003B VR-IC LDO, Dual out, sep. CE, Vo1=1.8V, Vo2=3V, 150mA SOT-23-6 33rg 7f Ric
0D MUN5114DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=10/47k SOT-363 33tg - Mot
0D R1161D301A VR-IC LDO, -CE, 3V±2%, 350mA SON-6 35vrc 7g V R10 Ric
0D R5326N004B VR-IC LDO, Dual out, sep. CE, Vo1=2.5V, Vo2=3V, 150mA SOT-23-6 33rg 7f Ric
0E MUN5115DW Si-pnp-Digi Dual, Sw, 2x50 V, 100mA, 400mW, R1=10k SOT-363 33tg - Mot
0E R1161D281B VR-IC LDO, CE, 2.8V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0E R5326N005B VR-IC LDO, Dual out, sep. CE, Vo1=1.8V, Vo2=2.5V, 150mA SOT-23-6 33rg 7f Ric
0F MUN5116DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1=4k7 SOT-363 33tg - Mot
0F R1161D101B VR-IC LDO, CE, 1V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0F R5326N006B VR-IC LDO, Dual out, sep. CE, Vo1=1.8V, Vo2=3.3V, 150mA SOT-23-6 33rg 7f Ric
0G MUN5130DW Si-pnp-Digi Dual, Sw, 2x50 V, 100mA, 400mW, R1/R2=1k/1k0 SOT-363 33tg - Mot
0G R1161D201B VR-IC LDO, CE, 2V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0G R5326N007B VR-IC LDO, Dual out, sep. CE, Vo1=2.5V, Vo2=2.8V, 150mA SOT-23-6 33rg 7f Ric
0H R1161D301B VR-IC LDO, CE, 3V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0H R5326N008B VR-IC LDO, Dual out, sep. CE, Vo1=1.2V, Vo2=1.2V, 150mA SOT-23-6 33rg 7f Ric
0J MUN5132DW Si-pnp-Digi Dual, Sw, 2x50 V, 100mA, 400mW, R1/R2=4k/4k7 SOT-363 33tg - Mot
0J R1161D101D VR-IC LDO, CE, auto discharge, 1V±2%, 350m A SON-6 35vrc 7g VR10 Ric
0J R1161D281D VR-IC LDO, CE, auto discharge, 2.8V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0J R5326N009B VR-IC LDO, Dual out, sep. CE, Vo1=1.5V, Vo2=1.6V, 150mA SOT-23-6 33rg 7f Ric
0K MUN5133DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=4k7/47k S OT-363 33tg - Mot
0K R5326N010B VR-IC LDO, Dual out, sep. CE, Vo1=1.5V, Vo2=2.8V, 150mA SOT-23-6 33rg 7f Ric
0L MUN5134DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=22k/47k S OT-363 33tg - Mot
0L R1161D201D VR-IC LDO, CE, auto discharge, 2V±2%, 350mA SON-6 35vrc 7g VR10 Ric
0L R5326N011B VR-IC LDO, Dual out, sep. CE, Vo1=3V, Vo2=3V, 150mA SOT-23-6 33rg 7f Ric
0M R1161D301D VR-IC LDO, CE, aut o discharge, 3V±2%, 350mA SON-6 35vrc 7g V R10 Ric
0M R5326N012B VR-IC LDO, Dual out, sep. CE, Vo1=3.1V, Vo2=3.1V, 150mA SOT-23-6 33rg 7f Ric
0N MUN5136DW Si-pnp- Digi Dual, Sw, 2x50V, 100mA, 400mW, R1/R2=100k/100k SOT-363 33tg - Mot
0N R5326N013B VR-IC LDO, Dual out, sep. CE, Vo1=2.7V, Vo2=1.8V, 150mA SOT-23-6 33rg 7f Ric
0P MUN5137DW Si-pnp-Digi Dual, Sw, 2x50 V, 100mA, 400mW, R1/R2=47k/22k SOT-363 33tg - Mot
0P R5326N014B VR-IC LDO, Dual out, sep. CE, Vo1=1.8V, Vo2=2.6V, 150mA SOT-23-6 33rg 7f Ric
0Q R5326N015B VR-IC LDO, Dual out, sep. CE, Vo1=3.3V, Vo2=3.3V, 150mA SOT-23-6 33rg 7f Ric
0R R5326N016B VR-IC LDO, Dual out, sep. CE, Vo1=2.85V, Vo2=2.85V, 150mA SOT-23-6 33rg 7f Ric
10 R1163D201E VR-IC LDO, CE, 2V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
105 FC105 Si-pnp-Digi Dual, Sw, 50V, 100mA, 200mW, 200MHz, R1/R2=47k/47k SOT-363 33tg - Say
106 FC106 Si-npn-Digi Dual, Sw, 50V, 100mA, 200mW, 200MHz, R1/R2=47k/47k SOT-363 TD3 - Say
10N02Z MMSF10N02Z n-MOS*-e V-MOS, LogL, 20V, 7A, 2,5W, <16mΩ(5A), 65/325ns SO-8 33fs 7b - Ons
11 MUN5311DW Si-n/p-Digi Dual, Sw, 50V, 100mA, 200mW, R1/R2=10/10k SOT-363 33tx - Mot
11 R1163D211E VR-IC LDO, CE, 2.1V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
12 MUN5312DW Si-n/p-Digi Dual, Sw, 50V, 100mA, 200mW, R1/R2=22/22k SOT-363 33tx - Mot
12 R1163D221E VR-IC LDO, CE, 2.2V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
12/12 SMS12 TVS Quad, 12V, 15A, 350W(1ms) SOT-23-6L 33dx 7b - Smt
12A MMQA12V TVS Quad, 12V, 24W(1ms) SC-74 33dx 7b - Ons
13 MUN5313DW Si-n/p-Digi Dual, Sw, 50V, 100mA, 200mW, R1/R2=47k/47k SOT-363 33tx - Mot
13 R1163D231E VR-IC LDO, CE, 2.3V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric
13
13A TK7401 3L VR-IC Dual, L DO, Separate CE, 1,3+1,3V±2%, 300mA SOT-23L-8 33uh - Tok
13F BC847BPDW Si-n/p Dual, GP, 50V, 100mA, 250mW, B=200..450, >100MHz SOT-363 33td - Ons
13G BC847CPDW Si-n/p Dual, GP, 50V, 100mA, 250mW, B=420..800, >100MHz SOT-363 33td - Ons
13K BC848BPDW Si-n/p Dual, GP, 30V, 100mA, 250mW, B=200..450, >100MHz SOT-363 33td - Ons
13L BC848CPDW Si-n/p Dual, GP, 30V, 100mA, 250mW, B=420..800, >100MHz SOT-363 33td - Ons
13P TK11213BM VR-IC LDO, CE, 1,3V±2%, 150mA SOT-23L-6 33vf 7b V R7 Tok
13t BC847BPN Si-n/p Dual, GP, 50V, 100mA, 200mW, B=200..450, >100MHz SOT-363 33td - Phi
14 MUN5314DW Si-n/p-Digi Dual, Sw, 50V, 100mA, 200mW, R1/R2=10/47k SOT-363 33tx - Mot
14 R1163D241E VR-IC LDO, CE, 2.4V±1.5%, 150mA SON-6 35vrc 7g VR10 Ric

6... - pins

1460A1 LT1460ACS8-10 Vref-IC µPower, Precision, Series, 10V, 0.075% S8 33af VR1 Ltc
1460A2 LT1460ACS8-2.5 Vref-IC µPower, Precision, Series, 2.5V, 0.075% S8 33af VR1 Ltc
1460A5 LT1460ACS8-5 Vref-IC µPower, Precision, Series, 5V, 0.075% S8 33af VR1 Ltc

Type Function

05

12

MMQA13V1 TVS Quad, 13V, 24W(1ms) SC-74 33dx 7b - Ons

Short description

Case Pin. Mnf.St. Sch.

972

Conventional cases drawings

Cases pin assignments

Pinouts

1031

Cathode band

Fig.1

12

Top view

Fig.2

12

Top view

2

Fig.3

1

Top view

Fig.4

2

1

Top view

22

Fig.5

1

Fig.6

1

Top viewTop view

1

2

Fig.10 Fig.11

1

Top view

2

Top view

3

2

Fig.14

1

Top view

Fig.16

2

1

Top view

Fig.7

Fig.12

12

2

Fig.8

2

1

1

Top viewTop view

12

Top view

Fig.13

Top view

3

3

1

2

12

Fig.18 Fig.17

Top viewBottom view

1

Fig.24

1032

3

2

Fig.20 Fig.19

4

1

3

2

Top view

Fig.25

4

123

4

1

Top viewTop view

3

2

Top view

1

Fig.21

4

12

Fig.26

4

23

3

Top view

Top view

Fig.22

1234

Fig.27

1

2

3

Top view

5

Top view

12345 6 78

aX X
aa Input GND Vcc/Output
ab Input GND GND O utput GND Vcc
ac Vcc GND Input GND GND Output GND GND
ad Input GND Vcc/Output GND
ae Input Vcc GND Output GND GND

af N/C Vinput N/C GND N/C Voutput N/C N/C
ag Contact Contact N/C
ak N/C K A

am Vcc/Output GND Input G ND

ba K(A) K(A)
bb K1 K2 K3 A3 A2 A1
bc K1 Common A K2 K3 K4
be K1 K2 A3/A4 K3 K4 A1/A2

bf K1 Common A K2 K3 K4 K5
bg K1 K2 A2 N/C A1
bh A1 Common K A2 A3 A4

bi A K A A K A

bj A1 A2 K3/K4 A3 A4 K1/K2
bk A1 K2 K3/A4 A3 K4 K1/A2
bn OVP Vinput CE AGND N/C Feedback SW PGND
bp K K A A K K
bq GND Voutput Lx

br GND Voutput Ext
bs A1 Common K A2 Common K

bt K1 N/C K2 Common A
bu A1 N/C A2 Common K
bv A1 N/C K2 K1/A2
bw A1 Common K A2 A3 Common K A4
bx A1 K1/A2 K2 K3 A3/K4 A4
by K1 A1/K2 A2 K3 A3/K4 A4
bz K A K

c K1 Common A K2 K3 N/C K4
ca Q GND +Input -Input Output
cb Vcc Shutdowm Input L Output L GND Output R Input R Cext
cd K1/A2/K3 K2 A3 A1
ce K1 K2 A2 A1

cf GND Vinput Vinput Vinput Voutput Vout put Voutput N/C
cg GND Voutput Vinput
ch Voutput GND Vinput

cj Voutput Vinput GND
ck Voutput Adjust Vinput

cm Adjust Vinput Voutput

cn Adjust Voutput Vinput
co ±Reset ±MR Vcc GND
cp -Reset GND -MR WDI Vcc
cq ±Reset GND ±MR1 Vcc ±MR2
cs A1 K1 A2 K2

ct A1 K1 K2 A2
cu Vinput GND ±CE Shutdown Voutput
cv Voutput Shutdown ±CE Vinput
cw Shutdown GND ±CE Vinput Vout put

dA K
da A1/K4 A2/K1 A3/K2 A4/K3
db A1 K1/A2 K2 N/C

1037

SMD-codes marking style

1045

1a 1b 1c 1d

SMD code SMD code

SMD code

SMD code

Manufacturer logo

Data code
(N-Year,
M-month)

1e

1i

1m

SMD code

Assembly
location

Wafer lot

Data code
(Y-Year,
W-week)

SMD code

SMD code

1f

SMD code

1j

Manufacturer logo

SMD code

1n

Lot number

1g

Data code

1k

Data code
(N-Year,
M-month)

1p

SMD code

SMD code

Manufacturer logo

SMD code

Manufacturer logo

Data code
(Y-Year,
M-month)

Data code

Data code
(N-Year,
M-month)

1h

1l

1q

SMD code

Manufacturer logo

SMD code

Data code

Data code
(Y-Year,
M-month)

SMD code

1046

SMD code

1r

SMD code

1v

Manufacturer logo

SMD code

Manufacturer logo

1s

Data code
(Y-Year,
W-week)

1w

SMD code

Manufacturer logo

SMD code

Manufacturer logo

SMD code

Data code

SMD code

1t

SMD code

1x

Manufacturer logo

SMD code

Data code
(Y-Year,
M-month)

Data code

1u

1y

Sample schematics diagrams

1051

A1

OP, OP1 OP2

A2

PA1

AD1

AD2

PA2

PA6

PA3

PA9

PA7

PA10

PA4

PA5

PA8

PA11

1052

PA1 2

PA1 3

Logos, contact and web-adresses of the manufacturers

1059

Agi- Agilent Technologies

395 Page Mill Rd. Palo Alto, CA 94306 USA, Phone: [phone]

www.semiconductor.agilent.com

Aic- Analog Integrations Corporation

3A1, No.1, Li-Hsin Rd. I, Science Park, Hsinchu 300, Taiwan, R.O.C.

http://www.analog.com.tw

Ali- Alliance Semiconductor

12575 Augustine Drive, Santa Clara, CA 95054, USA, Phone: [phone]

http://www.alsc.com

All- Allegro MicroSystems Inc.

115 Northeast Cutoff, Box 15036 Worcester, MA 01615, USA, Phone: [phone]

http://www.allegromicro.com

Ame- AME, Inc.

2F, 189 Kang-Chien Road, Nei-Hu Dist. Taipei 114 Taiwan, R.O.C., Phone: [phone]

www.ame.com.tw

Ana- Anachip Corp.

2F, No.24-2, Industry E. Rd. IV, Science-Based Industrial Park, Hsinchu 300, Taiwan
Phone: [phone]

www.anachip.com.tw

And- Analog Devices

One Technology Way, Norwood, MA 02062, USA, Phone: [phone]

http://www.analog.com

1060

Ant- Advanced Analogic Technologies, Inc.

830 E. Arques Avenue, Sunnyvale, CA 94085, USA, Phone: [phone]

http://www.analogictech.com

Atr- Aimtron

2F, No.10, Prosperity RD. II, Science-Based Industrial Park, Hsinchu 300,Taiwan, R.O.C.
Phone: [phone]

http://www.aimtron.com.tw

Auk- AUK Semiconductor Corp.

Shinheung-dong, Iksan, Jeollabuk-do, Korea, Phone: [phone]

http://www.auk.co.kr

Bub- Burr-Brown Corp.

PO Box 11400, 6730 S. Tucson Blvd., Tucson, AZ 85706 USA, Phone: [phone]

http://www.burr-brown.com

Cdi- Continental Device India Limited

C-120, Naraina Industrial Area, New Delhi 110028, India, Phone: [phone]

http://www.cdil.com

Cel- California Eastern Laboratories

4590 Patrick Henry Drive, Santa Clara, CA 95054-1817, USA, Phone: [phone]

http://www.cel.com

Cen- Central Semiconductor Corp.

1145 Adams Avenue, Hauppauge, NY 11788, USA, Phone: [phone]

http://www.centralsemi.com

©Turuta Eugene

Negruzzi blvd. 5, ap.15, Chisinau, 2001MD, Republic of Moldova
