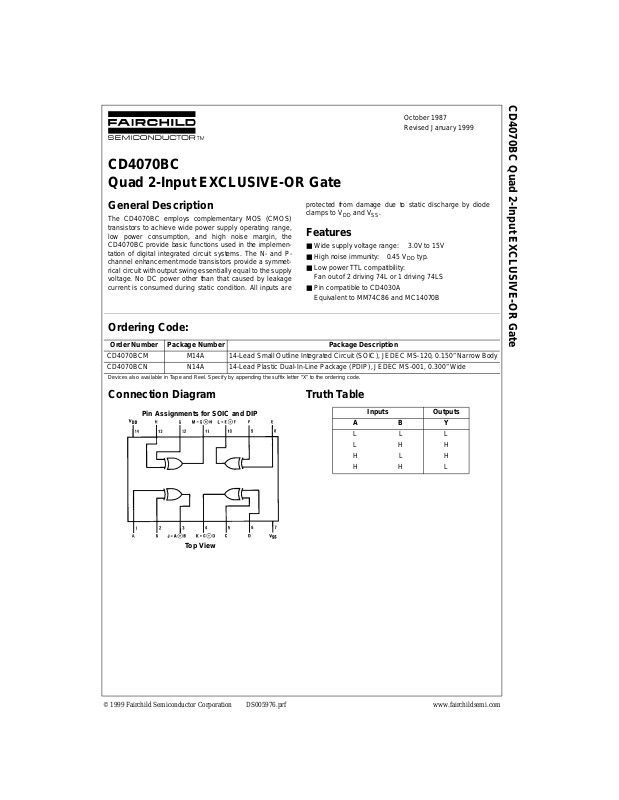

CD4070BC Quad 2-Input EXCLUSIVE-OR Gate

October 1987 Revised January 1999

General Description

The CD4070BC employs complementary MOS (CMOS) transistors to achieve wide power supply operatin g range, low power consumption, and high noise margin, the CD4070BC provide basic fun ctions used in the impl ementation of digital integrated circuit systems. The N- and Pchannel enhancement mode transistors provide a symmetrical circuit with output swing essentially equal to the supply voltage. No DC power other than that caused by leakage current is consumed during static condition. Al l inputs are

protected from da mage due to static discharge by diode clamps to V

and VSS.

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.45 V

■ Low power TTL compatibility:

Fan out of 2 driving 74L or 1 driving 74LS

■ Pin compatible to CD4030A Equivalent to MM74C86 and MC14070B

typ.

Ordering Code:

Order Number Package Number Package Description

CD4070BCM M14A 14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow Body CD4070BCN N14A 14-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.

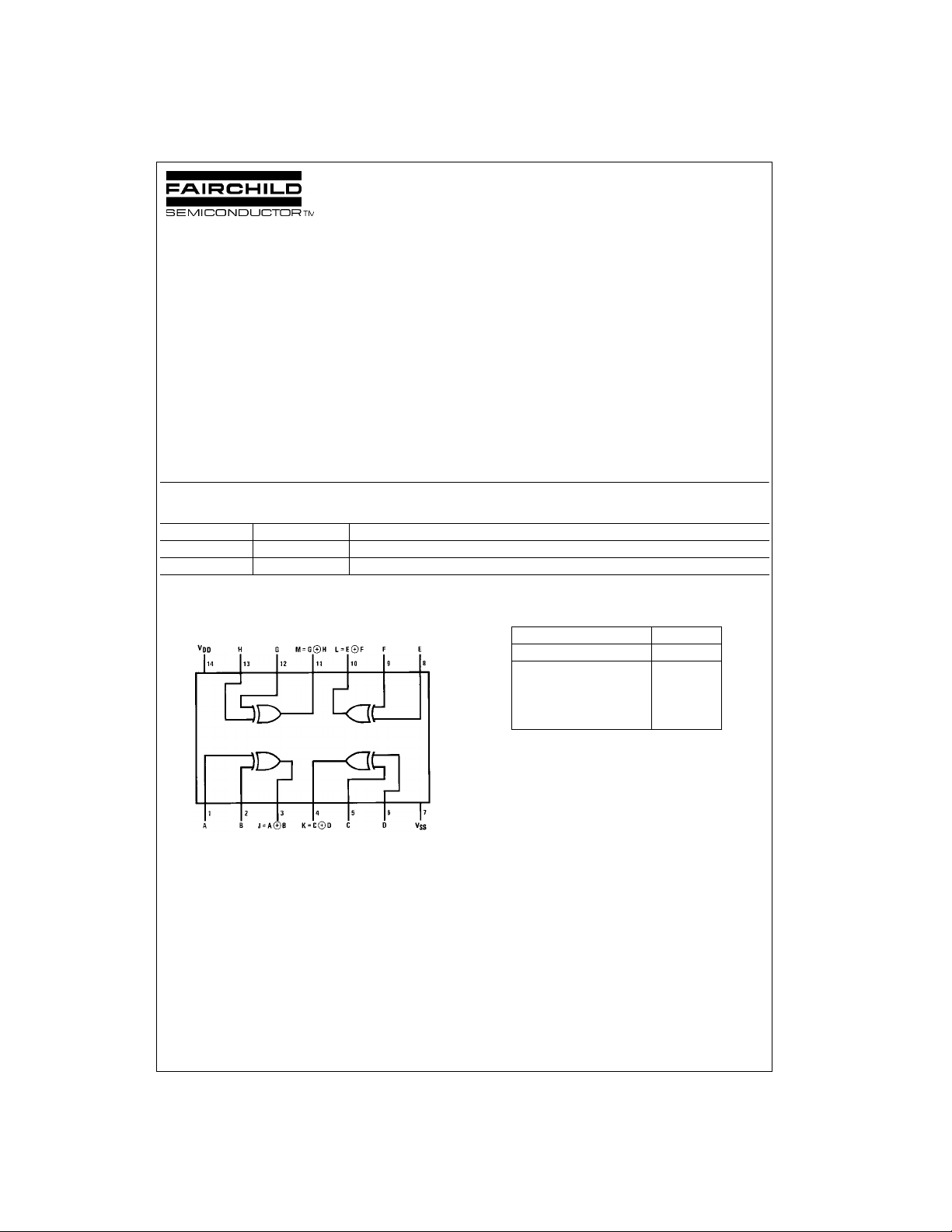

Connection Diagram

Pin Assignments for SOIC and DIP

Truth Table

Inputs Outputs

ABY

LLL LHH HLH HHL

Top View

Page 2

Absolute Maximum Ratings(Note 1)

(Note 2) DC Supply Voltage (VDD) −0.5 to +18 V

Input Voltage (VIN) −0.5toVDD+0.5 V

CD4070BC

Storage Temperature Range (TS) −65°C to +150°C Power Dissipation (P

Dual-In-Line 700 mW Small Outline 500 mW

Lead Temperature (T

(Soldering, 10 seconds) 260°C

)

Recommended Operating Conditions

DC Supply Voltage (V

Input Voltage (VIN)0 to V

Operating Temperature Range (TA) −40°C to +85°C

Note 1: “Absolute Maxi mum Ratings” are those valu es beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices should be ope rated at these limi ts. The table of “Recommended Operating Conditions” and “Electrical Characteristics” provides conditions for actual device op eration.

= 0V unless otherw is e s pecified.

Note 2: V

(Note 2)

) 3V to 15 V

DC Electrical Characteristics (Note 3)

Symbol Parameter Conditions

Quiescent Device VDD = 5V, 1.0 1.0 7.5 µA

Current VIN = VDD or V

VDD = 10V, 2.0 2.0 15 µA VIN = VDD or V VDD = 15V, 4.0 4.0 30 µA

LOW Level |IO| < 1 µA

Output Voltage VDD = 5V 0.05 0 0.05 0.05 V

HIGH Level |IO| < 1 µA

Output Voltage VDD = 5V 4.95 4.95 5 4.95 V

LOW Level |IO| < 1 µA

Input Voltage VDD = 5V, VO = 4.5V or 0.5V 1.5 1.5 1.5 V

HIGH Level |IO| < 1 µA

Input Voltage VDD = 5V, VO = 0.5V or 4.5V 3.5 3.5 3.5 V

LOW Level Output VDD = 5V, VO = 0.4V 0.52 0.44 0.88 0.36 mA

Current VDD = 10V, VO = 0.5V 1.3 1.1 2.25 0.9 mA

HIGH Level Output VDD = 5V, VO = 4.6V −0.52 −0.44 −0.88 −0.36 mA

Current VDD = 10V, VO = 9.5V −1.3 −1.1 −2.25 −0.9 mA

Input Current VDD = 15V, VIN = 0V −0.3 −10−5−0.3 −1.0 µA

Note 3: “Absolute Maximum Ratin gs” are those values beyond which t he safety of the device canno t be gua ranteed . They are not m eant to i mply th at the devices should be operated at these limits. The table of “Recommended Operating Conditions” and “Electrical Characteristics” provides conditions for actual device operation.

VIN = VDD or V

VDD = 10V 0.05 0 0. 05 0.05 V VDD = 15V 0.05 0 0. 05 0.05 V

VDD = 10V 9.95 9.95 10 9.95 V VDD = 15V 14.95 14.95 15 14.95 V

VDD = 10V, VO = 9V or 1.0V 3.0 3.0 3.0 V VDD = 15V, VO = 13.5V or 1.5V 4.0 4.0 4.0 V

VDD = 10V, VO = 1V or 9.0V 7.0 7.0 7.0 V VDD = 15V, VO = 1.5V or 13.5V 11.0 11.0 11.0 V

VDD = 15V, VO = 1.5V 3.6 3.0 8.8 2.4 mA

VDD = 15V, VO = 13.5V −3.6 −3.0 −8.8 −2.4 mA

VDD = 15V, VIN = 15V 0.3 10−50.3 1.0 µA

−40°C +25°C +85°C

Min Max Min Typ Max Min Max

DD VDC

Units

www.fairchildsemi.com 2

Page 3

AC Electrical Characteristics (Note 4)

TA = 25°C, CL = 50 pF, RL = 200k, tr and tf ≤ 20 ns, unless otherwise specified

Symbol Parameter Conditions Min Typ Max Units

or Propagation Delay Time VDD = 5V 110 185 ns

PHL

PLH

or Transition Time VDD = 5V 100 200 ns

THL

TLH

Note 4: AC Parameters are guaranteed by DC correlated testin g. Note 5: C

Note—AN-90.

from Input to Output VDD = 10V 50 90 ns

Average Input Capacitance Any Input 5 7.5 pF Power Dissipation Capacitance Any Input (Note 5) 20 pF

determines t he no load AC power cons umption of any CMO S device. For compl ete explana tion, see 7 4C Family Charac teristics Application

VDD = 15V 40 75 ns

VDD = 10V 50 100 ns VDD = 15V 40 80 ns

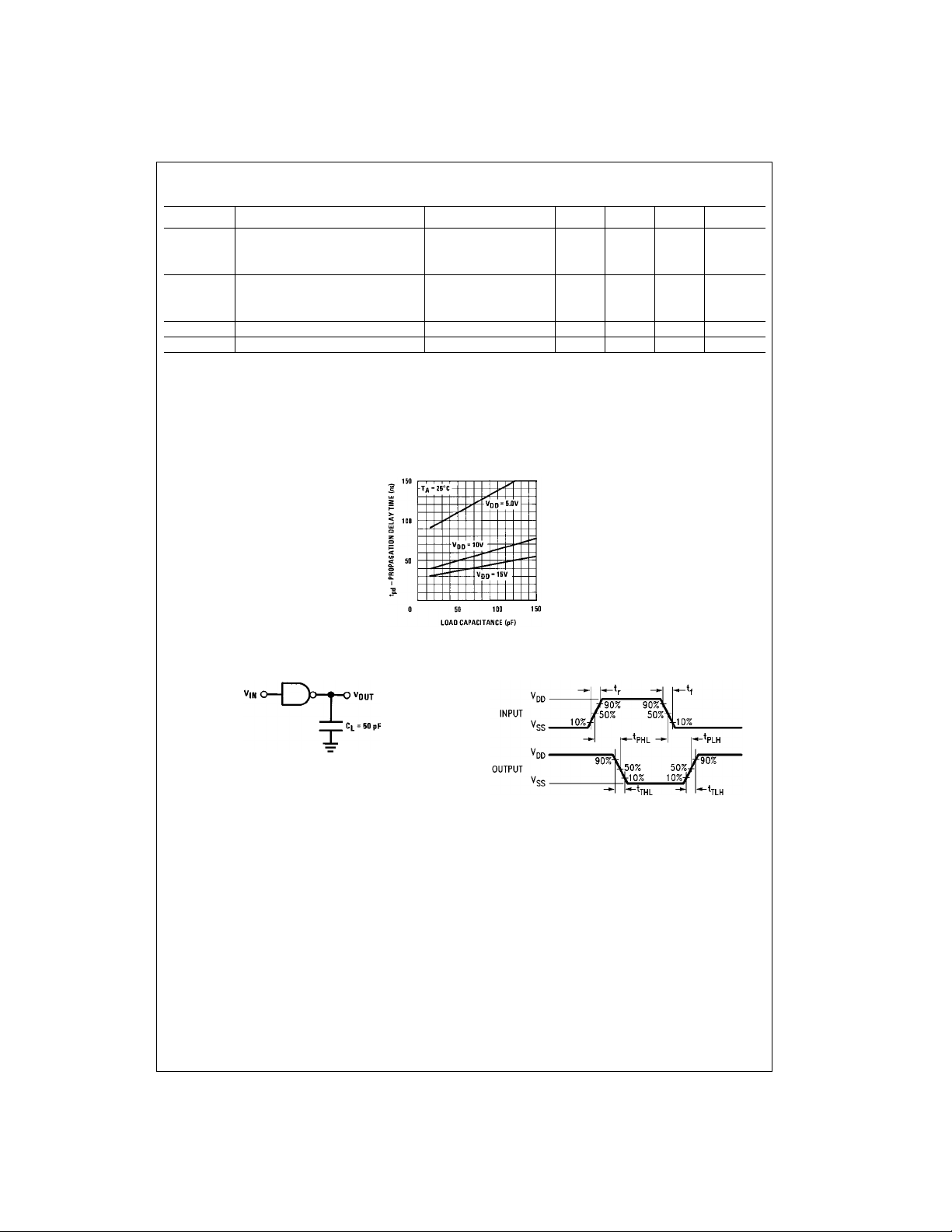

Typical PerformanceCharacteristics

Propagation Delay Time

vs Load Capacitance

CD4070BC

AC Test Circuit and Switching Time Waveforms

Note: Delays measured with input tr, tf = 20 ns.

= tf = 20 ns

3 www.fairchildsemi.com

Page 4

Physical Dimensions in ches (millimeters) unless otherwise noted

CD4070BC

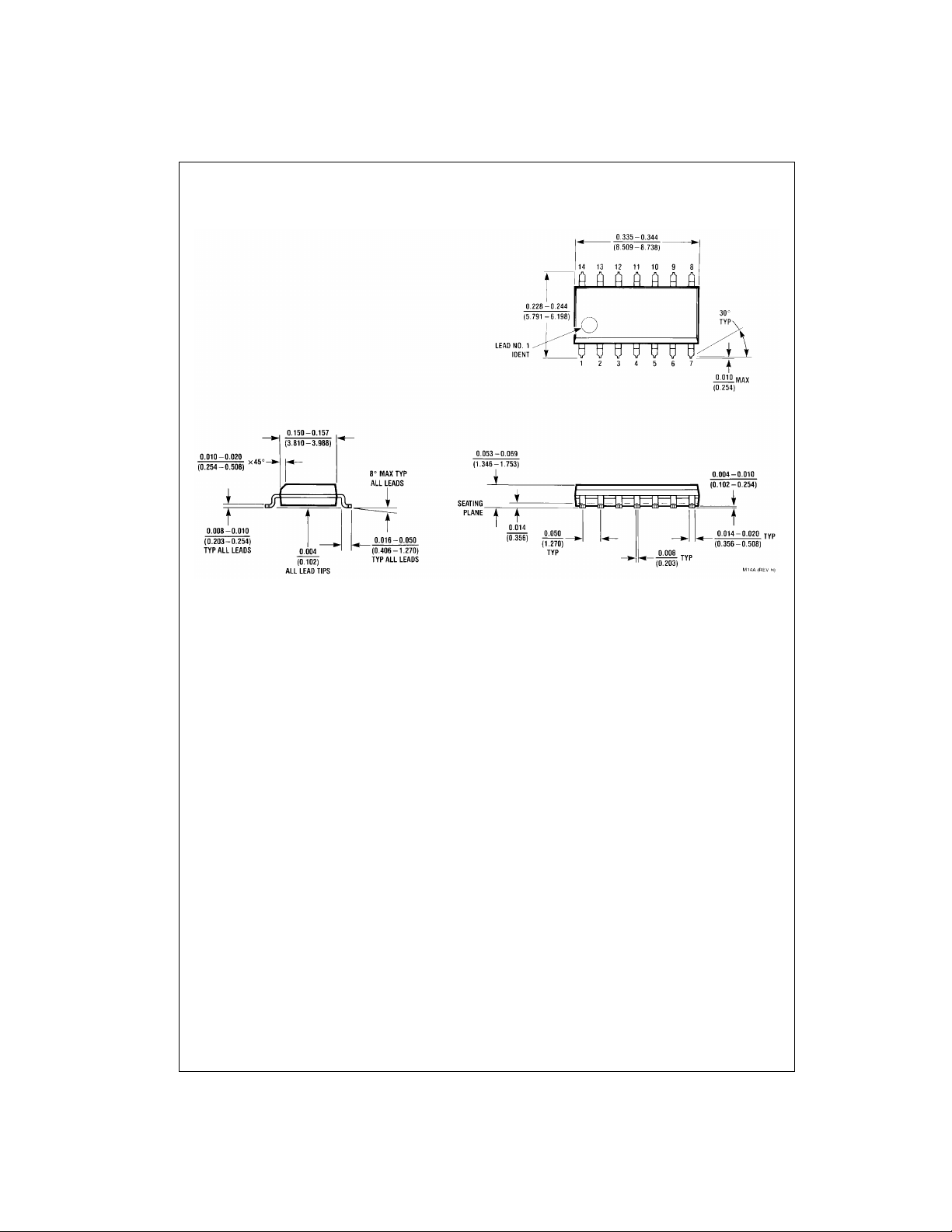

14-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-120, 0.150” Narrow Body

Package Number M14A

www.fairchildsemi.com 4

Page 5

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

CD4070BC Quad 2-Input EXCLUSIVE-OR Gate

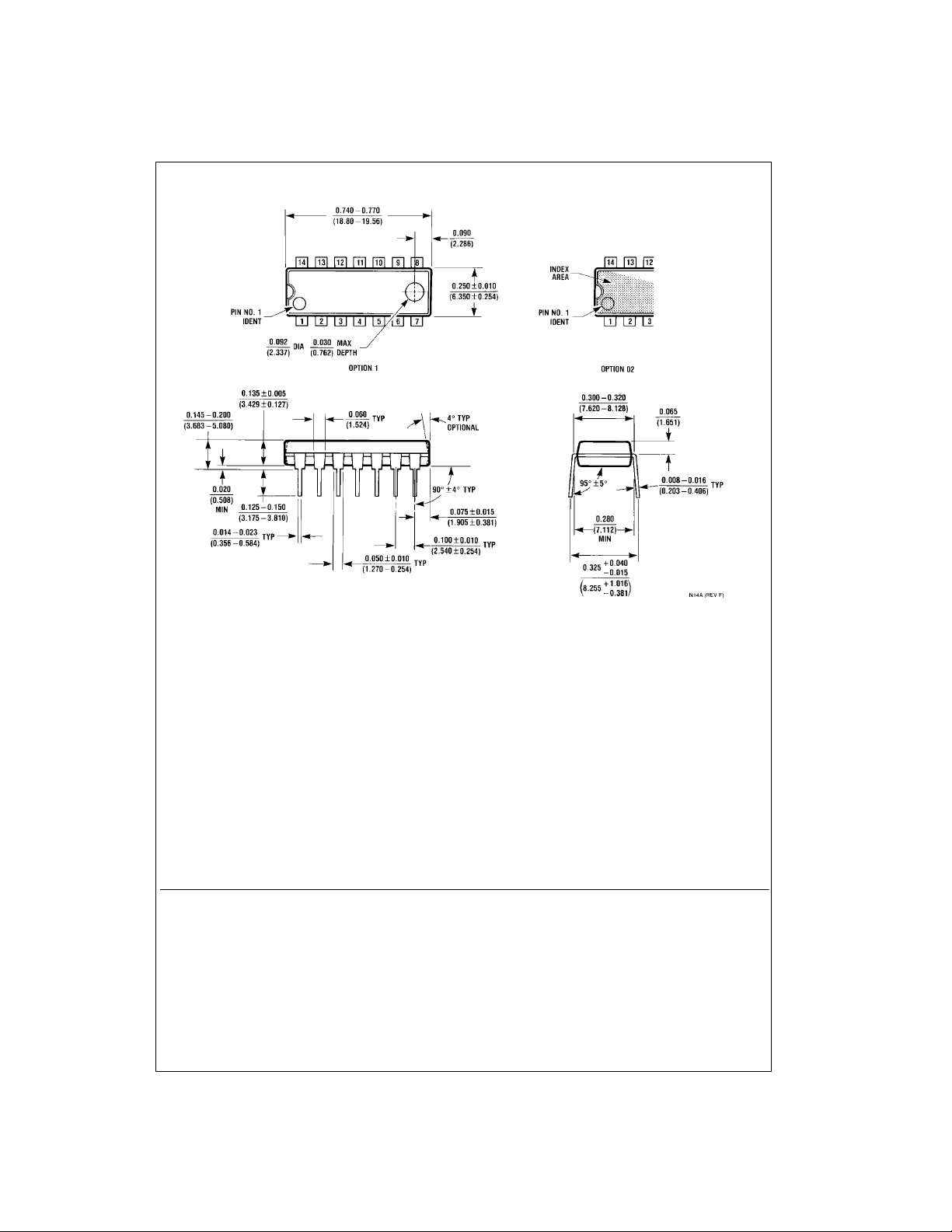

14-Lead Plastic Dual-In-Package (PDIP), JEDEC MS-001, 0.300” Wide
