DUAL-J-K MASTER-SLAVE FLIP-FLOP

.SET-RESET CAPABILITY

.STATIC FLIP-FLOP OPERATION - RETAINS

STATE INDEFINITELY WITH CLOCK LEVEL
EITHER”HIGH” OR ”LOW”

.MEDIUM SPEED OPERATION - 16MHz (typ.

clocktoggle rateat 10V)

.STANDARDIZED SYMMETRICAL OUTPUT

CHARACTERISTICS

.QUIESCENT CURRENT SPECIFIED TO 20V

FOR HCC DEVICE

.INPUT CURRENTOF100nA AT18VAND25°C

FOR HCC DEVICE

.100% TESTEDFOR QUIESCENTCURRENT

.MEETSALLREQUIREMENTSOFJEDECTEN-

TATIVE STANDARD N0. 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTIONOF ”B”
SERIESCMOS DEVICES”.

HCC/HCF4027B

EY

(Plastic Package)F(Ceramic Frit Seal Package)

M1

(MicroPackage)

ORDERCODES :

HCC4027BF HCF4027BM1
HCF4027BEY HCF4027BC1

(Plastic Chip Carrier)

C1

DESCRIPTION
TheHCC4027B(extended temperature range) and

HCF4027B (intermediate temperature range) are

monolithic integrated circuit, available in 16-lead
dual in-line plastic or ceramic package and plastic
micro package.

The HCC/HCF4027B is a singlemonolithic chipin­tegratedcircuit containingtwoidenticalcomplemen­tary-symmetry J-K master-slave flip-flops. Each
flip-flophasprovisions forindividualJ,K,Set,Reset,
and Clock input signals, Buffered Q and Q signals
areprovided as outputs.This input-output arrange­ment provides for compatible operation with the
HCC/HCF4013Bdual D-type flip-flop.

TheHCC/HCF4027Bisuseful inperformingcontrol,
register, and toggle functions. Logic levels present
attheJandKinputsalongwithinternalself-steering
controlthestateofeachflip-flop;changes in theflip­flop state are synchronous with the positive-going
transitionoftheclockpulse.Setand resetfunctions
areindependent of the clockand are initiated when
a high level signal is present at either the Set or
Reset input.

PIN CONNECTIONS

June 1989

1/12

HCC/HCF4027B

FUNCTIONAL DIAGRAM

ABSOLUTE MAXIMUM RATIN G S

Symbol Parameter Value Unit

V

* Supply Voltage : HCC Types

DD

HCF Types

V

Input Voltage – 0.5 to VDD+ 0.5 V

i

I

DC Input Current (any one input) ± 10 mA

I

P

Total Power Dissipation (per package)

tot

Dissipation per Output Transistor
for T

T

Operating Temperature : HCC Types

op

= Full Package-temperature Range

op

HCF Types

T

Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only
and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification
is not implied. Exposure to absolute maximum rating conditions for external periods may affect device reliability.
* All voltagevalues are referred to VSSpin voltage .

Storage Temperature – 65 to + 150 °C

stg

– 0.5 to + 20
– 0.5 to + 18

200
100

– 55 t o + 125

–40to+85

V
V

mW
mW

°C
°C

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Value Unit

2/12

V

Supply Voltage : HCC Types

DD

HCF Types

V

Input Voltage 0 to V

I

T

Operating Temperature : HCC Types

op

HCF Types

3to18
3to15

DD

– 55 t o + 125

–40to+85

V
V

V

°C
°C

LOGIC DIAGRAM AND TRUTH TABLE

ONE OF TWO IDENTICAL J-K FLIP-FLOPS

HCC/HCF4027B

TRUTH TABLE

Pres ent S tat e Next Sta te

Inputs Output

JKSR Q Q Q

IXOO O
XOOO I
OXOO O
XIOO I
XXOO X
XX IO X X I O

XXOI X X O I
XX I I X X I I

LOGIC I = HIGH LEVEL
LOGIC O = LOW LEVEL
∆ - LEVEL CHANGE
X - DON’T CARE

∆

CL

–

/

–

–

/

–

–

/

–

–

/

–
–

\

–

IO

IO
OI
OI

Outputs

←No Change

3/12

HCC/HCF4027B

STATIC ELECTRICAL CHARACTERISTICS (over recommended operatingconditions)

Test Conditions Valu e

Symbol Parameter

Quiescent

I

L

Current

HCC
Types

HCF
Types

V

OH

Output High
Voltage

V

OL

Output Low
Voltage

V

IH

Input High
Voltage

V

IL

Input Low
Voltage

I

OH

Output
Drive
Current

HCC
Types

HCF
Types

I

OL

Output
Sink
Current

HCC
Types

HCF
Types

I

IH,IIL

Input
Leakage
Current

HCC
Types

HCF
Types

C

Input Capacitance Any Input 5 7.5 pF

I

*T

=–55°CforHCC device : – 40°C for HCF device.

Low

*T

= + 125°C for HCC device : + 85°C for HCF device.

High

TheNoiseMarginfor both ”1” and ”0” levelis:1V min.with VDD=5V, 2V min. withVDD= 10V,2.5V min.with VDD= 15V.

V

V

O

|IO|V

I

(V) (V) (µA) (V)

T

DD

* 25°CT

Low

Min. Max. Min. Typ. Max. Min. Max.

High

0/ 5 5 1 0.02 1 30
0/10 10 2 0.02 2 60
0/15 15 4 0.02 4 120
0/20 20 20 0.04 20 600
0/ 5 5 4 0.02 4 30
0/10 10 8 0.02 8 60
0/15 15 16 0.02 16 120
0/ 5 < 1 5 4.95 4.95 4.95
0/10 < 1 10 9.95 9.95 9.95
0/15 < 1 15 14.95 14.95 14.95

5/0 < 1 5 0.05 0.05 0.05
10/0 < 1 10 0.05 0.05 0.05
15/0 < 1 15 0.05 0.05 0.05

0.5/4.5 < 1 5 3.5 3.5 3.5
1/9 < 1 10 7 7 7

1.5/13.5 < 1 15 11 11 11

4.5/0.5 < 1 5 1.5 1.5 1.5
9/1 < 1 10 3 3 3

13.5/1.5 < 1 15 4 4 4
0/ 5 2.5 5 – 2 – 1.6 – 3.2 – 1.15
0/ 5 4.6 5 – 0.64 – 0.51 – 1 – 0.36
0/10 9.5 10 – 1.6 – 1.3 – 2.6 – 0.9
0/15 13.5 15 – 4.2 – 3.4 – 6.8 – 2.4
0/ 5 2.5 5 – 1.53 – 1.36 – 3.2 – 1.1
0/ 5 4.6 5 – 0.52 – 0.44 – 1 – 0.36
0/10 9.5 10 – 1.3 – 1.1 – 2.6 – 0.9
0/15 13.5 15 – 3.6 – 3.0 – 6.8 – 2.4
0/ 5 0.4 5 0.64 0.51 1 0.36
0/10 0.5 10 1.6 1.3 2.6 0.9
0/15 1.5 15 4.2 3.4 6.8 2.4
0/ 5 0.4 5 0.52 0.44 1 0.36
0/10 0.5 10 1.3 1.1 2.6 0.9
0/15 1.5 15 3.6 3.0 6.8 2.4

0/18

18 ± 0.1 ±10

–5

± 0.1 ± 1

Any Input

–5

0/15

15

± 0.3 ±10

± 0.3 ± 1

Unit

*

µA

V

V

V

V

mA

mA

µA

4/12

HCC/HCF4027B

DYNAMIC ELECTRICAL CHARACTERISTICS (T

=25°C,CL=50pF, RL= 200kΩ,

amb

typicaltemperature coefficient forall VDD=0.3%/°C values,all input rise and falltime= 20ns)

Symbol Parameter

t

PLH,tPHL

Propagation
Delay Time

t

PLH

Propagation
Delay Time

t

PHL

Propagation
Delay Time

t

THL,tTLH

t

W

t

W

t

r,tf

Transition Time 5 100 200

Pulse Width Clock 5 140 70

Pulse Width Set or Reset 5 180 90

Clock Input Rise
or Fall Time

t

setup

f

max

Setup Time Data 5 200 100

Maximum
Clock Input
Frequency *

* Input tr, tf = 5ns.

Test Conditions

V

(V) Min. Typ. Max.

DD

Clock to Q or Q
Outputs

5150300
10 65 130
15 45 90

Set t o Q or Reset
to Q

5150300
10 65 130
15 45 90

Set to Q or Reset
to Q

5200400
10 85 170
15 60 120

10 50 100
15 40 80

10 60 30
15 40 20

10 80 40
15 50 25

515
10 4
15 1

10 75 35
15 50 25

Toggle Mode 5 3.5 7

10 8 16
15 12 24

Value

Unit

ns

ns

ns

ns

µs

ns

MHz

5/12

HCC/HCF4027B

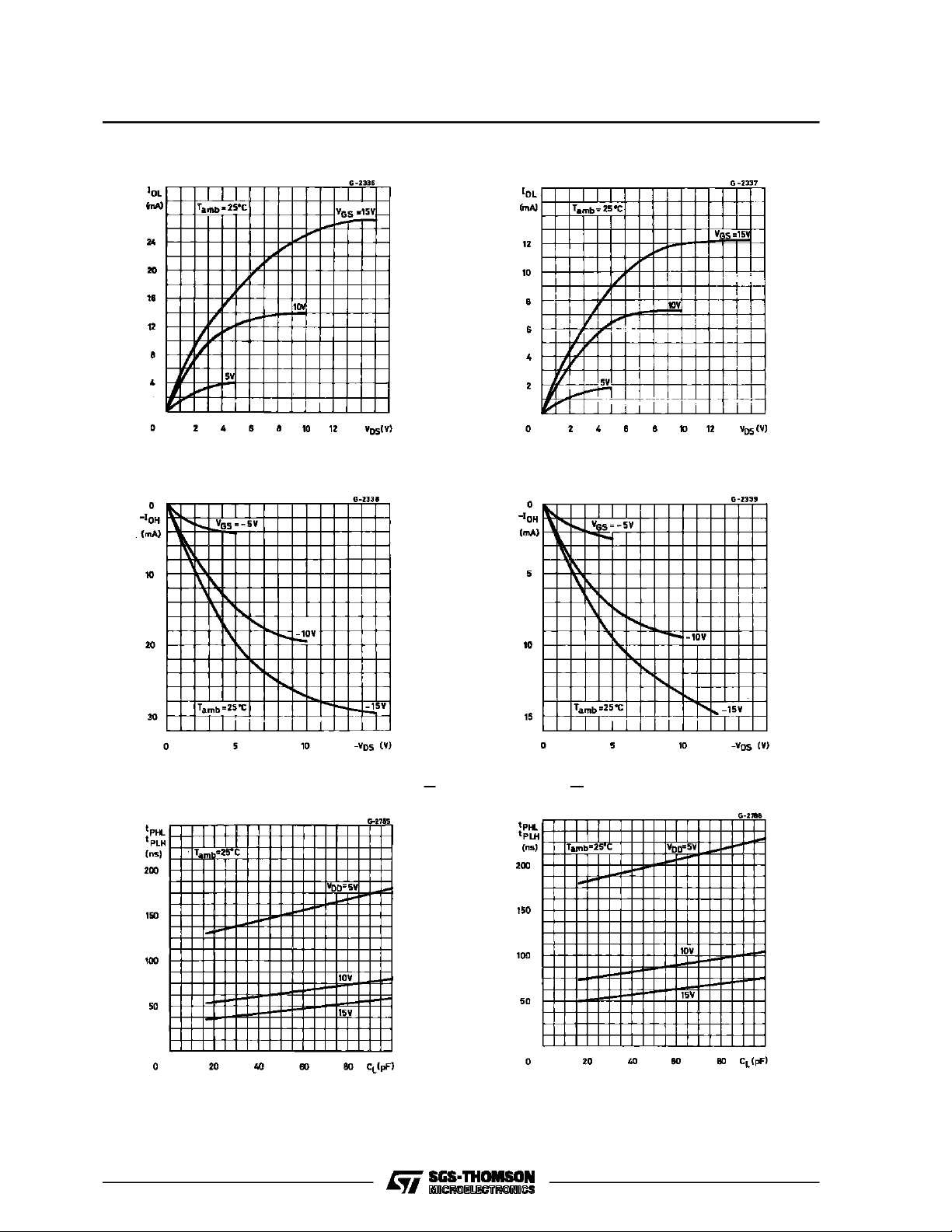

TypicalOutputLow (sink) Current Characteristics. MinimumOutput Low(sink)CurrentCharacteristics.

Typical Output High (source) Current Charac­teristics.

Typical Propagation Delay Time vs.Load Capacit­ance(CLOCK or SET to Q,CLOCKorRESET to Q).

Minimum Output High (source) Current Charac­teristics.

Typical Propagation Delay Time vs. Load Capacit­ance(SET to Q orRESET to Q).

6/12

HCC/HCF4027B

Typical MaximumClockFrequency vs. Supply
Voltage(Toggle Mode).

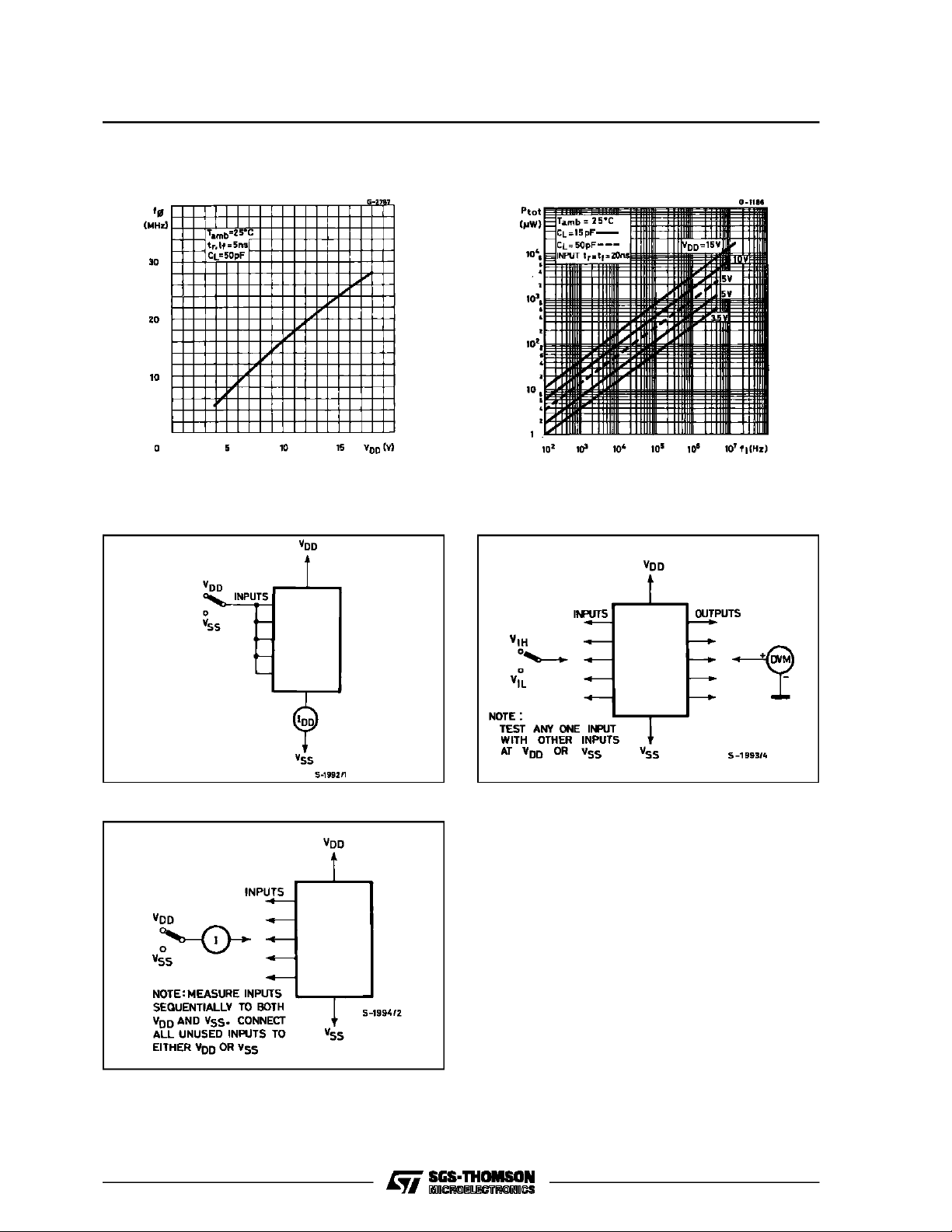

TEST CIRCUITS

QuiescentDeviceCurrent.

TypicalDynamicPower Dissipation/Per Device
vs.Frequency.

Input Voltage.

Input Leakage Current.

7/12

HCC/HCF4027B

Plastic DIP16 (0.25) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

a1 0.51 0.020

B 0.77 1.65 0.030 0.065

b 0.5 0.020

b1 0.25 0.010

D 20 0.787
E 8.5 0.335

e 2.54 0.100

e3 17.78 0.700

F 7.1 0.280

I 5.1 0.201

L 3.3 0.130

Z 1.27 0.050

mm inch

8/12

P001C

Ceramic DIP16/1 MECHANICAL DATA

HCC/HCF4027B

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 20 0.787
B 7 0.276
D 3.3 0.130
E 0.38 0.015

e3 17.78 0.700

F 2.29 2.79 0.090 0.110
G 0.4 0.55 0.016 0.022
H 1.17 1.52 0.046 0.060

L 0.22 0.31 0.009 0.012
M 0.51 1.27 0.020 0.050
N 10.3 0.406

P 7.8 8.05 0.307 0.317

Q 5.08 0.200

mm inch

P053D

9/12

HCC/HCF4027B

SO16 (Narrow) MECHANICAL DATA

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 1.75 0.068
a1 0.1 0.2 0.004 0.007
a2 1.65 0.064

b 0.35 0.46 0.013 0.018

b1 0.19 0.25 0.007 0.010

C 0.5 0.019

c1 45° (typ.)

D 9.8 10 0.385 0.393

E 5.8 6.2 0.228 0.244

e 1.27 0.050

e3 8.89 0.350

F 3.8 4.0 0.149 0.157

G 4.6 5.3 0.181 0.208

L 0.5 1.27 0.019 0.050

M 0.62 0.024

S8°(max.)

mm inch

10/12

P013H

PLCC20 MECHANICAL DATA

HCC/HCF4027B

DIM.

MIN. TYP. MAX. MIN. TYP. MAX.

A 9.78 10.03 0.385 0.395

B 8.89 9.04 0.350 0.356

D 4.2 4.57 0.165 0.180
d1 2.54 0.100
d2 0.56 0.022

E 7.37 8.38 0.290 0.330

e 1.27 0.050

e3 5.08 0.200

F 0.38 0.015
G 0.101 0.004
M 1.27 0.050

M1 1.14 0.045

mm inch

P027A

11/12

HCC/HCF4027B
