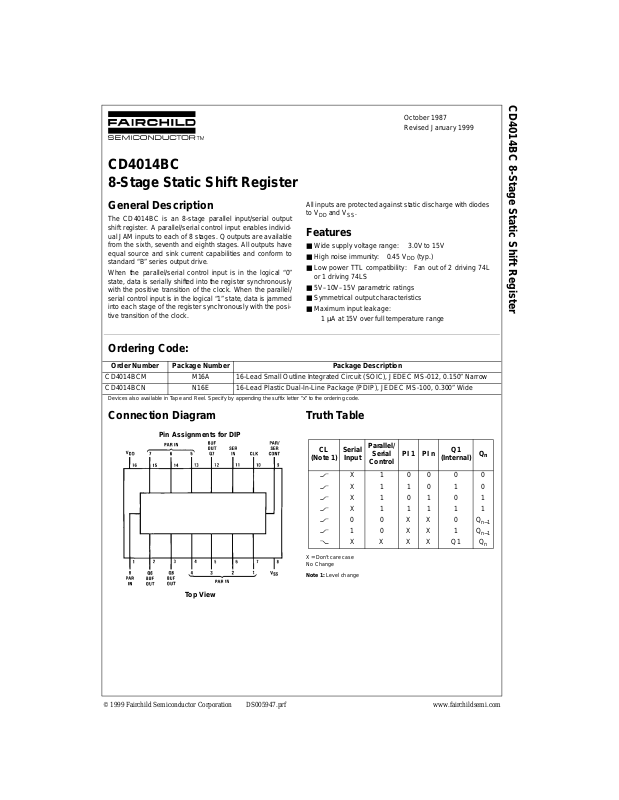

CD4014BC 8-Stage Static Shift Register

October 1987 Revised January 1999

General Description

The CD4014BC is an 8-stage parallel input/serial output shift register. A parallel/serial cont rol input enabl es individual JAM inputs to each of 8 stages. Q outputs are available from the sixth, seventh and eighth stages. All ou tputs have equal source and sink current capabilities and conform to

standard “B” series output drive. When the parallel/serial control input is in the logical “0”

state, data is serially shifted into the register synchronously with the positive transition of the clock. When the parallel/ serial control input is in the logical “1” state, data is jammed into each stage of the register synchronously with the positive transition of the clock.

All inputs are protected against static discharge with diodes to V

and VSS.

Features

■ Wide supply voltage range: 3.0V to 15V

■ High noise immunity: 0.45 V

■ Low power TTL compatibility: Fan out of 2 driving 74L

or 1 driving 74LS

■ 5V–10V–15V parametric ratings

■ Symmetrical output characteristics

■ Maximum input leakage:

1 µA at 15V over full temperature range

(typ.)

Ordering Code:

Order Number Package Number Package Description

CD4014BCM M16A 16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow CD4014BCN N16E 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-100, 0.300” Wide

Devices also available in Tape and Reel. Specify by appending the suffix letter “x” to the ordering code.

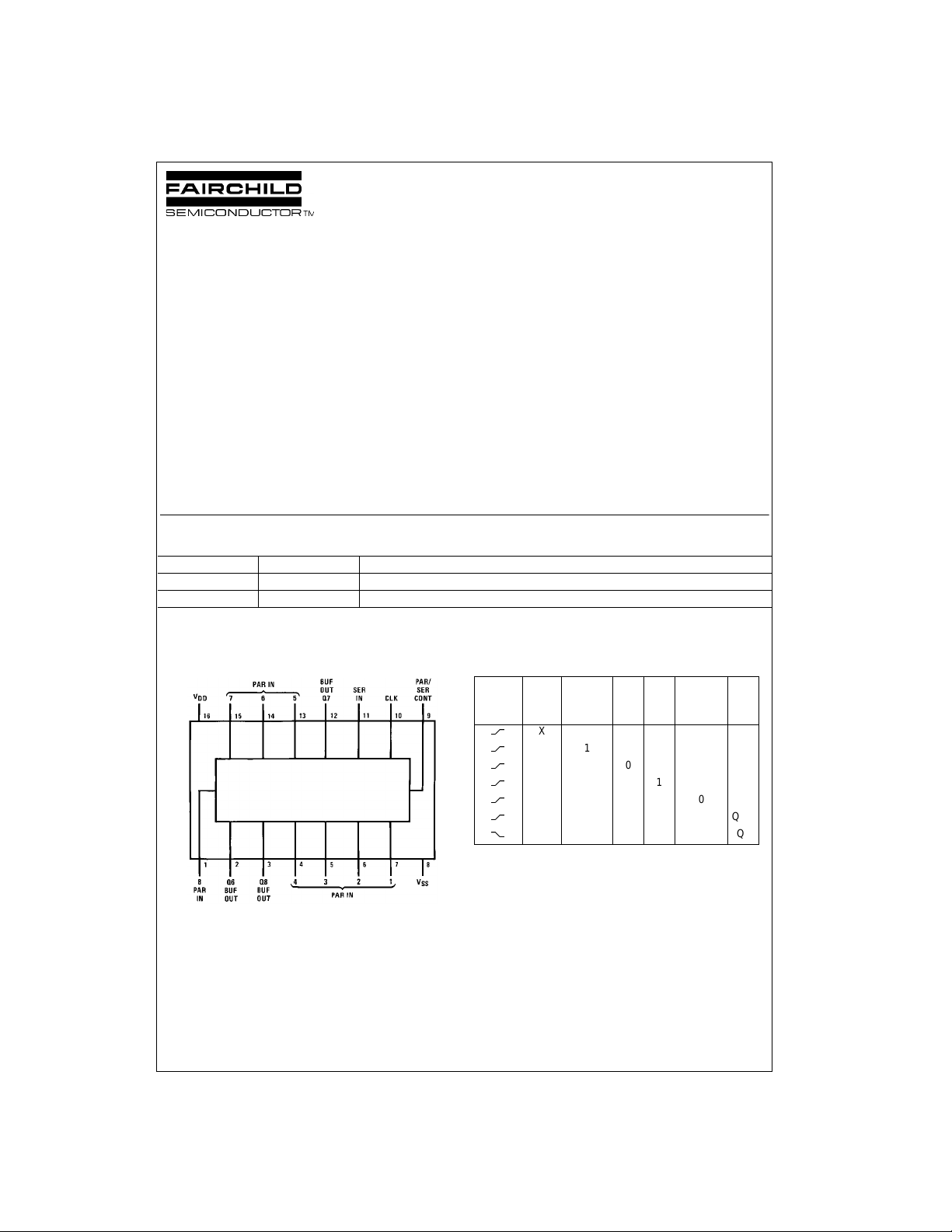

Connection Diagram

Pin Assignments for DIP

Truth Table

      

Serial

Input

X 10000 X 11010 X 10101 X 11111 00XX0Q 10XX1Q XXXXQ1Q

(Note 1)

X = Don't care case No Change

Note 1: Level change

Parallel/

Serial

Control

PI 1 PI n

(Internal)

n−1 n−1

Top View

Page 2

Logic Diagram

CD4014BC

www.fairchildsemi.com 2

Page 3

Absolute Maximum Ratings(Note 2)

(Note 3)

Supply Voltage (VDD) −0.5V to +18V Input Voltage (V Storage Temperature Range (T Power Dissipation (P

Dual-In-Line 700 mW Small Outline 500 mW

Lead Temperature (T

(Soldering, 10 seconds ) 260°C

) −0.5 to VDD + 0.5V

)

) −65°C to +150°C

Recommended Operating Conditions

Supply Voltage (V Input Voltage (V Operating Temperature Range (TA) −40°C to +85°C

Note 2: “Absolute Maximum Rat ings” are tho se values beyond which the safety of the device cannot be guaranteed. E x c ept for “ Operating Temperature Range” they are not mea nt to imply that the devices sh ould be operated at these limits. The table of “Electrical Characteristics” provides conditions for actual device o peration.

= 0V unless otherw is e s pecified.

Note 3: V

(Note 3)

) 3.0V to 15V

) 0 to V

DC Electrical Characteristics (Note 3)

Symbol Parameter Conditions

Quiescent Device VDD = 5V, VIN = VDD or V

Current VDD = 10V, VIN = VDD or V

LOW Level VDD = 5V 0.05 0 0.05 0.05 V

Output Voltage VDD = 10V |IO| < 1 µA 0.05 0 0.05 0.05 V

HIGH Level VDD = 5V 4.95 4.95 5 4.95 V

Output Voltage VDD = 10V |IO| < 1 µA 9.95 9.95 10 9.95 V

LOW Level VDD = 5V, VO = 0.5V or 4.5V 1.5 2 1.5 1.5 V

Input Voltage VDD = 10V, VO = 1.0V or 9.0V 3.0 4 3.0 3.0 V

HIGH Level VDD = 5V, VO = 0.5V or 4.5V 3.5 3.5 3 3.5 V

Input Voltage VDD = 10V, VO = 1.0V or 9.0V 7.0 7.0 6 7.0 V

LOW Level Output VDD = 5V, VO = 0.4V 0.52 0.44 0.88 0.36 mA

Current (Note 4) VDD = 10V, VO = 0.5V 1.3 1.1 2.2 0.9 mA

HIGH Level Output VDD = 5V, VO = 4.6V −0.52 −0.44 −0.88 −0.36 mA

Current (Note 4) VDD = 10V, VO = 9.5V −1.3 −1.1 −2.2 −0.90 mA

Input Current VDD = 15V, VIN = 0V −0.3 −10−5−0.3 −1.0 µA

Note 4: IOL and IOH are tested one output at a ti m e.

VDD = 15V, VIN = VDD or V

VDD = 15V 0.05 0 0.05 0.05 V

VDD = 15V 14.95 14.95 15 14.95 V

VDD = 15V, VO = 1.5V or 13.5V 4.0 6 4.0 4.0 V

VDD = 15V, VO = 1.5V or 13.5V 11.0 11.0 9 11.0 V

VDD = 15V, VO = 1.5V 3.6 3.0 8 2.4 mA

VDD = 15V, VO = 13.5V −3.6 −3.0 −8 −2.4 mA

VDD = 15V, VIN = 15V 0.3 10

SS SS

−40°C +25°C +85°C

Min Max Min Typ Max Min Max

20 0.1 20 150 µA 40 0.2 40 300 µA 80 0.3 80 600 µA

−5

0.3 1.0 µA

CD4014BC

Units

3 www.fairchildsemi.com

Page 4

AC Electrical Charac teristics (Note 5)

TA = 25°C, input tr, tf = 20 ns, CL = 50 pF, RL = 200 kΩ

Symbol Parameter Conditions Min Typ Max Units

, t

PHL

PLH

CD4014BC

, t

THL

TLH

, t

rCL

fCL

Note 5: AC Parameters are guara nt eed by DC correlated testing. Note 6: If more than one unit is cascaded t

mated capacitive load.

Note 7: Setup times are measured with referen c e to c lock and a fixed hold time (t Note 8: C

AN-90.

Propagation Delay Time VDD = 5V 200 320 ns

VDD = 10V 80 160 ns VDD = 15V 60 120 ns

Transition Time VDD = 5V 100 200 ns

VDD = 10V 50 100 ns

VDD = 15V 40 80 ns Maximum Clock VDD = 5V 2.8 4 MHz Input Frequency VDD = 10V 6 12 MHz

VDD = 15V 8 16 MHz Minimum Clock VDD = 5V 90 180 ns Pulse Width VDD = 10V 40 80 ns

VDD = 15V 25 50 ns Clock Rise and VDD = 5V 15 µs Fall Time (Note 6) VDD = 10V 15 µs

VDD = 15V 15 µs Minimum Set-Up Time VDD = 5V 60 120 ns (Note 7) Serial Input VDD = 10V 40 80 ns tH ≥ 200 ns VDD = 15V 30 60 ns Parallel Inputs VDD = 5V 80 160 ns tH ≥ 200 ns VDD = 10V 40 80 ns

VDD = 15V 30 60 ns Parallel/Serial Control VDD = 5V 100 200 ns tH ≥ 200 ns VDD = 10V 50 100 ns

VDD = 15V 40 80 ns Minimum Hold Time VDD = 5V 0 ns Serial In, Parallel In, tS ≥ 400 ns VDD = 10V 10 ns Parallel/Serial Control VDD = 15V 15 ns Average Input Capacitance Any Input 5 7.5 pF (Note 8) Power Dissipation Capacitance 110 pF (Note 8)

should be made less than or equal to the fixed propagation delay of the out put of the driving stage for the esti-

rCL

) as specified.

determines the n o load AC power consumption of any CMOS device. For complete exp lanation, see 74C family characteristics application note

www.fairchildsemi.com 4

Page 5

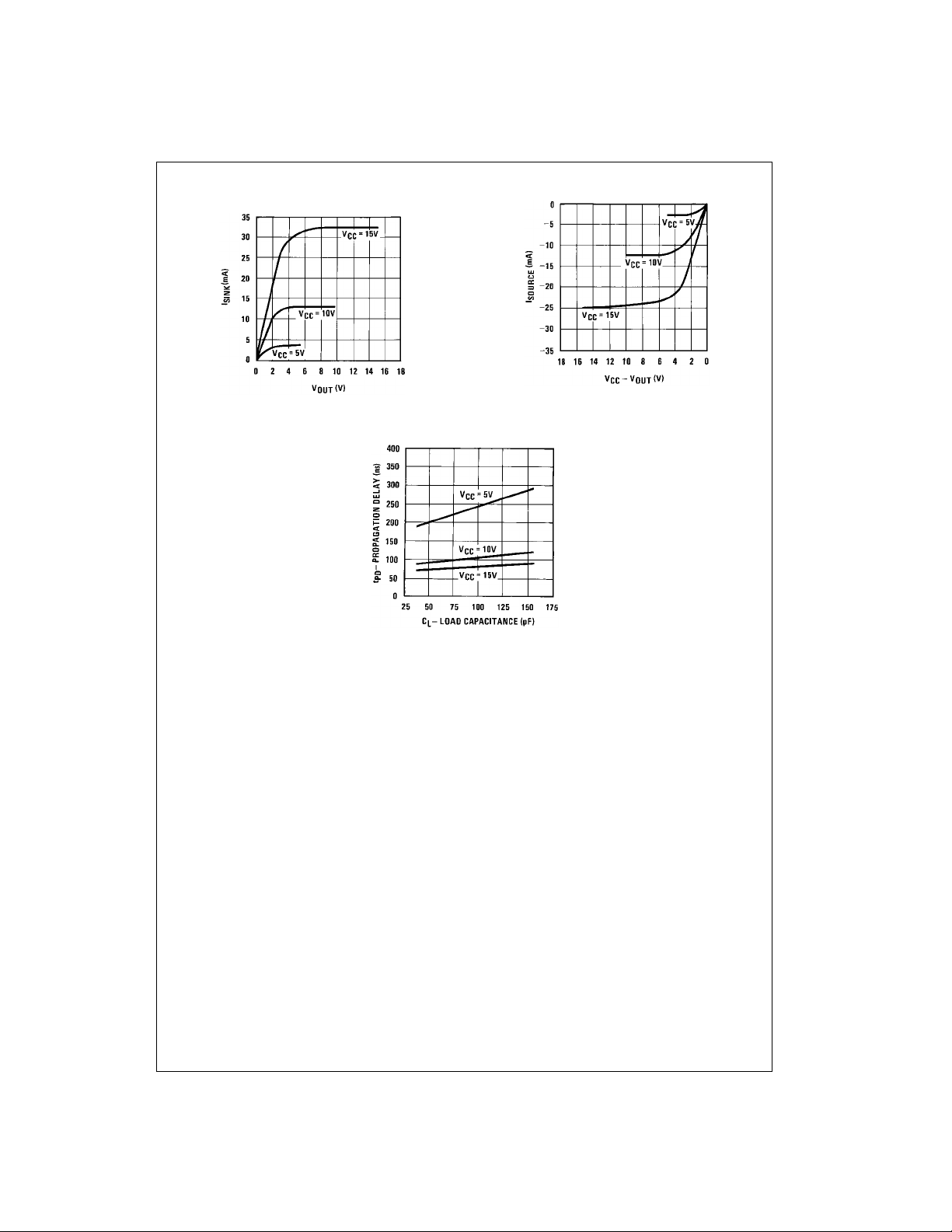

Typical Performance Characteristics

CD4014BC

5 www.fairchildsemi.com

Page 6

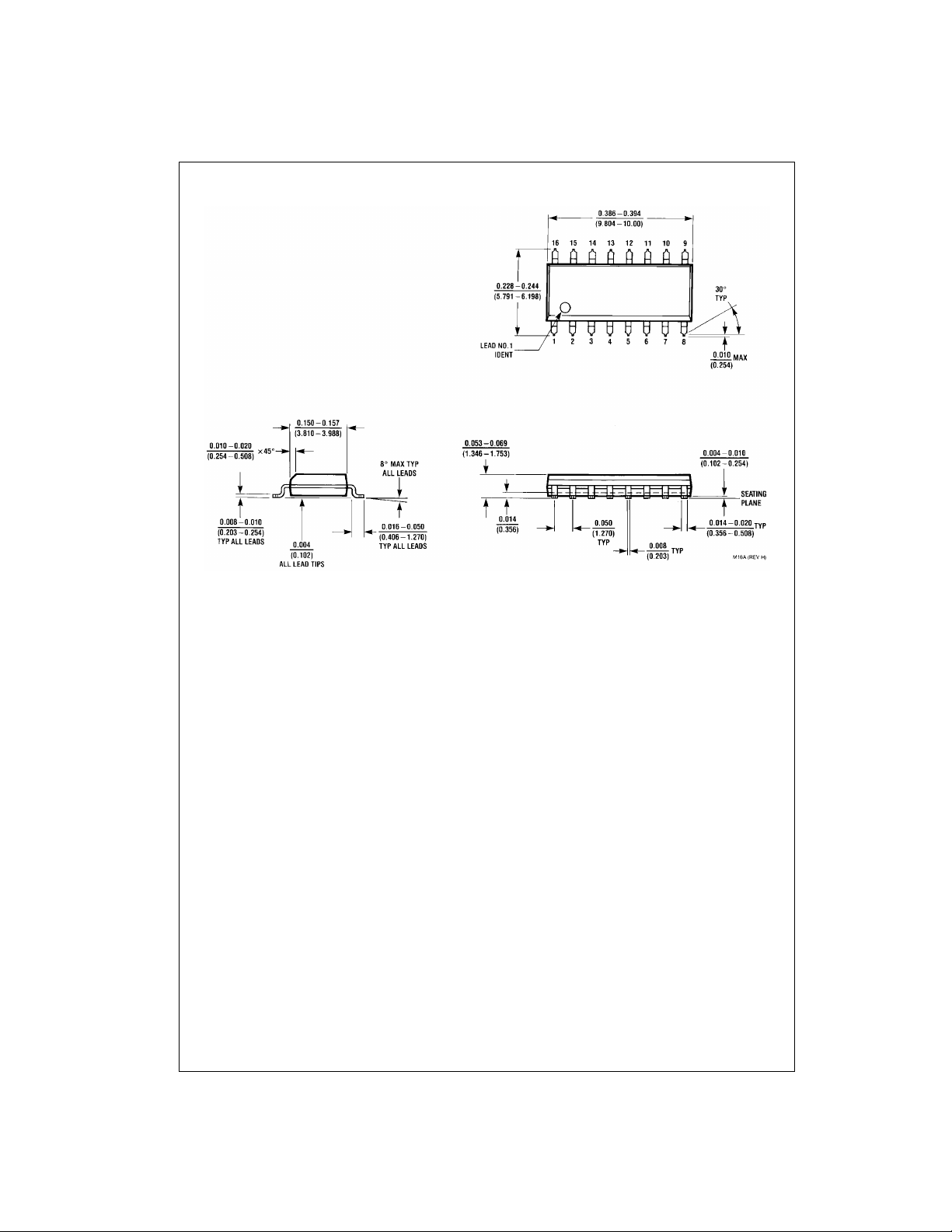

Physical Dimensions in ches (millimeters) unless otherwise noted

CD4014BC

16-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-012, 0.150” Narrow

Package Number M16A

www.fairchildsemi.com 6

Page 7

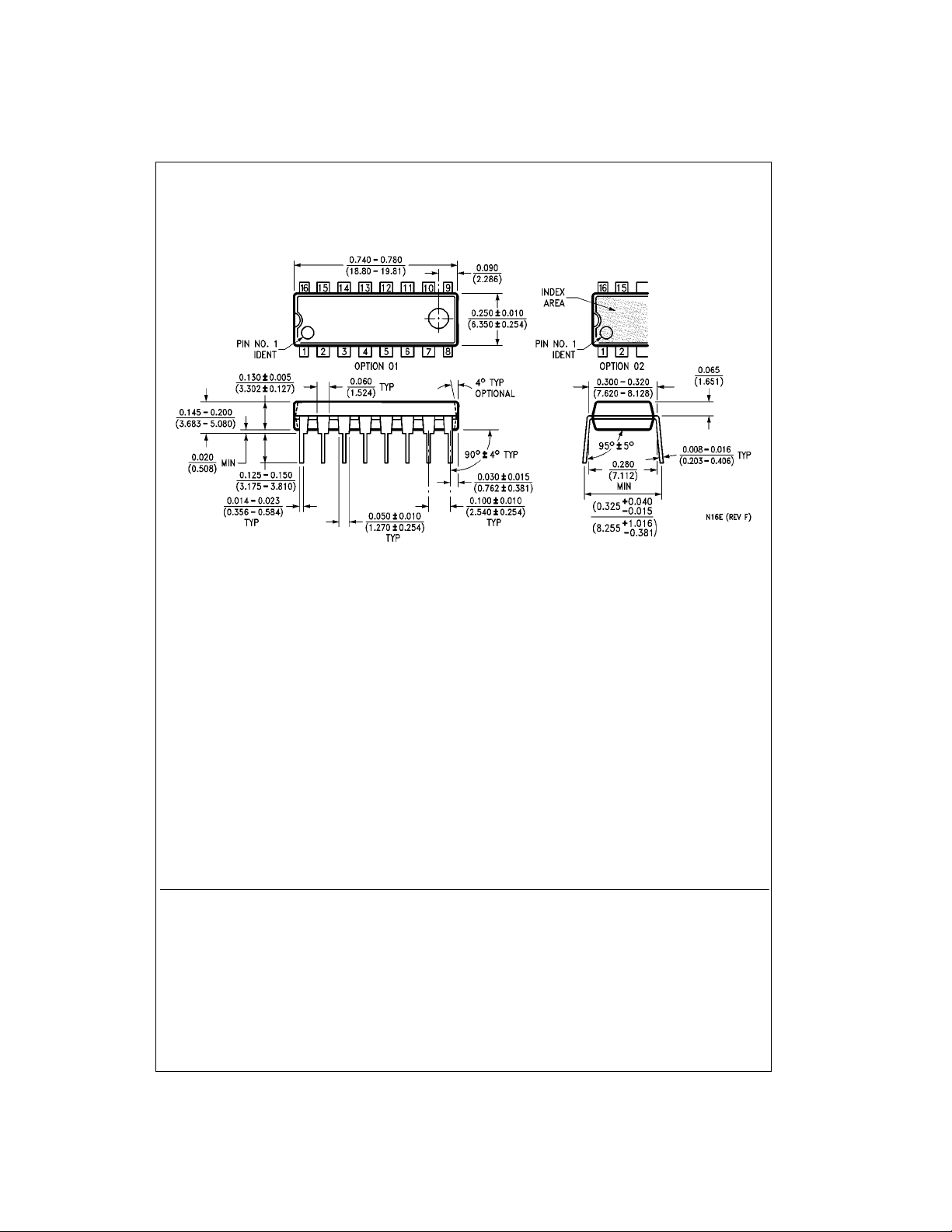

Physical Dimensions inches (millimeters) unless otherwise noted (Continued)

CD4014BC 8-Stage Static Shift Register

16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide
