QUAD 2 INPUT H C C/ HCF 4011B
DUAL 4 INPUT HCC/HCF 4012B
TRIPLE 3 INPU T HCC/HCF 4023B
.PROPAGATIONDELAY TIME = 60ns (typ.) AT
CL= 50pF, VDD= 10V
.BUFFERED INPUTS AND OUTPUTS
.QUIESCENT CURRENT SPECIFIED TO 20V
FOR HCC DEVICE
.INPUT CURRENTOF100nA AT18V AND25°C
FOR HCC DEVICE
.100% TESTEDFOR QUIESCENTCURRENT
.5V, 10V AND 15V PARAMETRIC RATINGS
.MEETSALLREQUIREMENTSOFJEDECTEN-
TATIVE STANDARD No. 13A, ”STANDARD
SPECIFICATIONS FOR DESCRIPTIONOF ”B”
SERIESCMOS DEVICES”
HCC4011B/12B/23B
HCF4011B/12B/23B
NAND GATES
EY
(Plastic Package)F(Ceramic Frit Seal Package)
M1
(MicroPackage)C1(PlasticChipCarrier)
ORDER CODES :
HCC40XXBF HCF40XXBM1
HCF40XXBEY HCF40XXBC1
DESCRIPTION
The HCC4011B, HCC4012B and HCC4023B (ex-
tended temperature range) and HCF4011B,
HCF4012B and HCF4023B (intermediate temperature range) are monolithic, integrated circuit, available in 14-lead dual in-line plastic or ceramic
package and plastic micropackage.
PIN CONNECTIONS
4011B 4012B 4023B
The HCC/HCF4011B, HCC/HCF4012B and
HCC/HCF4023B NAND gates provide the system
designer with direct implementation of the NAND
function and supplement the existing family of
COS/MOS gates. All inputs and outputs are buffered.
June 1989
1/12
Page 2
HCC/H FC4011B/12B/23B
ABSOLUTE M AXI MU M RATI NGS
Symbol Parameter Val ue Unit
V
* Supply Voltage : HCC Types
DD
HCF Types
V
Input Voltage – 0.5 to VDD+ 0.5 V
i
I
DC Input Current (any one input) ± 10 mA
I
P
Total Power Dissipation (per package)
tot
Dissipation per Output Transistor
for Top= Full Package-temperature Range
T
Operating Temperature : HCC Types
op
HCF Types
T
Stresses above those listed under ”Absolute Maximum Ratings” may cause permanent damage to the device. This is a stress rating only and
functionaloperationofthedeviceattheseorany otherconditions above thoseindicatedin theoperationalsections of thisspecificationisnotimplied.
Exposure to absolute maximum rating conditions forexternal periodsmay affectdevice reliability.
* Allvoltage values arereferredto VSSpinvoltage.
Storage Temperature – 65 to + 150 °C
stg
RECOMMENDED OPERATING CONDITIONS
Symbol Pa ramet er Valu e Un i t
V
T
Supply Voltage : HC C Types
DD
HCF Types
V
Input Voltage 0 to V
I
Operating Temperature : HCC Types
op
HCF Types
– 0.5 to + 20
– 0.5 to + 18
200
100
–55to+125
–40to+85
3to18
3to15
DD
–55to+125
–40to+85
V
V
mW
mW
°C
°C
V
V
V
°C
°C
2/12
Page 3
SCHEMATIC AND LOGIC DIAGRAMS
4011B
4012B
HCC/HCF4011B/12B/23B
4023B
3/12
Page 4
HCC/H FC4011B/12B/23B
STATIC ELECTRICAL CHARACTERISTICS (over recommended operating conditions)
Test Conditions Valu e
Symbol Parameter
Quiescent
I
L
Current
HCC
Types
HCF
Types
V
OH
Output High
Voltage
V
OL
Output Low
Voltage
V
IH
Input High
Voltage
V
IL
Input Low
Voltage
I
OH
Output
Drive
Current
HCC
Types
HCF
Types
I
OL
Output
Sink
Current
HCC
Types
HCF
Types
I
IH,IIL
Input
Leakage
Current
HCC
Types
HCF
Types
C
Input Capacitance Any Input 5 7.5 pF
I
*T
=–55°Cfor HCC device : – 40°CforHCFdevice.
LOW
*T
=+ 125°C forHCC device : + 85°C for HCF device.
HIGH
TheNoise Margin for both ”1” and ”0” levelis : 1V min. withVDD=5V,2V min. withVDD= 10V,2.5V withVDD= 15V.
V
V
O
|IO|V
I
(V) (V) (µA) (V)
T
DD
* 25°CT
Low
Min. Max. Min. Typ. Max. Min. Max.
High
0/5 5 0.25 0.01 0.25 7.5
0/10 10 0.5 0.01 0.5 15
0/15 15 1 0.01 1 30
0/20 20 5 0.02 5 150
0/ 5 5 1 0.01 1 7.5
0/10 10 2 0.01 2 15
0/15 15 4 0.01 4 30
0/5 < 1 5 4.95 4.95 4.95
0/10 < 1 10 9.95 9.95 9.95
0/15 < 1 15 14.95 14.95 14.95
5/0 < 1 5 0.05 0.05 0.05
10/0 < 1 10 0.05 0.05 0.05
15/0 < 1 15 0.05 0.05 0.05
0.5/4.5 < 1 5 3.5 3.5 3.5
1/9 < 1 10 7 7 7
1.5/13.5 < 1 15 11 11 11
4.5/0.5 < 1 5 1.5 1.5 1.5
9/1 < 1 10 3 3 3
13.5/1.5 < 1 15 4 4 4
0/5 2.5 5 – 2 – 1.6 – 3.2 – 1.15
0/5 4.6 5 – 0.64 – 0.51 – 1 – 0.36
0/10 9.5 10 – 1.6 – 1.3 – 2.6 – 0.9
0/15 13.5 15 – 4.2 – 3.4 – 6.8 – 2.4
0/5 2.5 5 – 1.53 – 1.36 – 3.2 – 1.1
0/5 4.6 5 – 0.52 – 0.44 – 1 – 0.36
0/10 9.5 10 – 1.3 – 1.1 – 2.6 – 0.9
0/15 13.5 15 – 3.6 – 3.0 – 6.8 – 2.4
0/5 0.4 5 0.64 0.51 1 0.36
0/10 0.5 10 1.6 1.3 2.6 0.9
0/15 1.5 15 4.2 3.4 6.8 2.4
0/5 0.4 5 0.52 0.44 1 0.36
0/10 0.5 10 1.3 1.1 2.6 0.9
0/15 1.5 15 3.6 3.0 6.8 2.4
0/18
Any Input
0/15 15 ± 0.3 ±10
18 ± 0.1 ±10–5± 0.1 ± 1
–5
± 0.3 ± 1
Unit
*
µA
V
V
V
V
mA
mA
µA
4/12
Page 5
HCC/HCF4011B/12B/23B
DYNAMIC ELECTRICAL CHARACTERISTICS(T
=25°C, CL= 50pF, RL= 200kΩ,
amb
typical temperature coefficient for all VDDvalues is 0.3%/°C, all input rise and fall times = 20ns)
Symbol Parameter
t
PLH,tPHL
t
THL,tTLH
Propagation Delay Time 5 125 250
Transition Time 5 100 200
Test Conditions
V
(V) Min. Typ. Max.
DD
10 60 120
15 45 90
10 50 100
15 40 80
Val ue
TEST CIRCUITS
QuiescentDevice Current. Noise Immunity.
Unit
ns
ns
Input Leakage Current.
5/12
Page 6
HCC/H FC4011B/12B/23B
Minimum Output High (source) Current Characteristics.
TypicalOutputHigh (source) Current Characteristics.
Minimum Output Low(sink) Current Characteristics.
TypicalOutput Low (sink) Current Characteristics.
TypicalPropagation Delay Time per Gate as a
Function of Load Capacitance.
6/12
TypicalTransition Time vs. Load Capacitance.
Page 7
HCC/HCF4011B/12B/23B

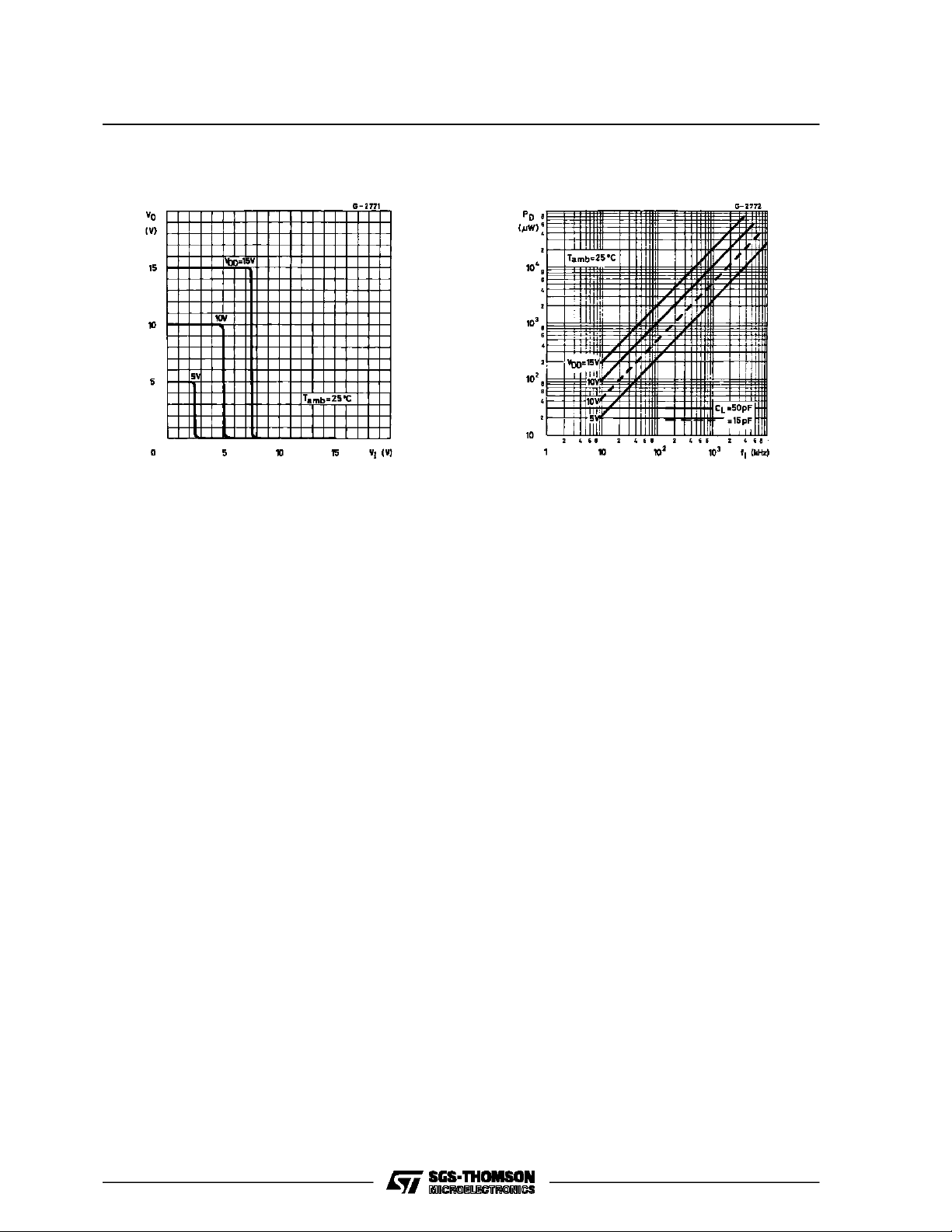

TypicalVoltage Transfer Characteristics. Typical Power Dissipation/gate vs Frequency.
7/12
Page 8
HCC/H FC4011B/12B/23B
Plastic DIP14 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
a1 0.51 0.020
B 1.39 1.65 0.055 0.065
b 0.5 0.020
b1 0.25 0.010
D 20 0.787
E 8.5 0.335
e 2.54 0.100
e3 15.24 0.600
F 7.1 0.280
I 5.1 0.201
L 3.3 0.130
Z 1.27 2.54 0.050 0.100
mm inch
8/12
P001A
Page 9
HCC/HCF4011B/12B/23B
Ceramic DIP14/1 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 20 0.787
B 7.0 0.276
D 3.3 0.130
E 0.38 0.015
e3 15.24 0.600
F 2.29 2.79 0.090 0.110
G 0.4 0.55 0.016 0.022
H 1.17 1.52 0.046 0.060
L 0.22 0.31 0.009 0.012
M 1.52 2.54 0.060 0.100
N 10.3 0.406
P 7.8 8.05 0.307 0.317
Q 5.08 0.200
mm inch
P053C
9/12
Page 10
HCC/H FC4011B/12B/23B
SO14 MECHANICAL DATA
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 1.75 0.068
a1 0.1 0.2 0.003 0.007
a2 1.65 0.064
b 0.35 0.46 0.013 0.018
b1 0.19 0.25 0.007 0.010
C 0.5 0.019
c1 45° (typ.)
D 8.55 8.75 0.336 0.344
E 5.8 6.2 0.228 0.244
e 1.27 0.050
e3 7.62 0.300
F 3.8 4.0 0.149 0.157
G 4.6 5.3 0.181 0.208
L 0.5 1.27 0.019 0.050
M 0.68 0.026
S8°(max.)
mm inch
10/12
P013G
Page 11
PLCC20 MECHANICAL DATA
HCC/HCF4011B/12B/23B
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 9.78 10.03 0.385 0.395
B 8.89 9.04 0.350 0.356
D 4.2 4.57 0.165 0.180
d1 2.54 0.100
d2 0.56 0.022
E 7.37 8.38 0.290 0.330
e 1.27 0.050
e3 5.08 0.200
F 0.38 0.015
G 0.101 0.004
M 1.27 0.050
M1 1.14 0.045
mm inch
P027A
11/12
Page 12
HCC/H FC4011B/12B/23B
