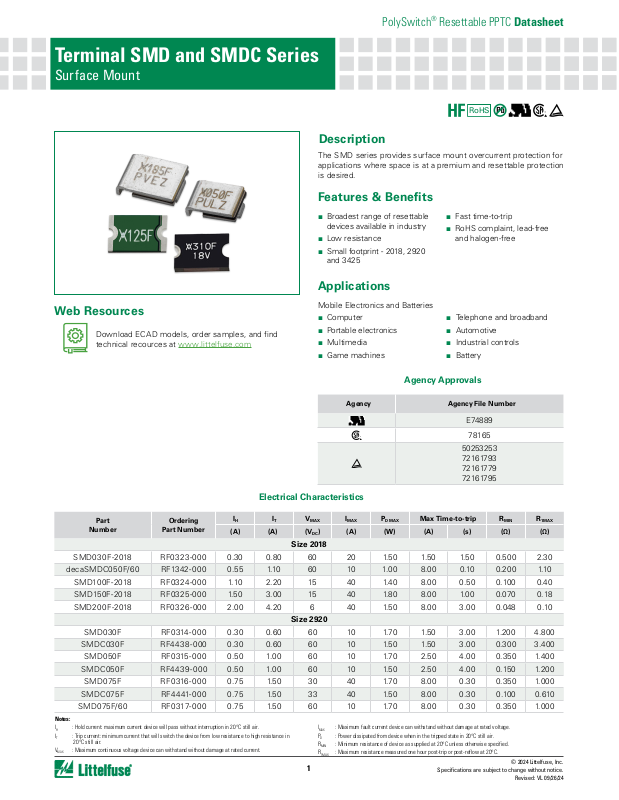

Terminal SMD and SMDC Series

Surface Mount

PolySwitch® Resettable PPTC Datasheet

RoHS

Description

The SMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.

Features & Benefits

Web Resources

Download ECAD models, order samples, and find technical recources at www.littelfuse.com

■ Broadest range of resettable

devices available in industry

■ Low resistance

■ Small footprint - 2018, 2920

and 3425

Applications

Mobile Electronics and Batteries

■ Computer

■ Portable electronics

■ Multimedia

■ Game machines

Agency Agency File Number

Electrical Characteristics

■ Fast time-to-trip

■ RoHS complaint, lead-free

and halogen-free

■ Telephone and broadband

■ Automotive

■ Industrial controls

■ Battery

Agency Approvals

E74889

78165

50253253 72161793 72161779 72161795

Part

Number

Ordering

Part Number

(A) (A) (VDC) (A) (W) (A) (s) (Ω) (Ω)

MAX

D MAX

Max Time-to-trip R

MIN

Size 2018

SMD030F-2018 RF0323-000 0.30 0.80 60 20 1.50 1.50 1.50 0.500 2.30

decaSMDC050F/60 RF1342-000 0.55 1. 10 60 10 1. 0 0 8.00 0.10 0.200 1. 10

SMD100F-2018 RF0324-000 1.10 2.20 15 40 1.40 8.00 0.50 0.100 0.40 SMD150F-2018 RF0325-000 1.50 3.00 15 40 1.80 8.00 1. 0 0 0.070 0.18 SMD200F-2018 RF0326-000 2.00 4.20 6 40 1.50 8.00 3.00 0.048 0.10

Size 2920

SMD030F RF0314-000 0.30 0.60 60 10 1.70 1.50 3.00 1.200 4.800

SMDC030F RF4438-000 0.30 0.60 60 10 1.50 1.50 3.00 0.300 3.400

SMD050F RF0315-000 0.50 1.0 0 60 10 1.70 2.50 4.00 0.350 1.400

SMDC050F RF4439-000 0.50 1. 0 0 60 10 1.50 2.50 4.00 0.150 1.200

SMD075F RF0316-000 0.75 1.50 30 40 1.70 8.00 0.30 0.350 1.000

SMDC075F RF4441-000 0.75 1.50 33 40 1.50 8.00 0.30 0.100 0.610

SMD075F/60 RF0317-000 0.75 1.50 60 10 1.70 8.00 0.30 0.350 1.000

Notes:

: Hold current: maximum current device will pass without interruption in 20°C still air.

: Trip current: minimum current that will switch the device from low resistance to high resistance in

20°C still air.

: Maximum continuous voltage device can withstand without damage at rated current.

MAX

: Maximum fault current device can withstand without damage at rated voltage.

MAX

: Power dissipated from device when in the tripped state in 20°C still air.

: Minimum resistance of device as supplied at 20°C unless otherwise specified.

MIN

: Maximum resistance measured one hour post-trip or post-reflow at 20°C.

1MAX

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

1MAX

Page 2

Terminal SMD and SMDC Series

Surface Mount

Electrical Characteristics (Cont’d)

PolySwitch® Resettable PPTC Datasheet

Part

Number

Ordering

Part Number

(A) (A) (VDC) (A) (W) (A) (s) (Ω) (Ω)

MAX

D MAX

Max Time-to-trip R

MIN

1MAX

Size 2920

SMD100F RF0318-000 1. 10 2.20 30 40 1.70 8.00 0.50 0.120 0.480

SMD100F/33 RF0319-000 1. 10 2.20 33 40 1.70 8.00 0.50 0.120 0.410

SMDH120 RF1478-000 1.20 2.30 16 50 2.00 8.00 2.00 0.150 0.340 SMD125F RF0320-000 1.25 2.50 15 40 1.70 8.00 2.00 0.070 0.250

SMDC125F/33 RF4298-000 1.25 2.50 33 40 1.50 8.00 2.00 0.040 0.250

SMD150F/33-2920 RF2285-000 1.50 3.00 33 40 1.50 8.00 5.00 0.080 0.230

SMDC185F/33 RF3182-000 1.85 3.70 33 40 1.70 8.00 2.50 0.050 0,150 SMD200F/24-2920 RF2286-000 2.00 4.00 24 40 1.50 8.00 5.00 0.050 0.125 SMD250F/15-2920 RF2287-000 2.50 5.00 15 40 1.50 8.00 10.00 0.035 0.085

SMD260F RF0321-000 2.60 5.20 6 40 1.70 8.00 20.00 0.025 0.075 SMD300F RF0322-000 3.00 6.00 6 40 1.50 8.00 35.00 0.015 0.048

SMD300F/15 RF1835 - 000 3.00 6.00 15 40 1.50 8.00 35.00 0.015 0.050 SMDC300F/24 RF3102-000 3.00 6.00 24 40 1.70 8.00 5.00 0.015 0.072 SMDC310F/18 RF3763-000 3.10 6.00 18 50 1.50 8.00 25.00 0.013 0.036

Size 3425

SMD150F RF0308-000 1.50 3.00 15 40 1.90 8.00 5.00 0.060 0.250

SMD150F/33 RF0311-000 1.50 3.00 33 40 1.90 8.00 5.00 0.080 0.230

SMDH160 RF1479-000 1.60 3.20 16 70 2.20 8.00 15.00 0.050 0.150 SMD185F RF1238-000 1.85 3.60 33 40 1.50 8.00 5.00 0.065 0.165 SMD200F RF0312-000 2.00 4.00 15 40 1.90 8.00 12.00 0.050 0.125 SMD250F RF0313-000 2.50 5.00 15 40 1.90 8.00 25.00 0.035 0.085

Notes:

: Hold current: maximum current device will pass without interruption in 20°C still air.

: Trip current: minimum current that will switch the device from low resistance to high resistance in

20°C still air.

: Maximum continuous voltage device can withstand without damage at rated current.

MAX

Temperature Rerating Curve

% of Rated Hold and Trip Current

200

180

160

140

120

100

A = decaSMDC / SMDC and SMD B = SMDH120, SMDH160

: Maximum fault current device can withstand without damage at rated voltage.

MAX

: Power dissipated from device when in the tripped state in 20°C still air.

: Minimum resistance of device as supplied at 20°C unless otherwise specified.

MIN

: Maximum resistance measured one hour post-trip or post-reflow at 20°C.

1MAX

-40 -20 0 20 40 60 80 100 120

Ambient Temperature (°C)

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 3

PolySwitch® Resettable PPTC Datasheet

Terminal SMD and SMDC Series

Surface Mount

Temperature Rerating

Maximum Ambient Temperature

Part Number -40°C -20°C 0°C 20°C 25°C 40°C 50°C 60°C 70°C 80°C 85°C 125°C

Hold Current (A)

Size 2018

SMD030F-2018 0.48 0.42 0.35 0.30 0.28 0.24 0.21 0.17 0.15 0.12 0.10 —

decaSMDC050F/60 1. 0 0 0.85 0.70 0.55 0.53 0.45 0.40 0.35 0.30 0.25 0.23 —

SMD100F-2018 1.59 1.43 1.20 1. 10 1.03 0.94 0.85 0.72 0.69 0.61 0.57 — SMD150F-2018 2.21 1.97 1.70 1.50 1.43 1.26 1. 15 1. 0 0 0.91 0.79 0.73 — SMD200F-2018 2.81 2.54 2.27 2.00 1.93 1.73 1.59 1.46 1.32 1. 1 9 1.12 —

Size 2920

SMD030F 0.44 0.39 0.32 0.30 0.28 0.26 0.23 0.19 0.18 0.17 0.15 —

SMDC030F 0.49 0.43 0.37 0.31 0.30 0.25 0.22 0.19 0,16 0,14 0,12 —

SMD050F 0.73 0.65 0.55 0.50 0.47 0.43 0.39 0.33 0.31 0.28 0.26 —

SMDC050F 0.86 0.75 0.65 0.54 0.50 0.43 0.37 0.32 0.26 0.22 0.28 —

SMD075F 1. 11 0.99 0.84 0.75 0.71 0.63 0.57 0.49 0.45 0.39 0.36 —

SMDC075F 1. 1 7 1.04 0.90 0.77 0.75 0.64 0.57 0.50 0.44 0.32 0.34 —

SMD075F/60 1. 11 0.99 0.84 0.75 0.71 0.63 0.57 0.49 0.45 0.39 0.36 —

SMD100F 1.59 1.43 1.20 1.10 1.03 0.94 0.85 0.72 0.69 0.61 0.57 —

SMD100F/33 1.48 1.35 1.20 1.10 1.06 0.98 0.91 0.83 0.79 0.73 0.69 —

SMDH120 2.34 1.96 1.58 1.20 1. 1 5 1.02 0.92 0.83 0.74 0.65 0.60 0.26

SMD125F 1.89 1.68 1.50 1.25 1.21 1.04 0.93 0.85 0.71 0.61 0.55 —

SMDC125F/33 2.02 1.78 1.55 1.31 1.25 1.08 0.96 0.84 0.72 0.60 0.54 —

SMD150F/33-2920 2.27 2.01 1.76 1.50 1.44 1.25 1.12 0.99 0.86 0.74 0.67 —

SMDC185F/33 2.83 2.50 2.20 1.85 1. 74 1.53 1.37 1.22 1.04 0.88 0.80 — SMD200F/24-2920 2.90 2.60 2.30 2.00 1.93 1.70 1.55 1.40 1.25 1.10 1.03 — SMD250F/15-2920 3.65 3.25 2.80 2.50 2.33 2.02 1.82 1.60 1.41 1.20 1.11 —

SMD260F 3.82 3.41 2.90 2.60 2.45 2.19 1.99 1.70 1.58 1.38 1.28 — SMD300F 4.13 3.75 3.30 3.00 2.87 2.62 2.43 2.25 2.00 1.87 1.78 —

SMD300F/15 4.20 3.80 3.30 3.00 2.90 2.62 2.43 2.25 2.00 1.87 1.78 — SMDC300F/24 4.70 4.19 3.70 3.17 3.00 2.66 2.41 2.20 1.90 1.65 1.50 — SMDC310F/18 4.50 4.06 3.78 3.19 3.10 2.75 2.54 2.32 2.10 1.88 1. 7 6 —

Size 3425

SMD150F 2.30 2.04 1.80 1.50 1.45 1.23 1. 10 0.99 0.83 0.70 0.63 —

SMD150F/33 2.30 2.04 1.80 1.50 1.45 1.23 1. 10 0.99 0.83 0.70 0.63 —

SMDH160 2.14 1.96 1.78 1.60 1.56 1.42 1.33 1.24 1. 15 1.06 1.02 0.44

SMD185F 2.54 2.29 2.20 1.85 1.80 1.55 1.43 1.31 1. 19 1.06 1. 0 0 — SMD200F 3.01 2.67 2.30 2.00 1.90 1.66 1.50 1.30 1. 1 6 0.99 0.91 — SMD250F 3.72 3.31 2.80 2.50 2.35 2.09 1.89 1.60 1.48 1.28 1. 1 8 —

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 4

Terminal SMD and SMDC Series

Time-to-Trip (s)

100

1100

Surface Mount

Typical Time-to-Trip Curves at 20°C

PolySwitch® Resettable PPTC Datasheet

Size 2018

A = SMD030F-2018 B = decaSMDC050F/60 C = SMD100F-2018 D = SMD150F-2018 E = SMD200F-2018

Size 2920

A = SMD030F B = SMDC030F C = SMD050F D = SMDC050F E = SMD075F, SMD075F/60 F = SMDC075F G = SMD100F, SMD100F/33 H = SMDH120 I = SMD125F J = SMDC125F/33 K = SMD150F/33-2920 L = SMDC185F/33 M = SMD200F/24-2920 N = SMD250F/15-2920 O = SMD260F P = SMD300F,SMD300F/15 Q = SMDC300F/24 R = SMDC310F/18

AAB

0.1

0.01

0.1

100

0,1

Time-to-trip (s)

0,01

0,001

0,1110 100

Fault Current (A)

Size 3425

100

A = SMD150F, SMD150F/33 B = SMDH160 C = SMD185F

D = SMD200F E = SMD250F

Note: The average time current curves and Temperature Rerating curve performance is affected by a number or variables, and these curves provided as guidance only. Customer must verify the performance in their application.

0.1

0.01 1 10

Fault Current (A)

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 5

Terminal SMD and SMDC Series

Surface Mount

Physical Speciﬁcations

Terminal Pad Material 100% Matte Tin with Nickel Underplate

PolySwitch® Resettable PPTC Datasheet

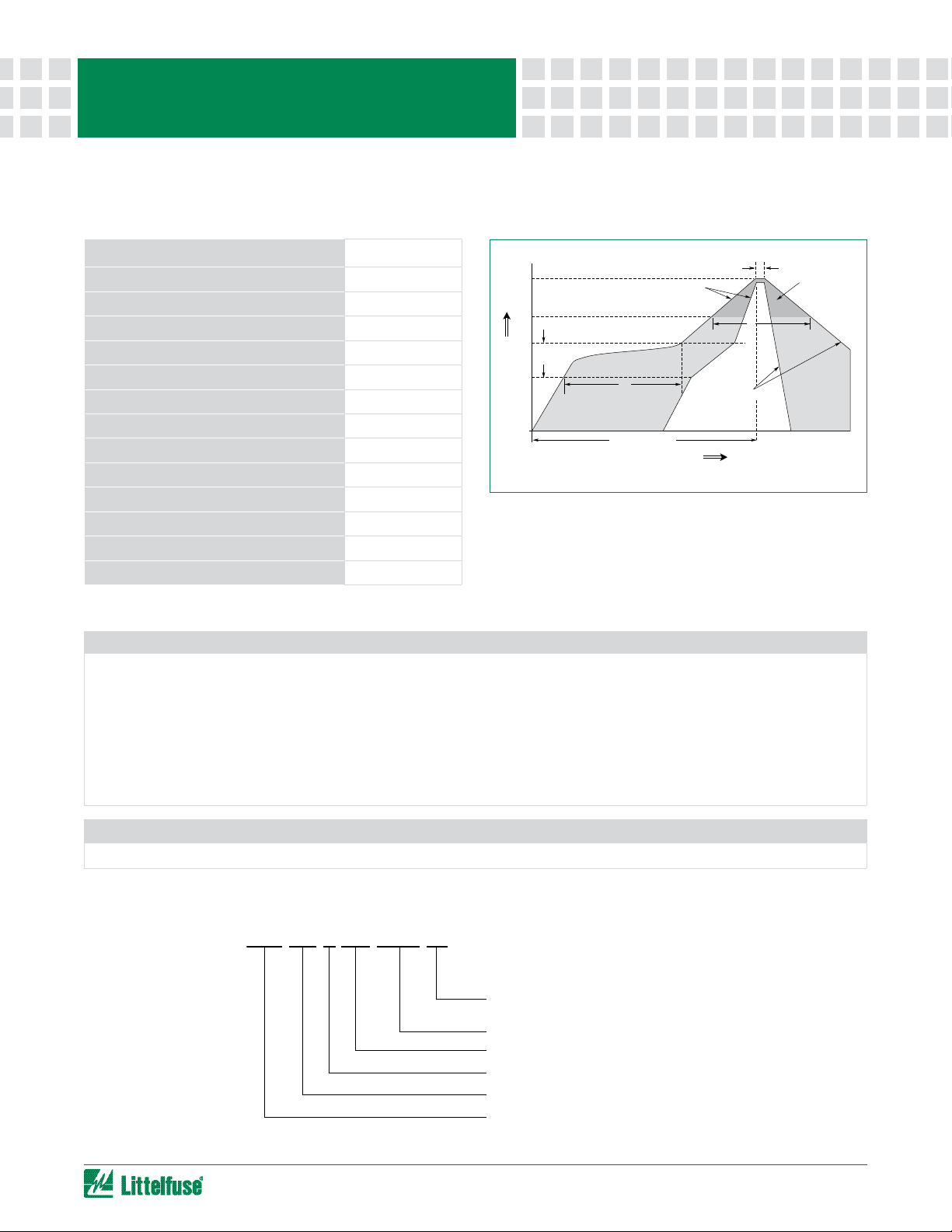

Soldering Characteristics

Solder Heat Withstand per IEC-STD 68-2-20, Test Tb, Section 5, Method 1a

Flammability Resistance per IEC 695-2-2 Needle Flame Test for 20 seconds

ANSI/J-STD-002 Category 3 (midSMD) ANSI/J-STD-002 Category 1 (SMD, SMD2)

Environmental Speciﬁcations

Test Test Method Conditions Resistance Change

Storage Life

Humidity Aging

Thermal Shock

Vibration

Solvent Resistance

Moisture Resistance Level

PS300, Section 5.3.2

PS300, Section 5.3.1 85°C, 85% R.H., 100 hrs ±1.2% typ

MIL-STD-202, Method 107G

MIL-STD-883C per MIL-STD-883C No Change

PS300, Section 5.2.2

Level 2a, J-STD-020

60°C, 1000 hrs 85°C, 1000 hrs

85°C, -40°C (20 Times) 125°C, -40°C (10 Times)

Freon Trichloroethane Hydrocarbons

±3% typ ±3% typ

-33% typ

No Change No Change No Change

Storage Conditions

40°C max, 70% RH max; devices should remain in original sealed bags prior to use. Devices may not meet speciﬁed values if these storage conditions are exceeded.

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 6

Terminal SMD and SMDC Series

Surface Mount

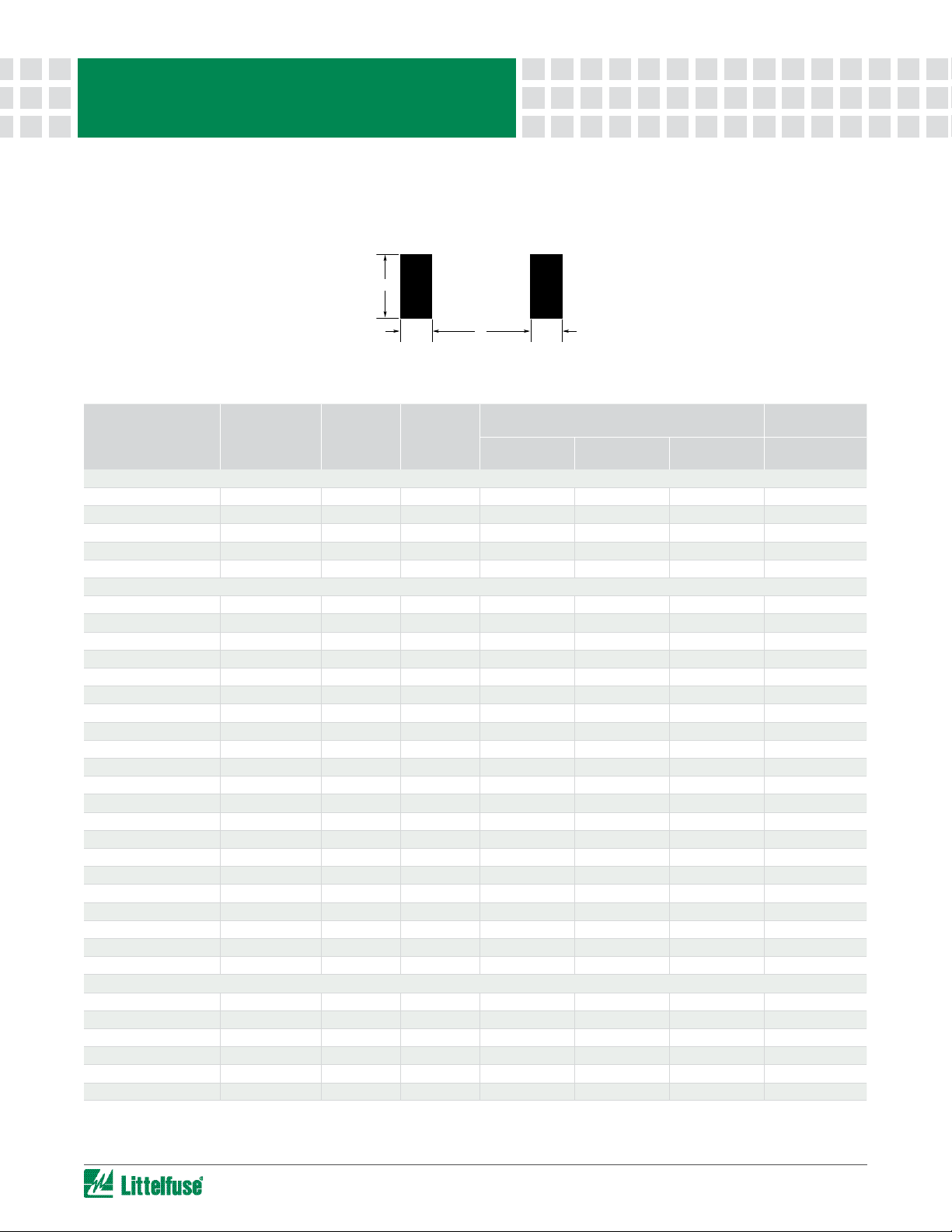

Dimension Figures

PolySwitch® Resettable PPTC Datasheet

Part Number

SMD030F-2018

decaSMDC050F/60

SMD100F-2018

SMD150F-2018

SMD200F-2018

SMD030F

SMDC030F

SMD050F

SMDC50F

SMD075F

SMDC075F

SMD075F/60

SMD100F

SMD100F/33

SMDH120

SMD125F

SMDC125F/33

Figure 1

Figure 2

Figure 3

Dimensions

Dimensions in Millimeters (Inches)

A B C D E F G H

Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min

Size 2018

4.72 5.44

(0.186) (0.214) (0.070) (0.166) (0.194) (0.010) (0.014) (0.010) (0.014) (0.012) (0.018)

4.70 5.31 0.63 0.89 4.19 4.81 0.25 0.95 0.25

(0.185) (0.209) (0.025) (0.035) (0.165) (0.189) (0.010) (0.040) (0.010)

4.72 5.44

(0.186) (0.214) 0.060) (0.166) 0.194) (0.010) (0.014) (0.010) (0.014) (0.012) (0.018)

4.72 5.44

(0.186) (0.214) (0.060) (0.166) (0.194) (0.010) (0.014) (0.010) (0.014) (0.012) (0.018)

4.72 5.44

0.186) (0.214) (0.060) (0.166) (0.194) (0.010) (0.014) (0.010) (0.014) (0.012) (0.018)

6.73 7.98

(0.265) (0.314) (0.125) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.63 0.90 4.90 5.30 0.25 0.95 0.20

(0.287) (0.303) (0.025) (0.035) (0193) (0.209) (0.010) (0.040) (0.008)

6.73 7.98

(0.265) (0.314) (0.125) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.63 0.90 4.90 5.30 0.25 0.95 0.20

(0.297) (0.303) (0.025) (0.035) (0.193) (0.209) (0.101) (0.040) (0.008)

6.73 7.98

(0.265) (0.314) (0.125) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.63 0.90 4.90 5.30 0.25 0.95 0.20

(0.297) (0.303) (0.025) (0.035) (0.193) (0.209) (0.101) (0.040) (0.008)

6.73 7.98

(0.265) (0.314) (0.125) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.45 0.71 4.90 5.30 0.25 0.95 0.20

(0.287) (0.303) (0.018) (0.028) (0.193) (0.209) (0.010) (0.040) (0.008)

1.78 4.22 4.93 0.25 0.36 0.25 0.36 0.30 0.46

—

— — — 1&2

— — — — — — 3

1.52 4.22 4.93 0.25 0.36 0.25 0.36 0.30 0.46

—

1.52 4.22 4.93 0.25 0.36 0.25 0.36 0.30 0.46

—

1.52 4.22 4.93 0.25 0.36 0.25 0.36 0.30 0.46

—

— — — 1&2

Size 2920

3.18 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

3.18 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

3.18 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

3.18 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

Figure

1&2

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 7

Terminal SMD and SMDC Series

Surface Mount

Dimension Figures

PolySwitch® Resettable PPTC Datasheet

Part Number

SMD150F/33-2920

SMDC185F/33

SMD200F/24-2920

SMD250F/15-2920

SMD260F

SMD300F

SMD300F/15

SMDC300F/24

SMD310F/18

SMD150F

SMD150F/33

SMDH160

SMD185F

SMD200F

SMD250F

Figure 1

Figure 2

Figure 3

Dimensions (Cont’d)

Dimensions in Millimeters (Inches)

A B C D E F G H

Min Max Min Max Min Max Min Max Min Max Min Max Min Max Min

Size 2920

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.90 1.20 4.90 5.30 0.25 0.95 0.20

(0.287) (0.303) (0.035) (0.047) (0.193) (0.209) (0.010) (0.040) (0.008)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

6.73 7.98

(0.265) (0.314) (0.118) (0.19) (0.214) (0.022) (0.028) (0.022) (0.028) (0.085) (0.095) (0.026) (0.054) (0.017)

7.30 7.70 0.80 1.10 4.90 5.30 0.25 0.95 0.20

(0.287) (0.303) (0.031) (0.043) (0.193) (0.209) (0.010) (0.040) (0.008)

7.30 7.70 1.10 1.70 4.90 5.30 0.95 1.45 0.35

(0.287) (0.303) (0.043) (0.067) (0.193) (0.209) (0.040) (0.057) (0.014)

8.00 9.40

(0.315) 0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) (0.017)

8.00 9.40

(0.315) (0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) (0.017)

8.00 9.40

(0.315) (0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) (0.017)

8.00 9.40

(0.315) (0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) 0.017)

8.00 9.40

(0.315) (0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) (0.017)

8.00 9.40

(0.315) (0.370) (0.118) (0.236) (0.264) (0.022) (0.028) (0.022) (0.028) (0.145) (0.155) (0.026) (0.054) (0.017)

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

3.00 4.80 5.44 0.56 0.71 0.56 0.71 2.16 2.41 0.66 1.37 0.43

—

— — — — — —

Size 3425

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

3.00 6.00 6.71 0.56 0.71 0.56 0.71 3.68 3.94 0.66 1.37 0.43

—

Figure

1&2

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 8

Terminal SMD and SMDC Series

Surface Mount

Recommended Pad Layout

Packaging and Marking Information

PolySwitch® Resettable PPTC Datasheet

Part

Number

Tape and Reel

Quantity

Standard

Package

Part

Marking

Recommended Pad Layout Figures

Dimension A

(Nom)

[mm (in)]

Dimension B

(Nom)

Dimension C

(Nom)

Agency

Recognition

Size 2018

SMD030F-2018 4,000 20,000 A03F 4.60 (0.18) 1.50 (0.059) 3.40 (0.134) UL, CSA, TÜV decaSMDC050F/60 1,000 5,000 050F 60V 4.32 (0.17) 1.40 (0.55) 3.61 (0.142) UL, CSA, TÜV SMD100F-2018 4,000 20,000 A10F 4.60 (0.18) 1.50 (0.059) 3.40 (0.134) UL, CSA, TÜV SMD150F-2018 4,000 20,000 A15F 4.60 (0.18) 1.50 (0.059) 3.40 (0.134) UL, CSA, TÜV SMD200F-2018 4,000 20,000 A20F 4.60 (0.18) 1.50 (0.059) 3.40 (0.134) UL, CSA, TÜV

Size 2920

SMD030F 2,000 10,000 030F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC030F 4,000 20,000 030F 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL SMD050F 2,000 10,000 050F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC050F 4,000 20,000 050F 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL SMD075F 2,000 10,000 075F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC075F 4,000 20,000 075F 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL SMD075F/60 2,000 10,000 756F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD100F 2,000 10,000 100F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD100F/33 2,000 10,000 103F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDH120 2,000 10,000 H12 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD125F 2,000 10,000 125F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC125F/33 4,000 20,000 125F 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL, TUV SMD150F/33-2920 2,000 10,000 S15F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC185F/33 4,000 20,000 185F 33V 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL, CSA, TÜV SMD200F/24-2920 2,000 10,000 S20F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD250F/15-2920 2,000 10,000 S25F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD260F 2,000 10,000 260F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD300F 2,000 10,000 300F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMD300F/15 2,000 10,000 315F 3.10 (0.12) 2.30 (0.09) 5.10 (0.201) UL, CSA, TÜV SMDC300F/24 4,000 20,000 300F 24V 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL, CSA, TÜV SMD310F/18 3,000 15,000 310F18V 5.30 (0.209) 2.00 (0.079) 4.60 (0.18) UL, CSA, TÜV

Size 3425

SMD150F 1,500 7,500 150F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV SMD150F/33 1,500 7,500 153F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV SMDH160 1,500 7,500 160F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV SMD185F 1,500 7,500 185F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV SMD200F 1,500 7,500 200F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV SMD250F 1,500 7,500 250F 4.60 (0.18) 2.30 (0.09) 6.10 (0.240) UL, CSA, TÜV

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 9

Terminal SMD and SMDC Series

Temperature

SMD 150 F /33 -2920 -2

Surface Mount

Solder Reﬂow Recommendations

Proﬁle Feature Pb-Free Assembly

Average ramp up rate (Ts

Preheat

• Temperature min (Ts

• Temperature max (Ts

to ts

• Time (ts

MIN

) 60-120 s

MAX

Time maintained above:

• Temperature (T

• Time (t

) 217°C

) 60-150 s

Peak/Classiﬁcation temperature (Tp) 260°C

Time within 5°C of actual peak temperature

Time (tp) 30 s max

Ramp down rate 3°C/s max

Time 25°C to peak temperature 8 min max

Note: All temperatures refer to topside of the package, measured on the package body

surface.

to Tp) 3°C/s max

MAX

) 150°C

MIN

) 200°C

MAX

MIN

Reﬂow Proﬁle

PolySwitch® Resettable PPTC Datasheet

Critical Zone

to Tp

Preheat

t 25˚C to Peak

Ramp Up

Ramp Down

Time

Solder Reﬂow

■ Recommended reﬂow method: IR, hot air, nitrogen.

■ Recommended maximum paste thickness: 0.25mm (0.010in)

■ Devices can be cleaned using standard methods and aqueous solvents.

■ Experience has shown the optimum conditions for forming acceptable solder ﬁllets occur when a reasonable amount of solder paste is

placed underneath each device’s termination. As such, we request that customers comply with our recommended solder pad layouts.

■ Customer should validate that the solder paste amount and reﬂow recommendations meet its application.

■ We request that customer board layouts refrain from placing raised features (e.g. vias, nomenclature, traces, etc.) underneath PolySwitch

devices. It is possible that raised features could negatively impact solderability performance of our devices.

Rework

■ Standard industry practices. (Please also avoid direct contact to the device.)

Part Ordering Number System

Packaging

2 = Tape and Reel

Footprint

Alternative Voltage Rating (If Applicable)

Lead Free

Hold Current Indicator

SMD: Te rminal Surface Mount PPTC SMDH: High Temperature Te rminal SMD PPTC SMDC: Surface Mount PPTC

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24

Page 10

Terminal SMD and SMDC Series

Surface Mount

Tape and Reel Speciﬁcations

PolySwitch® Resettable PPTC Datasheet

Description

EIA 481-2(mm)

SMD030F-2018 SMD100F-2018 SMD150F-2018 SMD200F-2018

2018 Size

decaSMDC050F/60

SMD030F SMD050F SMD075F SMD075F/60 SMD100F SMD100F/33 SMDH120

SMD125F SMD150F/33-2920 SMD200F/24-2920 SMD250F/15-2920 SMD260F SMD300F SMD300F/15

2920 Size

EIA 481-2(mm)

SMDC030F SMDC050F SMDC075F SMDC125F/33

SMDC185F/33 SMDC300F/24

SMDC310F/18

3425 Size

EIA 481-2(mm)

SMD150F SMD150F/33 SMDH160 SMD185F SMD200F SMD250F

W 16.0 ± 0.30 12.0 ± 0.30 16.0 ± 0.30 16.0 ± 0.30 16.0 ± 0.30 16.0 ± 0.30 16.0 ± 0.30

max 6.4 6,2 12.1 12,1 12,1 12,1 12.1

4.0 ± 0.10 4.0 ± 0.10 4.0 ± 0.10 4.0 ± 0.10 4.0 ± 0.10 4.0 ± 0.10 4.0 ± 0.10

8.0 ± 0.10 8.0 ± 0.10 8.0 ± 0.10 8.0 ± 0.10 8.0 ± 0.10 8.0 ± 0.10 12.0 ± 0.10

2.0 ± 0.10 2.0 ± 0.05 2.0 ± 0.10 2.0 ± 0.10 2.0 ± 0.10 2.0 ± 0.10 2.0 ± 0.10

5.11 ± 0.15 5.0 ± 0.1 5.6 ± 0.23 5.5 ± 0.1 5.35 ± 0.1 5.5 ± 0.1 6.9 ± 0.23

5.6 ± 0.23 5.4 ± 0.1 8.1 ± 0.15 7.9 ± 0.1 7.85 ± 0.1 8.0 ± 0.1 9.6 ± 0.15

1.5 + 0.10/ -.00 1.55 ± 0.05 1.5 + 0.10/ -.00

1.5 +

0.10/ -.00

1.5 +

0.10/ -.00

1.5 +

0.10/ -.00

F 7.50 ± 0.10 5.50 ± 0.10 7.50 ± 0.10 7.50 ± 0.10 7.50 ± 0.10 7.50 ± 0.10 7.50 ± 0.10

min 14.25 10,25 14.25 14,25 14,25 14,25 14.25

1.75 ± 0.10 1.75 ± 0.10 1.75 ± 0.10 1.75 ± 0.10 1.75 ± 0.10 1.75 ± 0.10 1.75 ± 0.10

T max 0.4 0,4 0.4 0,35 0,35 0,35 0.4

1.5 +

max 0.1 0,1 0.1 0,1 0,1 0,1 0.1

1.8 ± 0.15 1.7 ± 0.1 3.2 ± 0.15 0.9 ± 0.1 1.45 ± 0.1 2.0 ± 0.1 3.4 ± 0.15

A max 330 330 330 330 330 330 330

N min 50 50 50 50 50 50 50

16.4 + 2.0/-.00 16.4 + 2.0/-.00 16.4 + 2.0/-.00

max 22.4 22.4 22.4 22.4 22.4 22.4 22.4

16.4 +

2.0/-.00

16.4 +

2.0/-.00

Speciﬁcations are subject to change without notice.

16.4 +

2.0/-.00

16.4 +

2.0/-.00

Revised: VL 09/26/24

Page 11

Terminal SMD and SMDC Series

Surface Mount

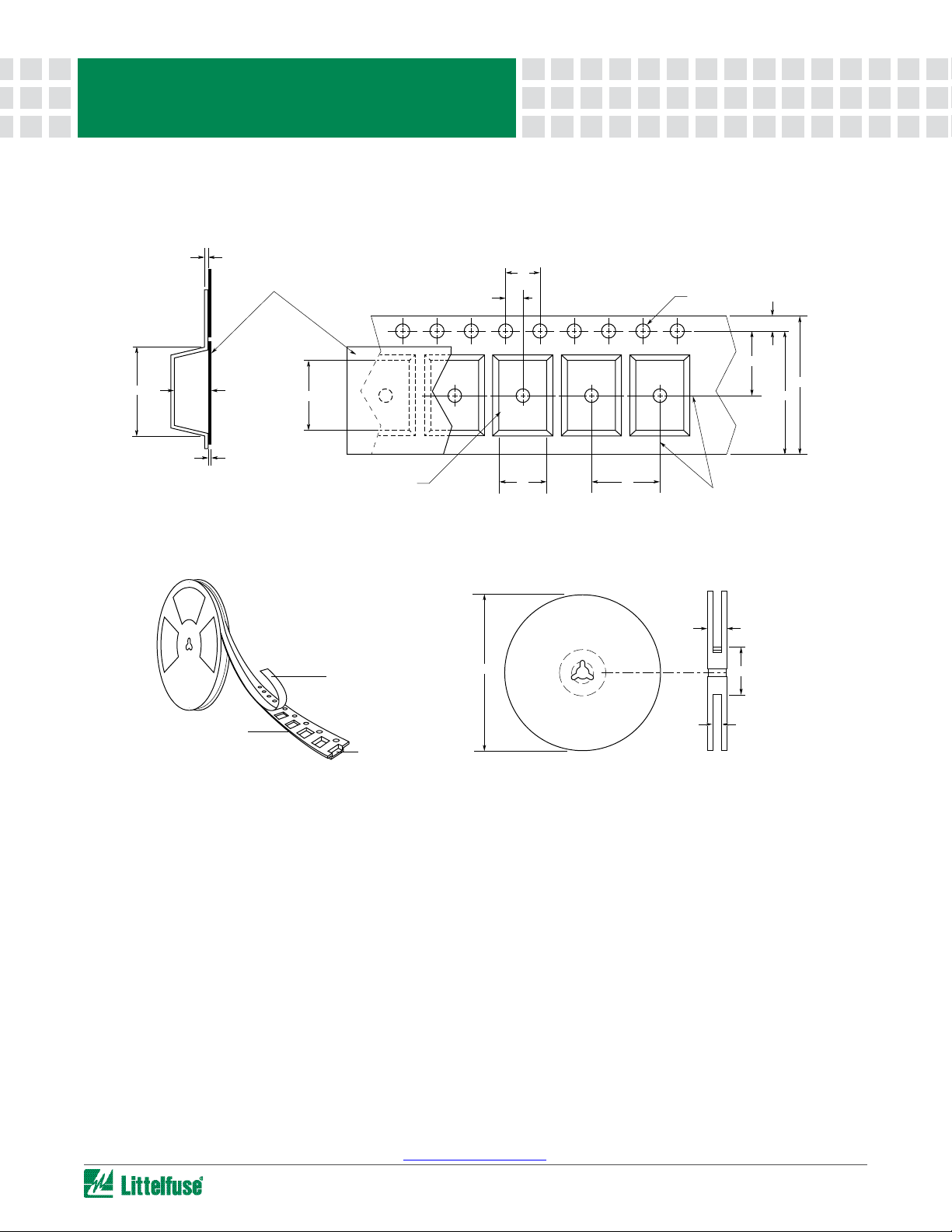

Tape and Reel Diagrams

PolySwitch® Resettable PPTC Datasheet

Cover Tape

Embossment

Figure 1

Cover Tape

Center lines

of cavity

(Measured at Hub)

N (Hub Dia.)

(Measured at Hub)

Carrier Tape

Embossed Cavity

Figure 2

Warning

■ Users should independently evaluate the suitability of and test each product selected for their own application.

■ Operation beyond the maximum ratings or improper use may result in device damage and possible electrical arcing and ﬂame.

■ These devices are intended for protection against damage caused by occasional overcurrent or overtemperature fault conditions and should

not be used when repeated fault conditions or prolonged trip events are anticipated.

■ Contamination of the PPTC material with certain silicone-based oils or some aggressive solvents can adversely impact the performance of

the devices.

■ Device performance can be impacted negatively if devices are handled in a manner inconsistent with recommended electronic, thermal,

and mechanical procedures for electronic components.

■ PPTC devices are not recommended for installation in applications where the device is constrained such that its PTC properties are

inhibited, for example in rigid potting materials or in rigid housings, which lack adequate clearance to accommodate device expansion.

■ Operation in circuits with a large inductance can generate a circuit voltage (Ldi/dt) above the rated voltage of the device.

Disclaimer Notice - Information furnished is believed to be accurate and reliable. However, users should independently evaluate the suitability of and test each product selected for their own applications. Littelfuse products are not designed for, and may not be used in, all applications. Read complete Disclaimer Notice at www.littelfuse.com/disclaimer-electronics.

Speciﬁcations are subject to change without notice.

Revised: VL 09/26/24
