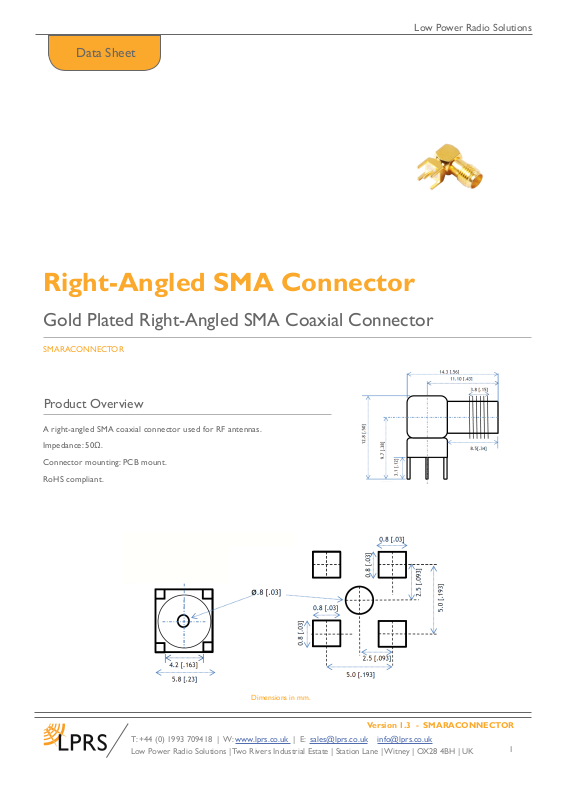

Page 1
Data Sheet
Right-Angled SMA Connector
Low Power Radio Solutions
Gold Plated Right-Angled SMA Coaxial Connector
SMARACONNECTOR
Product Overview
A right-angled SMA coaxial connector used for RF antennas.
Impedance: 50Ω.
Connector mounting: PCB mount.
RoHS compliant.
Dimensions in mm.
Version 1.3 - SMARACONNECTOR
T: +44 (0) 1993 709418 | W: www.lprs.co.uk | E: sales@lprs.co.uk info@lprs.co.uk
Low Power Radio Solutions | Two Rivers Industrial Estate | Station Lane | Witney | OX28 4BH | UK
1
Page 2
Low Power Radio Solutions
Product Order Code
Name Description Order Code
Right-Angled SMA Connector Gold Plated Right-Angled SMA Coaxial Connector SMARACONNECTOR
Versions
Version Date Revision
A.01.1 15/11/2012 Initial drawing release.
Copyright
See www.LPRS.co.uk for copyright statement.
Discalimer
See www.LPRS.co.uk for disclaimer statement.
Terms & Conditions of Use
See www.LPRS.co.uk for Terms and Conditions of Use statement.
Contact Information
For further information please visit www.lprs.co.uk or call +44 (0) 1993 709418.
