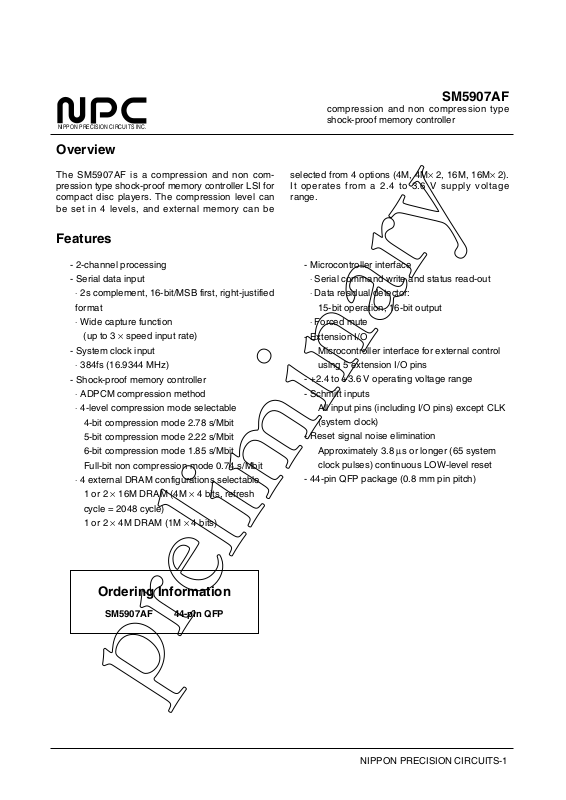

Datasheet SM5907AF Datasheet (NPC)

preliminary

NIPPON PRECISION CIRCUITS INC.

NIPPON PRECISION CIRCUITS-1

SM5907AF

compression and non compression type
shock-proof memory controller

Overview

- 2-channel processing

- Serial data input
⋅ 2s complement, 16-bit/MSB first, right-justified

format
⋅ Wide capture function

(up to 3 × speed input rate)

- System clock input
⋅ 384fs (16.9344 MHz)

- Shock-proof memory controller

⋅ ADPCM compression method

⋅ 4-level compression mode selectable

4-bit compression mode 2.78 s/Mbit
5-bit compression mode 2.22 s/Mbit
6-bit compression mode 1.85 s/Mbit
Full-bit non compression mode 0.74 s/Mbit

⋅ 4 external DRAM configurations selectable

1 or 2 × 16M DRAM (4M × 4 bits, refresh

cycle = 2048 cycle)
1 or 2 × 4M DRAM (1M × 4 bits)

- Microcontroller interface

⋅ Serial command write and status read-out

⋅ Data residual detector:

15-bit operation, 16-bit output

⋅ Forced mute

- Extension I/O
Microcontroller interface for external control
using 5 extension I/O pins

- +2.4 to +3.6 V operating voltage range

- Schmitt inputs
All input pins (including I/O pins) except CLK
(system clock)

- Reset signal noise elimination
Approximately 3.8 µs or longer (65 system

clock pulses) continuous LOW-level reset

- 44-pin QFP package (0.8 mm pin pitch)

The SM5907AF is a compression and non com­pression type shock-proof memory controller LSI for
compact disc players. The compression level can
be set in 4 levels, and external memory can be

selected from 4 options (4M, 4M× 2, 16M, 16M× 2).
It operates from a 2.4 to 3.6 V supply voltage
range.

Features

Ordering Information

SM5907AF 44-pin QFP

preliminary

NIPPON PRECISION CIRCUITS-2

SM5907AF

Package dimensions

(Unit: mm)

44-pin QFP

Pinout

(Top View)

0.80

0.20MAX

0.15

(1.40)

12.80 0.30

0.35

0.10

0.15 0.05

12.80 0.30

0.17

0.05

0 to 10

0.60 0.20

4

C0.7

10.00 0.30

10.00 0.30

1.50

0.10

0.20

(1.40)

1

2

3

4

5

6

7

8

9

10

11

1213141516171819202122

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

VDD2

UC1

UC2

UC3

UC4

UC5

NCAS3

NTEST

CLK

VSS

YSRDATA

NWE

D1

D0

D3

D2

NCAS

A10/ NCAS2

YMCLK

YMDATA

YMLD

YDMUTE

YLRCK

YSCK

ZSCK

ZLRCK

ZSRDATA

YFLAG

YFCLK

YBLKCK

NRESET

ZSENSE

VDD1

A3A2A1A0A4A5A6A7A8

A9

NRAS

SM590

7AF

preliminary

NIPPON PRECISION CIRCUITS-3

SM5907AF

Pin description

Pin number Pin name I/O Function Setting

HL

1 VDD2 - VDD supply pin

2 UC1 Ip/O Microcontroller interface extension I/O 1

3 UC2 Ip/O Microcontroller interface extension I/O 2

4 UC3 Ip/O Microcontroller interface extension I/O 3

5 UC4 Ip/O Microcontroller interface extension I/O 4

6 UC5 Ip/O Microcontroller interface extension I/O 5

7 NCAS3 O DRAM2 CAS control (with two 16M DRAMs)

8 NTEST Ip Test pin Test

9 CLK I 16.9344 MHz clock input

10 VSS - Ground

11 YSRDATA I Audio serial input data

12 YLRCK I Audio serial input LR clock Left channel Right channel

13 YSCK I Audio serial input bit clock

14 ZSCK O Audio serial output bit clock

15 ZLRCK O Audio serial output LR clock Left channel Right channel

16 ZSRDATA O Audio serial output data

17 YFLAG I Signal processor IC RAM overflow flag Overflow

18 YFCLK I Crystal-controlled frame clock

19 YBLKCK I Subcode block clock signal

20 NRESET I System reset pin Reset

21 ZSENSE O Microcontroller interface status output

22 VDD1 - VDD supply pin

23 YDMUTE I Forced mute pin Mute

24 YMLD I Microcontroller interface latch clock

25 YMDATA I Microcontroller interface serial data

26 YMCLK I Microcontroller interface shift clock

27 A10 O DRAM address 10

(NCAS2) O DRAM2 CAS control (with two 4M DRAMs)

28 NCAS O DRAM CAS control

29 D2 Ip/O DRAM data input/output 2

30 D3 Ip/O DRAM data input/output 3

31 D0 Ip/O DRAM data input/output 0

32 D1 Ip/O DRAM data input/output 1

33 NWE O DRAM WE control

34 NRAS O DRAM RAS control

35 A9 O DRAM address 9

36 A8 O DRAM address 8

37 A7 O DRAM address 7

38 A6 O DRAM address 6

39 A5 O DRAM address 5

40 A4 O DRAM address 4

41 A0 O DRAM address 0

42 A1 O DRAM address 1

43 A2 O DRAM address 2

44 A3 O DRAM address 3

Ip : Input pin with pull-up resistor Ip/O : Input/Output pin (With pull-up resistor when in input mode)

preliminary

NIPPON PRECISION CIRCUITS-4

SM5907AF

Parameter Symbol Rating Unit

Supply voltage V

DD - 0.3 to 4.6 V

Input voltage V

I VSS - 0.3 to VDD + 0.3 V

Storage temperature T

STG - 55 to 125 ˚C

Power dissipation P

D 350 mW

(VSS = 0V, VDD1, VDD2 pin voltage = VDD)

Note. Refer to pin summary on the next page.
Values also apply for supply inrush and switch-off.

Parameter Symbol Rating Unit

Supply voltage V

DD 2.4 to 3.6 V

Operating temperature T

OPR - 40 to 85 ˚C

(VSS = 0V, VDD1, VDD2 pin voltage = VDD)

Electrical characteristics

Recommended operating conditions

DC characteristics

Standard voltage:(VDD1 = VDD2 = 3.0 to 3.6 V, VSS = 0 V, Ta = - 40 to 85 ˚C)

Absolute maximum ratings

Parameter Pin Symbol Condition Rating Unit

Min Typ Max

Current consumption VDD I

DD (*A)SHPRF ON 4.5 8.0 mA

(*A)Through mode 1.8 3.0 mA

Input voltage CLK H level VIH1 0.7VDD V

L level V

IL1 0.3VDD V

V

INAC AC coupling 1.0 VP-P

(*2,3,4) H level VIH2 0.7VDD V

L level V

IL2 0.3VDD V

Output voltage (*4,5) H level V

OH1 IOH = - 0.5 mA VDD - 0.4 V

L level V

OL1 IOL = 0.5 mA 0.4 V

Input current CLK I

IH1 VIN = VDD 5 25 115 µA

I

IL1 VIN = 0V 5 25 115 µA

(*3,4) I

IL2 VIN = 0V 1 4 15 µA

Input leakage current (*2,3,4) I

LH VIN = VDD 1.0 µA

(*2) I

LL VIN = 0V 1.0 µA

(*A) VDD1 = VDD2 = 3 V, CLK input frequency fXTI= 384fs = 16.9344 MHz, all outputs unloaded,
SHPRF: Shock-proof,
typical values are for V

DD1 = VDD2 = 3 V.

preliminary

NIPPON PRECISION CIRCUITS-5

SM5907AF

(*1) Pin function Clock input pin (AC input)

Pin name CLK

(*2) Pin function Schmitt input pins

Pin name YSRDATA, YLRCK, YSCK, YFLAG, YFCLK, NRESET,

YBLKCK, YDMUTE, YMLD, YMDATA, YMCLK

(*3) Pin function Schmitt input pin with pull-up

Pin name NTEST

(*4) Pin function I/O pins (Schmitt input with pull-up in input state)

Pin name UC1, UC2, UC3, UC4, UC5, D0, D1, D2, D3

(*5) Pin function Outputs

Pin name ZSCK, ZLRCK, ZSRDATA, ZSENSE, NCAS, NCAS2, NCAS3,

NWE, NRAS, A0, A1, A2, A3, A4, A5, A6, A7, A8, A9, A10

Low-voltage:(VDD1 = VDD2 = 2.4 to 3.0 V, VSS = 0 V, Ta = - 20 to 70 ˚C)

<Pin summary>

Parameter Pin Symbol Condition Rating Unit

Min Typ Max

Current consumption VDD I

DD (*B)SHPRF ON 4.5 8.0 mA

(*B)Through mode 1.8 3.0 mA

Input voltage CLK H level V

IH1 0.7VDD V

L level V

IL1 0.3VDD V

V

INAC AC coupling 1.0 VP-P

(*2,3,4) H level VIH2 0.7VDD V

L level V

IL2 0.3VDD V

Output voltage (*4,5) H level V

OH1 IOH = - 0.5 mA VDD - 0.4 V

L level V

OL1 IOL = 0.5 mA 0.4 V

Input current CLK I

IH1 VIN = VDD 5 25 115 µA

I

IL1 VIN = 0V 5 25 115 µA

(*3,4) I

IL2 VIN = 0V 1 4 15 µA

Input leakage current (*2,3,4) I

LH VIN = VDD 1.0 µA

(*2) I

LL VIN = 0V 1.0 µA

(*B) VDD1 = VDD2 = 3 V, CLK input frequency fXTI= 384fs = 16.9344 MHz, all outputs unloaded,
SHPRF: Shock-proof,
typical values are for V

DD1 = VDD2 = 3 V.

preliminary

NIPPON PRECISION CIRCUITS-6

SM5907AF

CWH

t

CWL

t

CY

t

0.5V

DD

CLK

Parameter Symbol Rating Unit Condition

Min Typ Max

YSCK pulsewidth (HIGH level)

tBCWH 75 ns

YSCK pulsewidth (LOW level)

tBCWL 75 ns

YSCK pulse cycle

tBCY 150 ns

YSRDATA setup time

tDS 50 ns

YSRDATA hold time

tDH 50 ns

Last YSCK rising edge to YLRCK edge

tBL 50 ns

YLRCK edge to first YSCK rising edge

tLB 50 ns

0 3fs Memory system ON

YLRCK pulse frequency (MSON=H)

See note below. fs fs Memory system OFF

(MSON=L)

Note. When the memory system is OFF (through mode), the input data rate is synchronized to the system clock input (384fs), so input

data needs to be at 1/384 of this frequency. But, this IC can tolerate a certain amount of jitter. For details, refer to Through-mode

operation.

YSCK

YSRDATA

YLRCK

BCY

t

DS

t

DH

t

BCWH

t

BCWL

t

LB

t

BL

t

0.5V

DD

0.5V

DD

0.5V

DD

Serial input (YSRDATA, YLRCK, YSCK pins)

AC characteristics

Standard voltage: V

DD1 = VDD2 = 3.0 to 3.6 V, VSS = 0 V, Ta = -40 to 85 ˚C

Low-voltage: VDD1 = VDD2 = 2.4 to 3.0 V, VSS = 0 V, Ta = -20 to 70 ˚C
(*) Typical values are for fs = 44.1 kHz

System clock (CLK pin)

Parameter Symbol Condition Rating Unit

System clock Min Typ Max

Clock pulsewidth (HIGH level)

tCWH 26 29.5 125 ns

Clock pulsewidth (LOW level)

tCWL 26 29.5 125 ns

Clock pulse cycle

tCY 384fs 58 59 250 ns

System clock input

preliminary

NIPPON PRECISION CIRCUITS-7

SM5907AF

Parameter Symbol Rating Unit

Min Typ Max

YMCLK LOW-level pulsewidth

tMCWL 30 + 2tCY ns

YMCLK HIGH-level pulsewidth

tMCWH 30 + 2tCY ns

YMDATA setup time

tMDS 30 + tCY ns

YMDATA hold time

tMDH 30 + tCY ns

YMLD LOW-level pulsewidth

tMLWL 30 + 2tCY ns

YMLD setup time

tMLS 30 + tCY ns

YMLD hold time

tMLH 30 + tCY ns

Rise time

tr 100 ns

Fall time

tf 100 ns

ZSENSE output delay

tPZS 100 + 3tCY ns

Note. tCY is the system clock cycle time (59ns typ).

YMDATA

YMCLK

ZSENSE

YMLD

YMDATA

YMCLK

YMLD

MDS

t

MDH

t

MCWL

t

MLS

t

MCWH

t

MLH

t

MLWL

t

PZS

t

0.5VDD0.5V

DD

0.5V

DD

0.5V

DD

0.5V

DD

0.5V

DD

0.3 VDD 0.3VDD

0.7 VDD 0.7 VDD

f

t

r

t

Reset input (NRESET pin)

Parameter Symbol Rating Unit

Min Typ Max

First HIGH-level after supply voltage rising edge

tHNRST 0 tCY (Note)

NRESET pulsewidth

tNRST 64 tCY (Note)

Note. tCY is the system clock (CLK) input (384fs) cycle time.

tCY = 59 ns, tNRST (min) = 3.8 µs when fs = 44.1 kHz

NRESET

VDD1,VDD2

HNRST

t t

NRST

Microcontroller interface (YMCLK, YMDATA, YMLD, ZSENSE pins)

preliminary

NIPPON PRECISION CIRCUITS-8

SM5907AF

Parameter Symbol Condition Rating Unit

Min Typ Max

ZSCK pulsewidth tSCOW 15 pF load 1/96fs

ZSCK pulse cycle

tSCOY 15 pF load 1/48fs

ZSRDATA and ZLRCK output delay time

tDHL 15 pF load 0 60 ns
tDLH 15 pF load 0 60 ns

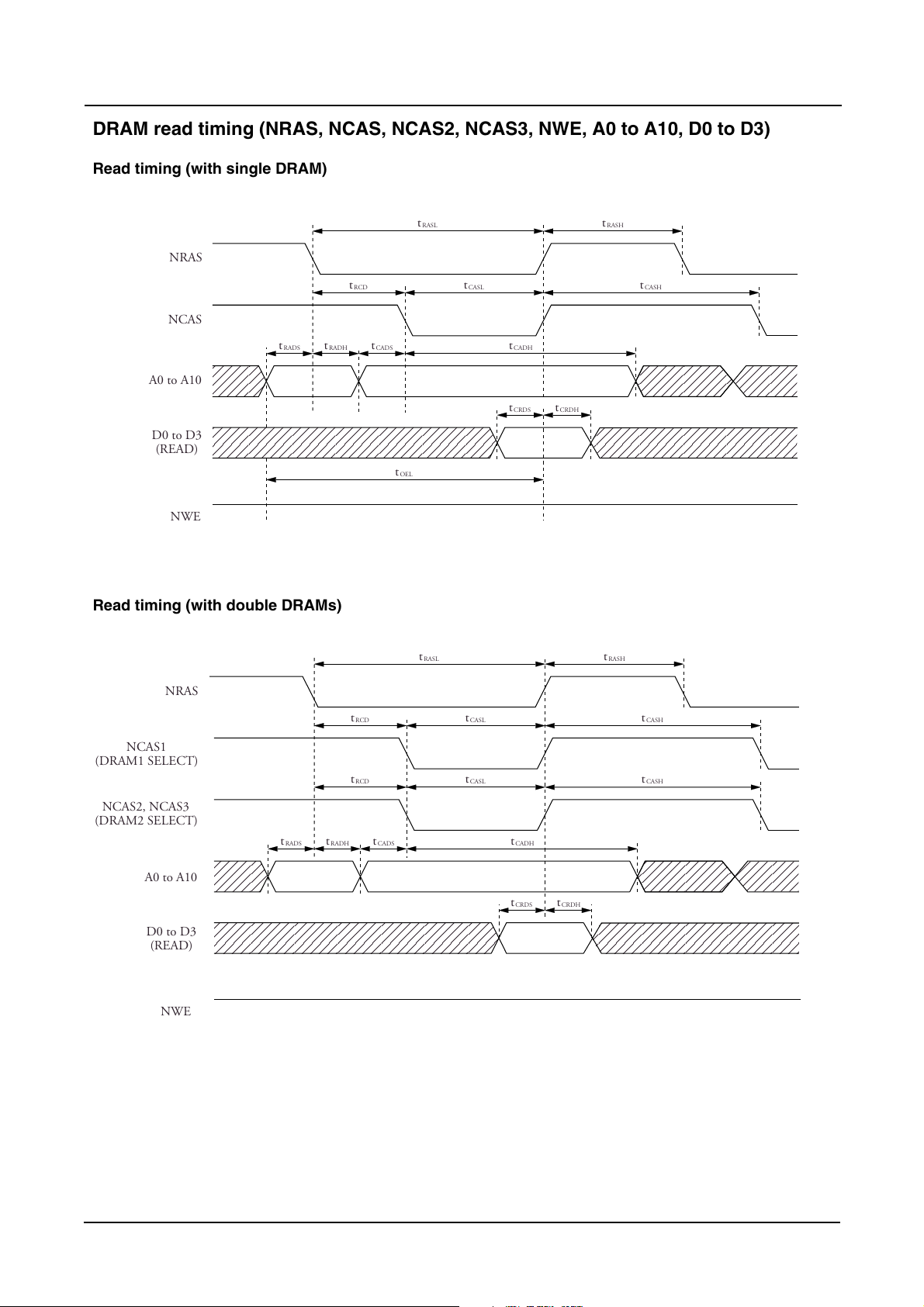

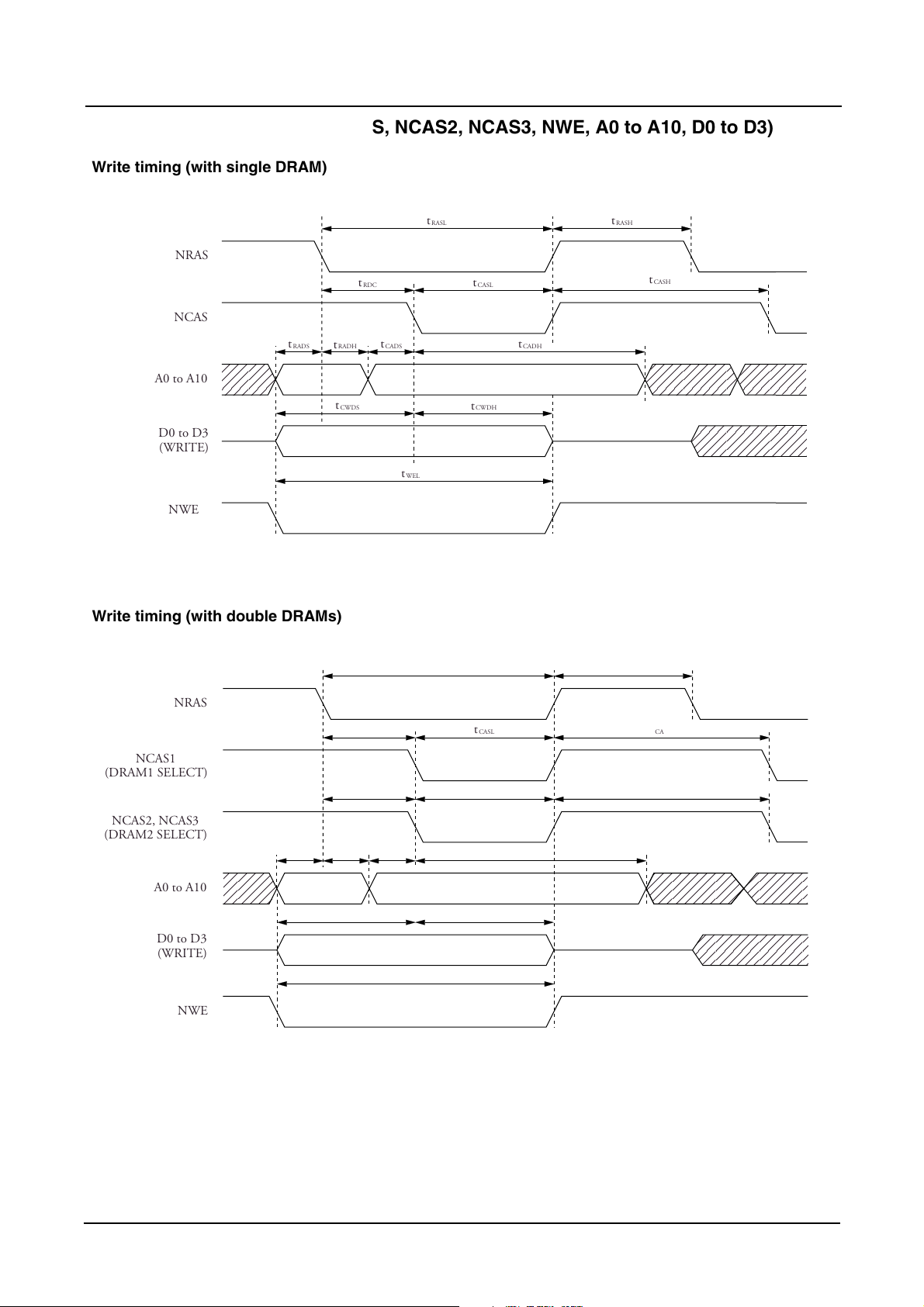

DRAM access timing (NRAS, NCAS, NCAS2, NCAS3, NWE, A0 to A10, D0 to D3)

Parameter Symbol Condition Rating Unit

Min Typ Max

NRAS pulsewidth

tRASL 15 pF load 5 tCY(note)

tRASH 15 pF load 3 tCY

NRAS falling edge to NCAS falling edge tRCD 15 pF load 2 tCY

NCAS pulsewidth tCASH 15 pF load 5 tCY

tCASL 15 pF load 3 tCY

NRAS Setup time tRADS 15 pF load 1 tCY

falling edge to address Hold time tRADH 15 pF load 1 tCY

NCAS Setup time tCADS 15 pF load 1 tCY

falling edge to address Hold time tCADH 15 pF load 5 tCY

NCAS Setup time tCWDS 15 pF load 3 tCY

falling edge to data write Hold time tCWDH 15 pF load 3 tCY

NCAS Input setup tCRDS 40 ns

rising edge to data read Input hold

tCRDH 0ns

NWE pulsewidth

tWEL 15 pF load 6 tCY

NWE falling edge to NCAS falling edge tWCS 15 pF load 3 tCY

Non compression 3.0 ms

Refresh cycle

4M 6-bit compression 7.3 ms

(fs = 44.1 kHz playback)

DRAM 5-bit compression 8.8 ms

tREF × 1 or × 2 4-bit compression 10.9 ms

Memory system ON

Non compression 5.9 ms

Decode sequence operation

16M 6-bit compression 14.6 ms

(RDEN=H)

DRAM 5-bit compression 17.5 ms

× 1 or × 2 4-bit compression 21.8 ms

Note. tCY is the system clock (CLK) input (384fs) cycle time. tCY = 59 ns when fs = 44.1 kHz

ZSCK

ZSRDATA

0.5V

DD

DLH

ZLRCK

0.5V

DD

DHL

tt

DLH

SCOW

tt

SCOW

t

SCOY

t

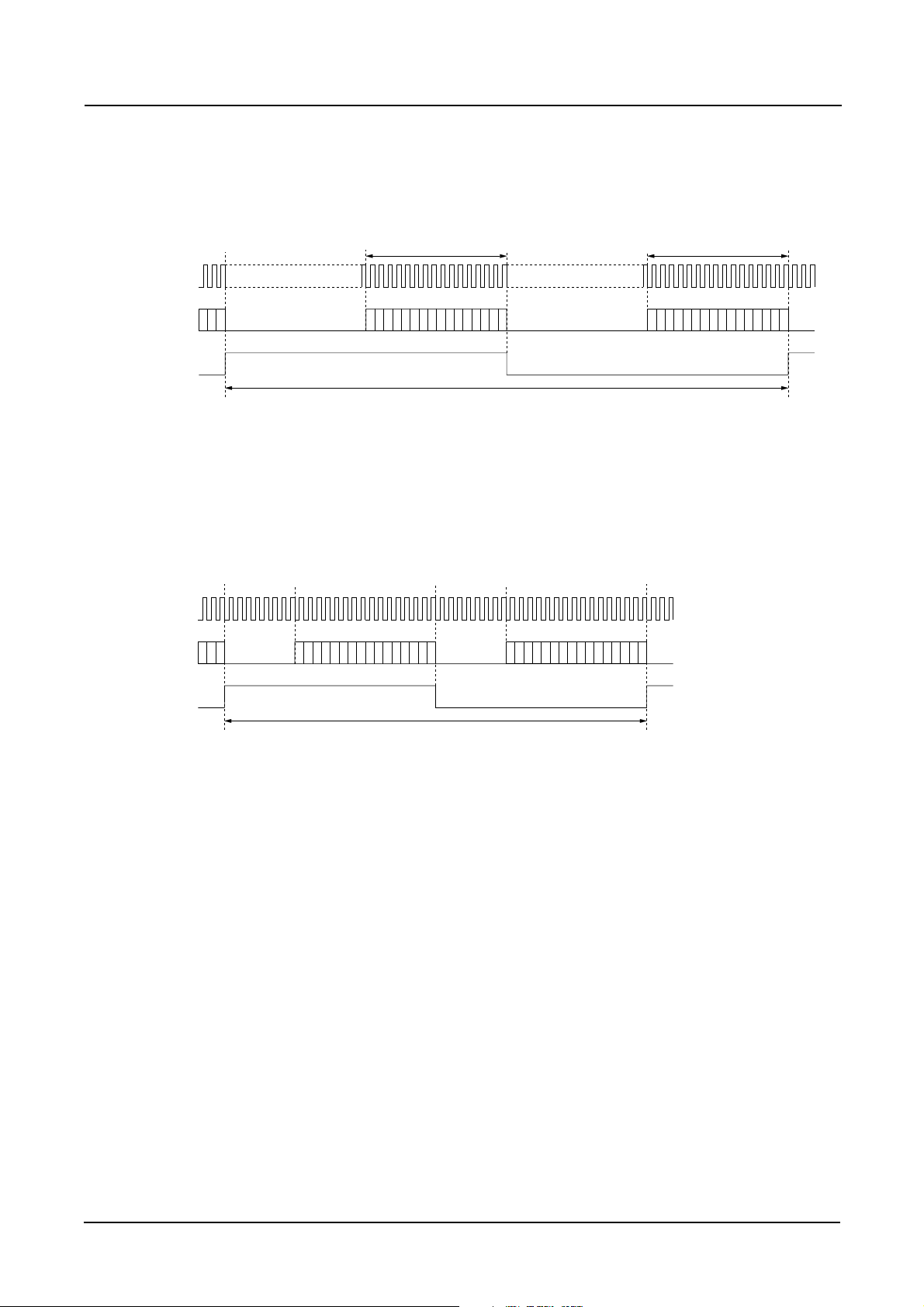

Serial output (ZSRDATA, ZLRCK, ZSCK pins)

preliminary

NIPPON PRECISION CIRCUITS-9

SM5907AF

DRAM access timing (with single DRAM)

The NWE terminal output is fixed HIGH during read timing.

DRAM access timing (with double DRAMs)

The NWE terminal output is fixed HIGH during read timing.
NCAS terminal output is fixed HIGH when selecting "DRAM2".
NCAS2/NCAS3 terminal outputs are fixed HIGH when selecting "DRAM1".

;;;;;;;;;;;;;;

;;;;;;;;;;;;;;

;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;;

;;;;;;;

;;;;;;;

;;;;;;;

NCAS

A0 to A10

D0 to D3
(WRITE)

NRAS

D0 to D3

(READ)

NWE

(WRITE)

3

WCS

t

6

CRDH

t

CRDS

t

CWDH

t

CWDS

t

33

5

CADH

t

CADS

t

RADH

t

RADS

t

111

5

32

t

RCD

t

CASL

CASH

t

RASH

t

3

t

CY

5

RASL

t

t

CY

tCY

tCY

tCY

tCY tCY tCY tCY

tCY tCY

tCY

tCY

WEL

t

NCAS

(DRAM1 SELECT)

A0 to A10

NRAS

D0 to D3

(READ)

NCAS2, NCAS3

(DRAM2 SELECT)

D0 to D3

(WRITE)

NWE

(WRITE)

5

3

253

1

1

1

3

3

5

253

3

RASH

t

RASL

t

RCD

tt

CASL CASH

t

CASH

tt

CASLRDC

t

t

RADS

RADH

t

CADS

t

CADH

t

CWDH

t

CWDS

t

CRDStCRDH

t

WCS

t

tCY tCY

tCY

tCY tCY tCY

tCY tCY

tCY tCY

tCY tCY

tCY

tCY tCY

WEL

t

6

tCY

WCS

t

preliminary

NIPPON PRECISION CIRCUITS-10

SM5907AF

Control

Input 1

Control

Input 2

Micro-

controller

Interface

General

Port

Output Interface Input Interface

Input Buffer

Decoder Encoder

DRAM Interface

YBLKCK

YFCLK

YFLAG

YMDATA

YMCLK

YMLD

ZSENSE

UC1 to UC5

YDMUTE

NRESET

NTEST

CLK

NRAS

NCAS

NCAS2

NWE

A0 to A10

D0 to D3

Through

Mode

Compression

Mode

ZLRCK

ZSCK

ZSRDATA

YLRCK

YSCK

YSRDATA

SM5907

NCAS3

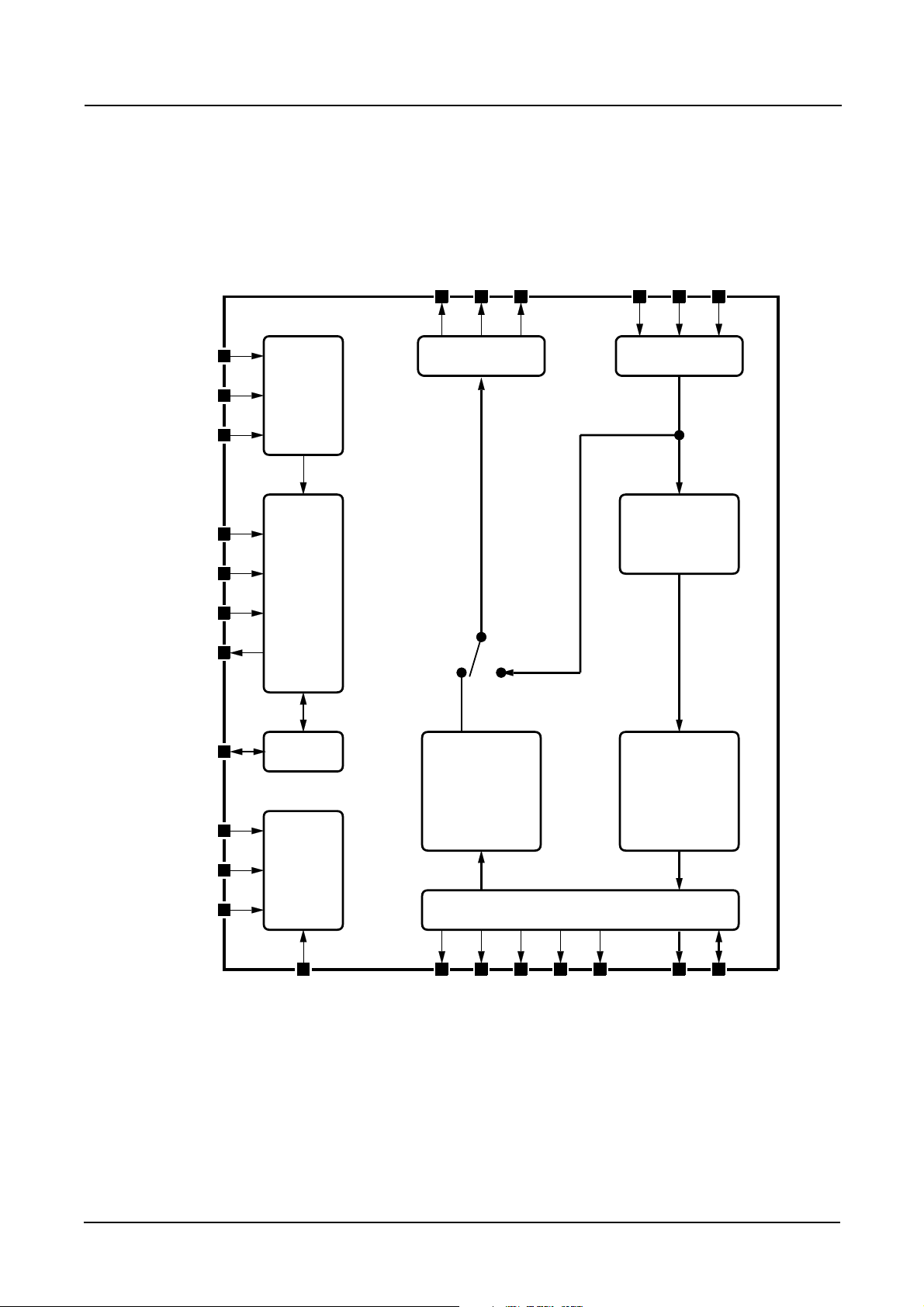

Block diagram

preliminary

NIPPON PRECISION CIRCUITS-11

SM5907AF

Write command format (Commands 80 to 85)

SM5907AF has two modes of operation; shock­proof mode and through mode.

The operating sequences are controlled using com­mands from a microcontroller.

D7 D6 D5 D4 D3 D2 D1 D0 B7 B6 B5 B4 B3 B2 B1 B0

COMMAND 8bit DATA 8bit

YMDATA

YMCLK

YMLD

B7 B6 B5 B4 B3 B2 B1 B0

COMMAND 8bit

YMDATA

YMCLK

YMLD

S7 S6 S5 S4 S3 S2 S1 S0

STATUS 8bit

ZSENSE

B7 B6 B5 B4 B3 B2 B1 B0

COMMAND 8bit

YMDATA

YMCLK

YMLD

S7 S6 S1 S0

RESIDUAL DATA 16bit

ZSENSE

M1 M2 M7 M8

Functional description

Read command format (Command 92 (memory residual read))

Read command format

(Commands 90, 91, 93)

Microcontroller interface

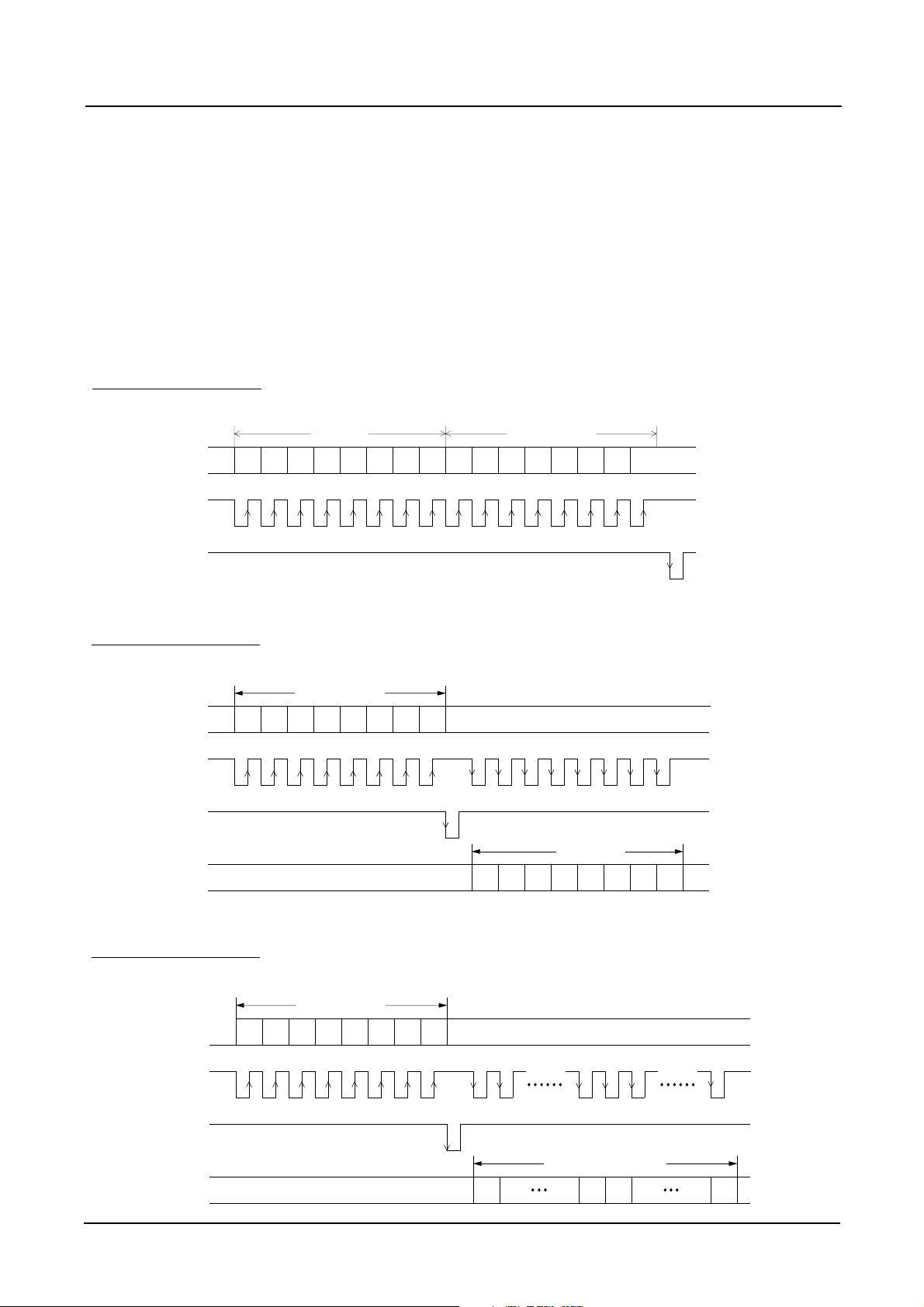

Command format

Commands from the microcontroller are input using
3-wire serial interface inputs; data (YMDATA), bit
clock (YMCLK) and load signal (YMLD).

In the case of a read command from the microcon­troller, bit serial data is output (ZSENSE) synchro­nized to the bit clock input (YMCLK).

preliminary

NIPPON PRECISION CIRCUITS-12

SM5907AF

Bit Name Function H operation Reset level

D7 MSWREN Encode sequence start/stop Start L

D6 MSWACL Write address reset Reset L

D5 MSRDEN Decode sequence start/stop Start L

D4 MSRACL Read address reset Reset L

D3 MSDCN2 MSDCN2=H, MSDCN1=H: 3-pair comparison start L

MSDCN2=H, MSDCN1=L: 2-pair comparison start

D2 MSDCN1 MSDCN2=L, MSDCN1=H: Direct-connect start L

MSDCN2=L, MSDCN1=L: Connect operation stop

D1 WAQV Q data valid Valid L

D0 MSON Memory system ON ON L

1000 0000

B0

B1

B2

B3

B4

B5

B6

B7

80hex

=

Shock-proof memory system settings

Bit Name Function H operation Reset level

D7

D6

D5

D4 UC5OE Extension I/O port UC5 input/output setting Output L

D3 UC4OE Extension I/O port UC4 input/output setting Output L

D2 UC3OE Extension I/O port UC3 input/output setting Output L

D1 UC2OE Extension I/O port UC2 input/output setting Output L

D0 UC1OE Extension I/O port UC1 input/output setting Output L

1000 0001

B0

B1

B2

B3

B4

B5

B6

B7

81hex

=

Extension I/O port input/output settings

Bit Name Function H operation Reset level

D7

D6

D5

D4 UC5WD Extension I/O port UC5 output data setting H output L

D3 UC4WD Extension I/O port UC4 output data setting H output L

D2 UC3WD Extension I/O port UC3 output data setting H output L

D1 UC2WD Extension I/O port UC2 output data setting H output L

D0 UC1WD Extension I/O port UC1 output data setting H output L

1000 0010

B0

B1

B2

B3

B4

B5

B6

B7

82hex

=

Extension port HIGH/LOW output level

A port setting is invalid if that port has already been defined as an input using the 81H command above.

Command table

Write command summary

MS command 80

Extension I/O settings 81

Extension I/O output data settings 82

preliminary

NIPPON PRECISION CIRCUITS-13

SM5907AF

Bit Name Function H operation Reset level

D7

D6 MUTE Forced muting (changes instantaneously) Mute ON L

D5

D4

D3 CMP12 12-bit comparison connect/ 16-bit comparison connect

12-bit comparison L

D2

D1

D0

1000 0011

B0

B1

B2

B3

B4

B5

B6

B7

83hex

=

Refer to "Force mute", "12-bit comparison connection".

Bit Name Function H operation Reset level

D7 RAMS1 DRAM type setting L

RAMS1=0 RAMS2=0 when 16M DRAM(4M × 4bit) × double

RAMS1=1 RAMS2=0 when 4M DRAM(1M × 4bit) × single

D6 RAMS2 RAMS1=0 RAMS2=1 when 4M DRAM(1M × 4bit) × double L

RAMS1=1 RAMS2=1 when 16M DRAM(4M × 4bit) × single

D5 YFLGS FLAG6 set conditions (reset using status read command 90H) L

- When YFLGS=0, YFCKP=0, YFCLK input falling edge, YFLAG=L

- When YFLGS=0, YFCKP=1, YFCLK input rising edge, YFLAG=L

D4 YFCKP - When YFLGS=1, YFCKP=0, YFLAG=L L

- When YFLGS=1, YFCKP=1, YFLAG=H

D3 COMPFB Full-bit compression mode L

D2 COMP6B 6-bit compression mode H

D1 COMP5B 5-bit compression mode L

D0 COMP4B 4-bit compression mode L

1000 0101

B0

B1

B2

B3

B4

B5

B6

B7

85hex

=

When the number of compression bits is set incorrectly (2 or more bits in D0 to D3 are set to 1 or all bits are set to 0),

6-bit compression mode is selected.

MUTE, CMP12 settings 83

Option settings 85

preliminary

NIPPON PRECISION CIRCUITS-14

SM5907AF

Read command summary

Shock-proof memory status (1) 90

Shock-proof memory status (2) 91

Bit Name Function HIGH-level state

S7 FLAG6 Signal processor IC jitter margin exceeded Exceeded

S6 MSOVF Write overflow (Read once only when RA exceeds WA) DRAM overflow

S5 BOVF Input buffer memory overflow Input buffer memory overflow

because sampling rate of input data is too fast

S4

S3 DCOMP Data compare-connect sequence operating Compare-connect sequence operating

S2 MSWIH Encode sequence stop due to internal factors Encoding stopped

S1 MSRIH Decode sequence stop due to internal factors Decoding stopped

S0

1001 0000

B0

B1

B2

B3

B4

B5

B6

B7

90hex

=

Refer to "Status flag operation summary".

Bit Name Function HIGH-level state

S7 MSEMP Valid data empty state (Always HIGH when RA exceeds VWA) No valid data

S6 OVFL Write overflow state (Always HIGH when WA exceeds RA) Memory full

S5 ENCOD Encode sequence operating state Encoding

S4 DECOD Decode sequence operating state Decoding

S3

S2

S1

S0

1001 0001

B0

B1

B2

B3

B4

B5

B6

B7

91hex

=

Refer to "Status flag operation summary".

preliminary

NIPPON PRECISION CIRCUITS-15

SM5907AF

Shock-proof memory valid data residual 92

Extension I/O inputs 93

Bit Name Function HIGH-level state

S7

S6

S5

S4 UC5RD

S3 UC4RD

S2 UC3RD

S1 UC2RD

S0 UC1RD

1001 0011

B0

B1

B2

B3

B4

B5

B6

B7

93hex

=

Input data entering (or output data from) an extension port terminal is echoed to the microcontroller.
(That is, the input data entering an I/O port configured as an input port using the 81H command,
OR the output data from a pin configured as an output port using the 82H command.)

256k bits

1001 0010

B0

B1

B2

B3

B4

B5

B6

B7

92hex

=

Note. The time conversion factor varies depending on the compression bit mode.(M = 1,048,576 K= 1,024)

Residual time (sec) = Valid data residual (Mbits) × Time conversion value K

where the Time conversion value K (sec/Mbit) ≈ 2.78(4 bits), 2.22 (5 bits), 1.85 (6 bits) and 0.74 (Full bits).

4M bits

2M bits

8M bits

512k bits

256k bits

128k bits

64k bits

32k bits

16k bits

8k bits

1k bits

4k bits

2k bits

512 bits

256 bits

1M bits

8M bits

4M bits

2M bits

1M bits

512k bits

16M bits

128k bits

64k bits

32k bits

16k bits

2k bits

8k bits

4k bits

1k bits

512 bits

Bit Name Function 4M×1, 4M×2, 16M×1 16M×2

S7 AM21 Valid data accumulated VWA-RA (MSB)

S6 AM20

S5 AM19

S4 AM18

S3 AM17

S2 AM16

S1 AM15

S0 AM14

M1 AM13

M2 AM12

M3 AM11

M4 AM10

M5 AM09

M6 AM08

M7 AM07

M8 AM06

Status flag operation summary

preliminary

NIPPON PRECISION CIRCUITS-16

SM5907AF

Flag Read

name method

FLAG6 READ Meaning - Indicates to the CD signal processor DSP (used for error correction, de-interleaving) that a

90H disturbance has exceeded the RAM jitter margin.

bit 7 Set - Set according to the YFLAG input and the operating state of YFCKP and YFLGS.

FLAG6 set conditions

When YFLGS=0, YFCKP=0, YFCLK input falling edge, YFLAG=L

When YFLGS=0, YFCKP=1, YFCLK input rising edge, YFLAG=L

When YFLGS=1, YFCKP=0, YFLAG=L

When YFLGS=1, YFCKP=1, YFLAG=H

Reset - By 90H status read

- By 80H command when MSON=ON

- After external reset

MSOVF READ Meaning - Indicates once only that a write to external DRAM has caused an overflow. (When reset

90H by the 90H status read command, this flag is reset even if the overflow condition continues.)

bit 6 Set - When the write address (WA) exceeds the read address (RA)

Reset - By 90H status read

- When a read address clear (MSRACL) or write address clear (MSWACL) command is issued

- After external reset

BOVF READ Meaning - Indicates input data rate was too fast causing buffer overflow and loss of data

90H Set - When inputs a data during a buffer memory overflow

bit 5 Reset - By 90H status read

- When a read address clear (MSRACL) or write address clear (MSWACL) command is issued

- After external reset

DCOMP READ Meaning - Indicates that a compare-connect sequence is operating

90H Set - When a (3-pair or 2-pair) compare-connect start command is received (MSDCN2=1)

bit 3 - When a direct connect command is received (MSDCN2=0, MSDCN1=1)

Reset - When a (3-pair or 2-pair) comparison detects conforming data

- When the connect has been performed after receiving a direct connect command

- When a compare-connect stop command (MSDCN2=0, MSDCN1=0) is received

- When a MSWREN=1 command is received (However, if a compare-connect command is

received at the same time, the compare-connect command has priority.)

- After external reset

MSWIH READ Meaning - Indicates that the encode sequence has stopped due to internal factors

90H (not microcontroller commands)

bit 2 Set - When FLAG6 (above) is set

- When BOVF (above) is set

- When MSOVF (above) is set

Reset - When conforming data is detected after receiving a compare-connect start command

- When the connect has been performed after receiving a direct connect command

- When a read address clear (MSRACL) or write address clear (MSWACL) command is received

- After external reset

MSRIH READ Meaning - Indicates that the decode sequence has stopped due to internal factors

90H (not microcontroller commands)

bit 1 Set - When the valid data residual becomes 0

Reset - By 90H status read

- When a read address clear (MSRACL) or write address clear (MSWACL) command is issued

- After external reset

preliminary

NIPPON PRECISION CIRCUITS-17

SM5907AF

Flag Read

name method

MSEMP READ Meaning - Indicates that the valid data residual has become 0

91H Set - When the VWA (final valid data's next address)

bit 7 = RA (address from which the next read would take place)

Reset - Whenever the above does not apply

OVFL READ Meaning - Indicates a write to external DRAM overflow state

91H Set - When the write address (WA) exceeds the read address (RA).

bit 6 (Note: This flag is not set when WA=RA through an address initialize or reset operation.)

Reset - When the read address (RA) is advanced by the decode sequence

- When a read address clear (MSRACL) or write address clear (MSWACL) command is issued

- After external reset

ENCOD READ Meaning - Indicates that the encode sequence (input data entry, encoding, DRAM write) is operating

91H Set - By the 80H command when MSWREN=1

bit 5 - When conforming data is detected during compare-connect operation

- When the connect has been performed after receiving a direct connect command

Reset - When the FLAG6 flag=1 (above)

- When the OVFL flag=1 (above)

- By the 80H command when MSWREN=0

- By the 80H command when MSDCN1=1 or MSDCN2=1 (compare-connect start command)

- By the 80H command when MSON=0

- After external reset

Note. Reset conditions have priority over set conditions. For example, if the 80H command has

MSWREN=1 and MSDCN1=1, the ENCOD flag is reset and compare-connect operation starts.

DECOD READ Meaning - Indicates that the decode sequence (read from DRAM, decoding,

91H attenuation, data output) is operating

bit 4 Set - By a new 80H command when MSRDEN=1 and the MSEMP flag=0 (above)

Reset - Whenever the above does not apply

preliminary

- MSWREN

When 1: Encode sequence starts

Invalid when MSON is not 1 within the
same 80H command

Invalid when FLAG6=1
Invalid when OVFL=1
Invalid when a compare-connect start

command (MSDCN2=1 or MSDCN1=1)
occurs simultaneously

Direct connect if a compare-connect
sequence is already operating

When 0: Encode sequence stops

- MSWACL

When 1: Initializes the write address (WA)

When 0: No operation

- MSRDEN

When 1: Decode sequence starts

Does not perform decode sequence if
MSON=1.If there is no valid data, decode
sequence temporarily stops. But, because
the MSRDEN flag setting is maintained as
is, the sequence automatically re-starts
when valid data appears.

When 0: Decode sequence stops

-MSRACL

When 1: Initializes the read address (RA)

When 0: No operation

- MSDCN2, MSDCN1

When 1 and 1: 3-pair compare-connect sequence

starts

When 1 and 0: 2-pair compare-connect sequence

starts

When 0 and 1: Direct connect sequence starts

When 0 and 0: Compare-connect sequence stops.

No operation if a compare-connect
sequence is not operating.

- WAQV

When 1: The immediately preceding YBLKCK

falling-edge timing WA (write address)
becomes the VWA (valid write address).

When 0: No operation

- MSON

When 1: Memory system turns ON and shock-

proof operation starts

When 0: Memory system turns OFF and through-

mode playback starts. (In this mode, the
attenuator is still active.)

Write command supplementary information

80H (MS command)

81H (Extension I/O port settings)

82H (Extension I/O port output data settings)

NIPPON PRECISION CIRCUITS-18

SM5907AF

preliminary

NIPPON PRECISION CIRCUITS-19

SM5907AF

85H (option settings)

- RAMS1, RAMS2

When 0 and 0 : 16M DRAM (4M×4 bits)×double

When 1 and 0 : 4M DRAM (1M×4 bits)×single

When 0 and 1 : 4M DRAM (1M×4 bits)×double

When 1 and 1 : 16M DRAM (4M×4 bits)×single

- YFLGS, YFCKP

When 0 and 0: Sets FLAG6 on the falling edge of

YFCLK when YFLAG=0

When 0 and 1: Sets FLAG6 on the rising edge of

YFCLK when YFLAG=0

When 1 and 0: Sets FLAG6 when YFLAG=0

When 1 and 1: Sets FLAG6 when YFLAG=1

- COMPFB, COMP6B, COMP5B, COMP4B

When 0, 0, 0 and 1: Selects 4-bit compression

mode

When 0, 0, 1 and 0: Selects 5-bit compression

mode

When 1, 0, 0 and 0: Selects full-bit compression

mode

In all other cases: Selects 6-bit compression mode

Changing mode without initializing during opera­tion is possible.

83H ( MUTE, 12-bit comparison connection settings)

- MUTE (forced muting)

When 1: Outputs are instantaneously muted to

0.(note 1)
Same effect as taking the YDMUTE pin

HIGH.

When 0: No muting(note 1)

(note1) Effective at the start left-channel output
data.

- MUTE, YDMUTE relationship

When all mute inputs are 0, mute is released.

- CMP12 (12-bit comparison connection)

When 1: Performs comparison connection using

only the most significant 12 bits of input
data.

When 0: Performs comparison connection using

all 16 bits of input data.

preliminary

NIPPON PRECISION CIRCUITS-20

SM5907AF

Shock-proof mode is the mode that realizes shock­proof operation using external DRAM. Shock-proof
mode is invoked by setting MSON=H in microcon-

troller command 80H.

This mode comprises the following 3 sequences.

Shock-proof operation overview

- Encode sequence

1. Input data from a signal processor IC is stored in
internal buffers.

2. Encoder starts after a fixed number of data have
been received.

3. The encoder, after the most suitable predicting
filter type and quantization steps have been deter­mined, performs ADPCM encoding and then writes
to external DRAM.

- Decode sequence

1. Reads compressed data stored in external buffer
RAM at rate fs.

2. Decoder starts, using the predicting filter type
and quantization levels used when encoded.

3. Outputs the result.

- Compare-connect sequence

1. Encoding immediately stops when either external
buffer RAM overflows or when a CD read error
occurs due to shock vibrations.

2. Then, using microcontroller command 80H, the
compare-connect start command is executed and
compare-connect sequence starts.

3. Compares data re-read from the CD with the pro­cessed final valid data stored in RAM (confirms its
correctness).

4. As soon as the comparison detects conforming
data, compare-connect sequence stops and
encode sequence re-starts, connecting the data
directly behind previous valid data.

preliminary

NIPPON PRECISION CIRCUITS-21

SM5907AF

13.3ms

VWA latch set

WAQV set

VWA(x) VWA(x + 1)

YBLKCK

Microcontroller data set

Refer to Microcontroller interface

VWA

Values shown are for rate fs. The values are 1/2 those shown at rate 2fs.

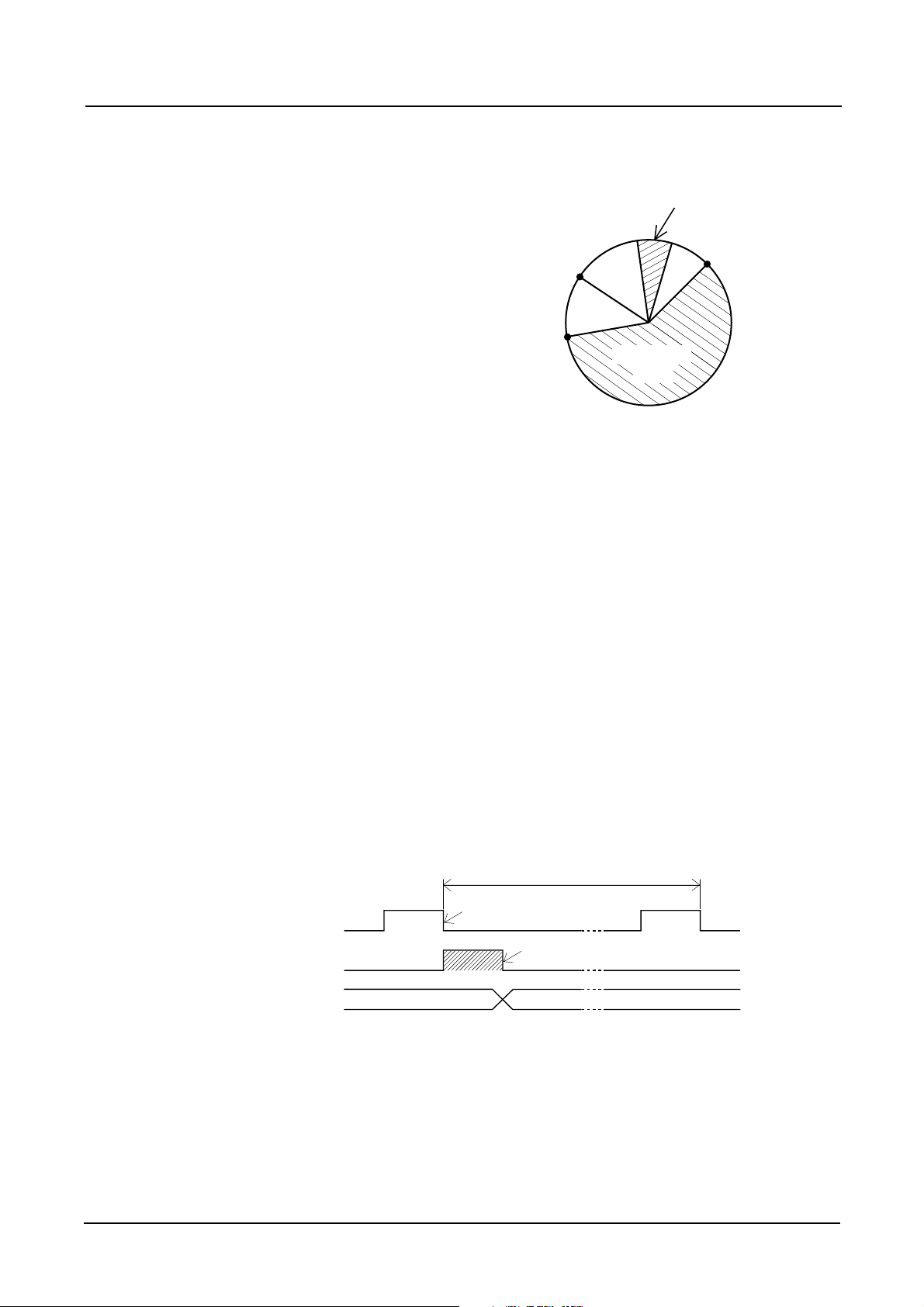

Fig 2. YBLKCK and VWA relationship

The VWA is determined according to the YBLKCK
pin and WAQV command. Refer to the timing chart
below.

1.YBLKCK is a 75 Hz clock(HIGH for 136 µs) when
used for normal read mode and it is a 150 Hz clock
when used for double-speed read mode, synchro­nized to the CD format block end timing.

When this clock goes LOW, WA which is the write
address of internal encode sequence, is stored
(see note 2).

2.The microcontroller checks the subcode and, if
confirmed to be correct, generates a WAQV com­mand (80H).

3.When the WAQV command is received, the previ­ously latched WA is stored as the VWA.

(note 2) Actually, there is a small time difference, or
gap, between the input data and YBLKCK. This gap
serves to preserves the preceding WA to protect
against incorrect operation.

RAM addresses

The SM5907AF uses either 1 or 2 external 4M or
16M DRAMs as external buffers.

Three kinds of addresses are used for external
RAM control.

WA (write address)
RA (read address)

VWA (valid write address)
Among these, VWA is the write address for con­forming data whose validity has been confirmed.
Determination of the correctness of data read from
the CD is delayed relative to the encode write pro­cessing, so VWA is always delayed relative to WA.

The region available for valid data is the area
between VWA-RA.

- Connect data work area

This is an area of memory reserved for connect
data. This area is 4k bits if using 4M DRAMs or 8k
bits if using 16M DRAMs.

Fig 1. RAM addresses

RA

WA

VWA

Valid data

area

Connect data work area

VWA (valid write address)

preliminary

NIPPON PRECISION CIRCUITS-22

SM5907AF

Correct data demodulation becomes impossible for
the CD signal processor IC when a disturbance
exceeding the RAM jitter margin occurs. The
YFLAG signal input pin is used to indicate when
such a condition has occurred.

The YFCLK is a 7.35 kHz clock synchronized to the
CD format frame 1.

The IC checks the YFLAG input and stops the

encode sequence when such a disturbance has
occurred, and then makes FLAG6 active.

The YFLAG check method used changes depend­ing on the YFLGS flag and YFCKP flag (85H com­mand). See table1.

If YFLAGS is set to 1, then YFCLK should be tied
either High or Low.

YFLAG, YFCLK, FLAG6

85H command

YFLGS YFCKP FLAG6 set conditions FLAG6 reset conditions

1 0 0 When YFLAG=LOW on YFCLK input falling edge - By status read (90H command)

2 1 When YFLAG=LOW on YFCLK input rising edge - When MSON=LOW

3 1 0 When YFLAG=LOW YFCLK be tied either High or Low - After system reset

4 1 When YFLAG=HIGH

Table 1. YFLAG signal check method

preliminary

NIPPON PRECISION CIRCUITS-23

SM5907AF

Compare-connect sequence

The SM5907AF supports three kinds of connect
modes; 3-pair compare-connect, 2-pair compare­connect and direct connect.

Note that the SM5907AF can also operate in 12-bit
comparison connect mode using only the most sig­nificant 12 bits of data for connection operation.

In 3-pair compare-connect mode, the final 6 valid
data (3 pairs of left- and right-channel data input
before encode processing) and the most recently
input data are compared until three continuous data
pairs all conform. At this point, the encode

sequence is re-started and data is written to VWA.
In 2-pair compare-connect mode, comparison

occurs just as for 3-pair comparison except that
only 2 pairs from the three compared need to con­form with the valid data. At this point, the encode
sequence is re-started and data is written to VWA.

In direct-connect mode, comparison is not per­formed at all, and encode sequence starts and data
is written to the VWA. This mode is for systems that
cannot perform compare-connect operation.

- Compare-connect preparation time

1. Comparison data preparation time
Internally, when the compare-connect start com-

mand is issued, a sequence starts to restore the
data for comparison. The time required for this
preparation after receiving the command is approxi­mately 2.5 × (1/fs). (approximately 60 µs when fs =

44.1 kHz)

2. After the above preparation is finished, data is
input beginning from the left-channel data and com­parison starts.

3. If the compare-connect command is issued
again, the preparation time above is not necessary
and operation starts from step 2.

4. The same sequence takes place in direct-con­nect mode also. However, at the point when 3
words have been input, all data is directly connect­ed as if comparison and conformance had taken
place.

- Compare-connect sequence stop

If a compare-connect stop command (80H with
MSDCN1= 1, MSDCN2= 0) is input from the micro­controller, compare-connect sequence stops.

If compare-connect sequence was not operating,
the compare-connect stop command performs no
operation. However, make sure that the other bit
settings within the same 80H command are valid.

preliminary

NIPPON PRECISION CIRCUITS-24

SM5907AF

- DRAM initialization refresh
A 15-cycle RAS-only refresh is carried out for

DRAM initialization under the following conditions.
When MSON changes from 0 to 1 using command

80H.
When from MSON=1, MSRDEN=0 and

MSWREN=0 states only MSWREN changes to 1.
In this case, encode sequence immediately starts
and initial data is written (at 2fs rate input) after a
delay of 0.7ms.

- Refresh during Shock-proof mode operation
In this IC, a data access operation to any address

also serves as a data refresh. Accordingly, there
are no specific refresh cycles other than the initial­ization refresh cycle (described above).

This has the resulting effect of saving on DRAM
power dissipation.

A data access to DRAM can occur in an encode
sequence write operation or in a decode sequence
read operation. Write sequence write operation
stops during a connect operation whereas a read
sequence read operation always continues while
data is output to the D/A. The refresh rate for each
DRAM during decode sequence is shown in the
table below.

The decode sequence, set by MSON=1 and MSR­DEN=1, operates when valid data is in DRAM
(when MSEMP=0).

- When MSON=0, DRAM is not refreshed because
no data is being accessed. Although MSON=1,
DRAM is not refreshed if ENCOD=0 and DECOD=0
(both encode and decode sequence are stopped).

DRAM refresh

Table 2. Decode sequence refresh rate

DRAMs used (same for 1 or 2 DRAMs)

Data compression mode 4M (1M×4 bits) 16M(4M×4 bits)

4 bit 10.88 ms 21.77ms

5 bit 8.71 ms 17.42ms

6 bit 7.26 ms 14.52ms

Full bit 2.72 ms 5.81ms

Encode sequence temporary stop

- When RAM becomes full, MSWREN is set LOW
using the 80H command and encode sequence
stops. (For details of the stop conditions, refer to
the description of the ENCOD flag.)

- Then, if MSWREN is set HIGH without issuing a
compare-connect start command, the encode
sequence re-starts. At this time, new input data is
written not to VWA, but to WA. In this way, the data
already written to the region between VWA and WA
is not lost.

- But if the MSWREN is set HIGH (80H command)
after using the compare-connect start command
even only once, data is written to VWA. If data is
input before comparison and conformance is
detected, the same operation as direct-connect
mode takes place when the command is issued.
After comparison and conformance are detected,
no operation is performed because the encode
sequence has already been started. However,
make sure that the other bit settings within the
same 80H command are valid.

preliminary

NIPPON PRECISION CIRCUITS-25

SM5907AF

Through-mode operation

If MSON is set LOW (80H command), an operating
mode that does not perform shock-proof functions
becomes active. In this case, input data is passed
as-is (except Force mute operation) to the output.
External DRAM is not accessed.

- In this case, input data needs to be at a rate fs
and the input word clock must be synchronized to
the CLK input (384fs). However, short-range jitter
can be tolerated (jitter-free system).

- Jitter-free system timing starts from the first
YLRCK rising edge after either (A) a reset (NRE­SET= 0) release by taking the reset input from
LOW to HIGH or (B) by taking MSON from HIGH to
LOW. Accordingly, to provide for the largest possi­ble jitter margin, it is necessary that the YLRCK

clock be at rate fs by the time jitter-free timing
starts.

The jitter margin is 0.2/ fs (80 clock cycles).
This jitter margin is the allowable difference

between the system clock (CLK) divided by 384 (fs
rate clock) and the YLRCK input clock.

If the timing difference exceeds the jitter margin,
irregular operation like data being output twice or,
conversely, incomplete data output may occur. In
the worst case, a click noise may also be generat­ed.

When switching from shock-proof mode to through
mode, an output noise may be generated, and it is
therefore recommended to use the YDMUTE set­ting to mute ZSRDATA until just before data output.

Force mute

Serial output data is muted by setting the YDMUTE
pin input HIGH or by setting the MUTE flag to 1.
Mute starts and finishes on the leading left-channel
bit.

When MSON is HIGH and valid data is empty
(MSEMP=H), the output is automatically forced into
the mute state.

12-bit comparison connection

When the CMP12 flag is set to 1, the least signifi­cant 4 bits of the 16-bit comparison connection
input data are discarded and comparison connec­tion is performed using the remaining 12 bits.

Note that if the CMP12 flag is set to 1 during a com­parison connection operation, only the most signifi­cant 12 bits are used for comparison connection
from that point on.

preliminary

NIPPON PRECISION CIRCUITS-26

SM5907AF

YLRCK

16

LSB

MSB

LSB

MSB

R ch

LSB

YSCK

YSRDATA

L ch

1/(3fs )

16

9

ZLRCK

1 33 48

LSB

MSB

LSB

MSB

R ch

LSB

1/fs

ZSCK

ZSRDATA

L ch

24

Timing charts

Input timing (YSCK, YSRDATA, YLRCK)

Output timing (ZSCK, ZSRDATA, ZLRCK)

preliminary

NIPPON PRECISION CIRCUITS-27

SM5907AF

NCAS

A0 to A10

D0 to D3

(WRITE)

NRAS

NWE

t

RASH

t

RASL

t

t

CASL

CASH

t

CADS

t

RADH

t

t

RADS CADH

t

CWDS

t

CWDH

t

WEL

t

RDC

NCAS1

(DRAM1 SELECT)

A0 to A10

D0 to D3

(WRITE)

NRAS

NWE

NCAS2, NCAS3

(DRAM2 SELECT)

t

CASL CASH

t

RASH

t

RASL

t

WEL

t

CWDH

t

CWDS

t

RADS

t

RADH

t

CADS

tt

CADH

t

CASL CASH

t

RDC

t

RDC

t

DRAM write timing (NRAS, NCAS, NCAS2, NCAS3, NWE, A0 to A10, D0 to D3)

Write timing (with single DRAM)

Write timing (with double DRAMs)

preliminary

NIPPON PRECISION CIRCUITS-28

SM5907AF

NCAS

A0 to A10

NRAS

D0 to D3

(READ)

NWE

RASL

t

RASH

t

CASH

tt

CASLRCD

t

RADS

tt

RADH CADS

t

CADH

t

CRDStCRDH

t

OEL

t

NCAS1

(DRAM1 SELECT)

A0 to A10

NRAS

D0 to D3

(READ)

NWE

NCAS2, NCAS3

(DRAM2 SELECT)

RASH

t

RASL

t

RCD

tt

CASL CASH

t

RADStRADHtCADS

t

CADH

t

CRDStCRDH

t

RCD

tt

CASL CASH

t

DRAM read timing (NRAS, NCAS, NCAS2, NCAS3, NWE, A0 to A10, D0 to D3)

Read timing (with single DRAM)

Read timing (with double DRAMs)

preliminary

NIPPON PRECISION CIRCUITS-29

SM5907AF

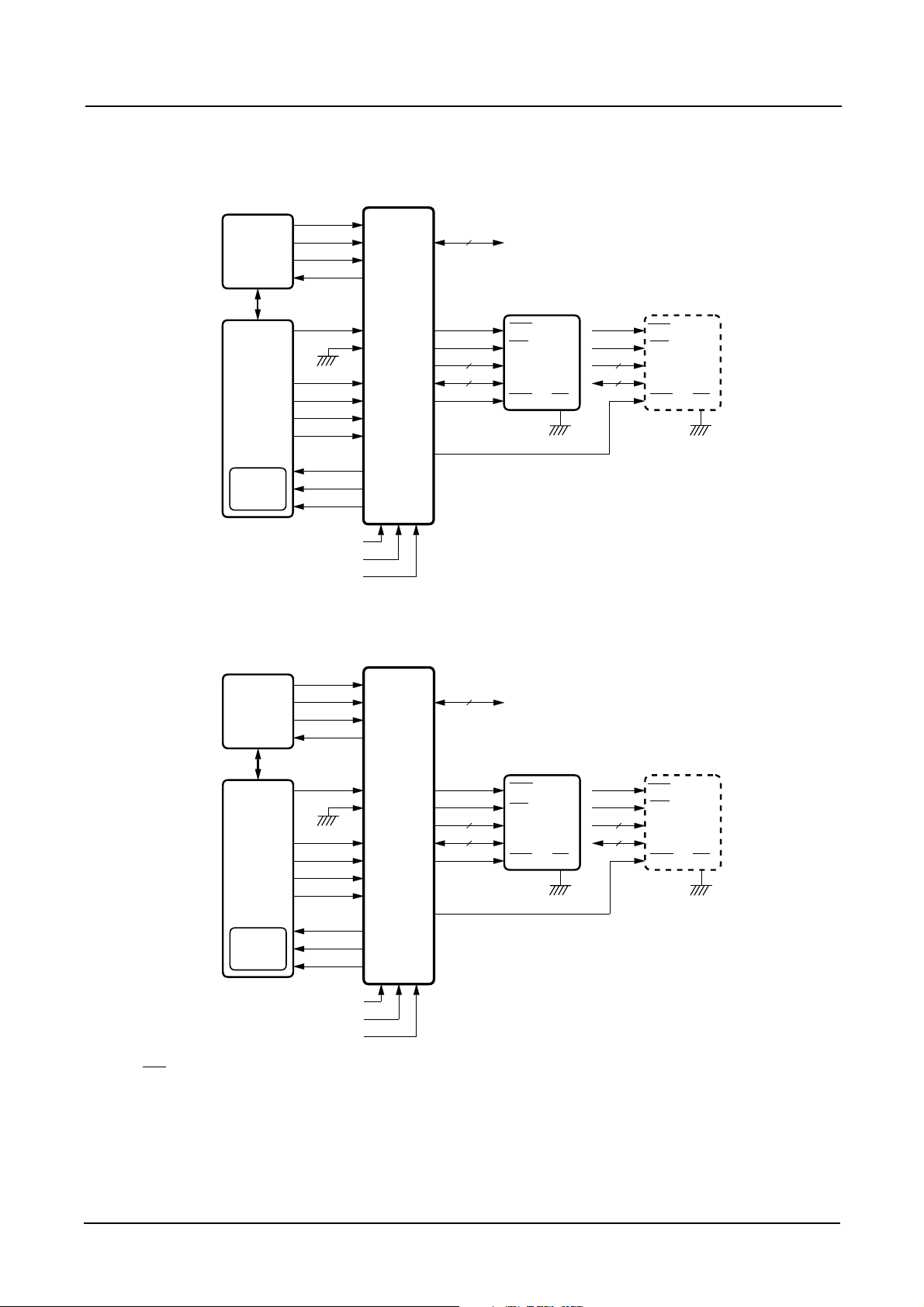

Connection example

4M DRAM × 1 or 2 typical connection

16M DRAM × 1 or 2 typical connection

DRAM OE pin is tied LOW.
In response to the YFLAG input, the 85H command (option settings) should be:
D5: YFLGS =1, D4: YFCKP set to the YFLAG active level.
If YFLAG is active LOW, set YFCKP=0. If YFLAG is active HIGH, set YFCKP=1.
If 4M DRAM × 2 are used, use A10/NCAS2 pin.

If 16M DRAM × 2 are used, use NCAS3 pin.

Micro-

controller

CD

DSP

D/A

converter

SM5907

4M DRAM 1 4M DRAM 2

YMDATA

YMCLK

YMLD

ZSENSE

YBLKCK

YFLAG

YFCLK

YLRCK

YSCK

YSRDATA

ZLRCK

ZSCK

ZSRDATA

UC1 to UC5

NRAS

NWE

A0 to A9

D0 to D3

NCAS2

A0 to A9

D0 to D3

A0 to A9

D0 to D3

CLK

NRESET

YDMUTE

NCAS

RAS

WE

OECAS

RAS

WE

OECAS

NRAS

NWE

A0 to A9

D0 to D3

Micro-

controller

CD

DSP

D/A

converter

SM5907

16M DRAM 1 16M DRAM 2

YMDATA

YMCLK

YMLD

ZSENSE

YBLKCK

YFLAG

YFCLK

YLRCK

YSCK

YSRDATA

ZLRCK

ZSCK

ZSRDATA

UC1 to UC5

NRAS

NWE

A0 to A10

D0 to D3

NCAS3

A0 to A10

D0 to D3

A0 to A10

D0 to D3

CLK

NRESET

YDMUTE

NCAS

RAS

WE

OECAS

RAS

WE

OECAS

NRAS

NWE

A0 to A10

D0 to D3

preliminary

NIPPON PRECISION CIRCUITS-30

SM5907AF

NP0018AE 2000.10

NIPPON PRECISION CIRCUITS INC. reserves the right to make changes to the products described in this data sheet in order to

improve the design or performance and to supply the best possible products. Nippon Precision Circuits Inc. assumes no responsibility for
the use of any circuits shown in this data sheet, conveys no license under any patent or other rights, and makes no claim that the circuits
are free from patent infringement. Applications for any devices shown in this data sheet are for illustration only and Nippon Precision
Circuits Inc. makes no claim or warranty that such applications will be suitable for the use specified without further testing or modifica­tion. The products described in this data sheet are not intended to use for the apparatus which influence human lives due to the failure or
malfunction of the products. Customers are requested to comply with applicable laws and regulations in effect now and hereinafter, includ­ing compliance with export controls on the distribution or dissemination of the products. Customers shall not export, directly or indirect­ly, any products without first obtaining required licenses and approvals from appropriate government agencies.

NIPPON PRECISION CIRCUITS INC.

4-3, FUKUZUMI 2 CHOME, KOTO-KU
TOKYO,135-8430, JAPAN
Telephon: [phone]
Facsimile: [phone]

http://www.npc.co.jp/ Email: [e-mail]

NIPPON PRECISION CIRCUITS INC.

Microcontroller interface functions

Pin No. SM5903BF SM5907AF

7 pin N.C. NCAS3

Device comparison with SM5903BF

Pin difference

85H (RAMS1=0, RAMS2=0)

SM5903BF: 1M DRAM × 1
SM5907AF: 16M DRAM × 2

92H (valid residual)

In the SM5907AF, if 16M DRAM × 2 configuration
is selected using the 85H command (85H
RAMS1=0, RAMS2=0), the residual data is 1-bit
shifted in order to represent the maximum
32Mbits.

As pin 7 on the SM5903BF is not connected inter­nally, the possible DRAM configurations are 4M × 1,
4M × 2, and 16M × 1, all of which are completely
compatible with the SM5907AF.

Note that the chip process is different, and hence
some DC characteristics are different.

When 16M × 2 configuration is used, the microcon­troller interface valid residual memory is different
(92H status read). See "Read command summary".
