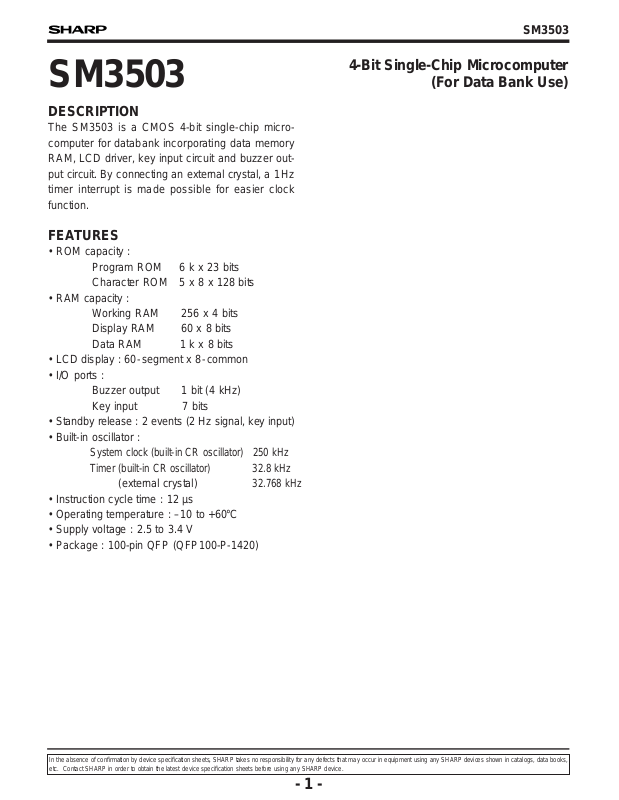

SM3503
DESCRIPTION
The SM3503 is a CMOS 4-bit single-chip microcomputer for databank incorporating data memory
RAM, LCD driver, key input circuit and buzzer output circuit. By connecting an external crystal, a 1 Hz
timer interrupt is made possible for easier clock
function.
FEATURES
• ROM capacity :
Program ROM 6 k x 23 bits
Character ROM 5 x 8 x 128 bits
• RAM capacity :
Working RAM 256 x 4 bits
Display RAM 60 x 8 bits
Data RAM 1 k x 8 bits
• LCD display : 60 - segment x 8 -common
• I/O ports :
Buzzer output 1 bit (4 kHz)
Key input 7 bits
• Standby release : 2 events (2 Hz signal, key input)
• Built-in oscillator :
• Instruction cycle time : 12 µs
• Operating temperature : –10 to +60°C
• Supply voltage : 2.5 to 3.4 V
• Package : 100-pin QFP (QFP100-P-1420)
SM3503
4-Bit Single-Chip Microcomputer
(For Data Bank Use)
System clock (built-in CR oscillator) 250 kHz
Timer (built-in CR oscillator) 32.8 kHz
(external crystal)
32.768 kHz
Page 2
SM3503
- 2 -
SYSTEM COMFIGURATION EXAMPLE
APPLICATION EXAMPLE
Common signal
Segment signal
Key matrix
S1-S6
S53-S60
(MAX. 84-key)
S1-S60
KI2-KI7
XCR
ON
Key
RESET
Key
KI1 VCC TEST RESET XI XO BZ
H
1-H8
VCC
3V
Buzzer
VCC
SM3503
+
–
LCD Control : 60 x 8 - dot
KEY : MAX. 85 - key
SM3503
5 x 5 - dot matrix : 1
8 - segment : 1
AB7CD8EF
9
GH4IJ5KL
6
123456
QWE R T Y
A
7
B8C9D÷E>F
Page 3
SM3503
- 3 -
(2.4)
0.65
0.3
± 0.2
0.1
± 0.2
± 0.1
(2.4)(2.4)
(2.4)
20.0
24.8
0.15
(22.98)
51
31
130
100
81
50
80
(16.98)
± 0.2
± 0.4
14.0
18.8
± 0.4
± 0.2
± 0.05
± 0.1
2.75
1.3
TYP.
0.15
0.15 M

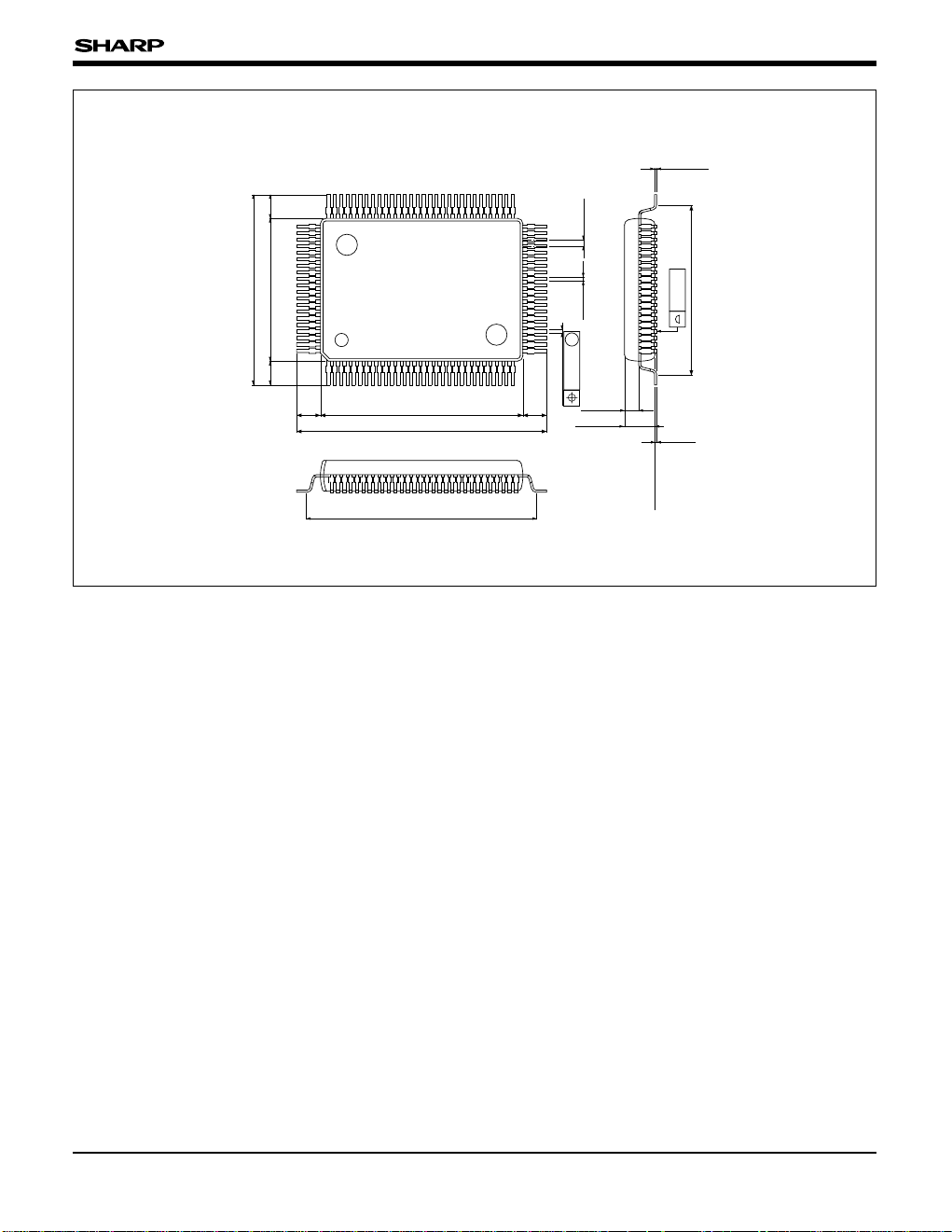

Package
base plane
100 QFP (QFP100-P-1420)
