Page 1
(Hz)
Air Flow
(CFM)
Speed
Single
Speed

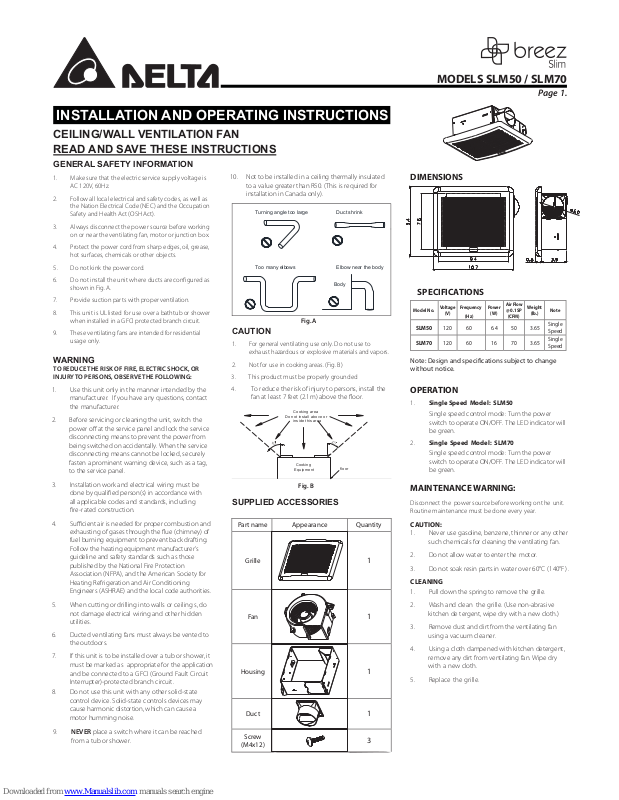

INSTALLATION AND OPERATING INSTRUCTIONS
CEILING/WALL VENTILATION FAN
READ AND SAVE THESE INSTRUCTIONS
GENERAL SAFETY INFORMATION
Not to be installed in a ceiling thermally insulated
1. Make sure that the electric service supply voltage is
AC 120V, 60Hz.
2. Follow all local electrical and safety codes, as well as
the Nation Electrical Code (NEC) and the Occupation
Safety and Health Act (OSH Act).
3. Always disconnect the power source before working
on or near the ventilating fan, motor or junction box.
4. Protect the power cord from sharp edges, oil, grease,
hot surfaces, chemicals or other objects.
5. Do not kink the power cord
6. Do not install the unit where ducts are congured as
shown in Fig. A.
7. Provide suction parts with proper ventilation.
8. This unit is UL listed for use over a bathtub or shower
when installed in a GFCI protected branch circuit.
9. These ventilating fans are intended for residential
usage only.
.
WARNING
TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, OR
INJURY TO PERSONS, OBSERVE THE FOLLOWING:
1. Use this unit only in the manner intended by the
manufacturer. If you have any questions, contact
the manufacturer.
2.
Before servicing or cleaning the unit, switch the
power o at the service panel and lock the service
disconnecting means to prevent the power from
being switched on accidentally. When the service
disconnecting means cannot be locked, securely
fasten a prominent warning device, such as a tag,
to the service panel.
3. Installation work and electrical wiring must be
done by qualied person(s) in accordance with
all applicable codes and standards, including
re -rated construction.
Sucient air is needed for proper combustion and
4.
exhausting of gases through the ue (chimney) of
fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s
guideline and safety standards such as those
published by the National Fire Protection
Association (NFPA), and the American Society for
Heating Refrigeration and Air Conditioning
Engineers (ASHRAE) and the local code authorities.
5. When cutting or drilling into walls or ceiling s, do
not damage electrical wiring and other hidden
utilities.
Ducted ventilating fans must always be vented to
6.
the outdoors.
7.
If this unit is to be installed over a tub or shower, it
must be marked as appropriate for the application
and be connected to a GFCI (Ground Fault Circuit
Interrupter) -protected branch circuit.
Do not use this unit with any other solid-state
8.
control device. Solid-state controls devices may
cause harmonic distortion, which can cause a
motor humming noise.
9.
NEVER place a switch where it can be reached
from a tub or shower.
10.
to a value greater than R50. (This is required for
installation in Canada only).
Turning angle too large Duct shrink
Too many elbows Elbow near the body
Body
Fig. A
CAUTION
1. For general ventilating use only. Do not use to
exhaust hazardous or explosive materials and vapors.
2. Not for use in cooking areas. (Fig. B)
3.4. This product must be properly grounded
To reduce the risk of injury to persons, install the
fan at least 7 feet (2.1m) above the oor.
Coo king are a
Do not ins tall abo ve or
in side thi s are a
4
5
4
Co oking
Equ ipm ent
Fig. B
SUPPLIED ACCESSORIES
Part name Appearance Quantity
Grille
Fan
Housing
Duct
Screw
(M4x12)
5
floo r
1
1
1
1
3

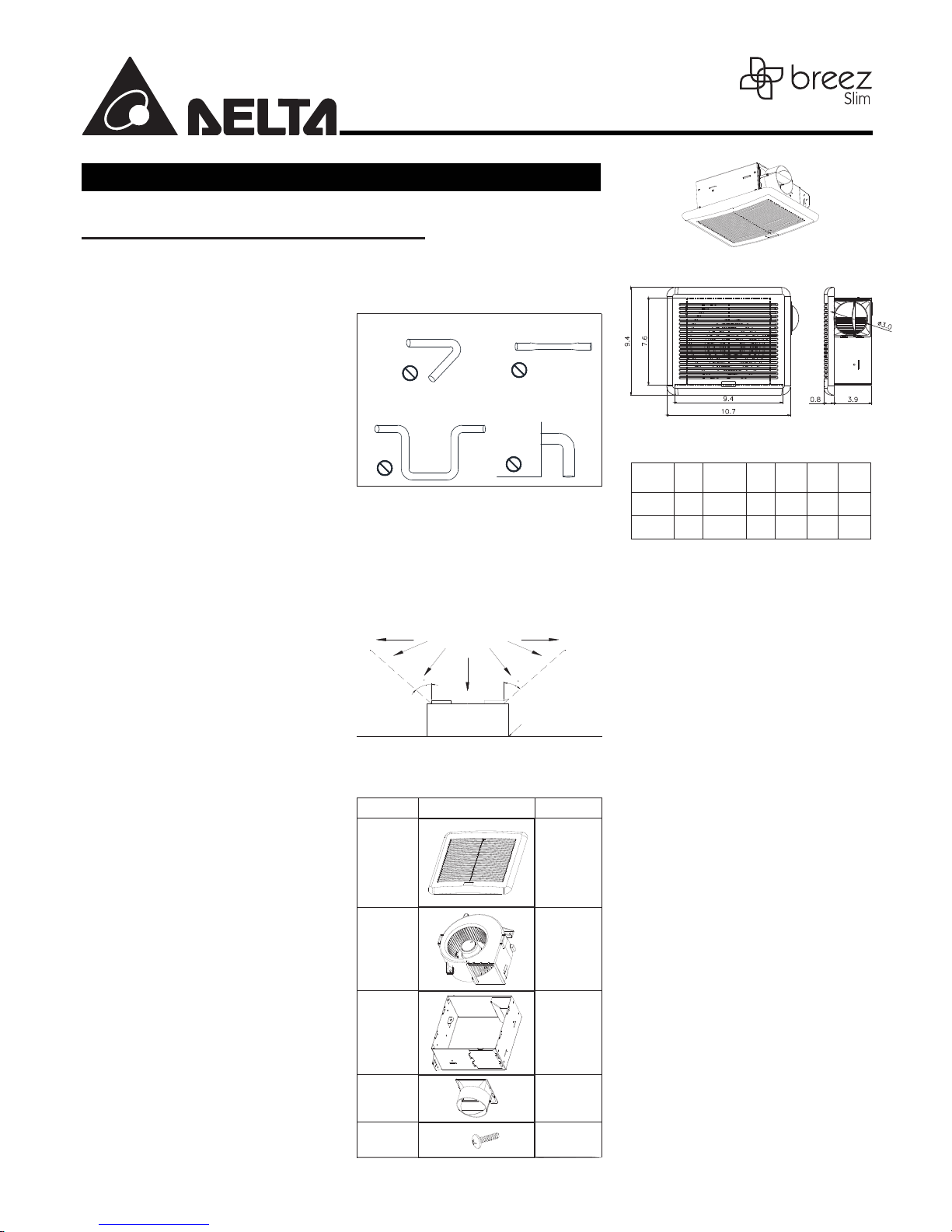

MODELS SLM50 / SLM70
Page 1.
DIMENSIONS
SPECIFICATIONS
Frequency
Voltage
Model No.
(V)
SLM50 120 60 6.4 50 3.65
SLM70 120 60 16 70 3.65
Power
(W)
Note: Design and specications subject to change
without notice.
OPERATION
1. Single Speed Model: SLM50
Single speed control mode: Turn the power
switch to operate ON/OFF. The LED indicator will
be green.
2. Single Speed Model: SLM70
Single speed control mode: Turn the power
switch to operate ON/OFF. The LED indicator will
be green.
MAINTENANCE WARNING:
Disconnect the power source before working on the unit.
Routine maintenance must be done every year.
CAUTION:
1. Never use gasoline, benzene, thinner or any other
such chemicals for cleaning the ventilating fan.
2. Do not allow water to enter the motor.
3. Do not soak resin parts in water over 60°C (140°F) .
CLEANING
1. Pull down the spring to remove the grille.
2. Wash and clean the grille. (Use non-abrasive
kitchen de tergent, wipe dry with a new cloth.)
3. Remove dust and dirt from the ventilating fan
using a vacuum cleaner.
4. Using a cloth dampened with kitchen detergent,
remove any dirt from ventilating fan. Wipe dry
with a new cloth.
5. Replace the grille.
@ 0.1SP
Weight
(lb.)
Note
Single
Page 2
Open chosen hole
Wire nut
Power cable
Compartment
Tapping screw
Stud Tabs
MODELS SLM50 / SLM70
Page 2.

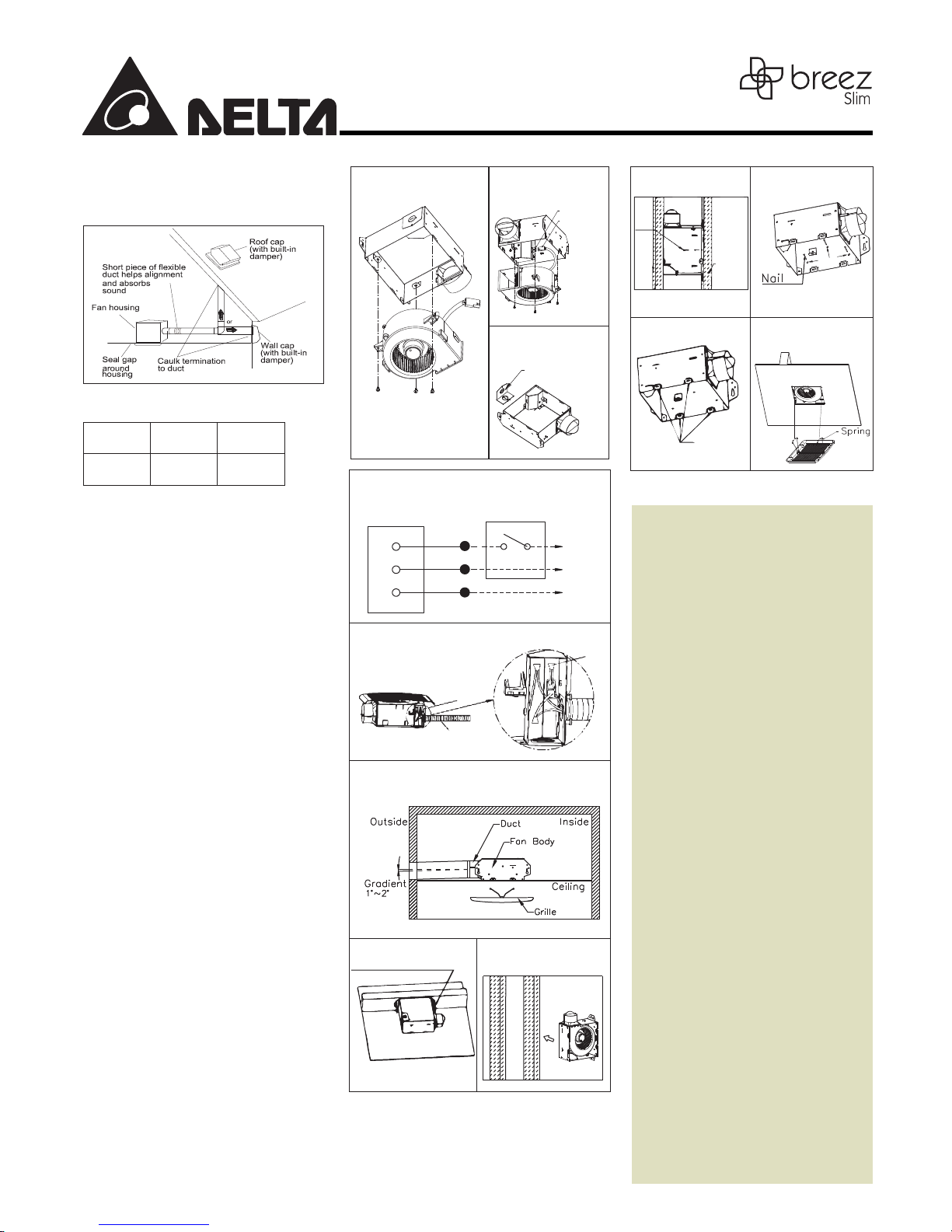

INSTALLATIONS
Proper insulation around the fan to minimize building
heat loss and gain.
Install with wood frame
Model No. SLM50 SLM70
Install Dim.
(Inch)
1. Remove the motor plate from the housing by
removing the three screws. (Fig. C)
2. Remove the wiring cover from the housing by
pulling straight out. Choose a hole and use a
slotted screwdriver to remove it. (Fig. D)
3. Follow all local electrical and safety codes.
NEVER place a switch where it can be reached
from a tub or shower. Connect wires as shown in
wiring diagrams. (Fig. E)
4. Using wire nuts , connect the house power cable
to the ventilating fan wires. 14 AWG (2.1 mm
the smallest conductor that shall be used for
branch-circuit wiring. (Fig. F)
5. Insert the duct into the duct connector and tape
all ductwork connection s to make them secure
and air tight. Install the duct with a gradient 1°~2°
to the outside. (Fig. G)
6. New installation prior to nishing the ceiling
or wall: Insert the fan between joists. Make sure
the fan body is level and perpendicular with the
joist. (Fig. H)
7. Replacement installation: After making
electrical and ductwork connections (see steps 2~5),
nail the housing in place. Drive nails
housing w here indicated by arrows.
8. New installation in an existing ceiling or wall:
Bend tabs outward 90°(Use a screw driver if desired)
and position housing so that tabs rest against
the bottom edge of the joists (or front of stud). Nail
the housing to the joist or stud using four nails to
ensure a solid, quiet installation. Ceiling installations:
Tabs on the opposite side of the housing can be
bent outward to rest on top of 1/2" ceiling material
and provide extra stability. (Fig. J)
9. Plug in the motor and lock the fan body back by
using three screws. (Fig. C)
10. Squeeze the grille springs together and insert the
springs into the slots in the motor plate. Push
grille up against the ceiling or wall. When the
power is on, check for abnormal vibrations or
sounds. Insert the mounting springs into the slots
and mount the grille to the body. (Fig. K)
7.5X7.25 7.5X7.25
through the
(Fig. I)
2
) is
the
(Fig. C)
Fig. E
Ventilation Fan
Black
White
Green
Fig. F
Fig. G
Fig. H Fig. H
(Fig. C)
(Fig. D)
Switch Box
(Purchase Separately)
O
On
Receptacle
Plug
connector
Live
Neutral
Ground
Fig. H
Fig. I
Nail
Fig. J
Fig. K
WARRANTY
DELTA ELECTRONICS THREE YEARS
LIMITTED WARRANTY
Delta Electronics Inc. (“Delta Electronics”) warrants to the
original consumer purchaser in the USA and Canada that
the Breez ventilation fan products will be free from defects
in material or workmanship. This warranty is limited to
three (3) years from the original date of purchase.
Limitations and Exclusions
During the warranty period, a replacement for any
defective product will be supplied free of charge for
installation by the consumer. The warranty provided
herein does not cover charges for labor or other costs
incurred in the troubleshooting, repair, removal, and
installation service.
All returns of defective parts or products must
include the product model number, and must be
made through an authorized Delta Electronics
distributor. Authorized returns must be shipped
prepaid. Repaired or replacement products will be
shipped by Delta Electronics F.O.B. shipping point.
Delta Electronics shall not be liable for any indirect,
incidental, consequential, punitive, or special damages
arising out of or in connection with products use or
performance, regardless of the form of action
whether in contract, tort (including negligence), strict
product liability or otherwise.
This warranty does not extend to uorescent lamp
starters and tubes.
The warranty does not cover if user does not comply with
manufacture’s installation manual.
To qualify for warranty service, you must notify Delta
Electronics at the address or telephone number below.
Delta Electronics shall have no liability to the original
owner-user with respect to any defect caused by abuse,
misuse, neglect, improper transportation or storage,
improper testing, improper installation, improper
operation, improper use, improper maintenance,
improper repair, improper alteration, improper
modication, tampering or accident of products or parts
thereof, or unusual deterioration or degradation of
products or parts thereof due to a physical environment
beyond the requirements of products’ specications.
Address: 46101 Fremont Boulevard, Fremont, CA 94538
US Toll Free Number: 1-888-979-9889
