SL74HCT273
Semiconductor
Octal D Flip-Flop with Common Clock and Reset
High-Performance Silicon-Gate CMOS
The SL74HCT273 is identical in pinout to the LS/ALS273.
The SL74HCT273 may be used as a level converter for interfacing
TTL or NMOS outputs to High-Speed CMOS inputs.
This device consists of eight D flip -flops with common Clock and
Reset inputs. Each flip -flop is loaded with a low-to-high transition of
the Clock input. Reset is asynchronous and active low.
• TTL/NMOS Compatible Input Levels
• Outputs Directly Interface to CMOS, NMOS, and TTL
• Operating Voltage Range: 4.5 to 5.5 V
• Low Input Current: 1.0 µA
ORDERING INFORMATION
SL74HCT273N Plastic
SL74HCT273D SOIC
TA = -55° to 125° C for all packages
LOGIC DIAGRAM
PIN 20=VCC
PIN 10 = GND
PIN ASSIGNMENT
Reset Clock D Q
L X X L
H H H
FUNCTION TABLE
Inputs Output
H L L
H L X no change
H X no change
X = don’t care
System Logic
SLS
Page 2
SL74HCT273
Semiconductor
MAXIMUM RATINGS*
Symbol Parameter Value Unit
VCC DC Supply Voltage (Referenced to GND) -0.5 to +7.0 V
VIN DC Input Voltage (Referenced to GND) -1.5 to VCC +1.5 V
V
DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V
OUT
IIN DC Input Current, per Pin ±20 mA
I
DC Output Current, per Pin ±35 mA
OUT
ICC DC Supply Current, VCC and GND Pins ±75 mA
PD Power Dissipation in Still Air, Plastic DIP+
SOIC Package+
750
500
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1 mm from Case for 10 Seconds
260 °C
(Plastic DIP or SOIC Package)
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
+Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C
SOIC Package: : - 7 mW/°C from 65° to 125°C
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
VCC DC Supply Voltage (Referenced to GND) 4.5 5.5 V
VIN, V
DC Input Voltage, Output Voltage (Referenced to GND) 0 VCC V
OUT
TA Operating Temperature, All Package Types -55 +125 °C
tr, tf Input Rise and Fall Time (Figure 1) 0 500 ns
mW
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, VIN and V
GND≤(VIN or V
OUT
)≤VCC.
should be constrained to the range
OUT
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC).
Unused outputs must be left open.
System Logic
SLS
Page 3
IN74HCT273
Semiconductor
DC ELECTRICAL CHARACTERISTICS(Voltages Referenced to GND)
VCC Guaranteed Limit
Symbol Parameter Test Conditions V 25 °C
to
-55°C
VIH Minimum High-Level
Input Voltage
VIL Maximum Low -Level
Input Voltage
VOH Minimum High-Level
Output Voltage
VIN=VIH or VIL
VOL Maximum Low -Level
Output Voltage
VIN= VIL or V
IIN Maximum Input
V
=0.1 V or VCC-0.1 V
OUT
I
≤ 20 µA
OUT
V
=0.1 V or VCC-0.1 V
OUT
I
≤ 20 µA
OUT
VIN=VIH or VIL
I
≤ 20 µA
OUT
4.5
5.5
4.5
5.5
4.5
5.5
2.0
2.0
0.8
0.8
4.4
5.4
I
≤ 4.0 mA
OUT
VIN= VIL or VIH
I
≤ 20 µA
OUT
IH
I
≤ 4.0 mA
OUT
4.5 3.98 3.84 3.7
4.5
5.5
0.1
0.1
4.5 0.26 0.33 0.4
VIN=VCC or GND 5.5 ±0.1 ±1.0 ±1.0 µA
Leakage Current
ICC Maximum Quiescent
Supply Current
VIN=VCC or GND
I
=0µA
OUT
5.5 4.0 40 160 µA
(per Package)
∆ICC Additional Quiescent
Supply Current
VIN=2.4 V, Any One Input
VIN=VCC or GND,
≥-55°C 25°C to
Other Inputs
≤85
°C
2.0
2.0
0.8
0.8
4.4
5.4
0.1
0.1
≤125
°C
2.0
2.0
0.8
0.8
4.4
5.4
0.1
0.1
125°C
Unit
V
V
V
V
mA
I
=0µA 5.5 2.9 2.4
OUT
System Logic
SLS
Page 4
SL74HCT273
Semiconductor
AC ELECTRICAL CHARACTERISTICS(V
=5.0 V ± 10%, CL=50pF,Input tr=tf=6.0 ns)
CC
Guaranteed Limit
Symbol Parameter 25 °C to
≤85°C ≤125°C Unit
-55°C
f
Maximum Clock Frequency (50% Duty Cycle)
max
30 24 20 MHz
(Figures 1 and 4)
t
, t
PLH
Maximum Propagation Delay, Clock to Q (Figures
PHL
25 28 35 ns
1 and 4)
t
Maximum Propagation Delay , Reset to Q (Figures
PHL
25 28 35 ns
2 and 4)
t
, t
TLH
Maximum Output Transition Time, Any Output
THL
18 20 22 ns
(Figures 1 and 4)
CIN Maximum Input Capacitance 10 10 10 pF
Power Dissipation Capacitance (Per Gate) Typical @25°C,VCC=5.0 V
CPD Used to determine the no-load dynamic power
consumption:
PD=CPDV
2
f+ICCVCC
CC
30 pF
TIMING REQUIREMENTS (V
=5.0 V ± 10%, CL=50pF,Input tr=tf=6.0 ns)
CC
Guaranteed Limit
Symbol Parameter 25 °C to
≤85°C ≤125°C Unit
-55°C
tSU Minimum Setup Time, Data to
10 12 15 ns
Clock (Figure 3)
th Minimum Hold Time, Clock to
3.0 3.0 3.0 ns
Data (Figure 3)
t
Minimum Recovery Time,
rec
5.0 5.0 5.0 ns
Reset Inactive to Clock (Figure
2)
tw Minimum Pulse Width, Clock
12 15 18 ns
(Figure 1)
tw Minimum Pulse Width, Reset
12 15 18 ns
(Figure 2)
t
Maximum Input Rise and Fall
r, tf
500 500 500 ns
Times (Figure 1)
SLS
System Logic
Page 5
IN74HCT273
Semiconductor

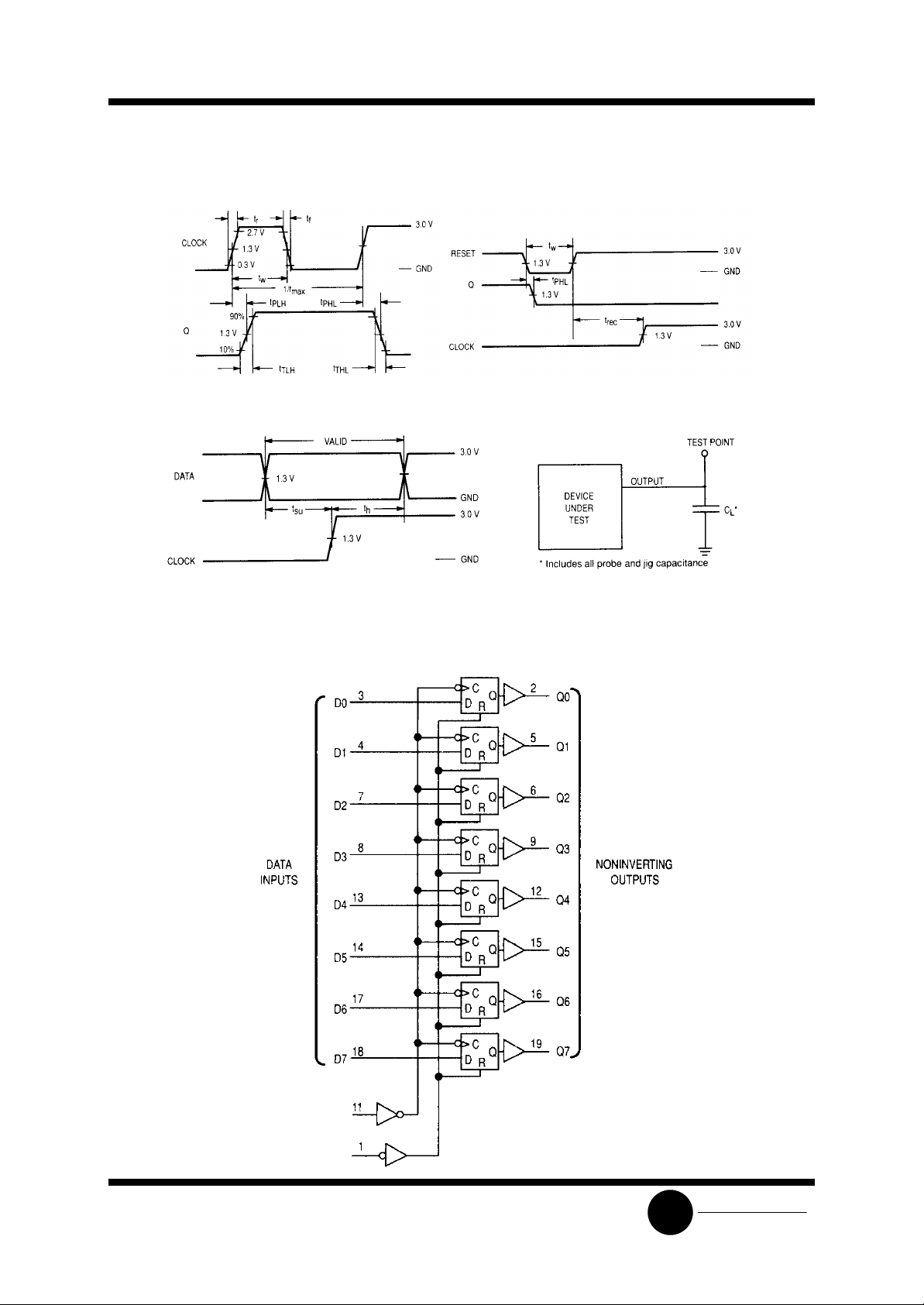

Figure 1. Switching waveforms Figure 2. Switching waveforms
Figure 3. Switching waveforms Figure 4. Test Circuit
EXPANDED LOGIC DIAGRAM
SLS
System Logic
