6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

PACKAGE

ANODE

6

1

6

CATHODE

1

SCHEMATIC

1

2

3

6

BASE

5COL

4EMITTER

6

1

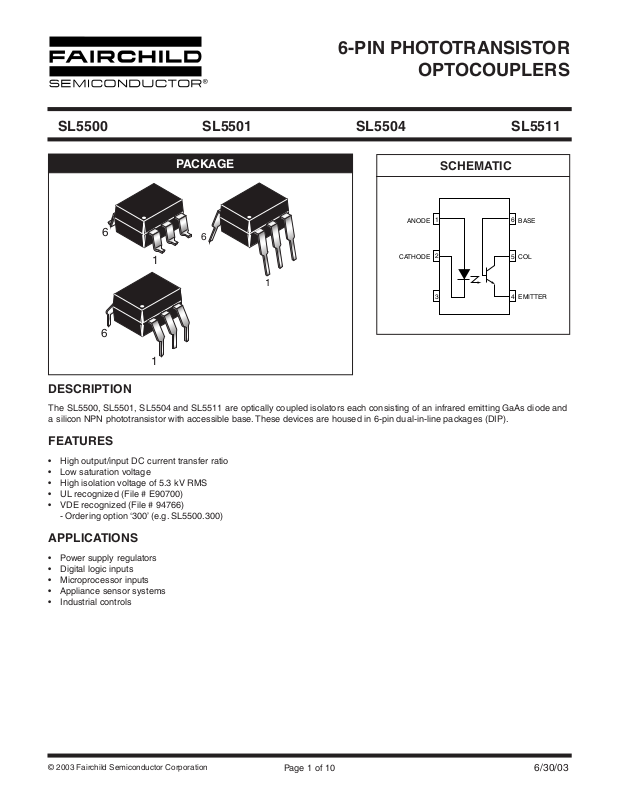

DESCRIPTION

The SL5500, SL5501, SL5504 and SL5511 are optically coupled isolators each consisting of an infrared emitting GaAs diode and a silicon NPN phototransistor with accessible base. These devices are housed in 6-pin dual-in-line packages (DIP).

FEATURES

• High output/input DC current transfer ratio

•Low saturation voltage

• High isolation voltage of 5.3 kV RMS

• UL recognized (File # E90700)

• VDE recognized (File # 94766)

- Ordering option ‘300’ (e.g. SL5500.300)

APPLICATIONS

•Power supply regulators

• Digital logic inputs

• Microprocessor inputs

• Appliance sensor systems

• Industrial controls

Page 1 of 10

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

Parameters Symbol Value Units

TOTAL DEVICE

Storage Temperature T

Operating Temperature T

Lead Solder Temperature T

Total Power Dissipation at T

= 25°C Ambient

A

Derate Linearly from 25°C 3.3 mW/°C

STG

OPR

SOL

P

D

EMITTER

Continuous Reverse Voltage V

Continuous Forward Current I

Forward Current - Peak (10 µs pulse, δ = 0.01) I

Total Power Dissipation T

= 25°C Ambient

A

Derate Linearly from 25°C 2.0 mW/°C

R

F

(pk) 3.0 A

F

P

D

DETECTOR

Collector to Emitter Voltage (open base)

Collector to Base Voltage (open emitter)

Emitter to Collector Voltage (open base) V

Emitter to Base Voltage (open colletor) V

DC Collector Current I

Detector Power Dissipation @ T

= 25°C Ambient

A

Derate Linearly from 25°C 2.0 mW/°C

SL5500, SL5501, SL5511

SL5504 80

SL5500, SL5501, SL5511

SL5504 120

V

CEO

CBO

ECO

EBO

C

P

D

-55 to +150 °C

-55 to +100 °C

260 for 10 sec °C

260 mW

3V

100 mA

150 mW

30

70

V

7V

100 mA

150 mW

Page 2 of 10

6/30/03

Ω

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

ELECTRICAL CHARACTERISTICS

INDIVIDUAL COMPONENT CHARACTERISTICS

Parameters Test Conditions Symbol Device Min Typ* Max Units

EMITTER

Input Forward Voltage

Reverse Current V

DETECTOR

Leakage Current Collector to Emitter

Breakdown Voltage

Collector to Emitter I

Collector to Base I

Emitter to Collector I

Emitter to Base I

= 20 mA, T

I

F

= 2 mA 1.10 1.2 V

I

F

= 3 V, T

R

V

= 10 V

CE

V

= 30 V 0.005 10 µA

CE

V

= 10 V, T

CE

= 30 V I

V

CB

= 10 µA, I

C

= 10 µA, I

C

= 10 µA, I

E

= 10 µA, I

E

= 25 to 70°C

A

= 25 to 70°C I

A

= 70°C 500 nA

A

= 0 BV

F

= 0 BV

F

= 0 BV

F

= 0 BV

F

(T

= 25°C Unless otherwise speciﬁed.)

A

V

I

CEO

CBO

F

R

All

All 0.001 10 µA

All

SL5500, SL5501, SL5511 30 100 V

CEO

SL5504 80 110

SL5500, SL5501, SL5511 30 120 V

CBO

ECO

EBO

SL5504 120 150

All 7 10 V

1.23 1.3 V

150nA

0.001 50 µA

ISOLATION CHARACTERISTICS

Characteristic Test Conditions Symbol Min Typ* Max Units

Input-Output Isolation Voltage (note 1) f = 60Hz, T = 1 min. V

Isolation Resistance V

= ±500 VDC R

I-O

Isolation Capacitance f = 1 MHz, V = 0V C

*Typical values at T

= 25°C

A

Page 3 of 10

ISO

5300 V

AC(RMS)

110 T

0.6 1.3 pF

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

TRANSFER CHARACTERISTICS (TA = 25°C Unless otherwise speciﬁed.)

DC Characteristics Test Conditions Symbol Device Min Typ Max Units

I

Output/Input Current Transfer Ratio

Collector-Emitter Saturation Voltage

= 10 mA, V

F

= 10 mA, V

I

F

I

= 10 mA, V

F

T

= 25°C to 70°C

A

I

= 2 mA, V

F

= 2 mA, V

I

F

I

= 2 mA, V

F

T

= 25°C to 70°C

A

I

= 2 mA, V

F

T

= 25°C to 70°C

A

I

= 0.5 mA, V

F

T

= 25°C to 70°C

A

I

= 50 mA, I

F

I

= 20 mA, I

F

= 0.4 V

CE

= 0.4 V, T

CE

= 0.4 V,

CE

= 5 V SL5500 40

CE

= 5 V, T

CE

= 5 V,

CE

= 5 V,

CE

= 0.4 V,

CE

= 10 mA

C

= 2 mA

C

= 70°C SL5500 40 300

A

= 70°C SL5500 30

A

CTR

V

CE(SAT)

SL5500 50 300

SL5501, SL5504 25 400

SL5501, SL5504 15

SL5511 25

SL5511 20

SL5500 0.4

SL5501, SL5504,

SL5511

0.4

%

V

AC Characteristics Test Conditions Symbol Device Min Typ Max Units

Saturated Switching Times

Tu r n-On Time R

= 1 k Ω , I

L

= 16 mA, V

F

= 5 V t

CC

SL5500, SL5501,

on

SL5511

20

µs

SL5504 50

Tu r n-Off Time See Fig. 1 and Fig. 2 t

SL5500, SL5501,

off

SL5511

50

µs

SL5504 150

Note

1. Device considered a two-terminal device: pins 1, 2 and 3 shorted together and pins 4, 5 and 6 shorted together.

Page 4 of 10

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

V

I

V

I

+V

CC

0

V

O

V

O

90%

50Ω

R

L

Fig. 1 Switching Circuit

Fig. 3 LED Forward Voltage vs. Forward Current

1.8

1.7

1.6

1.5

1.4

1.3

- FORWARD VOLTAGE (V)

F

V

1.2

1.1

1.0 110100

IF - LED FORWARD CURRENT (mA)

TA = - 55°C

T

= 25°C

A

= 100°C

T

A

0

t

on

10%

t

off

Fig. 2 Waveforms

Fig. 4 Normalized CTR vs. Forward Current

1.4

VCE = 5.0V T

= 25°C

A

1.2

1.0

0.8

0.6

NORMALIZED CTR

0.4

0.2

0.0 051015 20

FORWARD CURRENT - IF (mA)

Normalized to

I

= 10mA

F

Fig. 5 Normalized CTR vs. Ambient Temperature

1.6

1.4

1.2

I

= 10mA

F

1.0

NORMALIZED CTR

0.8

I

= 20mA

F

0.6 Normalized to

= 10 mA

I

F

= 25°C

T

A

0.4

-75 -50 -25 0 25 50 75 100 125

AMBIENT TEMPERATURE - T

IF = 5mA

1.0

Fig. 7 CTR vs. RBE (Unsaturated)

0.9

0.8

0.7

0.6

0.5

0.4

NORMALIZED CTR

0.3

0.2

0.1

0.0 10 1000

o

(

C)

A

RBE - BASE RESISTANCE (k Ω)

Page 5 of 10

IF = 20mA

= 10mA

I

F

= 5mA

I

F

VCE = 5V, T Normalized to CTR at RBE = Open

= 25°C

A

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

1.0

0.9

0.8

0.7

0.6

0.5

0.4

NORMALIZED CTR

0.3

0.2

0.1

0.0 10 100 1000

RBE - BASE RESISTANCE (k Ω)

Fig. 9 Normalized t

6.0

5.5

5.0

4.5

4.0

on

3.5

3.0

2.5

NORMALIZED t

2.0

1.5

1.0

0.5

0.0 10 100 1000 10000

RBE - BASE RESISTANCE (k Ω )

IF = 20mA

= 10mA

I

F

I

= 5mA

F

VCE = 0.3V, TA = 25°C Normalized to CTR at RBE = Open

on vs. R

BE

VCC = 10V I

= 2mA

C

= 100Ω

R

L

NORMALIZED TO ton AT RBE = OPEN

Fig. 11 Collector Emitter Saturation Voltage vs. Collector Current

100

Fig. 7 CTR vs. RBE (Saturated)

Fig. 8 Normalized t

1.4 VCC = 10V

1.3

= 2mA

I

C

1.2

1.1

1.0

off

0.9

0.8

0.7

0.6

NORMALIZED t

0.5

0.4

0.3

0.2

0.1

Ω

R

= 100

L

NORMALIZED TO: t

AT RBE = OPEN

off

10 100 1000 10000

RBE - BASE RESISTANCE (kΩ)

off

vs. R

BE

Fig. 10 Switching Speed vs. Load Resistor

1000

IF = 10mA

= 10V

V

CC

= 25°C

T

A

100

s)

µ

T

off

T

10

SWITCHING SPEED - (

1

0.1

0.1 1 10 100

R-LOAD RESISTOR (kΩ)

f

T

on

T

r

10

1

- (V)

CEsat

V

0.1

0.01

TA =25oC

0.001

0.01 0.1 1 10

I

F

= 5mA

IF = 2.5mA

I

= 10mA

F

IC - (mA)

= 20mA

I

F

Page 6 of 10

Fig. 12 Dark Current vs. Ambient Temperature

10000

VCE = 10V T

= 25oC

A

1000

100

10

0.1

0.01

- COLLECTOR -EMITTER DARK CURRENT (nA)

CEO

I

0.001 020406080100

TA - AMBIENT TEMPERATURE (°C)

6/30/03

6-PIN PHOTOTRANSISTOR

)

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

Package Dimensions (Through Hole) Package Dimensions (Surface Mount)

0.350 (8.89)

0.330 (8.38)

3

2

5

4

0.070 (1.78)

0.045 (1.14)

Lead Coplanarity : 0.004 (0.10) MAX

1

6

PIN 1 ID.

0.020 (0.51) MIN

0.100 (2.54)

TYP

0.270 (6.86)

0.240 (6.10)

0.300 (7.62) TYP

0.016 (0.40) MIN

0.315 (8.00) MIN

0.405 (10.30) MAX

0.070 (1.78)

0.045 (1.14)

SEATING PLANE

0.200 (5.08)

0.115 (2.92)

0.154 (3.90)

0.100 (2.54)

0.022 (0.56)

0.016 (0.41)

0.100 (2.54) TYP

0.350 (8.89)

0.330 (8.38)

PIN 1 ID.

0.020 (0.51) MIN

0.016 (0.40)

0.008 (0.20)

0° to 15°

0.270 (6.86)

0.240 (6.10)

0.300 (7.62) TYP

0.200 (5.08)

0.165 (4.18)

0.022 (0.56)

0.016 (0.41)

Package Dimensions (0.4” Lead Spacing) Recommended Pad Layout for

Surface Mount Leadform

0.016 (0.41)

0.008 (0.20)

0.270 (6.86)

0.240 (6.10)

0.350 (8.89)

0.330 (8.38)

0.070 (1.78)

0.045 (1.14)

0.200 (5.08)

0.135 (3.43)

SEATING PLANE

0.154 (3.90)

0.100 (2.54)

0.022 (0.56)

0.016 (0.41)

0.004 (0.10) MIN

0.100 (2.54) TYP

Note

All dimensions are in inches (millimeters)

0.016 (0.40)

0.008 (0.20)

0.400 (10.16) TYP

0° to 15°

Page 7 of 10

0.415 (10.54

0.100 (2.54

0.295 (7.49

0.070 (1.78

0.060 (1.52

0.030 (0.76

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

ORDERING INFORMATION

Option Order Entry Identiﬁer Description

S.S Surface Mount Lead Bend

SD .SD Surface Mount; Tape and Reel

W.W 0.4" Lead Spacing

300 .300 VDE 0884

300W .300W VDE 0884, 0.4" Lead Spacing

3S .3S VDE 0884, Surface Mount

3SD .3SD VDE 0884, Surface Mount, Tape and Reel

MARKING INFORMATION

SL5500

V XX YY K

43

Deﬁnitions

1Fairchild logo

2Device number

VDE mark (Note: Only appears on parts ordered with VDE

3

option – See order entry table)

4Two digit year code, e.g., ‘03’

5Two digit work week ranging from ‘01’ to ‘53’

6 Assembly package code

5

1

2

6

Page 8 of 10

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

Carrier Tape Specifications (“D” Taping Orientation)

4.85 ± 0.20

0.30 ± 0.05

13.2 ± 0.2

0.1 MAX

User Direction of Feed

NOTE

All dimensions are in inches (millimeters)

Reﬂow Proﬁle (Black Package, No Sufﬁx)

300

250

200

150

100

Te mperature (°C)

50

0

0.5 1 1.5 2 2.5 3 3.5 4 4.5

0

225 C peak

Ramp up = 3

Time (Minute)

Time above 183° C, 60–150 sec

C/sec

4.0 ± 0.1

10.30 ± 0.20

215°C, 10–30 s

12.0 ± 0.1

4.0 ± 0.1

• Peak reflow temperature: 225° C (package surface temperature)

• Time of temperature higher than 183° C for 60–150 seconds

• One time soldering reflow is recommended

1.55 ± 0.05

Ø

1.75 ± 0.10

7.5 ± 0.1

9.55 ± 0.20

1.6 ± 0.1

Ø

16.0 ± 0.3

Page 9 of 10

6/30/03

6-PIN PHOTOTRANSISTOR

OPTOCOUPLERS

SL5500 SL5501 SL5504 SL5511

DISCLAIMER

FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT RIGHTS, NOR THE RIGHTS OF OTHERS.

LIFE SUPPORT POLICY

FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD SEMICONDUCTOR CORPORATION. As used herein:

1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, and (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in a significant injury of the user.

2. A critical component in any component of a life support device or system whose failure to perform can be reasonably expected to cause the failure of the life support device or system, or to affect its safety or effectiveness.

Page 10 of 10

6/30/03
