SL4034B

System Logic

Semiconductor

SLS

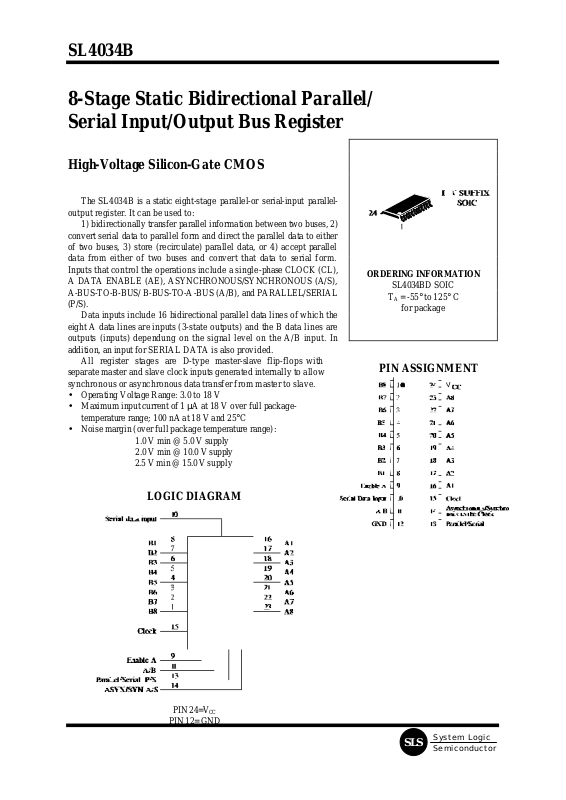

8-Stage Static Bidirectional Parallel/ Serial Input/Output Bus Register

High-Voltage Silicon-Gate CMOS

The SL4034B is a static eight-stage parallel-or serial-input parallel-

output register. It can be used to:

1) bidirectionally transfer parallel information between two buses, 2) convert serial data to parallel form and direct the parallel data to either of two buses, 3) store (recirculate) parallel data, or 4) accept parallel data from either of two buses and convert that data to serial form. Inputs that control the operations include a single -phase CLOCK (CL), A DATA ENABLE (AE), ASYNCHRONOUS/SYNCHRONOUS (A/S), A-BUS-TO-B-BUS/ B-BUS-TO-A-BUS (A/B), and PARALLEL/SERIAL (P/S).

Data inputs include 16 bidirectional parallel data lines of which the eight A data lines are inputs (3-state outputs) and the B data lines are outputs (inputs) dependung on the signal level on the A/B input. In addition, an input for SERIAL DATA is also provided.

All register stages are D-type master-slave flip-flops with separate master and slave clock inputs generated internally to allow synchronous or asynchronous data transfer from master to slave.

• Operating Voltage Range: 3.0 to 18 V

• Maximum input current of 1 µA at 18 V over full package-

temperature range; 100 nA at 18 V and 25°C

• Noise margin (over full package temperature range):

1.0 V min @ 5.0 V supply

2.0 V min @ 10.0 V supply

2.5 V min @ 15.0 V supply

ORDERING INFORMATION

SL4034BD SOIC

TA = -55° to 125° C

for package

PIN ASSIGNMENT

LOGIC DIAGRAM

PIN 24=VCC

PIN 12= GND

SL4034B

System Logic

Semiconductor

SLS

MAXIMUM RATINGS*

Symbol Parameter Value Unit

VCC DC Supply Voltage (Referenced to GND) -0.5 to +20 V VIN DC Input Voltage (Referenced to GND) -0.5 to VCC +0.5 V

V

OUT

DC Output Voltage (Referenced to GND) -0.5 to VCC +0.5 V IIN DC Input Current, per Pin ±10 mA PD Power Dissipation in Still Air, Plastic DIP+

SOIC Package+

750 500

mW

PD Power Dissipation per Output Transistor 100 mW

Tstg Storage Temperature -65 to +150 °C

TL Lead Temperature, 1 mm from Case for 10 Seconds

(Plastic DIP or SOIC Package)

260 °C

*

Maximum Ratings are those values beyond which damage to the device may occur.

Functional operation should be restricted to the Recommended Operating Conditions. +Derating - Plastic DIP: - 10 mW/°C from 65° to 125°C

SOIC Package: : - 7 mW/°C from 65° to 125°C

RECOMMENDED OPERATING CONDITIONS

Symbol Parameter Min Max Unit

VCC DC Supply Voltage (Referenced to GND) 3.0 18 V

VIN, V

OUT

DC Input Voltage, Output Voltage (Referenced to GND) 0 VCC V

TA Operating Temperature, All Package Types -55 +125 °C

This device contains protection circuitry to guard against damage due to high static voltages or electric fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated voltages to this high-impedance circuit. For proper operation, VIN and V

OUT

should be constrained to the range

GND≤(VIN or V

OUT

)≤VCC.

Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC). Unused outputs must be left open.

SL4034B

System Logic

Semiconductor

SLS

DC ELECTRICAL CHARACTERISTICS(Voltages Referenced to GND)

VCC Guaranteed Limit

Symbol Parameter Test Conditions V ≥-55°C 25°C ≤125

°C

Unit

VIH Minimum High-Level

Input Voltage

V

OUT

= 0.5 V or V

CC

- 0.5V

V

OUT

= 1.0 V or V

CC

- 1.0 V

V

OUT

= 1.5 V V

CC

- 1.5V

5.0 10 15

3.5 7

11

3.5 7

11

3.5 7

11

V

VIL Maximum Low -Level

Input Voltage

V

OUT

= 0.5 V or V

CC

- 0.5V

V

OUT

= 1.0 V or V

CC

- 1.0 V

V

OUT

= 1.5 V V

CC

- 1.5V

5.0 10 15

1.5 3 4

V

VOH Minimum High-Level

Output Vol tage

VIN=GND or VCC 5.0

10 15

4.95

9.95

14.95

4.95

9.95

14.95

4.95

9.95

14.95

V

VOL Maximum Low -Level

Output Voltage

VIN=GND or VCC 5.0

10 15

0.05

V

IIN Maximum Input

Leakage Current

VIN= GND or VCC 18 ±0.1 ±0.1 ±1.0 µA

IOZ Minimum Three State

Leakage Current

Output in High-Impedance State VIN= GND or VCC V

OUT

= GND or VCC

18 ±0.4 ±0.4 ±12.0 µA

ICC Maximum Quiescent

Supply Current (per Package)

VIN= GND or VCC 5.0

10 15 20

5 10 20

100

5 10 20

100

150 300 600

3000

µA

IOL Minimum Output Low

(Sink) Current

VIN= GND or VCC UOL=0.4 V UOL=0.5 V UOL=1.5 V

5.0 10 15

0.64

1.6

4.2

0.51

1.3

3.4

0.36

0.9

2.4

mA

IOH Minimum Output High

(Source) Current

VIN= GND or VCC UOH=2.5 V UOH=4.6 V UOH=9.5 V UOH=13.5 V

5.0

5.0 10 15

-2

-0.64

-1.6

-4.2

-1.6

-0.51

-1.3

-3.4

-1.15

-0.36

-0.9

-2.4

mA

SL4034B

System Logic

Semiconductor

SLS

AC ELECTRICAL CHARACTERISTICS(C

L

=50pF, RL=200kΩ, Input tr=tf=20 ns)

VCC Guaranteed Limit

Symbol Parameter V ≥-55°C 25°C ≤125°C Unit

f

max

Maximum Clock Frequency (Figure 2) 5.0

10 15

2 5 7

1

2.5

3.5

MHz

t

PHL

, t

PLH

Maximum Propagation Delay, A(B) Parallel Data

In to B(A) Parallel Data Out; Serial to Parallel Data Out (Figures 1,2)

5.0 10 15

700 240 170

1400

480 340

ns

t

PLZ

, t

PHZ,

t

PZL

, t

PZH

Maximum Propagation Delay, A/B or AE to “A” Output (Figure 3)

5.0 10 15

400 160 120

800 320 240

ns

t

THL

, t

TLH

Maximum Output Transition Time, Any Output

(Figures 1,2)

5.0 10 15

200 100

80

200 100

80

400 200 160

ns

CIN Maximum Input Capacitance - 7.5 pF

TIMING REQUIREMENTS(C

L

=50pF, RL=200 kΩ, Input tr=tf=20 ns)

VCC Guaranteed Limit

Symbol Parameter V ≥-55°C 25°C ≤125°C Unit

tsu Minimum Setup Time, Serial Data to Clock

(Figure 4)

5.0 10 15

160

60 40

160

60 40

320 120

80

ns

tsu Minimum Setup Time, Parallel Data to Clock

(Figure 4)

5.0 10 15

50 30 20

100

60 40

ns

th Minimum Hold Time, Clock to Data (Figure 4) 5.0

10 15

50 15 10

100

30 20

ns

tw Minimum Pulse Width, AE, P/S, A/S

(Figure 5)

5.0 10 15

350 140

80

350 140

80

700 280 160

ns

tw Minimum Pulse Width, Clock (Figure 2) 5.0

10 15

250 100

70

250 100

70

500 200 140

ns

tr ,tf Minimum Input Rise or Fall Time, Clock (Figure

2)

5.0 10 15

15 15 15

30 30 30

ns

SL4034B

System Logic

Semiconductor

SLS

TRUTH TABLE FOR REGISTER INPUT-LEVELS AND RESULTING REGISTER

OPERATION

“A”

Enable P/S A/B A/S

Operation*

L L

L X Serial Mode; Synch. Serial Data Input, “A” Parallel Data Outputs Disabled

L L

H X Serial Mode, Synch. Serial Data Input, “B” Parallel Data Output

L H

L L Parallel Mode; “B” Synch. Parallel Data Inputs, “A” Parallel Data Outputs

Disabled

L H

L H Parallel Mode; “B” Asynch. Parallel Data Inputs, “A” Parallel Data Outputs

Disabled

L H

H L Parallel Mode; “A” Parallel Data Inputs Disabled, “B” Parallel Data Outputs,

Synch. Data Recirculation

L H

H H Parallel Mode; “A” Parallel Data Inputs Disabled, “B” Parallel Data Outputs,

Asynch. Data Recirculation

H L

L X Serial Mode; Synch. Serial Data Input, “A” Parallel Data Output

H L

H X Serial Mode; Synch. Serial Data Input, “B” Parallel Data Output

H H

L L Parallel Mode; “B” Synch. Parallel Data Input, “A” Parallel Data Output

H H

L H Parallel Mode; “B” Asynch. Parallel Data Input, “A” Parallel Data Output

H H

H L Parallel Mode; “A” Synch. Parallel Data Input, “B” Parallel Data Output

H H

H H Parallel Mode; “A” Asynch. Parallel Data Input, “B” Parallel Data Output

*

Outputs change at positive transition of clock in the serial mode and when the A/S control input is “low” in the parallel mode. During transfer from parallel to serial operation A/S should remain low in oder to prevent DS transfer into Flip Flops.

X = Don’t Care PARALLEL OPERATION

A high P/S input signal allows data transfer into the register via the parallel data lines synchronously with the positive transition of the clock provided the A/S input is low. If the A/S input is high the transfer is independent of the clock. The direction of data flow is controlled by the A/B input. When this signal is high the A data lines are inputs (and B data lines are outputs); a low A/B signal reverses the direction of data flow.

The AE input is an additional feature which allows many registers to feed data to a common bus. The A DATA lines are enabled only when this signal is high.

Data storage through recirculation of data in each register stage is accomplished by making the A/B signal high and the AE signal low.

SERIAL OPERATION

A low P/S signal allows serial data to transfer into the register synchronously with the positive transition of the clock. The A/S input is internally disabled when the register is in the serial mode (asynchronous serial operation is not allowed).

The serial data appears as output data on either the B lines (when A/B is high) or the A lines (when A/B is low and the AE signal is high).

SL4034B

System Logic

Semiconductor

SLS

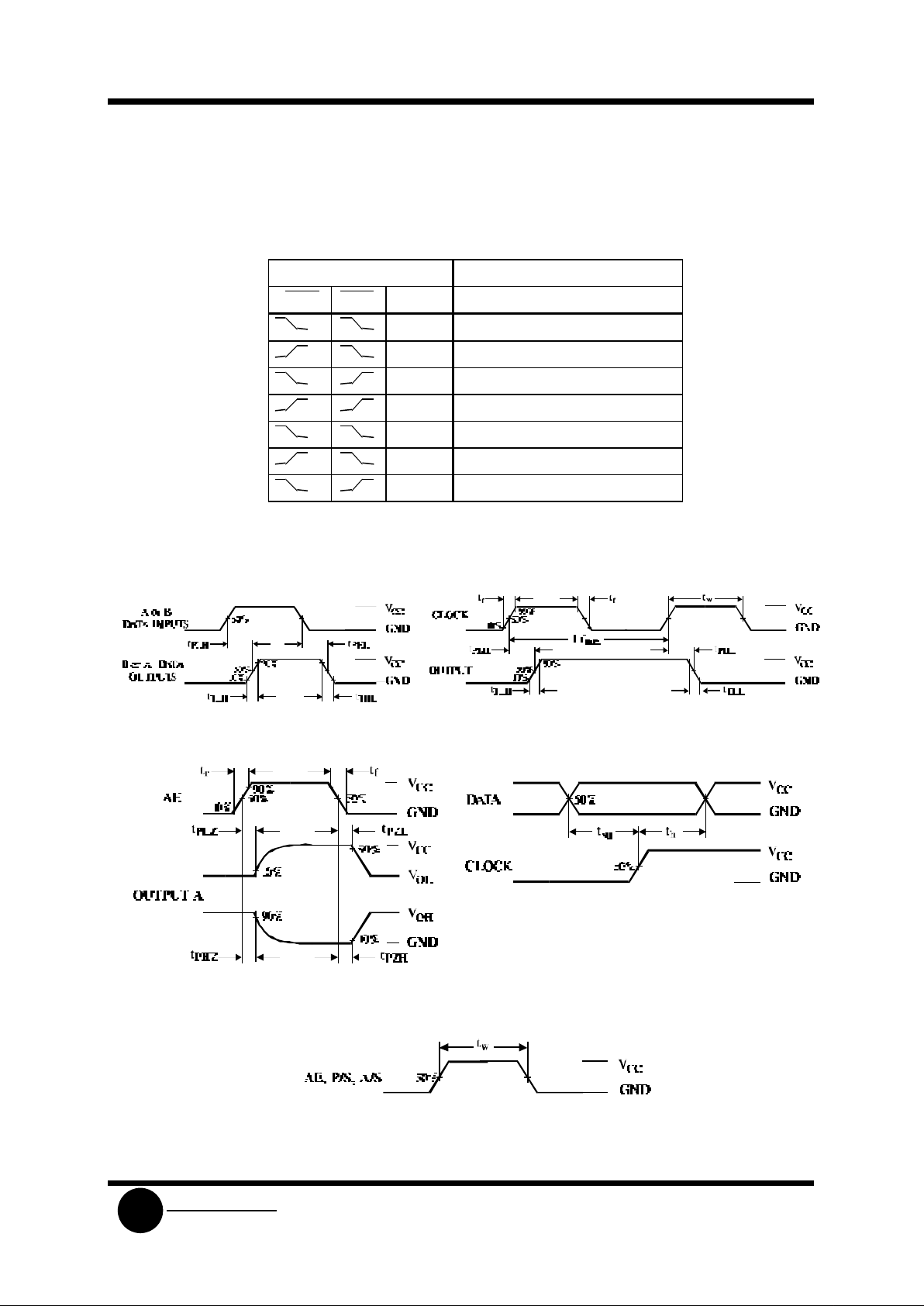

FLIP -FLOP TRUTH TABLE

Figure 1. Asynchronous operation Figure 2. Synchronous operation

Figure 3. Switching Waveforms Figure 4. Swit ching Waveforms

Figure 5. Switching Waveforms

Inputs Output

CLM CLS D Q

L L

L INVALID CONDITION X L H H H H H INVALID CONDITION

X = don’t care

SL4034B

System Logic

Semiconductor

SLS

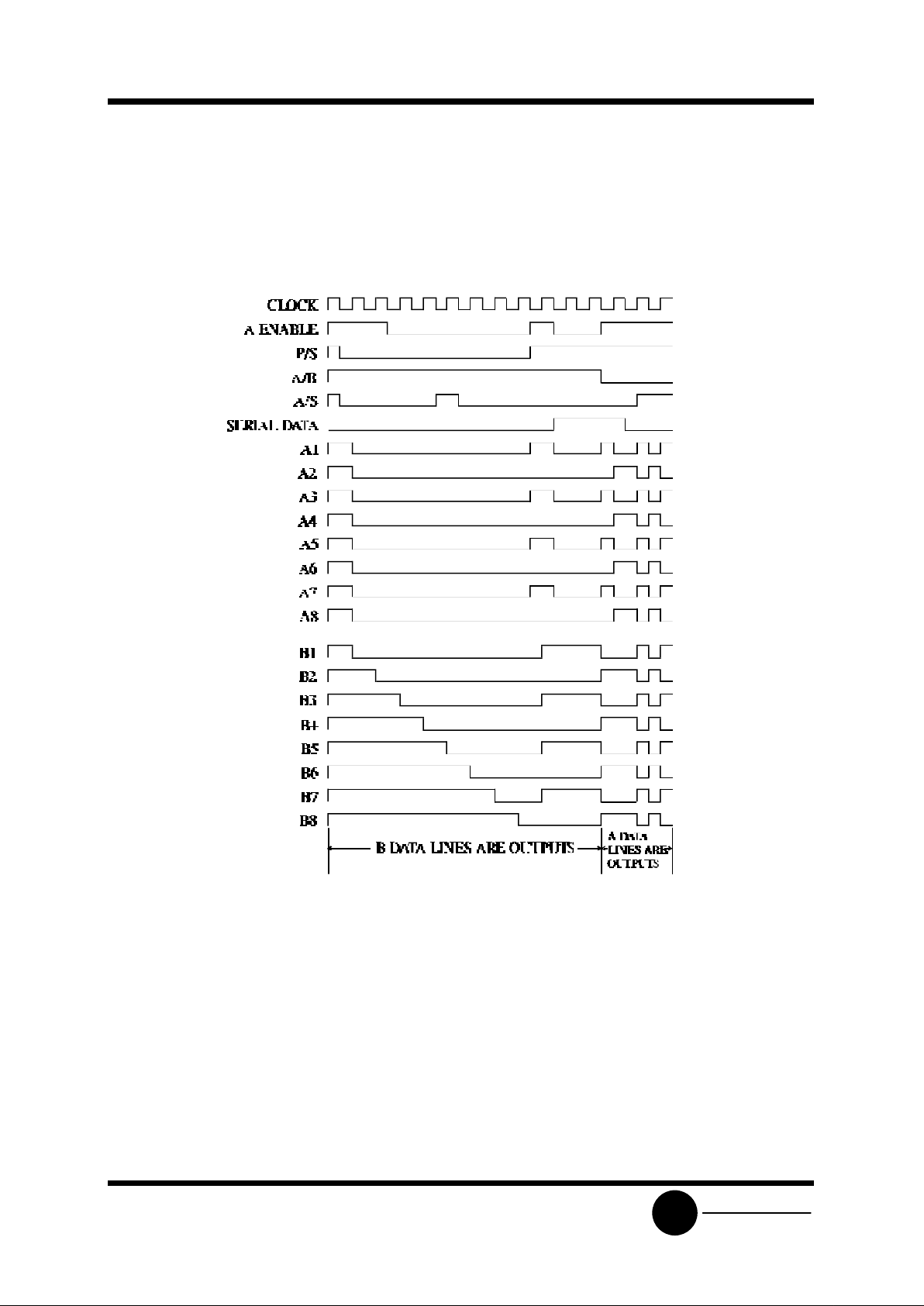

TIMING DIAGRAM

SL4034B

System Logic

Semiconductor

SLS

EXPANDED LOGIC DIAGRAM

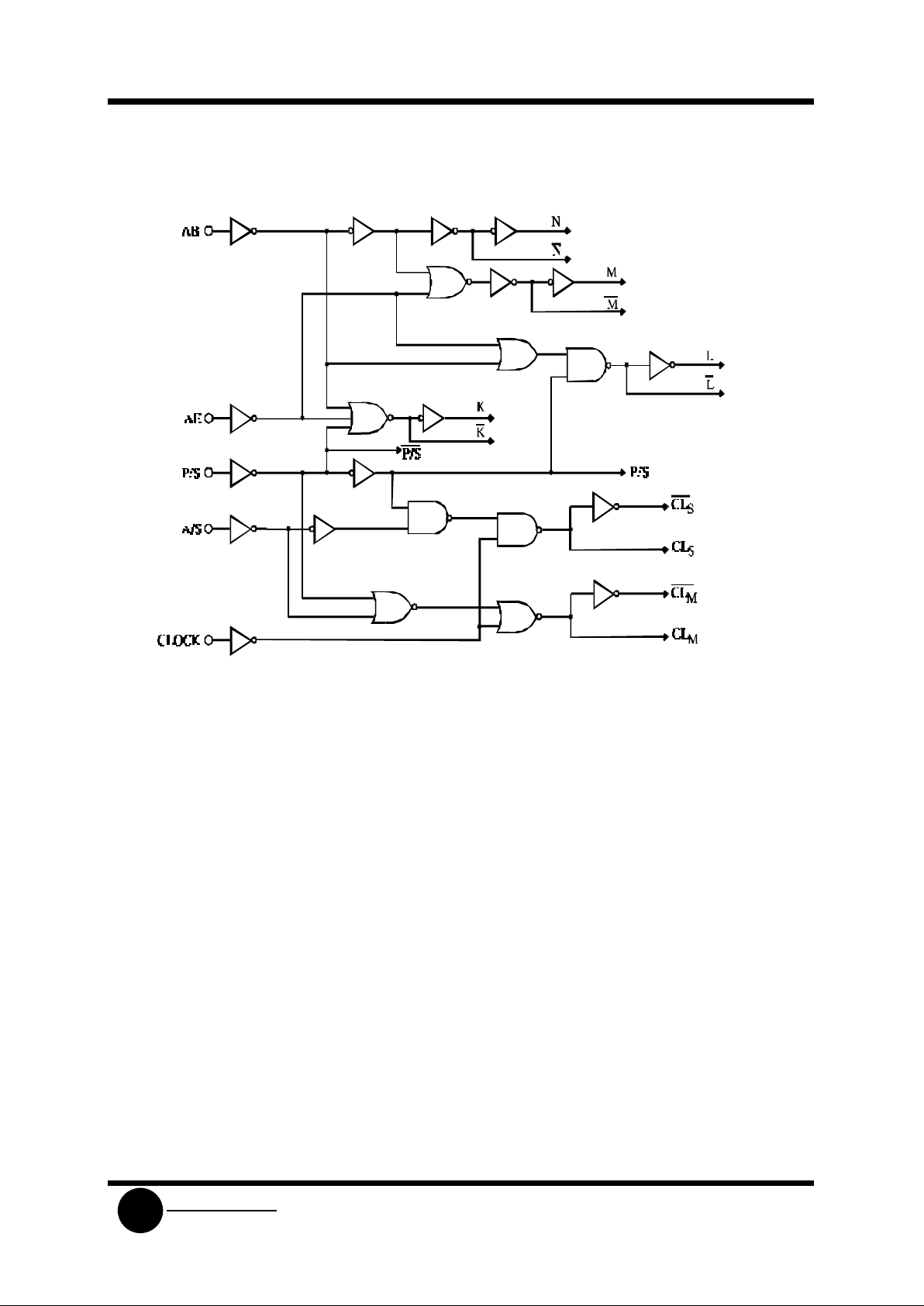

Steering logic diagram

SL4034B

System Logic

Semiconductor

SLS

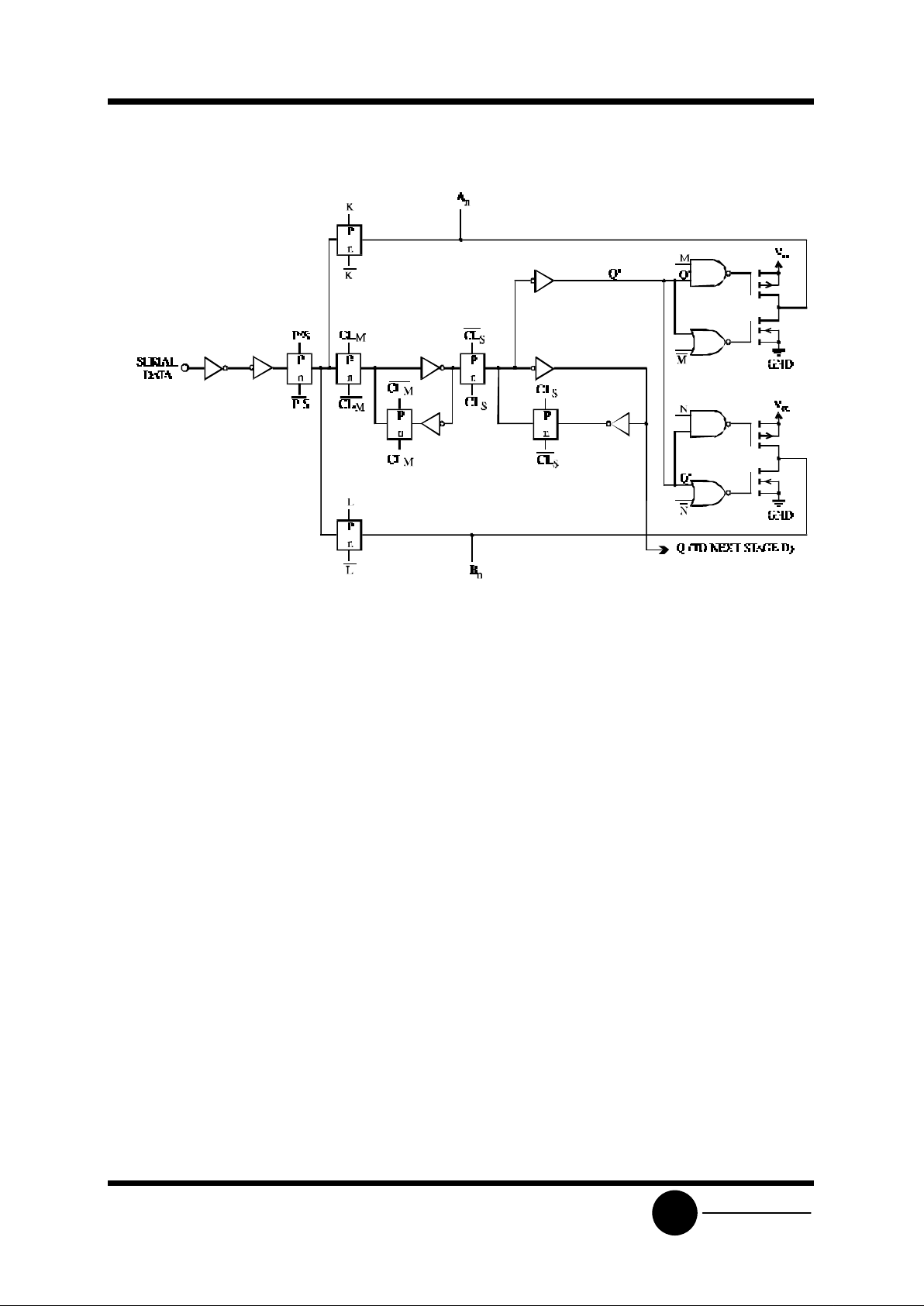

Register stage logic diagram (1/8 stages)
