SL393
System Logic
Semiconductor
SLS

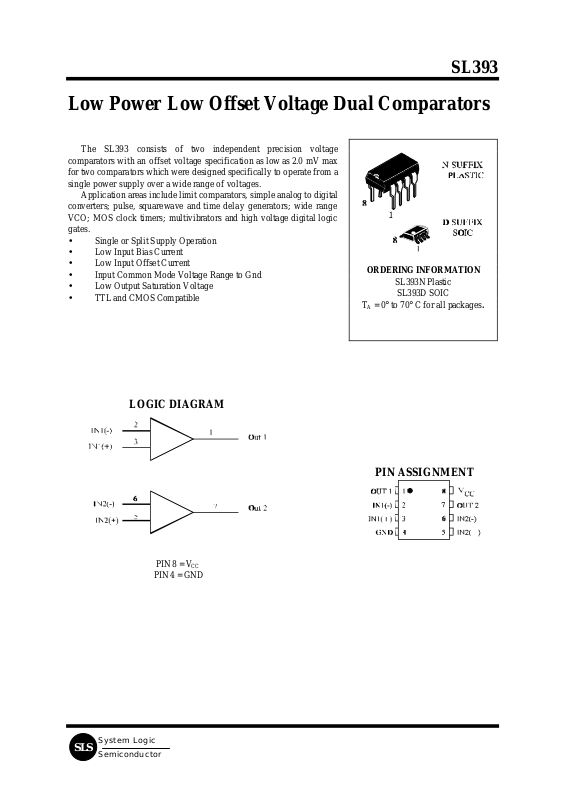

Low Power Low Offset Voltage Dual Comparators
The SL393 consists of two independent precision voltage
comparators with an offset voltage specification as low as 2.0 mV max
for two comparators which were designed specifically to operate from a
single power supply over a wide range of voltages.
Application areas include limit comparators, simple analog to digital
converters; pulse, squarewave and time dela y generators; wide range
VCO; MOS clock timers; multivibrators and high voltage digital logic
gates.
• Single or Split Supply Operation
• Low Input Bias Current
• Low Input Offset Current
• Input Common Mode Voltage Range to Gnd
• Low Output Saturation Voltage
• TTL and CMOS Compatible
ORDERING INFORMATION
SL393N Plastic
SL393D SOIC
TA = 0° to 70° C for all packages.

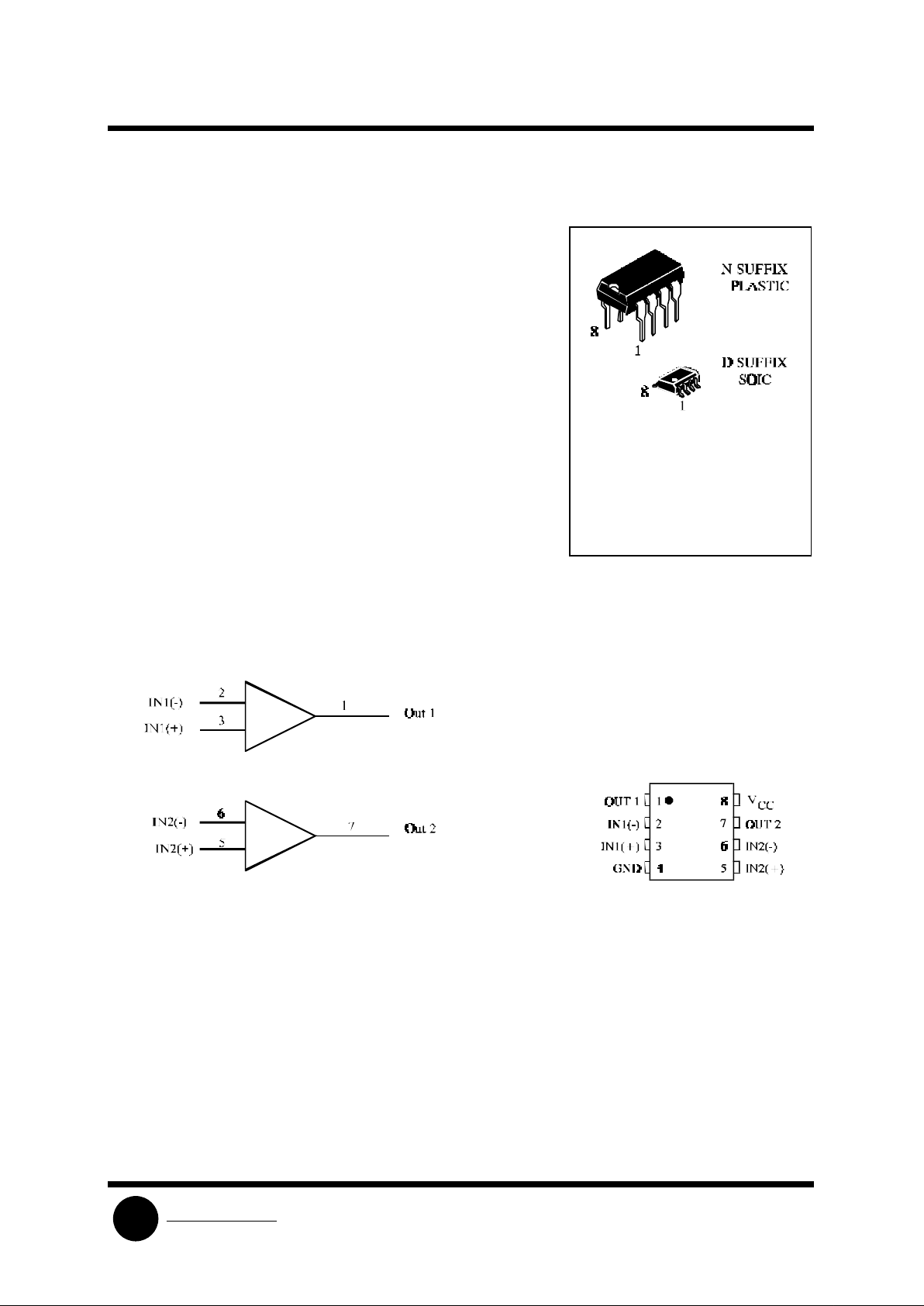

LOGIC DIAGRAM
PIN 8 = VCC
PIN 4 = GND
PIN ASSIGNMENT
Page 2
SL393
System Logic
Semiconductor
SLS
MAXIMUM RATINGS*
Symbol Parameter Value Unit
VCC Power Supply Voltages
Single Supply
Split Supplies
36
±18
V
V
IDR
Input Differential Voltage Range 36 V
V
ICR
Input Common Mode Voltage Range (1) -0.3 to VCC V
ISC Output Short Circuit to Ground Continuous
IIN Input Current, per pin (2) 50 mA
TJ Junction Temperature
Plastic Packages
150
°C
Tstg Storage Temperature -65 to +150 °C
TL Lead Temperature, 1mm from Case for 10 Seconds 260 °C
PD Power Dissipation @TA=25°C
Plastic Package
Derate above 25°C
570
5.7
µW
mW/°C
*
Maximum Ratings are those values beyond which damage to the device may occur.
Functional operation should be restricted to the Recommended Operating Conditions.
Notes:
1. Split Power Supplies.
2. VIN<-0.3V. This input current will only exist when voltage at any of the input leads is driven negative.
RECOMMENDED OPERATING CONDITIONS
Symbol Parameter Min Max Unit
VCC DC Supply Voltage ±2.5 or
5.0
±15 or
30
V
TA Operating Temperature, All Package Types 0 +70 °C
This device contains protection circuitry to guard against damage due to high static voltages or electric
fields. However, precautions must be taken to avoid applications of any voltage higher than maximum rated
voltages to this high-impedance circuit. For proper operation, VIN and V
OUT
should be constrained to the range
GND≤(VIN or V
OUT
)≤VCC.
Unused inputs must always be tied to an appropriate logic voltage level (e.g., either GND or VCC). Unused outputs
must be left open.
Page 3
SL393
System Logic
Semiconductor
SLS
DC ELECTRICAL CHARACTERISTICS(T
A
=0 to +70°C)
Guaranteed Limit
Symbol Parameter Test Conditions Min Typ Max Unit
VIO Input Offset Voltage V0=1.4V
VCC=5.0-30V;RS≤100Ω
V
ICR
=0V - (VCC-1.5)V
- 9.0 mV
IIB Input Bias Current V0=1.4V
VCC=5.0-30V
V
ICR
=0V - (VCC-1.5)V
- 400 nA
IIO Input Offset Current V0=1.4V
VCC=5.0-30V
V
ICR
=0V - (VCC-1.5)V
- ±150 nA
V
ICR
Input Common Mode
Voltage Range
VCC=5.0-30V 0 VCC-2.0V V
ICC Supply Current RL=∞,VCC=5.0
RL=∞,VCC=30V
-
-
1.0*
2.5*
mA
A
VOL
Voltage Gain VCC=15V, RL=15KΩ - 200* - V/mV
t1 Large Signal
Response Time
VIN=TTL Logic Swing,
V
ref
=1.4V, VCC=5.0V,
RL=5.1KΩ, VRL=5.0V
- 300* - ns
t2 Response Time
(Note 6)
VCC=5.0V, RL=5.1KΩ,
VRL=5.0V
- 1.3* - µs
I
sink
Output Sink Current VI(-)=1.0V, VI(+)=0V, V0≤1.5V,
VCC=5.0V
6.0* - - mA
V
sat
Saturation Voltage VI(-)=1.0V, VI(+)=0V,
I
sink
≤4.0mA, VCC=5.0V
- - 700 mV
IOL Output Leakage
Current
VI(+)=1.0V, VI(-)=0V, V0=5.0V
V0=30V
0.1*
1000
nA
V
IDR
Differential Input
Voltage Range
All VIN≥GND or V -Supply (if
used)
VCC V
*=@25°C
Page 4
SL393
System Logic
Semiconductor
SLS
TYPICAL PERFORMANCE CHARACTERISTICS
(VCC=1.5V, TA=+25°C, (each comporator))
Figure 1. Input Bias Current versus Power Supply
Voltage
Figure 2. Output Saturation Voltage versus Output
Sink Current
Figure 3. Output Saturation Voltage versus Output Sink Current
Figure 4. Power Supply Current versus Power Supply
Voltage
Figure 5. Power Supply Current versus Power Supply
Voltage
