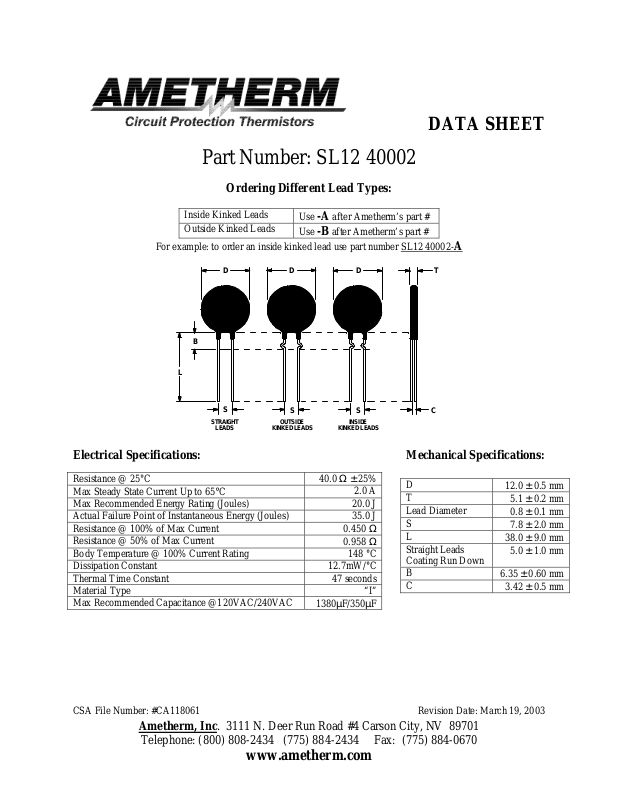

DATA SHEET

Part Number: SL12 40002

Ordering Different Lead Types:

Electrical Specifications: Mechanical Specifications:

Resistance @ 25°C
Max Steady State Current Up to 65°C

Max Recommended Energy Rating (Joules) 20.0 J
Actual Failure Point of Instantaneous Energy (Joules) 35.0 J
Resistance @ 100% of Max Current
Resistance @ 50% of Max Current
Body Temperature @ 100% Current Rating 148 °C
Dissipation Constant 12.7mW/°C
Thermal Time Constant 47 seconds
Material Type “I”
Max Recommended Capacitance @120VAC/240VAC

CSA File Number: #CA118061 Revision Date: March 19, 2003

Ametherm, Inc. 3111 N. Deer Run Road #4 Carson City, NV 89701

Telephone: [phone] [phone] Fax: [phone]

Inside Kinked Leads
Outside Kinked Leads

For example: to order an inside kinked lead use part number SL12 40002-A

D D D

B

L

S

STRAIGHT

LEADS

Use

-A after Ametherm’s part #

Use

-B after Ametherm’s part #

S S

OUTSIDE

KINKED LEADS

1380µF/350µF

INSIDE

KINKED LEADS

40.0 Ω ± 25%

2.0 A

0.450 Ω

0.958 Ω

T

C

D
T
Lead Diameter
S
L
Straight Leads

Coating Run Down
B
C

www.ametherm.com

12.0 ± 0.5 mm

5.1 ± 0.2 mm

0.8 ± 0.1 mm

7.8 ± 2.0 mm

38.0 ± 9.0 mm

5.0 ± 1.0 mm

6.35 ± 0.60 mm

3.42 ± 0.5 mm
