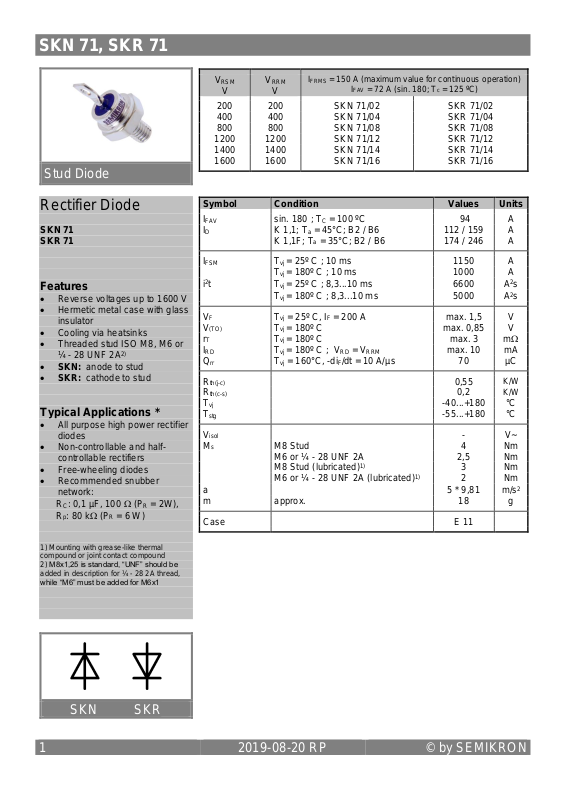

Page 1
SKN 71, SKR 71
1
2019-08-20 RP
© by SEMIKRON
Stud Diode
Rectifier Diode
SKN 71
SKR 71
Features
Reverse voltages up to 1600 V
Hermetic metal case with glass
insulator
Cooling via heatsinks
Threaded stud ISO M8, M6 or
¼ - 28 UNF 2A2)
SKN: anode to stud
SKR: cathode to stud
Typical Applications *
All purpose high power rectifier
diodes
Non-controllable and half-
controllable rectifiers
Free-wheeling diodes
Recommended snubber
network:
RC: 0,1 µF, 100 (PR = 2W),
Rp: 80 k (PR = 6 W)
1) Mounting with grease-like thermal
compound or joint contact compound
2) M8x1,25 is standard, “UNF” should be
added in description for ¼ - 28 2A thread,
while “M6” must be added for M6x1
SKN SKR
V
RSM
V
V
RRM
V
I
FRMS
= 150 A (maximum value for continuous operation)
I
FAV
= 72 A (sin. 180; Tc = 125 ºC)
200
200
SKN 71/02
SKR 71/02
400
400
SKN 71/04
SKR 71/04
800
800
SKN 71/08
SKR 71/08
1200
1200
SKN 71/12
SKR 71/12
1400
1400
SKN 71/14
SKR 71/14
1600
1600
SKN 71/16
SKR 71/16
Symbol
Condition
Values
Units
I
FAV
sin. 180 ; TC = 100 ºC
94
A
ID
K 1,1; Ta = 45°C; B2 / B6
112 / 159
A K 1,1F; Ta = 35°C; B2 / B6
174 / 246
A
I
FSM
T
vj
= 25º C ; 10 ms
1150
A T
vj
= 180º C ; 10 ms
1000
A
i2t T
vj
= 25º C ; 8,3...10 ms
6600
A2s
T
vj
= 180º C ; 8,3...10 ms
5000
A2s
VF
Tvj = 25º C, IF = 200 A
max. 1,5
V
V
(TO)
T
vj
= 180º C
max. 0,85
V
rT
T
vj
= 180º C
max. 3
m
IRD
T
vj
= 180º C ; VRD = V
RRM
max. 10
mA
Qrr
Tvj = 160°C, -diF/dt = 10 A/µs
70
µC
R
th(j-c)
0,55
K/W
R
th(c-s)
0,2
K/W
Tvj -40...+180
°C
T
stg
-55...+180
°C
V
isol
-
V~
Ms
M8 Stud
4
Nm
M6 or ¼ - 28 UNF 2A
2,5
Nm
M8 Stud (lubricated)1)
3
Nm
M6 or ¼ - 28 UNF 2A (lubricated)1)
2
Nm
a
5 * 9,81
m/s
2
m
approx.
18
g
Case E 11
Page 2
SKN 71, SKR 71
2
2019-08-20 RP
© by SEMIKRON
Fig. 1L Power dissipation vs. forward current
Fig. 2 Forward current vs. case temperature
Fig. 5 Forward characteristics
Fig. 1R Power dissipation vs. ambient temperature
Fig. 4 Transient thermal impedance vs. time
Fig. 6 Surge overload current vs. time
Page 3
SKN 71, SKR 71
3
2019-08-20 RP
© by SEMIKRON
Dimensions in mm
Case E11 (IEC 60191: A 16 U; A 17 MB 2; JEDEC: DO-203 AB)
