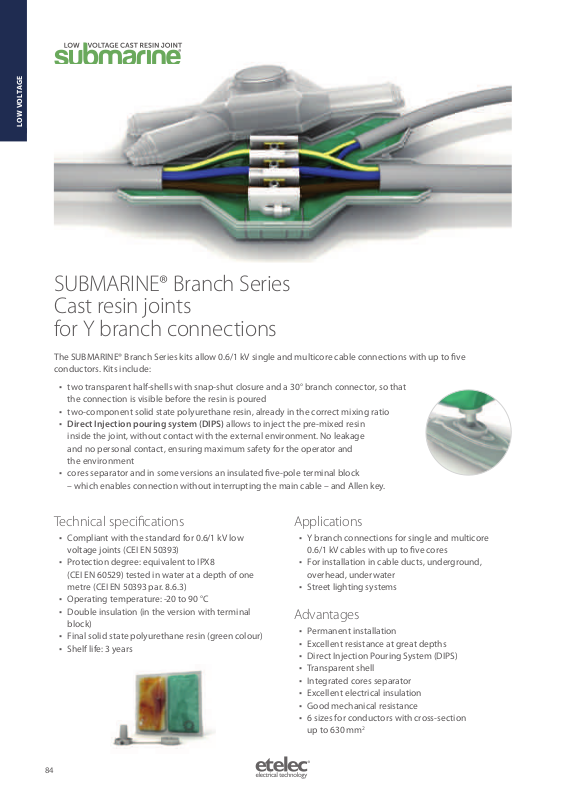

Page 1
LOW VOLTAGE
SUBMARINE® Branch Series
Cast resin joints
for Y branch connections
The SUBMARINE® Branch Series kits allow 0.6/1 kV single and multicore cable connections with up to ve
conductors. Kits include:
▪ two transparent half-shells with snap-shut closure and a 30° branch connector, so that
the connection is visible before the resin is poured
▪ two-component solid state polyurethane resin, already in the correct mixing ratio
▪ Direct Injection pouring system (DIPS) allows to inject the pre-mixed resin
inside the joint, without contact with the external environment. No leakage
and no personal contact, ensuring maximum safety for the operator and
the environment
▪ cores separator and in some versions an insulated ve-pole terminal block
– which enables connection without interrupting the main cable – and Allen key.
Technical specifications
▪ Compliant with the standard for 0.6/1 kV low
voltage joints (CEI EN 50393)
▪ Protection degree: equivalent to IPX8
(CEI EN 60529) tested in water at a depth of one
metre (CEI EN 50393 par. 8.6.3)
▪ Operating temperature: -20 to 90 °C
▪ Double insulation (in the version with terminal
block)
▪ Final solid state polyurethane resin (green colour)
▪ Shelf life: 3 years
84
Applications
▪ Y branch connections for single and multicore
0.6/1 kV cables with up to ve cores
▪ For installation in cable ducts, underground,
overhead, underwater
▪ Street lighting systems
Advantages
▪ Permanent installation
▪ Excellent resistance at great depths
▪ Direct Injection Pouring System (DIPS)
▪ Transparent shell
▪ Integrated cores separator
▪ Excellent electrical insulation
▪ Good mechanical resistance
▪ 6 sizes for conductors with cross-section
up to 630 mm
2
Page 2
SUBMARINE ® Branch Series · Resin joints
Y branch connections
SIZE CODE
SEPARATOR /
TERMINAL BLOCK
DIRECT
INJECTION
POURING
SYSTEM
NO.
MAX CORES
MAIN CABLE
DIAMETER
MINMAX
mm
BRANCH CABLE
DIAMETER
MINMAX
mm
0
SKB0
– –
7 – 23 7 – 23
1
SKB1
7 – 23 7 – 23
B10406
2
SKB2
12 – 27 12 – 27
B20416
3
SKB3
13 – 45 13 – 45
B30435
4 SKB4 35 – 51 17 – 33
5 SKB5
30 – 55 17 – 40
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints (page
70) are available in alternative
85
LOW VOLTAGE
Page 3
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
Kit contents
▪ Two transparent polypropylene half-shells - Size 1
▪ Cores separator
▪ Bag of two-component resin
▪ Insulating tape
▪ Latex protective gloves
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
7 – 23 7 – 23
1.5 1.5 50 50
1.5 1.5 10 10
1.5 1.5 6 6
[mm]
140
60 43
SKB0
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
NEW
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
0
86
LOW VOLTAGE
Page 4
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
B10406
Polyurethane resin joint
Branch connections - cables up to 5 cores
Insulated ve-pole terminal block included
SKB1
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
▪ Double insulation
▪ Connection without interrupting the main cable
Kit contents
▪ Two transparent polypropylene half-shells - Size 1
▪ Cores separator
▪ Bag of two-component resin with DIPS
▪ Insulating tape
▪ Latex protective gloves
Kit contents
▪ Same as SKB1 kit plus:
▪ Pre-assembled insulated ve-pole terminal block
with Allen key
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
7 – 23 7 – 23
4 4 70 70
4 2.5 16 16
4 2.5 6 6
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
7 – 23 7 – 23 4 2.5 6 6
[mm]
200
94 55
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
1
87
LOW VOLTAGE
Page 5
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
B20416
Polyurethane resin joint
Branch connections - cables up to 5 cores
Insulated ve-pole terminal block included
SKB2
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
▪ Double insulation
▪ Connection without interrupting the main cable
Kit contents
▪ Two transparent polypropylene half-shells - Size 2
▪ Cores separator
▪ Bag of two-component resin with DIPS
▪ Insulating tape
▪ Latex protective gloves
Kit contents
▪ Same as SKB2 kit plus:
▪ Pre-assembled insulated ve-pole terminal block
with Allen key
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
12 – 27 12 – 27
35 35 150 150
6 6 25 25
6 6 25 25
6 2.5 25 25
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
12 – 27 12 – 27 6
2.5 16 16
[mm]
240
113 68
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
2
88
LOW VOLTAGE
Page 6
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
B30435
Polyurethane resin joint
Branch connections - cables up to 5 cores
Insulated ve-pole terminal block included
SKB3
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
▪ Double insulation
▪ Connection without interrupting the main cable
Kit contents
▪ Two transparent polypropylene half-shells - Size 3
▪ Cores separator
▪ Bag of two-component resin with DIPS
▪ Insulating tape
▪ Latex protective gloves
Kit contents
▪ Same as SKB3 kit plus:
▪ Pre-assembled insulated ve-pole terminal block
with Allen key
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
13 – 45 13 – 45
50 50 400 400
25 25 15 0 15 0
25 25 12 0 12 0
25 25 95 95
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
13 – 45 13 – 45 10 2.5 35 35
[mm]
360
155 90
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
3
89
LOW VOLTAGE
Page 7
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
SKB4
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
Kit contents
▪ Two transparent polypropylene half-shells - Size 4
▪ Cores separator
▪ Bag of two-component resin with DIPS
▪ Insulating tape
▪ Latex protective gloves
Table of use
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
35 – 51 17 – 33
300 300 500 400
50 50 240 50
50 50 15 0 50
50 25 12 0 50
[mm]
298
128 128
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
4
90
LOW VOLTAGE
Page 8
Applications
▪ Underground installation
▪ Submersed installation
▪ Overhead installation
Advantages
▪ Excellent electrical insulation
▪ Watertight sealing of the connection
▪ Excellent protection against corrosion
▪ Excellent mechanical resistance
t Compliant with standard for 0.6/1 kV low voltage
joints (CEI EN 50393)
t Protection level: equivalent to IPX8 (CEI EN 60529) tested in
water at a depth of one metre (CEI 50393 par. 8.6.3)
t Final solid state polyurethane resin
t Operating temperature: -20 to 90 °C
t Shelf life: 3 years
t Cores separator included
SKB5
Polyurethane resin joint
Branch connections - cables up to 4 cores
Cores separator included
Kit contents
▪ Two transparent polypropylene half-shells - Size 5
▪ Cores separator
▪ Bag of two-component resin with DIPS
▪ Insulating tape
▪ Latex protective gloves
▪ Instructions
Table of use
Branch connections
Cores
Cable diameter
Ø (mm)
Conductor cross-section
(mm
2
)
min max
main branch
main
cable
branch
cable
main
cable
branch
cable
30 – 55 17 – 40
300 300 630 400
120 120 300 12 0
70 70 185 95
50 50 185 70
[mm]
430
130 130
Re-enterable, reusable,
and eco-friendly silicone resin
Resil Joint RJB Series joints
(page 70) available in alternative
5
91
LOW VOLTAGE
Loading...
