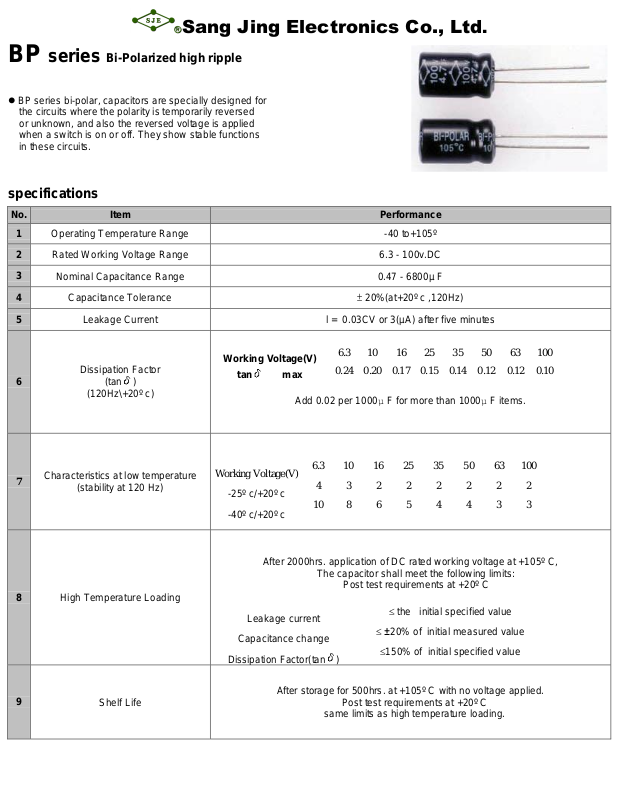

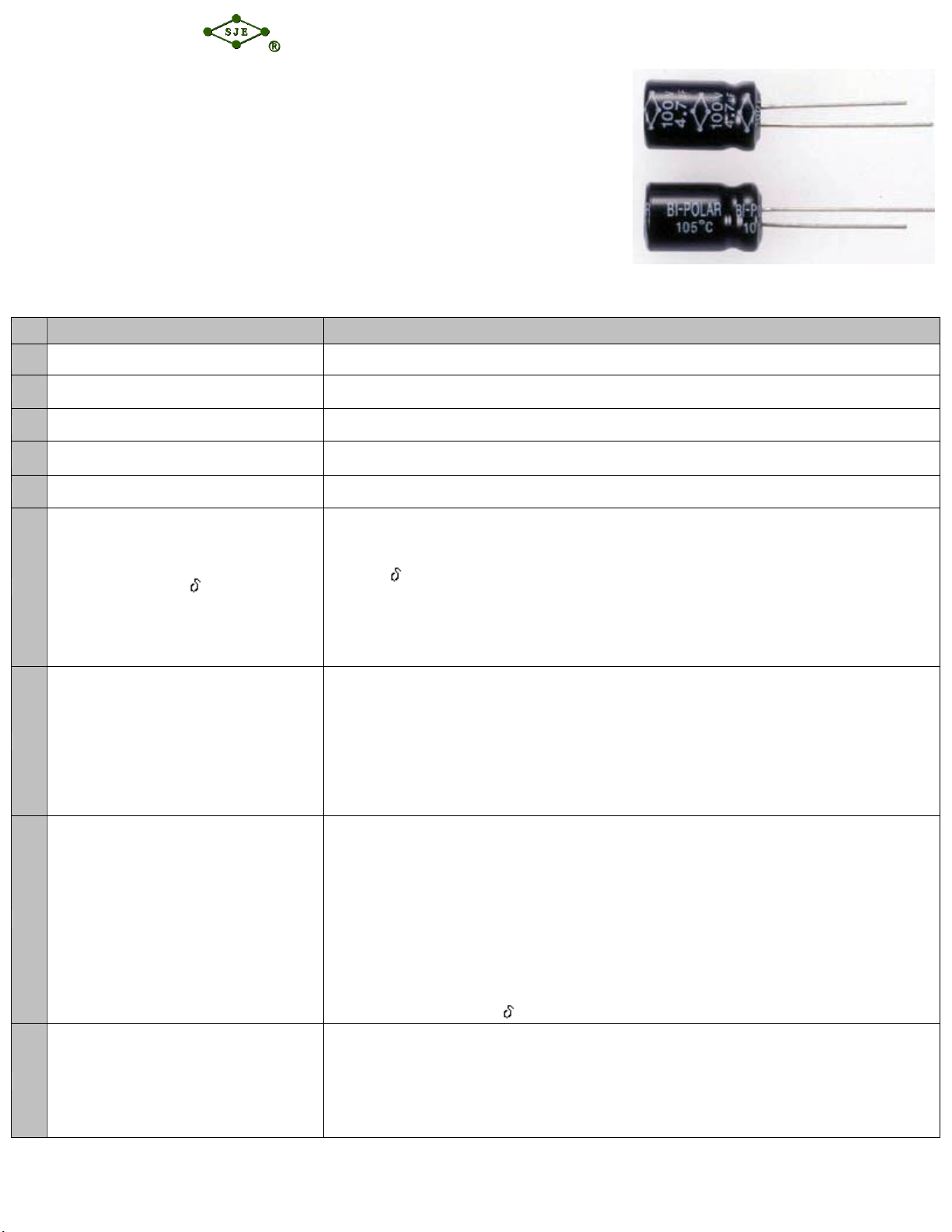

Sang Jing Electronics Co., Ltd.
BP series Bi-Polarized high ripple
BP series bi-polar, capacitors are specially designed for
the circuits where the polarity is temporarily reversed
or unknown, and also the reversed voltage is applied
when a switch is on or off. They show stable functions
in these circuits.
specifications
No.
Item
Performance
1
Operating Temperature Range
-40 to+105º
2
Rated Working Voltage Range
6.3 - 100v.DC
3
Nominal Capacitance Range
0.47 - 6800µ F
4
Capacitance Tolerance
± 20%(at+20º c ,120Hz)
5
Leakage Current
l = 0.03CV or 3(µA) after five minutes
6
Dissipation Factor
(tan )
(120Hz\+20º c)
Working Voltage(V)
6.3
10
16
25
35
50
63
100
tan max
0.24
0.20
0.17
0.15
0.14
0.12
0.12
0.10
Add 0.02 per 1000µ F for more than 1000µ F items.
7
Characteristics at low temperature
(stability at 120 Hz)
Working Voltage(V)
6.3
10
16
25
35
50
63
100
-25º c/+20º c
4 3 2 2 2 2 2
2
-40º c/+20º c
10 8 6 5 4 4 3
3
8
High Temperature Loading
After 2000hrs. application of DC rated working voltage at +105º C,
The capacitor shall meet the following limits:
Post test requirements at +20º C
Leakage current
the initial specified value
Capacitance change
±20% of initial measured value
Dissipation Factor(tan )
150% of initial specified value
9
Shelf Life
After storage for 500hrs. at +105º C with no voltage applied.
Post test requirements at +20º C
same limits as high temperature loading.
Page 2
BP series Bi-Polarized high ripple

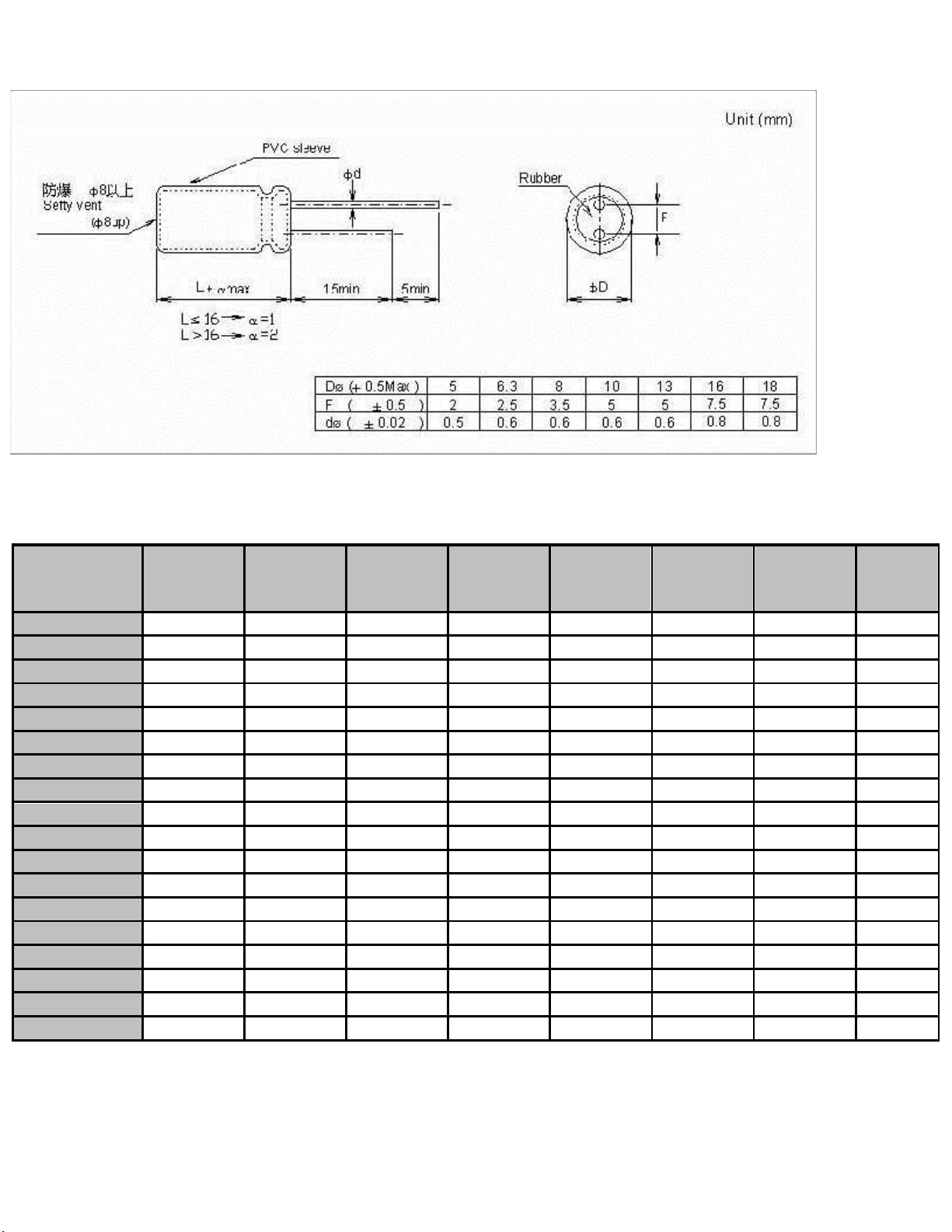

Diagram of Dimensions
Case Size Table øD x L(mm)
W.V.(SV)
µ F
6.3
(8)
10
(13)
16
(20)
25
(32)
35
(44)
50
(63)
63
(79)
100
(125)
0.47
---
---
---
---
---
5 X 11
---
5 X 11
1.0
---
---
---
---
---
5 X 11
---
5 X 11
2.2
---
---
---
---
---
5 X 11
5 X 11
6.3 X 11
3.3
---
---
---
---
---
5 X 11
5 X 11
6.3 X 11
4.7
---
---
---
5 X 11
5 X 11
5 X 11
6.3 X 11
6.3 X 11
10
---
---
5 X 11
5 X 11
5 X 11
6.3 X 11
6.3 X 11
8 X 11
22
---
5 X 11
5 X 11
6.3 X 11
6.3 X 11
8 X 11
8 X 11
10 X 16
33
5 X 11
5 X 11
5 X 11
6.3 X 11
8 X 11
8 X 11
10 X 13
13 X 21
47
5 X 11
5 X 11
6.3 X 11
6.3 X 11
8 X 11
10 X 13
10 X 16
13 X 21
100
6.3 X 11
6.3 X 11
8 X 11
8 X 11
10 X 16
10 X 21
13 X 21
16 X 26
220
8 X 11
8 X 11
10 X 13
10 X 16
13 X 21
13 X 26
16 X 26
18 X 36
330
8 X 11
10 X 16
10 X 16
13 X 21
13 X 21
16 X 26
16 X 32
---
470
10 X 13
10 X 16
10 X 21
13 X 21
13 X 26
16 X 32
18 X 36
---
1,000
10 X 21
13 X 21
13 X 26
16 X 26
16 X 32
---
---
---
2,200
13 X 26
16 X 26
16 X 32
18 X 36
---
---
---
---
3,300
16 X 26
16 X 32
18 X 36
---
---
---
---
---
4,700
16 X 32
18 X 36
---
---
---
---
---
---
6,800
18 X 36
---
---
---
---
---
---
---
