Datasheet Single Output UWR Datasheet (C&D Technologies)

COMMON

+V

OUT

+V

(1

)

(2

)

(4

)

(6)

(7)

(8

)

IN

–V

IN

ON/OFF

CONTRO

L

+V

OUT

TRIM

REFERENCE

&

ERROR AMP

OPTO

ISOLATIO

N

PW

M

CONTROLLER

P O W E R E L E C T R O N I C S D I V I S I O N

Single Output

A-Series, UWR Models

High-Reliability, 2" x 2"

For full details go to

www.cd4power.com/rohs

Features

• Low cost! Highly reliable!

• Proven SMT-on-pcb construction

• Qual tested; HALT tested; EMC tested

• Designed to meet UL/ EN60950,

BASIC insulation (D48A models)

• mark available (48VIN models)

• Output voltages: 3.3/5/5.2/12/15 Volts

• Ultra-wide input voltage ranges:

4.7-7.5V, 9-36V or 18-75V

• Small packages, 2" x 2" x 0.45"

• Industry-standard pinouts

• Fully isolated, 1500Vdc guaranteed

• Guaranteed efficiencies to 84%

• –40 to +100°C operating temperature

• Modifications and customs for OEM’s

14-20 Watt, DC/DC Converters

DATEL's new A-Series switching DC/DC converters are designed to meet
the demanding long-term-reliability and low-cost requirements of modern telecom,
datacom, computer/networking and industrial-electronics applications. These highly­efficient, rugged devices combine straightforward circuit topologies, new components,
proven SMT-on-pcb construction methods, and highly repeatable automatic-assembly
techniques. The flexibility of the designs and their assembly methods readily permit
minor modifications to optimize performance for specific applications.

The single-output, 14-20 Watt Models of the A-Series deliver both high power
densities and impressive MTBF’s. Their superior durability is substantiated by a
rigorous in-house qualification program including HALT (Highly Accelerated Life Test
ing), which is designed to detect any potential electrical, mechanical, or process
weaknesses.

Packaged in standard, 2" x 2" x 0.45", shielded metal cases with non-conductive
coatings, these fully isolated (1500Vdc minimum) DC/DC’s offer excellent line/load
regulation, full I/O protection, thermal shutdown, and industry-standard pinouts.

Output voltages include 3.3, 5, 5.2, 12 or 15 Volts. Input voltage ranges are
DATEL's traditional ultra-wide 9-36V and 18-75V, as well as 4.7-7.5V. Each device
provides remote on/off control and V

OUT trim capability. All A-Series UWR models are

fully EMI characterized and UL1950, CSA 950 and IEC 950 safety approved.

A-Series DC/DC’s are extremely reliable, easy-to-use, cost-effective power con
verters. Use them to improve the reliability of existing equipment or to develop
new systems that exceed design objectives.

-

-

www.cd4power.comwww.cd4power.com

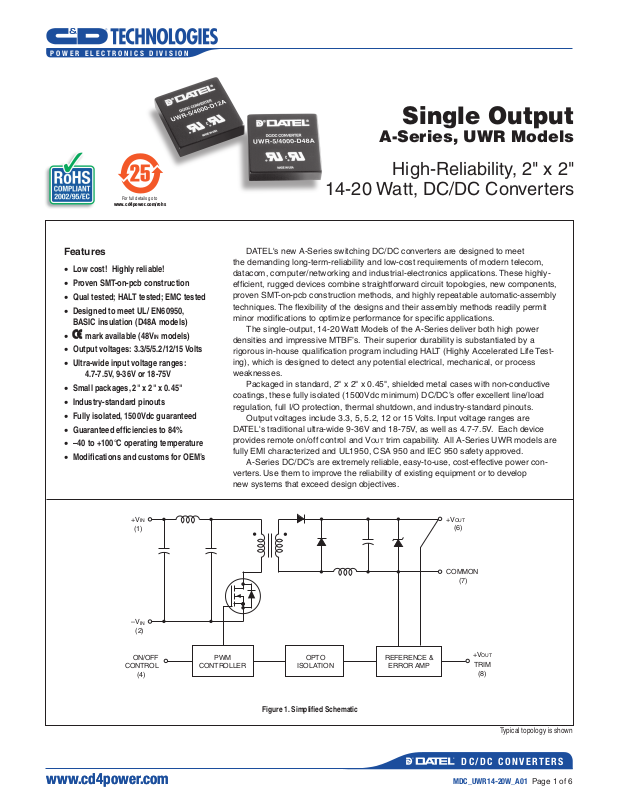

Figure 1. Simplified Schematic

Typical topology is shown

D C / D C C O N V E R T E R S

MDC_UWR14-20W_A01 Page 1 of 6

UWR Models

BOTTOM VIEW

1.80

0

(45.72

)

0.10

(2.54)

2.00

(50.80

)

8

5

6

7

0.40

(10.16

)

0.200
(5

.08)

0.40

0

(10.16

)

0.10

0

(2

.54)

1

2

4

METAL CASE

INSULATED BA

S

E

0.040 ±0.002 DIA.
(1.016 ±0.051

)

2.00

(50.80

)

0.20 MI

N

(5

.08)

0.45

(11.43

)

1.200

(30.48

)

3 EQ. SP. @

0.400 (10.16

)

DIMENSIONS ARE IN INCHES (MM)

Output Power (Watts)

Ambient Temperature (°C)

20

18

16

14

12

10

8

6

4

2

0

UWR-3.3/4250-D5A F
UWR-3.3/4850-D12A

A

UWR-3.3/4850-D48A

A

UWR-5/3000-D5A

E

UWR-5/4000-D12A

C

UWR-5/4000-D48A

B

UWR-5/4000-D48E

G

UWR-5.2/3000-D5A

D

UWR-12/1250-D5A

E

UWR-12/1650-D12A

C

UWR-12/1650-D48A

B

UWR-15/1000-D5A

E

UWR-15/1300-D12A

C

UWR-15/1300-D48A

B

–40 0 40 45 50 55 60 65 70 75 80 85 90 95 100

A

AA

BB, G

C

F

E

D

D, E, F

B

BB

G

P O W E R E L E C T R O N I C S D I V I S I O N

Performance Specifications and Ordering Guide

VOUT

(Volts)

UWR-3.3/4250-D5A 3.3 4250 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3720 76% 77% C4, P6

UWR-3.3/4850-D12A 3.3 4850 50 75 ±0.5% ±1.0% 24 9-36 35/852 77% 79% C4, P6

UWR-3.3/4850-D48A 3.3 4850 50 100 ±1.0% ±1.0% 48 18-75 15/419 79% 80% C4, P6

UWR-5/3000-D5A 5 3000 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3800 78% 79% C4, P6

UWR-5/4000-D12A 5 4000 50 100 ±0.3% ±0.5% 24 9-36 15/1020 81% 82% C4, P6

UWR-5/4000-D48A 5 4000 50 100 ±0.3% ±0.5% 48 18-75 15/496 82% 84% C4, P6

UWR-5/4000-D48E ➄ 5 4000 50 100 ±0.3% ±0.5% 48 36-72 15/484 84% 86% C4, P6

UWR-5.2/3000-D5A 5.2 3000 50 100 ±1.0% ±1.0% 5 4.7-7.5 80/3900 79% 80% C4, P6

UWR-12/1250-D5A 12 1250 75 120 ±1.0% ±1.0% 5 4.7-7.5 80/3660 80% 82% C4, P6

UWR-12/1650-D12A 12 1650 50 100 ±0.3% ±0.5% 24 9-36 15/1000 79.5% 82.5% C4, P6

UWR-12/1650-D48A 12 1650 75 100 ±0.3% ±0.5% 48 18-75 15/491 84% 85% C4, P6

UWR-15/1000-D5A 15 1000 75 150 ±1.0% ±1.0% 5 4.7-7.5 80/3660 80% 82% C4, P6

UWR-15/1300-D12A 15 1300 50 100 ±0.3% ±0.5% 24 9-36 20/967 84% 85% C4, P6

UWR-15/1300-D48A 15 1300 75 100 ±0.3% ±0.5% 48 18-75 10/484 84% 86% C4, P6

➀ Typical at TA = +25°C under nominal line voltage and full-load conditions unless otherwise noted.
➁ Ripple/Noise (R/N) measured over a 20MHz bandwidth.
➂ 10% to 100% load.

IOUT

(mA)

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

➀

Output

R/N (mVp-p) ➁

Typ.

Max.

Regulation (Max.)

Line

Load ➂

➃ Nominal line voltage, no-load/full-load conditions.

➄ See Technical Notes for an explanation of trading off input voltage ranges for higher full-power

operating temperature.
➅ These are not complete part numbers. Please see the Part Number Structure.

VIN Nom.

(Volts)

Input

Range
(Volts)Root Model ➅

IIN ➃

(mA)

Efficiency

Min.

Typ.

Package

(Case,

Pinout)

P A R T N U M B E R S T R U C T U R E

/

5U WR 4000 D12 A-

-

Output Configuration:
U = Unipolar

Wide Range Input

Input Voltage Range:

Nominal Output Voltage:

3.3, 5, 12 or 15 Volts

Maximum Output Current

in mA

D5 = 4.7-7.5 Volts (5V nominal)
D12 = 9-36 Volts (24V nominal)
D48 = 18-75/36-72 Volts (48V nominal)

* Contact C&D Technologies (Datel)

for availability.

T E M P E R A T U R E D E R A T I N G

1. UWR-3.3/4850-D48A (18-75V input, curve A) and UWR-3.3/4850-D12A (9-36V input, curve A)
will derate curve AA if used over the limited input ranges of 20-60V or 10-30V, respectively.

2. "D48A" models (18-75V input ranges) that derate along curve B will derate along curve BB
if used over the more limited input range of 24-60V.

www.cd4power.comwww.cd4power.com

-

A-Series

High Reliability

C

RoHS-6 compliant*

M E C H A N I C A L S P E C I F I C A T I O N S

I/O Connections

Pin Function P6

1 +Input

2 –Input

3 No Pin

4 On/Off Control

5 No Pin

6 +Output

7 Common

8 Trim

Case C4

Notes:

For "D5A" and "D12A" models,
the case is connected to
pin 2 (–VIN).

For "D48A" and "D48E" models, the case
is connected to pin 1 (+VIN).

D C / D C C O N V E R T E R S

MDC_UWR14-20W_A01 Page 2 of 6

P O W E R E L E C T R O N I C S D I V I S I O N

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

Performance/Functional Specifications

Typical @ TA = +25°C under nominal line voltage and full-load conditions, unless noted. ➀

UWR Models

Input

Input Voltage Range:

D5A Models 4.7-7.5 Volts (5V nominal)
D12A Models 9-36 Volts (24V nominal)
D48A/D48E Models 18-75/36-72 Volts (48V nominal)

Input Current See Ordering Guide

Input Filter Type

Overvoltage Shutdown:

D5A Models 10 Volts
D12A Models 40 Volts
D48A and /D48E Models 80 Volts

Reverse-Polarity Protection Yes (Instantaneous, 10A maximum)

On/Off (Sync.) Control

VOUT Accuracy (50% load) ±1%, maximum

Temperature Coefficient ±0.02% per °C

Ripple/Noise (20MHz BW) ➁ See Ordering Guide

Line/Load Regulation See Ordering Guide

Efficiency See Ordering Guide

Isolation Voltage

Isolation Capacitance 550pF

Current Limiting Auto-recovery

Overvoltage Protection Zener/transorb clamp, magnetic feedback

Transient Response (50% load step) 200µsec max. to ±1.5% of final value

Switching Frequency 165kHz (±15kHz)

Operating Temperature (Ambient):

Without Derating –40 to +40/50/55/65°C (Model dependent)
With Derating to +100°C (See Derating Curves)

Store Temperature -40 to +105°C

Flammability UL94V-0

Dimensions 2" x 2" x 0.45" (51 x 51 x 11.4mm)

Shielding 5-sided

Case Connection:
D5A, D12A Models Pin 2 (–VIN)

D48A, D48E Models Pin 1 (+V

Case Material Corrosion resistant steel with
non-conductive, epoxy-based, black
enamel finish and plastic baseplate

Pin Material RoHS: Gold-plated copper alloy
Non-RoHS: Tin over copper alloy

Weight 2.7 ounces (76.5 grams)

➀ These converters require a minimum 10% loading to maintain specified regulation. Operation
under no-load conditions will not damage these devices; however they may not meet all listed
specifications.
➁ Application-specific internal input/output filtering can be recommended and perhaps added
internally upon request. Contact DATEL Applications Engineering for details.
➂ Applying a voltage to the Control pin when no input power is applied to the converter
can cause permanent damage to the converter.
➃ "D48A" models have BASIC, all other models have Functional insulation.
Devices can be screened or modified for higher guaranteed isolation voltages.
Contact DATEL Applications Engineering for details.

➄ Except for 3.3V outputs which have no protection.

➁ Pi (C-type for D5A models)

(Pin 4) ➂ TTL high = off, low (or open) = on

Output

➃ 1500Vdc guaranteed

Dynamic Characteristics

Environmental

Physical

IN)

Absolute Maximum Ratings

Input Voltage:

"D5A" Models 11 Volts
"D12A" Models 44 Volts
"D48A" and "D48E" Models 88 Volts

Input Reverse-Polarity Protection Current must be <10A. Brief
duration only. Fusing recommended.

Output Overvoltage Protection:

3.3V Outputs No protection
5V/5.2V Outputs 6.8 Volts, limited duration
12V Outputs 15 Volts, limited duration
15V Outputs 18 Volts, limited duration

Output Current Current limited. Max. current and
short-circuit duration are model
dependent

Storage Temperature –40 to +105°C

Lead Temperature (soldering, 10 sec.) +300°C

These are stress ratings. Exposure of devices to any of these conditions may adversely
affect long-term reliability. Proper operation under conditions other than those listed in the
Performance/Functional Specifications Table is not implied.

T E C H N I C A L N O T E S

Floating Outputs

Since these are isolated DC/DC converters, their outputs are "floating."
Users may ground either the Common (pin 7) for normal usage or the
positive side (+Output, pin 6) to effectively reverse the output polarity.

Filtering and Noise Reduction

All A-Series UWR 14-20 Watt DC/DC Converters achieve their rated ripple
and noise specifications without the use of external input/output capacitors.
In critical applications, input/output noise may be further reduced by installing
electrolytic capacitors across the input terminals and/or low-ESR tantalum
or electrolytic capacitors across the output terminals. The caps should be
located as close to the power converters as possible. Typical values are
listed below. In many applications, using values greater than those listed
will yield better results.

To Reduce Input Ripple

D5A Models 47µF, 16V
D12A Models 20µF, 50V
D48A Models 20-50µF, 100V

To Reduce Output Ripple

3.3V Outputs 100µF, 6V, Low ESR
5V/5.2V Outputs 47µF, 10V, Low ESR
12/15V Outputs 22µF, 20V, Low ESR

In critical, space-sensitive applications, DATEL may be able to tailor the
internal input/output filtering of these units to meet your specific require

-

ments. Contact our Applications Engineering Group for additional details.

www.cd4power.comwww.cd4power.com

D C / D C C O N V E R T E R S

MDC_UWR14-20W_A01 Page 3 of 6

P O W E R E L E C T R O N I C S D I V I S I O N

1

2

7

8

6

+INPUT

–INPUT

+OUTPUT

COMMON

TRIM

LOAD

20k

Ω

5-10
TURNS

1

2

7

8

6

+INPUT

–INPUT

+OUTPUT

COMMON

TRIM

Trim
Down

Trim Up

LOAD

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

Input Fusing

Certain applications and/or safety agencies may require the installation of
fuses at the inputs of power conversion components. For DATEL A-Series
UWR 14-20 Watt DC/DC Converters, you should use slow-blow type fuses
with values no greater than the following:

VIN Range Fuse Value
D5A 6A
D12A 4A
D48A/D48E 2A

On/Off Control

The On/Off Control pin (pin 4) may be used for remote on/off operation. A
TTL logic high (+2 to +5 Volts, 250µA max.) applied to pin 4 disables the
converter. A TTL logic low (0 to +0.8 Volts, 70µA max.), or no connection,
enables the converter. Control voltages should be referenced to pin 2
(–Input). Applying a voltage to the Control pin when no input power is applied
to the converter can cause permanent damage to the converter.

Synchronization

In critical applications employing multiple switching DC/DC converters, it may
be desirable to intentionally synchronize the switching of selected converters
(so the system noise can be reduced with notch filtering) or to purposely
desynchronize the converters (to lessen the current-carrying requirements on
intermediate dc buses). For multiple A-Series Converters, an external clock
can be applied to pin 4 (Control) of each device. It should be a square wave
with a maximum 1µsec "high" duration and an amplitude between +2V and
+5V (see On/Off Control) referenced to pin 2 (–Input). The frequency of the
synchronizing clock should be higher than that of any individual converter.
Therefore, it should be 185kHz ±5kHz.

UWR Models

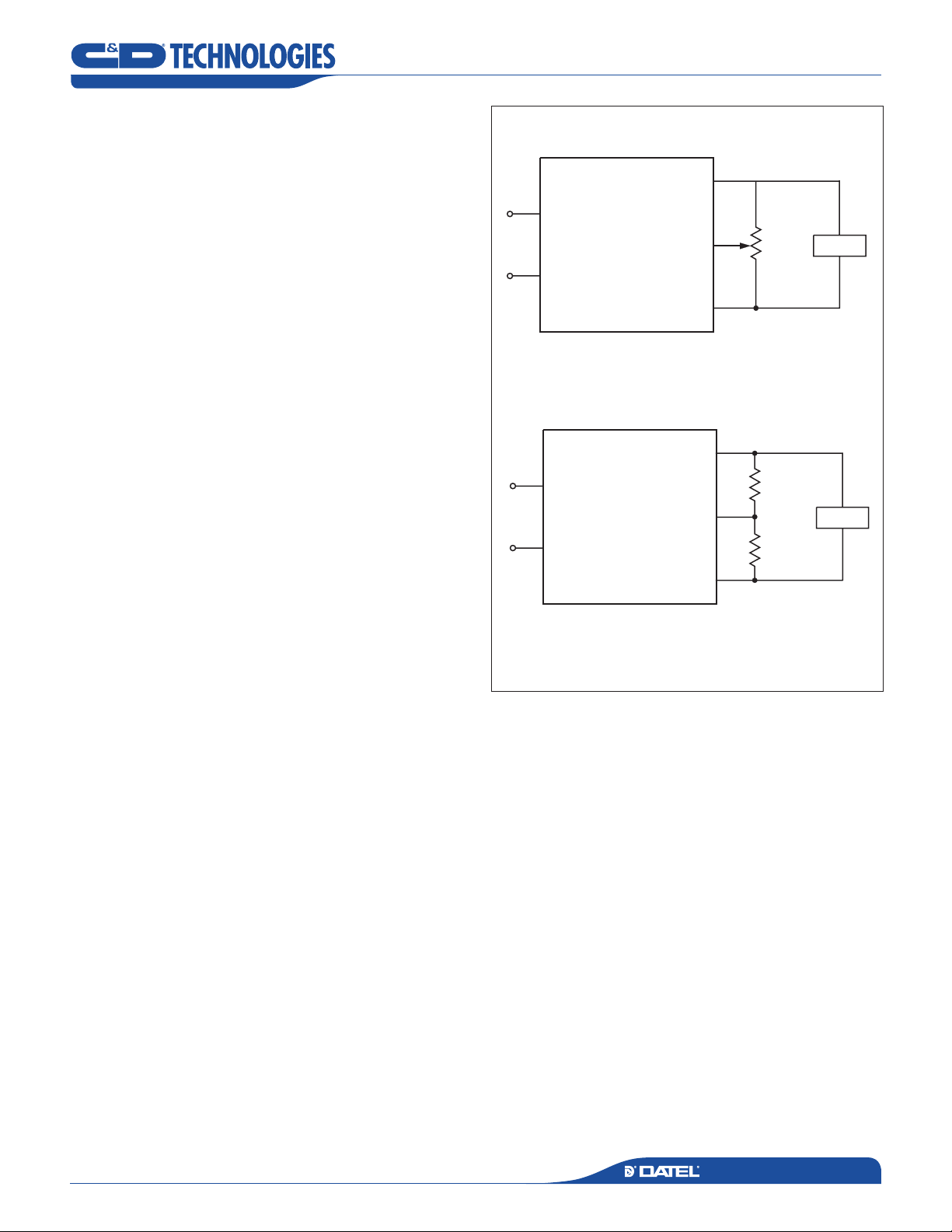

Figure 2a. Trim Connections Using a Trimpot

Figure 2b. Trim Connections Using Fixed Resistors

Output Trimming

VOUT may be trimmed ±5% via a single external trimpot or fixed resistor. The
trimpot should be connected as shown in Figure 2a with its wiper connected
to pin 8 (Trim). A trimpot can be used to determine the value of a single
fixed
resistor which should be connected as shown in Figure 2b. Connect the
resistor between pin 8 (Trim) and pin 6 (+Output) to trim "down" the output
voltage. Connect the resistor between pins 8 and 7 (Common) to trim "up"
the output voltage. Fixed resistors should be metal-film types with absolute
TCR’s less than 100ppm/°C to ensure stability.

Custom Capabilities

DATEL’s world-class design, development and manufacturing team stands
ready to work with you to deliver the exact power converter you need for your
demanding, large volume, OEM applications. More importantly . . . we’ll do
it on time and within budget!

Our experienced applications and design staffs; quick-turn prototype capabil
ity; highly automated, SMT assembly facilities; and in-line SPC quality-control
techniques combine to give us the unique ability to design and deliver any
quantity of power converters to the highest standards of quality and reliability.

We have compiled a large library of DC/DC designs that are currently used
in a variety of telecom, medical, computer, railway, aerospace and industrial
applications. We may already have the converter you need.

Contact us. Our goal is to provide you the highest-quality, most cost-effective
power converters available.

www.cd4power.comwww.cd4power.com

-

D C / D C C O N V E R T ER S

MDC_UWR14-20W_A01 Page 4 of 6

P O W E R E L E C T R O N I C S D I V I S I O N

87

84

81

78

75

72

69

66

63

Efficiency (%)

0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0

5V Output Current (Amps)

VIN = 36V

VIN = 24V

VIN = 12V

5.015

5.010

5.00

5

5.00

0

4.99

5

4.99

0

4.98

5

4.98

0

4.97

5

V

OUT

(Volts)

9 12 15 18 21 24 27 30 33 36

VIN (Volts)

I

OU T

= 4A

I

OU T

= 2A

I

OU T

= 1A

0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0

5V Output Current (Amps)

VIN = 36V

VIN = 24V

VIN = 12V

5.015

5.01

0

5.00

5

5.00

0

4.99

5

4.99

0

4.98

5

4.98

0

4.97

5

V

OUT

(Volts)

80

70

60

50

40

30

20

10

0

–10

–20

Frequency (MHz)

100

1000

Radiated Emissions

FCC Class B Limit

UWR-5/4000-D12A Radiated Emissions

FCC Part 15 Class B, 3 Meters

Converter Output = 5Vdc @ 3.6A

Radiated Emissions (dBµV/M)

UWR-5/4000-D12A Radiated Emissions

EN 55022 Class B, 10 Meters

Converter Output = +5Vdc @ 3.6A

80

70

60

50

40

30

20

10

0

–10

–20

Frequency (MHz)

100

1000

Radiated Emissions

EN 55022 Class B Limit

Radiated Emissions (dBµV/M)

UWR Models

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

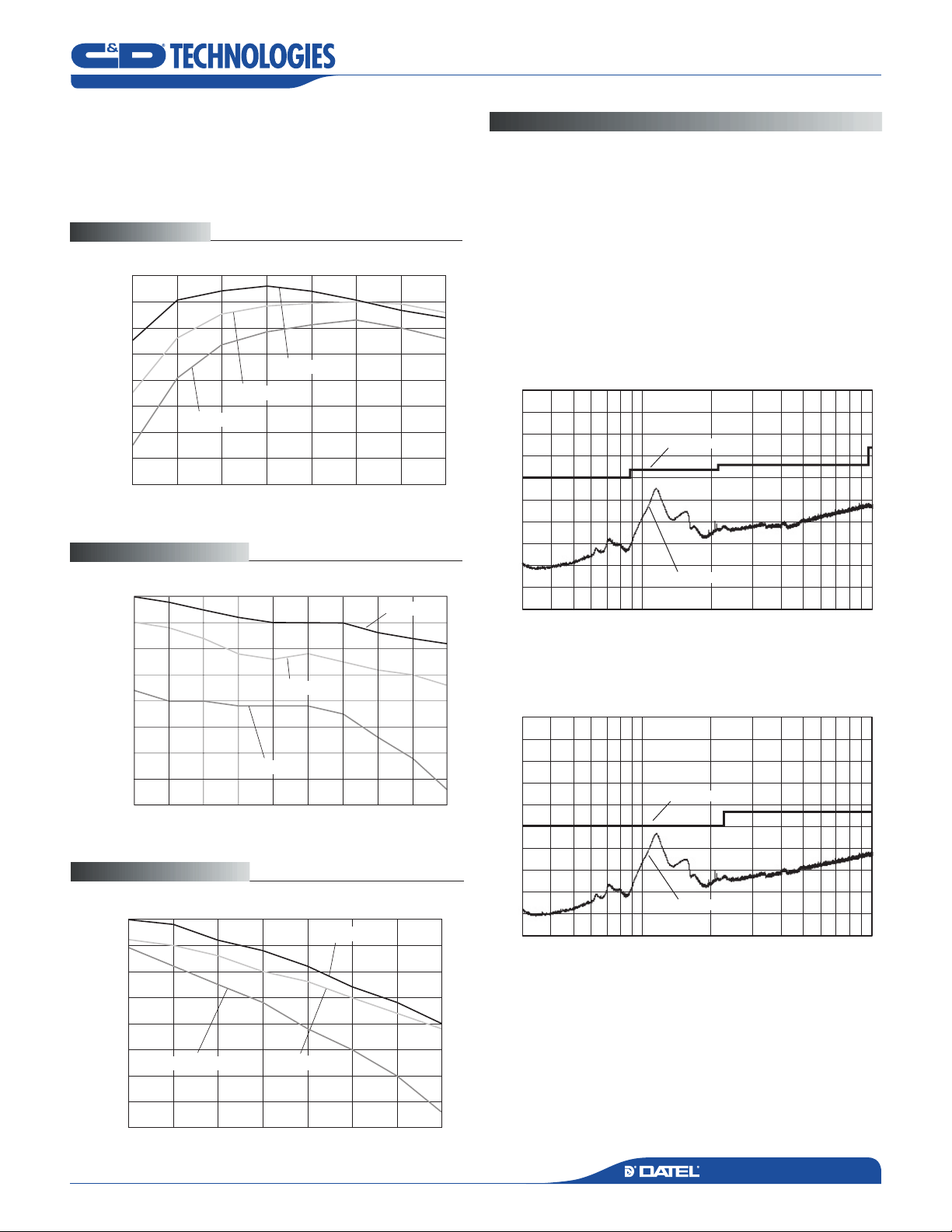

Typical Performance Curves (TA = +25°C)

The performance curves below were derived from actual test data for a single
model number (UWR-5/4000-D12A). Since all devices in the 14-20W UWR
A-Series have the same circuit topology, the performance curves are repre
sentative of all devices.

E F F I C I E N C Y

Efficiency vs. Output Current and Input Voltage

L I N E R E G U L A T I O N

-

E M I R A D I A T E D E M I S S I O N S

If you’re designing with EMC in mind, please note that all of DATEL’s UWR
14-20 Watt A-Series DC/DC Converters have been characterized for radiated
and conducted emissions in our new EMI/EMC laboratory. Testing is con
ducted in an EMCO 5305 GTEM test cell utilizing EMCO automated EMC test
software. Radiated emissions are tested to the limits of FCC Part 15, Class
B and CISPR 22 (EN 55022), Class B. Correlation to other specifications can
be supplied upon request. Radiated emissions plots to FCC and CISPR 22
for model UWR-5/4000-D12A appear below. Published EMC test reports are
available for each model number. Contact DATEL's Applications Engineering
Department for more details.

-

Output Voltage vs. Input Voltage and Output Current

L O A D R E G U L A T I O N

Output Voltage vs. Output Current and Input Voltage

www.cd4power.comwww.cd4power.com

Quality and Reliability

The A-Series are the first DC/DC Converters to emerge from DATEL’s new,
company-wide approach to designing and manufacturing the most reliable
power converters available. The five-pronged program draws our Quality
Assurance function into all aspects of new-product design, development,
characterization, qualification and manufacturing.

D C / D C C O N V E R T ER S

MDC_UWR14-20W_A01 Page 5 of 6

®

MDC_UWR14-20W_A01 Page 6 of 6

P O W E R E L E C T R O N I C S D I V I S I O N

10 20 30 40 50 60 70 80 90

40

20

0

Random Vibration (G's)

Temperature (°C)

Test Time (minutes)

100

80

60

40

20

0

–20

–40

UWR Models

A-Series, Single Output, High Reliability, 2" x 2", 14-20 Watt, DC/DC Converters

Design for Reliability

Design for Reliability is woven throughout our multi-phased, new-product­development process. Design-for-reliability practices are fully documented
and begin early in the new-product development cycle with the following
goals:

1. To work from an approved components/vendors list ensuring the use of
reliable components and the rigorous qualification of new components.

2. To design with safety margins by adhering to a strict set of derating
guidelines and performing theoretical worst-case analyses.

3. To locate potential design weaknesses early in the product-development
cycle by using extensive HALT (Highly Accelerated Life Testing).

4. To prove that early design improvements are effective by employing a
thorough FRACA (Failure Reporting Analysis and Corrective Action)
system.

HALT Testing

The goal of the accelerated-stress techniques used by DATEL is to force
device maturity, in a short period of time, by exposing devices to excessive
levels of "every stimulus of potential value." We use HALT (Highly Acceler

­ated Life Testing) repeatedly during the design and early manufacturing
phases to detect potential electrical and mechanical design weaknesses
that could result in possible future field failures.

During HALT, prototype and pre-production DC/DC converters are subjected
to progressively higher stress levels induced by thermal cycling, rate of
temperature change, vibration, power cycling, product-specific stresses (such
as dc voltage variation) and combined environments. The stresses are not
meant to simulate field environments but to expose any weaknesses in a
product’s electro/mechanical design and/or assembly processes. The goal
of HALT is to make products fail so that device weaknesses can be analyzed
and strengthened as appropriate. Applied stresses are continually stepped
up until products eventually fail. After corrective actions and/or design
changes, stresses are stepped up again and the cycle is repeated until the
"fundamental limit of the technology" is determined.

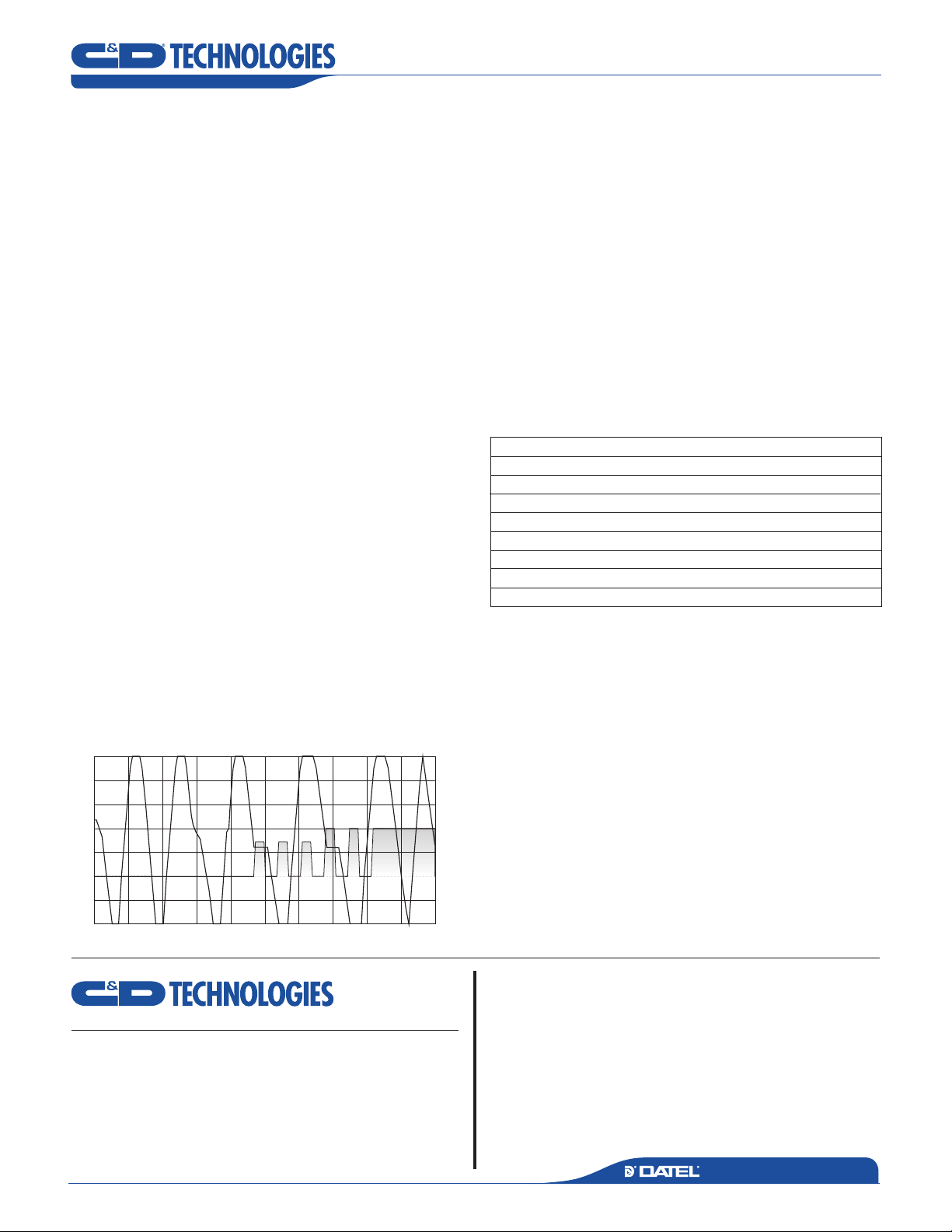

Typical HALT Profile

DATEL has invested in a Qualmark OVS-1 HALT tester capable of applying
voltage and temperature extremes as well as 6-axis, linear and rotational,
random vibration. A typical HALT profile (shown above) consists of thermal
cycling (–55 to +125°C, 30°C/minute) and simultaneous, gradually increas

­ing, random longitudinal and rotational vibration up to 20G’s with load cycling
and applied-voltage extremes added as desired. Many devices in DATEL’s
new A-Series could not be made to fail prior to reaching either the limits of
the HALT chamber or some previously known physical limit of the device.
We also use the HALT chamber and its ability to rapidly cool devices to verify
their "cold-start" capabilities.

Qualification

For each new product, electrical performance is verified via a comprehensive
characterization process and long-term reliability is confirmed via a rigorous
qualification procedure. The qual procedure includes such strenuous tests
as thermal shock and 500 hour life. Qual testing is summarized below.

Qualification Testing

Qualification Test Method/Comments

HALT DATEL in-house procedure

High Temperature Storage Max. rated temp., 1,000 hours

Thermal Shock 10 cycles, –55 to +125°C

Temperature/Humidity +85°C, 85% humidity, 48 hours

Lead Integrity DATEL in-house procedure

Life Test +70°C, 500 hours*

Marking Permanency DATEL in-house procedure

End Point Electrical Tests Per product specification

* Interim electrical test at 200 hours.

In-Line Process Controls and Screening

A combination of statistical sampling and 100% inspection techniques keeps
our assembly line under constant control. Parameters such as solder-paste
thickness, component placement, cleanliness, etc. are statistically sampled,
charted and fine tuned as necessary. Visual inspections are performed by
trained operators after pick-and-place, soldering and cleaning operations.
Units are 100% electrically tested prior to potting. All devices are temperature
cycled, burned-in, hi-pot tested and final-electrical tested prior to external
visual examination, packing and shipping.

Rapid Response to Problems

DATEL employs an outstanding corrective-action system to immediately
address any detected shortcomings in either products or processes. When

­ever our assembly, quality or engineering personnel spot a product/process
problem, or if a product is returned with a potential defect, we immediately
perform a detailed failure analysis and, if necessary, undertake corrective
actions. Over time, this system has helped refine our assembly operation to
yield one of the lowest product defect rates in the industry.

USA: Tucson (Az), Tel: [phone], email: [e-mail]

Canada: Toronto, Tel: [phone], email: [e-mail]

United Kingdom: Milton Keynes, Tel: [phone], email: [e-mail]

C&D Technologies, Inc.
11 Cabot Boulevard, Mansfield, MA 02048-1151 U.S.A.
Tel: [phone] [phone] Fax: [phone]

www.cd4power.com email: [e-mail]

ISO 9001 REGISTERED

© 2006 C&D Technologies, Inc.
C&D Technologies, Inc. makes no representation that the use of its products in the circuits described herein, or the use of other technical
information contained herein, will not infringe upon existing or future patent rights. The descriptions contained herein do not imply the
granting of licenses to make, use, or sell equipment constructed in accordance therewith. Specifications are subject to change without
notice.

www.cd4power.com

DS-0361A 06/07

France: Montigny Le Bretonneux, Tel: [phone], email: [e-mail]

Germany: München, Tel: [phone], email: [e-mail]

Japan: Tokyo, Tel: [phone], email: [e-mail]

Osaka, Tel: [phone], email: [e-mail]
Website: www.cd4power.jp

China: Shanghai, Tel: [phone], email: [e-mail]

Guangzhou, Tel: [phone], email: [e-mail]

D C / D C C O N V E R T ER S
