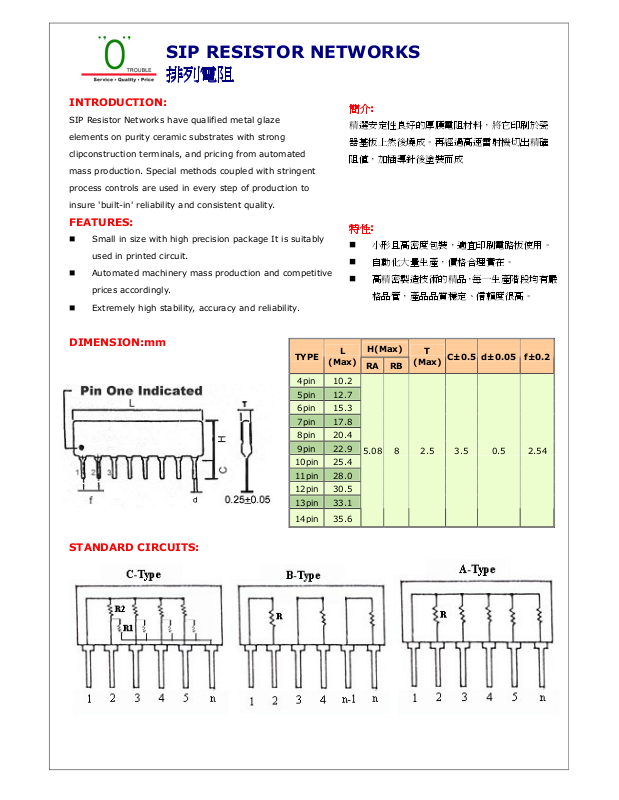

SIP RESISTOR NETWORKS
排列電阻
排列電阻
排列電阻排列電阻
INTRODUCTION:
SIP Resistor Networks have qualified metal glaze
elements on purity ceramic substrates with strong
clipconstruction terminals, and pricing from automated
mass production. Special methods coupled with stringent
process controls are used in every step of production to
insure 'built-in' reliability and consistent quality.
FEATURES:
Small in size with high precision package It is suitably
used in printed circuit.
Automated machinery mass production and competitive
prices accordingly.
Extremely high stability, accuracy and reliability.

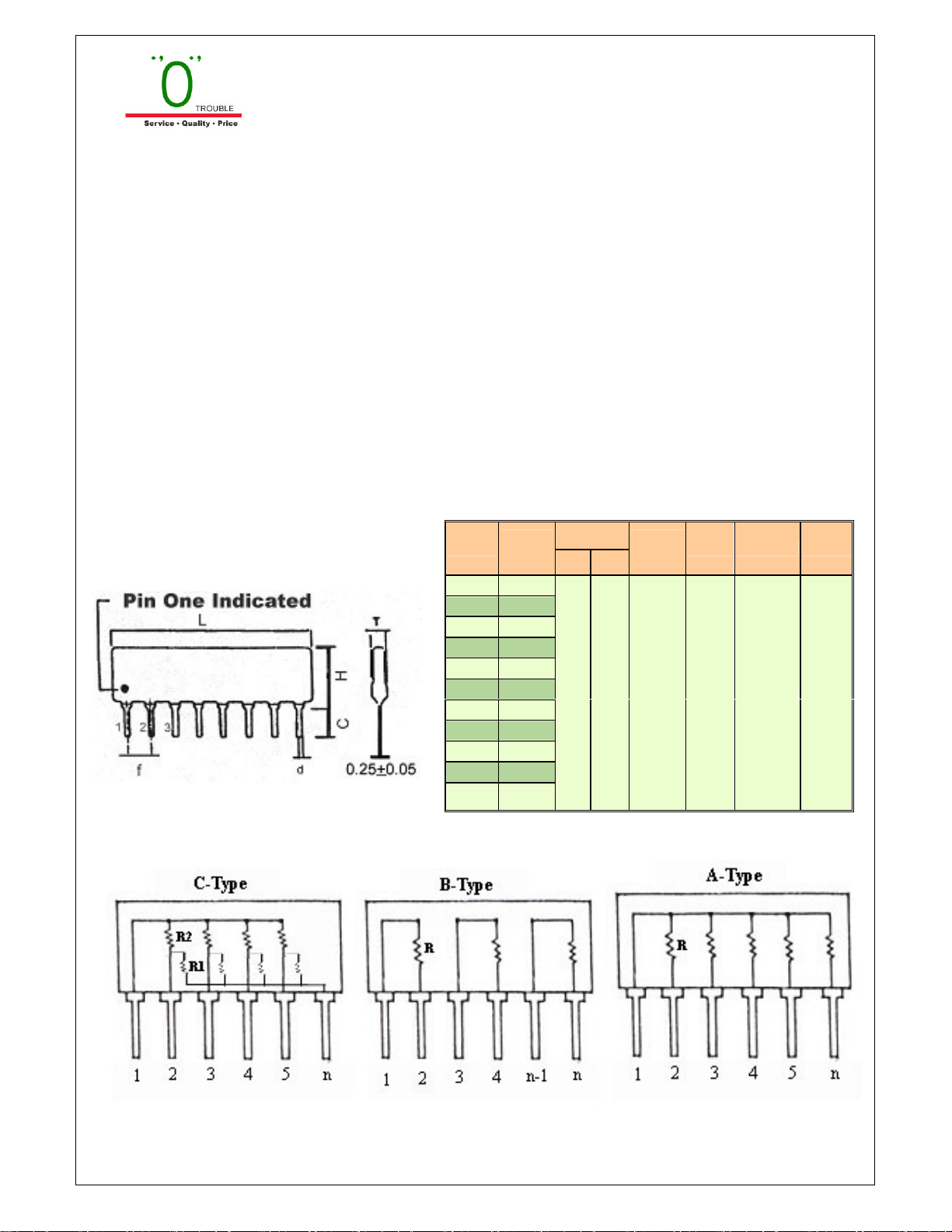

DIMENSION:mm
TYPE
4pin 10.2
5pin 12.7
6pin 15.3
7pin 17.8
8pin 20.4
9pin 22.9
10pin 25.4
11pin 28.0
12pin 30.5
13pin 33.1
14pin 35.6
(Max)
STANDARD CIRCUITS:
:
簡介
簡介
簡介簡介
精選安定性良好的厚膜電阻材料，將它印刷於瓷
器基板上然後燒成。再經過高速雷射機切出精確
阻值，加插導針後塗裝而成
:
特性
特性
特性特性
小形且高密度包裝，適宜印刷電路板使用。
自動化大量生產，價格合理實在。
高精密製造技術的精品，每一生產階段均有嚴
格品管，產品品質穩定、信賴度很高。
H(Max)
L
RA RB
5.08 8 2.5 3.5 0.5 2.54
T
(Max)
C±0.5 d±0.05 f±0.2
Page 2

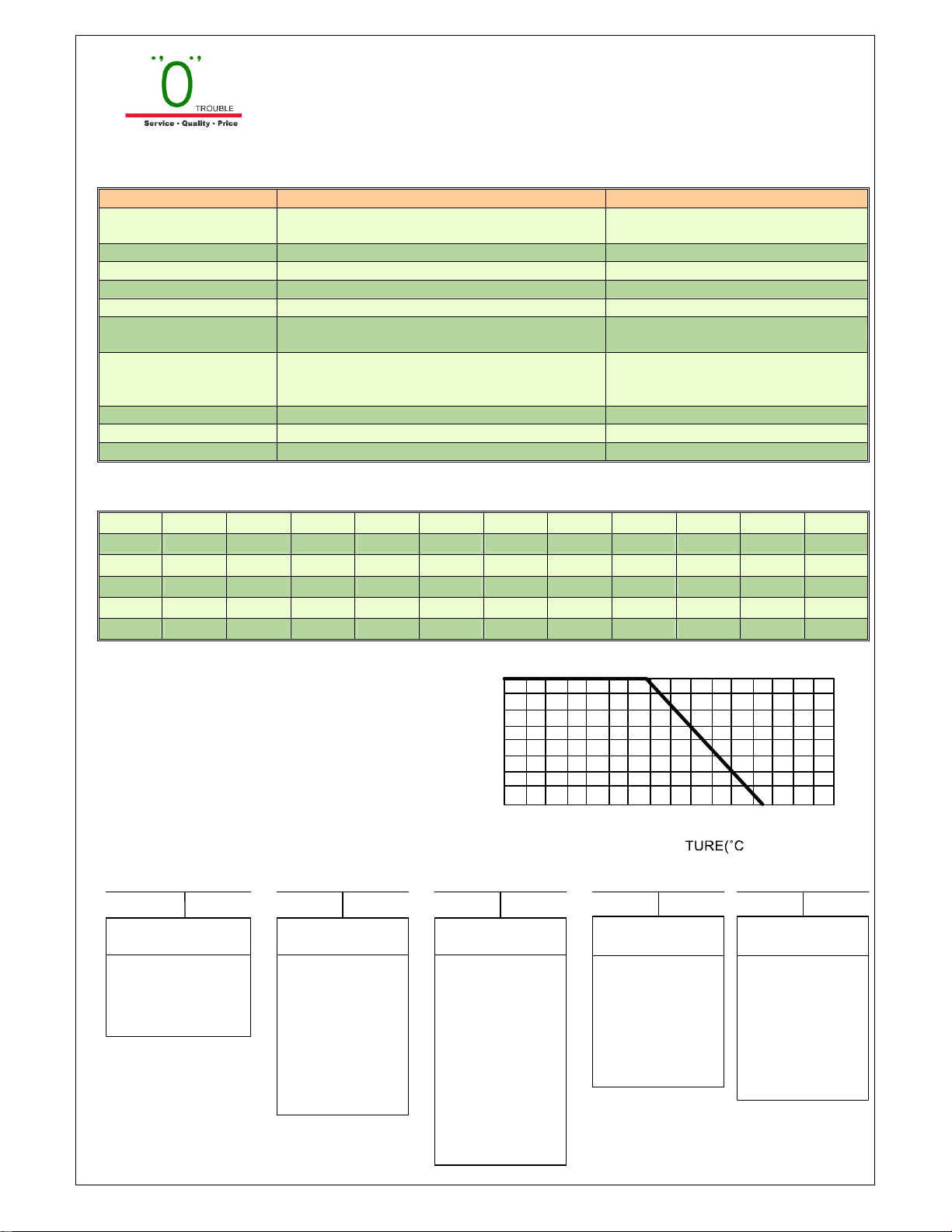

SIP RESISTOR NETWORKS
14 = 14 PIN
0 10 20 30 40 50 60 70 80 90 100 110 120 130 140 150 160
R
A
TED POWER (%
)
排列電阻
排列電阻
排列電阻排列電阻
CHARACTERSISTIC
ITEM TEST METHODS SPECIFICATION
Resistance Temperature
Characteristic
Temperature Cycling -55℃ ~ + 125℃, for 5 Cycle △ R ≦ ± (0.5％ + 0.05Ω)
Short-Time Overload Rated Voltage ×2.5 for 5 sec. △ R ≦ ± (0.5％ + 0.05Ω)
Resistance Soldering Heat 350℃ for 3 sec. △ R ≦ ± (0.5％ + 0.05Ω)
Insulation Resistance 100V for 1 minute △ 10,000 Meg ohm Min.
Terminal Strength
Thermal shock
Solderbility 230℃±5℃, 3 sec. Covering 95％
Moisture Load Life 40℃, 90-95％ RH rated Voltage for 1000 hours △ R ≦ ± (2％ + 0.05Ω)
Load Life 70℃ at Rated Voltage for 1000 hours △ R ≦ ± (2％ + 0.05Ω)
-55℃ ~ + 125℃
Tensile：1Kg, 30sec.
Bending：500g 2 Times
Load V, Room Temp. 30 minute
Unload, -55℃, 15 minute
Over 2 hrs in Room Temp. before measuring
STANDARD RESISTANCE (OHM) E-12 SERIES
10 12 15 18 22 27 33 39 47 56 68 82
100 120 150 180 220 270 330 390 470 560 680 820
1K 1.2K 1.5K 1.8K 2.2K 2.7K 3.3K 3.9K 4.7K 5.6K 6.8K 8.2K
10K 12K 15K 18K 22K 27K 33K 39K 47K 56K 68K 82K
100K 120K 150K 180K 220K 270K 330K 390K 470K 560K 680K 820K
1M 1.2M 1.5M 1.8M 2.2M
DERATING CURVE
DUAL TERMINATORS (R1/R2) (OHM)
160/240 330/390
180/390 330/470
220/270 1.5K/3.3K
220/330 3.0K/6.2K
HOW TO ORDER
RA A 08 472 J
SERIEC
RA=LOW Profile
RB=HIGH Power
CIRCUITE
A STYLE
B
C
D
E
P
R
T
100
75
50
25
AMBIENT TEMPERA )
NUMBER OF PIN
04 = 4 PIN
05 = 5 PIN
06 = 6 PIN
07 = 7 PIN
08 = 8 PIN
09 = 9 PIN
10 = 10 PIN
11 = 11 PIN
12 = 12 PIN
13 = 13 PIN
±100ppm/℃ for 50 ohm ~ 2.2M
±250ppm/℃ for＜ 50 ohm ≧ 2.2M
△ R ≦ ± (0.25％ + 0.05Ω)
△ R ≦ ± (0.5％ + 0.05Ω)
RESISTANCE
22Ω = 220
100Ω = 101
1000Ω = 102
10KΩ = 103
1MΩ = 105
TOLERANCE
F = ± 1 %
G = ± 2 %
J = ± 5 %
