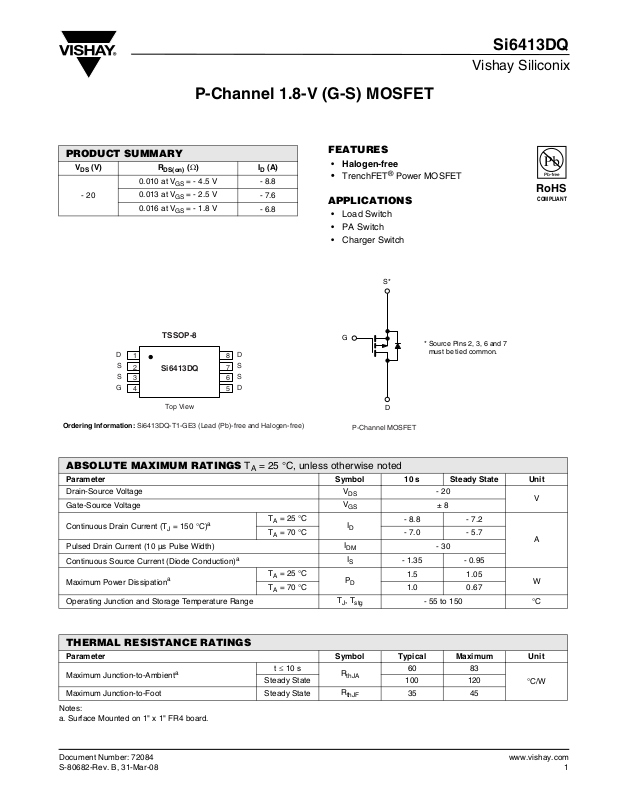

P-Channel 1.8-V (G-S) MOSFET

Si6413DQ

Vishay Siliconix

PRODUCT SUMMARY

VDS (V) R

0.010 at V

- 20

0.013 at V

0.016 at V

Ordering Information: Si6413DQ-T1-GE3 (Lead (Pb)-free and Halogen-free)

(Ω)I

DS(on)

= - 4.5 V

= - 2.5 V

= - 1.8 V

- 8.8

- 7.6

- 6.8

TSSOP-8

Si6413DQ

Top View

(A)

FEATURES

• Halogen-free

• TrenchFET

Power MOSFET

APPLICATIONS

• Load Switch

• PA Switch

• Charger Switch

P-Channel MOSFET

* Source Pins 2, 3, 6 and 7

must be tied common.

RoHS

COMPLIANT

ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted

Parameter Symbol 10 s Steady State Unit

Drain-Source Voltage

Gate-Source Voltage

Continuous Drain Current (T

= 150 °C)

Pulsed Drain Current (10 µs Pulse Width)

Continuous Source Current (Diode Conduction)

Maximum Power Dissipation

Operating Junction and Storage Temperature Range

TA = 25 °C

= 70 °C

TA = 25 °C

= 70 °C

, T

stg

- 8.8 - 7.2

- 7.0 - 5.7

- 1.35 - 0.95

- 20

± 8

- 30

1.5 1.05

1.0 0.67

- 55 to 150 °C

THERMAL RESISTANCE RATINGS

Parameter Symbol Typical Maximum Unit

Maximum Junction-to-Ambient

t ≤ 10 s

Steady State 100 120

Maximum Junction-to-Foot Steady State

Notes: a. Surface Mounted on 1" x 1" FR4 board.

Document Number: 72084 S-80682-Rev. B, 31-Mar-08

thJA

thJF

60 83

°C/W

35 45

www.vishay.com

Page 2

Si6413DQ

Vishay Siliconix

SPECIFICATIONS TJ = 25 °C, unless otherwise noted

Parameter Symbol Test Conditions Min. Typ. Max. Unit

Static

Gate Threshold Voltage

Gate-Body Leakage

Zero Gate Voltage Drain Current

On-State Drain Current

Drain-Source On-State Resistance

Forward Transconductance

Diode Forward Voltage

Dynamic

Total Gate Charge

Gate-Drain Charge

Tur n -O n D el a y T im e

Rise Time

Turn-Off Delay Time

Fall Time

Source-Drain Reverse Recovery Time

GS(th)

GSS

DSS

D(on)

DS(on)

d(on)

d(off)

Notes: a. Pulse test; pulse width ≤ 300 µs, duty cycle ≤ 2 %. b. Guaranteed by design, not subject to production testing.

Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect device reliability.

= VGS, ID = - 400 µA

VDS = 0 V, VGS = ± 8 V

= - 16 V, V

= - 5 V, V

= - 4.5 V, ID = - 8.8 A

= - 2.5 V, ID = - 7.6 A

= - 1.8 V, ID = - 6.8 A

= 0 V

= 0 V, TJ = 70 °C

= - 4.5 V

VDS = - 15 V, ID = - 8.8 A

IS = - 1.3 A, V

= - 10 V, V

= - 10 V, RL = 10 Ω

≅ - 1 A, V

GEN

= 0 V

= - 5 V, ID = - 8.8 A

= - 4.5 V, RG = 6 Ω

IF = - 1.3 A, di/dt = 100 A/µs

- 0.40 - 0.8 V

± 100 nA

- 1

- 10

- 20 A

0.008 0.010

0.010 0.013

0.013 0.016

45 S

- 0.58 - 1.1 V

69 105

9.5

15.5

55 85

120 200

305 470

160 250

90 150

µA

nCGate-Source Charge

TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted

- Drain Current (A)I

www.vishay.com 2

VGS = 5 thru 2 V

1.5 V

1.0 V

012345

- Drain-to-Source Voltage (V)

Output Characteristics

- Drain Current (A)I

0.0 0.2 0.4 0.6 0.8 1.0 1.2 1.4 1.6

TC = 125 °C

25 °C

- Gate-to-Source Voltage (V)

- 55 °C

Transfer Characteristics

Document Number: 72084

S-80682-Rev. B, 31-Mar-08

Page 3

TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted

0.030

Si6413DQ

Vishay Siliconix

8000

- On-Resistance (Ω)R

DS(on)

- Gate-to-Source Voltage (V)

0.024

0.018

0.012

0.006

0.000 0 6 12 18 24 30

- Drain Current (A)

VGS = 1.8 V

VGS = 2.5 V

VGS = 4.5 V

On-Resistance vs. Drain Current

VDS = 10 V I

= 8.8 A

6400

4800

3200

C - Capacitance (pF)

1600

048121620

1.6

VGS = 4.5 V I

1.4

1.2

(Normalized)

1.0

DS(on)

R - On-Resistance

0.8

iss

oss

rss

VDS - Drain-to-Source Voltage (V)

Capacitance

= 8.8 A

0 1428425670

- Source Current (A)I

0.1

0.0 0.2 0.4 0.6 0.8 1.0 1.2

Source-Drain Diode Forward Voltage

Document Number: 72084 S-80682-Rev. B, 31-Mar-08

Qg - Total Gate Charge (nC)

Gate Charge

TJ = 150 °C

- Source-to-Drain Voltage (V)

TJ = 25 °C

0.6

- 50 - 25 0 25 50 75 100 125 150

- Junction Temperature (°C)

On-Resistance vs. Junction Temperature

0.06

0.05

- On-Resistance (Ω)R

DS(on)

0.04

0.03

0.02

0.01

0.00 0123456

VGS - Gate-to-Source Voltage (V)

ID = 8.8 A

On-Resistance vs. Gate-to-Source Voltage

www.vishay.com

Page 4

Si6413DQ

Vishay Siliconix

TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted

0.4

0.2

ID = 400 µA

0.0

Variance (V)V

GS(th)

- 0.2

- 0.4

- 50 - 25 0 25 50 75 100 125 150

TJ - Temperature (°C)

Threshold Voltage

100

- Drain Current (A)I

0.1

0.01

Power (W)

-2

Single Pulse Power, Junction-to-Ambient

Limited

by R *

DS(on)

1 ms

10 ms

100 ms

1 s

TC = 25 °C

Single Pulse

10 s

0.1 1 10 100

VDS- Drain-to-Source Voltage (V)

> minimum VGSat which R

DS(on)

is specified

Safe Operating Area, Junction-to-Case

-1

1 1001010

Time (s)

Thermal Impedance

Normalized Effective Transient

0.01

www.vishay.com 4

0.1

-4

Duty Cycle = 0.5

0.2

0.1

0.05

0.02

Single Pulse

Notes:

thJA

100

(t)

= 100 °C/W

1. Duty Cycle, D =

2. Per Unit Base = R

- TA = PDMZ

3. T

4. Surface Mounted

-3

-2

-1

1 10 60010

Square Wave Pulse Duration (s)

Normalized Thermal Transient Impedance, Junction-to-Ambient

Document Number: 72084

S-80682-Rev. B, 31-Mar-08

Page 5

TYPICAL CHARACTERISTICS 25 °C, unless otherwise noted

Duty Cycle = 0.5

0.2

0.1

Thermal Impedance

0.05

Si6413DQ

Vishay Siliconix

Normalized Effective Transient

0.01

0.02

Single Pulse

-4

-3

-2

Square Wave Pulse Duration (s)

-1

11010

Normalized Thermal Transient Impedance, Junction-to-Foot
