Page 1

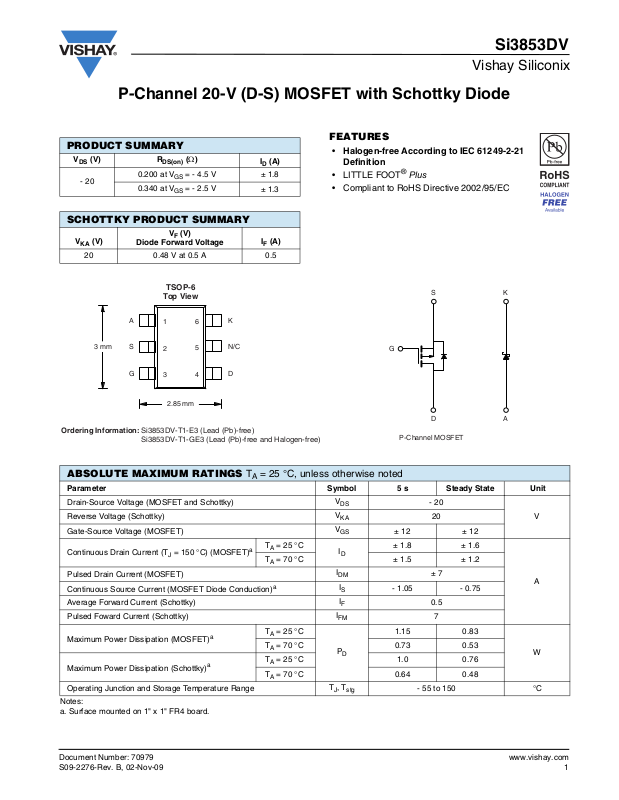

Si3853DV
Vishay Siliconix
P-Channel 20-V (D-S) MOSFET with Schottky Diode
PRODUCT SUMMARY
VDS (V) R
- 20
0.200 at V
0.340 at V
DS(on)
GS
GS
(Ω)
= - 4.5 V
= - 2.5 V
SCHOTTKY PRODUCT SUMMARY
(V)
V
VKA (V)
Diode Forward Voltage
20 0.48 V at 0.5 A 0.5
3 mm
Ordering Information: Si3853DV-T1-E3 (Lead (Pb)-free)
Si3853DV-T1-GE3 (Lead (Pb)-free and Halogen-free)
F
TSOP-6
Top View
1
2
3
2.85 mm
6
5
4
KA
N/CS
DG
I
(A)
D
± 1.8
± 1.3
(A)
I
F
FEATURES
• Halogen-free According to IEC 61249-2-21
Definition
• LITTLE FOOT
• Compliant to RoHS Directive 2002/95/EC
®
Plus
S
G
D
P-Channel MOSFET
K
A
ABSOLUTE MAXIMUM RATINGS TA = 25 °C, unless otherwise noted
Parameter Symbol 5 s Steady State Unit
Drain-Source Voltage (MOSFET and Schottky)
Gate-Source Voltage (MOSFET)
Continuous Drain Current (T
Pulsed Drain Current
= 150 °C) (MOSFET)
J
(MOSFET)
Continuous Source Current (MOSFET Diode Conduction)
Average Forward Current (Schottky)
Pulsed Foward Current (Schottky)
Maximum Power Dissipation (MOSFET)
Maximum Power Dissipation (Schottky)
a
a
Operating Junction and Storage Temperature Range
Notes:
a. Surface mounted on 1" x 1" FR4 board.
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
TA = 25 °C
a
T
= 70 °C ± 1.5 ± 1.2
A
a
TA = 25 °C
= 70 °C 0.73 0.53
T
A
TA = 25 °C 1.0 0.76
T
= 70 °C 0.64 0.48
A
V
DS
V
KA
V
GS
I
D
I
DM
I
S
I
F
I
FM
± 12 ± 12
± 1.8 ± 1.6
- 1.05 - 0.75
- 20
20
± 7
0.5
7
1.15 0.83
P
D
T
, T
J
stg
- 55 to 150 °C
www.vishay.com
VReverse Voltage (Schottky)
A
W
1
Page 2
Si3853DV
Vishay Siliconix
THERMAL RESISTANCE RATINGS
Parameter Device Symbol Typical Maximum Unit
t ≤ 5 s
Junction-to-Ambient
a
Steady State
Junction-to-Foot Steady State
MOSFET
Schottky 103 125
MOSFET 130 150
R
thJA
Schottky 140 165
MOSFET
MOSFET 80 95
R
thJF
Notes:
a. Surface mounted on 1" x 1" FR4 board.
MOSFET SPECIFICATIONS TJ = 25 °C, unless otherwise noted
Parameter Symbol Test Conditions Min. Typ. Max. Unit
Static
V
Gate Threshold Voltage V
Gate-Body Leakage I
Zero Gate Voltage Drain Current I
On-State Drain Current
Drain-Source On-State Resistance
Forward Transconductance
Diode Forward Voltage
Dynamic
b
a
a
a
a
GS(th)
GSS
DSS
I
V
D(on)
R
DS(on)
g
fs
V
SD
Total Gate Charge Qg
gs
Gate-Drain Charge Q
Tur n - O n D e l ay Time t
Rise Time t
Turn-Off DelayTime t
Fall Ti me t
Body Diode Reverse Recovery Time t
0.6
gd
d(on)
r
19 30
d(off)
f
rr
Notes:
a. Pulse test; pulse width ≤ 300 µs, duty cycle ≤ 2 %.
b. Guaranteed by design, not subject to production testing.
V
V
DS
I
D
= VGS, ID = - 250 µA - 0.5 V
DS
VDS = 0 V, VGS = ± 12 V ± 100 nA
V
= - 16 V, VGS = 0 V - 1
DS
= - 16 V, V
DS
≥ - 5 V, V
DS
V
= - 4.5 V, ID = - 1.8 A 0.160 0.200
GS
V
= - 2.5 V, ID = - 1.0 A 0.280 0.340
GS
V
DS
= 0 V, TJ = 75 °C - 10
GS
= - 4.5 V - 5 A
GS
= - 5 V, ID = - 1.8 A 3.6 S
IS = - 1.05 V, VGS = 0 V - 0.83 - 1.10 V
= - 10 V, V
V
DD
≅ - 1 A, V
= - 4.5 V, ID = - 1.8 A
GS
= - 10 V, RL = 10 Ω
= - 4.5 V, Rg = 6 Ω
GEN
IF = - 1.05 A, dI/dt = 100 A/µs 20 40
93 110
75 90
2.7 4.0
0.4
11 17
34 50
24 36
°C/W
µA
Ω
nCGate-Source Charge Q
ns
SCHOTTKY SPECIFICATIONS TJ = 25 °C, unless otherwise noted
Parameter Symbol Test Conditions Min. Typ. Max. Unit
Forward Voltage Drop V
F
IF = 0.5 A 0.42 0.48
I
= 0.5 A, TJ = 125 °C 0.33 0.4
F
VR = 20 V 0.002 0.100
Maximum Reverse Leakage Current I
Junction Capacitance C
Stresses beyond those listed under “Absolute Maximum Ratings” may cause permanent damage to the device. These are stress ratings only, and functional operation
of the device at these or any other conditions beyond those indicated in the operational sections of the specifications is not implied. Exposure to absolute maximum
rating conditions for extended periods may affect device reliability.
rm
T
www.vishay.com
2
= 20 V, TJ = 75 °C 0.06 1
R
V
= 20 V, TJ = 125 °C 1.5 10
R
VR = 10 V 31 pF
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
V
mAV
Page 3
MOSFET TYPICAL CHARACTERISTICS TA = 25 °C, unless otherwise noted
Si3853DV
Vishay Siliconix
10
VGS = 4.5 V thru 4 V
8
6
4
- Drain Current (A)I
D
2
0
012345
- Drain-to-Source Voltage (V)
V
DS
3.5 V
3 V
2.5 V
2 V
1.5 V
Output Characteristics
0.6
0.5
VGS = 2.5 V
0.4
0.3
- On-Resistance (Ω)R
0.2
DS(on)
0.1
0
01234567
VGS = 3.6 V
VGS = 4.5 V
8
TC = - 55 °C
6
4
- Drain Current (A)I
D
2
0
0 0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0
- Gate-to-Source Voltage (V)
V
GS
25 °C
Transfer Characteristics
450
360
270
180
C - Capacitance (pF)
90
0
C
oss
C
rss
048 12 16 20
C
iss
125 °C
On-Resistance vs. Drain Current
4.5
VDS = 10 V
= 1.8 A
I
3.6
2.7
1.8
- Gate-to-Source Voltage (V)
GS
0.9
V
D
0
0 0.6 1.2 1.8 2.4 3.0
Qg - Total Gate Charge (nC)
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
ID - Drain Current (A)
Gate Charge
1.8
1.6
1.4
1.2
- On-Resistance
1.0
(Normalized)
DS(on)
0.8
R
0.6
0.4
- 50 - 25 0 25 50 75 100 125 150
VDS - Drain-to-Source Voltage (V)
Capacitance
VGS = 10 V
= 1.8 A
I
D
T
- Junction Temperature (°C)
J
On-Resistance vs. Junction Temperature
www.vishay.com
3
Page 4
Si3853DV
Vishay Siliconix
MOSFET TYPICAL CHARACTERISTICS TA = 25 °C, unless otherwise noted
10
TJ = 150 °C
1
- Source Current (A)I
S
0.1
0 0.3 0.6 0.9
V
SD
Source-Drain Diode Forward Voltage
0.6
0.4
0.2
Variance (V)V
0.0
GS(th)
- 0.2
TJ = 25 °C
- Source-to-Drain Voltage (V)
ID = 250 µA
1.2 1.5
0.6
ID = 1.8 A
0.5
ID = 1.2 A
0.4
0.3
- On-Resistance (Ω)R
0.2
DS(on)
0.1
0
012345
VGS - Gate-to-Source Voltage (V)
On-Resistance vs. Gate-to-Source Voltage
8
6
4
Power (W)
2
- 0.4
- 50 - 25 0 25 50 75 100 125 150
0.1
Thermal Impedance
Normalized Effective Transient
0.01
www.vishay.com
4
2
1
Duty Cycle = 0.5
0.2
0.1
0.05
0.02
-4
10
TJ - Temperature (°C)
Threshold Voltage
Single Pulse
-3
10
Normalized Thermal Transient Impedance, Junction-to-Ambient
0
0.01
1
10 300.1
Time (s)
Single Pulse Power, Junction-to-Ambient
Notes:
P
DM
t
1
t
2
t
thJA
thJA
(t)
100
1
t
2
= 130 °C/W
00601110
1. Duty Cycle, D =
2. Per Unit Base = R
3. T
- TA = PDMZ
JM
4. Surface Mounted
-2
10
-1
Square Wave Pulse Duration (s)
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
Page 5
MOSFET TYPICAL CHARACTERISTICS TA = 25 °C, unless otherwise noted
2
1
Duty Cycle = 0.5
0.2
0.1
0.1
0.01
0.05
0.02
Single Pulse
-4
10
-3
10
-2
10
Square Wave Pulse Duration (s)
-1
Normalized Thermal Transient Impedance, Junction-to-Foot
Thermal Impedance
Normalized Effective Transient
Si3853DV
Vishay Siliconix
01110
SCHOTTKY TYPICAL CHARACTERISTICS T
20
10
1
0.1
0.01
- Reverse Current (mA)
R
I
0.001
0.0001
20 V
0255075100
TJ - Junction Temperature (°C)
Reverse Current vs. Junction Temperature
10 V
125 150
150
120
90
= 25 °C, unless otherwise noted
A
5
TJ = 150 °C
0 0.2 0.4
VF - Forward Voltage Drop (V)
- Forward Current (A)
F
I
1
0.1
Forward Voltage Drop
TJ = 25 °C
0.6
0.8 1.0
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
60
- Junction Capacitance (pF)
T
30
C
0
048 12 16 20
VKA - Reverse Voltage (V)
Capacitance
www.vishay.com
5
Page 6
Si3853DV
Vishay Siliconix
SCHOTTKY TYPICAL CHARACTERISTICS TA = 25 °C, unless otherwise noted
2
1
Duty Cycle = 0.5
0.1
Thermal Impedance
Normalized Effective Transient
0.01
-4
10
2
1
0.1
Thermal Impedance
Normalized Effective Transient
0.2
0.1
0.05
0.02
Single Pulse
Duty Cycle = 0.5
0.2
0.1
0.05
0.02
Notes:
P
DM
t
1
t
2
t
thJA
thJA
100
1
t
2
= 140 °C/W
(t)
00601110
1. Duty Cycle, D =
2. Per Unit Base = R
- TA = PDMZ
3. T
JM
4. Surface Mounted
-3
10
-2
10
-1
Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Ambient
0.01
Single Pulse
-4
10
-3
10
-2
10
-1
01110
Square Wave Pulse Duration (s)
Normalized Thermal Transient Impedance, Junction-to-Foot
Vishay Siliconix maintains worldwide manufacturing capability. Products may be manufactured at one of several qualified locations. Reliability data for Silicon
Technology and Package Reliability represent a composite of all qualified locations. For related documents such as package/tape drawings, part marking, and
reliability data, see www.vishay.com/ppg?70979
www.vishay.com
6
.
Document Number: 70979
S09-2276-Rev. B, 02-Nov-09
Page 7
TSOP: 5/6−LEAD
JEDEC Part Number: MO-193C
Package Information
Vishay Siliconix
e1
5 4
1
2
e
b
E 1 E
3
-B-
C 0.15 M B A
6 5 4
1
5-LEAD TSOP 6-LEAD TSOP
4x
R
4x
-C-
-A-
A 2 A
A
R
Seating Plane
1
D
C 0.08
e1
E 1 E
2
e
1
1
b
(L 1 )
3
-B-
C 0.15 M B A
0.17 Ref
c
L
2
Gauge Plane
Seating Plane
L
Document Number: 71200
18-Dec-06
MILLIMETERS INCHES
Dim Min Nom Max Min Nom Max
0.91 - 1.10 0.036 - 0.043
A
0.01 - 0.10 0.0004 - 0.004
A
1
0.90 - 1.00 0.035 0.038 0.039
A
2
0.30 0.32 0.45 0.012 0.013 0.018
b
0.10 0.15 0.20 0.004 0.006 0.008
c
2.95 3.05 3.10 0.116 0.120 0.122
D
2.70 2.85 2.98 0.106 0.112 0.117
E
1.55 1.65 1.70 0.061 0.065 0.067
E
1
e
e
1
L
L
1
L
2
R
1
ECN: C-06593-Rev. I, 18-Dec-06
DWG: 5540
0.95 BSC 0.0374 BSC
1.80 1.90 2.00 0.071 0.075 0.079
0.32 - 0.50 0.012 - 0.020
0.60 Ref 0.024 Ref
0.25 BSC 0.010 BSC
0.10 - - 0.004 - -
0 4 8 0 4 8
7 Nom 7 Nom
www.vishay.com
1
Page 8
Vishay Siliconix
Mounting LITTLE FOOTR TSOP-6 Power MOSFETs
AN823
Surface mounted power MOSFET packaging has been based on
integrated circuit and small signal packages. Those packages
have been modified to provide the improvements in heat transfer
required by power MOSFETs. Leadframe materials and design,
molding compounds, and die attach materials have been
changed. What has remained the same is the footprint of the
packages.
The basis of the pad design for surface mounted power MOSFET
is the basic footprint for the package. For the TSOP-6 package
outline drawing see http://www.vishay.com/doc?71200 and see
http://www.vishay.com/doc?72610 for the minimum pad footprint.
In converting the footprint to the pad set for a power MOSFET, you
must remember that not only do you want to make electrical
connection to the package, but you must made thermal connection
and provide a means to draw heat from the package, and move it
away from the package.
In the case of the TSOP-6 package, the electrical connections are
very simple. Pins 1, 2, 5, and 6 are the drain of the MOSFET and
are connected together. For a small signal device or integrated
circuit, typical connections would be made with traces that are
0.020 inches wide. Since the drain pins serve the additional
function of providing the thermal connection to the package, this
level of connection is inadequate. The total cross section of the
copper may be adequate to carry the current required for the
application, but it presents a large thermal impedance. Also, heat
spreads in a circular fashion from the heat source. In this case the
drain pins are the heat sources when looking at heat spread on the
PC board.
Since surface mounted packages are small, and reflow soldering
is the most common form of soldering for surface mount
components, “thermal” connections from the planar copper to the
pads have not been used. Even if additional planar copper area is
used, there should be no problems in the soldering process. The
actual solder connections are defined by the solder mask
openings. By combining the basic footprint with the copper plane
on the drain pins, the solder mask generation occurs automatically.
A final item to keep in mind is the width of the power traces. The
absolute minimum power trace width must be determined by the
amount of current it has to carry. For thermal reasons, this
minimum width should be at least 0.020 inches. The use of wide
traces connected to the drain plane provides a low impedance
path for heat to move away from the device.
REFLOW SOLDERING
Vishay Siliconix surface-mount packages meet solder reflow
reliability requirements. Devices are subjected to solder reflow as a
test preconditioning and are then reliability-tested using
temperature cycle, bias humidity, HAST, or pressure pot. The
solder reflow temperature profile used, and the temperatures and
time duration, are shown in Figures 2 and 3.
Figure 1 shows the copper spreading recommended footprint for
the TSOP-6 package. This pattern shows the starting point for
utilizing the board area available for the heat spreading copper. To
create this pattern, a plane of copper overlays the basic pattern on
pins 1,2,5, and 6. The copper plane connects the drain pins
electrically, but more importantly provides planar copper to draw
heat from the drain leads and start the process of spreading the
heat so it can be dissipated into the ambient air. Notice that the
planar copper is shaped like a “T” to move heat away from the
drain leads in all directions. This pattern uses all the available area
underneath the body for this purpose.
0.167
4.25
0.074
0.010
0.25
1.875
0.122
3.1
0.014
0.35
0.026
0.65
0.049
0.049
1.25
1.25
FIGURE 1. Recommended Copper Spreading Footprint
Document Number: 71743
27-Feb-04
Ramp-Up Rate
Temperature @ 155 " 15_C
Temperature Above 180_C
Maximum Temperature
Time at Maximum Temperature 20 − 40 Seconds
Ramp-Down Rate
FIGURE 2. Solder Reflow Temperature Profile
+6_C/Second Maximum
120 Seconds Maximum
70 − 180 Seconds
240 +5/−0_C
+6_C/Second Maximum
www.vishay.com
1
Page 9
AN823
Vishay Siliconix
10 s (max)
255 − 260_C
1X4_C/s (max) 3-6_C/s (max)
140 − 170_C
3_C/s (max)
Maximum peak temperature at 240_C is allowed.
60-120 s (min)
Pre-Heating Zone
FIGURE 3. Solder Reflow Temperature and Time Durations
THERMAL PERFORMANCE
A basic measure of a device’s thermal performance is the
junction-to-case thermal resistance, Rq
, or the
jc
junction-to-foot thermal resistance, Rqjf. This parameter is
measured for the device mounted to an infinite heat sink and
is therefore a characterization of the device only, in other
words, independent of the properties of the object to which the
device is mounted. Table 1 shows the thermal performance
of the TSOP-6.
TABLE 1.
Equivalent Steady State Performance—TSOP-6
Thermal Resistance Rq
jf
30_C/W
1.6
1.4
1.2
− On-Resiistance
1.0
(Normalized)
DS(on)
r
0.8
217_C
60 s (max)
Reflow Zone
On-Resistance vs. Junction Temperature
VGS = 4.5 V
= 6.1 A
I
D
SYSTEM AND ELECTRICAL IMPACT OF
TSOP-6
In any design, one must take into account the change in
MOSFET r
www.vishay.com
2
with temperature (Figure 4).
DS(on)
0.6
−50 −25 0 25 50 75 100 125 150
T
− Junction Temperature (_C)
J
FIGURE 4. Si3434DV
Document Number: 71743
27-Feb-04
Page 10
Application Note 826
Vishay Siliconix
RECOMMENDED MINIMUM PADS FOR TSOP-6
0.099
(2.510)
Return to Index
Return to Index
0.119
(3.023)
0.039
(1.001)
Recommended Minimum Pads
Dimensions in Inches/(mm)
0.020
(0.508)
0.019
(0.493)
0.064
0.028
(1.626)
(0.699)
APPLICATION NOTE
www.vishay.com Document Number: 72610
26 Revision: 21-Jan-08
Page 11
Legal Disclaimer Notice
Vishay
Disclaimer
ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE
RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.
Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,
“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other
disclosure relating to any product.
Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or
the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all
liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,
consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular
purpose, non-infringement and merchantability.
Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical
requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements
about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular
product with the properties described in the product specification is suitable for use in a particular application. Parameters
provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All
operating parameters, including typical parameters, must be validated for each customer application by the customer’s
technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,
including but not limited to the warranty expressed therein.
Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining
applications or for any other application in which the failure of the Vishay product could result in personal injury or death.
Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree
to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and
damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay
or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to
obtain written terms and conditions regarding products designed for such applications.
No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by
any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.
Document Number: 91000 www.vishay.com
Revision: 11-Mar-11 1
Loading...
