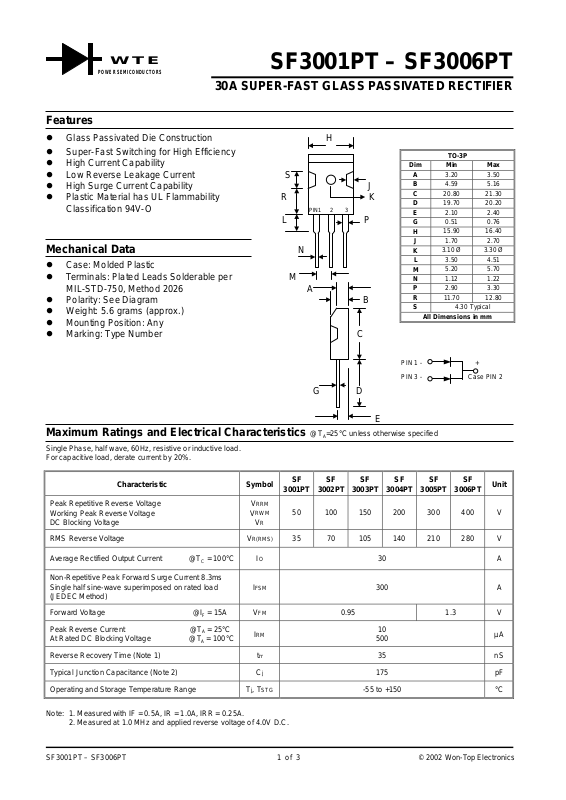

WTE
POWER SEM ICOND UCTOR S
SF3001PT – SF3006PT
30A SUPER-FAST GLASS PASSIVATED RECTIFIER
Features
!
Glass Passivated Die Construction H
!
Super-Fast Switching for High Efficiency
!
High Current Capability
!
Low Reverse Leakage Current S
!
High Surge Current Capability J
!
Plastic Material has UL Flammability R K
Classification 94V-O
PIN1 2 3
L P
Mechanical Data N
!
Case: Molded Plastic
!
Terminals: Plated Leads Solderable per M
MIL-STD-750, Method 2026 A
!
Polarity: See Diagram B
!
Weight: 5.6 grams (approx.)
!
Mounting Position: Any
!
Marking: Type Number C
Dim Min Max
A
B
C
D
E
G
H
J
K
L
M
N
P
R
S
TO-3P
3.20 3.50
4.59 5.16
20.80 21.30
19.70 20.20
2.10 2.40
0.51 0.76
15.90 16.40
1.70 2.70
3.10 Ø 3.30 Ø
3.50 4.51
5.20 5.70
1.12 1.22
2.90 3.30
11.70 12.80
4.30 Typical
All Dimensions in mm
G
Maximum Ratings and Electrical Characteristics
Single Phase, half wave, 60Hz, resistive or inductive load.
For capacitive load, derate current by 20%.
Characteristic Symbol
Peak Repetitive Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage V
Average Rectified Output Current @TC = 100°C I
Non-Repetitive Peak Forward Surge Current 8.3ms
Single half sine-wave superimposed on rated load
(JEDEC Method)
Forward Voltage @IF = 15A V
Peak Reverse Current @TA = 25°C
At Rated DC Blocking Voltage @T
Reverse Recovery Time (Note 1) t
= 100°C
A
RRM
V
RWM
V
R
V
R(RMS)
O
FSM
I
FM
RM
I
rr
@TA=25°C unless otherwise specified
SF
3001PTSF3002PTSF3003PTSF3004PTSF3005PTSF3006PT
50 100 150 200 300 400 V
35 70 105 140 210 280 V
D
E
30 A
300 A
0.95 1.3 V
10
500
35 nS
PIN 1 - +
PIN 3 - Case PIN 2
Unit
µA
Typical Junction Capacitance (Note 2) C
Operating and Storage Temperature Range Tj, T
Note: 1. Measured with IF = 0.5A, IR = 1.0A, IRR = 0.25A.
2. Measured at 1.0 MHz and applied reverse voltage of 4.0V D.C.
SF3001PT – SF3006PT 1 of 3 © 2002 Won-Top Electronics
j
STG
175 pF
-55 to +150 °C
30
24
18
100
SF3001PT -SF3004PT
10
12
6
(AV)
I , AVERAGE FORWARD CURRENT (A)
0
0 50 100 150
T , CASE TEMPERATURE ( C)
C
Fig. 1 Forward Current Derating Curve
360
8.3 ms single half-sine-wave
JEDEC method
300
240
180
120
60
SF3005PT -SF3006PT
Pulse width = 300 s
2% duty cycle
µ
F
I , INSTANTANEOUS FORWARD CURRENT (A)
1.0
0.1
0.2 0.6 1.0 1.4
°
V , INSTANTANEOUS FORWARD VOLTAGE (V)
F
Fig. 2 Typical Forward Characteristics
400
100
j
C,CAPACITANCE(pF)
FSM
I , PEAK FORWARD SURGE CURRENT (A)
0
1 10 100
NUMBER OF CYCLES AT 60Hz
Fig. 3 Max Non-Repetitive Surge Current
100
10
1.0
0.1
R
I , INSTANTANEOUS REVERSE CURRENT (mA)
0.01
0
PERCENT OF RATED PEAK REVERSE VOLTAGE (%)
10
0.1 1.0 10 100
Fig. 4 Typical Junction Capacitance
T = 100 C
°
C
T = 75 C
°
C
T = 25 C
°
C
40
80 120
Fig. 5 Typical Reverse Characteristics
V , REVERSE VOLTAGE (V)
R
SF3001PT – SF3006PT 2 of 3 © 2002 Won-Top Electronics
ORDERING INFORMA TION
Product No. Package Type Shipping Quantity
SF3001PT TO-3P 30 Units/Tube
SF3002PT TO-3P 30 Units/Tube
SF3003PT TO-3P 30 Units/Tube
SF3004PT TO-3P 30 Units/Tube
SF3005PT TO-3P 30 Units/Tube
SF3006PT TO-3P 30 Units/Tube
Shipping quantity given is for minimum packing quantity only. For minimum order
quantity, please consult the Sales Department.
Won-Top Electronics Co., Ltd (WTE) has checked all information carefully and believes it to be correct and accurate. However, WTE cannot assume any
responsibility for inaccuracies. Furthermore, this information does not give the purchaser of semiconductor devices any license under patent rights to
manufacturer. WTE reserves the right to change any or all information herein without further notice.
WARNING
support devices or systems without the express written approval.
Won-Top Electronics Co., Ltd.
No. 44 Yu Kang North 3rd Road, Chine Chen Dist., Kaohsiung, Taiwan
Phone:
Fax:
Email:
Internet:
SF3001PT – SF3006PT 3 of 3 © 2002 Won-Top Electronics
