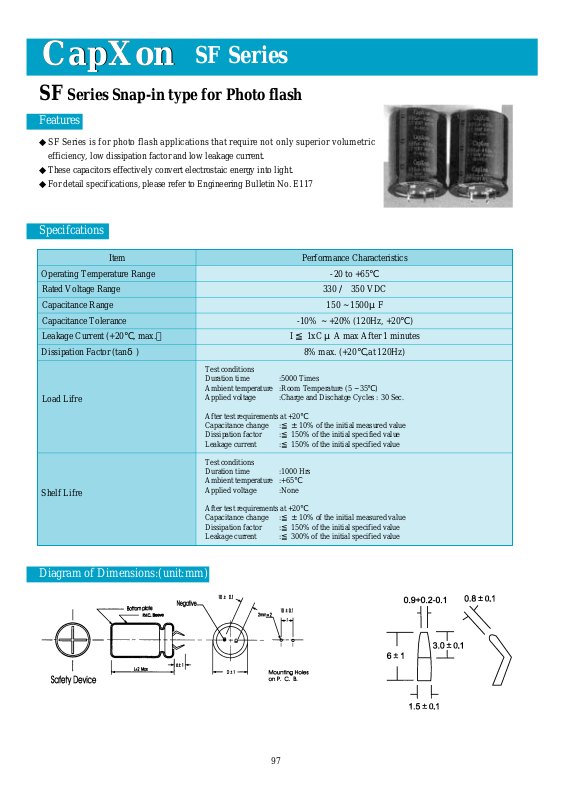

Page 1
CapXon
CapXon
SF Series
SFSeries Snap-in type for Photo flash
Features
◆SF Series is for photo flash applications that require not only superior volumetric
efficiency, low dissipation factor and low leakage current.
◆These capacitors effectively convert electrostaic energy into light.
◆For detail specifications, please refer to Engineering Bulletin No. E117
Specifcations
Item
Operating Temperature Range
Rated Voltage Range
Capacitance Range
Capacitance Tolerance
Leakage Current (+20℃, max.）
Dissipation Factor (tanδ)
Load Lifre
Shelf Lifre
Performance Characteristics
-20 to +65℃
330 ∕ 350 VDC
150 ~ 1500μF
-10% ~ +20% (120Hz, +20℃)
I ≦ 1xC μA max After 1 minutes
8% max. (+20℃,at 120Hz)
Test conditions
Duration time :5000 Times
Ambient temperature :Room Temperature (5 ~ 35℃)
Applied voltage :Charge and Dischatge Cycles : 30 Sec.
After test requirements at +20℃
Capacitance change :≦ ±10% of the initial measured value
Dissipation factor :≦ 150% of the initial specified value
Leakage current :≦150% of the initial specified value
Test conditions
Duration time :1000 Hrs
Ambient temperature :+65℃
Applied voltage :None
After test requirements at +20℃
Capacitance change :≦ ±10% of the initial measured value
Dissipation factor :≦ 150% of the initial specified value
Leakage current :≦ 300% of the initial specified value

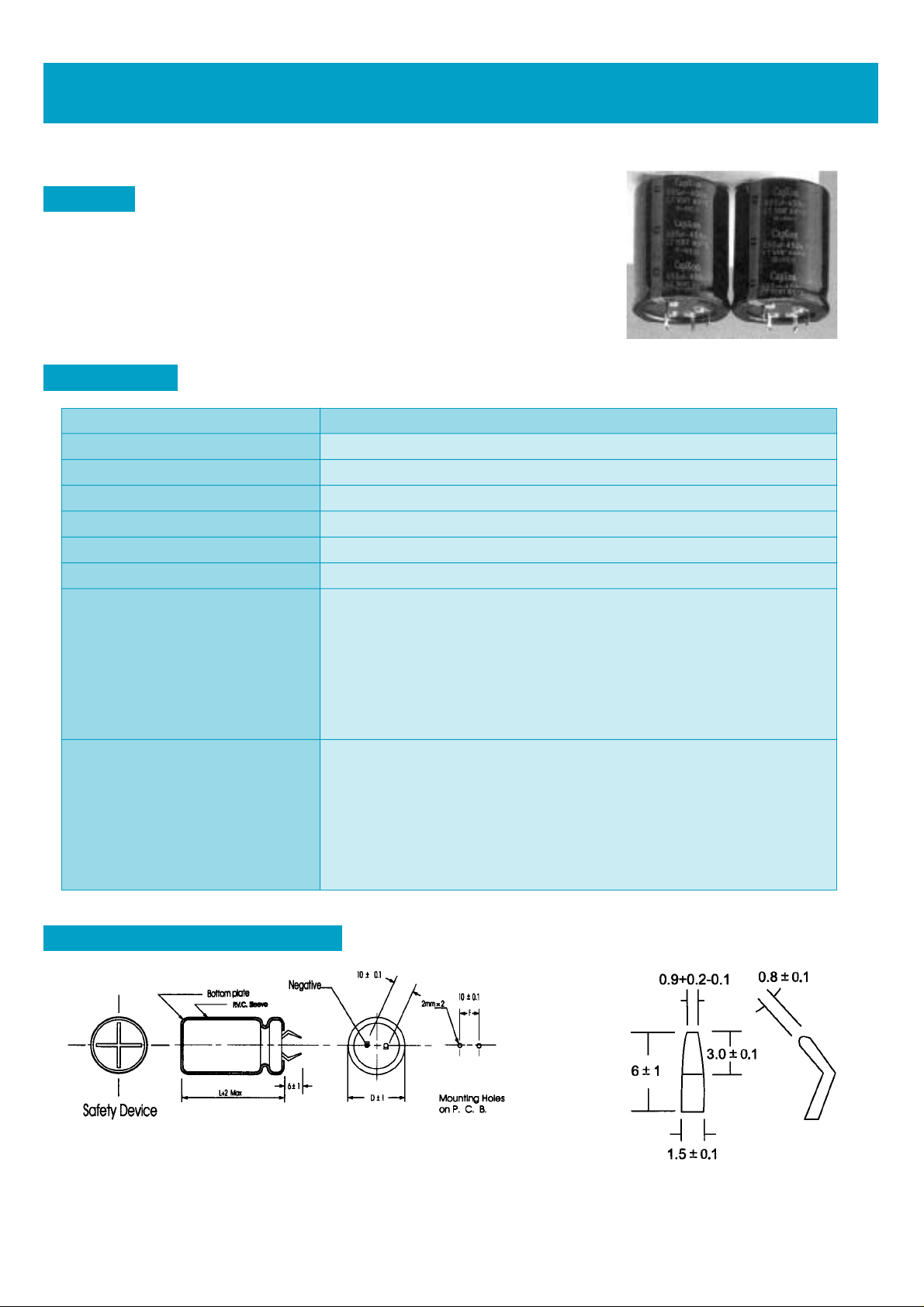

Diagram of Dimensions:(unit:mm)
97
Page 2
CapXon
CapXon
Case Size
SF Series
WV
(S.V.)
330
(360)
μF
150
220
250
300
350
400
450
500
600
700
800
900
1000
Case Size
ψDxL(mm)
20 x 25
20 x 25
20 x 31
22 x 26
20 x 36
22 x 31
22 x 33
25 x 26
22 x 36
25 x 31
22 x 41
25 x 33
22 x 46
25 x 36
25 x 41
30 x 31
25 x 46
30 x 36
25 x 51
30 x 41
30 x 46
35 x 37
30 x 51
35 x 42
WV
(S.V.)
350
(390)
μF
150
220
250
300
350
400
450
500
600
700
800
900
1000
Case Size
ψDxL(mm)
20 x 27
20 x 31
22 x 26
20 x 36
22 x 31
22 x 33
25 x 26
22 x 36
25 x 31
22 x 41
25 x 33
22 x 46
25 x 36
25 x 41
30 x 31
25 x 46
30 x 36
25 x 51
30 x 41
30 x 46
35 x 37
30 x 51
35 x 42
35 x 47
1200
1500
35 x 47
35 x 52
98
1200
1500
35 x 52
35 x 57
