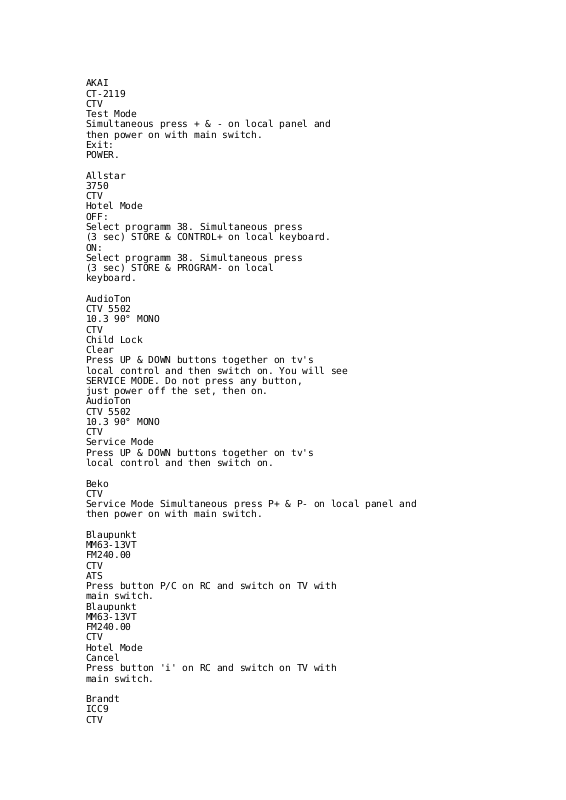

Page 1
AKAI
CT-2119
CTV
Test Mode
Simultaneous press + & - on local panel and
then power on with main switch.
Exit:
POWER.
Allstar
3750
CTV
Hotel Mode
OFF:
Select programm 38. Simultaneous press
(3 sec) STORE & CONTROL+ on local keyboard.
ON:
Select programm 38. Simultaneous press
(3 sec) STORE & PROGRAM- on local
keyboard.
AudioTon
CTV 5502
10.3 90° MONO
CTV
Child Lock
Clear
Press UP & DOWN buttons together on tv's
local control and then switch on. You will see
SERVICE MODE. Do not press any button,
just power off the set, then on.
AudioTon
CTV 5502
10.3 90° MONO
CTV
Service Mode
Press UP & DOWN buttons together on tv's
local control and then switch on.
Beko
CTV
Service Mode Simultaneous press P+ & P- on local panel and
then power on with main switch.
Blaupunkt
MM63-13VT
FM240.00
CTV
ATS
Press button P/C on RC and switch on TV with
main switch.
Blaupunkt
MM63-13VT
FM240.00
CTV
Hotel Mode
Cancel
Press button 'i' on RC and switch on TV with
main switch.
Brandt
ICC9
CTV
Page 2
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again. (WARNING: scart must be free.
Continental
CT1412B
CTV
Service Mode
Press and hold P+ and P- on local panel, then
switch on TV with main switch.
Ferguson
ICC9
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again. (WARNING: scart must be free.)
Ferguson
TX92
CTV
Hotel Mode
Cancel
Put TV into standby, then turn power off, then
turn power on whilst holding standby button on
remote and step through menus to vol set and
increase level to max.
Finlux
17/21B60
63/71Y2
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:
OK (M).
Exit:
TV GoldStar
MC-51B
CTV
Service Mode
Simultaneously press MENU, VOL-, PR- on
the local panel.
Graetz
BURGGRAF
STEREO 4876
Digivision
DIGI III 110°
CTV
Service Mode
Turn on 'TV Internal Service Program' switch on
the digital modul (SE on display). On RC: 1=U1
V SHIFT, 2=U2 V LIN DN, 3=U3 V LIN, 4=H1
Page 3
H SHIFT, 5=H2 H AMP, 6=H3 EW AMP, 7=
C, 8=C1, 9=C2, 0=H4 EW TRAPEZ...
TV=MEMO, VOL+/-=ADJUST.
Grundig
CUC1800
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1800
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1800
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1805
CTV
ATS Reset
Press and hold button VOL+ on the TV and
switch the mains button ON. ATS bit is set.
Grundig
CUC1805
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1805
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC1805
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1805
CTV
Service Mode
Press 'i'. Dialog Center --> Service --> 'for
authorized dealer' --> Code Number 8500.
Grundig
CUC1805
Page 4
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC1806
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC1806
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1806
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1806
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1806
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1821
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1821
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1821
CTV
Service Mode
Page 5
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1822
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1822
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1822
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1824
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1824
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1824
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1825
CTV
ATS Reset
Press and hold button VOL+ on the TV and
switch the mains button ON. ATS bit is set.
Grundig
CUC1825
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1825
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
Page 6
(19798-300.01) indicates the EPROM version.
Grundig
CUC1825
CTV
ROM Data
Loading
Press and hold the P- buton on the TV and
switch on with the mains button. Loading
the Average Values / Emergency Data Set
(ROM Dana). This is only possible once on
replacement of the NVM or uP.
Grundig
CUC1825
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1825
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC1826
CTV
ATS Reset
Press and hold button VOL+ on the TV and
switch the mains button ON. ATS bit is set.
Grundig
CUC1826
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1826
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1826
CTV
ROM Data
Loading
Press and hold the P- buton on the TV and
switch on with the mains button. Loading
the Average Values / Emergency Data Set
(ROM Dana). This is only possible once on
replacement of the NVM or uP.
Grundig
CUC1826
CTV
Service Mode
Press 'i'. Dialog Center --> Service --> 'for
authorized dealer' --> Code Number 8500.
Grundig
CUC1826
Page 7
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC1827
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1827
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC1827
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1827
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1827
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC1828
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC1828
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1828
CTV
Page 8
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1828
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1828
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1829
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC1829
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1829
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1829
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1829
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1830
CTV
Child Lock
Cancel
Page 9
General reset with number 7038.
Grundig
CUC1830
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1830
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1830
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1830
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1836
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC1836
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1836
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1836
CTV
Factory
Default
Page 10
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1836
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1842
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1842
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1842
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1842
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1842
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1851
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1851
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
Page 11
CUC1851
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1852
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1852
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1852
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1881
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1881
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1881
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1892
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1892
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1892
Page 12
CTV
Service Mode
Menu guide: 'i', 'Special functions', 'Service',
'Code 8500'.
Grundig
CUC1894
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1894
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1894
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1894
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1894
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1929
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC1929
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1929
CTV
EPROM
Version Nr.
Page 13
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1929
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1929
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1952
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1952
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1952
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1952
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1952
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1962
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
Page 14
CUC1962
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1962
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1962
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1962
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1983
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1983
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1983
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1983
CTV
Factory
Default
Values
Resetting
Page 15
Buttons 'AUX', 'OK'.
Grundig
CUC1983
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC1984
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC1984
CTV
Demo Mode
Demo on: Depress and hold button 'L+' on the
TV and switch the TV on with the mains button.
Press the 'P+' button within a time of 10s.
Demo off: ATS Reset (by depressing the 'L+'
button on the TV while switching on with the
mains button).
Grundig
CUC1984
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC1984
CTV
Factory
Default
Values
Resetting
Buttons 'AUX', 'OK'.
Grundig
CUC1984
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC2020
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC2020
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC2020
CTV
Page 16
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button.
(Additionally on replacement of the memory, the
Hotel Mode and the band limits are to be
deactivated and the AGC and AFC are to be
readjusted).
Grundig
CUC2020
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC2020
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC2020
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC2030
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC2030
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC2030
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button.
(Additionally on replacement of the memory, the
Hotel Mode and the band limits are to be
deactivated and the AGC and AFC are to be
readjusted).
Grundig
CUC2030
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
Page 17
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC2030
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC2030
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC2031
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC2031
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC2031
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button.
(Additionally on replacement of the memory, the
Hotel Mode and the band limits are to be
deactivated and the AGC and AFC are to be
readjusted).
Grundig
CUC2031
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC2031
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC2031
Page 18
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC2050
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC2050
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC2050
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button.
(Additionally on replacement of the memory, the
Hotel Mode and the band limits are to be
deactivated and the AGC and AFC are to be
readjusted).
Grundig
CUC2050
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC2050
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC2050
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC2051
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
Page 19
CUC2051
CTV
Child Lock
Cancel
General reset with number 7038.
Grundig
CUC2051
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button.
(Additionally on replacement of the memory, the
Hotel Mode and the band limits are to be
deactivated and the AGC and AFC are to be
readjusted).
Grundig
CUC2051
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC2051
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC2051
CTV
Service Mode
Menu guide: 'i', 'Dialog Center', 'Service', 'Only
for retailer', 'Code 8500'.
Grundig
CUC6300
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6300
CTV
Default
Values
Entering
Depress and hold the 'i' button on the RC while
switching on with the mains button. Menu guide:
'Horizontal Position', 'OK', 'OK', press 'i' to leave
the menu.
Grundig
CUC6300
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
Page 20
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6300
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC6301
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6301
CTV
Default
Values
Entering
Depress and hold the 'i' button on the RC while
switching on with the mains button. Menu guide:
'Horizontal Position', 'OK', 'OK', press 'i' to leave
the menu.
Grundig
CUC6301
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6301
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC6310
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6310
CTV
Default
Values
Entering
Depress and hold the 'i' button on the RC while
switching on with the mains button. Menu guide:
'Horizontal Position', 'OK', 'OK', press 'i' to leave
the menu.
Grundig
CUC6310
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
Page 21
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6310
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC6330
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6331
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6360
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6360
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6360
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6360
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
Page 22
CUC6360
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6360
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC6365
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6365
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6365
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6365
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6365
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6365
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC6380
CTV
Page 23
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6380
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6380
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6380
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6380
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6380
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC6450
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6450
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6450
CTV
Page 24
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6450
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6450
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6450
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC6460
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6460
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6460
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6460
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
Page 25
CUC6460
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6460
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC6469
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC6469
CTV
Default
Values
Entering
Depress and hold the button 'P-' on the RC while
switching on with the mains button. (This is
only possible once on replacement of the NVM
or uP).
Grundig
CUC6469
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC6469
CTV
Hotel Mode
Depress and hold button 'P/C' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC6469
CTV
Service Mode
Depress and hold the 'P/C' button on the RC
while switching on with the mains button.
Grundig
CUC6469
CTV
Volume
Offset
Cancel
Press and hold the 'AUX' button on the RC while
switching the TV on with the mains button.
Grundig
CUC7300
CTV
Page 26
Default
Values
Entering
Depress and hold down button 'P-' on the RC
and switch the TV on from Standby with the
local 'P+' button. (This is only possible once on
replacement of the NVM or uP).
Grundig
CUC7300
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC7300
CTV
Hotel Mode
Depress and hold button 'P/C' while switching
on from Standby with button 'P+' on the TV. Set
the Hotel Mode to 'OFF' with 'OK'.
Grundig
CUC7300
CTV
Volume
Offset
Cancel
Depress and hold the 'AUX' button on the RC
while switching the TV on from Standby with
the local 'P+' button.
Grundig
CUC7301
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC7302
CTV
Default
Values
Entering
Depress and hold down button 'P-' on the RC
and switch the TV on from Standby with the
local 'P+' button. (This is only possible once on
replacement of the NVM or uP).
Grundig
CUC7302
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC7302
CTV
Hotel Mode
Page 27
Depress and hold button 'P/C' while switching
on from Standby with button 'P+' on the TV. Set
the Hotel Mode to 'OFF' with 'OK'.
Grundig
CUC7302
CTV
Volume
Offset
Cancel
Depress and hold the 'AUX' button on the RC
while switching the TV on from Standby with
the local 'P+' button.
Grundig
CUC7303
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC7303
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC7303
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Grundig
CUC7305
CTV
Band Limits
Cancelling
Depress and hold button 'i' on the RC while
switching on with the mains button. Move the
bar to 'AGC' in the Service Menu and operate
the buttons 'AUX', 'OK' in this order.
Grundig
CUC7305
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC7305
CTV
OSD
position
Depress and hold the 'i' button on the RC while
switching on with the mains button. Set the
OSD position in the menu and store with 'OK'.
Page 28
Grundig
CUC7350
CTV
Hotel Mode
Depress and hold button 'i' on the RC while
switching on with the mains button. In the menu
line 'HOTEL' select 'ON' and leave the menu with
button 'i'. Cancelling the Hotel Mode: Repeat
the steps above but change 'HOTEL' to 'OFF'.
Grundig
CUC7851
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC7851
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC7880
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC7880
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC7890
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC7890
CTV
EPROM
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
CUC7951
CTV
Child Lock
Cancel
Press VOL+, VOL-, PR-, PR+, OK.
Grundig
CUC7951
CTV
EPROM
Page 29
Version Nr.
Press button 'i' to call up the 'Dialog Center' -->
OK. The version number is shown by pressing
the 'AUX' button. The index 01 of the part nr.
(19798-300.01) indicates the EPROM version.
Grundig
GV200 to GV250
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the STOP button.
Grundig
GV201-1
VCR
Electronic
Lock Cancel
Press the 'STANDBY' button on the remote
control handset until 'FREE' is indicated on the
display of the video recorder.
Grundig
GV25SV/5
GV45SV/5
VCR
Electronic
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
GV280PC
GV280S
VCR
Electronic
Lock Cancel
Enter the numbers 4 9 3 4 on the remote control
handset in this order and confirm with the
button 'OK'. Press the STOP button.
Grundig
GV400
GV400GB
GV400OST
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV4000VPS
GV4001
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV4003VPS
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
Page 30
press the Stop button on the RC until 'FREE'
appears on the display of the recorder.
Grundig
GV400VPS
GV401VPT
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV4010SV-VPT
GV4092..
GV4192VPS
GV4200SV-VPT
GV4400HiFi
GV4592..
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV402
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV404SV
GV405EURO
GV406EURO
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV410
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV410VPS
GV411
VCR
Electronic
Page 31
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV411-1
VCR
Electronic
Lock Cancel
Press and hold the 'STAND-BY' button on the
RC (ca. 5s), until 'UNLOCKED' appears on the
display of the recorder.
Grundig
GV411OST
GV412
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV414SV
GV415EURO
GV416EURO
GV420VPT
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV430
GV430GB
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
GV430VPS
GV434SV
GV435EURO
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV440..
GV450..
GV460..
Page 32
GV464..
GV465EURO
GV470..
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV500..
GV501VPT
GV505EURO
GV506EURO
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV5000
GV5000GB
GV5000VPS
GV5000VPS/5
VCR
Electronic
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
GV5002VPS
GV5003
GV5008
GV5050
VCR
Electronic
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
GV5050SV
GV5050SV/1
GV5055EURO
GV5095..
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV510SV
GV511
GV515EURO
Page 33
GV530..
GV535EURO
GV540..
GV545EURO
GV560..
GV565EURO
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV5300..
VCR
Electronic
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
GV5395..
GV5400..
GV5695HiFi
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV600
GV630
GV640HiFi
GV640NIC
GV645EURO
GV650HiFi
GV660HiFi
GV660NIC
GV665EURO
GV670SHiFi
GV670SNIC
GV690SHiFi
GV690SNIC
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV6096SV
GV6096SV/1
GV6396SV
GV6596HiFi
GV6596NIC
Page 34
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV740..
GV745EURO
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV7400..
VCR
Electronic
Lock Cancel
Press and hold down the buttons 'STAND-BY'
and 'SELECT' simultaneously on the RC until
key simbol disappears from the display of the
recorder.
Grundig
GV7497NIC
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
GV8..
KV8..
SE8..
VCR
Electronic
Lock Cancel
Press and hold down the buttons 'STAND-BY'
and 'SELECT' simultaneously on the RC until
key simbol disappears from the display of the
recorder.
Grundig
GVP600ICNEURO
VCR
Electronic
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
KV5001VPS/5
KV5301VPS/5
VCR
Electronic
Page 35
Lock Cancel
Press the 'STAND-BY' button on the RC until
'FREE' appears on the display of the recorder.
Grundig
MV4005
MV4105
VCR
Electronic
Lock Cancel
With the video recorder switched off (Stand-by)
press the Stop button on the RC until 'UNLO'
appears on the display of the recorder.
Grundig
SE4100VPS
SE4104SV
SE4120SV
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
SE5102SV
SE5104SV
SE5106HiFi
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
SE6102SV
SE6104SV
SE6106HiFi
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
SE7104SV
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
SE7105
Page 36
VCR
Electronic
Lock Cancel
Press and hold down the buttons 'STAND-BY'
and 'SELECT' simultaneously on the RC until
key simbol disappears from the display of the
recorder.
Grundig
SE7106HiFi
VCR
Electronic
Lock Cancel
Press the 'CODE' button on the remote control
handset. Enter the numers 4 9 3 4 on the
remote control handset in this order and confirm
with the 'OK' button. Press the 'STAND-BY'
button or disconnect the recorder from the
mains.
Grundig
TVR3700
VCR
Electronic
Lock Cancel
Press and hold STOP button on the RC and
depress the PLAY button on the video recorder.
Press the 'STAND-BY' button or disconnect the
video recorder from the mains.
Grundig
TVR3701
TVR3705
TVR3710
TVR3720
TVR3730
VCR
Electronic
Lock Cancel
Press the cursor buttons on the RC in this
order: VOL+, VOL-, PR+, PR-.
Grundig
TVR4500
TVR4510
VCR
Electronic
Lock Cancel
Interconnect the service test points on the
keyboard control unit for a short period.
Switch the unit off and disconnect it from
mains.
Grundig
TVR5100
TVR5130
TVR5500
VCR
Electronic
Lock Cancel
Press the cursor buttons on the RC in this
order: VOL+, VOL-, PR+, PR-.
Grundig
TVR5510
VCR
Electronic
Lock Cancel
Interconnect the service test points on the
keyboard control unit for a short period.
Page 37
Switch the unit off and disconnect it from
mains.
Grundig
TVR5530
VCR
Electronic
Lock Cancel
Press the cursor buttons on the RC in this
order: VOL+, VOL-, PR+, PR-.
Grundig
VS200 to VS267
VCR
Electronic
Lock Cancel
Switch the video recorder off. Remove the top of
the cabinet. Unplug the B1 connector on the
sequence control. Switch the recorder on. After
approx. 2 seconds, re-insert the B1 connector.
Switch the video recorder off. Re-fit the top of
the cabinet.
Grundig
VS300 to VS460
VCR
Electronic
Lock Cancel
Switch the video recorder off. Remove the top of
the cabinet. Switch the recorder on.
Interconnect the service test points on the
keyboard control unit for a short period. Press
the STOP button. Switch the video recorder
off. Re-fit the top of cabinet.
Grundig
VS500
VCR
Electronic
Lock Cancel
Enter the numbers 4 9 3 4 on the remote control
handset in this order and confirm with the
button '0000'. Press the STOP button.
Grundig
VS505 to VS510
VCR
Electronic
Lock Cancel
Enter the numbers 4 9 3 4 on the remote control
handset in this order and confirm with the
button 'OK'. Press the STOP button.
Grundig
VS520 to VS550
VCR
Electronic
Lock Cancel
Switch the video recorder off. Remove the top of
the cabinet. Switch the recorder on.
Interconnect the service test points on the
keyboard control unit for a short period. Press
the STOP button. Switch the video recorder
off. Re-fit the top of cabinet.
Grundig
VS600 to VS960
VCR
Electronic
Lock Cancel
Enter the numbers 4 9 3 4 on the remote control
Page 38
handset in this order and confirm with the
button 'OK'. Press the STOP button.
ITT
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:
OK (M).
Exit:
TV LG
MC64
CTV
Service Mode
Simultaneous press OK on RC & local panel.
LG
MC84
CTV
Service Mode
Simultaneous press OK on RC & local panel.
Loewe.
Art.-Nr. 64420
66426 66449
66450 66460
66480 66490
C9000
CTV
TV Service
Mode
Simultaneous press CM on the RC & "Service"
key on the control panel.
Select:
MEM IN/OUT.
Adjust:
VOL +/-.
Store:
X.
Exit:
TV.
Loewe.
Art.-Nr. 64420
66426 66449
66450 66460
66480 66490
C9000
CTV
VT Service
Mode
Simultaneous press VT on the RC & "Service"
key on the control panel.
Select:
MEM IN/OUT.
Adjust:
VOL +/-.
Store:
X.
Exit:
TV.
Page 39
Loewe.
C9003
CTV
Service Mode
On the local control press function key five times
(indication "Service" will appear), afterwards
within a sec. press key "MEN" on the remote
control.
Store:
X.
Exit:
TV.
Loewe.
Q2200
CTV
Service Mode
Go to 'SERVICE' in menu and then quick press
'MENU' on the RC.
Select:
yellow cursors.
Adjust:
+/-.
Store:
'X'.
Exit:
'TV'.
Luxor
5585-21A1
7057-27
63/7954
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:
OK (M).
Exit:
TV Mitsubishi
CT21M5E
CTV
Service Mode
Press S701 (on board) and button 9 (in 5s).
Store:
'0'.
Exit:
stand-by.
NEC
XExx
XPxx
XVxx
MON
Service Mode
Select DISPLAY MODE. Press PROCEED.
Press and hold RESET. Then simultaneous
press + & -. 'Warning Entering Service Menu...'
appears. Press PROCEED for enter. Be
careful! You can damage a monitor!
Page 40
Nokia
6364, 7364
2B-F
CTV
Service Mode
Quick press: --\-, MENU, TV.
Nokia
EUROSTEREO
CTV
Service Mode
In 1s press buttons '-/--', 'MENU', 'TV'.
Select:
PR+/-.
Adjust:
VOL+/-.
Store:
fill-dot-symbol
on RC (near 'i' button).
Exit:
'STANDBY'.
Nokia
63/7168 55A1-0
45H1-0 55Y2-0
63/7157 63/7177
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:
OK (M).
Exit:
TV
Nokia
STEREO PLUS
CTV
Service Mode
i --> M --> PROGR.
Controls:
cursor buttons.
Store:
M.
Exit:
TV Nordmende
DC1
CTV
Service Mode
Switch to Standby. Switch off with the mains
switch. Press and hold red button on RC and
then switch on with the mains switch (cca 10s).
Select:
numbers buttons.
Adjust:
+/-.
Store:
red button.
Exit:
'MUTE'.
Nordmende
DC2
CTV
Page 41
Service Mode
Switch to Standby. Switch off with the mains
switch. Press and hold red button on RC and
then switch on with the mains switch (cca 10s).
Select:
numbers buttons.
Adjust:
+/-.
Store:
red button.
Exit:
'MUTE'.
Nordmende
Color 3038
F15-03 110°
CTV
MDA2061
Replacement
After replacement of the MDA2061 (IR73) the
TV receiver acts as folows: a) All programme
storages have stored Ch00. b) The indicator
shows German function characters. c) PAL and
SECAM EAST standard recepcion is possible
(not NTSC and/or SECAM WEST).
If required to change according to paragr. b and
c then switch off the set by the mains switch.
Press both buttons + and - for volume on TV
and simultaneously switch the set on with the
mains switch. Keep the two volume buttons
pressed until the display indicates Pr. After 8s
the display indicates __. Now the following
buttons can be presseed on the RC, thus
additional corresponding segments will be
illuminated: Button '1' function symbols indicate
international display. Reversible to German
display with button '2'. Button '5' additional
SECAM WEST and/or NTSC reception
(Multistandard). Reversible to Single Standard
with button '3'.
Store:
Stand-By.
Nordmende
ICC10
CTV
Service Mode
Switch to Stand By. Switch off with the mains
switch. Press and hold 'VT' on RC then switch
on with the mains switch.
Nordmende
ICC9
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press blue button on
RC and switch on TV with main switch. Press
blue button again. (WARNING: scart must be
free.)
Palladium
TV-100
CTV
Service Mode
Simultaneous press red & blue buttons on RC
Page 42
then (in 5 sec.) simultaneously press P- & P+
on local keyboard.
Commands:
arrows.
Store:
OK.
Exit:
TV. Panasonic
EURO-1
CTV
Service Mode
In Sound-Menu Low-tone-regel to MAX and
High-tone-regel to MIN. Press VOL- on TV
and RESET on RC in some time.
Select:
red
and green buttons.
Adjust:
yellow and blue
buttons.
Store:
'STORE'.
Exit:
switch off.
Panasonic
EURO-2
CTV
Service Mode
In Sound-Menu Low-tone-regel to MAX and
High-tone-regel to MIN. Press 'F' button on TV.
Then press VOL- on TV and REVEAL on RC in
some time.
Select:
red and green buttons.
Adjust:
yellow and blue buttons.
Store:
'STR'.
Exit:
'N' on RC.
Panasonic
MX-3
MX-3C
CTV
Hotel Mode
ON:
Press simultaneously 'OFF TIMER' on RC
and 'CH.UP' local.
OFF:
Press simultaneously 'OFF TIMER' on RC
and 'VOL-' local.
Panasonic
MX-3
MX-3C
CTV
Service Mode
Simultaneously press 'RECALL' on RC and
'VOL-' local. Exit: 'NORMAL' on RC.
Philips
ANUBIS B
CTV
Page 43
Hotel Mode
ON:
Set HOTEL ON in Service Menu. Select
programm 38. Simultaneous press (3 sec)
INSTALL & P- on local keyboard.
OFF:
Set HOTEL OFF in Service Menu.
Philips
ANUBIS B
CTV
Service Mode
Simultaneously press VOL+ & P- on RC.
Exit: STANDBY.
Philips
Anubis S
CTV
Hotel Mode
OFF:
Select programm 38. Simultaneous press
(3 sec) PR+ & VOL- on local keyboard.
ON:
Select programm 38. Simultaneous press
(3 sec) STORE & PR- on local keyboard.
Philips
L7.1A
CTV
Service Mode
With special service RC. Or short M25, M25
on board and then switch on TV.
Exit:
st-by.
Philips
L9.1
CTV
Hotel Mode
Select program 38 on the TV. Simultaneously
press the keys VOLUME- and VOLUME+ on
the keyboard of the TV and the OSD key of
the remote control.
Philips
L9H
CTV
Service Mode This model also supports the 062596 sequence
followed by [MENU] (service default) or
[i+]/[OSD] (service mode).
Philips
MD1.2E
CTV
Service Mode
There is a small Service jumper to short on the
small signal PCB. When the TV is in this first
level service mode, you can go in the second
level service mode by pressing both MENU
and - keys on top of the TV at the same time.
There you can read much parameters and
proceed with most of the adjustments. In fact
this method let you use an ordinary Remote
control but you also need to open the back
cover. With the special service remote control,
a special code is sent to enter the service mode.
Philips
MG3.1E
CTV
Service Mode
Page 44
Option 1: In the TV-set itself is a 3-pin connector
with which either SERVICE-DEFAULT or
SERVICE-MODE can be activated. This
connector is depicted 0356 (SERVICE-PINS)
on page K7 (TXT&CONTROL). Shorting pins 1-2
will activate SERVICE-MODE. Shorting pins 2-3
will activate SERVICE-DEFAULT. Option 2:
Activate these modes using the remote control.
Obviously option 2 is the preferred method
because the settings have to be changed using
a remote control anyway.... To activate
SERVICE-DEFAULT: Press 0 6 2 5 9 6 and then
the [menu] button. The message `Service Default'
appears and channel `SER T' will be selected.
This only sets some settings to a preset value
(color/brightness/volume and such). This mode
is primarily intended to be used when the non
volatile memory has been replaced. It is then
loaded with the default values. To activate
SERVICE-MODE: Press 0 6 2 5 9 6 and then
the [i+] button. After pressing 0 6 2 5 9 6 the
message `Dealer' should have appeared.
Do not worry about the channel changing while
you press the numbers.
Service technicians have the means of entering
service mode using a special remote control.
Philips
29PT9416
MG7.1
CTV
Service Mode
Use the standard remote control an key in a
special sequence 0 6 2 5 9 6 followed by
pressing the 'MENU' button. If the main menu
also appears with the service menu just press
'MENU' again to clear it. The other way is to
short the two service pins on the signal panel
(pins 2 and 3 of connector 0356). The advantage
of this last method is that all the software
protections are turned off.
Philips
Y6
CTV
Service Mode
Use the standard remote control an key in a
special sequence 0 6 2 5 9 6 followed by
pressing the 'MENU' button. If the main menu
also appears with the service menu just press
'MENU' again to clear it.
Philips
VR210/58
VCR
Modulator
off
Without cassette. Press and hold SYSTEM till
'G591' appears. Press and hold CLEAR(CL) till
'MOFF' appears.
Exit:
TV/STANBY.
Philips
VR210/58
VCR
Modulator
on
Page 45
Without cassette. Press and hold SYSTEM till
'MOFF' appears. Press and hold CLEAR(CL) till
'G591' appears.
Exit:
TV/STANBY.
Philips
VR220/58
VCR
Child Lock
Cancel
Press CHILD LOCK (key-simbol) on the RC
for 5s with the VCR switched on.
Philips
VR220/58
VCR
Modulator
on/off
Without cassette. Press and hold STOP on the
RC and then press STOP/EJECT on VCR.
Select the line 'MODULATOR' on the TV screen
or 'MOD+' in the display with P+/-. In the display
select 'OFF' / 'MOD-' (modulator off) with VOL-
or 'MOD+' (modulator on). Confirm with OK.
Exit with MENU
Philips
VR220/58
VCR
Modulator
preset
Without cassette. Hold the STOP button on the
RC. In addition press the STOP/EJECT button
on the VCR until the pre-set modulator
frequency appears in the display, e.g. 'M591'
(591MHz or 36 ch. UHF). Select line 'OPTIMIZE
FREQUENCY' using P+/-. Enter new
modulator frequency with the numbers 0-9. In
line 'SOUND SYSTEM' select the TV system
using VOL+/-. 'G' = PAL B/G. 'K' = SECAM D/K.
Confirm with OK. 'STORED' will appear briefly
on the screen.
Philips
VR220/58
VCR
Reset to
factory
settings
Disconect from the mains power supply. Press
and hold the STANDBY/ON button on the device
and reconnect to the mains power supply.
Release the button when 'OSD' appears in the
VCR display.
Philips
VR400/58
VCR
Auto ST-BY
off
Press and hold STOP till [] appears.
Philips
VR400/58
VCR
Modulator
off
Without cassette. Press and hold SYSTEM till
'G591' appears. Press and hold CLEAR(CL) till
Page 46
'MOFF' appears.
Exit:
TV/STANBY.
Philips
VR400/58
VCR
Modulator
on
Without cassette. Press and hold SYSTEM till
'MOFF' appears. Press and hold CLEAR(CL) till
'G591' appears.
Exit:
TV/STANBY.
Philips
VR400/58
VCR
Modulator
preset
Without cassette. VCR st-by. Press and hold
SYSTEM till 'G591' appears.
System change:
SELECT.
Freq. Change:
P +/-.
Store:
OK.
Exit:
TV/STANBY.
Revox
D-TV
C9003
CTV
Service Mode
On the local control press function key five times
(indication "Service" will appear), afterwards
within a sec. press key "MEN" on the remote
control.
Store:
X.
Exit:
TV. Saba
ULTRACOLOR
T55U42 T55U43
T63U42 T63U43
ICC5115ML 110
ICC5116MM 90°
CTV
Combination
Lock Cancel
Switch off set with main switch. Switch on set
with main switch and during doing this press
the buttons + and - of volume control on the
set's control bord simultaneously until the
display lights. Display: SS... Press the button
'S' on the RC. Switch off with RC. Now the
combination lock is unlocked and one can
switch on again in the normal manner.
Saba
ICC9
CTV
Service Mode
Page 47
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again. (WARNING: scart must be free.)
Saba
T7032VT
TX92
CTV
Hotel Mode
Cancel
Put TV into standby, then turn power off, then
turn power on whilst holding standby button on
remote and step through menus to vol set and
increase level to max.
Salora
28N8S
2B-F
CTV
Service Mode
Quick press: --\-, MENU, TV.
Salora
17/21SF 25/28X71
25/28SP50
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:
OK (M).
Exit:
TV Samsung
CB-14F1 CB-20P30
CB-20H1 CB-20S20
CB-21H1 CB-21P30
CB-21S20 CB-3373
CB-5020 CB-5073
CB-5079 CB-5320
CB-5373 CB-5379
S15A
CTV
Service Mode
STAND-BY --> DISPLAY --> P.STD -->
MUTE --> POWER ON.
Controls:
VOL +/-, CH +/-.
Exit:
POWER OFF.
Samsung
CK5038
SCT11B
CTV
Service Mode
STAND-BY --> P.STD --> HELP --> SLEEP -->
POWER ON.
Controls:
VOL +/-, CH +/-.
Exit:
STATUS.
Page 48
Samsung
CX5944 CX6844
SCT12B
CTV
Service Mode
STAND-BY --> P.STD --> HELP --> SLEEP -->
POWER ON.
FACTORY MODE: set PSL=15 and PVA=63.
Controls:
VOL +/-, CH +/-.
Exit:
STATUS
Samsung
CB-14V10 CB-3373
CB-14V20 CB-5073
CB-20P30 CB-5079
CB-20S10 CB-5373
CB-20S20
CB-21P30
CB-21S10
CB-21S20
SCT13B
CTV
Service Mode
STAND-BY --> P.STD --> HELP --> SLEEP -->
POWER ON.
Controls:
VOL +/-, CH +/-.
Exit:
STATUS.
Samsung
CS7272
SCT51A
CTV
Service Mode
PICTURE OFF --> SLEEP --> P.STD -->
MUTE --> PICTURE ON
Samsung
CS-721
CS-723
SCT52A
CTV
Service Mode
PICTURE OFF --> SLEEP --> P.STD -->
MUTE --> PICTURE ON
Samsung
TVP3350
TVP5050
SCV11A
SCV11B
CTV/VCR Service Mode
STAND-BY --> P.STD --> MENU -->
SLEEP --> POWER ON
Schneider
DTV 1
CTV
Service Mode
Simultaneous press Service-button on digi-
bord & button C on RC.
Selection:
Bass +/-.
Adjust:
Volume +/-.
Page 49
Store:
T.
Exit:
TV.
Schneider
DTV 100
CTV
Service Mode
Simultaneous press red & blue buttons on RC
then (in 5 sec.) simultaneous press P- & P+
on local keyboard.
Commands:
arrows.
Store:
OK.
Exit:
TV.
Schneider
DTV 2
CTV
Service Mode
Like DTV 1 or simultaneous press Service-
button (down right on RC) & C button on RC.
Selection:
Bass +/-.
Adjust:
Volume +/-.
Store:
IDEAL.
Exit:
TV.
Schneider
DTV 3
CTV
Service Mode
Simultaneous press red & blue buttons on RC
then (in 5 sec.) simultaneous press P- &
VOL+ on local keyboard.
Selection:
wheel.
Adjust:
ring.
Store:
red button.
Exit:
OFF.
Schneider
TV 4
CTV
Service Mode
Simultaneous press red & blue buttons on RC
then (in 5 sec.) simultaneous press P- &
VOL+ on local keyboard.
Selection:
P +/-.
Adjust:
VOL +/-.
Store:
auto.
Exit:
OFF.
Schneider
STV7128
TV 8
Page 50
CTV
Service Mode
Simultaneous press red & blue buttons on RC
then (in 5 sec.) simultaneous press P- &
VOL+ on local keyboard.
Selection:
P +/-.
Adjust:
VOL +/-.
Store:
auto.
Exit:
OFF.
Schneider
TV 9
CTV
Service Mode
Simultaneous press red & blue buttons on RC
then (in 5 sec.) simultaneous press P- &
VOL+ on local keyboard.
Selection:
P +/-.
Adjust:
VOL +/-.
Store:
auto.
Exit:
OFF.
Schneider
STV355FST
CTV
Service Mode
MENU --> SERVICE --> OK --> 089
SEG
11AK18
CTV
Service Mode
MENU 1 6 7 5
SEG
11AK19
CTV
Service Mode
MENU 4 7 2 5
Seleco
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:
cursor buttons.
Store:OK (M).
Exit:TV
Sharp
4BSA
CTV
Service Mode
Short conntacts 2 & 6 on bord TB connector
and press button 'MODE' on RC. Remove short.
Store:auto.
Exit:'MODE'.
Sharp
Page 51
63CS-03S
CS
CTV
Service Mode
Press and hold buttons VOL- and PR+ on the
local keyboard and then switch on with main
switch.
Store:'POWER'.
Sharp
D3000
CTV
Service Mode
Press Service-button on Digi-modul.
Store:on/off.
Exit:Service button.
Sharp
Euro-DS1
CTV
Service Mode
Short conntacts 2 & 6 on Digi Modul Service
Slot and then press button 'MODE' on RC.
Store:(romb-symbol) on RC.
Exit:standby, switch off, switch on, remove short.
Sharp
54AT-15SC
CTV
Service Mode
Press and hold buttons VOL- and PR+ on the
local keyboard and then switch on with main
switch.
Store:'POWER'.
Sharp
DV-5401S
CTV
Service Mode
Locate place for 2 buttons on local keyboard
(main board) S754-MODE and S755-PRESET.
Enter:short S754 (-SERV-).
Commands:CH +/-.
Store:short S755.
Siemens
FS369M4
CS9409
CTV
Service Mode
Info Center' --> 'Special Functions' --> 'Service'
--> Code Number 089
Siemens
SAT
Programm
Lock
Unlock: Press key-symbol and 6 1 0 1.
Silva
STV355FST
CTV
Service Mode
MENU --> SERVICE --> OK --> 089
Sony
KV-E2531
KV-E2931
KV-E3431
Page 52
AE-2
CTV
Service Mode
Turn on the main power switch of the set while
pressing any two buttons on the front panel.
'TT' will appear on the upper right corner of the
screen. Press the 'MENU' button on the RC.
In menu select 'DEMO' and press 'OK'. Select
DEVICE coresponding to the adjustment you
need. Store: OK. Exit: turn off.
Sony
KV-2170
KV-2180
KV-2540
BE4
CTV
Service Mode
? --> 5 --> VOL+ --> TV --> MENU
Exit: 00
Sony
KV-B2911
CTV
Service Mode
Turn on the main power switch of the set while
pressing any two buttons on the front panel.
'TT' will appear on the upper right corner of the
screen. Press the 'MENU' button on the RC.
In menu select 'DEMO' and press 'OK'. Select
DEVICE coresponding to the adjustment you
need. Store: OK. Exit: turn off.
Sony
KV-G21M1
CTV
Service Mode
Switch TV to STANDBY.
DISPLAY --> 5 --> VOL+ --> POWER
Telefunken
ICC9
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again. (WARNING: scart must be free.)
Telefunken
STEREO PLUS
CTV
Service Mode
MUTE --> OK (M) --> TV
Controls:cursor buttons.
Store:OK (M).
Exit:TV
Telefunken
TX-90
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again.
Telefunken
Page 53
TX-91
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again.
Thomson
ICC19
CTV
Service Mode
Switch to Standby. Switch off with the mains
switch. Press and hold blue button and then
switch on with the mains switch. Press blue
button again. Exit: switch off with mains switch.
Thomson
ICC19
CTV
Service Mode
Switch to Standby. Switch off with the mains
switch. Press and hold 'PROG-' and 'VOL-' and
then switch on with the mains switch. Exit:
switch off with mains switch.
Thomson
ICC9
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again. (WARNING: scart must be free.)
Thomson
TX-90
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again.
Thomson
TX-91
CTV
Service Mode
Switch off TV with RC (st-by). Switch off TV with
main switch. Wait a few sec till ST_BY LED
switch off. Simultaneous press VT button on RC
and switch on TV with main switch. Press VT
button again.
Toshiba
a2150
S5E
CTV
Service Mode
Press 'MUTE' button. Press and hold 'MUTE'
button and press 'MENU' on local keyboard.
Select: PR nr.. Adjust: VOL+/-. Store: auto.
Exit: 'STANDBY'. Test picture: 'AV'.
Toshiba
2876DD
Page 54
2988DG
CTV
Service Mode
Press 'MUTE' button. Press and hold 'MUTE'
button and press 'MENU' on local keyboard.
Select:PR+/-.
Adjust:VOL+/-.
Store:auto.
Exit:'STANDBY'. Test picture: 'AV'.
Universum
6000
CTV
Service Mode
Switch on with main switch. Press 'MENU',
'TV', 'i'. If TV is still in st-by press 2x'TV', 'i'.
Select and adjust with cursors. Store: 'OK'.
Exit: switch off with main switch.
Loading...
