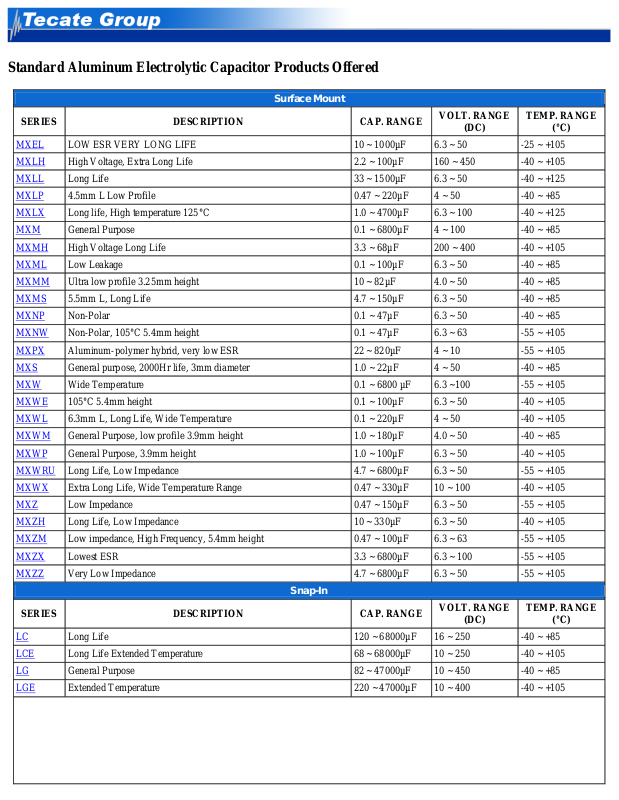

Standard Aluminum Electrolytic Capacitor Products Offered
Surface Mount
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
MXEL
LOW ESR VERY LONG LIFE
10 ~ 1000µF
6.3 ~ 50
-25 ~ +105
MXLH
High Voltage, Extra Long Life
2.2 ~ 100µF
160 ~ 450
-40 ~ +105
MXLL
Long Life
33 ~ 1500µF
6.3 ~ 50
-40 ~ +125
MXLP
4.5mm L Low Profile
0.47 ~ 220µF
4 ~ 50
-40 ~ +85
MXLX
Long life, High temperature 125°C
1.0 ~ 4700µF
6.3 ~ 100
-40 ~ +125
MXM
General Purpose
0.1 ~ 6800µF
4 ~ 100
-40 ~ +85
MXMH
High Voltage Long Life
3.3 ~ 68µF
200 ~ 400
-40 ~ +105
MXML
Low Leakage
0.1 ~ 100µF
6.3 ~ 50
-40 ~ +85
MXMM
Ultra low profile 3.25mm height
10 ~ 82µF
4.0 ~ 50
-40 ~ +85
MXMS
5.5mm L, Long Life
4.7 ~ 150µF
6.3 ~ 50
-40 ~ +85
MXNP
Non-Polar
0.1 ~ 47µF
6.3 ~ 50
-40 ~ +85
MXNW
Non-Polar, 105°C 5.4mm height
0.1 ~ 47µF
6.3 ~ 63
-55 ~ +105
MXPX
Aluminum-polymer hybrid, very low ESR
22 ~ 820µF
4 ~ 10
-55 ~ +105
MXS
General purpose, 2000Hr life, 3mm diameter
1.0 ~ 22µF
4 ~ 50
-40 ~ +85
MXW
Wide Temperature
0.1 ~ 6800 µF
6.3 ~100
-55 ~ +105
MXWE
105°C 5.4mm height
0.1 ~ 100µF
6.3 ~ 50
-40 ~ +105
MXWL
6.3mm L, Long Life, Wide Temperature
0.1 ~ 220µF
4 ~ 50
-40 ~ +105
MXWM
General Purpose, low profile 3.9mm height
1.0 ~ 180µF
4.0 ~ 50
-40 ~ +85
MXWP
General Purpose, 3.9mm height
1.0 ~ 100µF
6.3 ~ 50
-40 ~ +105
MXWRU
Long Life, Low Impedance
4.7 ~ 6800µF
6.3 ~ 50
-55 ~ +105
MXWX
Extra Long Life, Wide Temperature Range
0.47 ~ 330µF
10 ~ 100
-40 ~ +105
MXZ
Low Impedance
0.47 ~ 150µF
6.3 ~ 50
-55 ~ +105
MXZH
Long Life, Low Impedance
10 ~ 330µF
6.3 ~ 50
-40 ~ +105
MXZM
Low impedance, High Frequency, 5.4mm height
0.47 ~ 100µF
6.3 ~ 63
-55 ~ +105
MXZX
Lowest ESR
3.3 ~ 6800µF
6.3 ~ 100
-55 ~ +105
MXZZ
Very Low Impedance
4.7 ~ 6800µF
6.3 ~ 50
-55 ~ +105
Snap-In
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
LC
Long Life
120 ~ 68000µF
16 ~ 250
-40 ~ +85
LCE
Long Life Extended Temperature
68 ~ 68000µF
10 ~ 250
-40 ~ +105
LG
General Purpose
82 ~ 47000µF
10 ~ 450
-40 ~ +85
LGE
Extended Temperature
220 ~ 47000µF
10 ~ 400
-40 ~ +105
Page 2
Radial Sub-Miniature
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
712
5mm H General Purpose
0.1 ~ 220µF
4 ~ 50
-40 ~ +85
712E
5MM HEIGHT WIDE TEMPERATURE
.1~220µF
4~50
-40 ~ +105
712L
5MM HEIGHT LOW LEAKAGE
.1~100µF
4~50
-40 ~ +85
724
7mm H Low Leakage
0.1 ~ 100µF
6.3 ~ 50
-40 ~ +85
724E
7mm H Low Leakage Extended Temperature
0.1 ~ 100µF
6.3 ~ 63
-40 ~ +105
724L
7MM HEIGHT LONG LIFE 105C
.1~220µF
6.3~63
-40 ~ +105
724S
7mm H General Purpose
0.1 ~ 100µF
6.3 ~ 63
-40 ~ +85
724SE
7mm H Extended Temperature
0.1 ~ 100µF
6.3 ~ 63
-40 ~ +105
724SL
7MM HEIGHT LONG LIFE 85C
.1~470µF
4~63
-40 ~ +85
724X
7MM HEIGHT LOW IMPEDANCE LONG LIFE
1~330µF
6.3~50
-55 ~ +105
724Z
7MM HEIGHT LOW IMPEDANCE 105C
6.8~330µF
6.3~35
-55 ~ +105
RN5
5mm H Bi-Polar
0.1 ~ 47µF
6.3 ~ 50
-40 ~ +85
Radial Standard
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
711
General Purpose
0.1 ~ 15000µF
6.3 ~ 450
-40 ~ +85
723
Low Leakage
0.1 ~ 1000µF
10 ~ 63
-40 ~ +85
725E
Extended Temperature
0.1 ~ 15000µF
6.3 ~ 100
-40 ~ +105
725H
HIGH TEMPERATURE 125C
.47~1000µF
10~350
-40 ~ +125
725L
VERY LONG LIFE WIDE TEMPERATURE
6.8~3300µF
10~450
-40 ~ +105
725W
Wide Temperature
0.1 ~ 15000µF
6.3 ~ 450
-55 ~ +105
725X
VERY HIGH TEMPERATURE 130C
10~4700µF
10~50
-40 ~ +130
728B
LONG LIFE FOR BALLAST APPLICATION 105C
1.0 ~ 3,300µF
160 ~ 450
-25 ~ +105
728L
VERY LONG LIFE FOR BALLAST APPLICATION 105C
1.0 ~ 3,300µF
161 ~ 450
-25 ~ +105
730
Low Profile
22 ~ 10000µF
6.3 ~ 50
-40 ~ +85
730W
LOW PROFILE WIDE TEMPERATURE
1.5 ~ 10000µF
6.3 ~ 450
-40 ~ +105
Radial High Reliability
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
725R
HIGH RELIABILITY LONG LIFE
10~220µF
160~450
-25 ~ +105
TLL
HIGH RIPPLE CURRENT LONG LIFE
4.7 ~ 5600µF
6.3 ~ 100
-40 ~ +105
TRC
Low Impedance, High Frequency
0.47 ~ 4700µF
6.3 ~ 63
-55 ~ +105
TRS
For Switching Power Supplies
0.47 ~ 15000µF
6.3 ~ 63
-55 ~ +105
TRZ
ULTRA LOW IMPEDANCE
220 ~ 3300µF
6.3 ~ 25
-40 ~ +105
Page 3
Non-Polar
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
RN
Radial For Speaker Network (1khz)
1.0 ~ 300µF
50 ~ 100
-40 ~ +85
RN7
7MM HEIGHT NON POLAR 85C
.1 ~ 220µF
6.3 ~ 50
-40 ~ +85
RN7E
7MM HEIGHT NON POLAR 105C
.1 ~ 100µF
6.3 ~ 50
-40 ~ +105
RNB
Industrial Type (Not Audio, 120hz)
0.1 ~ 6800µF
6.3 ~ 100
-40 ~ +85
RNBE
Industrial Type (Not Audio, 120hz) Extended Temperature
0.1 ~ 1000µF
6.3 ~ 100
-40 ~ +105
RNH
For Horizontal Deflection vnp Current Correction
0.1 ~ 4700µF
25 ~ 50
-40 ~ +85
TN
Axial For Speaker Network (1khz)
1.0 ~ 300µF
50 ~ 100
-40 ~ +85
Axial
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
701
General Purpose
0.1 ~ 33000µF
6.3 ~ 450
-40 ~ +85
714
Low Leakage Current
0.1 ~ 6800µF
6.3 ~ 100
-40 ~ +85
715E
Extended Temperature
0.1 ~ 15000µF
6.3 ~ 100
-40 ~ +105
Standard Conductive Polymer Capacitors Products Offered
Surface Mount
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
MXCPB
CONDUCTIVE POLYMER 125°C LONG LIFE
22~56µF
6.3 ~ 16
-55 ~ +125
MXCPH
CONDUCTIVE POLYMER 105ºC HIGH VOLTAGE
1.7 ~ 330µF
25 ~ 100
-55 ~ +105
MXCPP
CONDUCTIVE POLYMER 125ºC HIGH TEMP & VOLTAGE
3.9 ~ 330µF
25 ~ 100
-55 ~ +125
MXCPT
CONDUCTIVE POLYMER 135°C HIGH TEMP & VOLTAGE
10~330µF
25 ~ 63
-55 ~ +135
Radial
SERIES
DESCRIPTION
CAP. RANGE
VOLT. RANGE
(DC)
TEMP. RANGE
(°C)
CPL
CONDUCTIVE POLYMER LOW ESR
68 ~ 3500µF
2.5 ~ 16
-55 ~ +105
CPS
CONDUCTIVE POLYMER STANDARD
33 ~ 3500µF
2.5 ~ 25
-55 ~ +105
CPU
CONDUCTIVE POLYMER ULTRA LOW ESR
470 ~ 3500µF
2.5 ~ 10
-55 ~ +105
CPX
CONDUCTIVE POLYMER LOW PROFILE
10 ~ 680µF
2.5 ~ 25
-55 ~ +105
