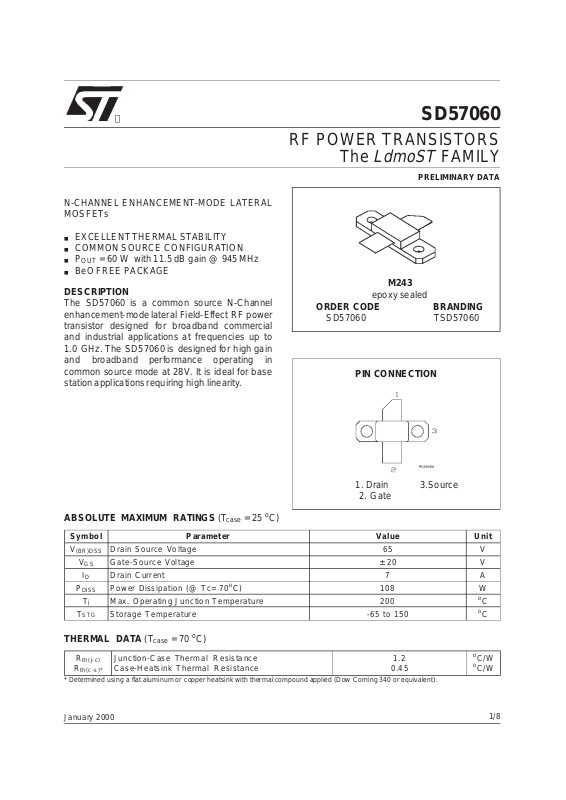

SD57060
RF POWER TRANSISTORS
N-CHANNEL ENHANCEMENT-MODE LATERAL
MOSFETs
■ EXCELLENTTHERMALSTABILITY
■ COMMONSOURCECONFIGURATION
■ P
■ BeOFREE PACKAGE
= 60 W with11.5 dB gain @ 945 MHz
OUT
DESCRIPTION
The SD57060 is a common source N-Channel
enhancement-modelateral Field-Effect RF power
transistor designed for broadband commercial
and industrial applications at frequencies up to
1.0 GHz. The SD57060 is designed for high gain
and broadband performance operating in
common source mode at 28V. It is ideal for base
station applicationsrequiringhigh linearity.
The
LdmoST
PRELIMINARY DATA
FAMILY
M243
epoxy sealed
ORDER CODE BRANDING
SD57060 TSD57060
PIN CONNECTION
1. Drain 3.Source
2. Gate
ABSOLUTE MAXIMUM RATINGS (T
Symb o l Para meter Val u e Uni t
V
(BR)DSS
V
P
DISS
T
THERMAL DATA (T
R
th(j-c)
R
th(c-s)*
* Determined using a flat aluminum or copper heatsink with thermal compound applied (Dow Corning340 or equivalent).
January 2000
Drain Source Voltage 65 V
Gat e- Source Voltage ± 20 V
GS
Drain C urr ent 7 A
I
D
Power Dissipation (@ Tc = 70oC) 108 W
Max. Operatin g Junctio n Te mperatu r e 200
T
j
Sto rage Tempe rature -65 to 150
STG
=70oC)
case
Junct ion-Cas e Ther mal Re s ist a nc e
Case-Heatsin k T her mal Re si stance
case
=25oC)
1.2
0.45
o
o
o
C/W
o
C/W
C
C
1/8
Page 2
SD57060
ELECTRICAL SPECIFICATION (T
case
=25oC)
STATIC
Symbol Para met e r Mi n . Typ . Ma x. Unit
V
(BR)DSS
I
DSS
I
GSS
V
GS(Q)
V
DS(ON)VGS
G
FS
C
ISS
C
OSS
C
RSS
VGS=0V IDS=1mA
VGS=0V VDS=28V 1 µA
VGS=20V VDS=0V 1 µA
VDS=28V ID= 1 00 mA 2.0 5.0 V
=10V ID=3A 0.7 0.8 V
VDS=10V ID=3A 2.5 mho
VGS=0V VDS=28V f=1MHz 88 pF
VGS=0V VDS=28V f=1MHz 44 pF
VGS=0V VDS=28V f=1MHz 1.7 pF
65 V
REF. 7143417B
DYNAMIC
Symbol Para met e r Mi n . Typ . Ma x. Unit
P
OUT
G
η
Load
Mismatch
f = 945 MHz VDD=28V IDQ= 100 mA 60 W
f = 945 MHz VDD=28V P
P
f = 945 MHz VDD=28V P
D
f = 945 MHz V
DD
=28V P
=60W IDQ= 1 00 mA 11.5 1 5 dB
out
=60W IDQ= 1 00 mA 53 60 %
out
=60W IDQ=100mA
out
5:1 VSWR
ALL PHASEANGLES
IMPEDANCEDATA
2/8
FREQ. ZIN(Ω)Z
DL
(Ω)
925 MHz 0.8 - j 0.095 1.5 + j 0 . 48
945 MHz 0.7 - j 0.6 5 1.6 + j 0. 25
960 MHz 0.7 - j 0. 1 1 . 7 + j 0.130
Page 3
TYPICALPERFORMANCE
SD57060
OutputPower and PowerGain vs Input Power
Efficiency vs Output Power
OutputPower and PowerGain vsInput Power
Efficiencyvs OutputPower
OutputPower vs Drain-SourceVoltage
IntermodulationDistorsion vs OutputPower
3/8
Page 4
SD57060
TYPICALPERFORMANCE
PowerGain vs Output Power
Capacitancevs Drain-SourceVoltage
Safe OperatingArea
4/8
Page 5
SD57060
COMMONSOURCES-PARAMETERS
(V
= 13.5V, IDS=2 A)
DS
FREQ( MHz) s11 MAG s11 ang s21 MAG s21 ang s12 MAG s12 ang s22 MAG s22 ang
50 0.896 -168.86 15.679 85.012 0.0116 -5.1128 0.796 -170.27
60 0.896 -169.3 14.859 84.592 0.0116 -5.4369 0.796 -170.49
70 0.896 -169.76 14.004 84.14 0.0116 -5.7912 0.797 -170.7
80 0.896 -170.23 13.122 83.644 0.0115 -6.0658 0.797 -170.9
90 0.897 -170.71 12.213 83.074 0.0115 -6.3789 0.798 -171.1
100 0.897 -171.19 11.285 82.404 0.0114 -6.8198 0.799 -171.29
150 0.9 -173.39 6.9575 76.841 0.0111 -9.6817 0.808 -171.96
200 0.905 -174.29 4.751 71.951 0.0103 -11.87 0.821 -171.79
250 0.912 -174.64 3.637 68.471 0.0097 -12.957 0.836 -171.36
300 0.92 -174.9 2.889 64.839 0.0089 -13.493 0.851 -171.03
350 0.927 -175.08 2.428 62.538 0.0083 -11.937 0.866 -170.76
400 0.934 -175.3 2.077 58.748 0.0077 -11.228 0.881 -170.6
450 0.941 -175.5 1.802 56.081 0.0071 -8.7753 0.894 -170.49
500 0.947 -175.73 1.592 51.84 0.0066 -7.5009 0.907 -170.47
550 0.952 -176.02 1.379 48.632 0.0059 -4.8834 0.917 -170.55
600 0.956 -176.29 1.221 45.777 0.0053 0.12909 0.927 -170.67
650 0.96 -176.6 1.049 42.778 0.0048 5.0249 0.936 -170.82
700 0.962 -176.9 0.924 42.212 0.0043 13.591 0.943 -170.94
750 0.965 -177.22 0.814 40.376 0.0039 22.729 0.95 -171.05
800 0.968 -177.51 0.723 41.348 0.0036 37.954 0.956 -171.14
850 0.97 -177.83 0.662 40.788 0.0037 51.305 0.961 -171.16
900 0.972 -178.19 0.6 41.719 0.0041 63.188 0.966 -171.24
950 0.974 -178.56 0.566 41.469 0.0047 73.463 0.971 -171.24
1000 0.975 -178.96 0.523 41.747 0.0055 80.707 0.974 -171.25
1050 0.976 -179.28 0.504 41.439 0.0064 88.27 0.977 -171.26
1100 0.978 -179.62 0.477 40.692 0.0074 92.504 0.979 -171.36
1150 0.979 -179.85 0.466 39.239 0.0084 96.743 0.981 -171.43
1200 0.981 179.9 0.444 36.775 0.0097 98.282 0.982 -171.5
1250 0.982 179.68 0.431 34.788 0.011 99.121 0.983 -171.58
1300 0.983 179.52 0.408 31.862 0.0125 98.773 0.983 -171.71
1350 0.984 179.35 0.395 30.219 0.0136 97.973 0.983 -171.86
1400 0.985 179.24 0.382 26.465 0.0148 97.464 0.984 -171.94
1450 0.987 179.13 0.365 23.869 0.0157 95.39 0.984 -171.98
1500 0.988 179.09 0.351 21.267 0.0165 93.871 0.985 -171.98
5/8
Page 6
SD57060
COMMONSOURCES-PARAMETERS
(V
=28V,IDS=2A)
DS
FREQ( MHz) s11 MAG s11 ang s21 MAG s21 ang s12 MAG s12 ang s22 MAG s22 ang
50 0.857 -159.69 22.757 85.934 0.0114 -3.8342 0.67 -161.72
60 0.86 -160.69 21.547 85.328 0.0113 -4.4852 0.672 -162.07
70 0.862 -161.73 20.287 84.672 0.0112 -5.1512 0.674 -162.41
80 0.865 -162.8 18.987 83.933 0.0111 -5.8379 0.677 -162.74
90 0.869 -163.89 17.65 83.083 0.011 -6.5533 0.679 -163.07
100 0.872 -164.98 16.286 82.083 0.011 -7.4226 0.683 -163.39
150 0.891 -169.66 9.9447 74.03 0.0103 -12.13 0.708 -164.66
200 0.905 -171.43 6.719 67.256 0.0094 -15.548 0.74 -164.87
250 0.915 -172.29 5.074 62.268 0.0086 -17.236 0.774 -164.99
300 0.926 -172.84 3.978 57.533 0.0077 -18.625 0.806 -165.35
350 0.935 -173.34 3.297 54.035 0.0069 -17.313 0.834 -165.82
400 0.943 -173.79 2.775 49.488 0.0061 -16.81 0.86 -166.35
450 0.951 -174.24 2.376 46.121 0.0054 -13.006 0.881 -166.85
500 0.957 -174.67 2.061 41.541 0.0048 -9.175 0.898 -167.35
550 0.962 -175.11 1.766 38.23 0.0041 -2.5323 0.913 -167.83
600 0.966 -175.53 1.546 35.173 0.0035 -7.641 0.925 -168.25
650 0.969 -175.95 1.32 32.548 0.0031 19.501 0.937 -168.57
700 0.972 -176.34 1.162 31.674 0.0031 34.423 0.946 -168.81
750 0.974 -176.75 1.021 29.983 0.0032 48.345 0.954 -168.93
800 0.976 -177.15 0.91 30.341 0.0035 62.927 0.96 -168.98
850 0.977 -177.57 0.826 29.318 0.004 74.982 0.967 -168.95
900 0.978 -177.98 0.749 29.508 0.0047 81.962 0.973 -168.88
950 0.979 -178.41 0.696 28.477 0.0054 87.332 0.978 -168.77
1000 0.979 -178.85 0.639 27.949 0.0063 90.913 0.982 -168.72
1050 0.98 -179.24 0.601 26.768 0.0072 95.707 0.984 -168.75
1100 0.981 -179.61 0.561 25.598 0.0082 98.95 0.985 -168.87
1150 0.981 -179.95 0.533 23.746 0.0094 101.25 0.986 -169.13
1200 0.982 179.72 0.498 21.331 0.011 102.03 0.985 -169.64
1250 0.983 179.44 0.472 19.005 0.012 102.21 0.981 -170.42
1300 0.984 179.23 0.44 16.272 0.0131 101.78 0.976 -171.5
1350 0.985 179.02 0.417 14.424 0.0143 100.61 0.969 -172.89
1400 0.986 178.85 0.394 11.161 0.0156 99.505 0.96 -174.72
1450 0.986 178.7 0.372 8.789 0.0163 97.699 0.949 -176.87
1500 0.986 178.6 0.354 6.5533 0.0168 96.68 0.94 -178.58
6/8
Page 7
M243 (.230 x .360WIDE 2/L N/HERM W/FLG) MECHANICAL DATA
SD57060
DIM.
MIN. TYP. MAX. MIN. TYP. MAX.
A 5.21 5.72 0.205 0.225
B 5.46 6.48 0.215 0.255
C 5.59 6.10 0.220 0.240
D 14.27 0.562
E 20.07 20.57 0.790 0.810
F 8.89 9.40 0.350 0.370
G 0.10 0.15 0.004 0.006
H 3.18 4.45 0.125 0.175
I 1.83 2.24 0.072 0.088
J 1.27 1.78 0.050 0.070
mm inch
Controlling Dimension: Inches
1022142E
7/8
Page 8
SD57060
Information furnished isbelieved to beaccurate and reliable. However, STMicroelectronics assumes no responsibility for the consequences
of use of such information nor for any infringement of patents or other rights of third parties which may result from its use. No license is
granted by implication or otherwise under any patent or patentrights of STMicroelectronics. Specification mentioned in this publication are
subject tochange without notice. Thispublication supersedes and replaces allinformation previously supplied. STMicroelectronics products
are notauthorized for use as critical components in life support devices or systems without express written approval of STMicroelectronics.
The STlogo is atrademark of STMicroelectronics
2000 STMicroelectronics – Printedin Italy– AllRights Reserved
STMicroelectronicsGROUP OF COMPANIES
Australia - Brazil - China - Finland- France - Germany - HongKong - India- Italy- Japan -Malaysia - Malta - Morocco -
Singapore- Spain - Sweden - Switzerland -United Kingdom - U.S.A.
http://www.st.com
8/8
