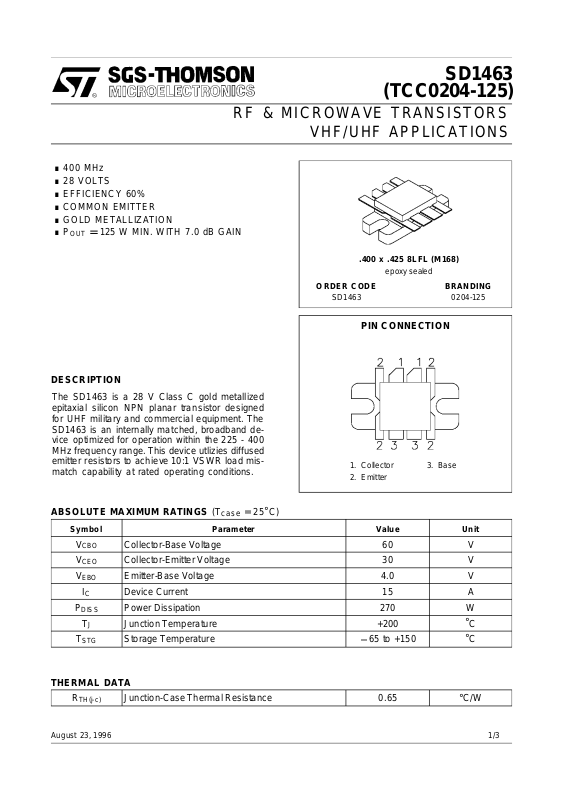

Page 1
.400 MHz
.28 VOLTS
.EFFICIENCY 60%
.COMMON EMITTER
.GOLD METALLIZATION
.P
OUT
125 W MIN. WITH 7.0 dB GAIN
=
SD1463
(TCC0204-125)
RF & MICROWAVE TRANSISTORS
VHF/U HF APPLICATI ONS
.400 x .425 8LFL (M168)
epoxy sealed
ORDER C OD E
SD1463
PI N CONNECTION
BRAND I NG
0204-125
DESC RIP TI ON
The SD1463 is a 28 V Class C gold metallized
epitaxial silicon NPN planar transistor designed
for UHF military and commercial equipment. The
SD1463 is an internally matched, broadband device optimized for operation within the 225 - 400
MHz frequency range.This device utlizies diffused
emitter resistors to achieve 10:1 VSWR load mismatch capability at rated operating conditions.
ABSOLUTE MAXIMUM RATINGS (T
Symb o l Parameter Value Uni t
V
V
V
P
T
CBO
CEO
EBO
I
C
DISS
T
J
STG
Collector-BaseVoltage 60 V
Collector-Emitter Voltage 30 V
Emitter-BaseVoltage 4.0 V
Device Current 15 A
Power Dissipation 270 W
Junction Temperature +200
Storage Temperature
case
= 25°C)
1. Collector 3. Base
2. Emitter
65 to +150
−
°
C
°
C
THERMAL DATA
R
TH(j-c)
August 23, 1996
Junction-CaseThermal Resistance 0.65 °C/W
1/3
Page 2
SD 1463 (TCC 0204- 125)
ELECTRICAL SPECIFICATIONS (T
case
= 25°C)
STATIC
Symbol Test Conditions
BV
CBOIC
BV
CESIC
BV
CEOIC
BV
EBOIE
I
CBO
h
FE
= 100 mA IE= 0mA 60 — — V
= 80 mA VBE= 0 V 60 — — V
= 50 mA IB= 0mA 30 — — V
= 20 mA IC= 0 mA 4.0 — — V
VCB= 30 V IE= 0mA — — 10 mA
VCE= 5V IC=1 A 20 — 200 —
DYNAMIC
Symbol Test Co nditions
P
IN
G
η
f = 400 MHz P
f = 400 MHz P
P
cf=400 MHz P
= 125 W VCC= 28 V — — 25 W
OUT
= 125 W VCC= 28 V 7.0 — — dB
OUT
= 125 W VCC= 28 V 60 — — %
OUT
Value
Min. Typ. Max.
Value
Min. Typ. Max.
Uni t
Uni t
IMPEDANCE D ATA
FREQ. Z
(Ω)Z
IN
225 MHz 0.5 + j 2.5 8.8 + j 3.5
400 MHz 1.5 + j 1.7 5.0 + j 0.0
CL
(Ω)
2/3
Page 3
PACKAGE MECH ANI CAL DATA
Ref.: Dwg. No.12-0168 rev. A
UDCS Doc. No. 1010993
SD 1463 ( T CC0204-125)
Information furnished is believed to be accurate and reliable. However, SGS-THOMSON Microelectronics assumes no responsibility for the
consequences of use of such information nor for any infringement of patents or other rights of third parties which may result from its use.
No license is granted by implication or otherwise under any patent or patent rights of SGS-THOMSON Microelectronics. Specifications
mentioned in this publication are subject to change without notice. This publication supersedes and replaces all information previously
supplied. SGS-THOMSON Microelectronics products are not authorized for use as critical components in life support devices or systems
without express written approval of SGS-THOMSON Microelectronics.
1996 SGS-THOMSON Microelectronics - All Rights Reserved
Australia - Brazil - France - Germany - Hong Kong - Italy - Japan - Korea - Malaysia -
Malta - Morocco - The Netherlands - Singapore - Spain - Sweden - Switzerland - Taiwan -
SGS-THOMSON Microelectronics GROUP OF COMPANIES
Thailand - United Kingdom - U.S.A.
3/3
