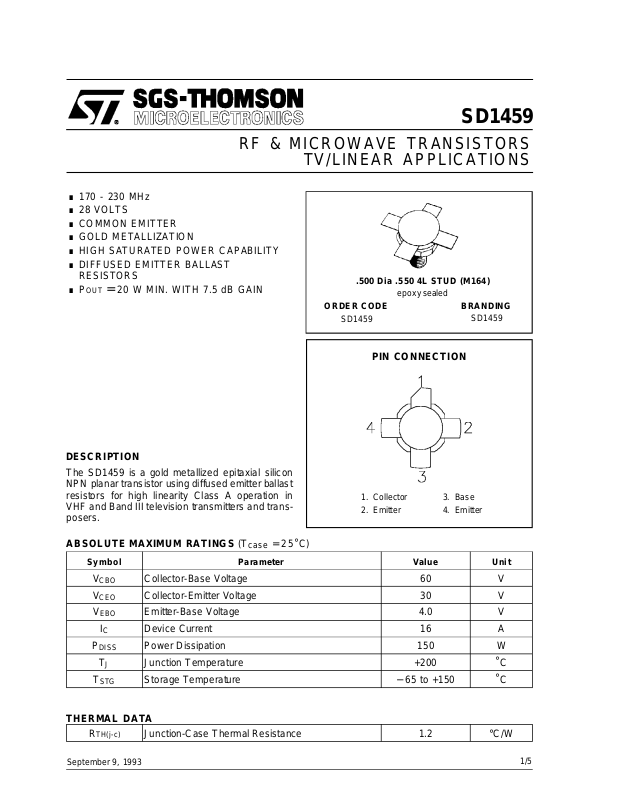

RF & MICROWAVE TRANSISTORS

.170 - 230 MHz

.28 VOLTS

.COMMON EMITTER

.GOLD METALLIZATION

.HIGH SATURATED POWER CAPABILITY

.DIFFUSED EMITTER BALLAST

RESISTORS

. P

OUT

20 W MIN. WITH 7.5 dB GAIN

=

SD1459

TV/LINEAR APPLICATIONS

.500 Dia .550 4L STUD (M164)

epoxy sealed

ORDER CODE

SD1459

PIN CONNECTION

BRANDING

SD1459

DESC RIPTIO N

The SD1459 is a gold metallized epitaxial silicon
NPN planar transistor using diffused emitter ballast
resistors for high linearity Class A operation in
VHF and Band III television transmitters and trans­posers.

ABSOLUTE MAXIMUM RATINGS (T

Symbol Parameter Value Uni t

V

CBO

V

CEO

V

EBO

I

C

P

DISS

T

J

T

STG

THERMA L DATA

R

TH(j-c)

Collector-Base Voltage 60 V
Collector-Emitter Voltage 30 V
Emitter-Base Voltage 4.0 V
Device Current 16 A
Power Dissipation 150 W
Junction Temperature +200
Storage Temperature

Junction-Case Thermal Resistance 1.2 °C/W

case

= 25°C)

1. Collector 3. Base

2. Emitter 4. Emitter

65 to +150

−

°

C

°

C

September 9, 1993

1/5

SD1459

ELECTRICAL SPECIFICA TIONS (T

case

= 25°C)

STATIC

Symbol Test Conditions

BV

CBOIC

BV

CEOIC

BV

CERIC

BV

EBOIE

h

FE

= 100 mA IE= 0mA 60 — — V
= 100 mA IB= 0mA 30 — — V
= 100 mA RBE= 10Ω 60 — — V
= 20 mA IC= 0mA 4.0 — — V

VCE= 5V IC=1 A 10 — 120 —

DYNAMIC

Symbol Test Conditions

P

OUT

G

C

OB

Load

f = 225 MHz VCE= 28 V IC= 3.5 A 20 — — W
f = 225 MHz VCE= 28 V IC= 3.5 A 7.5 — 8.0 dB

P

f = 1 MHz VCB= 30 V — — 150 pf
f = 225 MHz VCE= 28 V IC= 3.5 A ∞:1 — — VSWR

Mismatch

Value

Min. Typ. Max.

Value

Min. Typ. Max.

Unit

Uni t

2/5

TYPICA L PERFORMA NCE

SD1459

OUTPUT POWER vs INPUT POWER

THERMAL RESISTANCE vs CASE

TEMPERATURE

INTERMODULATION DISTORTION vs

OUTPUT POWER

SAFE OPERATING AREA

3/5

SD1459

IMPEDA NCE DATA

TYPICAL INPUT

IMPEDANCE

Z

IN

TYPICAL COLLECTOR

LOAD IMPEDANCE

FREQ. ZIN(Ω)ZCL(Ω)
170 MHz 0.6 + j 0.7 5.9 + j 3.5
200 MHz 0.55 + j 0.8 5.0 + j 3.0
230 MHz 0.5 + j 0.9 4.2 + j 2.8

Z

Z

CL

Z

IN

CL

TEST CIRCUIT FOR 225 MHz

C1, C10 : 470 pF ATC 100 B Chip Capacitor
C2 : 4 - 40pF Arco 403 Trimmer Capacitor
C3 : 4 - 60pF Arco 404 Trimmer Capacitor
C4, C5 : 82pF ATC 100B Chip Capacitor
C6 : 24 - 200pF Arco 425 Trimmer Capacitor
C7 : 10 - 80pF Arco 405 Trimmer Capacitor
C8, C11 : 1µF LCC Chip Capacitor
C9 : 100µF 63V Electrolytic
C12 : 10mF LCC CPM13B

L1 : 1 1/2 Turns, 0.7mmEnameled Wire 4.5mm I.D.
L2 : 21mm 50Ω Line
L3 : Length of theBase Lead
L4 : Enameled Wire 1.6mmDiameter
L5 : Enameled Wire 1.6mmDiameter
L6 : 9 Turns 0.7mm Enameled Wire 4.5mm 1.D.

Material: Epoxy 63 Mils Er=2.55

4/5

PACKAGE MECHANICAL DATA

Ref.: Dwg. No.12-0164

SD1459
