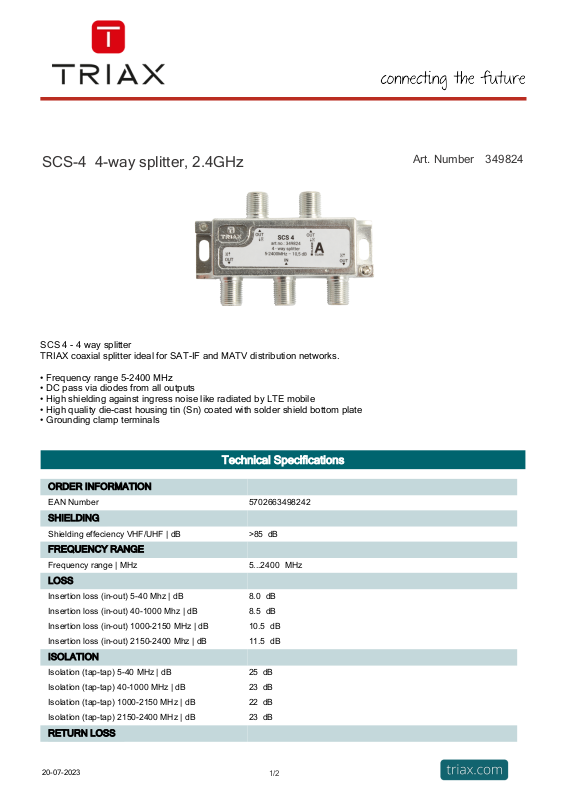

SCS-4 4-way splitter, 2.4GHz
Art. Number
349824
SCS 4 - 4 way splitter
TRIAX coaxial splitter ideal for SAT-IF and MATV distribution networks.
• Frequency range 5-2400 MHz
• DC pass via diodes from all outputs
• High shielding against ingress noise like radiated by LTE mobile
• High quality die-cast housing tin (Sn) coated with solder shield bottom plate
• Grounding clamp terminals
Technical Specifications
ORDER INFORMATION
EAN Number
SHIELDING
Shielding effeciency VHF/UHF | dB
FREQUENCY RANGE
Frequency range | MHz
LOSS
Insertion loss (in-out) 5-40 Mhz | dB
Insertion loss (in-out) 40-1000 Mhz | dB
Insertion loss (in-out) 1000-2150 MHz | dB
Insertion loss (in-out) 2150-2400 Mhz | dB
ISOLATION
Isolation (tap-tap) 5-40 MHz | dB
Isolation (tap-tap) 40-1000 MHz | dB
Isolation (tap-tap) 1000-2150 MHz | dB
Isolation (tap-tap) 2150-2400 MHz | dB
RETURN LOSS
5702663498242
>85dB5...2400
MHz
8.0dB8.5dB10.5dB11.5dB25dB23dB22dB23
dB
20-07-2023
1/2
Page 2
Technical Specifications
Return loss (in-out) 5-40 MHz | dB
Return loss (in-out) 40-1000 MHz | dB
Return loss (in-out) 1000-2150 MHz | dB
Return loss (in-out) 2150-2400 MHz | dB
ELECTRICAL
Impedance | Ω
OPERATIONAL
Application
Screening Efficiency
DC Passthrough
Certification
Environment
Temperature - operating | °C
CONNECTORS
Number of inputs
Number of outputs
Connector Type
MECHANICAL
Main material
Packaging
Packing QTY
Product Height | mm
Product Width | mm
Product Depth | mm
Packaging Height | m
Packaging Width | m
Packaging Depth | m
Packaging Volume | m3
Net Weight | kg
Tara Weight | kg
Total Weight | kg
10.0dB11.5dB12.0dB14.0dB75ΩSAT-IF, MATV 2.4Ghz +DC(out->in)
EN50083-2 (Class A)
Yes (max. 0.5A/24V)
EN 50581:2012 (RoHS II)
Indoor
-30…+60
°C14
F-female (IEC 61 169-24)
Zinc diecast/Sn plated
Polybag
147mm74mm17mm
0.074
m
0.047
m
0.017
m
0.000
m3
0.053
kg
0.003
kg
0.056
kg
20-07-2023
2/2
