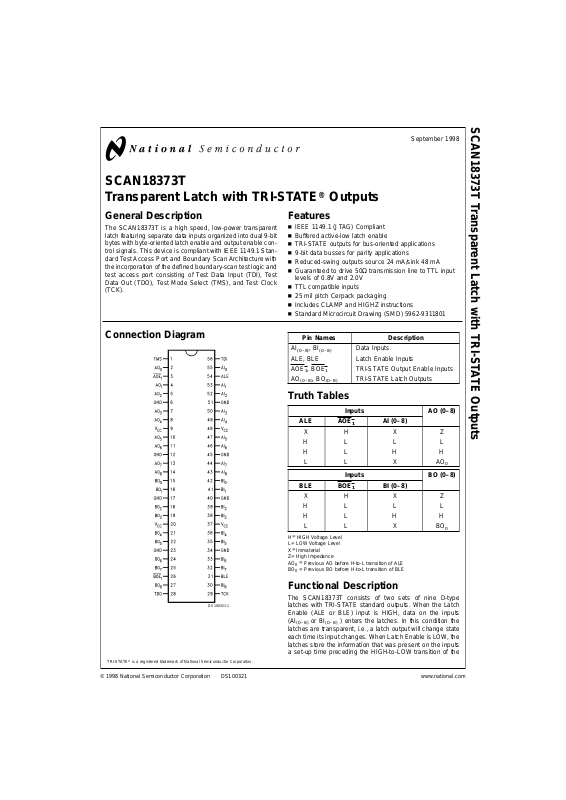

SCAN18373T
Transparent Latch with TRI-STATE
®
Outputs
General Description
The SCAN18373T is a high speed, low-power transparent
latch featuring separate data inputs organized into dual 9-bit
bytes with byte-oriented latchenableand output enable control signals. This device is compliant with IEEE 1149.1 Standard Test Access Port and Boundary Scan Architecture with
the incorporation of the defined boundary-scan test logic and
test access port consisting of Test Data Input (TDI), Test
Data Out (TDO), Test Mode Select (TMS), and Test Clock
(TCK).
Features
n IEEE 1149.1 (JTAG) Compliant
n Buffered active-low latch enable
n TRI-STATE outputs for bus-oriented applications
n 9-bit data busses for parity applications
n Reduced-swing outputs source 24 mA/sink 48 mA
n Guaranteed to drive 50Ω transmission line to TTL input
levels of 0.8V and 2.0V
n TTL compatible inputs
n 25 mil pitch Cerpack packaging
n Includes CLAMP and HIGHZ instructions
n Standard Microcircuit Drawing (SMD) 5962-9311801
Connection Diagram
Pin Names Description
AI
(0–8)
,BI
(0–8)
Data Inputs
ALE, BLE Latch Enable Inputs
AOE
1
, BOE
1
TRI-STATE Output Enable Inputs
AO
(0–8)
,BO
(0–8)
TRI-STATE Latch Outputs
Truth Tables
Inputs AO (0–8)
ALE AOE
1
AI (0–8)
XH X Z
HL L L
HL H H
LL X AO
0
Inputs BO (0–8)
BLE BOE
1
BI (0–8)
XH X Z
HL L L
HL H H
LL X BO
0
H
=
HIGH Voltage Level
L=LOW Voltage Level
X=Immaterial
Z=High Impedance
AO
0
=
Previous AO before H-to-L transition of ALE
BO
0
=
Previous BO before H-to-L transition of BLE
Functional Description
The SCAN18373T consists of two sets of nine D-type
latches with TRI-STATE standard outputs. When the Latch
Enable (ALE or BLE) input is HIGH, data on the inputs
(AI
(0–8)
or BI
(0–8)
) enters the latches. In this condition the
latches are transparent, i.e., a latch output will change state
each time its input changes. When Latch Enable is LOW, the
latches store the information that was present on the inputs
a set-up time preceding the HIGH-to-LOW transition of the
TRI-STATE®is a registered trademark of National Semiconductor Corporation.
DS100321-1
September 1998
SCAN18373T Transparent Latch with TRI-STATE Outputs
© 1998 National Semiconductor Corporation DS100321 www.national.com
Page 2
Functional Description (Continued)
Latch Enable. The TRI-STATE standard outputs are controlled by the Output Enable (AOE
1
or BOE1) input. When
Output Enable is LOW, the standard outputs are in the
2-state mode. When Output Enable is HIGH, the standard
outputs are in the high impedance mode, but this does not
interfere with entering new data into the latches.
Logic Diagram
Block Diagrams
DS100321-13
Please note that this diagram is provided only for the understanding of logic operations and should not be used to estimate propagation delays.
Byte-A
DS100321-2
www.national.com 2
Page 3
Block Diagrams (Continued)
Tap Controller
DS100321-3
Byte-B
DS100321-4
Note 1: BSR stands for Boundary Scan Register.
www.national.com3
Page 4
Description of Boundary-Scan Circuitry
The scan cells used in the BOUNDARY-SCAN register are
one of the following two types depending upon their location.
Scan cell TYPE1 is intended to solely observe system data,
while TYPE2 has the additional ability to control system
data. (See IEEE Standard 1149.1 for a further description of
scan cell TYPE1 and for a further description of scan cell
TYPE2.)
Scan cell TYPE1 is located on each system input pin while
scan cell TYPE2 is located at each system output pin as well
as at each of the two internal active-high output enable signals. AOE controls the activity of the A-outputs while BOE
controls the activity of the B-outputs. Each will activate their
respective outputs by loading a logic high.
The BYPASSregister is a single bit shift register stage identical to scan cell TYPE1. It captures a fixed logic low.
The INSTRUCTION register is an eight-bit register which
captures the value 00111101.
The two least significant bits of this captured value (01) are
required by IEEE Std 1149.1. The upper six bits are unique
to the SCAN18373T device. SCAN CMOS TestAccess Logic
devices do not include the IEEE 1149.1 optional identification register. Therefore, this unique captured value can be
used as a “pseudo ID” code to confirm that the correct device
is placed in the appropriate location in the boundary scan
chain.
MSB→LSB
Instruction Code Instruction
00000000 EXTEST
10000001 SAMPLE/PRELOAD
10000010 CLAMP
00000011 HIGHZ
All Others BYPASS
Bypass Register Scan Chain Definition Logic 0
DS100321-9
Instruction Register Scan Chain Definition
DS100321-10
Scan Cell TYPE1
DS100321-7
www.national.com 4
Page 5
Description of Boundary-Scan Circuitry (Continued)
Scan Cell TYPE2
DS100321-8
www.national.com5
Page 6
Description of Boundary-Scan Circuitry (Continued)

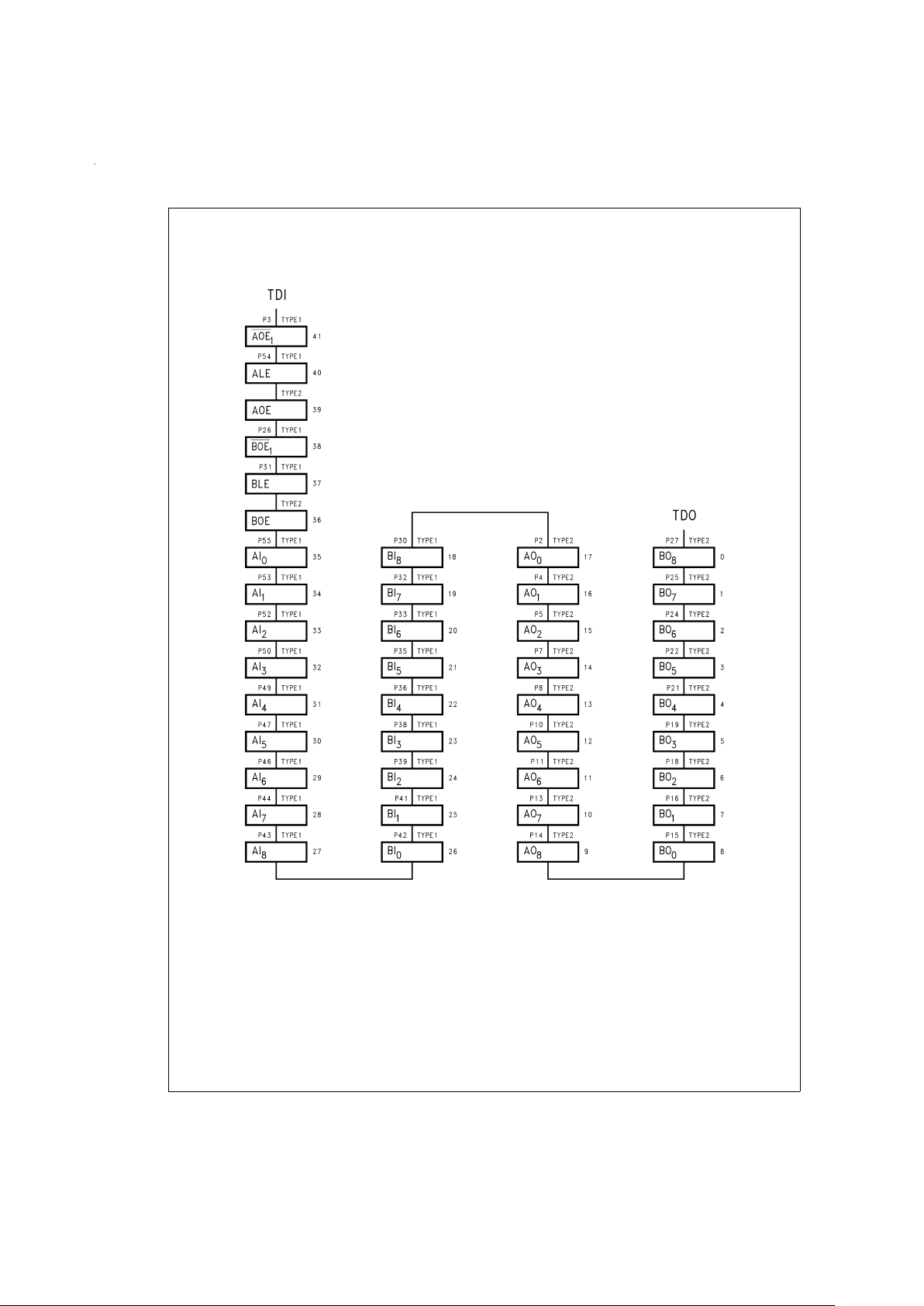

Boundary-Scan Register
Scan Chain Definition (42 Bits in Length)
DS100321-25
www.national.com 6
Page 7
Description of Boundary-Scan Circuitry (Continued)
Boundary-Scan Register Definition Index
Bit No. Pin Name Pin No. Pin Type Scan Cell Type
41 AOE
1
3 Input TYPE1 Control
Signals
40 ACP 54 Input TYPE1
39 AOE Internal TYPE2
38 BOE
1
26 Input TYPE1
37 BCP 31 Input TYPE1
36 BOE Internal TYPE2
35 AI
0
55 Input TYPE1 A–in
34 AI
1
53 Input TYPE1
33 AI
2
52 Input TYPE1
32 AI
3
50 Input TYPE1
31 AI
4
49 Input TYPE1
30 AI
5
47 Input TYPE1
29 AI
6
46 Input TYPE1
28 AI
7
44 Input TYPE1
27 AI
8
43 Input TYPE1
26 BI
0
42 Input TYPE1 B–in
25 BI
1
41 Input TYPE1
24 BI
2
39 Input TYPE1
23 BI
3
38 Input TYPE1
22 BI
4
36 Input TYPE1
21 BI
5
35 Input TYPE1
20 BI
6
33 Input TYPE1
19 BI
7
32 Input TYPE1
18 BI
8
30 Input TYPE1
17 AO
0
2 Output TYPE2 A–out
16 AO
1
4 Output TYPE2
15 AO
2
5 Output TYPE2
14 AO
3
7 Output TYPE2
13 AO
4
8 Output TYPE2
12 AO
5
10 Output TYPE2
11 AO
6
11 Output TYPE2
10 AO
7
13 Output TYPE2
9AO
8
14 Output TYPE2
8BO
0
15 Output TYPE2 B–out
7BO
1
16 Output TYPE2
6BO
2
18 Output TYPE2
5BO
3
19 Output TYPE2
4BO
4
21 Output TYPE2
3BO
5
22 Output TYPE2
2BO
6
24 Output TYPE2
1BO
7
25 Output TYPE2
0BO
8
27 Output TYPE2
www.national.com7
Page 8
Absolute Maximum Ratings (Note 2)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
) −0.5V to +7.0V
DC Input Diode Current (I
IK
)
V
I
=
−0.5V −20 mA
V
I
=
V
CC
+ 0.5V +20 mA
DC Output Diode Current (I
OK
)
V
O
=
−0.5V −20 mA
V
O
=
V
CC
+0.5V +20 mA
DC Output Voltage (V
O
) −0.5V to VCC+ 0.5V
DC Output Source/Sink Current (I
O
)
±
70 mA
DC V
CC
or Ground Current
Per Output Pin
±
70 mA
Junction Temperature
Cerpack +175˚C
Storage Temperature −65˚C to +150˚C
ESD (Min) 2000V
Recommended Operating
Conditions
Supply Voltage (VCC)
SCAN Products 4.5V to 5.5V
Input Voltage (V
I
) 0VtoV
CC
Output Voltage (VO) 0VtoV
CC
Operating Temperature (TA)
Military −55˚C to +125˚C
Minimum Input Edge Rate dV/dt 125 mV/ns
V
IN
from 0.8V to 2.0V
V
CC
@
4.5V, 5.5V
Note 2: Absolute maximum ratings are those values beyond which damage
to the device may occur.The databook specifications should be met, without
exception, to ensure that the system design is reliable over its power supply,
temperature, and output/input loading variables. National does not recommend operation of SCAN circuits outside databook specifications.
DC Electrical Characteristics
Symbol Parameter
V
CC
(V)
Military
Units Conditions
T
A
=
−55˚C to +125˚C
Guaranteed Limits
V
IH
Minimum High 4.5 2.0 V V
OUT
=
0.1V
Input Voltage 5.5 2.0 or V
CC
− 0.1V
V
IL
Maximum Low 4.5 0.8 V V
OUT
=
0.1V
Input Voltage 5.5 0.8 or V
CC
− 0.1V
V
OH
Minimum High 4.5 3.15 V I
OUT
=
−50 µA
Output Voltage 5.5 4.15
4.5 2.4 V V
IN
=
V
IL
or V
IH
5.5 2.4 I
OH
=
−24 mA
V
OL
Maximum Low 4.5 0.1 V I
OUT
=
50 µA
Output Voltage 5.5 0.1
4.5 0.55 V V
IN
=
V
IL
or V
IH
5.5 0.55 I
OL
=
48 mA
I
IN
Maximum Input 5.5
±
1.0 µA V
I
=
V
CC
, GND
Leakage Current
I
IN
Maximum Input
Leakage
5.5 3.7 µA V
I
=
V
CC
TDI, TMS −385 µA V
I
=
GND
Minimum Input
Leakage
5.5 −160 µA V
I
=
GND
I
OLD
(Note 3) Minimum
Dynamic Output
Current
5.5
63 mA V
OLD
=
0.8V Max
I
OHD
−27 mA V
OHD
=
2.0V Min
I
OZ
Maximum Output 5.5
±
10.0 µA VI(OE)=VIL,V
IH
Leakage Current
I
OS
Output Short Circuit 5.5 −100
mA
Min
V
O
=
0V
Current
I
CC
Maximum Quiescent 5.5 168 µA V
O
=
Open
Supply Current TDI, TMS=V
CC
5.5 930 µA V
O
=
Open
TDI, TMS=GND
www.national.com 8
Page 9
DC Electrical Characteristics (Continued)
Symbol Parameter
V
CC
(V)
Military
Units Conditions
T
A
=
−55˚C to +125˚C
Guaranteed Limits
I
CCt
Maximum ICCper Input 5.5 2.0 mA V
I
=
V
CC
− 2.1V
V
I
=
V
CC
− 2.1V
5.5 2.15 mA TDI/TMS Pin,
Test One with the
Other Floating
Note 3: Maximum test duration 2.0 ms, one output loaded at a time.
Note 4: All outputs loaded; thresholds associated with output under test.
Note 5: Maximum test duration 2.0 ms, one output loaded at a time.
Noise Specifications
V
CC
(V)
Military Fig.
No.
Symbol Parameter T
A
=
−55˚C to +125˚C Units
Guaranteed Limits
V
OLP
Maximum High 0.8
Output Noise 5.0 V
(Notes 6, 7)
V
OLV
Minimum Low -0.8
Output Noise 5.0 V
(Notes 6, 7)
Note 6: Maximum number of outputs that can switch simultaneously is n. (n−1) outputs are switched LOW and one output held LOW.
Note 7: Maximum number of outputs that can switch simultaneously is n. (n−1) outputs are switched HIGH and one output held HIGH.
AC Electrical Characteristics
Normal Operation
Symbol Parameter
V
CC
(V)
(Note 8)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Min Max
t
PLH
, Propagation 5.0 2.5 11.0 ns
t
PHL
Delay, D to Q 2.5 11.5
t
PLH
, Propagation 5.0 2.5 12.0 ns
t
PHL
Delay, LE to Q 2.5 13.0
t
PLZ
, Disable Time 5.0 1.5 11.0 ns
t
PHZ
1.5 10.3
t
PZL
, Enable Time 5.0 2.0 13.5 ns
t
PZH
2.0 11.5
Note 8: Voltage Range 5.0 is 5.0V±0.5V.
AC Operating Requirements
Normal Operation
Symbol Parameter
V
CC
(V)
(Note 9)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Guaranteed Minimum
t
S
Setup Time, H or L 5.0 3.0 ns
www.national.com9
Page 10
AC Operating Requirements (Continued)
Normal Operation
Symbol Parameter
V
CC
(V)
(Note 9)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Guaranteed Minimum
Data to LE
t
H
Hold Time, H or L 5.0 1.5 ns
LE to Data
t
W
LE Pulse Width 5.0 5.0 ns
Note 9: Voltage Range 5.0 is 5.0V±0.5V.
AC Electrical Characteristics
Scan Test Operation
Symbol Parameter
V
CC
(V)
(Note 10)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Min Max
t
PLH
, Propagation Delay 5.0 3.5 15.8 ns
t
PHL
TCK to TDO 3.5 15.8
t
PLZ
, Disable Time 5.0 2.5 12.8 ns
t
PHZ
TCK to TDO 2.5 12.8
t
PZL
, Enable Time 5.0 3.0 16.7 ns
t
PZH
TCK to TDO 3.0 16.7
t
PLH
, Propagation Delay
5.0
5.0 21.7
t
PHL
TCK to Data Out 5.0 21.7 ns
during Update-DR
State
t
PLH
, Propagation Delay
5.0
5.0 22.0
t
PHL
TCK to Data Out 5.0 22.0 ns
during Update-IR
State
t
PLH
, Propagation Delay
5.0
5.5 23.0
t
PHL
TCK to Data Out ns
during Test Logic 5.5 23.0
Reset State
t
PLZ
, Propagation Delay
5.0
4.0 19.6
t
PHZ
TCK to Data Out 4.0 19.6 ns
during Update-DR
State
t
PLZ
, Propagation Delay 5.0 22.4
t
PHZ
TCK to Data Out 5.0 5.0 22.4 ns
during Update-IR
State
t
PLZ
, Propagation Delay 5.0 23.3
t
PHZ
TCK to Data Out 5.0 ns
during Test Logic 5.0 23.3
Reset State
t
PZL
, Propagation Delay 5.0 22.6
t
PZH
TCK to Data Out 5.0 5.0 22.6 ns
during Update-DR
State
www.national.com 10
Page 11
AC Electrical Characteristics (Continued)
Scan Test Operation
Symbol Parameter
V
CC
(V)
(Note 10)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Min Max
t
PZL
, Propagation Delay 6.5 26.2
t
PZH
TCK to Data Out 5.0 6.5 26.2 ns
during Update-IR
State
t
PZL
, Propagation Delay 7.0 27.4
t
PZH
TCK to Data Out 5.0 ns
during Test Logic 7.0 27.4
Reset State
Note 10: Voltage Range 5.0 is 5.0V±0.5V.
All propagation delays involving TCK are measured from the falling edge of TCK.
AC Operating Requirements
Scan Test Operation
Symbol Parameter
V
CC
(V)
(Note 11)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Guaranteed Minimum
t
S
Setup Time, 5.0 3.0 ns
Data to TCK (Note 13)
t
H
Hold Time, 5.0 5.5 ns
TCK to Data (Note 13)
t
S
Setup Time, H or L 5.0 3.0 ns
AOE
1
, BOE1to TCK (Note 15)
t
H
Hold Time, H or L 5.0 4.5 ns
TCK to AOE
1
, BOE1(Note 15)
t
S
Setup Time, H or L
Internal AOE, BOE, 5.0 3.0 ns
to TCK (Note 14)
t
H
Hold Time, H or L
TCK to Internal 5.0 3.0 ns
AOE, BOE (Note 14)
t
S
Setup Time 5.0 3.0 ns
ALE, BLE (Note 12) to TCK
t
H
Hold Time 5.0 4.0 ns
TCK to ALE, BLE (Note 12)
t
S
Setup Time, H or L 5.0 8.0 ns
TMS to TCK
t
H
Hold Time, H or L 5.0 2.0 ns
TCK to TMS
t
S
Setup Time, H or L 5.0 4.0 ns
TDI to TCK
t
H
Hold Time, H or L 5.0 4.5 ns
TCK to TDI
t
W
Pulse Width TCK 5.0
H 12.0 ns
L 5.0
f
max
Maximum TCK 5.0 25 MHz
Clock Frequency
www.national.com11
Page 12
AC Operating Requirements (Continued)
Scan Test Operation
Symbol Parameter
V
CC
(V)
(Note 11)
Military
Units
Fig.
No.
T
A
=
−55˚C to +125˚C
C
L
=
50 pF
Guaranteed Minimum
T
pu
Wait Time, Power Up to TCK 5.0 100 ns
T
dn
Power Down Delay 0.0 100 ms
Note 11: Voltage Range 5.0 is 5.0V±0.5V.
All Input Timing Delays involving TCK are measured from the rising edge of TCK.
Note 12: Timing pertains to BSR 37 and 40 only.
Note 13: This delay represents the timing relationship between the data input and TCK at the associated scan cells numbered 0-8, 9-17, 18-26 and 27-35.
Note 14: This delay represents the timing relationship between AOE/BOE and TCK for scan cells 36 and 39 only.
Note 15: Timing pertains to BSR 38 and 41 only.
Capacitance
Symbol Parameter Max Units Conditions
C
IN
Input Pin Capacitance 5.0 pF V
CC
=
5.0V
C
OUT
Output Pin Capacitance 15.0 pF V
CC
=
5.0V
C
PD
Power Dissipation Capacitance 35.0 pF V
CC
=
5.0V
www.national.com 12
Page 13
13
Page 14
Physical Dimensions inches (millimeters) unless otherwise noted
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF NATIONAL SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into
the body, or (b) support or sustain life, and whose failure to perform when properly used in accordance
with instructions for use provided in the labeling, can
be reasonably expected to result in a significant injury
to the user.
2. A critical component in any component of a life support
device or system whose failure to perform can be reasonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
National Semiconductor
Corporation
Americas
Tel: 1-800-272-9959
Fax: 1-800-737-7018
Email: [email protected]
www.national.com
National Semiconductor
Europe
Fax: +49 (0) 1 80-530 85 86
Email: [email protected]
Deutsch Tel: +49 (0) 1 80-530 85 85
English Tel: +49 (0) 1 80-532 78 32
Français Tel: +49 (0) 1 80-532 93 58
Italiano Tel: +49 (0) 1 80-534 16 80
National Semiconductor
Asia Pacific Customer
Response Group
Tel: 65-2544466
Fax: 65-2504466
Email: [email protected]
National Semiconductor
Japan Ltd.
Tel: 81-3-5620-6175
Fax: 81-3-5620-6179

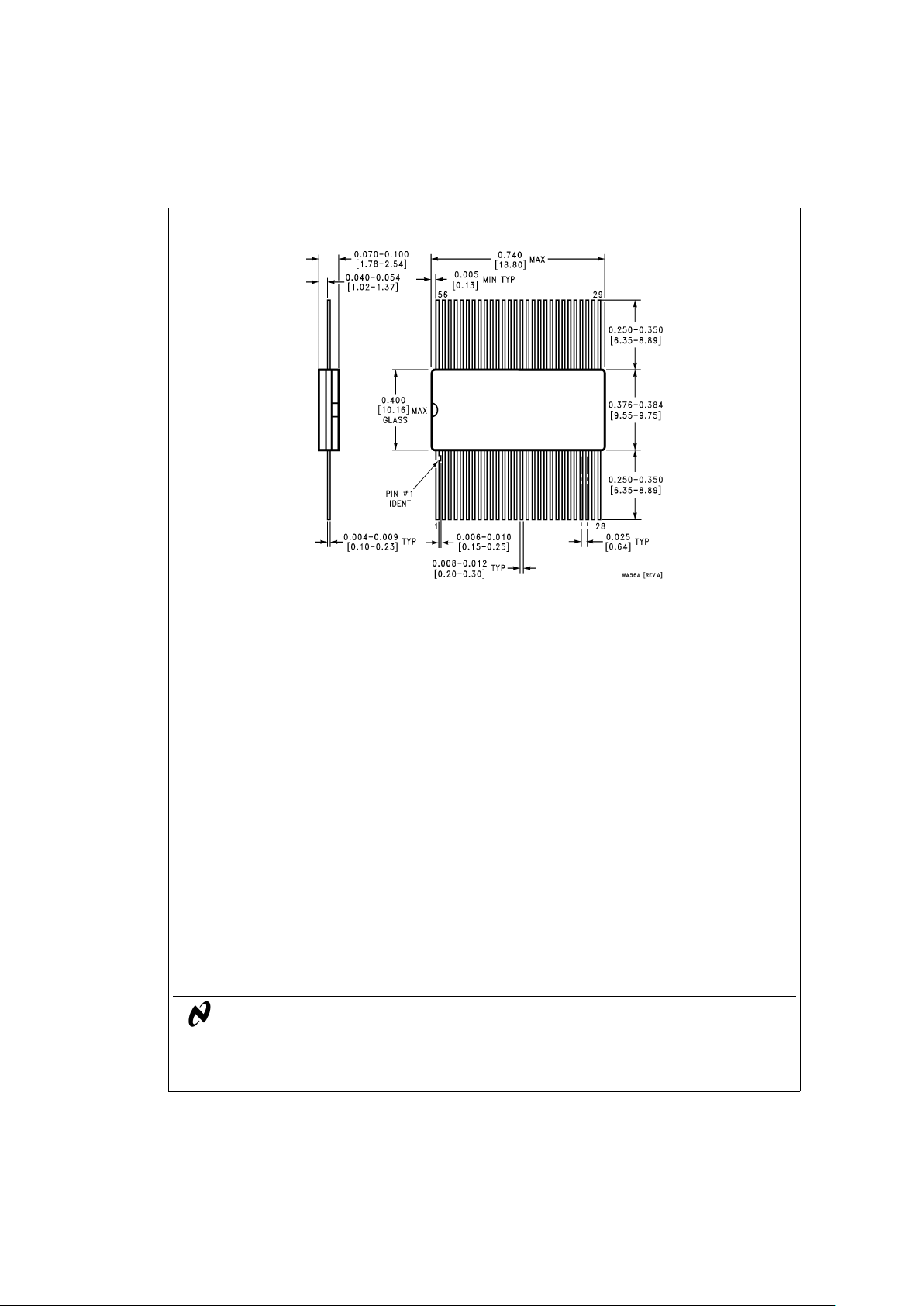

56-Lead Ceramic Flatpak (F)
NS Package Number WA56A
SCAN18373T Transparent Latch with TRI-STATE Outputs
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves the right at any time without notice to change said circuitry and specifications.
Loading...
