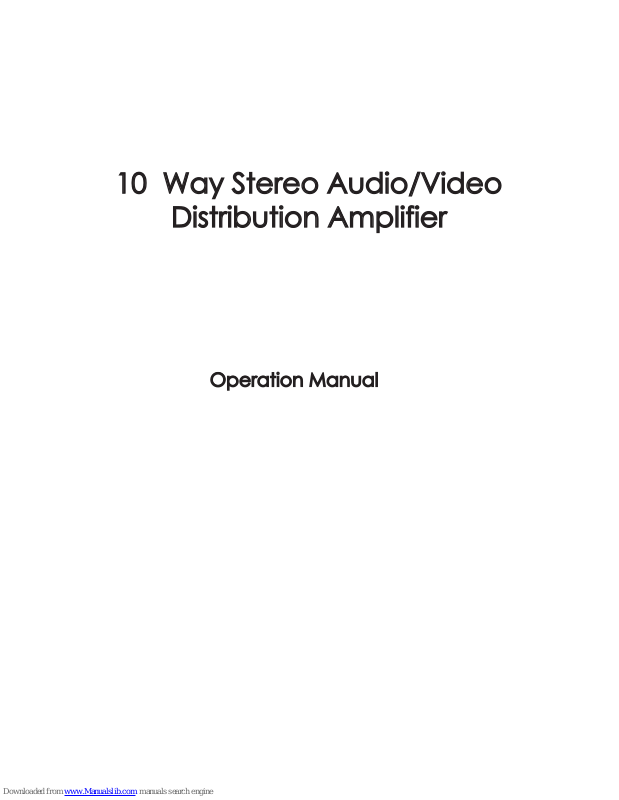

Page 1
10 Way Stereo Audio/Video
Distribution Amplifier
Operation Manual
Page 2
1. Lets you make up to 10 loss free video copies or display the output of one VCR
on up to 10 TVs.
2. Loop through facility allows you to connect further 10 way amplifiers.
3. Easy to connect-just use any Scart to Scart cables.
4. Ideal for duplication of video tapes or shop and showroom displays.
Features
Operation Controls and Functions
Front Panel
1. Power ON/OFF switch.
Push the button to turn )N/OFF the power.
2. Power LED.
Power
SC-AMP3
10 Way Stereo Audio/Video Distribution Amplifier
1
2
1.DC 15V Input.
1
DC 15V
Rear Panel
Page 3
Scart Lead (Back of Plug View)
1. Audio output, right channel
2. Audio input, right channel
3. Audio output, left channel
4. GND (Audio)
5.GND(Blue return)
6. Audio input, left channel
7.Blue input/output.
8.Video status input/output.
9.GND(Green return).
11.Green input/output
13.GND(Red return)
14.GND(RGB status return)
Operation Controls and Functions

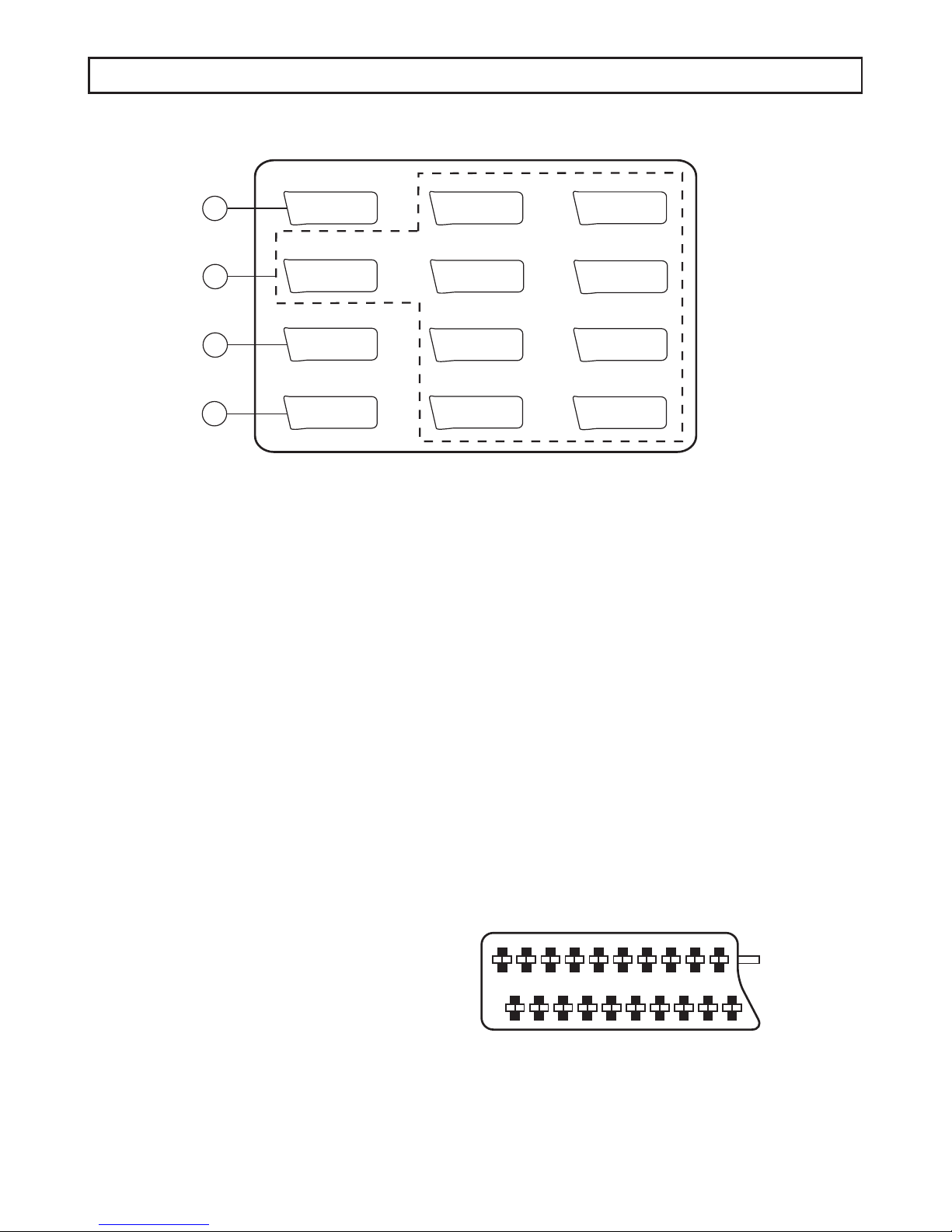

Upper Panel
1. Input scart connector: 21-pin scart connector for Audio/Video input.
2. Output scart connectors:
21-pin scart connectors for distributed parallel Audio/Video output
3. Monitor or output scart connector.
4. Loop out or output scart connector: Loop to next SC-AMP3.
15.Red(or Chrominance)input/output.
16.RGB status input/output.
17. GND (Video)
18. GND(Video)
19. Video or Y output
20. Video or Y input
21. Shield
INPUT OUTPUT 1
OUTPUT 2
OUTPUT 5
OUTPUT 8
OUTPUT 4
OUTPUT 7
OUTPUT 10
OUTPUT 11
OUTPUT 3
MONITOR OR OUTPUT 6
LOOP OUT OR OUTPUT 9
1
3
4
2
3
2 4 6 8 10 12 14 16 18 20
51 7 9 11 13 15 17 19 21
Page 4
RGB IN/OUT: 0.7V 75 ohm
Video IN/OUT: 1 Vp-p 75 ohm
Y/C input with pin15 and pin 20: 1 Vp-p 75 ohm
Y/C output with pin 15 and pin 19: 1 Vp-p 75 ohm
Audio IN/OUT: Through out
Video frequency: >10 MHz(-3 dB)
Differential gain: < 2%
Differential phase: < 2 Deg
Power: Output: 15 Volt 1500 mA AC Adaptor
Specifications
